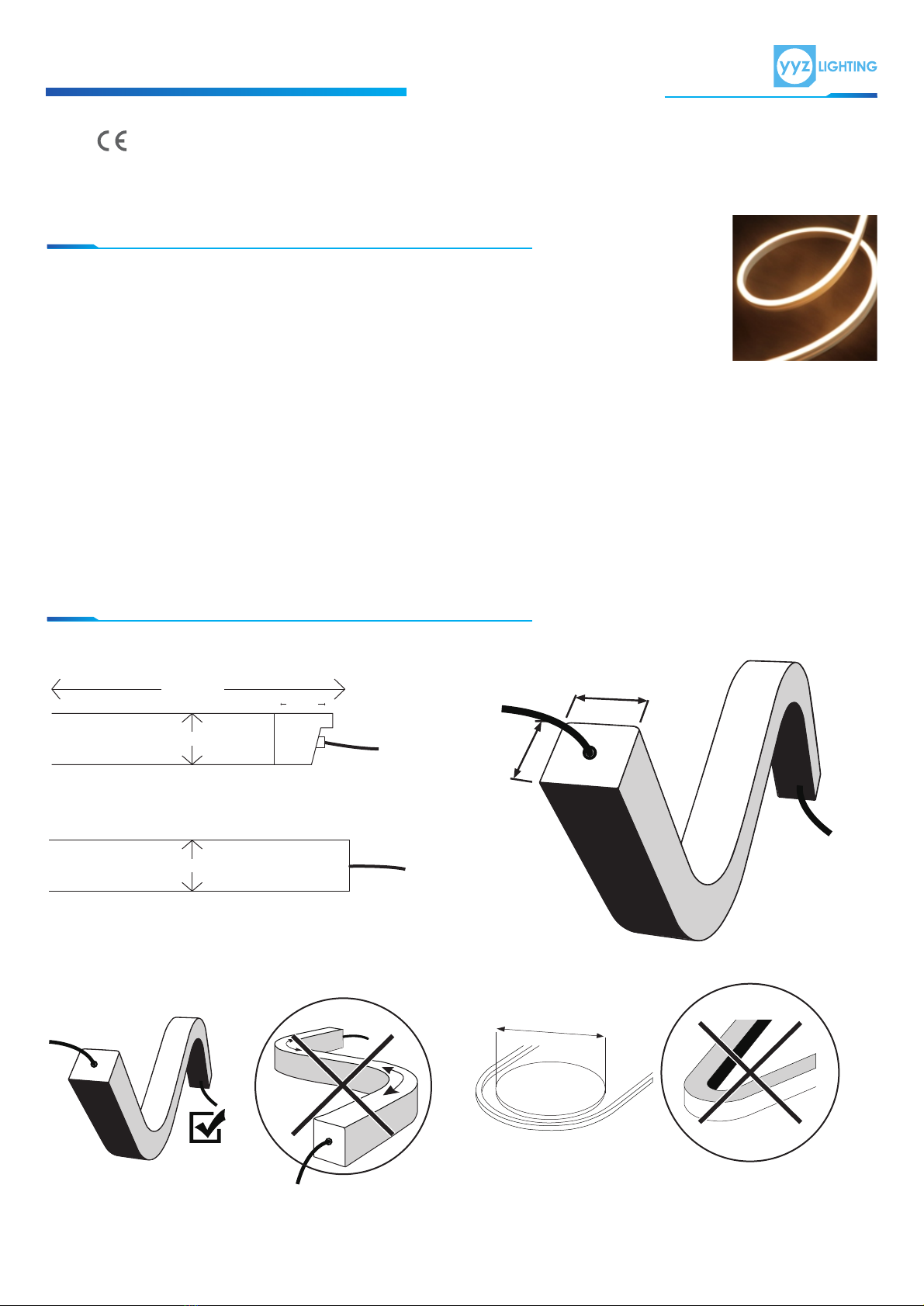

YYZ Lighting VERTEX FLEX-FT16 User manual

FLEX TOP USING INSTRUCTION
STANDARD DIMENSION
VTF FT16 Series Page 1 of 2
VERTEX FLEX-FT16 INSTRUCTION
VTF FT16
IP67
YYZ Lighting Inc., 1175 Squires Beach Rd, Unit 2, Pickering, ON L1W 3V3, Canada. www.yyzlighting.com
1. The most suitable operation temperature shall be -25°C to 45°C.
2. Pleas make sure that even during installation, the predetermined bending direction is NEVER changed. The product only have top
bending, and can not be twisted.
3. YYZ FLEX TOP shall not be bent sharply. PC core and en-capsulation can not prevent any damage.
4. The maximum bending diameter is 300mm, over bending will damage and void any warranty.
5. During the installation, the YYZ FLEX TOP
TOP can not be:
TwistedO
DroppedO
Bent at a 90°angle or bent at allO
Sagging/Hanging downO
6. Do not leave it together with card or paper directly as it will influence the surface clean.
7. For installation,4 ways for your selection.
Mounting clipsO
Alumium profileO
PC profileO
Holding clipsO
8. For the cutting unit, it is 41.666mm for white color and 71.429mm for RGB.
5012mm
6mm
m m15
16mm
16mm
15mm
LIGHT SOURCE
Bend too tight
BendingDiameter
300mm
LIGHT SOURCE

Page 2 of 2
YYZ Lighting Inc., 1175 Squires Beach Rd, Unit 2, Pickering, ON L1W 3V3, Canada. www.yyzlighting.com
Do not droopDo not hangDo not twist
≥30cm
Two Person Installation
≥30cm
GLUE
8
Seamless Connection
1 2
3 3 1Mtr/pcs
Aluminium Profile
2
(Optional)
VTF FT16 Series
VERTEX FLEX-FT16 INSTRUCTION
VTF FT16
