Zavio D510E-Varifocal lens Quick Installation Guide
Please follow the installation steps below to set up your D510E-Varifocal lens IP Camera.
Check the package contents against the list below. See P.1
Physical overview. See P.1
Install the hardware and connect all cables. See P.2
Microsoft OS: Use the software CD to install Intelligent IP Installer. See P.3
Access the IP Camera using Intelligent IP Installer. See P.4
Mac OS using Safari Browser. See P.6
Change light environment setting. See P.6
Change the Web Interface into your preferred language. See P.7
Use IP Camera via Mobile Phone. See P.7
Windows Live Messenger Setting. See P.7
Access to Internet via Static IP, Dynamic IP or both. See P.9
For more information, please check the User Manual available in the Software CD or you can download the latest
software from http://www.zavio.com
Package Contents
Camera D510E-Varifocal lens Dome IP Camera
Quick Installation Guide Brief product information and quick installation
Software CD
IP Surveillance Software
Intelligent IP Installer
User Manuals
Language Packs
Screw Pack Two screws and plastic wall anchors
Adaptor 12V DC, max 6W
Physical overview
Zoom puller and focus puller: Zoom to the position desired and focus image.
Pan and Tilt Screw: Loosen the pan and tilt screws to adjust angle.
Reset: When the device is powered, press the Reset Button to reboot the device, or hold the Reset Button for 10
seconds to set the settings back to factory default
1
Base
Pan screw
Tilt screw
Vari-focal lens
Focus puller
Zoom puller

Install the hardware and connect all cables
a. Wall mounting and Ceiling mounting
2
1. Unfasten the cover of the Dome IP Camera.
Be careful do not scratch the cover glass.
2. Use the 2 supplied screws to fix the base of the
IP Camera to a flat surface. (vertical or horizontal)
3. Unscrew the pan screw; adjust the lens to
your desired pan angle and then tighten the pan
screw.
Unscrew the tilt screws; adjust the lens to
your desired tilt angle and then screw tight the
tilt screw.
4. Turn the lens to the desired direction. Loosen the zoom puller and rotate the
room and determine desired zoom position. Loosen focus puller and focus the
image. After determining zoom and focus, lock the zoom puller and focus
puller. Use soft cloth to clean dome cover glass to remove dust and finger
prints and also use blower to remove dust from the lens.

b. Connect all cables
b1. Power over Ethernet (PoE)
1. Using a standard RJ-45 network cable, connect the IP Camera
to a PoE-enabled Hub / Switch / Router
b2. Without Power over Ethernet (PoE) connection
1. Connect the power adaptor to the IP Camera.
2. Using a standard RJ-45 network cable, connect the IP Camera
to a normal Hub / Switch / Router.
Microsoft OS: Use the software CD to install Intelligent IP Installer
Power on your PC and insert the CD-ROM. The setup page will show up automatically. Please follow those steps
to install the firmware.
Select “Intelligent IPInstaller” and follow the installation process to complete the installation.
b2
b1
5. Rotate the black protective shield inside the dome
to match the camera’s position. Fasten the cover.
3

Access the IPCamera using Intelligent IP Installer
1. Before using Intelligent IP Installer, please check two setting.
a. Browser’s Internet Properties →Security
→Default Level
b. Browser’s Internet Properties →Privacy
→Uncheck Pop-up Blocker
2. Click the Intelligent IP Installer Icon on your desktop. The main page will show up listing all active
camera and video server devices. Select the relevant IP camera from the list and click Link to IE.
3. Enter your Username and Password
to login to the IP Camera.
(Default is admin / admin)
4

4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar:
This website wants to install the following add-on: ‘AxvideoView.cab from ‘Zavio Inc’.
5. Click the information bar, and select Install ActiveX control.
6. Click Install.
7. Live video displays in the centre of your web browser.
5

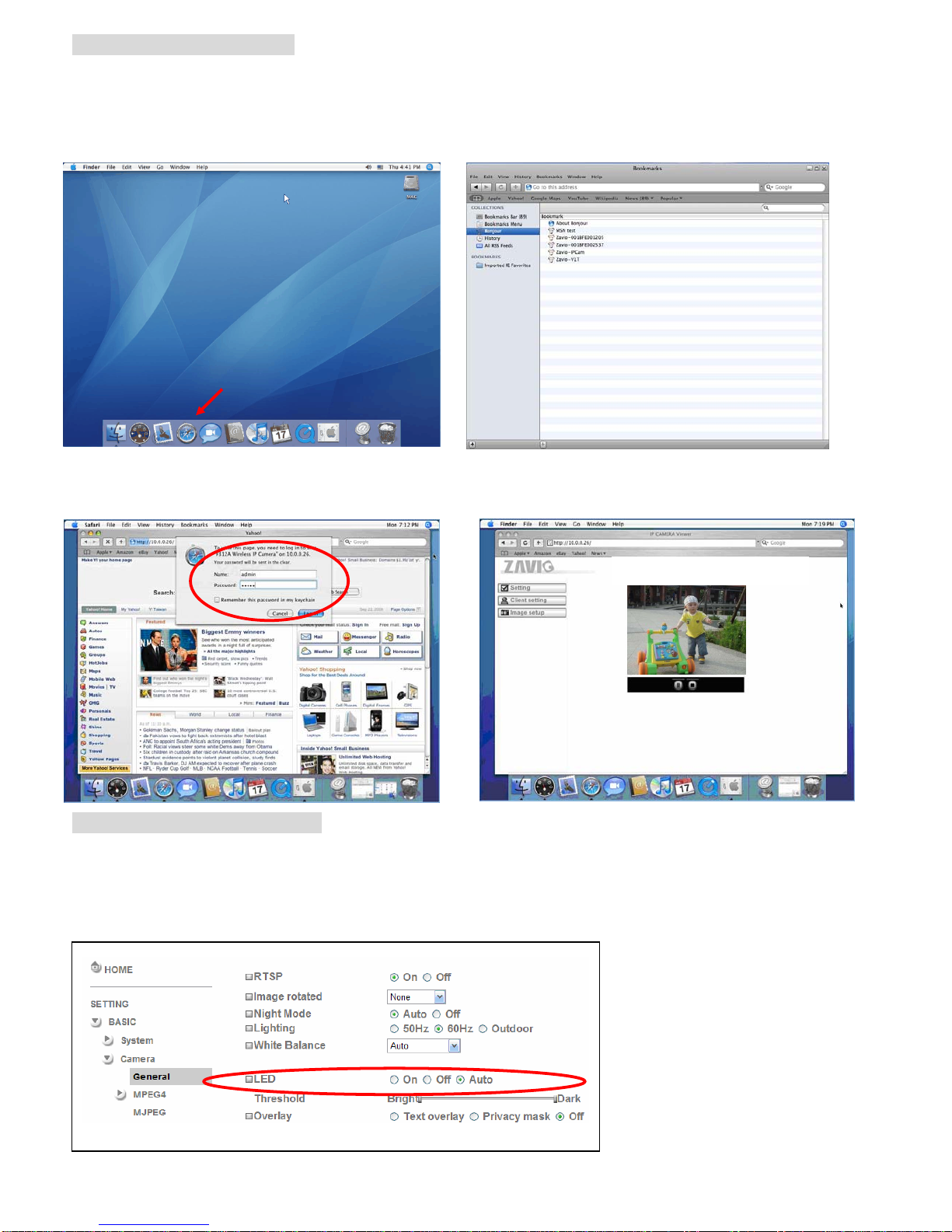

Mac OS using Safari Browser
Change light environment setting
The default setting of lighting environment is 60Hz. However, if the image appears flickery, this might be because
the lighting environment in your country is 50 Hz. Hence, this setting can be changed into 50Hz. Or if you wish to
use this IP Camera in an outdoor environment, this setting can be changed into Outdoor mode.
Go to “Setting →Basic →Camera →General＂, choose the environment setting you wish.
4. The monitor image will be displayed in your browser.
1. Select Safari icon 2. Click Bonjour function and select the camera
you wish to access.
3. Enter name and password to login to the IP
camera.
(
Default is admin / admin
)
6

Change the Web Interface into your preferred language
Use the settings screen to set the language of the Web Interface.
Go to “Setting →Basic →System →Initialize”.
1. Insert Software CD into your CD-ROM.
2. Browse and select the preferred language from language pack in the Software CD and then click OK.
3. The web interface will change into your preferred language.
Use IP Camera via Mobile Phone
1. Using IP Camera via iPhone
Select Safari function →Enter IP address in the web link →enter username and password (default value
admin/admin) →The Zavio user interface and Live Image will show up in the middle of the screen.
2. Mobile phone viewing
a. 3G Mobile Phone Streaming Viewing
For 3G mobile phone viewing, please type “ rtsp://<IP>:<PORT>/video.3gp ” into your 3G web media player.
<IP> is the IP address of your IP camera;
<PORT> is the RTSP port of your IP camera (Default value is 554.)
Example: rtsp://100.10.10.1:554/video.3gp
b. 2.5G Mobile Phone Viewing
b1. WAP viewing
For 2.5G WAP mobile phone viewing, type “ http://<IP>/mobile.wml ” into your 2.5G web browser.
b1. Browser viewing
For 2.5G mobile phone browser viewing, type “http:// <IP>/mobile.htm ” into your 2.5G web browser.
Windows Live Messenger Setting
Live video of the IP Camera can be displayed using Microsoft Live Messenger, whilst providing its public IP
address to users for access via the web browser. This feature is useful especially when the IP address of the
camera is dynamically assigned.

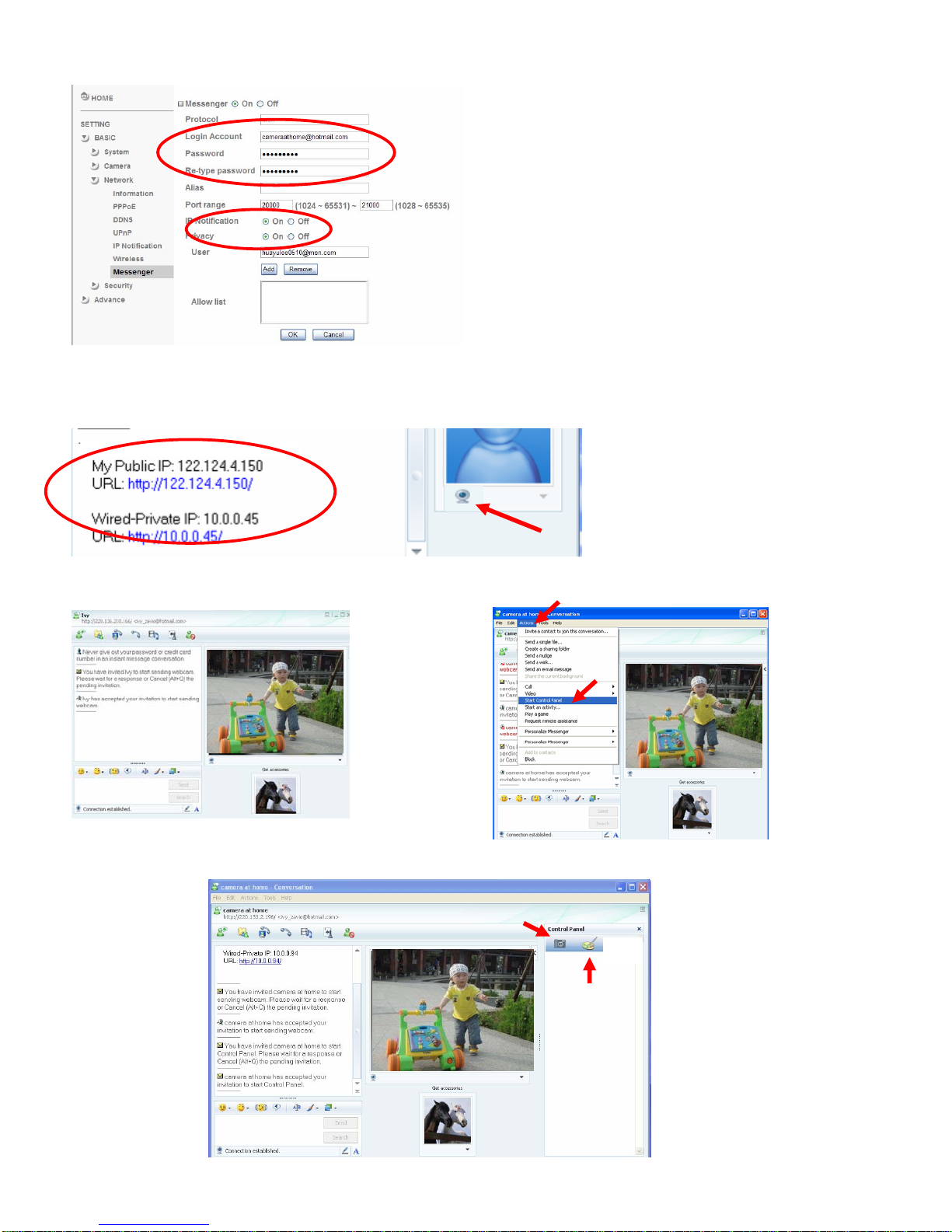

If you wish to set up MSN Messenger, enter the camera’s setting page.
Go to “Setting →Basic →System →Network →Messenger”, set the Messenger option “On”
1. Create a new MSN Messenger account (e.g.: Camera at home) for the IP Camera
2. Enter the new MSN Messenger Login account and password within the designated boxes
3. Under the IP Notification Option, Click “On” to enable IP notification to the users.
4. Under the Privacy Option, Click “On” to create an allow list.
5. Use your existing account to login to MSN Messenger.
6. Add the new MSN Messenger account (e.g.: Camera at home) to your contact list.
7

7. The IP Camera will send you a message with its Public IP and Private IP if the IP Notification Option is
enabled.
8. Click on the small camera icon. Then, choose “View a new contact's webcam”.
9. The IP Camera automatically accepts your
invitation and its live video is displayed.
10. Click Action button and choose
Start control panel to use control panel
11. You can use Snapshot, Image Setup function via MSN add-in control panel.
Camera at home says:
Snapshot
Image Setup
8

Access to the Internet
a. Internet connectivity of the IP camera can be established by inputting the cameras IP information within the
Information section.
(Please go to Setting →Basic →Network→Information)
b. Internet Connectivity of the IP Camera can be established through PPPoE (Point-to-Point Protocol over the
Ethernet) by inputting the username and password from your Internet Service Provider (ISP) within the PPPoE
section.
(Please go to Setting →Basic →Network→PPPoE)
Note 1: Please reboot the IPCamera, after changing the PPPoE settings.
Note 2: Please turn on the DDNS and IP Notification function when using PPPoE.
9

c. Internet Connectivity of the IP Camera can be established if your router is UPnP (Universal Plug and Play)
enabled. The IP camera is automatically detected and added to “My Network Places” on your computer. Please
note that only Home Routers manufactured after 2006 support the UPnP function.

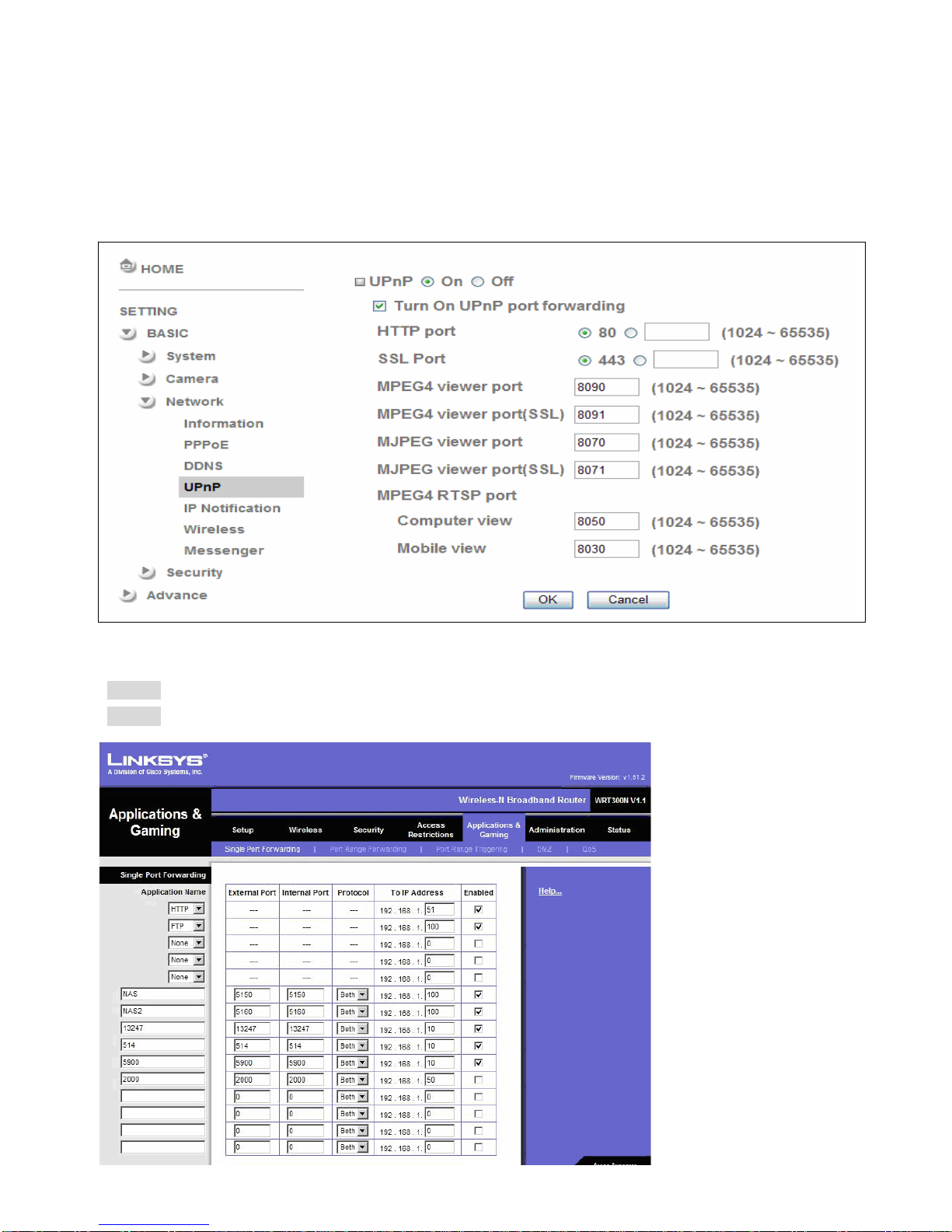

c1. If your router is a UPnP Internet Gateway Device (IGD), turn on the UPnP function within the UPnP
section. (Please go Setting →Basic →Network→UPnP)
Note: If you turn on the UPnP Port Forwarding function, RTSP(Real Time Streaming Protocol) Port
information will change to the illustrated value below.
c2. If your router is not a UPnP Internet Gateway Device, please setup Port Forwarding or Port Mapping
Note 1: Home Routers manufactured before 2006 do not support UPnPIGD function.
Note 2: Enterprise Routers do not support UPnP IGD function.
