Zebex Z-5112 User manual



Z‐5212



2DIma

eScanEn

ine

ii 2DImageScanEngine

RevisionHistory

Changestotheoriginalmanualarelistedbelow:

VersionDateDescriptionofVersion

1.02020/05/20Initialrelease

iii

ImportantNotice

Nowarrantyofanykindismadeinregardtothismaterial,including,butnotlimitedto,

impliedwarrantiesofmerchantabilityorfitnessforaparticularpurpose.Wearenot

liableforanyerrorscontainedhereinorincidentalorconsequentialdamagesin

connectionwithfurnishing,performanceoruseofthismaterial.

Nopartofthisdocumentmaybereproduced,transmitted,storedinaretrievalsystem,

transcribed,ortranslatedintoanylanguageorcomputerlanguageinanyformorbyany

meanselectronic,mechanical,magnetic,optical,chemical,manualorotherwise,without

expresswrittenconsentandauthorization.

Wereservetherighttomakechangesinproductdesignwithoutreservationandwithout

notification.Thematerialinthisguideisforinformationonlyandissubjecttochange

withoutnotice.

Alltrademarksmentionedherein,registeredorotherwise,arethepropertiesoftheir

variousrespectiveowners.



ForCE‐countries

ThisscannerisinconformitywithCEstandards.Pleasenotethatanapproved,

CE‐markedpowersupplyunitshouldbeusedinordertomaintainCEconformance.



GuidanceforPrinting

1. ThismanualisinA5size.Pleasedoublecheckyourprintersettingbeforeprintingit

out.

2. Whenprintingbarcodesforprogramming,theuseofahigh‐resolutionlaserprinter

isstronglysuggestedforthebestscanresult.



iv 2DImageScanEngine

TableofContents



ImportantNotice....................................................................................iii

Introduction.............................................................................................1

Overview ...............................................................................................2

Components......................................................................................2

ScannerOperation...................................................................................3

Precautions ...........................................................................................3

MaintainingtheScanner .......................................................................3

ESD ....................................................................................................3

ScanAngles ...........................................................................................4

ScanZone ..............................................................................................5

Installation...............................................................................................6

FFCCable...............................................................................................6

Z‐5112C&MTypePinDefinition .........................................................7

Mounting...............................................................................................9

TechnicalSpecification ......................................................................... 13

2DImageScanEngine1



USER’SMANUAL

Introduction

Highscanningspeedwithoutcompromisingperformance,thedeviceisapowerful2D

imagescanenginethateasilydecodesmost1Dand2Dbarcodeswithintuitiveaiming

accuracy.Italsosupportsstandardserial,USBinterfacethatcanbeeasilyintegratedwith

mosthardwareplatform.Thecompactdimensionmakesinstallationeffortlessevenin

themostspace‐constrainedproducts,includingmobilecomputers,kiosks,lottery

machineandmore.Thedeviceistheperfectsolutionformanyindustries.



•Ultrasmallsize

•Noseparatedecoderboardrequired

•Flexibleinterfacecommunications

•Outstanding1Dand2Dscanningperformance

•Capturesbarcodesonmobilephone,tablet,orcomputerscreens



2 2DImageScanEngine

USER’SMANUAL

Overview





Good read LED

Trigger KeyIR Emitter

Light Source

Lens



Aiming



Components

DescriptionFunction

LightSourceReinforcedlightbrightness

AimingProduceeasytoseescanline

LensCapturesimagefordecoding

TriggerKeyUsedtostartadecodeasession

GoodreadLEDGoodreadLEDindicated

IREmitterInfraredemitterdiode



2DImageScanEngine3

USER’SMANUAL

ScannerOperation

Precautions

Toensurethescannerreachesitsbestperformance,thefollowingpointsneedtobe

noticedwhenmountingthescanner:

a. Donotplacethescannerunderdirectsunlightoranyotherbrightlightsource

illuminating.

b. Whenplacingthebarcodelabel,onemustbecarefulnottoovertilt,skewand/or

pitchthebarcode.

c. Donotplacethedeviceatspeculareflectionposition.TheLEDlightofthescanner

reflectsdirectlybackonthescannerifitisplacedatspeculareflectionposition.

AstothenatureofCMOSsensor,itwillnotbeabletoreadanybarcodes.

d. Thebarcodelabelmustbeplacedwithintheeffectivedepthoffield(D.O.F.)since

itistheeffectivereadingdistanceforthebarcodefromthescanner.Forthebest

placingposition,pleaserefertotheDecodeDepthofFielddrawing.



MaintainingtheScanner

Handlingwithcare!Thescanenginesareelectrostaticsensitivedevice;donothandle

withbarehands.Storetheenginesawayfromdustandhumidityplaces.



ESD

ThescanenginesareprotectedfromESDeventsthatmayoccurinanESD‐controlled

environment.Alwaysexercisecarewhenhandlingthemodule.Usegroundingwrist

strapsandhandleinaproperlygroundedworkarea.



4 2DImageScanEngine

USER’SMANUAL

ScanAngles

Seethefollowingillustrationsfortheeffectivebarcodereadingangles.



2DImageScanEngine5

USER’SMANUAL

ScanZone

Theeffectivereadingdistanceforthescannerisillustratedasbelow.



Differentqualityanddensityofabarcodecouldeffectitsdecodedepth

offield.Usuallywhenabarcodehaspoorprintingqualityorhigh

density,thedepthoffieldwouldbeshorter.Itishighlysuggestednot

placethebarcodelabelattheextremesofdepthoffieldasitisoften

easytomoveoutfromthereadingrange.



6 2DImageScanEngine

USER’SMANUAL

Installation

FFCCable

Aflexstripcableisneededtoconnectthescanenginetoyourhostterminal,and

differentdecodemodeusesdifferentFFCcable.

Decodedmodescanengine:12PinZIFPinconfiguredFFCcable



ThefollowingfigureshowstheFFCcabledimensionanditspin‐outconfiguration.



FFCCableDimension



2DImageScanEngine7

USER’SMANUAL

Z‐5112C&MTypePinDefinition





Z‐5112CTypePinDefinition



PIN#SignalNameI/OFunction

1V3.3Power 3.0V~3.6V

2RXDIUARTreceivedata

3TriggerITriggerinput

L=enable

4VBUSPower USBVBUSpower

5TXDOUARTtransmitdata

6RTSOUARTrequesttosend

7GNDPower Powersupplyground

8USB_DPBIUSB_DPdifferentialdatasignal

9GoodreadOGoodreadLEDoutput

H=enable

10CTSIUARTcleartosendsignal

11BeeperOBeeperoutput

H=enable

12USB_DMBIUSB_DMdifferentialdatasignal



8 2DImageScanEngine

USER’SMANUAL



Z‐5112MUTypePinDefinition



PIN#SignalNameI/OFunction

1VBUSPower 4.5V~5.5V

2USB_DMBIUSB_DMdifferentialdatasignal

3USB_DPBIUSB_DPdifferentialdatasignal

4TriggerIUnused

5GNDPower Powersupplyground



2DImageScanEngine9



USER’SMANUAL

Mounting



Inthissection,wewillintroducewaystomountthescanengineintoyourdesign.



Atthebackofscanengine,therearetwoscrewholesreservedformounting,thescan

enginecanbefixedinanypositionandanyanglewithoutanydegradationin

performance.Andtoensurethescannerreachesitsbestperformance,thefollowing

pointsneedtobefollowedwhenmountingthescanner:



Toavoiddirectsunlightoranyotherbrightlightsourceilluminating.



Whenplacingthebarcodelabel,onemustbecarefulnottoovertilt,skewand/orpitch

thebarcode.



Toavoidputtingthescannerinspeculareflectionposition,theCMOSsensorwillnot

sensethereadingofanybarcodesiftheLEDlightreflectsstraightback.



Thebarcodemustbeplacedwithintheeffectivedepthoffield(D.O.F.)area,the

effectivereadingdistanceforthebarcodefromthescanner.Itstheoryislikeacamera,if

theobjectisplacedwithinthefocalrange,andtheimageappearsclearly.Butifthe

objectisoutsidethefocalrange,theimagethenisblurred.Anddifferentqualityand

densityofbarcodescouldaffectitsD.O.F;usuallyalowerpieceorhighdensityof

barcode,itsdepthoffieldisshorter.Itissuggestedtoavoidusingdepthoffield

extremesrange,barcodeiseasilymovedawayfromthereadingrange.



Forbestplacingposition,pleaserefertotheDecodeDepthofFielddrawing.



ThermalConsiderations

ElectroniccomponentsintheZ‐5112willgenerateheatduringthecourseoftheir

operation.OperatingtheZ‐5112incontinuousmodeforanextendedperiodmaycause

temperaturestoriseonAPUanddecoderchip.Overheatingcandegradeimagequality

andaffectscanningperformance.Giventhat,thefollowingprecautionsshouldbetaken

intoconsiderationwhenintegratingtheZ‐5112.

1. Reservesufficientspaceforgoodaircirculationinthedesign.

2. AvoidwrappingtheZ‐5112withthermalinsulationmaterialssuchasrubber.

3. Increasethethermalstrategytoreducethescanningenginecontinuousoperating

temperature.

10 2DImageScanEngine

USER’SMANUAL



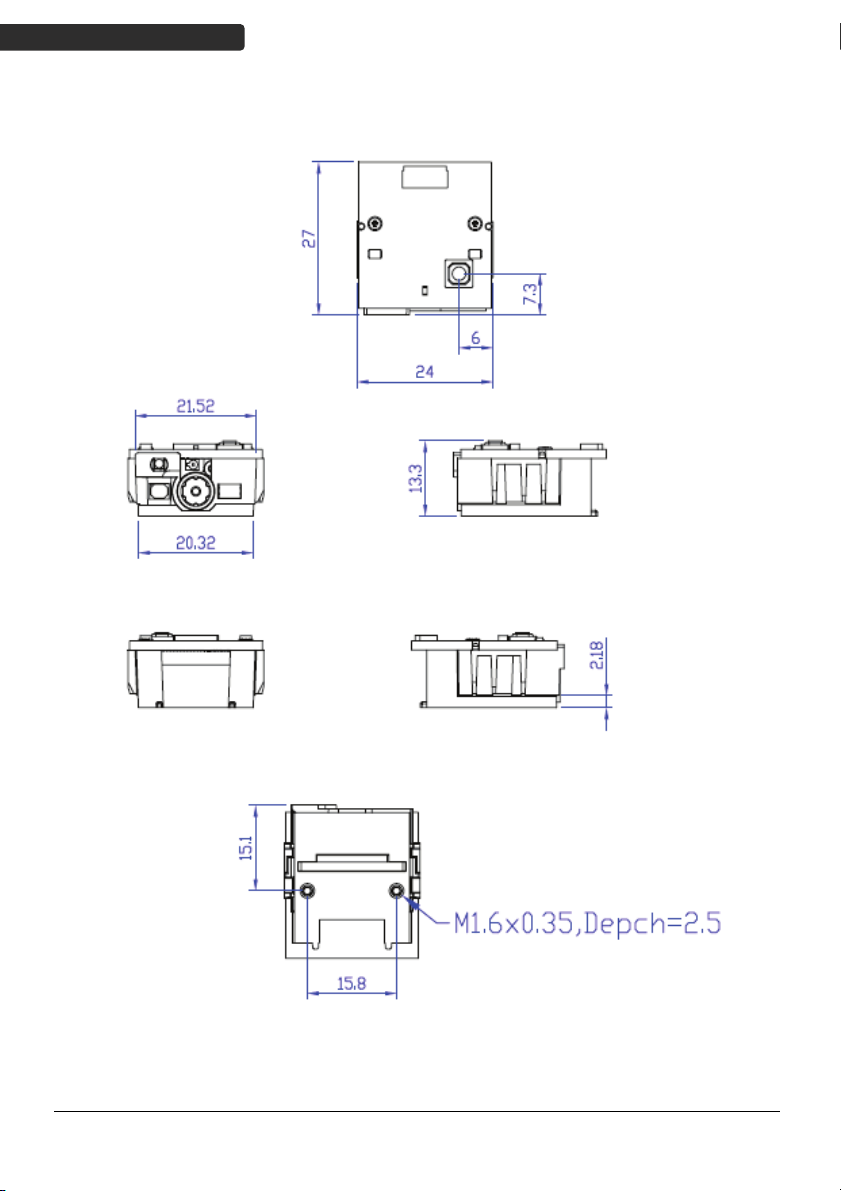

CTypeDimensions



OutlineDrawing



2DImageScanEngine11

USER’SMANUAL



MTypeDimensions



OutlineDrawing



12 2DImageScanEngine

USER’SMANUAL



CoverGlassDrawing



2DImageScanEngine13



USER’SMANUAL

TechnicalSpecification

Resolution1280Hx720Vpixels

LightSource5000KLED(White)

AimingPattern617nmLED(Red)

ImageFieldofView

(ScanZone)38.6°Hx24.9°V

Roll/Pitch/Yaw

(Skew)360°/±60/±60°

ScanRate60fps

PrintContrastRatio

(Minimum)30%

MinimalElementResolution

Code39:4mil

PDF417:6.7mil

Datamatrix:7.5mil

QRCode:7.5mil


