Zebex Z-3130BT User manual

Z-3130BT
1
Table of Contents
1.Introduction
1.1Directions ………………………………………………….2
1.2 Confirmation of packing ……………………………………2
1.3 Warranty ………………………………………………….2
1.4 Scanner outline ………………………………………………….3
1.5 Indicator LED ………………………………………………….3
1.6 How to change Batteries .............................................…..4
2.How to operate
2.1 How to use buttons ..................................................................…5
2.1 How to use buttons ..................................................................…5
2.1 How to use buttons ..................................................................…5
2.1.1 Power button ………...........................................................5
2.1.2 Trigger ………...........................................................5
2.2 How to connect ………...........................................................5
2.2.1 Connection of first time (Master mode) ................................5
2.2.2 Connection of second time ...................................................5
2.3 How to scan ..........................................……….................6
3.Communication protocol
3.1 Serial Communication protocol ...................................................7
3.2 Output data format ......................................……….....................7
4.Parameter Setting
4.1 Setting method .................................................………..........8
4.2 Initialization .........................................................………..8
4.3 System Function Setting .........................................…......9
4.4 The Symbologies Setting …………………………………..12
4.4.1 JAN/EAN/UPC Parameter Setting …………………….12
4.4.2 CODABAR Parameter Setting ..............................13
4.4.3 ITF(Interleaved2of5) Parameter Setting ..............................14
4.4.4 Code39 Parameter Setting ...........................………………15
4.4.5 Code93 Parameter Setting …………………………………..16
4.4.6 Code128 Parameter Setting …………………………………..16
5.Configuration for Administrator
5.1 How to shift to Configuration Mode …………………….17
5.2 Bluetooth Communication Setting …………………….18
5.3 Parameter confirmation (BT communication) ………20
Z-3130BT
2
1.Introduction
Thank you for purchasing mobile bar code scanner Z-3130BT for this
time.
To use this product safely and in prime condition, please read "How to
operate", and understand the content well.
1.1 Directions
This product is composed of precise electronic devices, so never break
up the scanner. Please contact a distributor when this product breaks
down by any chance.
1.2 Confirmation of packing
The content of the packing of this product is as follows. Please contact
the distributor if any contents are damaged or missing.
Mobile handy scanner Z-3130BT 1pc
User’s Manual (this book) 1pc
AAAAlkaline Batteries 2pcs
1.3 Warranty
Warranty is one year from the purchase date.
However, the repair of damage due to the customer's handling mistake
is charged even during the warranty term it.
Moreover, it cannot assume all the responsibilities about the loss and
the damage caused as a result of the operation of this product.

Z-3130BT
3
BluetoothR
1.4 Scanner outline
1.5 Indicator LED
Good Read：A barcode has been successfully decoded,
it blinks once.
Communications：
[Fast blinking] Connecting (Scan Disable)
[Slow blinking] Connected (Scan Enable)
[Green LED] Normally
[Red LED] Low battery
*Please change the batteries when the indicator LED blinks in Red.
PW Button
Trigger
Exit Window Indicator LED
Battery cover
Z-3130BT
4

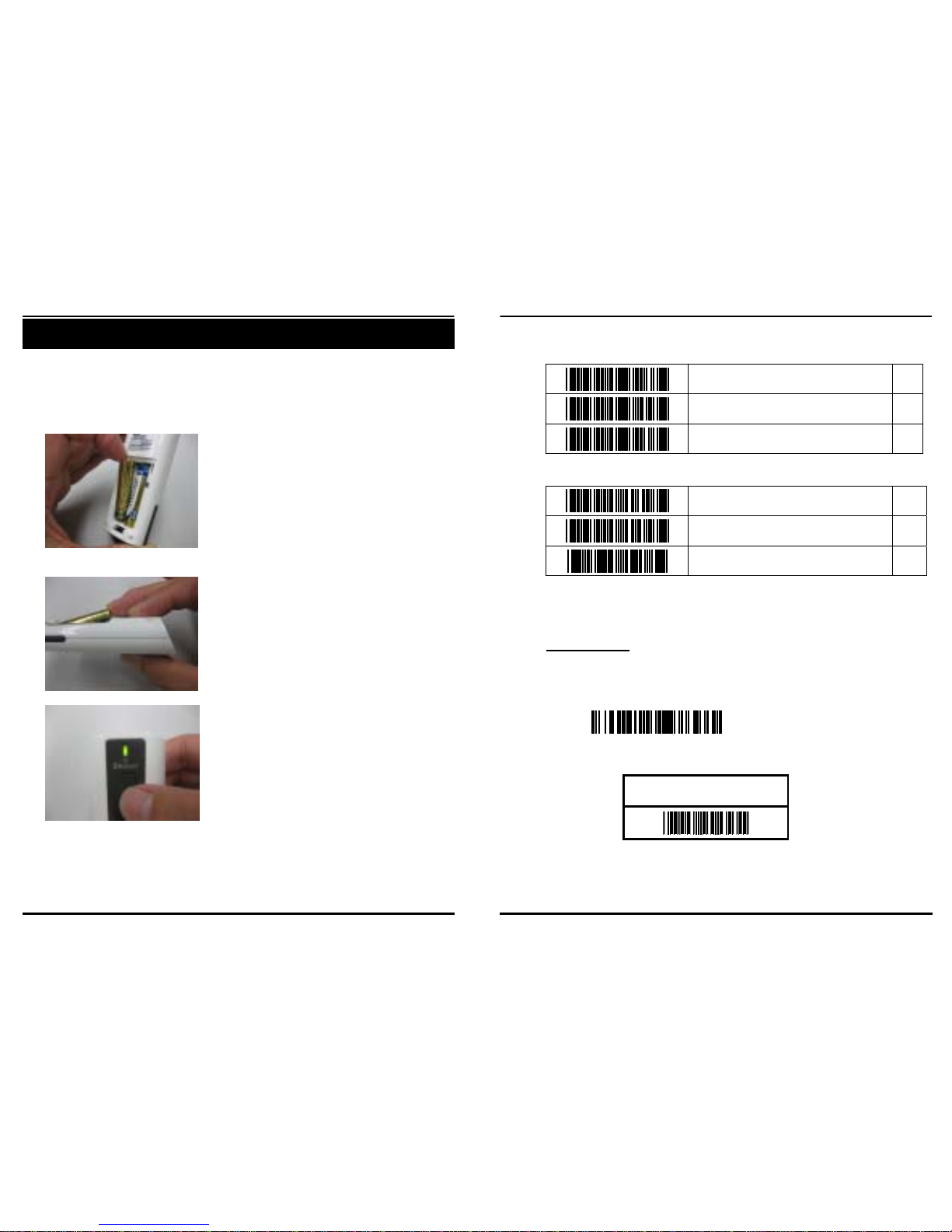

1.6 How to change Batteries
(1) Open the battery cover.
(2) Insert new batteries.
* Please don't make a mistake in the battery polarity.
(3) Put the battery cover.

Z-3130BT
5
2.How to operate
2.1 How to use buttons
2.1.1 Power button
[Power is off]
・The power is turned on after keeps pushing the button for
one second.
・The link key is deleted, and the power supply is turned on
after keeps pushing the button for 5 seconds.
[Power is on]
・The power is turned off after keeps pushing the button for
one second.
2.1.2 Trigger
[Power is off]
・The power is turned on after push the button one time.
[Power is on]
・Reading LED is lighted after push the button one time.
(Scan Enable)
2.2 How to connect
2.2.1 Connection of first time (Master mode)
(1) The equipment that wants to connect it is made Bluetooth
connection waiting state.
(2) Keep pushing the power button of Z-3130BT for 5 seconds.
(3) The button is released when two indicator LED is lighted.
(4) When the input of the pin code is requested on the screen of the
equipment, "1234" is input.
(5) The connection might be able to be completed.
2.2.2 Connection of second time
(1) The equipment that wants to connect it is made Bluetooth
connection waiting state.
(2) Push the trigger of Z-3130BT one time.
(3) The connection might be able to be completed without pin code.
Z-3130BT
6
2.3 How to scan
Please scan from a place away from the printing surface of the bar
code by 5-20cm. Good read buzzer sound and Good read LED blink
once when reading succeeds, and reading LED is turned off.
Please change the reading angle and the distance when it is not
possible to read the bar code.

Z-3130BT
7
３.Communication protocol
3.1 Serial Communication protocol
Baud Rate ：115200bps
Data Bit ：8
Start Bit ：1
Stop Bit ：1
Parity ：Even
Flow Control ：XON/XOFF
Handshaking Protocol：ACK/NAK (Default)
3.2 Output data format
Transmission ：ASCII（JIS8）
Message Terminator：STX/ETX (Default)
* You can change handshaking protocol and message terminator.
Please refer P11.
Z-3130BT
8
4.Parameter Setting
Please note that the setting change cannot be done while not
connecting this scanner with PC or cellular phone. (state that can be
read)

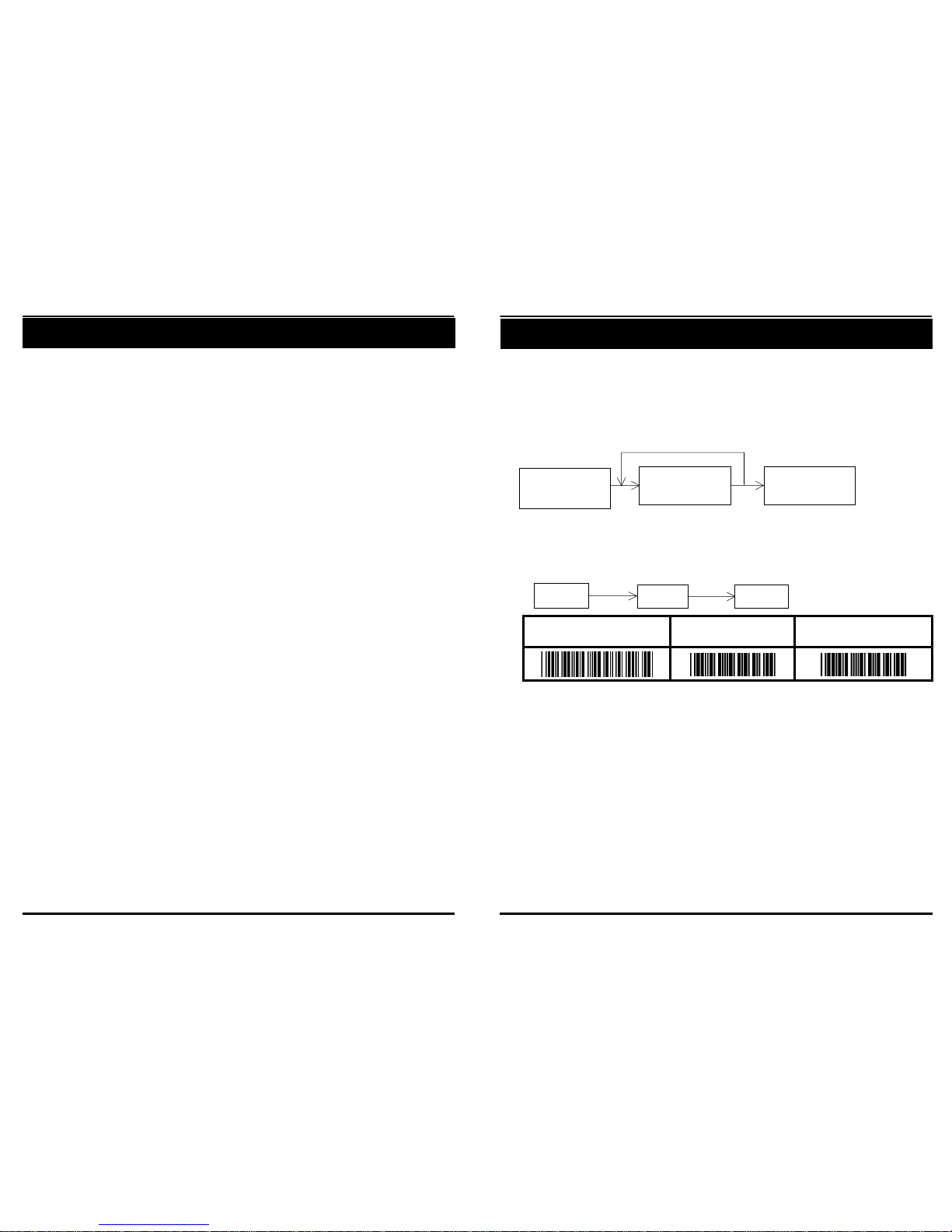

4.1 Setting method
4.2 Initialization
Start of Configuration Reset(return to ☆) End of Configuration
Scan “Start of
Configuration”Label
Scan Parameter
Barcode
Scan “End of
Configuration”Label
Beeper once
GoodReadLED Blinking
Beeper once
GoodReadLED Turning of
f
Bee
p
er once
SOC Reset
EOC
Return to Factory default

Z-3130BT
9
4.3 System Function Setting
Start of Configuration End of Configuration
【Good Read Beeper】
Disable
Enable ☆
【Identifier Code】
The following character is added ahead of the bar code data.
Code Char
Code Char
JAN-13/EAN-13 0 Code93 6
JAN-8/EAN-8 1 Code128 7
UPC-A 2 Interleaved2of5 9
UPC-E 3 ITF-6 A
CODABAR 4 ITF-14 B
Code39 5 ITF-16 C
Disable ☆
Enable
Z-3130BT
10
Start of Configuration End of Configuration
【Power saving time-out】
This is time setting of auto power off.
Disable
1minute
2 minutes ☆
5 minutes
15 minutes

Z-3130BT
11
Start of Configuration End of Configuration
【Handshaking Protocol】
None handshaking with CR
None handshaking with CR/LF
None handshaking with
STX/ETX
ACK/NAK with CR
ACK/NAK with CR/LF
ACK/NAK with STX/ETX ☆
Z-3130BT
12

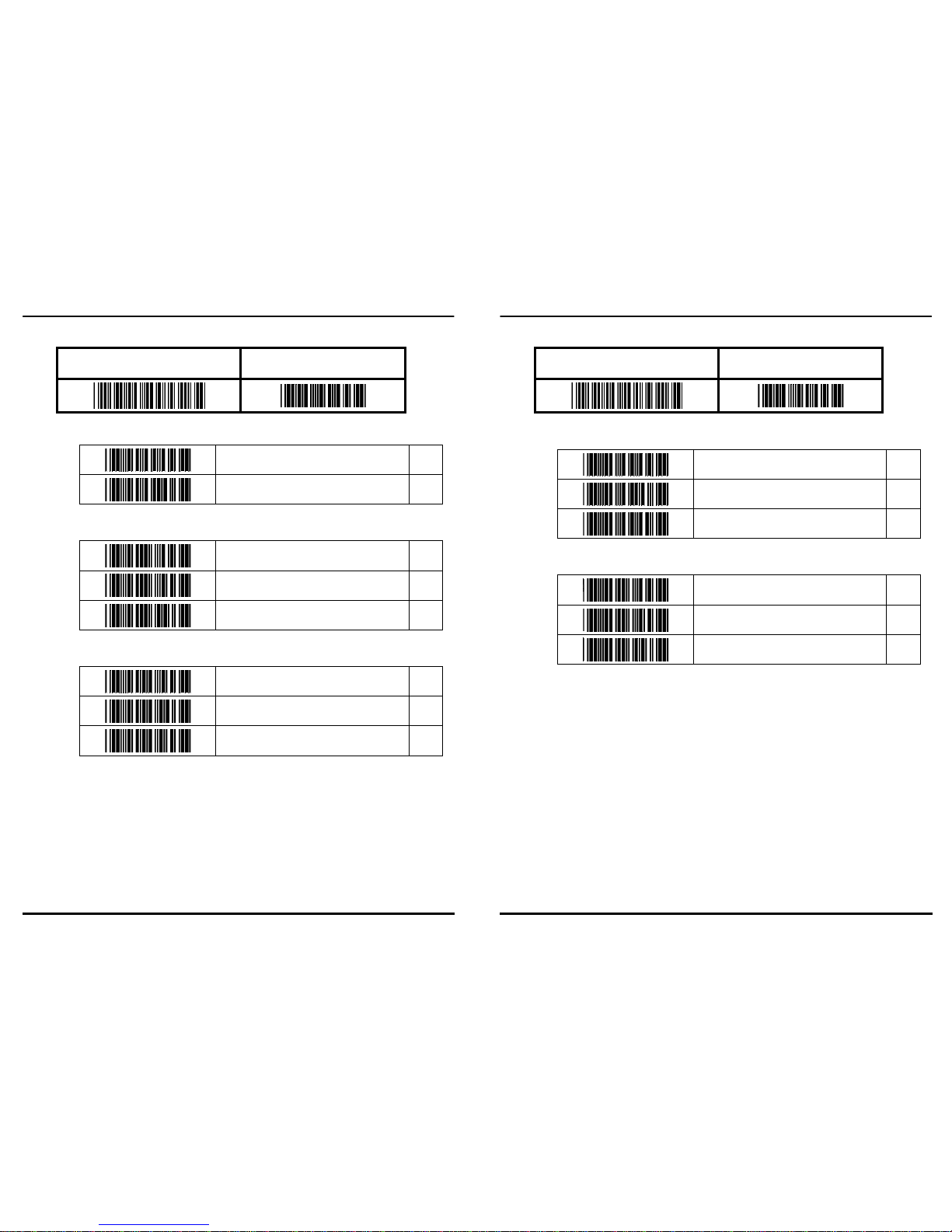

4.4 The Symbologies Setting
4.4.1 JAN/EAN/UPC Parameter Setting
Start of Configuration End of Configuration
【Decode】
Disable
Enable ☆
【UPC-A Format】
Force UPC-A to EAN-13
Disable
Force UPC-A to EAN-13
Enable ☆
【UPC-E Format】
Force UPC-E to EAN-8 Disable ☆
Force UPC-E to EAN-8 Enable
Force UPC-E to UPC-A Enable
【JAN add-on】
JAN+add-on Disable ☆
Only JAN+add-on Enable
JAN and JAN+add-on Enable *
* There is possibility that scanner will output only JAN code without add-on
code when it was set on this setting.

Z-3130BT
13
4.4.2 CODABAR Parameter Setting
Start of Configuration End of Configuration
【Decode】
Disable
Enable ☆
【Check digit(7 check)】
No check character ☆
Calculate but without transmit
Calculate and transmit
【START/STOP Character】
No transmission
Transmission (Small letter) ☆
Transmission (Capital letter)
Z-3130BT
14
4.4.3 ITF(Interleaved2of5) Parameter Setting
Start of Configuration End of Configuration
【Decode】
Disable
Enable as Interleaved2of5 ☆
Enable as ITF-16,14,6
【Check digit(Modulo 10/3Weight)】
No check character ☆
Calculate but without transmit
Calculate and transmit

Z-3130BT
15
4.4.4 Code39 Parameter Setting
Start of Configuration End of Configuration
【Decode】
Disable
Enable ☆
【Check digit(Modulo 43)】
No check character ☆
Calculate but without transmit
Calculate and transmit
【START/STOP Character】
No transmission ☆
Transmission
Z-3130BT
16
4.4.5 Code93 Parameter Setting
Start of Configuration End of Configuration
【Decode】
Disable
Enable ☆
4.4.6 Code128 Parameter Setting
Start of Configuration End of Configuration
【Decode】
Disable
Enable ☆

Z-3130BT
17
5.Configuration for Administrator
Only system administrator should operate it because these settings are
detailed settings of the Bluetooth communication.
5.1 How to shift to Configuration Mode
1.One dry battery is detached.
2.The battery is set while pushing the trigger button.
3.A short beeper rings and it shifts to the configuration mode.
4.Set the Bluetooth configurations to read setting bar code since next
page.
* Please read "End of Configuration" when you complete the
setting.
Z-3130BT
18
5.2 Bluetooth Communication Setting
【Master/Slave】
Master ☆
Slave(Discoverable &
Connectable)
Slave(Connectable)
【Security】
Certification : Disable
Certification : Enable
Encryption : Disable
Certification : Enable
Encryption : Enable ☆
【PIN Code】
Please make a barcode that adds “BPCS” to the head of PIN Code
which you want to set, and read it. (1-16 Digit)
Default : 1234
(For Example)
If you want to set the PIN Code to “9876”,please make “BPCS9876”
barcod.
BPCS9876
End of Configuration

Z-3130BT
19
【Device Name】
Please make a barcode that adds “BDLS” to the head of Device
Name which you want to set, and read it. (1-16 Digit)
Default : Z-3130BT
(For Example)
If you want to set the Device Name to
“ABC1234567890DEF”,please make “BDLSABC1234567890DEF”
barcode.
BDLSABC1234567890DEF
【Remote Bluetooth Address】
Please make a barcode that adds “BDRS” to the head of Bluetooth
Address which you want to connect, and read it. (12 Digits)
(For Example)
If you want to have them connect with the equipment which has
“000EA10419B5” Bluetooth Address, please make
“BDRS000EA10419B5” barcode.
BDRS000EA10419B5
【System Reset】
All configurations (include BT setting) return to factory default.
Return to Factory Default
End of Configuration
Z-3130BT
20
5.3 Parameter confirmation (BT communication)
Start of Configuration End of Configuration
Bluetooth Role (BRO…)
Bluetooth Security (BSQ…)
PIN Code (BPC…)
Bluetooth Local Address (BAL…)
Bluetooth Local Device Name (BDL…)
Bluetooth Remote Address (BAR…)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2)This device must accept any interference received, including interference that may cause
undesired operation.
