Zebex Z-6182 User manual

Revision History
Changes to the original manual are listed below:
Version Date Description of Version
1.0 Apr. 30, 2010 Initial release
1.1 Dec.27,2010 Changed procedures in host connection and
mounting plate installation.
1.2 Mar.14, 2011 Updated AUX and EAS instructions.

Important Notice
No warranty of any kind is made in regard to this material, including, but not limited to,
implied warranties of merchantability or fitness for a particular purpose. We are not liable
for any errors contained herein or incidental or consequential damages in connection with
furnishing, performance or use of this material.
No part of this document may be reproduced, transmitted, stored in a retrieval system,
transcribed, or translated into any language or computer language in any form or by any
means electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
express written consent and authorization.
We reserve the right to make changes in product design without reservation and without
notification. The material in this guide is for information only and is subject to change
without notice. For the latest revision please contact your distributor.
All trademarks mentioned herein, registered or otherwise, are the properties of their various
respective owners.
Copyright © 2011. All rights reserved.
This manual is in A5 format. Please check your printer setting before printing it out.

Laser Safety
The Advanced Compact Dual-Laser Omnidirectional Vertical Scanner complies with safety
standard IEC 60825 for a Class I laser product. It also complies with CDRH as applicable to
a Class IIa laser product. Avoid long term staring into direct laser light.
Radiant Energy: The Dual-Laser Omnidirectional Vertical Scanner uses two low-power
visible laser diodes operating at 650nm in an opto-mechanical scanner resulting in less than
3.9µW radiated power as observed through a 7mm aperture and averaged over 10
seconds.
Do not attempt to remove the protective housing of the scanner, as unscanned laser light
with a peak output up to 0.8mW would be accessible inside.
Laser Light Viewing: The scan window is the only aperture through which laser light may
be observed from this product. A failure of the scanner motor, while the laser diode
continues to emit a laser beam, may cause emission levels to exceed those for safe
operation. The scanner has safeguards to prevent this occurrence. If, however, a stationary
laser beam is emitted, the failing scanner should be disconnected from its power source
immediately.
Adjustments: Do not attempt any adjustments or alteration of this product. Do not remove
the protective housing of the scanner. There are no user-serviceable parts inside.
Caution: Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous laser light exposure.
Optical: The use of optical instruments with this product will increase the eye hazard.
Optical instruments include binoculars, magnifying glasses, and microscopes but do not
include normal eye glasses worn by the user.
For CE-Countries
This scanner is in conformity with CE standards. Please note that an approved, CE-marked
power supply unit should be used in order to maintain CE conformance.

Table of Contents
Introduction.................................................................................................................. 1
Unpacking ................................................................................................................... 2
Finding Your Way Around
Outline ............................................................................................................... 3
Caution Label..................................................................................................... 5
Cable Installation ............................................................................................... 5
Connection
Power................................................................................................................. 6
Connecting to the Host ...................................................................................... 6
Connecting Auxiliary Scanner ............................................................................ 7
Connect EAS ..................................................................................................... 7
Verifying Scanner Operation .............................................................................. 7
Interface Cable Replacement ............................................................................ 9
Mounting
Diagrams for Mounting....................................................................................... 11
Mounting Plate Installation................................................................................. 12
Auxiliary Handheld Scanner Connection (Optional) ........................................... 14
Back Mounting ................................................................................................... 15
Site Preparation
Configuring the Scanner .................................................................................... 16
Scan Test ........................................................................................................... 16
Set Up................................................................................................................ 17
Controlling the Scanner from POS System........................................................ 18
Setting EAS System........................................................................................... 18
Operation
LED Indications.................................................................................................. 20
Sound Indications .............................................................................................. 20
Tone and Volume Adjustment ............................................................................ 21
Sleep Mode........................................................................................................ 22
How to Scan
Scan Volume...................................................................................................... 23
Scanning Mode.................................................................................................. 24
Maintaining the Scanner.............................................................................................. 25
Trouble Shooting ......................................................................................................... 36
Specification ................................................................................................................ 37
Dimension ................................................................................................................... 38
Decode Zone............................................................................................................... 39
Pin Assignment
Device................................................................................................................ 30
Interface Cable................................................................................................... 31

1
1. Introduction
The Advanced Compact Dual-Laser Omnidirectional Vertical Scanner is a vertical
scanner empowered with dual-laser technology, enabling 40 scan lines at a rate of
3600 scans per second. Along with the proprietary hardware decoding technology,
the scanner guarantees unbeatable decoding speed and accuracy, the best
choice for high-traffic applications, including hypermarket, healthcare, warehouse
management and manufacturing process control.
When working in field, the scanner has a two-color LED to provide immediate
visual feedback. It also has two advanced touch control sensors in the front,
allowing beeping tone and volume adjustment.
With a built-in EAS antenna, field-replaceable interface cable and an additional
handheld scanner port, the Advanced Compact Dual-Laser Omnidirectional
Vertical Scanner is the ultimate device for users demanding functionality and
quality.
Key Features:
Unique dual-laser technology
Proprietary hardware decoding technology
Large scan field
Barcode stitching capable
Instant “object-fly-by” automatic wake-up
Easy on-site configuration
Touch control sensors for sound indication adjustment

2. Unpacking
The omnidirectional scanner package contains:
1 ea.
Advanced compact dual-laser
omnidirectional vertical scanner
1 ea. Interface cable (This cable is usually, but
not always, supplied. Model depends on
customer needs.)
1 ea. 9V power adapter
(Model depends on electrical requirements
of your geographic location)
1 ea. User’s manual & programming guide in
CD-ROM
a. Please leave this user’s manual within easy access for
persons using the scanner.
b. If any contents are damaged or missing, please contact your
dealer immediately.
2

3. Finding Your Way Around
3.1 Outline

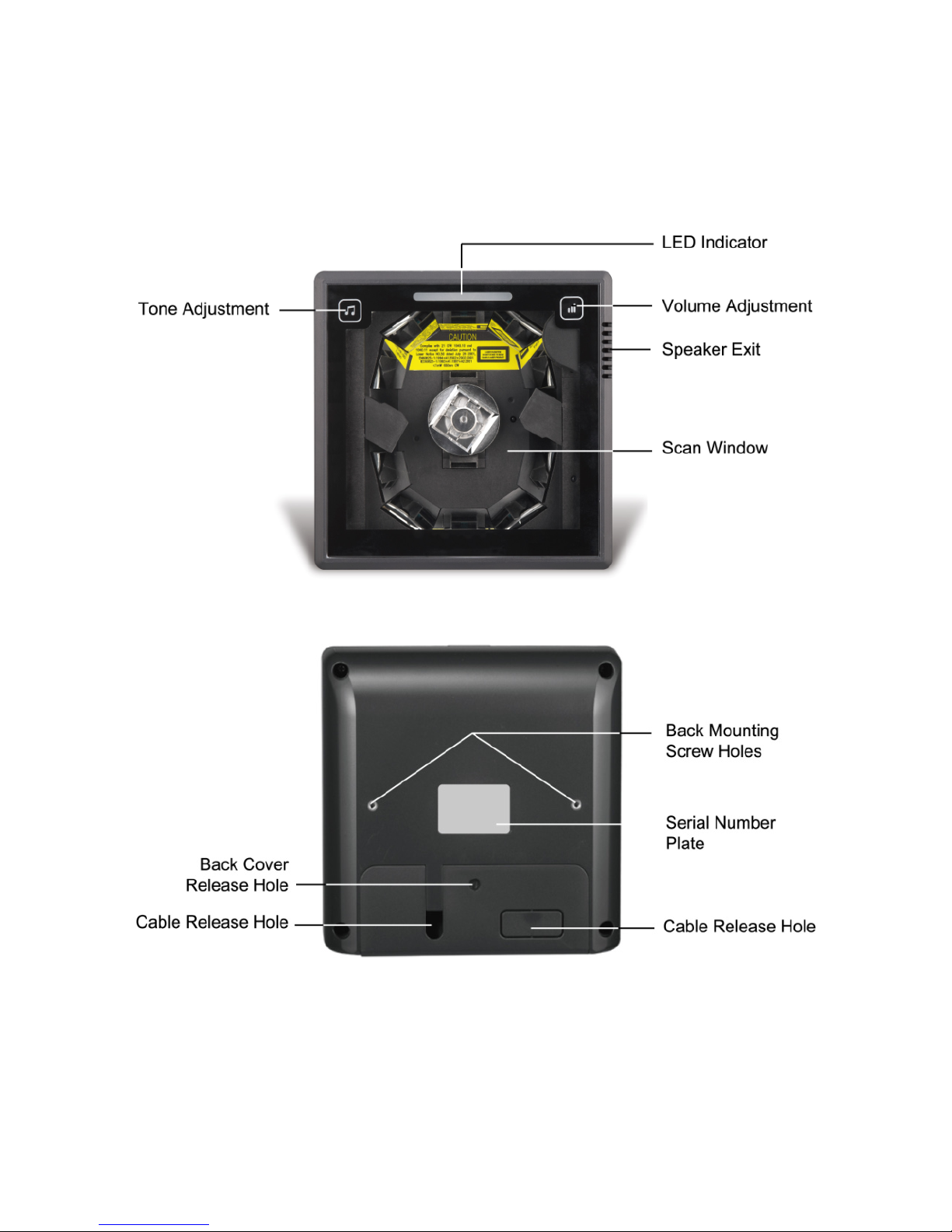

Figure 1: Outline
3

Figure 2: Connector Panel
Description Function
Scan Window Read barcodes
Speaker Exit For beep tone indication
LED Indicator Reading status indication
Tone Adjustment Adjusting sound indication tone
Volume Adjustment Adjusting sound indication volume
Back Mounting Holes For permanent fixture (optional)
Cable Release Hole Connecting interface cable
Interface Cable Connection For interface communication connection to the
host
AUX Connection Connecting an auxiliary scanner (optional)
EAS Connection Electronic Article Surveillance connection
(optional)
4

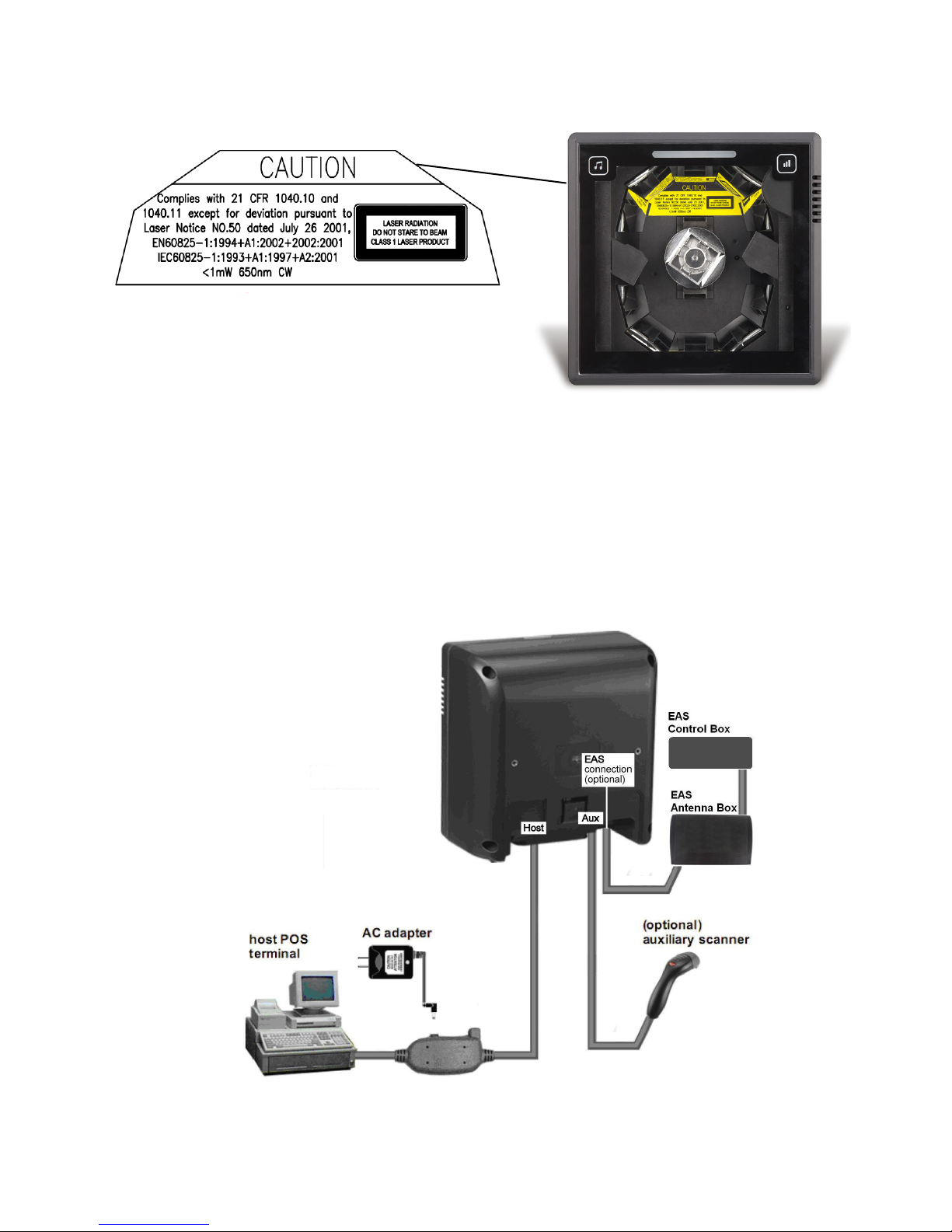

3.2 Caution Label
Figure 3: Label
3.3 Cable Installation
The scanner is to be connected to a host (e.g. POS). The use of external power is
determined by your host but it is usually recommended. The scanner also supports
an auxiliary scanner and EAS application. The figure below gives you an overview
of the cable installation.
Figure4: Cable Installation
5
