Zebex Z-1070 & Z-1071
Portable Data Terminal User Manual
OVERVIEW
LED
Power On：Press ｖ
ｖｖ
ｖ +
^
Power Off：Press and hold FN
Scan
Page 2
Installing and charging battery
Page 3
Store Data
1. On the Memory Screen Press SCAN
2. Press SCAN again to select (1.R n
Task).
3. Press SCAN to select “1.READ”
4. Press and Hold SCAN to scan
barcode
5. Barcode will show in third line.
6. Press SCAN to scan other barcode
Press FN to exit.
Z
-
1071 VER. 2.22
SCAN key to Menu
Free Mem: 63K
05 10 31 10:45AM
1.Run Task
2.Delete Data
3.Setup
4.Upload Data
1.READ
2.SHOW
3.CHECK
4.CLEAR
Record:2
New:
▋
->
<FN>Exit
Record:3
New:
▋
->12345678901
<FN>Exit
Record:3
New:
▋
->12345678901
<FN>Exit
Page 4
Sho Barcode (View barcode in memory)
1. On the Memory Screen Press SCAN
2. Press SCAN again to select (1.R n
Task).
3. Press v to select “2.Show ”
After Press SCAN
4. View last or next record with
^
and v
b tton
Z
-
1071 VER. 2.22
SCAN key to Menu
Free Mem: 63K
05 10 31 10:45AM
1.Run Task
2.Delete Data
3.Setup
4.Upload Data
1.READ
2.SHOW
3.CHECK
4.CLEAR
Record:2
Data:654321
12052007 121118
<v>Up <^>Down
Page 5
Check Barcode (Only display Barcode, will not save into memory)
1. On the Memory Screen Press SCAN
2. Press SCAN again to select (1.R n
Task).
3. Press v to select “3.CHECK ”
After Press SCAN
4. Press SCAN to scan barcode.
Press FN to exit
Z
-
1071 VER. 2.32
SCAN key to Menu
Free Mem: 63K
05 10 31 10:45AM
1.Run Task
2.Delete Data
3.Setup
4.Upload Data
1.READ
2.SHOW
3.CHECK
4.CLEAR
READ:123456789
Input:
Page 6
Clear Data (Delete ALL data in memory)
1. On the Memory Screen Press SCAN
2. Press SCAN again to select (1.R n
Task).
3. Press v to select “3.CHECK ”
After Press SCAN
4. Press SCAN to confirm delete
Press FN to exit
Z
-
1071 VER. 2.32
SCAN key to Menu
Free Mem: 63K
05 10 31 10:45AM
1.Run Task
2.Delete Data
3.Setup
4.Upload Data
Warning!!!
All data will be
Deleted
Y=<SCAN> N=<FN>
1.READ
2.SHOW
3.CHECK
4.CLEAR
Page 7

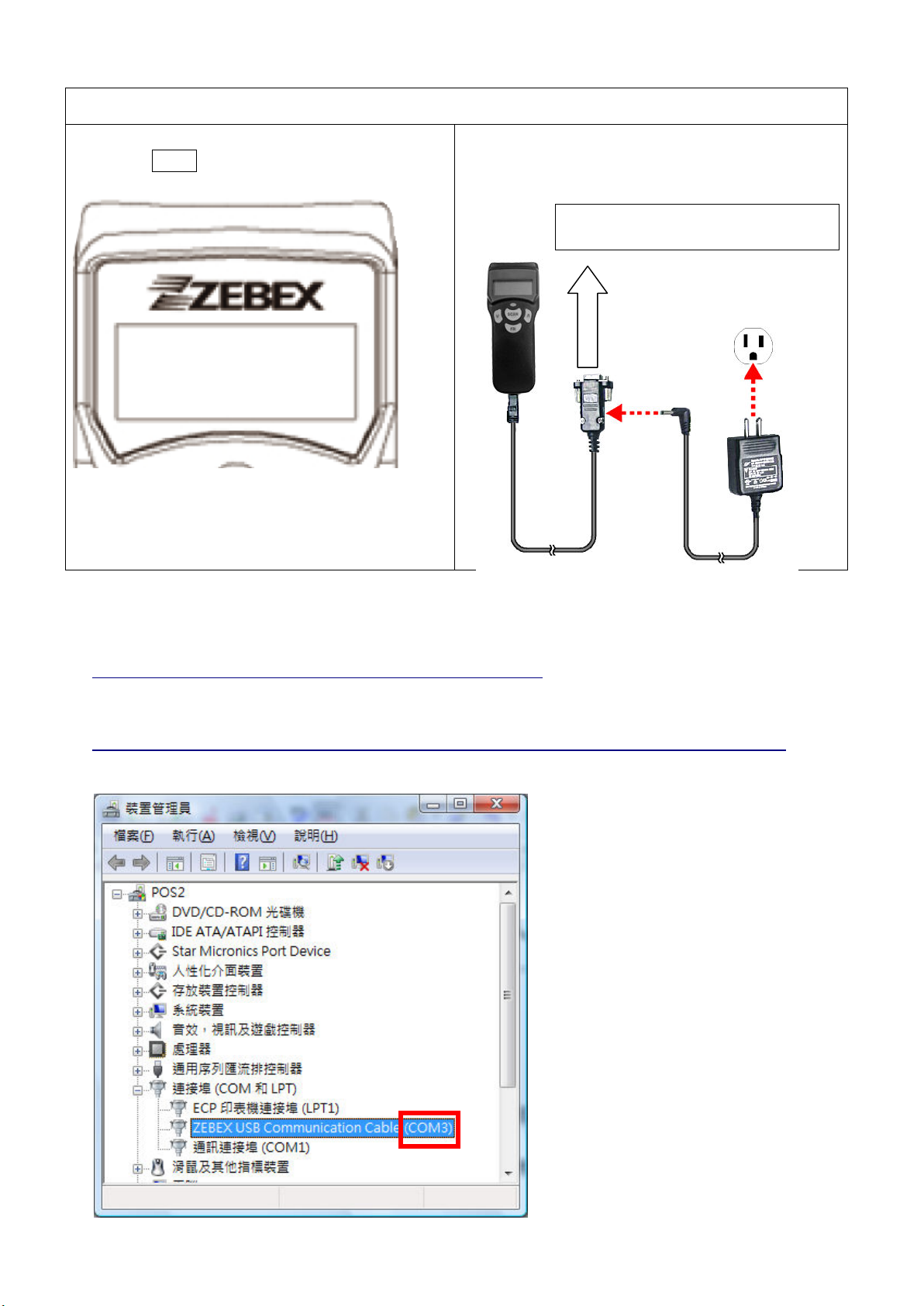

Upload Data to Computer
SCANNER
1.
Press FN several time ntil ret rns to
Memory Screen.
2. Connect cradle and adapter as fig re
bellow.
Computer
1. Download WintaskGen & Install in
http://www.manicon.com/download/driver.htm#terminal
2. If sage USB-Serial Converter Cable, Download Drivers
http://www.manicon.com/download/driver/Zebex_CP210x_VCP_Win2K_XP_S2K3_v5_1.zip
After Install Driver , go to Device Manger Check Usage com port
Comp ter Com Port / USB Port
Z
-
1071 VER. 2.32
SCAN key to Menu
Free Mem: 63K
05 10 31 10:45AM
Page 8
3. Start → Programs → WinTaskGen → WinTaskGen
Com Port Defa lt Setting: Change setting of Data Terminal
Com1,9600,None,8,1
4. Select Upload Data
Page 9
5.
5.
5.1 Click Connect
5.2 Select DATAFORM in the list box
5.3 Chick Upload
5.4 After Upload finish, chick Save to save as a Text (.TXT) file
This manual suits for next models
