Zeta Alarm Limited MKII-AXTB/R User manual

Document No: GLT-207-7-2
Issue No: 007
Author: NRP Jones
Date: 11/01/2018
Page 1

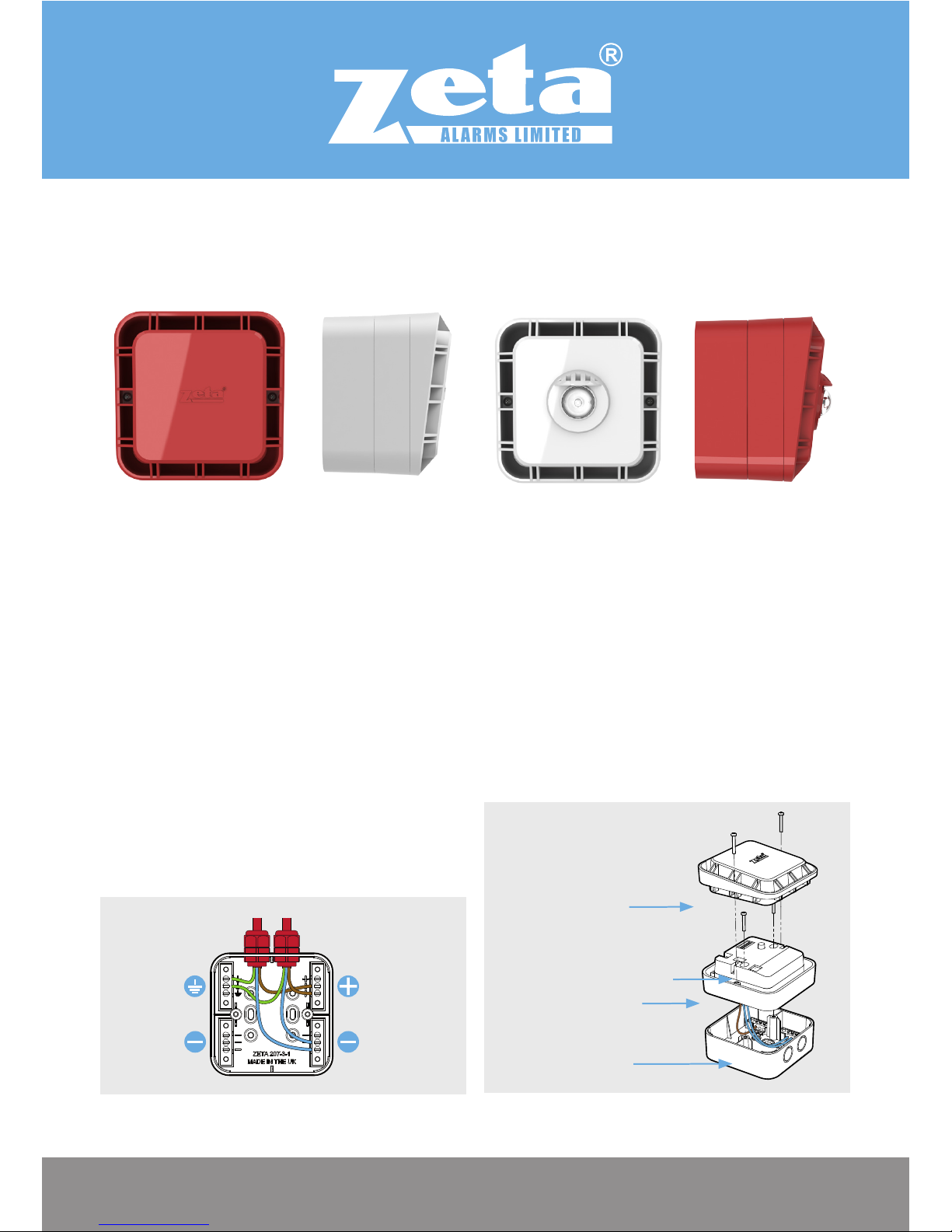

ADDRESSABLE XTRATONE SOUNDER BEACON - INSTALLATION MANUAL
ADDRESSABLE XTRATONE SOUNDER BEACON
INSTALLATION MANUAL
Connections - First Fix
The loop wiring connects to terminals in
the back box.
Earth
Not Used
Loop In/Out
Positive
Loop In/Out
Negative
Final Fix
• Set the device address (see address
setting)
• Fix the BROWN sounder ying lead to
the POSITIVE terminal
• Fix the BLUE sounder ying leads to
the RIGHT NEGATIVE terminal
• Screw the sounder body to the backbox
• Fit the sounder front cover
Flying Leads
Sounder Body
8 Way DIP Switch
Front Cover
Description
The Xtratone addressable sounder beacon
is a small, high output device, suitable for
indoor wall mounted applications.
It is available in red or white and has a
selection of 16 alarm tones, selectable at
the control panel.
Termination of eld wiring is made to the
backbox for a clean rst x.

Document No: GLT-207-7-2
Issue No: 007
Author: NRP Jones
Date: 11/01/2018
Page 2
ADDRESSABLE XTRATONE SOUNDER BEACON - INSTALLATION MANUAL
Address Setting
This sounder is addressed via an 8 way dip switch. All 8 switches are used for the address
setting. It is a binary arrangement, with ON being the zero position.
Switch 1 2 3 4 5 6 7 8
Value when ON 0 0 0 0 0 0 0 0
Value when Off 1 2 4 8 16 32 64 128
The Switch settings can be calculated using these numbers. EG 21 = 16 +4 +1, so Switches
1,3 & 5 are off, all the others are on. The maximum address is 250. For convenience a
table of all address settings can be found at the end of the manual.
Alternative Soft Addressing Option
Using our hand held MkII programmer (Part No: 48-004), the sounder can be addressed
electronically.
Step 1: Set all addresses to zero 0000000
Step 2: Connect leads to LOOP IN+ and LOOP IN- as shown below
Lin
+
Lin
_
Step 3: Follow the procedure as described in the handheld programmer manual.
NOTE: When a device is soft addressed as above, the address CANNOT BE CHANGED by
mechanical setting of the dip-switch. In order to re-enable the dip-switch the unit needs
to be set electronically back to zero rst.
Protocol Usage
The Xtratone sounder beacon works on the Zeta Fyreye II protocol only. The asher (if
tted) can be triggered independently to the sounder, if the control panel supports that
function.
Sounder Synchronisation
The Xtratone sounder beacon supports the Fyreye II sounder synchronisation mechanism.

Document No: GLT-207-7-2
Issue No: 007
Author: NRP Jones
Date: 11/01/2018
Page 3
ADDRESSABLE XTRATONE SOUNDER BEACON - INSTALLATION MANUAL
Alarm Tone Selection
The Xtratone sounder beacon supports alarm tone selection. IE, the installer can decide
which alarm tone ALL the sounders will use. The alarm tone can be set for the whole
system via the control panel. One of 16 tones can be chosen for the alarm tone.
No Tone Description Pattern Frequency Rate
0* BS Fire (Default Zeta tone) Alternating 800 & 970 1Hz (500ms-500ms)
1 BS Fire Alternating 800 & 970 2Hz (250ms-250ms)
2 BS Fire Sweep 800 to 970 1Hz (1 per second)
3 BS Fire Sweep 800 to 970 7Hz (7 per second)
4 BS Fire Sweep 800 to 970 50Hz (50 per
second)
5 BS Fire Alternating 510 & 610 1Hz (500ms-500ms)
6 German re (DIN 33 404) Sweep (DIN) 1200 to 500 1Hz
7 French re (NFS 32-001) Alternating 554 & 440 100ms-400ms
8* Dutch re (NEN 2575) Slow whoop 500 to 1200 3.5s sweep, 0.5 s
silence, then repeat
9 PFEER Toxic Gas Continuous 970 Steady
10 PFEER alert Intermittent 970 0.5Hz (1s On/1s Off)
11 Reserved - - -
12 Reserved - - -
13 Reserved - - -
14 Reserved - - -
15 Reserved - - -
* Approved Tones
See Document GLT-290-6-1 for further operational data.
Selecting a Reserved tone will cause the sounder to play tone 0. The default alarm tone
will be tone 0.
Other Tones
The Xtratone has 3 tones that can be triggered in normal running:-
• Alarm Tone – Selectable – see list above.
• Alert tone – 970Hz intermittent. 0.5s on, 0.5s off
• Emergency - 970Hz intermittent: 3 x 500ms pulses, 1.5s silence, then repeat
The availability of these tones will depend on the Control panel used.

Document No: GLT-207-7-2
Issue No: 007
Author: NRP Jones
Date: 11/01/2018
Page 4
ADDRESSABLE XTRATONE SOUNDER BEACON - INSTALLATION MANUAL
Flasher Setting
The Xtratone sounder beacon has a 4 way dip switch for conguring the asher. Switches
1 to 3 congure the asher as shown below. Switch 4 is for future use. Setting 1 gives the
specied asher rating.
Setting Switch 1 Switch 2 Switch 3 Flash rate Current Relative Flasher intensity
1* OFF OFF OFF 0.5 Hz 43mA 100%
2 ON OFF OFF 0.33 Hz 18mA 60%
3 OFF ON OFF 0.33 Hz 25mA 85%
4 ON ON OFF 0.33 Hz 33mA 99%
5 OFF OFF ON 0.5 Hz 33mA 89%
6 ON OFF ON 1.0 Hz 43mA 69%
7 OFF ON ON 1.5 Hz 43mA 46%
8 ON ON ON OFF 5.4mA 0%
* Approved Flasher setting
Beacon Coverage
The Xtratone addressable sounder with beacon (MKII-AXTB/R & MKII-AXTB/W) has a
coverage pattern of W-3.1-9.1 and a ash rate of 0.5 Hz.
7.44m
7.44m
7.44m
7.44m
2.4m
9.1m
9.1m
9.1m
9.1m
3.1m

Document No: GLT-207-7-2
Issue No: 007
Author: NRP Jones
Date: 11/01/2018
Page 5
ADDRESSABLE XTRATONE SOUNDER BEACON - INSTALLATION MANUAL
Technical Data
Model MKII-AXT/R MKII-AXT/W MKII-AXTB/R MKII-AXTB/W
Part Number 42-610A 42-611A 42-617 42-618
Colour Red White Red White
Flash Colour N/A White ash
Flash Rate N/A 0.33 - 1.5 Hz (depends on setting)
Flasher Coverage N/A W-3.1-9.1 for setting 1
Sounder Output
(Anechoic) 80.4dB @ 1m
Operating Voltage 17-28 V
Quiescent Current 1.5 mA
Alarm Current 5.4 mA max 19-44 mA (depends on setting)
Sounder Type Type A (Indoor use)
Operating Temperature -10oC to +55oC
Minimum Continuous
Operating Temperature 0oC
Max Humidity 95% RH Non Condensing
IP Rating IP21C
Size (H x W x D in mm ) 105 x 105 x 56 (105 x 105 x 89) 105 x 105 x 56 (105 x 105 x 89)
Weight (with Back Box) 200g 210g
Minimum sound output 66.3dB
Troubleshooting
Problem Possible Cause
Device Not Seen By Panel Check the device is addressed within the range of the panel :-
1 To 250 for a Quatro / 1 To 126 for a Simplicity Plus
Other panels – check panel manuals for info
Check that loop is connected with correct polarity
Check that sounder ying leads have been connected to the backbox.
Check the panel is running the Zeta Fyreye MkII protocol
Sounder Is Not Operating Check panel`s actions (cause & effect) programming is correct.
Flasher is not operating Check that the asher LED wires have not been disconnected
Check panel`s actions (cause & effect) programming is correct.
Can Not Start An
Individual Sounder
Check whether triggering individual sounders is supported by the
control panel
Check the cause & effect programming to see if common operation
has been selected

Document No: GLT-207-7-2
Issue No: 007
Author: NRP Jones
Date: 11/01/2018
Page 6
ADDRESSABLE XTRATONE SOUNDER BEACON - INSTALLATION MANUAL

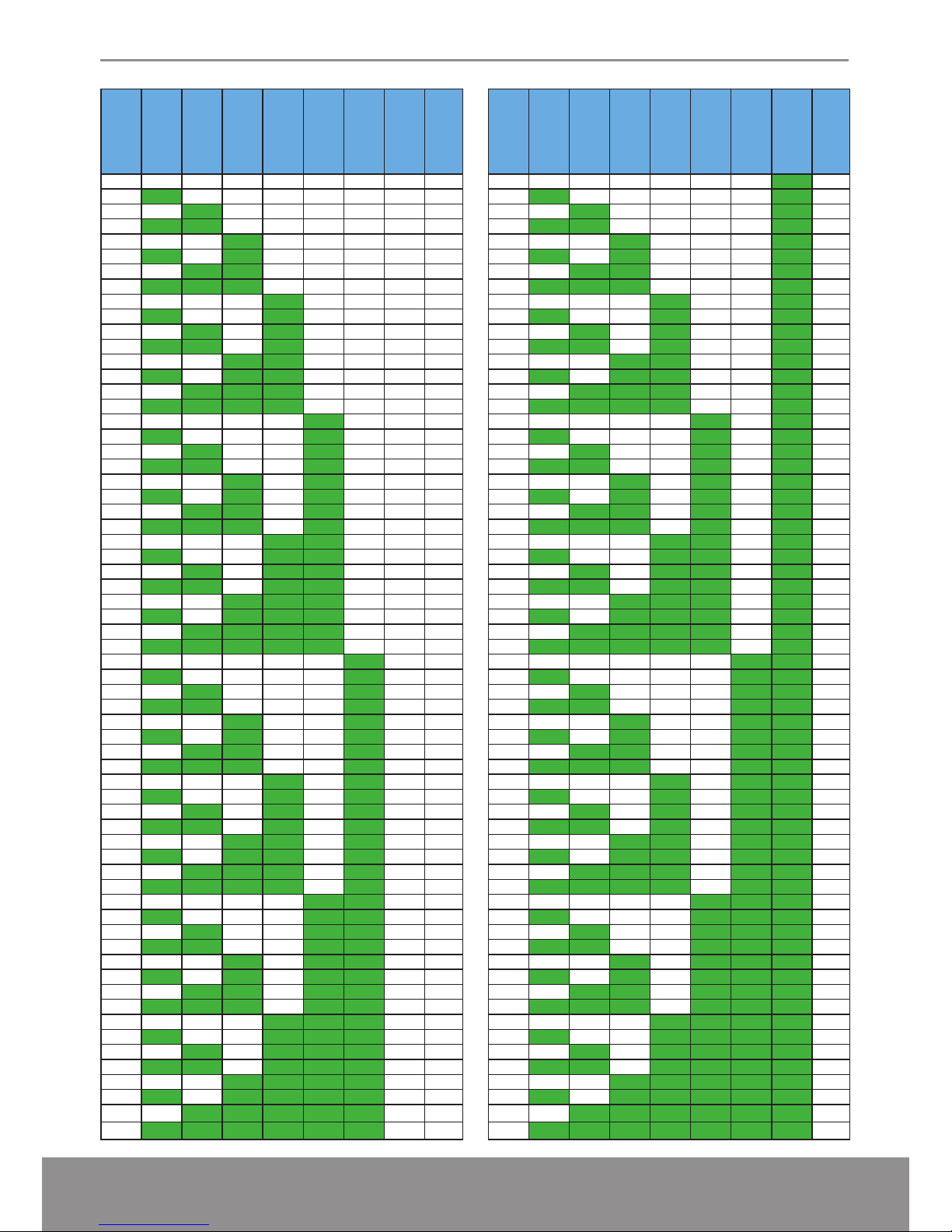

ADDRESS
SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8
0
1OFF ON ON ON ON ON ON ON
2 ON OFF ON ON ON ON ON ON
3OFF OFF ON ON ON ON ON ON
4 ON ON OFF ON ON ON ON ON
5OFF ON OFF ON ON ON ON ON
6 ON OFF OFF ON ON ON ON ON
7OFF OFF OFF ON ON ON ON ON
8 ON ON ON OFF ON ON ON ON
9OFF ON ON OFF ON ON ON ON
10 ON OFF ON OFF ON ON ON ON
11 OFF OFF ON OFF ON ON ON ON
12 ON ON OFF OFF ON ON ON ON
13 OFF ON OFF OFF ON ON ON ON
14 ON OFF OFF OFF ON ON ON ON
15 OFF OFF OFF OFF ON ON ON ON
16 ON ON ON ON OFF ON ON ON
17 OFF ON ON ON OFF ON ON ON
18 ON OFF ON ON OFF ON ON ON
19 OFF OFF ON ON OFF ON ON ON
20 ON ON OFF ON OFF ON ON ON
21 OFF ON OFF ON OFF ON ON ON
22 ON OFF OFF ON OFF ON ON ON
23 OFF OFF OFF ON OFF ON ON ON
24 ON ON ON OFF OFF ON ON ON
25 OFF ON ON OFF OFF ON ON ON
26 ON OFF ON OFF OFF ON ON ON
27 OFF OFF ON OFF OFF ON ON ON
28 ON ON OFF OFF OFF ON ON ON
29 OFF ON OFF OFF OFF ON ON ON
30 ON OFF OFF OFF OFF ON ON ON
31 OFF OFF OFF OFF OFF ON ON ON
32 ON ON ON ON ON OFF ON ON
33 OFF ON ON ON ON OFF ON ON
34 ON OFF ON ON ON OFF ON ON
35 OFF OFF ON ON ON OFF ON ON
36 ON ON OFF ON ON OFF ON ON
37 OFF ON OFF ON ON OFF ON ON
38 ON OFF OFF ON ON OFF ON ON
39 OFF OFF OFF ON ON OFF ON ON
40 ON ON ON OFF ON OFF ON ON
41 OFF ON ON OFF ON OFF ON ON
42 ON OFF ON OFF ON OFF ON ON
43 OFF OFF ON OFF ON OFF ON ON
44 ON ON OFF OFF ON OFF ON ON
45 OFF ON OFF OFF ON OFF ON ON
46 ON OFF OFF OFF ON OFF ON ON
47 OFF OFF OFF OFF ON OFF ON ON
48 ON ON ON ON OFF OFF ON ON
49 OFF ON ON ON OFF OFF ON ON
50 ON OFF ON ON OFF OFF ON ON
51 OFF OFF ON ON OFF OFF ON ON
52 ON ON OFF ON OFF OFF ON ON
53 OFF ON OFF ON OFF OFF ON ON
54 ON OFF OFF ON OFF OFF ON ON
55 OFF OFF OFF ON OFF OFF ON ON
56 ON ON ON OFF OFF OFF ON ON
57 OFF ON ON OFF OFF OFF ON ON
58 ON OFF ON OFF OFF OFF ON ON
59 OFF OFF ON OFF OFF OFF ON ON
60 ON ON OFF OFF OFF OFF ON ON
61 OFF ON OFF OFF OFF OFF ON ON
62 ON OFF OFF OFF OFF OFF ON ON
63 OFF OFF OFF OFF OFF OFF ON ON
ADDRESS
SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8
64 ON ON ON ON ON ON OFF ON
65 OFF ON ON ON ON ON OFF ON
66 ON OFF ON ON ON ON OFF ON
67 OFF OFF ON ON ON ON OFF ON
68 ON ON OFF ON ON ON OFF ON
69 OFF ON OFF ON ON ON OFF ON
70 ON OFF OFF ON ON ON OFF ON
71 OFF OFF OFF ON ON ON OFF ON
72 ON ON ON OFF ON ON OFF ON
73 OFF ON ON OFF ON ON OFF ON
74 ON OFF ON OFF ON ON OFF ON
75 OFF OFF ON OFF ON ON OFF ON
76 ON ON OFF OFF ON ON OFF ON
77 OFF ON OFF OFF ON ON OFF ON
78 ON OFF OFF OFF ON ON OFF ON
79 OFF OFF OFF OFF ON ON OFF ON
80 ON ON ON ON OFF ON OFF ON
81 OFF ON ON ON OFF ON OFF ON
82 ON OFF ON ON OFF ON OFF ON
83 OFF OFF ON ON OFF ON OFF ON
84 ON ON OFF ON OFF ON OFF ON
85 OFF ON OFF ON OFF ON OFF ON
86 ON OFF OFF ON OFF ON OFF ON
87 OFF OFF OFF ON OFF ON OFF ON
88 ON ON ON OFF OFF ON OFF ON
89 OFF ON ON OFF OFF ON OFF ON
90 ON OFF ON OFF OFF ON OFF ON
91 OFF OFF ON OFF OFF ON OFF ON
92 ON ON OFF OFF OFF ON OFF ON
93 OFF ON OFF OFF OFF ON OFF ON
94 ON OFF OFF OFF OFF ON OFF ON
95 OFF OFF OFF OFF OFF ON OFF ON
96 ON ON ON ON ON OFF OFF ON
97 OFF ON ON ON ON OFF OFF ON
98 ON OFF ON ON ON OFF OFF ON
99 OFF OFF ON ON ON OFF OFF ON
100 ON ON OFF ON ON OFF OFF ON
101 OFF ON OFF ON ON OFF OFF ON
102 ON OFF OFF ON ON OFF OFF ON
103 OFF OFF OFF ON ON OFF OFF ON
104 ON ON ON OFF ON OFF OFF ON
105 OFF ON ON OFF ON OFF OFF ON
106 ON OFF ON OFF ON OFF OFF ON
107 OFF OFF ON OFF ON OFF OFF ON
108 ON ON OFF OFF ON OFF OFF ON
109 OFF ON OFF OFF ON OFF OFF ON
110 ON OFF OFF OFF ON OFF OFF ON
111 OFF OFF OFF OFF ON OFF OFF ON
112 ON ON ON ON OFF OFF OFF ON
113 OFF ON ON ON OFF OFF OFF ON
114 ON OFF ON ON OFF OFF OFF ON
115 OFF OFF ON ON OFF OFF OFF ON
116 ON ON OFF ON OFF OFF OFF ON
117 OFF ON OFF ON OFF OFF OFF ON
118 ON OFF OFF ON OFF OFF OFF ON
119 OFF OFF OFF ON OFF OFF OFF ON
120 ON ON ON OFF OFF OFF OFF ON
121 OFF ON ON OFF OFF OFF OFF ON
122 ON OFF ON OFF OFF OFF OFF ON
123 OFF OFF ON OFF OFF OFF OFF ON
124 ON ON OFF OFF OFF OFF OFF ON
125 OFF ON OFF OFF OFF OFF OFF ON
126 ON OFF OFF OFF OFF OFF OFF ON
127 OFF OFF OFF OFF OFF OFF OFF ON

Document No: GLT-207-7-2
Issue No: 007
Author: NRP Jones
Date: 11/01/2018
Page 7
ADDRESSABLE XTRATONE SOUNDER BEACON - INSTALLATION MANUAL
ADDRESS
SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8
192 ON ON ON ON ON ON OFF OFF
193 OFF ON ON ON ON ON OFF OFF
194 ON OFF ON ON ON ON OFF OFF
195 OFF OFF ON ON ON ON OFF OFF
196 ON ON OFF ON ON ON OFF OFF
197 OFF ON OFF ON ON ON OFF OFF
198 ON OFF OFF ON ON ON OFF OFF
199 OFF OFF OFF ON ON ON OFF OFF
200 ON ON ON OFF ON ON OFF OFF
201 OFF ON ON OFF ON ON OFF OFF
202 ON OFF ON OFF ON ON OFF OFF
203 OFF OFF ON OFF ON ON OFF OFF
204 ON ON OFF OFF ON ON OFF OFF
205 OFF ON OFF OFF ON ON OFF OFF
206 ON OFF OFF OFF ON ON OFF OFF
207 OFF OFF OFF OFF ON ON OFF OFF
208 ON ON ON ON OFF ON OFF OFF
209 OFF ON ON ON OFF ON OFF OFF
210 ON OFF ON ON OFF ON OFF OFF
211 OFF OFF ON ON OFF ON OFF OFF
212 ON ON OFF ON OFF ON OFF OFF
213 OFF ON OFF ON OFF ON OFF OFF
214 ON OFF OFF ON OFF ON OFF OFF
215 OFF OFF OFF ON OFF ON OFF OFF
216 ON ON ON OFF OFF ON OFF OFF
217 OFF ON ON OFF OFF ON OFF OFF
218 ON OFF ON OFF OFF ON OFF OFF
219 OFF OFF ON OFF OFF ON OFF OFF
220 ON ON OFF OFF OFF ON OFF OFF
221 OFF ON OFF OFF OFF ON OFF OFF
222 ON OFF OFF OFF OFF ON OFF OFF
223 OFF OFF OFF OFF OFF ON OFF OFF
224 ON ON ON ON ON OFF OFF OFF
225 OFF ON ON ON ON OFF OFF OFF
226 ON OFF ON ON ON OFF OFF OFF
227 OFF OFF ON ON ON OFF OFF OFF
228 ON ON OFF ON ON OFF OFF OFF
229 OFF ON OFF ON ON OFF OFF OFF
230 ON OFF OFF ON ON OFF OFF OFF
231 OFF OFF OFF ON ON OFF OFF OFF
232 ON ON ON OFF ON OFF OFF OFF
233 OFF ON ON OFF ON OFF OFF OFF
234 ON OFF ON OFF ON OFF OFF OFF
235 OFF OFF ON OFF ON OFF OFF OFF
236 ON ON OFF OFF ON OFF OFF OFF
237 OFF ON OFF OFF ON OFF OFF OFF
238 ON OFF OFF OFF ON OFF OFF OFF
239 OFF OFF OFF OFF ON OFF OFF OFF
240 ON ON ON ON OFF OFF OFF OFF
241 OFF ON ON ON OFF OFF OFF OFF
242 ON OFF ON ON OFF OFF OFF OFF
243 OFF OFF ON ON OFF OFF OFF OFF
244 ON ON OFF ON OFF OFF OFF OFF
245 OFF ON OFF ON OFF OFF OFF OFF
246 ON OFF OFF ON OFF OFF OFF OFF
247 OFF OFF OFF ON OFF OFF OFF OFF
248 ON ON ON OFF OFF OFF OFF OFF
249 OFF ON ON OFF OFF OFF OFF OFF
250 ON OFF ON OFF OFF OFF OFF OFF
251
252
253
254
255
ADDRESS
SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8
128 ON ON ON ON ON ON ON OFF
129 OFF ON ON ON ON ON ON OFF
130 ON OFF ON ON ON ON ON OFF
131 OFF OFF ON ON ON ON ON OFF
132 ON ON OFF ON ON ON ON OFF
133 OFF ON OFF ON ON ON ON OFF
134 ON OFF OFF ON ON ON ON OFF
135 OFF OFF OFF ON ON ON ON OFF
136 ON ON ON OFF ON ON ON OFF
137 OFF ON ON OFF ON ON ON OFF
138 ON OFF ON OFF ON ON ON OFF
139 OFF OFF ON OFF ON ON ON OFF
140 ON ON OFF OFF ON ON ON OFF
141 OFF ON OFF OFF ON ON ON OFF
142 ON OFF OFF OFF ON ON ON OFF
143 OFF OFF OFF OFF ON ON ON OFF
144 ON ON ON ON OFF ON ON OFF
145 OFF ON ON ON OFF ON ON OFF
146 ON OFF ON ON OFF ON ON OFF
147 OFF OFF ON ON OFF ON ON OFF
148 ON ON OFF ON OFF ON ON OFF
149 OFF ON OFF ON OFF ON ON OFF
150 ON OFF OFF ON OFF ON ON OFF
151 OFF OFF OFF ON OFF ON ON OFF
152 ON ON ON OFF OFF ON ON OFF
153 OFF ON ON OFF OFF ON ON OFF
154 ON OFF ON OFF OFF ON ON OFF
155 OFF OFF ON OFF OFF ON ON OFF
156 ON ON OFF OFF OFF ON ON OFF
157 OFF ON OFF OFF OFF ON ON OFF
158 ON OFF OFF OFF OFF ON ON OFF
159 OFF OFF OFF OFF OFF ON ON OFF
160 ON ON ON ON ON OFF ON OFF
161 OFF ON ON ON ON OFF ON OFF
162 ON OFF ON ON ON OFF ON OFF
163 OFF OFF ON ON ON OFF ON OFF
164 ON ON OFF ON ON OFF ON OFF
165 OFF ON OFF ON ON OFF ON OFF
166 ON OFF OFF ON ON OFF ON OFF
167 OFF OFF OFF ON ON OFF ON OFF
168 ON ON ON OFF ON OFF ON OFF
169 OFF ON ON OFF ON OFF ON OFF
170 ON OFF ON OFF ON OFF ON OFF
171 OFF OFF ON OFF ON OFF ON OFF
172 ON ON OFF OFF ON OFF ON OFF
173 OFF ON OFF OFF ON OFF ON OFF
174 ON OFF OFF OFF ON OFF ON OFF
175 OFF OFF OFF OFF ON OFF ON OFF
176 ON ON ON ON OFF OFF ON OFF
177 OFF ON ON ON OFF OFF ON OFF
178 ON OFF ON ON OFF OFF ON OFF
179 OFF OFF ON ON OFF OFF ON OFF
180 ON ON OFF ON OFF OFF ON OFF
181 OFF ON OFF ON OFF OFF ON OFF
182 ON OFF OFF ON OFF OFF ON OFF
183 OFF OFF OFF ON OFF OFF ON OFF
184 ON ON ON OFF OFF OFF ON OFF
185 OFF ON ON OFF OFF OFF ON OFF
186 ON OFF ON OFF OFF OFF ON OFF
187 OFF OFF ON OFF OFF OFF ON OFF
188 ON ON OFF OFF OFF OFF ON OFF
189 OFF ON OFF OFF OFF OFF ON OFF
190 ON OFF OFF OFF OFF OFF ON OFF
191 OFF OFF OFF OFF OFF OFF ON OFF

Document No: GLT-207-7-2
Issue No: 007
Author: NRP Jones
Date: 11/01/2018
Page 8
ADDRESSABLE XTRATONE SOUNDER BEACON - INSTALLATION MANUAL
Other Information
Like all electronic equipment, at the end of it`s working life this unit should not be
disposed of in a refuse bin.
It should be taken to a local reprocessing site as per the guidelines of the WEEE
directive, for correct disposal.
Zeta Alarms Ltd, 72-78 Morfa Road, Swansea SA1 2EN
0832
Zeta Alarms Limited
72-78 Morfa Road, Swansea SA1 2EN
17
0832-CPR-F2045
0832-CPR-F2047
EN54-3:2001+A1:2002 + A2: 2006
Alarm Devices – Sounder
Type A: For Indoor Use
MKII-AXT/R (W)
EN 54-3:2001 + A1:2002 +
A2:2006, EN 54-23: 2010
Alarm Devices – Sounder & VAD
Type A: For Indoor Use
MKII-AXTB/R (W)
Other Technical Data: See Doc: “Addressable
Xtratone Product le” held by the manufacturer
