Zimmer ZWave User manual

USA
User Manual
ZWave

Figures
Front view of device
1
Control unit / Handpiece / Footswitch
Selection and control
elements 1 Control unit 2 Pulse energy controller
3 Touch pen in holder
4 Display
5 Frequency controller
6 SD card slot
Handpiece 7 Handpiece
8 Air vents, front
9 Air vents with fan, rear
Footswitch 10 Footswitch
5
4
3
2
1
10 8 6 7
9

Figures
Front view of device
2
Display
Screen readouts 11 Status bar
12 Buttons on the screen
13 Title bar
14 Navigation bar
14
13
12
11

Figures
Rear view of device
3
Switch and connector sockets
15 16 17 18 19
Switch / Connector
sockets 15 Main switch 16 Mains fuse
17 Port for mains cable
18 Port for handpiece
19 Port for footswitch
20 Serial number / manufacturer's plate
20

Figures
Accessories
4

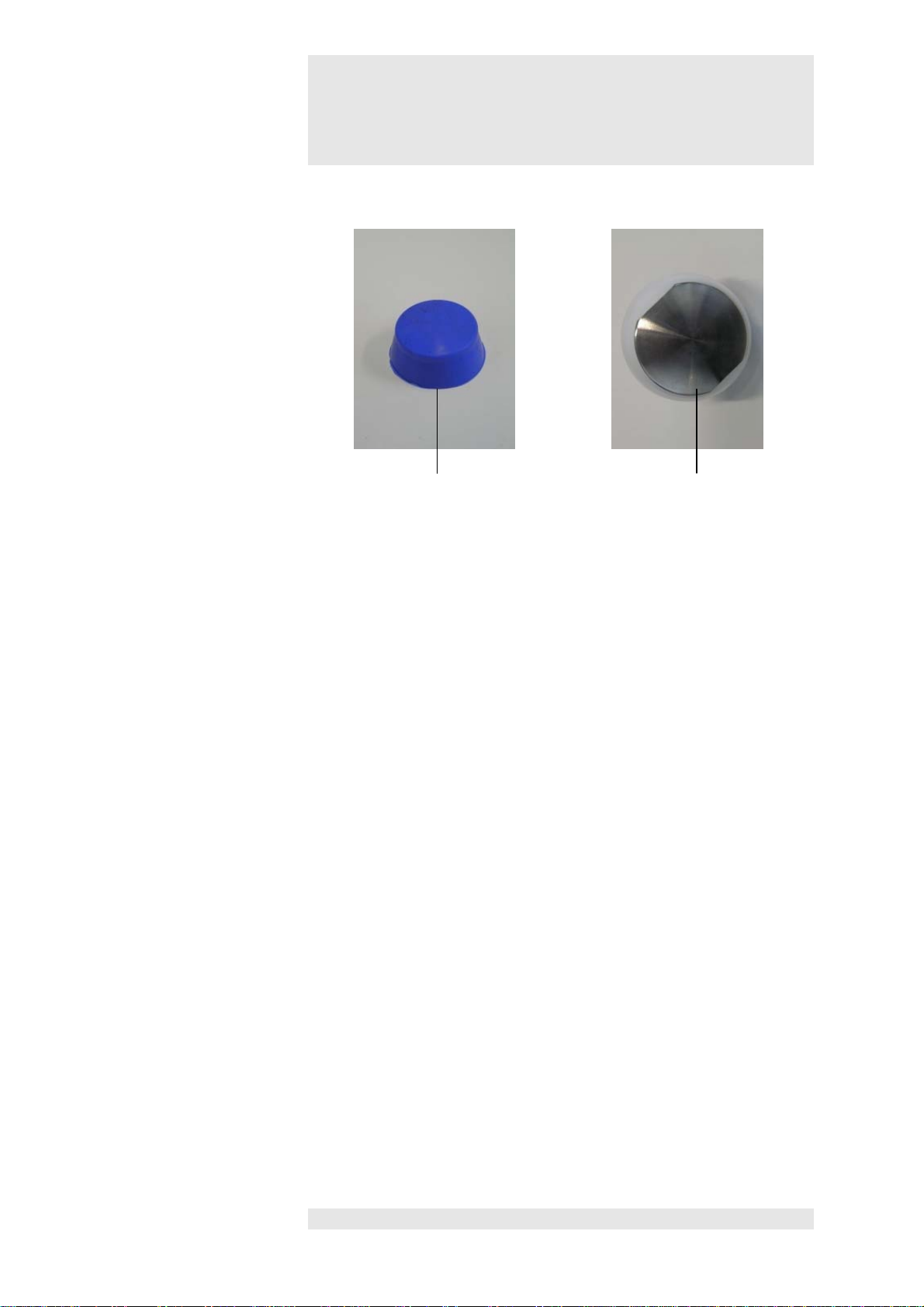

21 Silicone cap
22 2” applicator head
21 22

Contents
5
ZWave Front view of device
Figures - Control unit / Handpiece / Footswitch
Figures - Display
Rear view of device
Figures – Switch and connector sockets
Accessories
Figures
1
ZWave briefly
1.1. Summary
1.2. Quick operation instructions
1.3. How to use ZWave
1.4. Handpiece
1.5. Applicator heads
1.6. Footswitch
7
8
11
13
14
15
2 Installation
2.1. Fitting the cables, starting the system
2.2. Settings
16
17
3 SD card 19
4 Application screen 20
5 Favorites and Memory list
5.1. Saving modified programs
5.2. Retrieving and editing Favorites and
Memory list
23
24
6 Description of the selection keys 26
7 Application menu 28
8 Medical information
8.1. Application
8.2. Contraindications
30
31

Contents
6
9
General Information
9.1. Explanation of symbols
9.2. Warnings / Cautions
9.3. Technical data
9.4. Technical information
9.5. Legal information
32
33
34
35
36
10 Maintenance 37
11 Troubleshooting 40
12 Function test 42
13 Error messages 43
14 Scope of delivery - Accessories 44
15 Manufacturer’s declaration of Electromagnetic
Compatibility 45
Valid for the ZWave
devices
These operating instructions are an integral part of the device.
They must be stored with the device and kept accessible at all times for anyone authorised to
operate this device.
These operating instructions are valid from July 2014.
U.S.A. Federal Law restricts this device to sale by or on the order of a practitioner licensed by
the law of the State in which he/she practices to use or order the use of the device.

ZWave briefly
1.1. Summary 1
7
What is ZWave? A state of the art innovative therapeutic massager.
Pulse application High energy radial pulse application is a procedure for the temporary
reduction in the appearance of cellulite stage I to III.
What does ZWave do? Creation of pulses using an ergonomic handpiece and transmission of
pulses via special applicators.
ZWave has a maximum penetration depth of about 35 mm in human
tissue.
How are pulses
generated with ZWave? An electromagnetic field is generated via a coil in the back of the handpiece.
A projectile is accelerated as a result of the field; this strikes against the
applicator head at the front of the handpiece and generates pulses, which
spread out radially in the tissue.
What are the advantages
of ZWave? The innovative technology allows a compact design with no need for a compressor.
The clear and modern color display showing all parameters relevant for
application and the modern touch operation ensure pleasure and
motivation when providing application.
Individual program start configuration and clear, simple menu navigation
make operation of the device easy and comfortable for users.
Infinitely variable frequencies allow application to be adapted to the
particular condition of the client.
The compact design saves room in the practice and is highly suited for
use in home visits.
Note: ZWave has been constructed and designed solely for the treatment of
superficial skin problems in humans.

ZWave briefly
1.2. Quick operation instructions 1
8
Note: The following descriptions are all based on the factory settings.
Note: All buttons, menus, and submenus are activated directly on the screen
by touching it or using the touch pen or finger.
Starting the program
Press the 'Start' button to open the application screen.
Select the application
Select the required application.

ZWave briefly
1.2. Quick operation instructions 1
9
Application information
Press the 'Application' button to open the application screen with details
of the selected program.
Selecting the application
program
Positioning handpiece /
applicator Position the handpiece on the selected treatment point / field. To avoid any friction on the skin, lotion for treatment should be applied first to the
treatment area.
!When using lubricants, the applicator head must be covered with
the silicone cap to protect it.

ZWave briefly
1.2. Quick operation instructions 1
10
Setting the frequency
Adjust the frequency using the right controller, if necessary.
Setting the pulse energy Adjust the pulse energy using the left controller, if necessary.
Starting application Depress the footswitch to start the application.
The display in the bottom status bar changes from ′Ready′to ′Active′.
Note: Only activate the pulses via the footswitch once the handpiece has been
positioned on the client.
Ending application Deactivating the footswitch interrupts or ends the application. The display
in the bottom status bar changes from ′Active′to ′Ready′.
The device ends the treatment automatically once the preselected
number of pulses has been reached.
Note: During application, the client must be observed closely and the
application must be adjusted if necessary or discontinued should any
problems develop.

ZWave briefly
1.3. How to use ZWave 1
11
Start application ZWave operates with mechanical energy.
The energy is transmitted to the client via a handpiece, which is usually
held in one hand.
To do this, the handpiece is placed on the area or point of treatment with
the applicator head held vertically.
When the pulse is activated it is possible to work either steadily on a
single site or dynamically over an area.
It is advisable to use the lotion for treatment (included in the accessories)
in order to reduce friction on the skin.
The weight of the handpiece means that it is normally not necessary to
apply pressure to the treatment area / point.
The handpiece is placed on the treatment area / point and held loosely in
position with one hand.
If required, additional pressure may be applied in the direction of the
tissue, and the working angle can be varied.
!When using treatment lotion or other lubricants, the applicator head must
be covered with the silicone cap to protect it.
Note: Despite high internal damping as a result of the weight and design of the
handpiece, vibrations may cause strain to the user's hand.
Recommended protective measures:
Limit the duration of exposure
Note: The client should be carefully monitored throughout the application.

ZWave briefly
1.3. How to use ZWave 1
12
Recommendation for
application Applications Number of
sessions
Applications
per week
Frequency Power
level
Pulses per
application
Cellulite
stage I 8 - 10 2- 3 14 – 16 Hz 60 – 120 mJ 2500 to 3000
Cellulite
stage II 9 - 12 2 - 3 10 – 16 Hz 90 – 120 mJ 2500 to 3400
Cellulite
stage III 10 - 14 2 - 3 10 – 16 Hz 90 – 120 mJ 3200 to 3700

ZWave briefly
1.4. Handpiece 1
13
The handpiece (7) contains the pulse generator, a fan to dissipate heat
and the slot for the applicator head. It is connected to the control unit (1).
Note: The pulse generator in the handpiece is an expendable part and has to be
replaced after a specific period of use as its functionality decreases over
time.
Zimmer MedizinSysteme guarantees unrestricted use of at least 2 million
pulses per pulse generator.
Wear of the pulse generator varies. Depending on performance and
frequency, sometimes far more than 2 million pulses can be delivered.
For more information on the need to replace the pulse generator, see
chapter 11.
To work with the handpiece on a client, it is essential that one of the
applicator heads is screwed tightly into the handpiece as far as possible.
The cable should not be stretched beyond its maximum length and must
be protected against pinching or any other mechanical damage.
To avoid heat accumulation in the handpiece, it is essential to ensure that
the air vents at the top and particularly on the base of the handpiece are
not blocked by the hand holding it or anything else.
Standby mode on device
and handpiece The fan in the handpiece is started by depressing the footswitch and stops automatically by reaching a certain temperature after the end of treatment.

ZWave briefly
1.5. Applicator heads 1
14
There is one size applicator head available for application.
Changing applicator
heads To change the applicator head, hold the handpiece in one hand and unscrew the applicator head from the handpiece with the other hand
(anticlockwise). Screw the new head tightly into the handpiece
(clockwise), until the black outside ring of the applicator head rests on the
handpiece (there should no longer be any thread visible).
Note: Applicator heads are expendable parts and must be replaced after a
certain period of use.
Minor / slight deformation or shortening of the rear impact dome does not
affect functionality.
In case of greater deformation of the rear impact dome or shortening the
applicator head must be replaced.

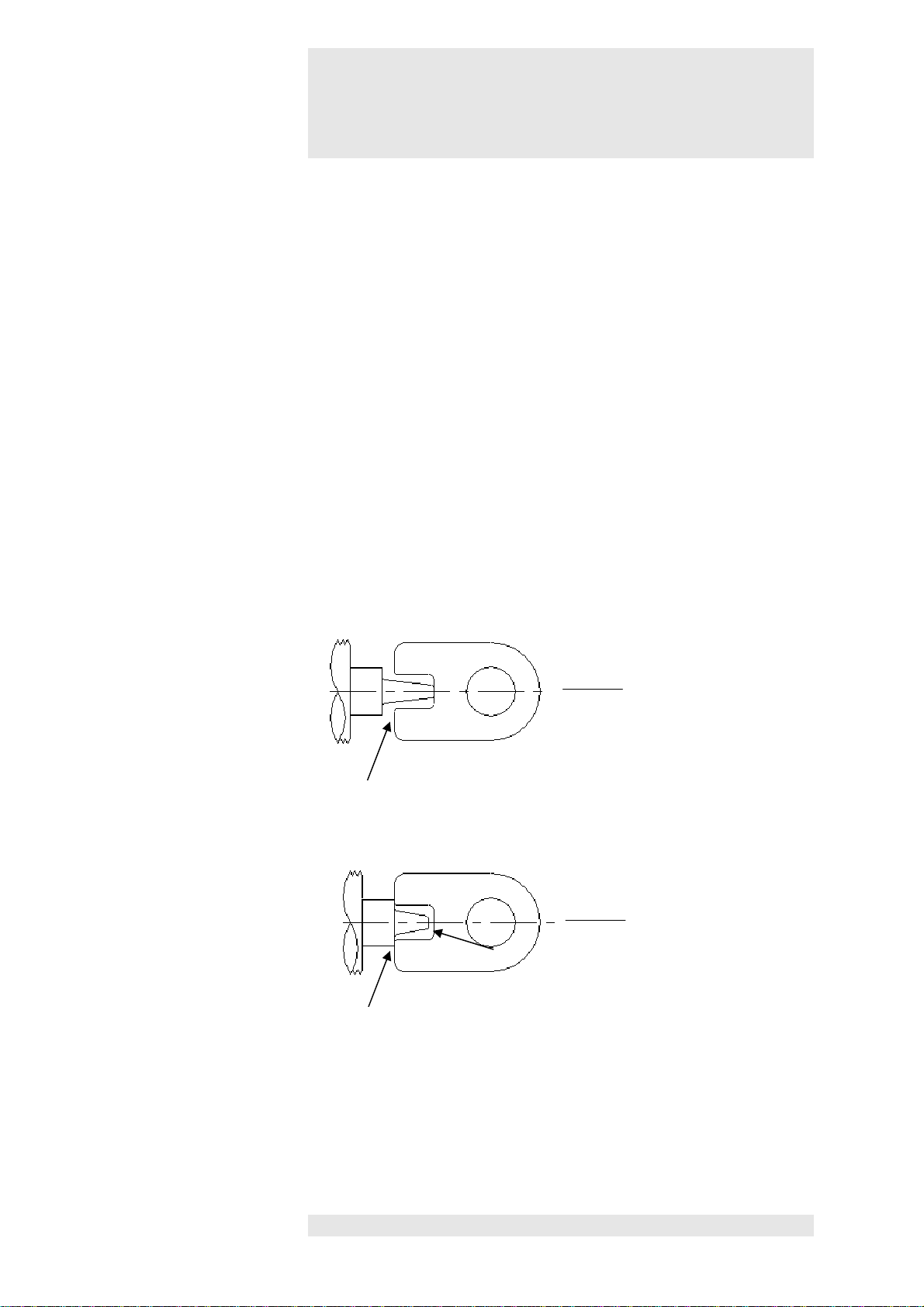

A test template is supplied with the device that enables the user to test if
the wear limit has been reached (see diagram).
Air gap applicator OK
Test tem
p
late
Test tem
p
late
Template makes contact or air gap at the tipWear limit has been reached

ZWave briefly
1.6. Footswitch 1
15
Place the footswitch that it can be reached easily during application. The
footswitch control unit is non-directional so it is not necessary to align the
footswitch exactly.
To avoid damage please note that only slight pressure needs to be
exerted on the switch. Use the front part of your foot, not the heel to
operate the footswitch.
The switch does not have a locking device, which means that it only
remains actuated as long as pressure is applied.

Installation
2.1. Fitting the cables, starting the
system 2
16
Note:
Before starting up the system, remove ZWave from its transport case.
Do not operate the device while it is in the case.
Ensure that ZWave is placed on a stable surface.
Note: Make sure that the main switch on the device is set to '0'.
Connecting the mains
cable Connect the mains cable to the designated port (17) on the device and then plug into the mains.
Connecting the
handpiece Plug the handpiece into the appropriate socket (18) on the device and place it on the table.
Note: Ensure that the applicator head is inserted into the handpiece and is
properly screwed in as far as possible.
Connecting the
footswitch Plug the footswitch into the appropriate socket (19) on the device and then place it on the floor.
Switching on the device Switch on the device using the main switch (15).

Installation
2.2. Settings 2
17
Note: Changes to the default settings can only be made from the start screen.
Press button ′Settings′to open the configuration screen.
Language
Press this button to open the menu to select the language. The language is selected by pressing on the appropriate row in the pull down menu.
Welcome message Option to configure an individual welcome message. Activate the
welcome message field to open the keyboard to enter a welcome
message.
Audio / graphic
settings
Brightness
Volume
Option to adjust the brightness of the screen. Adjust the brightness using
the two arrow keys.
Option to adjust the volume of the signals when activating the control
fields. Adjust the volume using the two arrow keys.
Handpiece counter
status
The counter status for the handpiece that is currently connected is shown
in this display field.

Installation
2.2. Settings 2
18
Version Press the version button to open the window with information about the
current software version of the device.
Default settings Press the default button to reset the factory default settings.
Touch calibration Press the ′Touch Calibration′button to open the screen to carry out the
touch calibration.
This can be done to improve the touch input if it is not sufficiently
accurate.
First press the + symbol in the top left corner. A + symbol then appears
in the lower right corner.
Then precisely press the + symbol in the lower right corner.
Repeat the procedure to complete the touch calibration.
Alternative language The option ′Alternative language′is inactive.

SD card 3
19
User-defined settings and the applications list are saved on the SD card.
Note: If the SD card is not inserted, the message ′SD card not found′appears
when the 'Favorites'and 'Memory'buttons are pressed.
Deactivate the message by pressing the button ′OK′, insert the SD card,
and then continue.
