Front view of device
Fig. 1

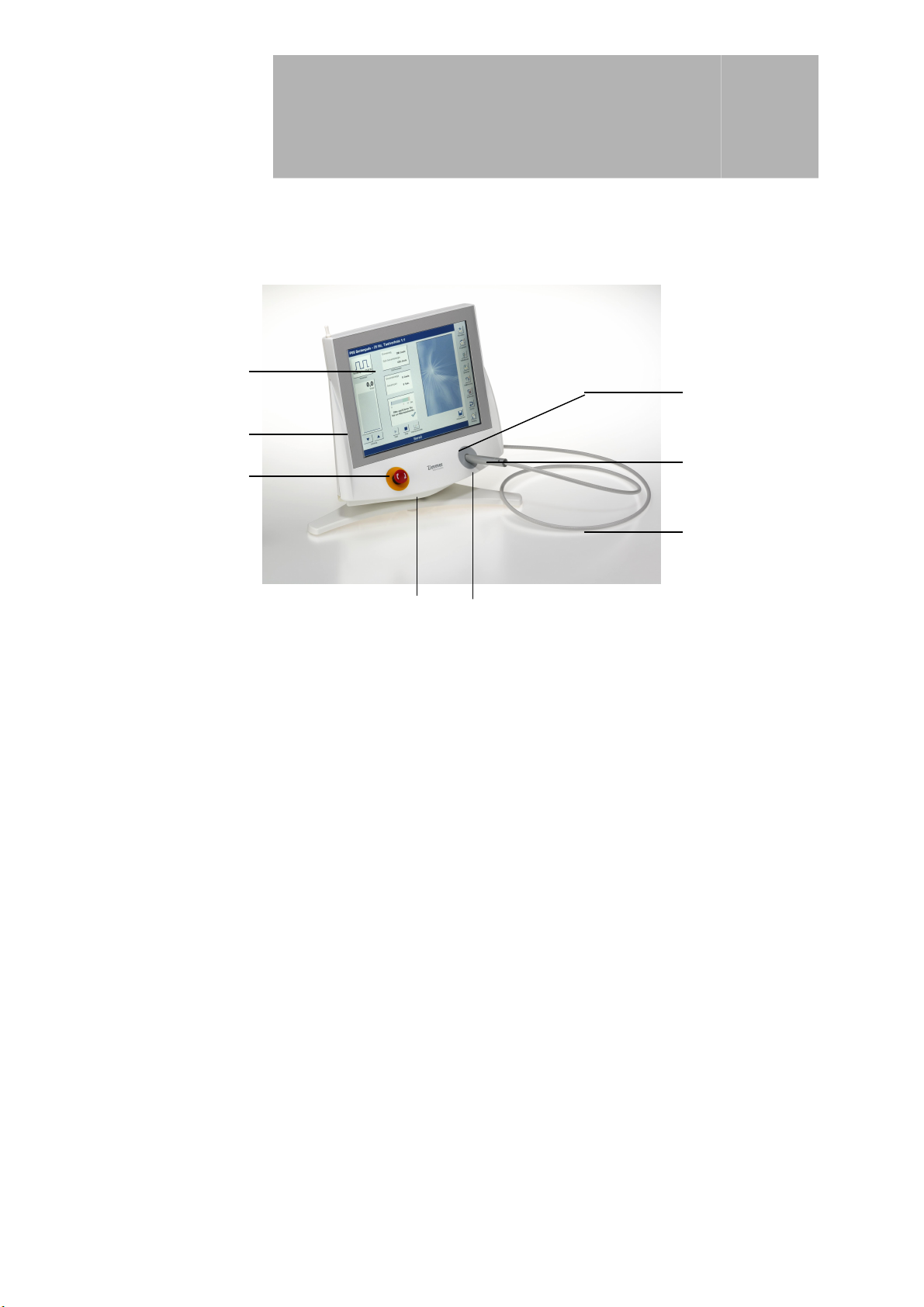

Selection and control elements
1 Control unit
2 Display
3 Emergency Off button
4 D card slot
5 On/off switch
Applicator with fibre-optic cable and calibration sensor
6 Applicator
7 Fibre-optic cable
8 Calibration sensor and holder for applicator
1
2
3
4 5
8
6
7

Figures

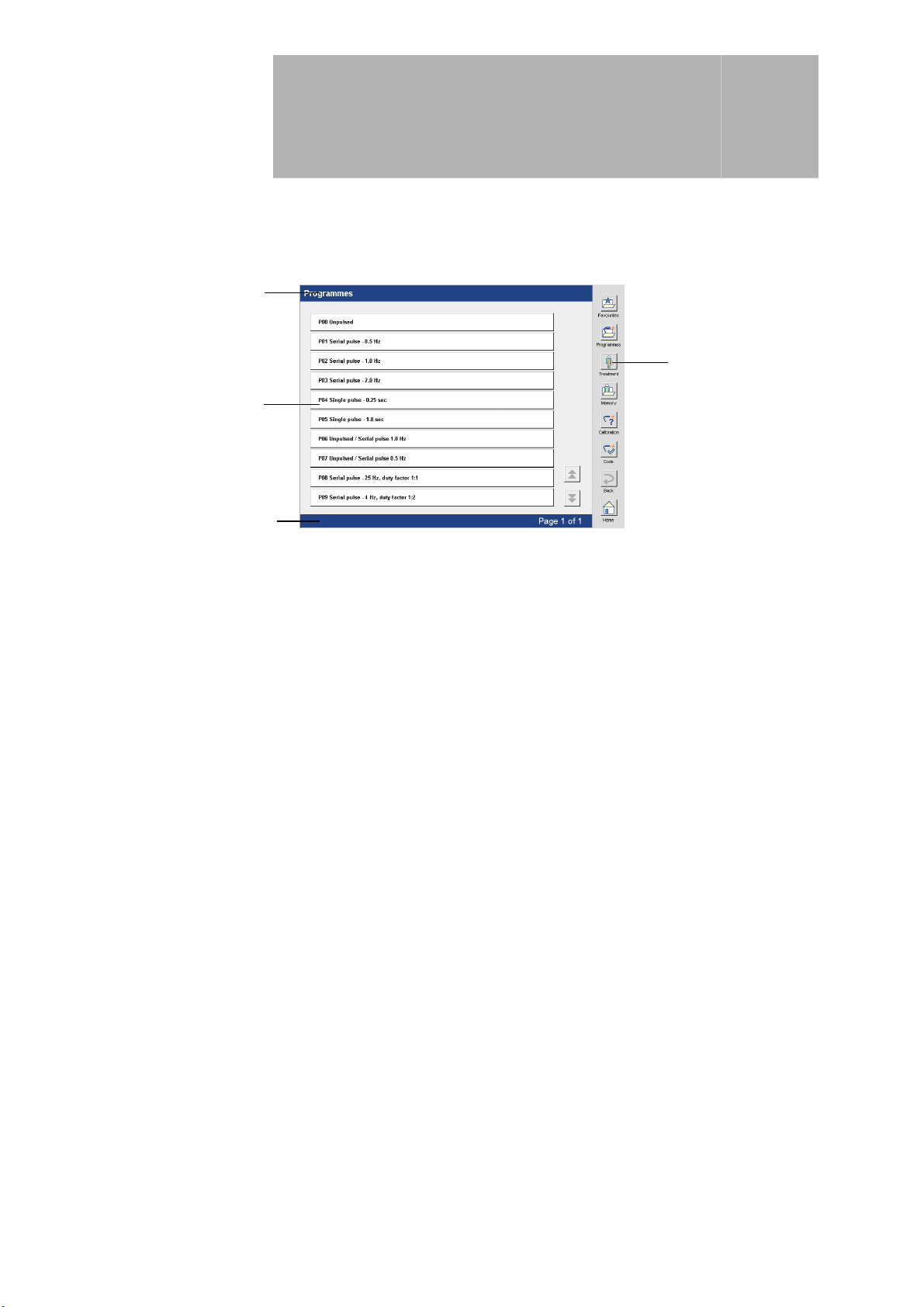

Display
Fig. 2
Screen readouts
9 tatus bar
10 Buttons on the screen
11 Title bar
12 Navigation bar
10
12
9
11

Figures
Rear
Fig. 3
Connector sockets
13 Footswitch socket
14 Interlock connector socket
15 Connector for mains cable
16 Holder for mains fuse
17 Name plate
18 / 19 ocket without function for OptonPro
20 Touch pen in holder
21 Fibre-optic cable outlet
13 14 15 16 17 18 / 19
20
21

Figures
Accessories
Fig. 4

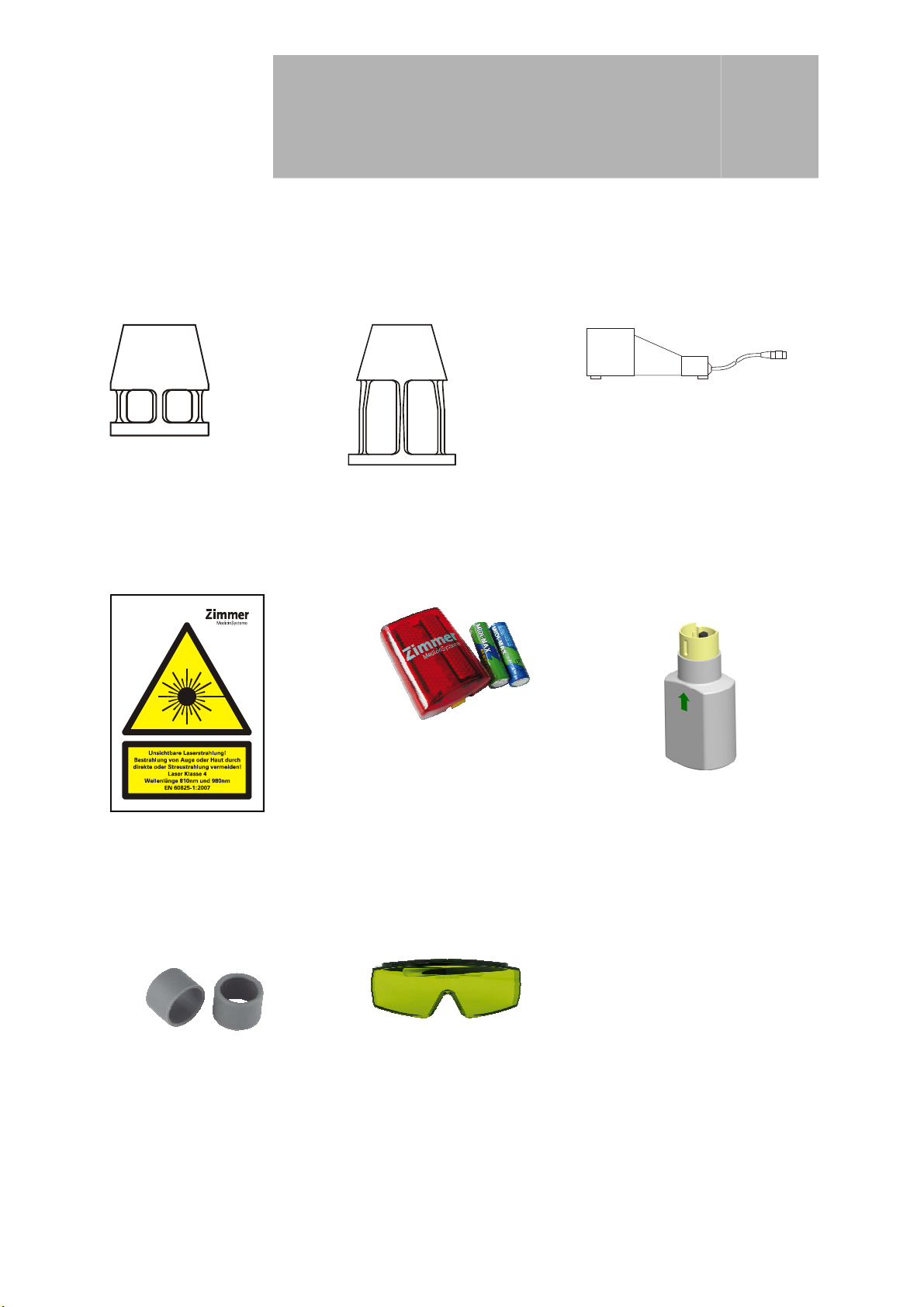

22 pacer small 23 pacer large 24 Footswitch
25 Laser warning sign 26 Laser warning lamp 27 Interlock connector
28 Protective sleeve 29 Laser protective glasses

Contents
OptonPro
Front iew of de ice
Fig. 1 election and control elements
Fig. 2 creen readouts
Rear iew of de ice
Fig. 3 Connector sockets
Fig. 4 Accessories
Page
1
OptonPro – quick introduction 1
2
Safety measures, commissioning, function test
2.1. Quick operating instructions 2
3
Instructions for use
3.1. General operation
3.2 Thermal threshold test
3.3. 2-phase programmes
3.4. aving programmes
3.5. Retrieving favourites / memory list, opening
programmes, editing list
4
12
14
15
17
4
Configuration menu 19
5
Na igation bar 22
6
Therapy recommendations 23
7
Calibration 25
8
Key code 27
9
Indications 28
10
Contraindications 29
11
Explanation of symbols 30
12
Safety instructions 31

Contents
OptonPro
Page
13
General instructions, SD card, accessories, ser ice 34
14
Repairs, maintenance, cleaning, disinfection 35
15
Technical data 36
16
CE mark, legal information 38
17
Contents on deli ery, accessories 39
18
Errors, troubleshooting, disposal 40
19
Manufacturer's EMC declaration 42
Valid for the OptonPro.
These operating instructions are an integral part of the device.
They must be stored with the device and kept accessible at all times for anyone authorised to
operate this device.
These operating instructions are valid from 01 eptember 2010.

OptonPro
quick introduction
1
1
What is the
OptonPro?
A high performance medical laser therapy device for treatment with laser
radiation.
What does the
OptonPro do?
It delivers laser light for photochemical and thermal stimulation of parts of the
musculoskeletal system in physical therapy.
What is the
ad antage of the
OptonPro?
The simultaneous application of laser light of two wavelengths
(810 and 980nm) opens up a wide range of therapy options for the user.
Modern microprocessor control and the precise mechanism of power
measurement make it simple and safe to use.
The clear and modern colour display showing all parameters relevant for
treatment and the modern touch control make treatment motivating and
enjoyable.
Customized programme start configurations and clear, simple menu navigation
make operation of the device easy and convenient for users.
Note: The device is designed for use by medical professionals only (e.g., doctors,
therapists and health paraprofessionals).

Safety measures, commissioning,
function test
2.1 Quick operating instructions
2
2
Safety
measures
Attach a laser warning sign and a warning light to every door to the treatment
room.
The laser safety officer must check that the safety measures are correctly
applied.
When it is not in use, the device must be protected from unauthorised use by
actuating the code key.
Commissioning 1. Ensure that the protective goggles are accessible for the operators of the
device at all times.
2. Plug the interlock connector into the socket (14) on the rear of the device.
3. Connect the footswitch to the socket (13) on the rear of the device and
place it in an easily accessible position for treatment.
4. Connect the power cable to the power socket (15) and the mains supply.
Function test 1. Ensure that all persons present in the treatment room are wearing
protective goggles.
2. Ensure that the applicator (6) is fully inserted in the calibration sensor (8).
3. witch the device on.
4. Activate the “ tart” key and then press the “Calibration” button.
5. Activate the code key, enter the key code.
6. Activate the laser by pressing the “ tart” key.
7. Perform a calibration ( ection 7). “Calibration OK” confirms that the laser
unit is in good condition.
8. Press the Emergency Off button (3 ) . The device must switch off
immediately. Then return the head of the button to the starting position by
rotating it in the direction of the arrow to its original position.

Safety measures, commissioning,
function test
2.1 Quick operating instructions
2
3
Note: Make sure that the main switch of the device is set to ' '.
Note: Ensure that all persons present in the treatment room are wearing protective
goggles. Ensure that the applicator (6) is inserted completely into the
calibration sensor (8).
Installing the mains
cable
Connect the mains cable to the designated port (15) on the device and then
plug into the mains.
Interlock connector Connect the interlock connector (27) to the appropriate socket on the device
(14).
Connecting the
footswitch
Plug the footswitch (24) into the appropriate socket (13) and then place it on
the floor.
Installing
spacers
Place the spacer on the applicator.
Switching on the
de ice
witch on the device using the main switch.
Selecting a
programme
Activate the “ tart” key and select a programme.
Acti ating the key
code
Activate the code key and enter the key code 1234.
Setting intensity et the required power.
Acti ating the laser Activate the laser by pressing the “ tart” key.
Applicator Place the applicator in the correct position on the treatment area.
Starting treatment Depress the footswitch to start the treatment.
Ending treatment The treatment is interrupted or terminated by deactivating the footswitch.
After treatment, remove the spacer from the applicator and insert it into the
calibration sensor.

Instructions for use
3.1. General operation
3
4
Note: The following descriptions are all based on the factory settings.
All buttons, menus and submenus are activated directly on the screen by
touching it or using the touch pen.
Ensure that all persons present in the treatment room are wearing protective
goggles.
To prevent use of the laser by unauthorised persons
the OptonPro must be activated by input of a key code every time the device is
switched off and on again.
The activating code is required for the setting and emission of laser power.
Starting the
programme
Press the " tart" button (1) to open the programme screen.
Press the " ettings" button (2) to open the configuration screen.
Programme screen
elect the desired programme directly in the list.
(2)
(1)

Instructions for use
3.1. General operation
3
5
Note: We recommend activating the key code in the programme screen.
If the key code is activated in the treatment screen, the treatment screen is
deactivated, and intensity entries cannot be made.
Acti ating the
key code
Press the "Code (1)" button to open a numerical keypad to enter the code.
Enter the factory-programmed code 1234 or your own code as programmed in
the configuration menu ( ection 8) and confirm with the "OK" button.
After activating the code, the symbol on the code button (2) changes and the
message “Please activate the laser using tart" is shown in the status bar.
(1)
(2)

Instructions for use
3.1. General operation
3
6
Spacer Plug the required spacer onto the applicator.
Setting parameters Press the "Parameters" button to open the "Parameters" window.
The parameters for the various operating modes can be selected here.
The parameters to be changed are selected with the buttons (1).
The values are set with the buttons (2).
Press "OK" to accept the changed settings.
Press "Cancel" to cancel the process.
Operating modes: The following operating modes can be selected:
• Continuous
• ingle pulse
• eries pulse
• Burst
ingle pulse: - Pulse time 0.02 to 5 seconds
Frequency Duty factor
eries pulse/burst 0.1 - 1 Hz, 2, 4, 5, 10 Hz 1:1 – 1:10
Burst pulses 1 – 100 Hz
eries pulse 25 Hz 1:1 – 1:3
Setting options in the
arious operating
modes
erial pulse 50 Hz 1:1
(1)
(2)

Instructions for use
3.1. General operation
3
7
Setting
target parameters
Press the "Rated parameter" button to open the
"Rated parameter" window.
Reminder Entry field (1) gives the option of entering a specific number of Joules.
An acoustic signal sounds once the specified number of Joules has been
output. The signal repeats at the same intervals depending on the number of
Joules entered until the target total energy has been delivered.
If no target total energy is entered, an acoustic signal only sounds once the set
number of joules has been delivered.
Total energy In the entry field (2) "Total energy", a target total energy can be set.
Once the target total energy is delivered, an acoustic signal sounds and the
laser application is stopped.
The application can be continued by pressing the footswitch again.
Input
reminder,
total energy
An "Input" window is opened by pressing the "Reminder" (1) and "Total
energy" (2) buttons.
elect the desired decimal position with the cursor or activate it with the touch
pen. The required values are entered with the numeric keypad.
Press "OK" to accept the new settings.
Press "Cancel" to cancel the process.
Note: Setting a reminder and a target total energy is not necessary to carry out the
therapy.
(2)
(1)

Instructions for use
3.1. General operation
3
8
Recommendation To define the correct laser power for the specific situation, we recommended
performing a thermal threshold test before every treatment ( ection 3.2).
Use the arrow keys
to set the power
everal options are available for setting power.

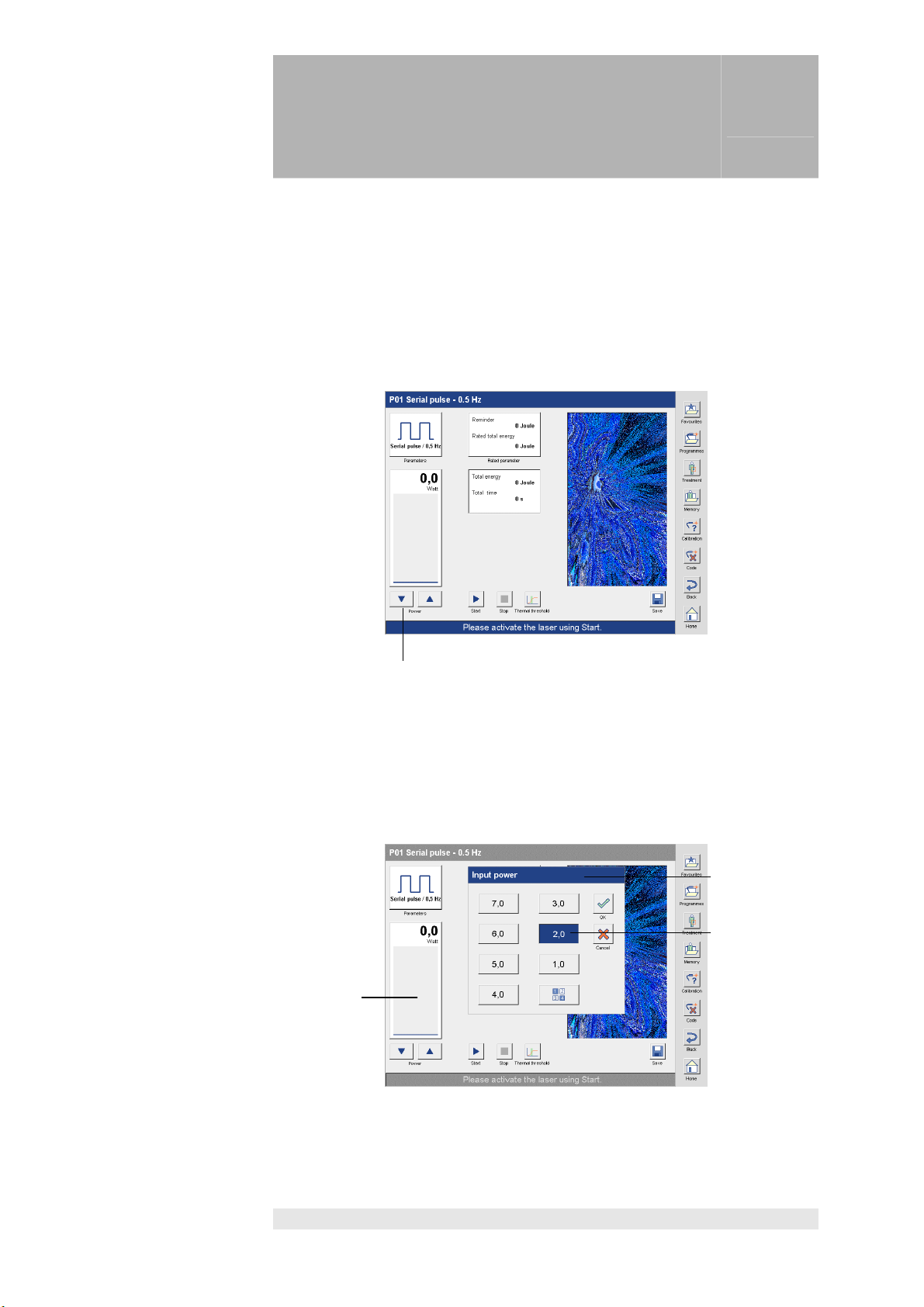

1. The power can be adjusted in 0.1 W steps with the arrow keys (1) beneath
the bar graph.
Setting power
with the selection
field
2. Press the bar graph (1) to open the window “Input power” (2).
The selection is made by pressing the button with the desired power (3).
The power is set in 1 W steps.
Press "OK" to activate the selected power.
Press "Cancel" to cancel the procedure.
(1)
(1)
(2)
(3)

Instructions for use
3.1. General operation
3
9
Setting power
with number block

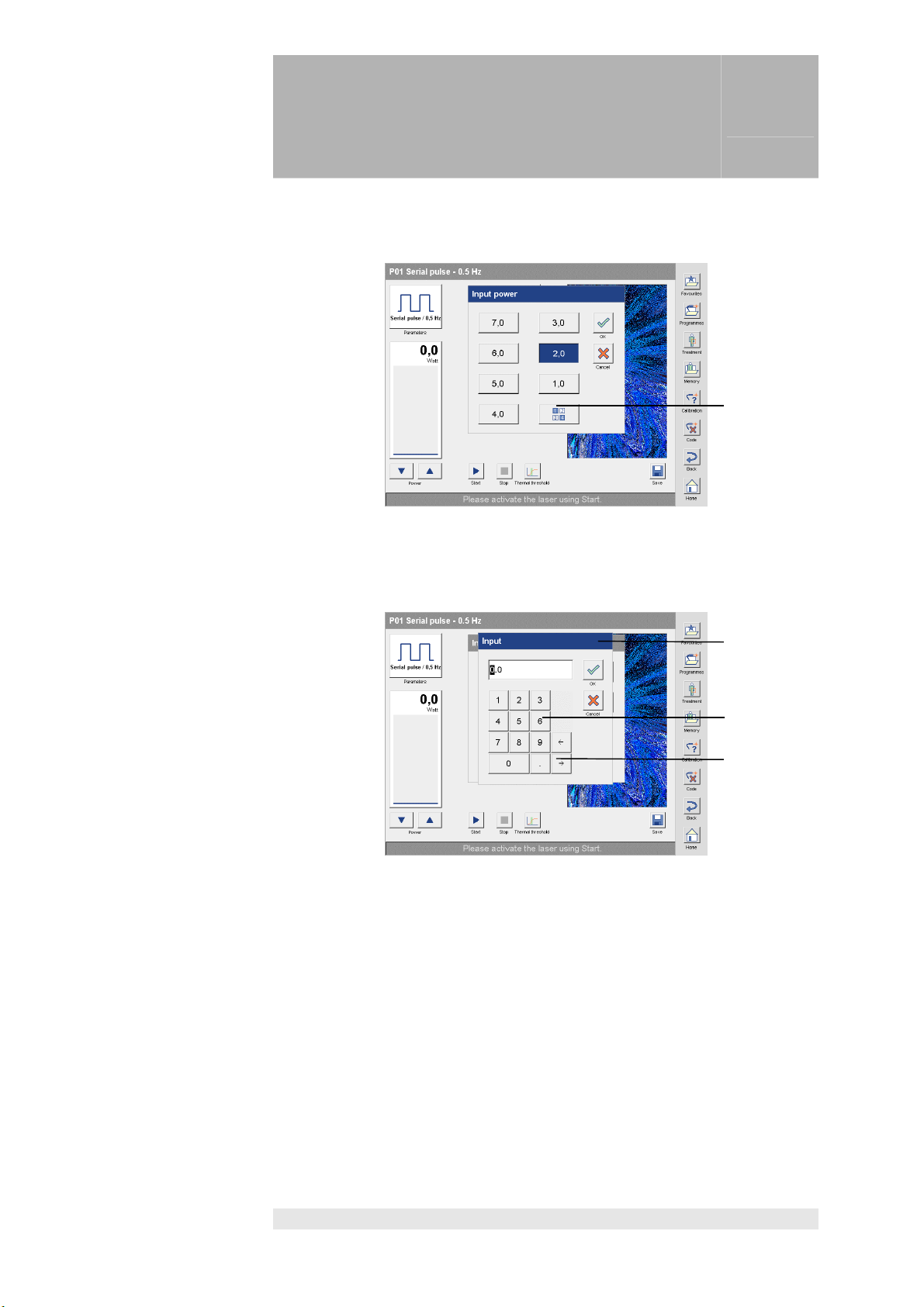

3. There is a number block (1) in the "Input power" window.
Press the number block (1) to open another window “Input” (2).
The required power is entered with the numeric keypad (3).
The numbers with the black background are changed when a number
button is selected.
After setting the 1st digit the black marking automatically jumps to
the 2nd digit.
The selected digit can be manually changed with the arrow keys (4).
(1)
(2)
(3)
(4)

Instructions for use
3.1. General operation
3
10
Acti ating the laser Press the “ tart” button to put the laser into operational status.

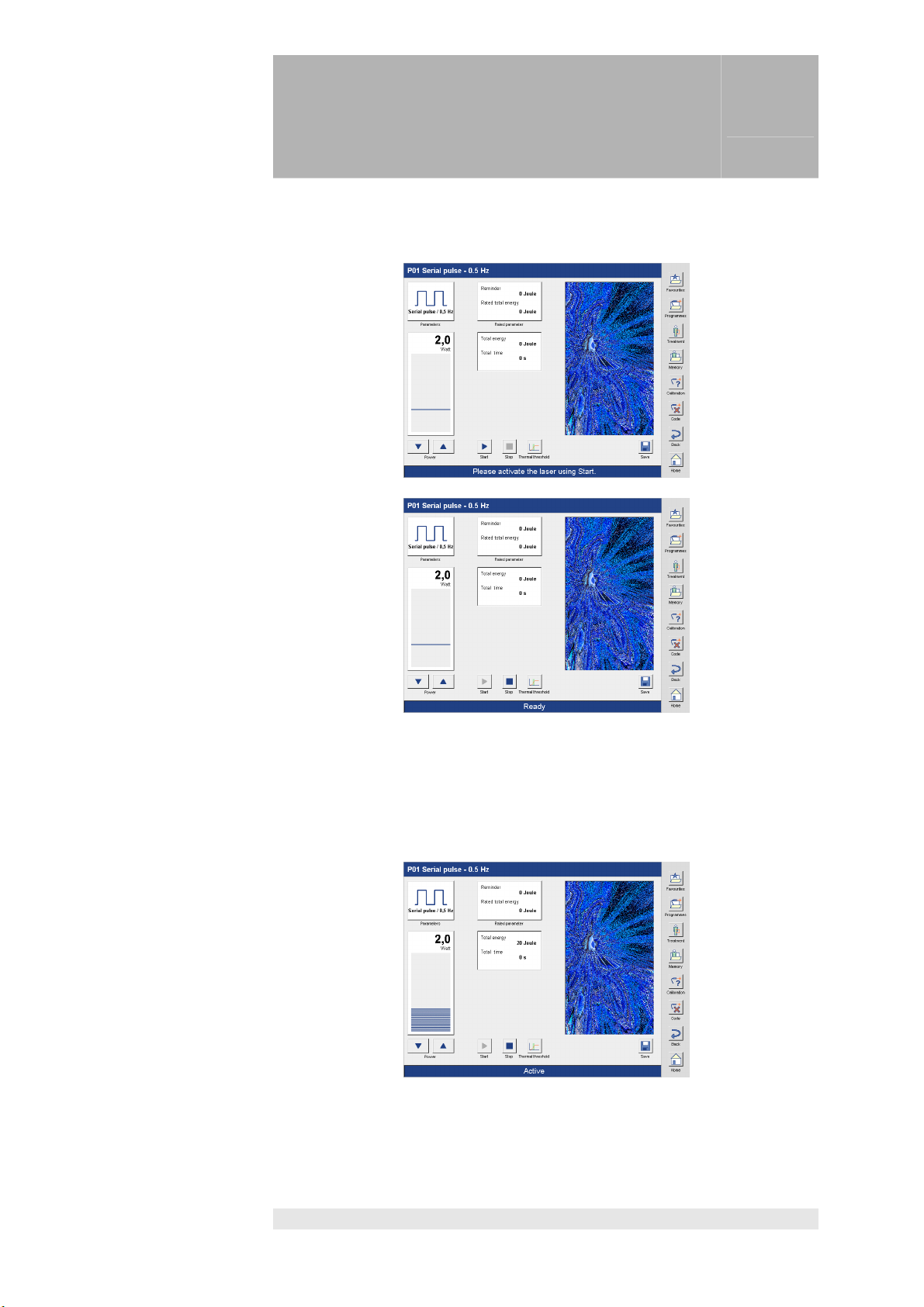

The operational status of the laser is indicated by the "Ready" message in the
status bar. The “ tart” button is inactive, the “ top” button active.
Starting treatment Laser power is delivered by pressing the footswitch, and the “Ready” message
changes to “Active”.
The current power delivered in Watts is shown in the bar graph.
Note: During treatment, the patient must be observed closely and the treatment must
be adjusted if necessary or discontinued should any problems develop.

Instructions for use
3.1. General operation
3
11
Ending treatment Power delivery is stopped by deactivating the footswitch or when the total
energy has been delivered.
The display in the bottom status bar changes from "Active" to "Ready".
The power must be manually set to 0.0 W. Either set the values with the two
arrows beneath the bar graph or activate the bar graph, then the number block
and enter the value with the numerical keypad.
Remove the spacer from the applicator at the end of treatment. Insert the
applicator into the calibration sensor.
Note: If power delivery is stopped with the "Stop" button, the message "Please
activate the laser with Start" appears. If it is activated, the display in the status
bar changes to "Ready" and the laser is again in operational status.
We recommend locking the laser therapy device after every treatment session
to prevent unauthorised use.
Lock the device by pressing the "Code" button. The device lock is indicated by
the key:
If you deactivate the code after a treatment, ensure that the code is reactivated
before the next treatment by entering the code.

Instructions for use
3.2 Thermal threshold test
3
12
Note: The thermal threshold test is especially recommended to avoid overdose with
darker skin types (IV, V, VI), particularly in CW mode.
The thermal threshold test requires unimpaired thermal sensitivity.
If it is locally impaired, the test should be conducted at a heat-sensitive
location.
Thermal threshold
test
The laser beam is applied until the patient feels a sensation of heat. The right
laser power is set properly if the application time is between 7 and 11 seconds.

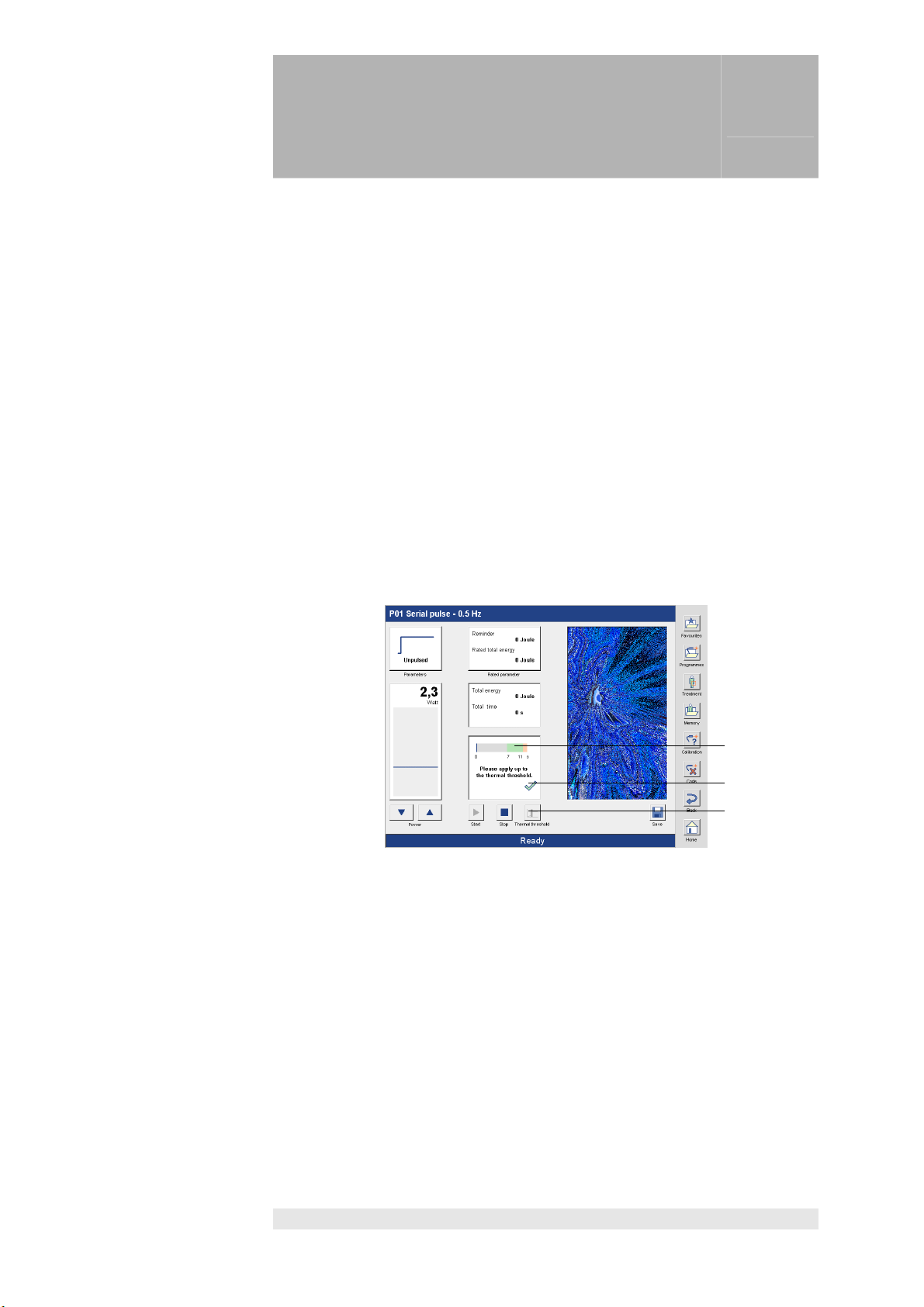

Press the "Thermal threshold" button (1) to open the window to perform the
thermal threshold test (2).
The thermal threshold test is performed in continuous mode, which is
automatically set after pressing the "Thermal threshold" button.
(3)
(2)
(1)
