Zippie Salsa R2 User manual

Instructions for Use
Zippie Salsa R2&
Zippie Salsa M2
Powered Wheelchair
035005.UK

2ZIPPIE SALSA R2/ ZIPPIE SALSA M2
Rev.2.0
IMPORTANT:
DO NOT USE YOUR WHEELCHAIR UNTIL
THIS MANUAL HAS BEEN READ AND
UNDERSTOOD.
User Information
Intended use power wheel chairs:
Power wheelchairs are exclusively for a user who is
unable to walk or has limited mobility, for their own
personal use in- and outdoor.
When an Attendant Control Module is fitted, the Power
Wheelchair may be operated by an assistant on behalf of
the user.
When a Dual Control Module is fitted the Power
Wheelchair may be operated by the user, or control may
be switched to an assistant to operate on behalf of the
user.
The maximum weight limit (includes both the user and
any weight of accessories fitted to the wheelchair) is
marked on the serial number label, which is affixed to
the chassis of the chair.
The chair serial number is affixed also to the front page
of the owners manual supplied with the wheelchair.
Warranty can only be taken on if the product is used
under the specified conditions and for the intended
purposes.
The intended lifetime of the wheelchair is 5 years.
Please DO NOT use or fit any 3rd party components
to the wheelchair unless they are officially approved by
Sunrise Medical.
Area of application
The variety of fitting variants as well as the modular
design mean that it can be used by those who cannot
walk or have limited mobility e.g. because of:
• Paralysis
• Loss of extremity (leg amputation)
• Extremity defect deformity
• Joint contracture/joint injuries
• Strokes and brain injuries
• Neurological disabilities (e.g. MS, Parkinson…)
• Illnesses such as heart and circulation deficiencies,
disturbance of equilibrium or cachexia as well as for
elderly people who still have the strength in the upper
body.
• Persons who are mentally and physically able to control
an input device to operate the chair and its functions in
a safe way.
Sunrise Medical declares under its sole responsibility
that this product is in conformity with the requirements of
the directive 93/42/EEC amended by 2007/47/EEC.”
Sunrise Medical declares that this product fulls the
performance requirements for a “Crash Test” to
ISO 7176-19.
When considering provision, please also note the body
size, weight including the distribution of body weight, the
user’s physical and psychological constitution, the age of
the user, their living conditions and their environment.
If in doubt a health care professional should be involved
to ensure the user is not exposed to unacceptable risks.
Sunrise Medical is ISO 9001 2008 certified, which
ensures quality at all stages of the development and
production of this wheelchair.
Dealer signature and stamp

ZIPPIE SALSA R2/ ZIPPIE SALSA M2 3
Rev.2.0
1.0 Your Wheelchair 6
2.0 How to use this manual 6
2.1 Introduction 6
2.2 Guarantee 6
2.3 Warranty conditions 6
3.0 Label Explantation / Word definitions 7
3.1 Definitions of words used in this manual 7
3.2 Label explanations 8
4.0 General safety warning and user tips 10
4.1 General warnings 10
4.2 Features and options 10
4.3 Kerbs 10
4.4 Routine service 10
4.5 Brake release 10
4.6 EMC - Radio transmitting devices. 11
4.7 Emergency braking 11
4.8 Sharp turns 11
4.9 Batteries 11
4.10 Tyres 12
4.11 Weight limit 12
4.12 Wheelchair motors 12
4.13 Hot surfaces 12
4.14 Wheelchair range 12
4.15 Road use 13
4.16 Adverse conditions 13
4.17 Ramps 13
4.18 Transfer to and from the chair 13
4.19 Lift and tilt modules 13
4.20 Anti-tips 14
4.21 Use on a slope 14
4.22 Using a vehicle mounted passenger lift 14
4.23 Creep mode 15
4.24 Stability of your wheelchair 15
4.25 Wheels 15
4.26 Rear view mirror 16
4.27 Crutch holder 16
4.28 Lights and indicators 16
4.29 Swing away tray 16
4.30 Using a kerb climber 16
4.31 Lap belt (Standard Seat) 18
4.32 VR2 Controller (Fig. 4.33) 20
5.0 Preparing your wheelchair for use 20
5.1 Handling the wheelchair 20
5.2 Preparation for transportation or storage 20
5.3 Re-Assembling 21
5.4 Brake release 21
5.5 Drive wheel suspension Zippie Salsa 23
5.6 Control joystick unit position 23
5.7 Getting ready to drive 23
5.8 Standard Armrests 24
5.9 Leg Rests 28
6.0 Seating 30
6.1 Solid seat. 30
6.2 Seat cushions 30
6.3 Removable seat covers 30
6.4 Standard backrest upholstery 30
6.5 JAY backrests 30
6.6 Seat height adjustment 31
6.7 Seat width adjustment 32
6.8 Standard Seat Depth Adjustment 32
6.9 Backrest Angle Adjustment 33
6.10 Back Height Adjustment 34
6.11 Manual setting of the seat angle on the Zippie Salsa 35
6.13 Powered Seating 37
7.0 The VR2 Hand Control Series (Fig. 7.1) 40
7.1 VR2 40
7.2 VR2-L 42
7.3 VR2 Dual control unit 43
8.0 Troubleshooting Using The VR2 Control 45
9.0 Control mounts 47
9.1 General warnings 47
9.2 Attendant control 47
9.3 Parallel swing-away control 47
9.4 Centre bar mount control (R-net) 48
9.5 Tray mount control (R-net) 48
9.6 Swing-away tray mounted centre control (R-net) 48
10.0 Speciality Controls 49
10.1 Proximity head array 49
10.2 Driving with the head array (Fig 10.1) 49
10.3 Proportional head control 49
10.4 Sip and puff control and buddy buttons 50
10.5 Switch-It mini joystick as a chin control or hand control 50
10.6 Proportional chin control (Fig.10.7) 50
10.7 Micro pilot Joystick 50
11.0 Batteries and charging 51
11.1 Batteries Zippie Salsa R2 (Fig. 11.1 - 11.5) 51
11.2 Batteries Zippie Salsa M2 (Fig. 11.6 - 11.12) 52
11.3 Safety cut-outs 53
11.4 General battery information 53
11.5 Maintenance free batteries 53
11.6 Battery care 53
11.7 Maintenance free battery care plan 53
11.8 General charger information 54
11.9 Charger safety features 54
11.10 Connecting the charger and charging 54
11.11 Charger safety and caution notes 54
11.12 The range of your vehicle 55
11.13 Common battery statements 55
11.14 Battery warranty 56
12.0 Transportation 57
12.1 Transportation warnings: 57
12.2 Occupant restraint instructions 58
12.3 Special shipping requirements: 58
12.4 Crash testing on the Zippie Salsa, all models. 59
12.5 The tie down label and placement 59
12.6 Securing the wheelchair into the vehicle 60
13.0 Maintenance and Cleaning 61
13.1 Tyre maintenance and pressures 61
13.2 Tyre wear 61
13.3 Drive wheel tyre repair 61
13.4 Removing the castor wheel 63
13.5 Cleaning your wheelchair 64
13.6 Inspection of the upholstery/seating 64
13.7 Cleaning seating 64
13.8 Cleaning controls 65
13.9 Lighting maintenance 65
13.10 Electrical connections 65
13.11 How to connect the cables to the batteries 65
13.12 Controller access 68
13.13 Storage 68
13.14 Authorised Sunrise Medical service agents 68
13.15 Recommended maintenance routines 69
13.16 Performance checks 70
14.0 Specification sheets (EN 12184 & ISO 7176-15) 71
15.0 Service History 73
16.0 Disposal 73
17.0 Battery Wiring Diagram 74
18.0 Serial Number Label Example 75

4ZIPPIE SALSA R2/ ZIPPIE SALSA M2
Rev.2.0
Side Guard
Anti-tips
Backrest
Batteries
Armrest
Leg rest
Controller
Cushion
Castor
Footplate
Drive wheel

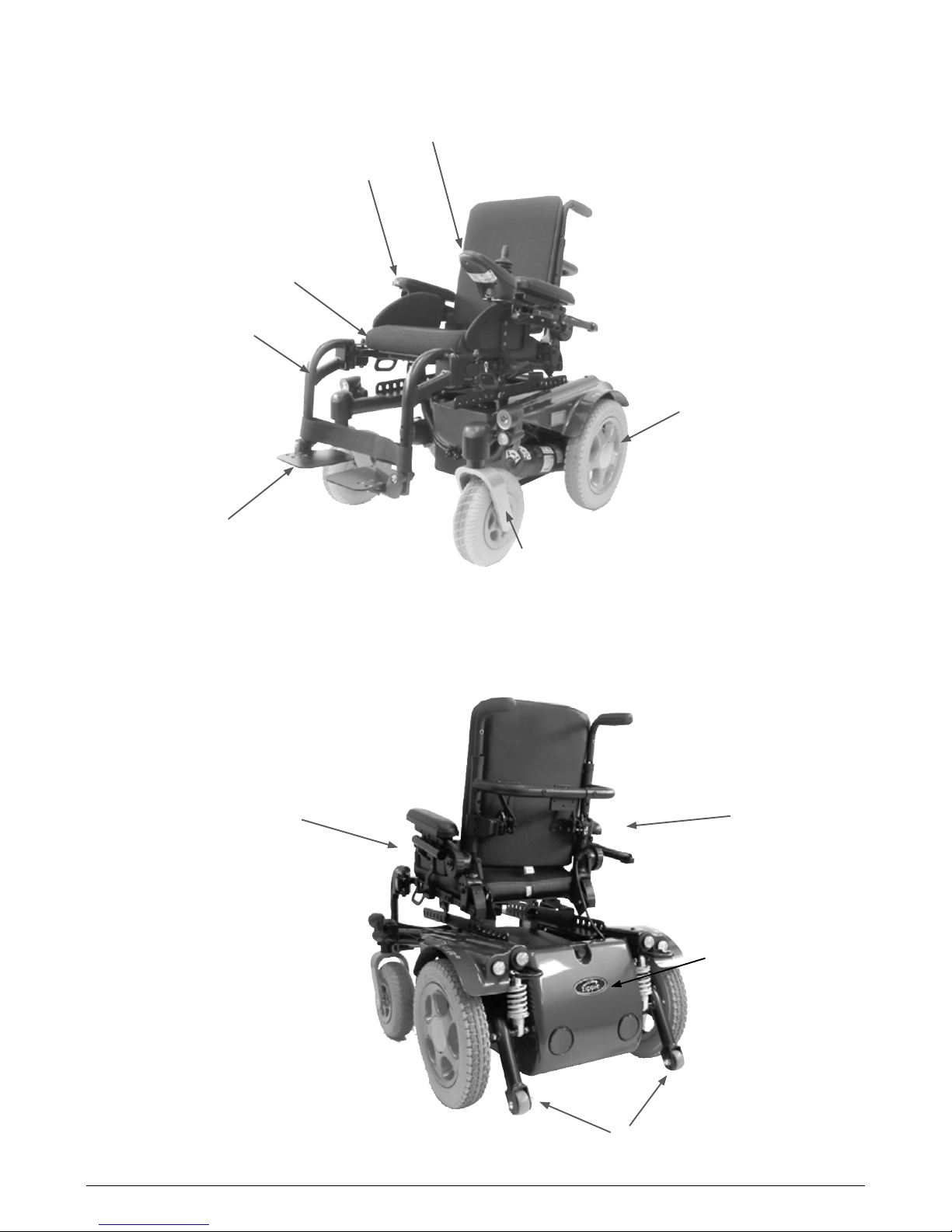

Zippie Salsa R2

ZIPPIE SALSA R2/ ZIPPIE SALSA M2 5
Rev.2.0
Armrest
Centre Mount
Leg rest
Controller
Cushion
Front castor
Footplate
Drive wheel
Side Guard
Backrest
Batteries
Rear castor
Zippie Salsa M2

6ZIPPIE SALSA R2/ ZIPPIE SALSA M2
Rev.2.0
1.0 Your Wheelchair
We at Sunrise Medical want you to get the best out of
your Zippie Salsa wheelchair. This Owner’s Manual will
familiarise you with the chair and its features. It contains
hints on everyday usage and general care in addition to
information on the high quality standards which we adhere
to and details about the guarantee.
Your wheelchair should be delivered fully configured for
your use; there are a wide range of components and
adjustments available on the Zippie Salsa. For further
information about these you should contact your Sunrise
Medical authorised dealer.
Your wheelchair will reach you in excellent condition
having been personally inspected before leaving our
factory. Following the guidelines for maintenance and
cleaning your wheelchair will maintain its first class
condition and give you complete satisfaction.
The Zippie Salsa has been designed for use by an
individual on a daily basis. It is suitable for both indoor
and outdoor use (Class B). It is only intended for use as
a pavement vehicle, but may also be used when crossing
between pavements.
This vehicle has been designed for a single occupant of
limited mobility up to the weight of 75 kg (dependant on
options chosen for your chair).
NOTE: up to 75 kg user weight with Zippie Salsa R2/M2
and Zippie seat
The end user must have the cognitive, physical and visual
ability to control the vehicle safely on a maximum slope of
14% (8°). If you are in any doubt as to the suitability of the
power chair, contact your local Sunrise Medical approved
supplier for clarification, prior to commencing use.
It is very important to read the relevant section of the
owner’s manual when making any minor adjustments.
Consult the Technical Manual or your local Sunrise
Medical authorised dealer for more complex adjustments.
If you have any queries about the use, maintenance
or safety of your wheelchair, please contact your local
approved Sunrise Medical service agent. If you do not
know of an approved dealer in your area or have any other
questions please write or telephone:
Sunrise Medical
Thorns Road
Brierley Hill
West Midlands
DY5 2LD
Phone: [phone]
Fax: [phone]
www.SunriseMedical.co.uk
2.0 How to use this manual
2.1 Introduction
Please keep a note of your local service agent’s address
and telephone number in the space below.
In the event of a breakdown, contact them and try to give
all relevant details so they can help you quickly.
The wheelchairs shown and described in this manual
may not be exactly the same in every detail as your own
model. However, all instructions are still entirely relevant,
irrespective of detail differences.
NOTE: The manufacturer reserves the right to alter
without notice any weights, measurements or other
technical data shown in this manual. All figures,
measurements and capacities shown in this manual are
approximate and do not constitute specifications.
2.2 Guarantee
The guarantee form is included in the Sunrise Pack.
Please fill in the relevant details and return to us to
register your entitlement.
THIS IN NO WAY AFFECTS YOUR STATUTORY
RIGHTS.
2.3 Warranty conditions
1) The repair or replacement will be carried out by an
authorised Sunrise Medical dealer/service agent.
2) To apply the warranty conditions, should your
wheelchair require attention under these arrangements,
notify the designated Sunrise Medical service agent
immediately giving full information about the nature of
the difficulty. Should you be operating the wheelchair
away from the locality of the designated Sunrise Medical
service agent, work under the “Warranty Conditions” will
be carried out by any other service agent designated by
the manufacturer.
3) Should any part of the wheelchair require repair or
replacement, as a result of a specific manufacturing or
material defect, within twenty four months from the
date on which the possession of the wheelchair was
transferred to the original purchaser, and subject to it
remaining within that ownership, the part or parts will be
repaired or replaced completely free of charge if returned
to the authorised service agent.

ZIPPIE SALSA R2/ ZIPPIE SALSA M2 7
Rev.2.0
4) Any repaired or replaced part will benefit from these
arrangements for the balance of the warranty period
applicable to the wheelchair.
5) Parts replaced after the original warranty has expired
are covered for a further twelve months.
6) Items of a consumable nature will not generally be
covered during the normal warranty period, unless such
items have clearly suffered undue wear as a direct result
of an original manufacturing defect. These items include
amongst others upholstery, tyres, inner tubes and
similar parts. On powered products this will also include
batteries, motor brushes etc
7) The above warranty conditions apply to all wheelchair
parts for models purchased at full retail price.
8) Under normal circumstances, no responsibility will be
accepted where the wheelchair has required repair or
replacement as a direct result of:
a) The wheelchair or part not having been maintained
or serviced in accordance with the manufacturer’s
recommendations, as stated in the Owner’s Manual
and/or Service Manual. Or failing to use only the
specified original equipment parts.
b) The wheelchair or part having been damaged by
neglect, accident or improper use.
c) The wheelchair or part having been altered from the
manufacturer’s specifications, or repairs having been
attempted prior to the service agent being notified.
3.0 Label Explantation / Word definitions
3.1 Denitions of words used in this manual
Word Definition
DANGER!
Advice to the user of Potential Risk
of serious injury or death if the
advice is not followed
WARNING!
Advice to the user of a potential risk
of injury if the advice is not followed
CAUTION!
Advice to user that potential
damage to equipment may occur if
the advice is not followed
NOTE: General advice or best practice
RWD Rear Wheel Drive
MWD Mid Wheel Drive
Reference To Additional
Documentation

8ZIPPIE SALSA R2/ ZIPPIE SALSA M2
Rev.2.0
3.2 Label explanations
Lever position for the LEFT-HAND freewheel mechanism
Zippie Salsa M2 (& Zippie Salsa from August 2010).
Tick = IN DRIVE, Cross = IN FREEWHEEL
Lever position for the RIGHT-HAND freewheel
mechanism Zippie Salsa M2(& Zippie Salsa from August
2010).
Tick = IN DRIVE, Cross = IN FREEWHEEL
WARNING – Do Not Touch - HOT
Attached to Joystick
WARNING – Do not drive your wheelchair on a slope
with the backrest reclined and/or the seat lifted
WARNING – Danger of finger entrapment WARNING – Maximum user weight for the chair is 75 kg.
See Section 18.0, Serial Number Label Example Indicates battery charge point
Crash Tested / Tie down points WARNING – Do Not Touch - Static may damage
equipment
140 Kg
MAX
75 kg

ZIPPIE SALSA R2/ ZIPPIE SALSA M2 9
Rev.2.0
Labels and their descriptions
Battery Label – Warning Instructions and Circuit Diagram
Back Rest Recline Seat Lift
Seat Tilt in Space
The power Tilt and power Lift/Tilt modules are factory
fitted for optimum stability and for conformance to
strict standard requirements. Changing the fitted
position of the module can reduce the stability of the
product, therefore do not change this setting
Do not engage Brake release whilst on a slope Ensure drive is engaged before starting off.
Right Leg Rest
Both Leg Rests
WARNING: When the seat is raised you must
always use the seat stay
Left Leg Rest

10 ZIPPIE SALSA R2/ ZIPPIE SALSA M2
Rev.2.0
4.0 General safety warning and user tips
4.1 General warnings
WARNING!
• Always ensure that your wheelchair is switched off
before attempting to transfer in or out.
• Always ensure that you are able to operate all controls
from a comfortable position. Paying attention to your
posture is essential to ensure your continued comfort
and well being.
• Always make sure that you can be seen clearly,
especially if you intend using your wheelchair in poor
light.
• This wheelchair has been built to match the needs of
a particular user. If used by another user then it may
need to be adjusted and reprogrammed.
• Do not let others use your wheelchair.
• Be aware that the wheelchair may come to a sudden
stop during operation. Sunrise Medical recommend
that a lap strap be worn at all times.
• Do not operate the wheelchair if it is behaving
abnormally or erratically.
WARNING!
CHOKING HAZARD – This mobility aid uses small parts
which under certain circumstances may present a choking
hazard to young children.
4.2 Features and options
NOTE: Some of the options shown in this manual may
not be available in your country and may also restrict
the overall physical limits of the standard product (e.g.
Max. speed, user weight limit, etc.). Those limitations are
marked on the order form, in the technical manual and
in this owner’s manual. For further information please
consult your Sunrise Medical authorised dealer.
4.3 Kerbs
DANGER!
• Never descend a kerb Forwards with a RWD chair or
Backwards with a MWD chair. Please read carefully
the section 4.30 on kerb climbing in this manual
before attempting to mount and dismount any kerbs
in your wheelchair.
• Do not attempt to climb or descend a series of steps.
It is unsafe to do so and could cause personal injury
or damage the chair. The Zippie Salsa R2 & Zippie
Salsa M2has only been designed to climb a single
step or kerb.
• We recommend that users with upper trunk instability
wear further customised restraint systems to keep
the upright body position during descending or
ascending ramps, curbs or obstacles.
4.4 Routine service
The recommended service interval is one year. (See
service history table, section 14, Fig.14.1).
4.5 Brake release
DANGER!
• The Brake release, (freewheel), is only to be used in
an emergency power breakdown situation e.g. Where
a large distance has to be covered to get the user
home or into a safe environment.
• Brake release can also be used if a complete and
catastrophic loss of power such as control system
failure or battery failure has occurred.
• Brake release should not be habitually used as a
means of transporting the user as if in a manual
chair.
• When the power chair is functioning normally, the
brake release should only be used to park or store
the unoccupied wheelchair.

ZIPPIE SALSA R2/ ZIPPIE SALSA M2 11
Rev.2.0
4.7 Emergency braking
There are three ways to stop your wheelchair:
1. Simplest and safest way to stop the wheelchair is to
release the joystick (see Hand Control section 7). This
will bring the chair to a halt in a controlled manner.
2. Pulling back the joystick will brake the chair abruptly with
a fast stop
3. Switching the control system off whilst the chair is in
motion will also bring the chair to a halt.
WARNING!
• Switching the control system off is only to be used in
an emergency situation as the stopping action is very
abrupt.
• Sunrise Medical recommend the use of a lap strap at
all times.
4.8 Sharp turns
DANGER!
Full speed turns should not be attempted. If you need
to turn sharply you must reduce your speed with the
joystick or speed setting. This is particularly important
when travelling across or down a slope. Disregarding this
advice could lead to your wheelchair tipping over.
4.9 Batteries
Your wheelchair is supplied as standard from Sunrise
Medical with maintenance-free batteries. These only
require regular charging. Before charging, please read
section 11 in this manual.
WARNING!
Do not, under any circumstances, tamper with the
batteries. If in any doubt contact your local Sunrise
Medical authorised dealer.
CAUTION!
Before using your vehicle for the very first time, please
charge your batteries for a period of 24 hours.
Please remember that you have no braking facility when
the Brake release, (freewheel), levers are moved from the
normal drive position to the freewheel position, Fig. 4.1, Fig
4.2, (Zippie Salsa M2); Fig 4.3 and Fig 4.4 Zippie Salsa R2).
DANGER!
• Always ensure an attendant is with you when bringing
the chair into the freewheel mode.
• The wheelchair must never be left with one or both
levers in the freewheel position.
For an enhanced description of this facility and its
limitations to use, please see later section at 5.4.
Fig. 4.3 Fig. 4.4
Fig. 4.1 Fig. 4.2
4.6 EMC - Radio transmitting devices.
WARNING!
When operating two-way radio, walkie-talkies, C.B.,
amateur radio, public mobile radio and other powerful
transmitting devices the wheelchair should be brought to a
halt and turned off.
The operation of cordless, mobile telephones and cell
phones including hands-free devices is permitted but if
abnormal operation of the wheelchair is encountered then
the chair must be brought immediately to a halt and turned
off.
NOTE: The electrical systems of the wheelchair may
disturb the performance of alarm systems in retail shops.

12 ZIPPIE SALSA R2/ ZIPPIE SALSA M2
Rev.2.0
WARNING!
Avoid contact with acid on damaged sealed type batteries
or wet batteries. Battery acid can cause burns to the skin
as well as damage to floors, furniture and your wheelchair.
If it comes into contact with the skin or clothing, wash
immediately with soap and water. If it comes into contact
with the eye, immediately flood the eye with running cold
water for at least 10 minutes and seek medical attention
immediately. Acid can be neutralised with baking soda
and water. Take care to keep batteries upright at all times,
especially when transporting your wheelchair.
Battery and charger connector type Zippie Salsa R2/M2:
24V (2x12V) / 60 Ah/20h. Maintenance free
Dimensions: 197 x 165 x 197 mm.
Connector: 3 pins “Neutrik” type
4.10 Tyres
Your wheelchair tyres can wear depending on use. Check
them regularly in accordance with the service instructions
in this manual, especially the pressure of the tyres.
DANGER!
Never inflate the tyres using a garage forecourt airline,
always use the pump provided.
4.11 Weight limit
DANGER!
• The user plus items carried should never exceed a
total weight of 75 Kg.
• Never use this chair for weight training if the total
weight (user plus additional weights) exceed a total
weight of 75 Kg.
• Exceeding the weight limit is likely to damage the
seat, frame or fasteners and may cause severe injury
to you or others from chair failure
• Exceeding the weight limit will void the warranty.
4.12 Wheelchair motors
After prolonged use, the motors will produce heat, which
is radiated through the motors’ outer casing.
WARNING!
Do not touch the motors’ outer casing for at least 30
minutes after using the wheelchair, to allow it to cool,
(Fig.4.5-4.6).
Fig. 4.5
Fig. 4.6
WARNING!
4.13 Hot surfaces
Not only the motors can get hot during the operation of the
chair, but also the upholstery material and armrests when
standing in the sun.
4.14 Wheelchair range
The range of your wheelchair can be affected by many
factors such as user weight, terrain, ambient temperature,
use of powered options and battery condition.
NOTE: The stated range in the sales literature should be
seen as the theoretical maximum (ISO 7176; Part 4) and
may not be attained by every user (also see section 10.11
and section 13, in this manual).
We recommend that every user initially limit their journey
to half the stated range, until they have confidence in the
actual range their wheelchair can attain.
CAUTION!
If your battery indicator is showing a low charge then do
not attempt a long journey unless you are confident in
reaching your destination and also returning to your home
without the risk of being left stranded.

ZIPPIE SALSA R2/ ZIPPIE SALSA M2 13
Rev.2.0
4.15 Road use
Please show the utmost consideration for the other traffic
on the road.
DANGER!
Remember that the last thing a car or lorry driver expects
to see is a wheelchair backing off the kerb into the road.
If in any doubt, do not risk crossing the road until you are
certain that it is safe. Always cross the road as quickly as
possible; there may be other traffic.
4.16 Adverse conditions
Please be aware that when driving your wheelchair in
adverse conditions, e.g. on wet grass, mud, ice, snow or
other slippery surfaces, you may experience a reduction
in the grip and traction of your wheelchair.
WARNING!
We recommend you take extra precautions in these
conditions, particularly on hills and slopes; your
wheelchair could become unstable or skid causing
possible injury.
NOTE: Extreme variances in temperature may trigger
the self protect mechanism in the control system. If this
occurs the control system will temporarily shut down to
prevent damage to the electronics or the chair.
DANGER!
When you are using a Powered Scooter or Wheelchair,
take extra care with loose or long items of clothing.
Moving parts, such as wheels, can be potentially
dangerous or even fatal if clothing becomes entangled.
4.17 Ramps
WARNING!
When using a ramp, please ensure that it is capable
of taking the combined weight of the power chair and
yourself. If a ramp is being used to load a chair into a
vehicle, please ensure the ramp is properly secured to the
vehicle.
Always approach the ramp head-on and exercise caution.
CAUTION!
Please ensure your ramp is suitable for the product you
are transporting.
4.18 Transfer to and from the chair
WARNING!
• Sunrise Medical recommend that you consult your
health care professional for assistance in developing
your personal front or side transfer technique to best
suit your needs and avoid any personal injury.
• Ensure controller is switched off during transfers to
avoid unintentional movement.
• If a reclining arm rest is fitted, please ensure that
the reclining support bar is secured into the recline
receiver that is attached to the seat frame.
4.19 Lift and tilt modules
WARNING!
Please be aware that the lift and tilt modules present
a trap hazard. Make sure that when operating the tilt
and lift it is free from all clothing, hands, feet and other
extremities to prevent injury.
WARNING!
• Do not drive on ramps or slopes with the seat tilted,
reclined or raised. Before attempting to climb or
decline a slope, return to an upright position
• The power Tilt and power Lift/Tilt modules are factory
tted for optimum stability and for conformance to
strict standard requirements. Changing the tted
position of the module can reduce the stability of the
product, therefore do not change this setting.
WARNING!
Risk of trapping ngers:
The optional protection guard if fitted, secures the
moving parts within the lift / tilt mechanism. Although
better protected, always be careful not to get your fingers
trapped in the mechanism. It is recommended to re-install
the protection guard as described in the Zippie Salsa
technical manual after any service or repairs to the lift / tilt
module.
Please consult your approved Sunrise Medical Dealer.

14 ZIPPIE SALSA R2/ ZIPPIE SALSA M2
Rev.2.0
4.20 Anti-tips
WARNING!
• Make sure that anti-tips are not damaged or worn
before using your chair.
• Attendants must be aware of the location of the anti-
tips to prevent feet being trapped underneath causing
injury.
• Attendants - Do not stand on the anti-tips, this could
cause the wheelchair to become unstable.
4.21 Use on a slope
Your wheelchair has been designed and tested to allow
its use on slopes or gradients of up to 8° (14%). However,
you have the option of adjusting your seating position
with either a lift, tilt or recline or a combination of these
options.
WARNING!
In certain circumstances your wheelchair could become
unstable. Before attempting to climb or descend a slope
or a kerb, caution should be taken when using weight shift
options (e.g. powered tilt or recline) of the seat and/or your
body for a counter balance weight. To improve stability
lean forward when driving uphill, with the seat and back in
an upright position. Alternatively sit in an upright position
when travelling in a forward, downhill direction or tilt and/
or recline the seat backwards.
WARNING!
We strongly recommend that you return the seat and back
to an upright lowered position before attempting to climb
or descend a slope. Failure to do this may cause the
wheelchair to become unstable.
WARNING!
If you are in any doubt about the capabilities of your
wheelchair on a slope then do not attempt to drive up or
down the slope/kerb; try to find an alternative route.
4.21.1 Gradients: ascents
WARNING!
When going uphill, keep the chair moving. Steer by
moving the joystick from side to side. If you have stopped
on a hill, you should start slowly. If necessary lean
forward to prevent the tendency for the front wheels to lift.
4.21.2 Gradients: descents
WARNING!
On descents, it is important not to let the wheelchair
accelerate beyond its normal level of ground speed. In
fact, it is safer to proceed slowly down steep descents
(below the speed of 5 kph) and stop, if any anxiety
arises regarding directional control. If the chair picks up
speed, centre the control to slow it or to stop all forward
movement, then restart slowly and do not allow the speed
to increase.
NOTE: The solid state controller has the benefit of a logic
system that will help compensate when driving along a
camber or up a hill. This is an added safety feature on
your wheelchair. In addition of course, you may control the
wheelchair speed by using the speed control.
4.22 Using a vehicle mounted passenger lift
Wheelchair lifts are used in vans, buses and buildings to
help you move from one level to another.
DANGER!
• Ensure that the user and all carers fully understand
the lift manufacturer’s instructions for using the
passenger lift.
• Never exceed the lift manufacturer’s recommended
safe working load and load distribution guidance.
• Always turn off all power when you are on the
lift. If you fail to do so, you may touch the joystick
by accident and cause your chair to drive off the
platform. Be aware that a roll-stop at the end of the
platform may not prevent this.
• Always position the user securely in the chair to help
avoid falls while on the lift.
• Always ensure the chair is in drive mode when using
passenger lift (wheels locked not in freewheel mode).

ZIPPIE SALSA R2/ ZIPPIE SALSA M2 15
Rev.2.0
4.23 Creep mode
WARNING!
Please ensure your backrest recline angle relative to floor
level, which is a combination of the back recline itself and
the tilt angle, does not exceed 12° to drive the chair safely.
NOTE: If the tilt angle exceeds 9° the chair will the chair
will automatically convert into “creep mode” which will
allow you a maximum of 10% of the speed programmed in
the profile.
WARNING!
If you have a manual recline backrest on your wheelchair,
please be aware that there will be no feedback system
to the controller that tells it that the seat is in a reclined
position. If you recline your backrest and attempt to drive,
it will not go into ‘creep mode’, it will instead drive at
normal speed.
This is especially dangerous when attempting to drive up
a slope.
WARNING!
On any Reclining Backrest, the Lower fixing positions of
either the Powered Actuator or Manual Gas Strut, MUST
correspond to the Seat Depth being used.
After adjusting the Seat Depth, you MUST ensure the
lower Actuator or Gas Strut fixing position matches the
Seat Depth chosen, (use the 17”, 430mm, hole position in
the lower bracket for a seat depth of 17”, 430mm).
Please see section 5.2.1 for details.
4.24 Stability of your wheelchair
Please follow the user instructions in this manual
regarding the use of seat lift and tilt modules and the use
of your chair on a slope.
WARNING!
Other variables can affect your chair stability, including:
• Movement of the user
• Effects of the addition of accessories or other
equipment
• Inappropriate adjustments or modifications to the
wheelchair
In some cases these issues are further compounded by
the effects of the local environment such as:
• Hills, Slopes, Ramps, Sloping pavements, Dropped
kerbs.
Furthermore different body proportions of a wheelchair
user affect stability for example:
• Lower limb wasting or amputation, Obesity
• Increased upper torso mass, Upper torso height
WARNING!
The power Tilt and power Lift/Tilt modules are factory
tted for optimum stability and for conformance to strict
standard requirements. Changing the tted position of the
module can reduce the stability of the product, therefore
do not change this setting.
4.25 Wheels
WARNING!
• Always use the pump that is supplied with the chair.
• Never use a forecourt pump.
• Inspect all tyres regularly for signs of wear.
• Do not drive over anything that could cause punctures
in the tyres.
• Ensure that there are no objects in your path
that could possibly become lodged in your chair
mechanism or in the spokes of the rear wheels. This
could cause the chair to come to a sudden stop.
• Riding over drains or grids could cause the wheelchair
castors or wheels to become lodged, causing the
chair to come to a sudden stop.
• Always maintain the correct pressure for the tyre.
These are listed in section 12 of this manual.
WARNING!
Pneumatic Tyres with OKO uid.
The OKO fluid is only meant as a temporary repair to the
tyre. It must be replaced or repaired as soon as possible.
The OKO fluid is classified as non hazardous but may
cause irritation to the skin with prolonged contact.
First Aid measures for OKO fluid
Skin - Wash skin with plenty of water
Eyes - Immediately flood the eye with plenty of water for
at least 5 minutes holding the eye open.
Ingestion - Drink lots of water - Seek medical attention
immediately.

16 ZIPPIE SALSA R2/ ZIPPIE SALSA M2
Rev.2.0
4.26 Rear view mirror
WARNING!
To avoid injury to people around you please be aware
that the mirror protrudes outside the space envelope of
the chair and could cause injury to someone when driving
past.
The mirror must be used on the 10 kph model on UK
roads.
Always make sure that when using the mirror that it
is clean and unbroken so that it does not impair your
visibility.
4.27 Crutch holder
WARNING!
• Make sure that the crutch is securely fastened to the
crutch holder.
• Make sure that the crutch is not interfering with the
mechanisms of the chair.
• Make sure that the crutch does not protrude from the
chair.
• Do not attempt to remove the crutch whilst the chair is in
motion.
• Always come to a complete stop and turn off the
power to the controls before attempting to remove the
crutch. This will avoid accidentally operating the chair.
4.28 Lights and indicators
WARNING!
Ensure that the lights and indicators are functioning
correctly and lenses are clean before going outdoors at
night. Light assemblies can become very hot - Care must
be taken if removing them for repair.
4.29 Swing away tray
WARNING!
• The maximum weight allowed for the tray is 2.5 kg.
• Do not overload the tray, this could cause the tray to
break or could cause the chair to become unstable.
• Do not leave lit cigarettes or other heat sources on the
tray as this could cause the tray to deform and mark.
• Ensure that all extremities and clothing are free when
positioning the tray for use.
4.29.1 Seat stay
A seat stay is provided on your powerchair to provide
access for service and maintenance. (see section 10 for
additional information)
WARNING!
Do not move the wheelchair with the seat stay in place
and make sure you are on flat stable ground.
4.30 Using a kerb climber
WARNING!
Ensure there are no people or other obstacles in your
path when mounting a kerb or step.
4.30.1 Mounting a kerb or step
WARNING!
Always approach a kerb at 90°
Approach the kerb (step) head on driving forwards slowly
and steadily and always at a 90° angle, (Fig.4.7).

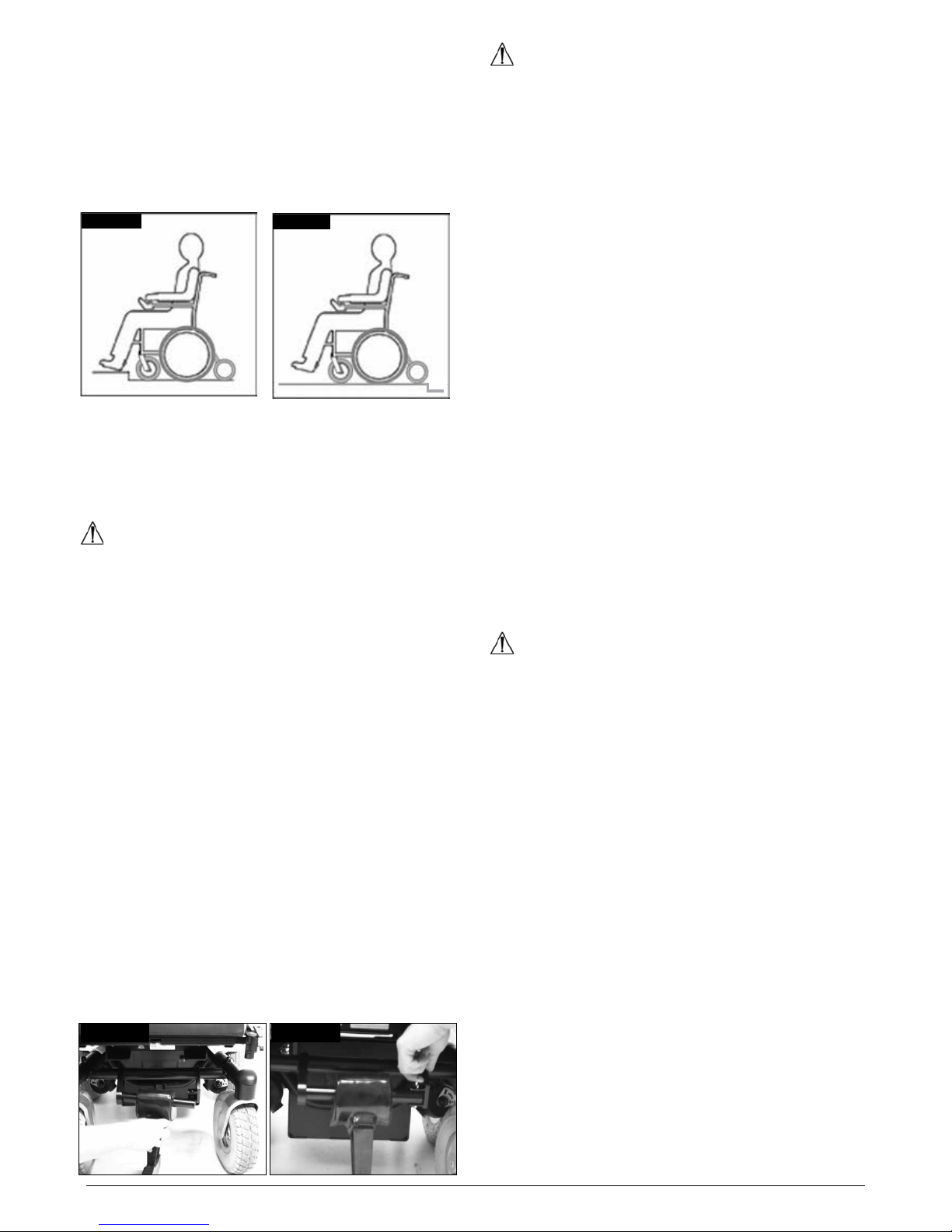

Fig. 4.7
Zippie Salsa R2 (RWD)
As the kerb climber or castor makes contact with the kerb
(step), the wheelchair should be moving slowly. Small
kerbs can be climbed from a standstill, (Fig.4.8 - 4.9).
Fig. 4.8 Fig. 4.9

ZIPPIE SALSA R2/ ZIPPIE SALSA M2 17
Rev.2.0
Zippie Salsa M2 (MWD)
Approach the kerb in a 90° angle and stop the chair as
soon as the castor wheels touch the kerb.
Apply sufficient power to the motors to lift the front of the
chair up onto the kerb (step) and then apply slightly more
power and speed so that the drive wheels climb the kerb
(step) smoothly and without hesitation and the rear castor
wheels come up as well. As far as possible, keep the
joystick in the straight forward position, (Fig.4.10 - 4.11).
Note: In accordance to the ground clearance, the
maximum obstacle height possible to climb is 50 mm (100
mm with kerb climber) for Zippie Salsa R2 and 75 mm for
Zippie Salsa M2.
WARNING!
The approach speed and process can vary depending on
your wheelchair performance and castor wheel choice.
4.30.3 Kerb climber tting and removal procedure
(RWD base only)
• Locate the kerb climber bar into the left hand location
bracket and push it into the right hand receiver
bracket, (Fig.4.12 & Fig.4.13).
• Hold the kerb climber with your left hand in the
receiver bracket.
• Align the holes of the receiver bracket and the kerb
climber tube and plug in the locking pin from the top.
• Reverse the procedure to remove the kerb climber.
WARNINGS!
1. Please show the utmost consideration for the other
traffic on the road. Remember that the last thing a car
or lorry driver expects to see is a wheelchair backing
off the kerb into the road. If in any doubt, do not risk
crossing the road until you are certain that it is safe.
2. Always cross the road as quickly as possible; there
may be other traffic.
3. Do not attempt to go up or down more than a 100 mm
(4”) high kerb (Zippie Salsa R2 only with kerb climber
fitted).
4. Do not attempt to use the kerb climber on a series of
steps.
5. Do not attempt kerbs if on steep slopes or cambers.
6. Do not attempt any kerbs in the vicinity of drain covers,
uneven or gritty road surfaces.
7. Do not mount or dismount kerbs at an angle other than
straight on (90 degrees) to the edge of the kerb.
8. Prior to climbing ensure your leg rests will clear the
kerb.
9. Take care of the anti-tips which might interfere with the
kerb or the ground when mounting or dismounting a
kerb.
WARNING!
This wheelchair is designed to be repaired and assembled
by a Sunrise Medical authorised dealer and not the end
user. The end user has to disassemble and assemble the
chair only for transportation (see section 5.2).
Fig. 4.10 Fig. 4.11
Fig. 4.13Fig. 4.12

18 ZIPPIE SALSA R2/ ZIPPIE SALSA M2
Rev.2.0

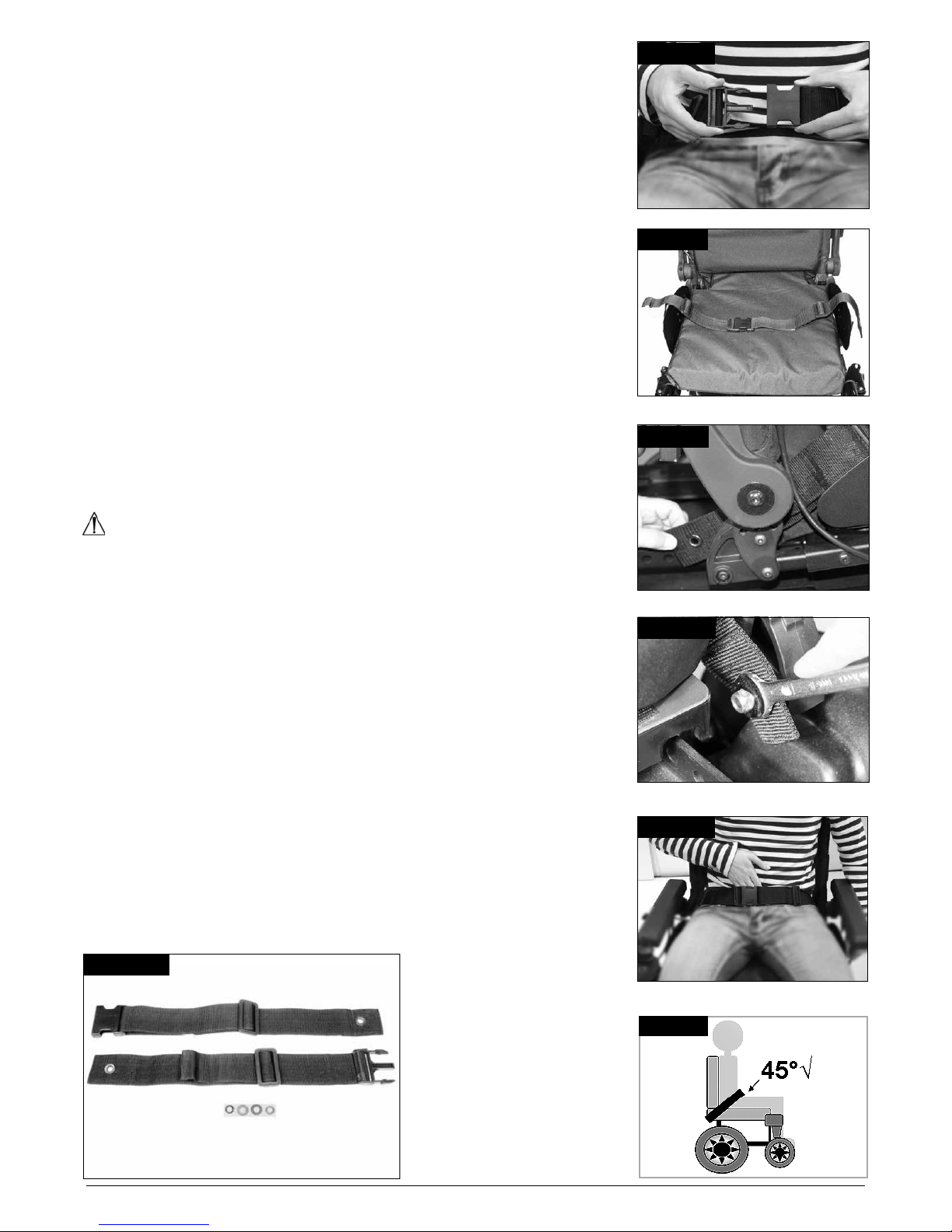

4.31 Lap belt (Standard Seat)
The lap belt kit. (Fig. 4.14).
Fastening the lap strap:
Insert the 3 prong male buckle into the female buckle until
a click is heard (Fig. 4.15)
To fit the lap strap.
• Place the strap loosely across the seat with the buckle
closed.. (Fig. 4.16)
• Pass the other ends of the strap through the gap
between the backrest posts and the backrest
upholstery as shown. (Fig. 4.17)
• Ensure that the adjusters & buckles can be accessed
& the strap is not twisted. Fit the eyelet over the
rearmost bolt. Fit the plain washer, sprung washer &
nut. Tighten with a 13.0 mm spanner. Repeat for the
other side. (Fig. 4.18)
• Ensure that the lap strap is tight enough to provide
comfortable support. A simple measure is to keep
a hands thickness between the body and lap strap.
For safety, check the tension on the lap strap at least
once day. (Fig. 4.19)
• Generally, the lap belt should be fixed so that the
straps sit at an angle of approximately 45° (Fig. 4.20),
and when correctly adjusted should not allow the user
to slip down in the seat.
WARNING!
• Ensure that the lap belt is secured and correctly
adjusted before use.
• An incorrectly fitted/adjusted lap belt could allow the
user to slip down, potentially causing serious injury.
• Inspect the lap belt at regular intervals for any signs of
fray or damage and replace as necessary.
• When servicing, check for correct operation of the
release buckle and for any signs of wear on the
material or plastic brackets.
Fig. 4.14
Fig. 4.15
Fig. 4.16
Fig. 4.17
Fig. 4.18
Fig. 4.19
Fig. 4.20

ZIPPIE SALSA R2/ ZIPPIE SALSA M2 19
Rev.2.0

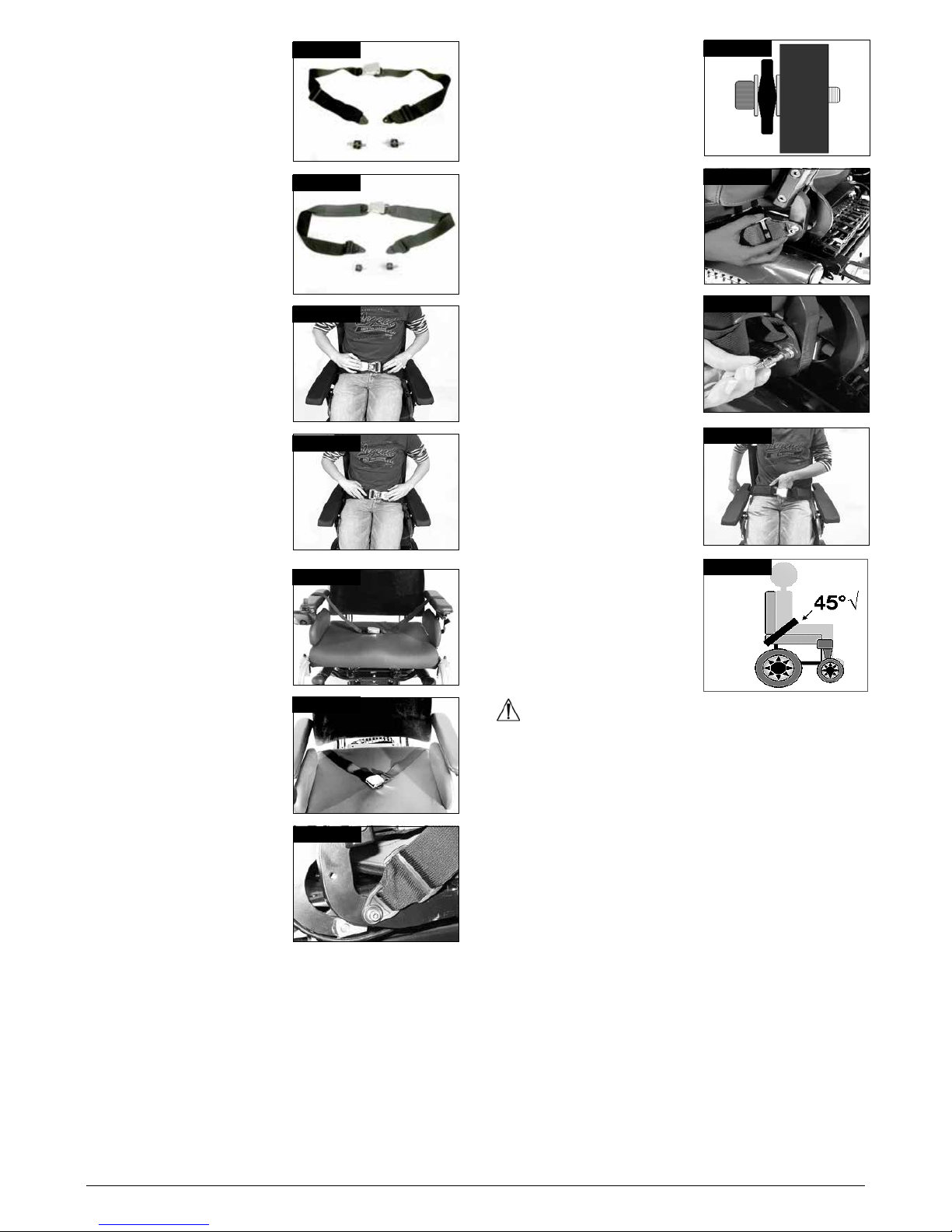

4.31.1 Lap strap Kids Seat
The 50 mm (2“) Aircraft Buckle
lap strap. (Fig. 4.21).
The 50 mm (2”) Aircraft Padded
Lap strap. (Fig. 4.22)
The lap strap fitted for a right-
handed user. (Fig. 4.23)
The lap strap fitted for a left-
handed user. (Fig. 4.24)
Place the strap loosely across
the seat with the opening end of
the buckle facing to the right for
a left-handed person and to the
left for a right-handed person.
(Fig. 4.25)
Pass the other ends of the strap
through the gap between the
backrest posts and the backrest
upholstery as shown above.
(Fig. 4.26)
Feed the bracket ends of the
straps under the backrest brace
bar as shown, using the lower
fixing hole. Ensure that the
adjuster buckles can be
accessed and the strap is not
twisted, (Fig. 4.27).
Put a washer on the bolt.
Pass the bolt through the lap
strap fixing bracket.
Put the next washer on to the
bolt, (Fig. 4.28).
Screw the bolt into the lowest
pre-drilled hole in the frame.
(Fig.4.29)
Tighten using a 5.0mm hex
wrench to a torque value of
10Nm, (Fig.4.30).
Adjust the lap strap to suit,
leaving no more than a hand’s
width gap for comfort and
safety.
The hand clearance should be
with the lap strap under normal
tension and not allow large
gaps or loops, (Fig. 4.31).
Generally, the lap strap should
be fixed so that the straps sit at
an angle of approximately 45°
(Fig. 4.32), and when correctly
adjusted should not allow user
to slip down in the seat.
DANGER!
• Always make sure that the lap strap is correctly
secured and adjusted prior to use.
• Too loose a strap could cause the user to slip down
and cause serious injury.
• Check lap strap and securing components at regular
intervals for any signs of fray or damage. Replace if
necessary
• When servicing, check for correct operation of the
release buckle and for any signs of wear on the
material or plastic brackets.
• Lap straps are not suitable for transit purposes,
approved occupant restraint systems must be used.
NOTES:
1. Standard Sling - Lap strap movement is restricted by
upholstery
2. Contoured back - Use universal bottom bracket as per
recline back method
Fig.4.27
Fig.4.26
Fig.4.25
Fig.4.24
Fig.4.23
Fig.4.22
Fig.4.21
Fig.4.31
Fig.4.29
Fig.4.28
Fig.4.32
Fig.4.30

20 ZIPPIE SALSA R2/ ZIPPIE SALSA M2
Rev.2.0
4.32 VR2 Controller (Fig. 4.33)
WARNING!
• Avoid knocking your control system and especially the
joystick.
• Be careful not to strike obstacles with the control
system or joystick when you drive.
• Never drop the control system.
• When transporting your wheelchair, make sure that
the control system is well protected.
• Avoid damage to cables.
• To improve the reliability of the control system keep
exposure to extreme conditions to a minimum.
• Do not expose your control system or its components
to damp for prolonged periods.
• If your control system becomes contaminated with
food or drink clean it off as soon as possible.
DANGER!
• In the event of the wheelchair moving in an
unexpected way RELEASE THE JOYSTICK.
This action will stop the wheelchair under any
circumstances
• Do not operate the control system if the wheelchair
behaves erratically or shows abnormal signs of
heating, sparks or smoke. Turn the control system off
at once and consult your Sunrise approved dealer.
R-net Control
Please refer to your R-net Owner’s Manual for
details.
Battery Level Indicator On/Off Button
Horn Speed
Indicator
Speed
Buttons
Joystick
Fig. 4.33
5.0 Preparing your wheelchair for use
5.1 Handling the wheelchair
NOTE: To dismantle the chair for transport or storage no
tools are required.
List of components when dismantled (components
below are related to the maximum detachable parts and
dependent on the type of seating system chosen):
1 pair of armrests
1 pair of leg rests, or single centre mount leg rest with flip-
up footplate.
1 backrest.
1 drive unit with seat frame
5.2 Preparation for transportation or storage
First remove the swing-away leg rests. Leave the armrests
in the fold down position. (Fig.5.1). Disconnect the Hand
Control, (Fig.5.2), if necessary. To remove the control
pod you have to access the motor controller through the
plastic cover between the castor wheels and remove the
square remote control connector.
Place the control pod & arm in a safe place until required.
To reconnect the hand control just use the process in
reverse. Release and lift off the backrest at the frame,
(Fig.5.3). Now you can store the chassis part.
