ZJBENY BFS-S User manual

BFS-S
Installation Guide
Please scan the QR code to view and download
the installation manual

SAVE THESE INSTRUCTIONS -This manual contains important instructions for ZJBENY Solar building Fire Fighter Safety Switch that shall be followed during installation and
maintenance of the Fire Fighter Safety Switch BFS-S1, BFS-S2, BFS-S3.
No part of this publication may be stored, reproduced or copied without prior written permission from ZJBENY The material furnished in this document is believed to be accurate
and reliable however, ZJBENY assumes no responsibility for the use of this material ZJBENY reserves the right to make changes to the information contained at any time without
prior notice. All products and company names mentioned in this manual are trademarks or registered trademarks of their respective holders. The information contained herein is
subject to change without prior notice for improvement.
Attention! Components in the installations are exposed to high voltages and currents, Follow these instructions carefully in order to reduce the risk of fire or electric shock.
The following regulations and standards are considered applicable and mandatory to read prior to the installation of electrical equipment:
International Standards: IEC 60364-7-712 Electrical installations of buildings - Requirements for special installations or locations - Solar Photovoltaic (PV) power supply
systems.
MIS3002: Microgeneration Installation Standard - requirements for contractors undertaking the supply, design, installation, set to work commissioning and handover of solar
photovoltaic (PV) microgeneration systems.
Local building regulations.
Guidelines for lightning and overvoltage protection.
It is essential to uphold the limits for voltage and current in all possible operating conditions. Also keep in mind the literature on correct dimensioning and sizing of cabling and
components.
The installation of these devices may only be performed by certified technical personnel.
All the installation works should be tested in accordance with relevant local legislation at the time of installation.
The Domestic Firefighter safety Switch(BFS-S) has been especially developed as a safety device for direct current (DC) photovoltaic installations. The DC disconnect switch is
used to disconnect the connected strings of the installation in case of an emergency situation. Such an emergency situation could be in case of fire.
The BFS-S needs to be placed as close to the solar panels as possible. Due to its enclosure, the switch is protected against external influences like dust and moisture. The
whole set-up is conforms to lP66 which makes it suitable for outdoor usage when needed.
AC Supply Cut-Off Shutdown
When the AC power to the BFS-S is interrupted, the BFS-S will automatically switch to OFF, breaking the DC connection between the solar panels and the inverter.
Once the AC power to the BFS-S is restored, the BFS-S will automatically switch to ON, restoring the DC connection between the solar panels and the inverter.
Over Temperature Shutdown
If the temperature inside the BFS-S enclosure exceeds 85°C, the BFS-S will automatically switch to OFF, breaking the DC connection between the solar panels
and the inverter, to protect the internal components and create a safe situation. Once the temperature drop back to below 75°C, the BFS-S will automatically
switch to ON, restoring the DC connection between the solar panels and the inverter.
Manual Shutdown
Upon the user operating the red push button switch located in BFS-S enclosure, the BFS-S performs a Rapid Shutdown, breaking the DC connection between
the solar panels and the inverter. panels and the inverter.
General Notice And Safety Instructions
General notice
DISCLAIMER
Important safety precautions
Note!
Intended use of the Domestic firefighter safety Switch
Location of the Domestic Firefighter Safety Switch
Normal operation:
Special Operation

BFS-S3
Solar Building Fire Fighter Safety Switch Installation Manual
Specifications
Model
Max DC Voltage IEC/EN 60947-3
Max DC Current IEC/EN 60947-3
Models
Number of Strings
Operating Voltage
Nominal Voltage
Nominal Current
Start up Current
Switch on Action Current
Operating Temperature Range
Maximum Operating Temperature Before Automatic Switch OFF
Protection Level
Mechanical Endurance
Electrical Endurance
Standard Compliance
Protection Degree
Storage Temperature
BFS-S
90Vac-260Vac
230Vac
30mA
Average 100mA
Max 300mA
IP66
-40℃~+85℃
85℃
Class II
9700
300
IEC/EN60947-3
-20℃~+50℃
+
1500V
50A
1350V
50A
1000V
50A
800V
50A
BFS-S1
1 strings
BFS-S2
2 strings
BFS-S3
3 strings

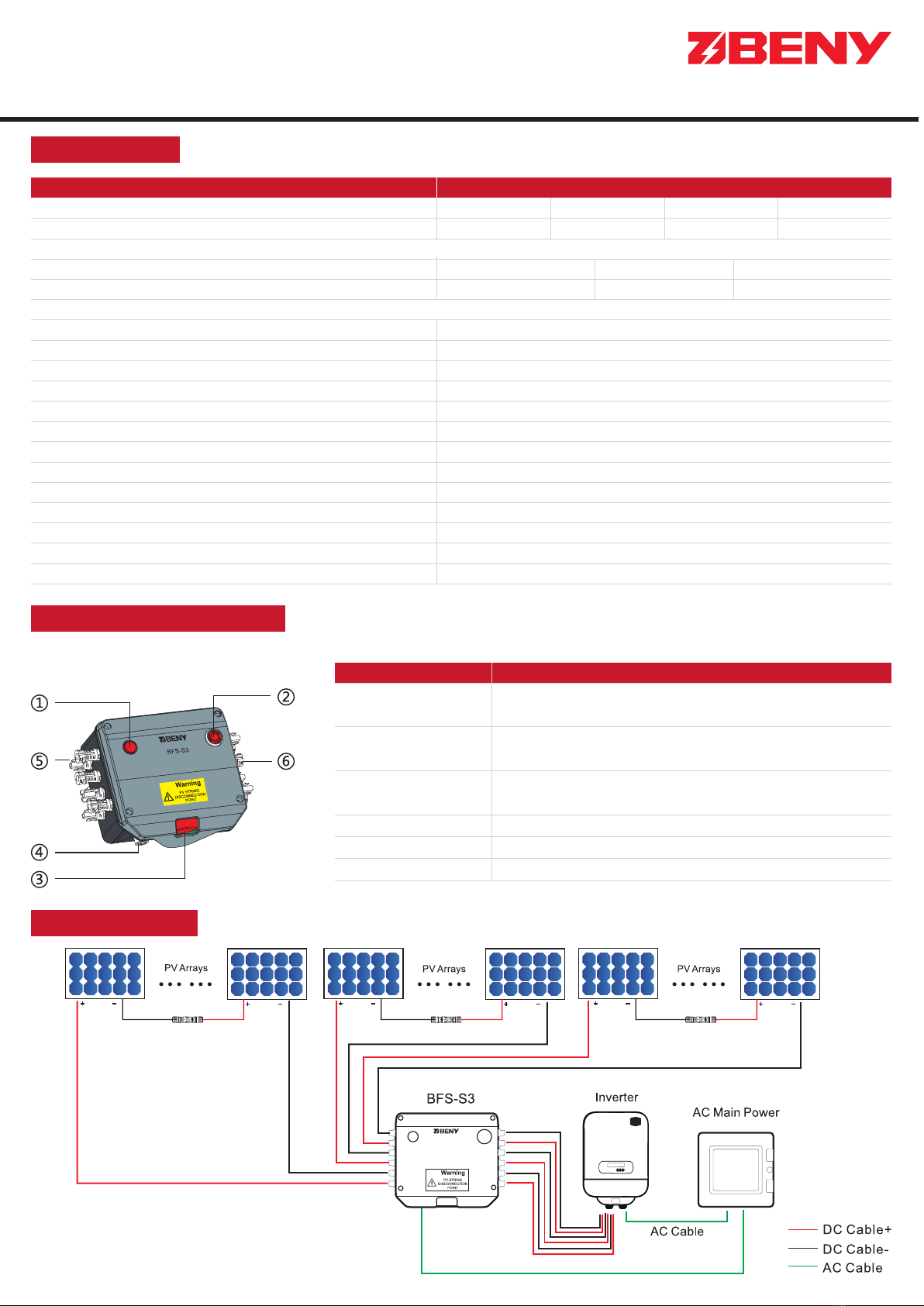

Appearance Introduction
BFS-S3 Model Description and Status
①LED Indicator
②Emergency Button
③Switch Indicator
④AC connector
⑤MC4 connector
⑥MC4 connector
Wiring Diagram
Red light ON: 220VAC power connected.
Red light OFF: 220VAC power disconnected.
Button Released and Red LED light ON: 220VAC power connected.
Button Pressed and Red LED light OFF:220VAC power disconnected.
Indicator light turns RED, means DC Switch ON
Indicator light turns GREEN, means DC Switch OFF
Connect to AC Main Power
PV DC Input
PV DC Output

Solar Building Fire Fighter Safety Switch Installation Manual
Installation Instructions
Step 1: Install the switch in place
Step 2: Press Emergency Button to keep AC circuit pre-disconnected.
Step 3: Connect to AC Main Power
Wire diameter(6.5-7.3mm)
Voltage:90Vac~260Vac
Wiring stripping
Screw
Installation for switch Installation for switch with protection cover(Optional)
AC Main Power
Tighten the nut after plug-in.

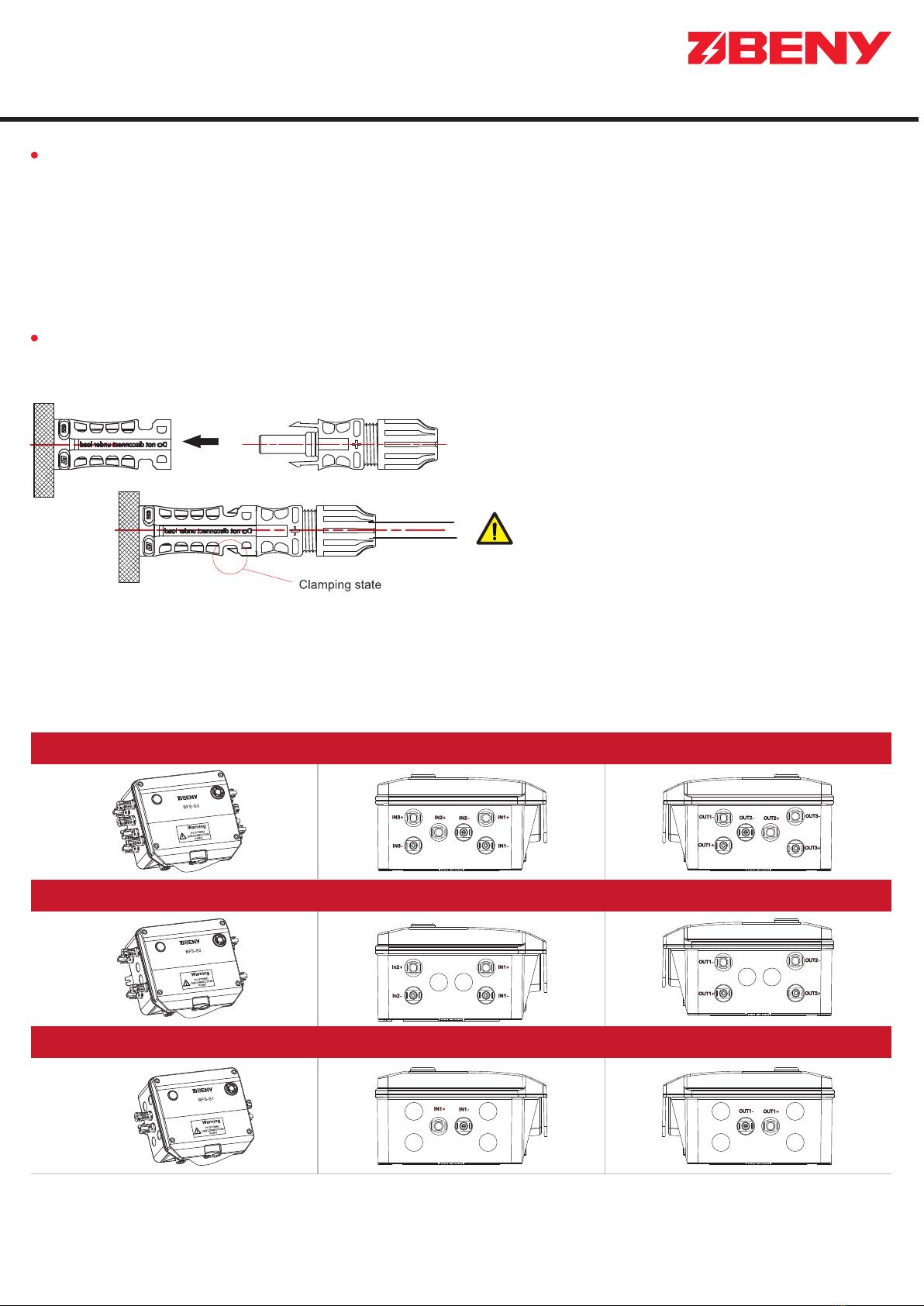

Step 5: Connect to PV arrays
Wiring requirement for EVO2 Before Connect to PV arrays, Make sure BFS-S on “OFF” status .
(Red Indicator OFF, Switch Indicator switch to GREEN)
All EVO2 connectors must be installed and sealed properly
with isolator to maintain IP66NW rating.
After AC Power connected, Red light still OFF
Release Emergency Button, Red light ON, within 60 seconds, Switch Indicator turn GREEN to RED.
After 60 seconds, Press Emergency Button, Red light OFF, Switch Indicator turn RED to GREEN.
Note!
Warning
Step 4: Testing before use
Solar Building Fire Fighter Safety Switch Installation Manual
BFS-S3
BFS-S2
BFS-S1

380±0.5mm
210.5±0.5mm
110mm

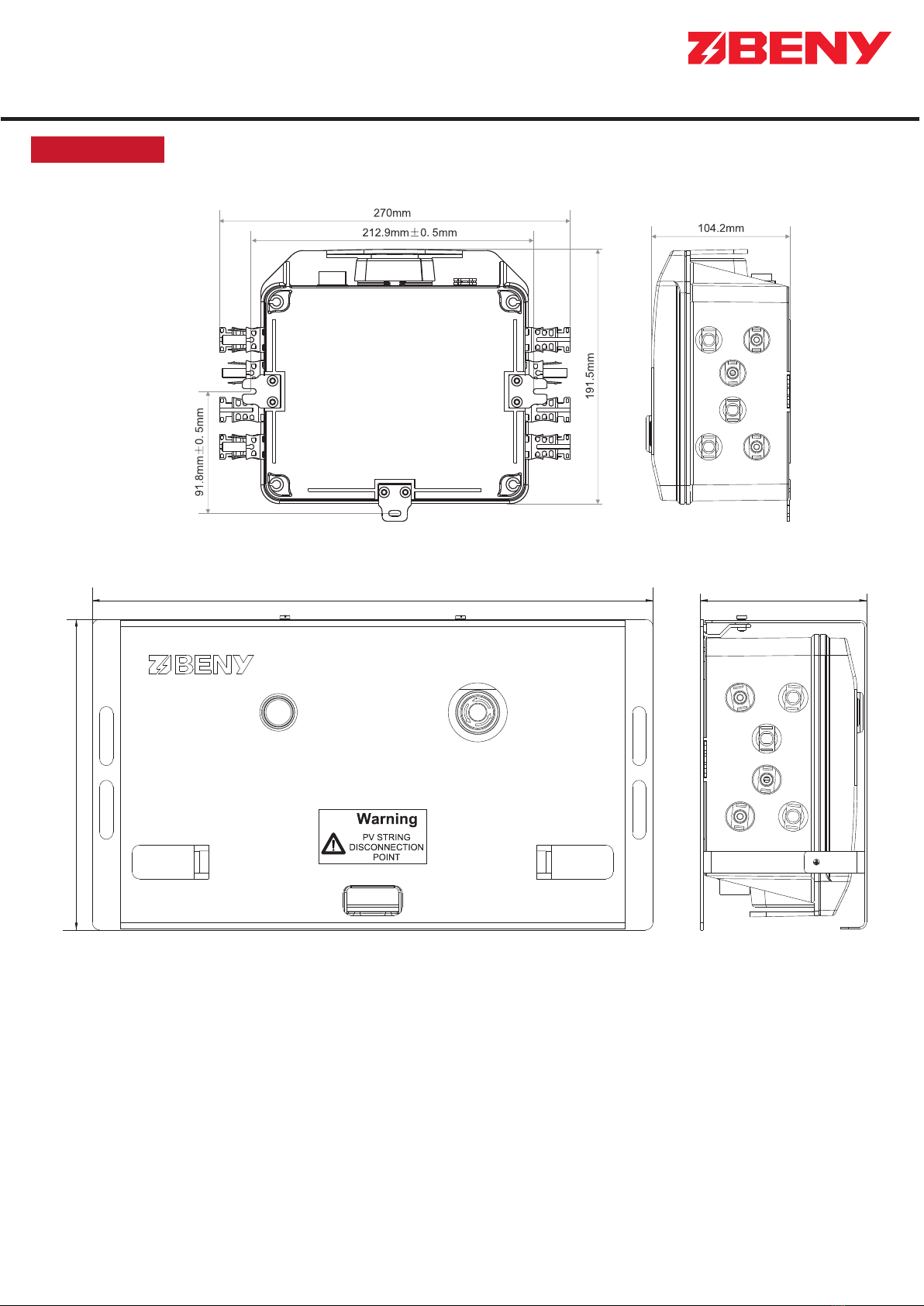

Dimensions
Solar Building Fire Fighter Safety Switch Installation Manual
After-Sales Support
Thanks for using ZJBENY Solar building Fire Fighter Safety Switch. If any problem occur when/afer installation, please contact us.
Email: [e-mail]
