ZKTeco InBio Pro Series User manual

INSTALLATION GUIDE
InBio Pro Series Access Control Panels
Date: Feb., 2016
Version: 1.2

23
InBio Pro Series Access Control Panels INSTALLATION GUIDE InBio Pro Series Access Control Panels INSTALLATION GUIDE
What’s in the Box
4 Diode2 Screws & Anchors 2 Screwdriver
CONTENT
ContentsWhat’s in the Box......................................................................2
Optional accessories..............................................................4
Safety Precautions....................................................................5
Product PIN Diagram.............................................................6
LED Indicators.............................................................................7
Product Dimension.................................................................8
Installation of Panel & Cabinet........................................9
Wiring Legend.........................................................................10
Power Wiring Diagram .....................................................11
Without Backup Battery ........................................................ 11
With Backup Battery ............................................................... 11
RS485 Fingerprint Reader Connection..................12
DIP Switch Setting for RS485 Reader......................13
Wiegand Connection.........................................................14
REX Connections...................................................................15
Lock Connection ...................................................................16
Connecting a Lock with External to Power Supply....... 16
Switching Dry Contact to Wet Contact ............................ 17
Lock Connection ...................................................................18
Normally Open Lock Powered From Lock Terminal...... 18
Normally Closed Lock Powered From Lock Terminal.... 18
Aux. I/O Connection ..........................................................19
Aux. Input Connection .......................................................... 19
Aux. Output Connection....................................................... 19
Ethernet Connection .........................................................20
LAN Connection...................................................................... 20
Direct connection ................................................................... 20
RS485 Connection ..............................................................21
RS485 Connection ..............................................................22
Restore factory setting........................................................... 22
DIP Switch Setting................................................................23
RS485 Address.......................................................................... 23
Terminal Resistance ................................................................ 23
Installation Diagram............................................................24
Troubleshooting ....................................................................25
PC 485 Setting Table ...........................................................26
Electrical Specifications ...................................................28
Specifications ..........................................................................29
ZKBioSecurity
Software

45
InBio Pro Series Access Control Panels INSTALLATION GUIDE InBio Pro Series Access Control Panels INSTALLATION GUIDE
Optional accessories
Wiegand Card Reader
ZK4500 Enrollment reader
RS485 Convertor
RS485 Fingerprint Reader
Prox Card
CR20E Card Enroller
K2 Exit Button
InBio Pro Cabinet
Safety Precautions
The following precautions are to keep user’s safe and prevent any damage.
Please read carefully before installation.
Do not install the device in a place subject to direct sun
light, humidity, dust or soot.
Do not place a magnet near the product. Magnetic objects
such as magnet, CRT, TV, monitor or speaker may damage
the device.
Do not place the device next to heating equipment.
Be careful not to let liquid like water, drinks or chemicals
leak inside the device.
Do not let children touch the device without supervision.
Do not drop or damage the device.
Do not disassemble, repair or alter the device.
Do not use the device for any other purpose than specied.
Clean the device often to remove dust on it. In cleaning, do
not splash water on the device but wipe it out with smooth
cloth or towel.
Contact your supplier in case of a problem.

67
InBio Pro Series Access Control Panels INSTALLATION GUIDE InBio Pro Series Access Control Panels INSTALLATION GUIDE
Product PIN Diagram
4 Aux Inputs
State Indicator
#1 Door Card Reader
#1 Door Exit Button
RS485
Fingerprint Reader
#2 Door Card Reader
#2 Door Exit Button
#3 Door Card Reader
#3 Door Exit Button
#4 Door Card Reader
#4 Door Exit Button
4 Lock & Door Sensor 4 Aux Output
RS485 Communication
DIP Switches Ethernet Port
Lock Power
InBio Pro Power
LINK LED
ACT LED
SD Card Slot
Figure 1
LED Indicators
LINK Solid Green LED indicates TCP/IP
communication is normal.
Flashing (ACT )Yellow LED indicates
data communication is in progress.
EXT RS485 (TX/RX) Flashing Yellow
& Green LED indicates communication is
in progress.
PC RS485 (TX/RX) Flashing Yellow
& Green LED indicates communication is
in progress.
Flashing (POWER) Red LED indicates
the panel is powered on.
Flashing (RUN) Green LED indicates
that panel is in normal working state.
Flashing (CARD) Yellow LED indicates
that the card is read by the panel.
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 8
Figure 7

89
InBio Pro Series Access Control Panels INSTALLATION GUIDE InBio Pro Series Access Control Panels INSTALLATION GUIDE
Product Dimension
Figure 10
InBio160Pro InBio260Pro InBio460Pro
InBio Pro- Metal Cabinet
Figure 9
8.89 in
(226 mm)
7.125 in
(181 mm)
1.42 in (36 mm)
4.17 in (106 mm)
4.17 in (106 mm)
4.17 in (106 mm)
Installation of Panel & Cabinet
Cable Conduit
(Punch Hole for cables)
Temper Switch
InBio Pro Panel
Heat Dissipation Grill
Power Supply
Backup Battery
Mounting HolesState Indicators Inserting Panel to Rail
Mounting Rail
We recommend drilling the mounting plate screws into solid wood (i.e. stud/beam). If a stud/beam cannot be
found, then use the supplied drywall plastic mollies (anchors).
Step 1
Pass the cable through holes
Step 2
Mount the Metal Cabinet
Step 3
Insert the InBio Pro Panel as it
shown
Figure 11
Figure 12
1
2
15.7 in (400 mm)
13 in
(330 mm)
3.56 in
(90.5 mm)

10 11
InBio Pro Series Access Control Panels INSTALLATION GUIDE InBio Pro Series Access Control Panels INSTALLATION GUIDE
Wiring Legend
Detector Ethernet Cable
IR Sensor
485 Convertor
Exit Button Floodlight
Wiegand
Card Reader
Exit Button
Normally Open Lock
Normally Close Lock
Wiegand
Card Reader
12V DC Power Supply
12V DC Power
Figure 13
Power Wiring Diagram
Without Backup Battery
With Backup Battery
Switching Power Supply
Ground
Ground
Switching Power Supply
Figure 15
Figure 14

12 13
InBio Pro Series Access Control Panels INSTALLATION GUIDE InBio Pro Series Access Control Panels INSTALLATION GUIDE
RS485 Fingerprint Reader Connection
12V DC12V DC
ETHERNET
1238RS485 Fingerprint Reader
Figure 16
DIP Switch Setting for RS485 Reader
DIP Switch
Figure 17
RS485 Terminal Resistance
8
4
2
1
Address Switch Settings Address Switch Settings
1 5
2 6
37
48
Important Notes
1. There are six DIP switches on the
back of RS485 ngerprint reader,
Switches 1-4 is for RS485 address,
switch 5 is reserved, switch 6 is for
reducing noise on long RS485 cable.
2. Set the odd number for IN reader,
and the even number for OUT reader
(for eg. For two readers for one door-
the RS485 address 1 is for IN reader,
RS485 address 2 is for OUT reader)
3. If RS485 ngerprint reader is pow-
ered from InBio460Pro panel ,the
length of wire should be less than
100 meters or 330 ft.
4. The External RS485 interface can
supply maximum 500mA current,
The RS485 ngerprint reader’s
startup current is 240mA. So InBio-
460Pro only can power two RS485
ngerprint readers.
5. If the cable length is more than
200 meters or 600 ft , the number 6
switch should be ON as below:
Distance: More than 200 meters

14 15
InBio Pro Series Access Control Panels INSTALLATION GUIDE InBio Pro Series Access Control Panels INSTALLATION GUIDE
Wiegand Connection
Wiegand Card Reader
Figure 18
Beeper
Green LED
Wiegand D1
Wiegand D0
GND
DC+(6-14V)
REX Connections
ZK ABK Exit Button
K2 Exit Switch
Separate Power Supply
Unused
NO
BUTTON
COM
GND
12V DC(+)
12V DC( - )
Figure 19

16 17
InBio Pro Series Access Control Panels INSTALLATION GUIDE InBio Pro Series Access Control Panels INSTALLATION GUIDE
Lock Connection
Connecting a Lock with External to Power Supply
(Dry Contact)
FR107
Diode
GND
GND
Sensor
Sensor
12V DC
Door Contact
ETHERNET
Figure 20
S
Se
e
Switching Dry Contact to Wet Contact
Important Notes:
The factory default jumper setting is set as dry mode. If you want to power the
lock from the panel, you must take the following steps:
1. Take apart the cover of InBio460Pro. Push the tab inward (see gure 21)
2. Select the appropriate lock relay and nd its jumpers
3. Take o the jumpers and change to
4. Connect the lock as show in the diagram, (see gure 23 and 24)
Back of InBio460Pro Select one Relay
Default setting
1, 2 - 3, 4
Take o jumpers Jumpers Plug Jumpers
2, 3 - 4, 5
Figure 22
Figure 21
-
+

18 19
InBio Pro Series Access Control Panels INSTALLATION GUIDE InBio Pro Series Access Control Panels INSTALLATION GUIDE
Lock Connection
Normally Open Lock Powered From Lock Terminal
(Wet Contact)
Normally Closed Lock Powered From Lock Terminal
(Wet Contact)
12V DC
12V DC
12V DC
12V DC
GND
GND
FR107
Diode
FR107
Diode
GND
GND
ETHERNET
ETHERNET
Figure 23
Figure 24
16 or 18 AWG shielded cable recommended
Aux. I/O Connection
Aux. Input Connection
Aux. Output Connection
12V DC
12V DC
GND
GND
ETHERNET
Figure 26
Figure 25
-
+
-
+
ETHERNET

USB USB
USB
USB
Direct connection
To connect InBio Pro Panel with a PC directly, connect both devices with a
straight network cable. As the InBio Pro Panel supports auto MDI/MDIX, it is not
necessary to use a crossover type cable.
CR20E Card Issuer ZK4500 Enrollment reader
ZK4500 Enrollment readerCR20E Card Issuer
ETHERNET
ETHERNET
#1 InBio Pro Panel
RS485 --
RS485 +
GND
#2 InBio Pro Panel #63 InBio Pro Panel
20 21
InBio Pro Series Access Control Panels INSTALLATION GUIDE InBio Pro Series Access Control Panels INSTALLATION GUIDE
Ethernet Connection
LAN Connection
Important Notes:
1. Both 10Base-T and 100Base-T are supported
2. This cable distance must be less than 330 ft. (100m)
3. For cable length of more than 330 ft. (100m). use HUB to amplify the signal.
Figure 27
Figure 28
CAT5e or CAT6 ethernet
cable recommended
RS485 Connection
Important Notes:
1. RS485 communication wires should be a shielded twisted pair cable. RS485
communication wires should be connected in a bus cascade topology instead
of a star topology, to achieve a better shielding eect by reducing signal
reection during communications.
2. A single RS485 bus can connect up to 63 access control panels, but preferably
32 is recommended maximum.
3. To eliminate signal attenuation in communication cables and suppress inter-
ference, if the bus is longer than 200 meters, set the number 8 DIP switch to
the ON position. This is equivalent to a parallel connection of one 120 ohm
resistance between the 485+ and 485- lines.
SINGLE InBio Pro Panel MULTI InBio Pro Panels
Incorrect RS485 connections
Distance: More than 200 meters
RS485 --
RS485 +
GND
RS485 --
RS485 +
GND
x
x
Figure 29
Figure 30
Figure 31
#1 InBio Pro Panel #2 InBio Pro Panel #63 InBio Pro Panel
#1 InBio Pro Panel #2 InBio Pro Panel #63 InBio Pro Panel

#63 InBio Pro Panel
=
22 23
InBio Pro Series Access Control Panels INSTALLATION GUIDE InBio Pro Series Access Control Panels INSTALLATION GUIDE
RS485 Address
1. Number 1-6 are reserved to set the device number for RS485 communica-
tion. The code is binary, and the numbering starts from left to right. When the
switch is set to ON position, it indicates 1 (on); when the switch is set down-
wards, it indicates 0 (o ). For example, to set a device number 39=1+2+4+32,
which corresponds to the binary code 111001, put number 1, 2, 3, and 6 to ON
position, as illustrated below.
For more details, please check the table at the end of this document.
RS485 Connection
1
2
4
8
16
32
Restore Factory Setting
RS485 Terminal Resistance
Restore factory setting
1. If you forget the IP address of the InBio Pro panel or the device does not work
normally, you can use the number 7 DIP switch to restore InBio Pro Panel to
factory default settings. The parameters which gets reset are device IP address,
communication password, gateway, and subnet mask.
2. The switch is OFF by default. When it is moved up and down for three times
within 10 seconds and nally returned to OFF position, the factory settings will
be restored after the access control panel is restarted.
To reset factory settings
Turn #7 switch ON and OFF
Repeat process 3 times
Figure 32
Figure 33
DIP Switch Setting
Terminal Resistance
1. Number 8 is for setting the RS485 termination resistance. Putting the switch
to ON position is equivalent to parallel connection of a 120 ohm termination
resistance between 485+ and 485- lines.
120 ohm
Figure 34
Figure 35

24 25
InBio Pro Series Access Control Panels INSTALLATION GUIDE InBio Pro Series Access Control Panels INSTALLATION GUIDE

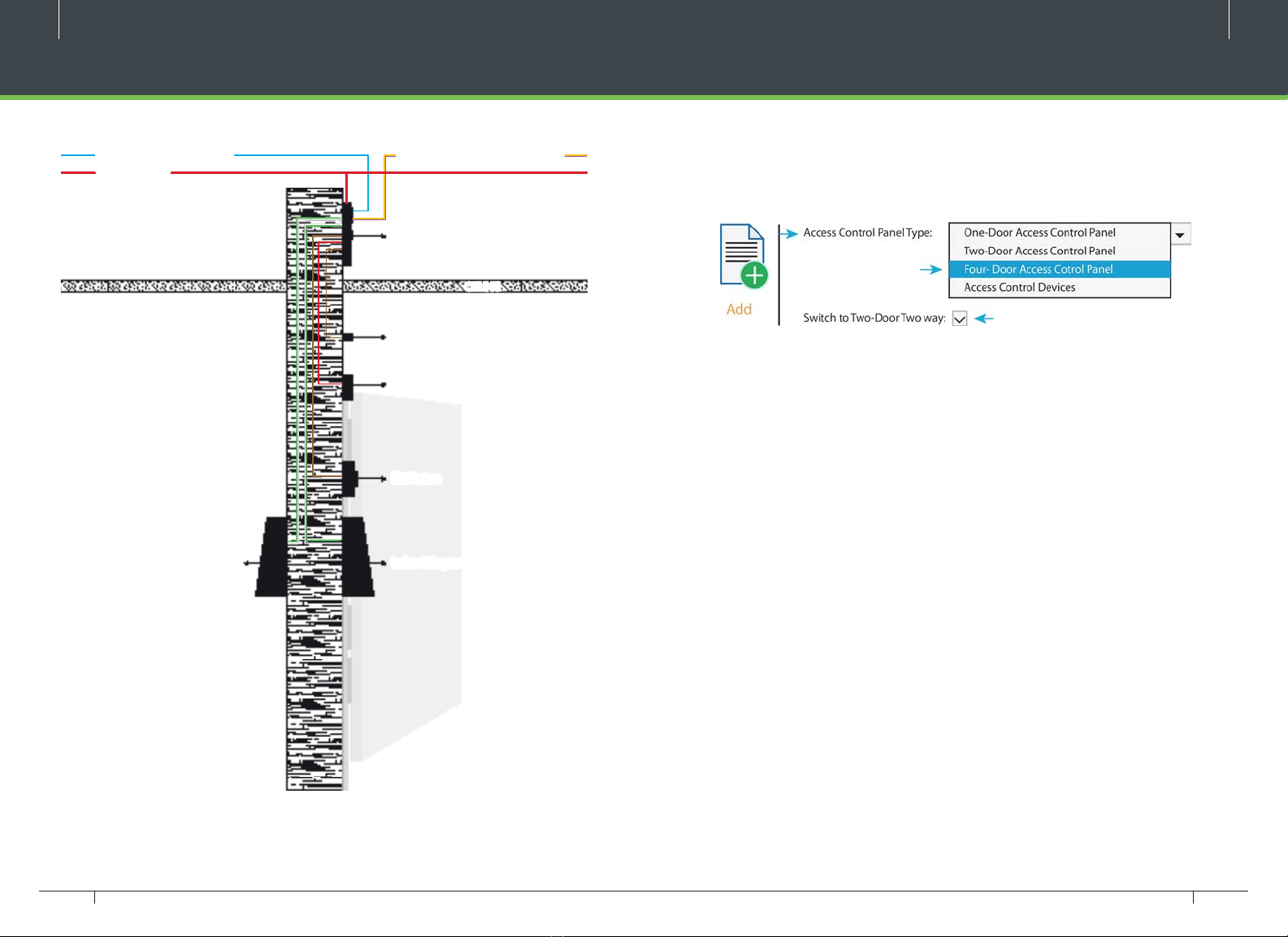

Installation Diagram
Sensor
CEILING
INDOOROUTDOOR
InBio Pro Access Control Bundle
Electric Lock
Exit Button
Indoor Wiegand card readerOutdoor Wiegand card reader
Figure 36
Ethernet Communication wire
220/110 V Input
RS485 Network Communication wire
Troubleshooting
1. How to switch four door one way to two door two way?
› Connect four readers from reader 1 to reader 4.
› Connect two door locks, one connected to LOCK1, another connected to LOCK3.
› In the software congure reader 1-Indoor, and reader 2-Outdoor.
2. Can we integrate IP Camera and NVR?
› Currently ZKBiosecurity software supports ZKTeco’s IP Cameras and NVR
› You can associate a camera to the door and setup a linkage for the same.
3. What does it mean when I get a “Wiegand Format Error”?
› Your WD0 and WD1 wiring is reversed.
4. How do I connect a third party reader or a stand-alone reader to a
InBio Pro panel?
› Connect the wiegand output to the WD0 and WD1 of the stand-alone readers on the
panel’s reader port.
Note: The board can only supply 12 V DC, 300mA power so an external power supply may be required.
5. What is the SD card slot used for?
› SD card, stores transactions from the panel and creates a back up in additional to
internal memory.
6. What kind of wire is recommended for the panel?
› 16 or 18 AWG twisted shielded wire is recommended.
7. What is the default IP of the panel?
› 192.168.1.201
8. How long is the device under warranty?
› 1 Year from original purchase date, replacement/repair of hardware under ZK standard
warranty requires an evaluation of the failed system by a ZK Technical Support specialist,
and the issuance of a Technical Support RMA number.
Figure 34

26 27
InBio Pro Series Access Control Panels INSTALLATION GUIDE InBio Pro Series Access Control Panels INSTALLATION GUIDE
PC 485 Setting Table
Switch Setting
123456
Address No. 12481632
01 ON OFF OFF OFF OFF OFF
02 OFF ON OFF OFF OFF OFF
03 ON ON OFF OFF OFF OFF
04 OFF OFF ON OFF OFF OFF
05 ON OFF ON OFF OFF OFF
06 OFF ON ON OFF OFF OFF
07 ON ON ON OFF OFF OFF
08 OFF OFF OFF ON OFF OFF
09 ON OFF OFF ON OFF OFF
10 OFF ON OFF ON OFF OFF
11 ON ON OFF ON OFF OFF
12 OFF OFF ON ON OFF OFF
13 ON OFF ON ON OFF OFF
14 OFF ON ON ON OFF OFF
15 ON ON ON ON OFF OFF
16 OFF OFF OFF OFF ON OFF
17 ON OFF OFF OFF ON OFF
18 OFF ON OFF OFF ON OFF
19 ON ON OFF OFF ON OFF
20 OFF OFF ON OFF ON OFF
21 ON OFF ON OFF ON OFF
22 OFF ON ON OFF ON OFF
23 ON ON ON OFF ON OFF
24 OFF OFF OFF ON ON OFF
25 ON OFF OFF ON ON OFF
26 OFF ON OFF ON ON OFF
27 ON ON OFF ON ON OFF
28 OFF OFF ON ON ON OFF
29 ON OFF ON ON ON OFF
30 OFF ON ON ON ON OFF
31 ON ON ON ON ON OFF
32 OFF OFF OFF OFF OFF ON
Switch Setting
123456
Address No. 12481632
33 ON OFF OFF OFF OFF ON
34 OFF ON OFF OFF OFF ON
35 ON ON OFF OFF OFF ON
36 OFF OFF ON OFF OFF ON
37 ON OFF ON OFF OFF ON
38 OFF ON ON OFF OFF ON
39 ON ON ON OFF OFF ON
40 OFF OFF OFF ON OFF ON
41 ON OFF OFF ON OFF ON
42 OFF ON OFF ON OFF ON
43 ON ON OFF ON OFF ON
44 OFF OFF ON ON OFF ON
45 ON OFF ON ON OFF ON
46 OFF ON ON ON OFF ON
47 ON ON ON ON OFF ON
48 OFF OFF OFF OFF ON ON
49 ON OFF OFF OFF ON ON
50 OFF ON OFF OFF ON ON
51 ON ON OFF OFF ON ON
52 OFF OFF ON OFF ON ON
53 ON OFF ON OFF ON ON
54 OFF ON ON OFF ON ON
55 ON ON ON OFF ON ON
56 OFF OFF OFF ON ON ON
57 ON OFF OFF ON ON ON
58 OFF ON OFF ON ON ON
59 ON ON OFF ON ON ON
60 OFF OFF ON ON ON ON
61 ON OFF ON ON ON ON
62 OFF ON ON ON ON ON
63 ON ON ON ON ON ON

28 29
InBio Pro Series Access Control Panels INSTALLATION GUIDE InBio Pro Series Access Control Panels INSTALLATION GUIDE
Electrical Specications
Minimum Typical Maximum
Notes
WORKING POWER SUPPLY
Voltage (V) DC 9.6 12 14.4 Use regulated DC power
adaptor only
Current (A) 2
ELECTRONIC LOCK RELAY OUTPUT
Switching voltage (V) 12V Use regulated DC power
adaptor only
Switching Current (A) 2
Auxiliary relay output
Switching voltage (V) 12V Use regulated DC power
adaptor only
Switching Current (A) 1.25
SWITCH AUX. INPUT
VIH (V)
VIL (V)
Pull-up resistance (Ω) 4.7k The input ports are pulled
up with 4.7k resistors
WIEGAND INPUT
Voltage (V) 10.8 12 13.5
Current (mA) 500
ZK ELECTRIC LOCK
Voltage (V) DC 10.8 12 13.2
Current (mA) 500
Specications
Communication RS485, TCP/IP
Baud Rate for RS485 9600-15200
Power Supply 12V DC, 3A
Card Holders Capacity 30,000
Log Events Capacity 100,000
LED Indicator Indicator for communication, power, status and prox card
Environment 32-113 °F (0-45°C)
Operating Humidity 20% to 80%
Number of doors controlled Four Door (four door one way and two door two way)
Number of readers supported 4
Types of readers supported 26-bits WIEGAND, others upon request
Number of Inputs 12 (4 Exit Device, 4 Door Status, 4 AUX)
Number of Outputs 8 (4- Form C relay for lock and 4- Form C relay for Aux output)
Weight 7.8lbs (3.55kg)
Enclosure Metal Cabinet
Mounting Wall Mount
Dimensions (Bundle Only) 15.7in. x 3.56in. x 13.0in 400mm(L) x 90.5mm(W) x 330mm(H)
Dimensions (Board Only) 8.0in. x 4.17in. 203.2mm(L) x 106mm(W)
CPU 32 bit 400MHz
RAM 32MB
Flash 128MB
Certied

© Copyright 2015. ZKTeco Inc. ZKTeco Logo is a registered trademark of ZKTeco or a related company. All other product and company names mentioned are used for
identification purposes only and may be the trademarks of their respective owners. All specifications are subject to change without notice. All rights reserved.
ZK Building, Wuhe Road, Gangtou, Bantian, Buji Town,
Longgang District, Shenzhen China 518129
Tel:[phone]
Fax:[phone]
www.zkteco.com
