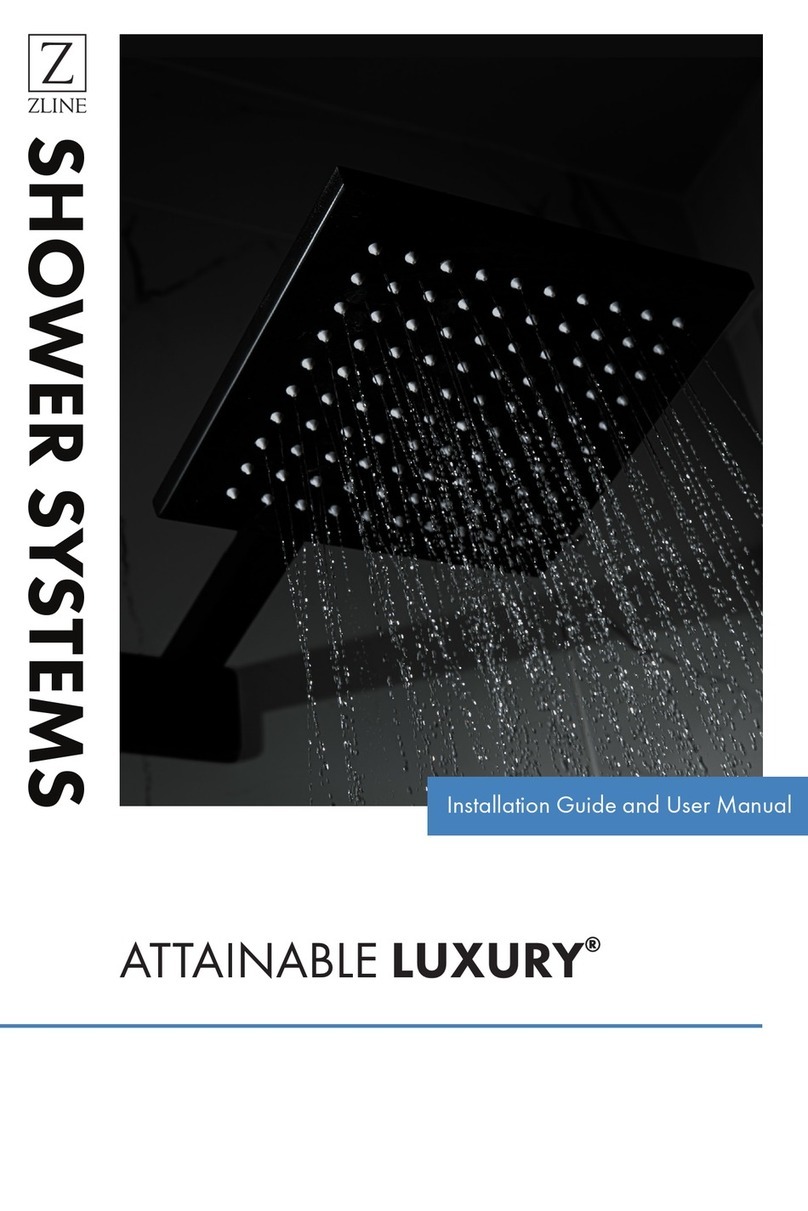

Zline BLS-SHS Assembly instructions

Pressure Balance
shower systems
Installation Guide
and Users Manual

Sourced with materials from across the world, ZLINE’s shower systems
are easy to operate, reduce water waste, and complement bathroom
décor. This exclusive collection blends modern technology with
traditional appeal — offering a wide array of finishes.
ZLINE showers offer an aerated water flow for resource conservation,
helping both the environment and your wallet. The housing material
composition consists largely of brass, which is extremely durable and
leak proof. Each shower system produced is examined thoroughly by
hand to ensure quality and consistency.

SAFETY INSTRUCTIONS 1
Prior to Installation
Safety Tips
Care and Maintenance
BLISS SHOWER SYSTEM (BLS-SHS) 2
Parts
Dimensions
Tools
Assembly
EL DORADO SHOWER SYSTEM (ELD-SHS) 22
Parts
Dimensions
Tools
Assembly
SHOWER FAUCET 42
Parts
Tools
Assembly
TROUBLESHOOTING 47
TABLE OF CONTENTS

1
Prior to Installation
Make sure that the cold and hot water lines are turned off.
Wrap all threaded connections with Teflon tape. Always wrap in a clockwise
direction.
Cover your drain to avoid losing parts.
Do not disassemble the main system body, as it has been installed and commissioned
correctly and precisely before delivery to the factory.
To keep the system from jamming, flush the water pipe before installation.
Operating conditions: Working pressure at 0.05-1.0 MPa (including cold and hot
water pressure) with applicable water temperature: 39.2°F - 194°F.
Care and Maintenance
To keep the product clean and shining, follow the steps below:
1. Rinse clean with water and dry with a soft cloth.
2. Do not clean with soaps, acid, polish, abrasives, or harsh cleaners.
3. Do not use cloth with a coarse surface.
4. Unscrew the aerator and clean when necessary.
Safety Instructions
If soldering the water connections when installing the system, remove the O-rings,
cartridges, and washers before applying any heat.
Protect your eyes when cutting or soldering.
Do not over tighten screws/nuts. Finger tighten, then use a wrench/screwdriver to
tighten the fixing screw/nut until snug.

2
Bliss Shower System (BLS-SHS)
1. Flange cover
2. Shower arm
3. Top spray shower
4. Wall valve body
5. Faceplate
6. Sleeve
7. Washer
8. Steering handle
9. Switch handle
10. Cap
11 . Sleeve
12. Flange cover
13. Angle valve
14. Shower rail
15. Shower handle
16. Hose

3
Bliss Shower System (BLS-SHS)

4
Tools:
Time required:
+/- 120 minutes
Wrench
Legend:
Hot Water
Warning
Cold Water
Plumber’s Tape
Torch
Screwdriver
Drill
Bliss Shower System (BLS-SHS)

5
Time required:
+/- 120 minutes
Torch
Slide the sleeves onto the pipes and then insert pipes into the wall valve.
Tighten the ring around the pipes with the wrench. NOTE: If welding is
involved, you must remove the internal valve components prior to the
welding. Please note the original position of the cartridge.
Bliss Shower System (BLS-SHS)

6
Weld the copper together or use plumber’s tape to prevent leaks.
Bliss Shower System (BLS-SHS)

7
After welding, purge the water supply system for 30 seconds.
Bliss Shower System (BLS-SHS)

8
Reinstall the valve components into their original positions.
Bliss Shower System (BLS-SHS)

9
Use this diagram to understand the placement of the wall valve.
Bliss Shower System (BLS-SHS)

10
Screw the wall valve body into the system with a screwdriver. Do not
overtighten.
Bliss Shower System (BLS-SHS)

11
Screw the sleeve and washer into the wall valve body.
Bliss Shower System (BLS-SHS)

12
Attach the face plate and remove the plastic.
Bliss Shower System (BLS-SHS)

13
Attach the steering handle.
Bliss Shower System (BLS-SHS)

14
Connect the flange cover to the spout in the wall. Secure with plumber’s
tape to prevent leaks.
Bliss Shower System (BLS-SHS)

15
Twist the top spray shower into the shower arm.
Bliss Shower System (BLS-SHS)

16
Connect the angle valve to the flange cover and screw together. Secure
with plumber’s tape to prevent leaks.
Bliss Shower System (BLS-SHS)
