ZNTECH LBB051100A User manual

Residential Energy Storage Battery System
User Manual
Product Name: Residential Energy Storage Box User Manual
Product Model: LBB051100A
Date : 04/11/2019
Add: NO.245, BINKANG RD., CHANGHE ST., BINJIANG DISTRICT, HANGZHOU, ZHEJIANG/
NO.799,YAOCHENG AVENUE, CMC,TAIZHOU, JIANGSU
Tel: [phone] Fax: [phone] E-Mail: [e-mail]

MANUAL NAME: LBB051100A Residential Energy Storage Box User Manual REV NO..: V1.2
Date: November 4, 2019
ZHONGNENG TECHNOLOGY (HANGZHOU) CO., LTD
1
Contents
Contents...................................................................................................................................... 1
1. Safety Rules............................................................................................................................2
1.1 Symbol ........................................................................................................................................2
1.2 Safety Instructions.......................................................................................................................4
1.3 Response to Emergency Situations..............................................................................................5
2. User Manual...........................................................................................................................6
3. Product Description................................................................................................................6
3.1 Product Overview........................................................................................................................6
3.2 Principles.....................................................................................................................................7
4. Product Specifications............................................................................................................7
4.1 Technical Parameters...................................................................................................................7
4.2 System Specification .................................................................................................................10
5. Installation............................................................................................................................ 11
5.1 Items in the Box ........................................................................................................................11
5.2 Installation Precautions .............................................................................................................12
5.3 Clearance...................................................................................................................................13
5.4 Tools and Safety Gear ...............................................................................................................13
5.5 Installation Steps .......................................................................................................................14
5.6 Wiring........................................................................................................................................16
5.7 Use of D.C. isolating Switch.....................................................................................................19
6. Instructions for Use..............................................................................................................19
6.1 Precautions before Use..............................................................................................................19
6.2 Power on the System .................................................................................................................20
6.3 Power off the System.................................................................................................................21
7. Maintenance.........................................................................................................................21
7.1 Troubleshooting.........................................................................................................................21
7.2 Replace the Battery system .......................................................................................................22
7.3 Battery Maintenance..................................................................................................................22
8. Unpacking, Shipping and Storage........................................................................................23
8.1 Unpacking Inspection................................................................................................................23
8.2 Transport Requirements ............................................................................................................23
8.3 Storage Requirements................................................................................................................23
8.4 Disclaimer .................................................................................................................................24
9. Product Warranty..................................................................................................................24
9.1 Warranty Conditions..................................................................................................................25
9.2 Warranty Claim .........................................................................................................................25

MANUAL NAME: LBB051100A Residential Energy Storage Box User Manual REV NO..: V1.2
Date: November 4, 2019
ZHONGNENG TECHNOLOGY (HANGZHOU) CO., LTD
2
1. Safety Rules
1.1 Symbol and Terms

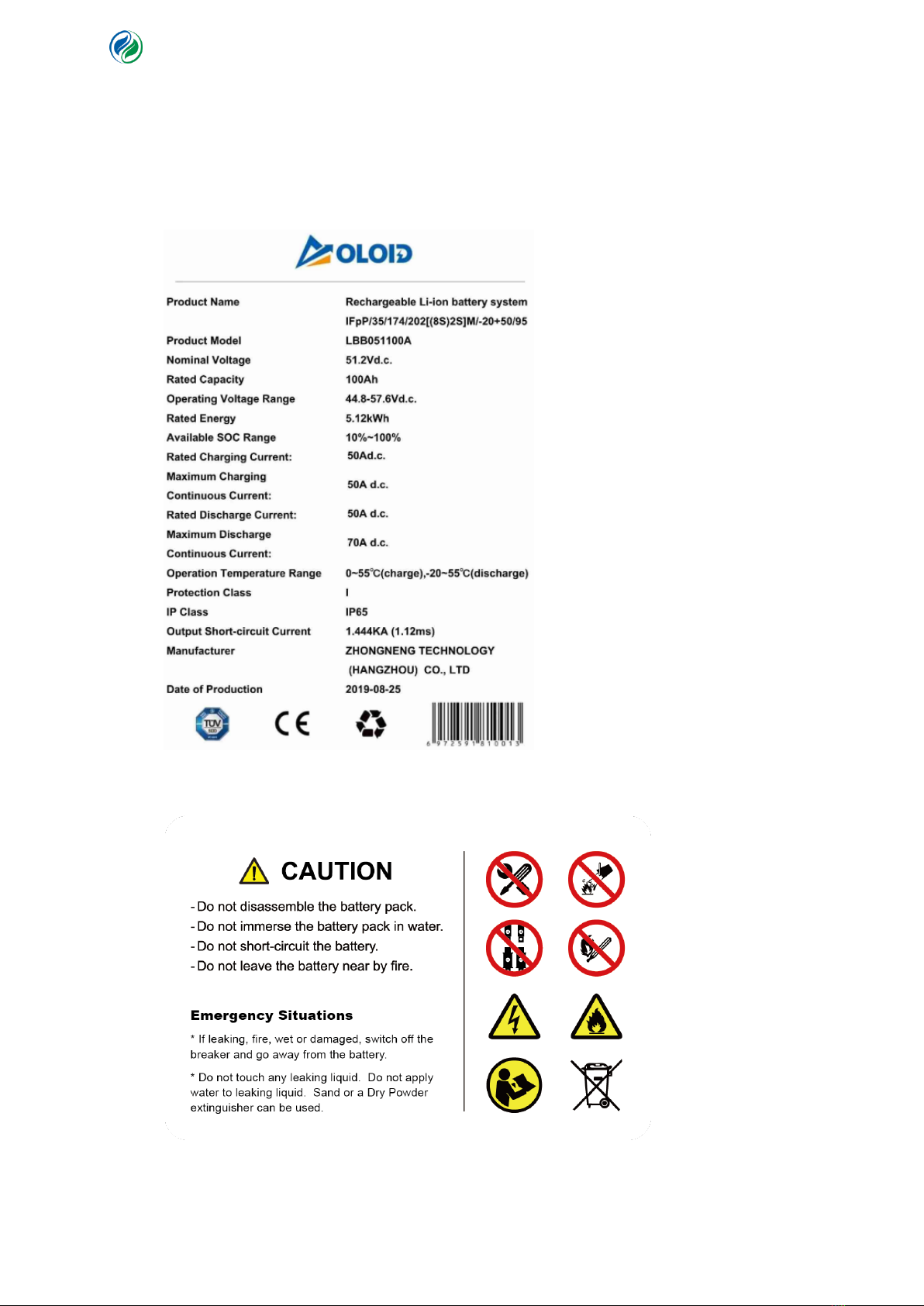

1) Product Label
2) Warning label
Explanation of the symbols as follows:

MANUAL NAME: LBB051100A Residential Energy Storage Box User Manual REV NO..: V1.2
Date: November 4, 2019
ZHONGNENG TECHNOLOGY (HANGZHOU) CO., LTD
3
Caution, danger of electric shock
Ignoring the safety warnings or improper operation may result in minor injuries
or minor or moderate damage to the equipment and property.
Do not short the battery
Do not disconnect or disassemble by non-professionals
Don not use water to extinguish fire
Do not place near flammable materials
Do not place near open flames
Please Read the product manual before starting installation and use
Install the product out of reach of children.
Recyclable
Do not dispose of the product with household wastes.

MANUAL NAME: LBB051100A Residential Energy Storage Box User Manual REV NO..: V1.2
Date: November 4, 2019
ZHONGNENG TECHNOLOGY (HANGZHOU) CO., LTD
4
1.2 Safety Instructions
For safety reasons, installers are responsible for familiarizing themselves with the contents of this
document and all warnings before performing installation.
1) During the operation and maintenance of this product, please wear appropriate personal
protective equipment (PPE) in accordance with the operating regulations of high voltage DC
power supply and take good personal protection. If you need to handle the battery directly,
please wear insulated rubber gloves.
2) During transportation, do not pierce or bump the power system product, or expose it to open
flames or incineration. In case of fire, do not rinse with water. Use dry powder fire extinguisher
to extinguish any fire.
3) To avoid injury, burns, or electric shock, keep children away from the product.
4) Before touching the battery or power system, remove personal items containing metal (such as
watches and rings).
5) To prevent the build-up of static electricity, service personnel should touch large grounded
metal parts before operating the battery.
6) When climbing during maintenance, pay attention to safety to prevent people from falling or
batteries from falling.
7) When connecting high-voltage power cords, use insulated tools and suitable insulating
materials.
8) Never place tools or metal parts on top of the battery.
9) During the assembly process, please be careful not to touch the positive and negative terminals
of the battery system with your hands or other metal objects at the same time to avoid electric
shock or short circuit.
10) Do not step on or sit on the power system.
11) Do not reverse the positive and negative poles of the power system, otherwise it will cause
reverse charging, which will cause the battery to leak, heat and rupture.
12) Do not open or modify the battery in any way. Any electrolyte flowing out of the battery may
damage the skin and eyes. If electrolyte exposure occurs, please wash it with plenty of water
repeatedly and seek medical attention.
13) It is strictly forbidden to modify the power supply system without authorization. In order to
prevent danger, a protection system is installed in the power supply system. If the protection
system is damaged, the charging may not be controlled, or the charging and discharging current
may exceed safety limits, resulting in battery leakage, heat generation and damage to the
battery.

MANUAL NAME: LBB051100A Residential Energy Storage Box User Manual REV NO..: V1.2
Date: November 4, 2019
ZHONGNENG TECHNOLOGY (HANGZHOU) CO., LTD
5
14) Power system products should be stored in a dry and ventilated environment, with a
temperature not higher than 50 °C, relative humidity less than 80%, and away from flammable
and explosive materials.
15) It is strictly forbidden to cover any part of the power supply system during charging and
discharging; otherwise, the heat generated will accumulate, the battery performance will
decrease, and liquid leakage may occur.
16) It is recommended to charge at the optimal ambient temperature of 10 to 30 °C, discharge at the
optimal ambient temperature of 5 to 35 °C, and store at the optimal ambient temperature of 0 to
30°C.
17) Avoid overcharging the power supply for a long time, otherwise the battery will leak.
18) When a power system product reaches its end-of-life or is discarded, it should be disposed of in
accordance with national or local regulations and must not be discarded at will.
19) If the product develops a fault or displays abnormal behavior, immediately disconnect the
power by following the shutdown procedure and contact the supplier for repair.
20) During installation of the battery, the utility grid and solar input must be disconnected from the
Battery system wiring. Wiring must be carried out by qualified personnel.
Caveat
Only suitably qualified professionals can perform this assembly and installation of this System!
Do not disconnect, disassemble or repair any part of this System unless you are suitably qualified.
Services must be undertaken by qualified personnel only.
Observe all warnings and cautions! Ignoring the safety warnings can result in serious personal
injury or death!
If the power system is charging and discharging, if there is an unusual smell or sound, stop charging
immediately and contact the supplier!
Store the product out of reach of children and animals.
Do not store this product in a place exposed to direct sunlight.
1.3 Response to Emergency Situations
1.3.1 Battery Leakage
If the battery system electrolyte leaks, avoid contact with the leaked liquid or gas. If the user is exposed to
the leaked material, immediately deal with it as described below:
Inhalation: Evacuate contaminated area and seek medical attention immediately.
Contact with eyes: Flush eyes with running water for 15 minutes and seek medical attention immediately.

MANUAL NAME: LBB051100A Residential Energy Storage Box User Manual REV NO..: V1.2
Date: November 4, 2019
ZHONGNENG TECHNOLOGY (HANGZHOU) CO., LTD
6
Contact with skin: Wash affected area thoroughly with soap and water and seek medical attention
immediately.
Ingestion: Induce vomiting and seek medical attention immediately.
1.3.2 Fire
Warning
Do not extinguish any battery fire with water!
Use only dry powder fire extinguishers; In the case of a fire nearby, move the battery system to a
safe area before the battery system catches fire.
There may be a possible explosion when batteries are heated above 150°C.
When the battery system is burning, it leaks poisonous gases，Do not approach.
If fire occurs when charging batteries, if it is safe to do so, disconnect the battery system circuit
breaker to shut off the power to charge.
If the battery system is not on fire yet, extinguish the fire before the battery system catches fire.
If the battery system is on fire, do not try to extinguish but evacuate people immediately.
1.3.3 Wet Batteries
If the battery system is wet or immersed in water, please do not approach it and contact ZHONGNENG
Technology or an Authorized Reseller in the Territory
1.3.4 Damaged Battery
Damaged batteries may leak electrolyte or produce flammable gas.
Damaged batteries are dangerous and must be handled with care. They can no longer be used and may
cause harm to people or property.
If the battery system might be damaged, please pack it back in the original box and return it to
ZHONGNENG Technology or an Authorized Reseller in the Territory
2. User Manual
Thank you very much for purchasing the LBB051100A energy storage power system product. Please read
this manual carefully before using this product.
3. Product Description
3.1 Product Overview
ZNTECH LBB051100A energy storage power system products, which use lithium iron phosphate batteries
is a high-power, pollution-free, maintenance-free green battery with high specific power, long life, small
internal resistance and high current charging and discharging efficiency. The built-in module type battery

MANUAL NAME: LBB051100A Residential Energy Storage Box User Manual REV NO..: V1.2
Date: November 4, 2019
ZHONGNENG TECHNOLOGY (HANGZHOU) CO., LTD
7
core uses laser welding technology, and the modules are connected by soft copper plates, and the
connection is reliable. The signal output is connected to the Battery Management System (BMS) by a
Flexible printed circuit (FPC).
The power system has solid structural design and good heat dissipation performance; the battery production
process is advanced, and the quality is safe and reliable. The power system is a single- connection system,
which consists of 8 100Ah batteries connected in series to a 25V100Ah LBM025100A single module, and
then two modules in series to form a 1P16S LBB051100A system. Lithium-ion batteries include positive
and negative plates, separators, electrolytes, battery containers, and safety valves.
Note: The following single cells refer to 100Ah lithium ion batteries.
3.2 Principles
ZNTECH LBB051100A energy storage power supply system provides two outputs and a switch for
controlling the main control board. The power supply system provides standard CAN and RS485
communication interfaces to monitor each battery cell and the entire power system.
The principle design of the power system is shown in the following figure:
Figure 1 System diagram of battery system
4. Product Specifications
4.1 Technical Parameters
This system is a single battery system, that is, 16 batteries (1p8s modules, 1 and 2 strings) are connected in
series to form an LBB051100A battery system，The appearance is shown in Figure 1.

MANUAL NAME: LBB051100A Residential Energy Storage Box User Manual REV NO..: V1.2
Date: November 4, 2019
ZHONGNENG TECHNOLOGY (HANGZHOU) CO., LTD
8
Figure 2 Outline of the battery system

MANUAL NAME: LBB051100A Residential Energy Storage Box User Manual REV NO..: V1.2
Date: November 4, 2019
ZHONGNENG TECHNOLOGY (HANGZHOU) CO., LTD
9
Table 1 Electrical parameters of battery system
Technical Parameters:
Type of Battery:
Lithium Iron Phosphate (LFP)
Rated Voltage:
51.2Vd.c.（25℃±2℃）
Rated Capacity:
100Ah
Usable capacity:
≥90Ah
Rated Energy:
5.12kWh
Composition Method:
1P16S
Operating Voltage Range:
44.8～57.6Vd.c.
Standard Charging Current:
50Ad.c.
Maximum Charging Continuous
Current:
50Ad.c.
Standard Discharge Current:
50Ad.c.
Maximum Discharge Continuous
Current:
70Ad.c.
Maximum Discharge Pulse Current:
100Ad.c.（30s，25℃±2℃，SOC≥40%）
Operation Temperature Range
0~55℃(charge), -20~55℃(discharge)
Working Relative Humidity:
20%～80%
Protection Class
I
Output Short-circuit Current
1.444KA (1.12ms)
IP Class
IP65
Attitude
<2000m
Cell Self-discharge Rate:
≤5%（25℃，50%SOC）
Factory State of Charge:
30%
Insulation Resistance Factory Test:
>100MΩ
Group Pressure Difference:
≤20mV
Battery Internal Resistance:
0.34±0.05mΩ (new battery state (30~40% SOC, 1KHZ,
single cell)
Weight:
About 53kg
Dimensions (width x height x depth):
460mm*500mm*200mm
Installation location
Indoor only in a cabinet

MANUAL NAME: LBB051100A Residential Energy Storage Box User Manual REV NO..: V1.2
Date: November 4, 2019
ZHONGNENG TECHNOLOGY (HANGZHOU) CO., LTD
10
4.2 System Specification
Figure 3 Panel equipment specifications and options
Serial
Number
Connector Name
Model
Remark
1
Power Switch Button
YL19-C
YANLUN 19mm 2-color light
switch, 3V
2
Communication Socket
RCP-5SPFFH-TCU7001
Amphenol, rj45(CAN)
3
Communication Socket
RCP-5SPFFH-TCU7001
Amphenol, rj45(CAN,485)
4
Positive Socket
C10-730187-010
Amphenol, red, 25mm2
5
Positive Socket
C10-730187-010
Amphenol, red, 25mm2
6
Negative Socket
C10-730187-110
Amphenol, black, 25mm2
7
Negative Socket
C10-730187-110
Amphenol, black, 25mm2
8
Earthing Terminal
M6
Table 2 Panel equipment model table
The definition of RJ45 pin is as follows
serial
Number
Pin Definition
Colour
Remark
1
ISO_GND
Orange and White
2
N/A
Orange
3
N/A
Green and White

MANUAL NAME: LBB051100A Residential Energy Storage Box User Manual REV NO..: V1.2
Date: November 4, 2019
ZHONGNENG TECHNOLOGY (HANGZHOU) CO., LTD
11
4
CAN-H
Blue
External Can Communication
5
CAN-L
Blue and White
External Can Communication
6
RX/TX
Green
RX-Jack2, TX-Jack3
7
RS485_A
Brown and White
Debug Port
8
RS485_B
Brown
Debug Port
Table 3 Jack 2 and 3 pin definition
5. Installation
5.1 Items in the Box
The battery system has been tested and checked strictly, but it still may be damaged during transporting, so,
please check it carefully.
Inspect the battery's appearance, if any shipping damage is found, report it to the carrier and your
local dealer immediately.
Check if the types of the accessories are complete and correct. If there is any discrepancy, take
notes and contact the distributor immediately.

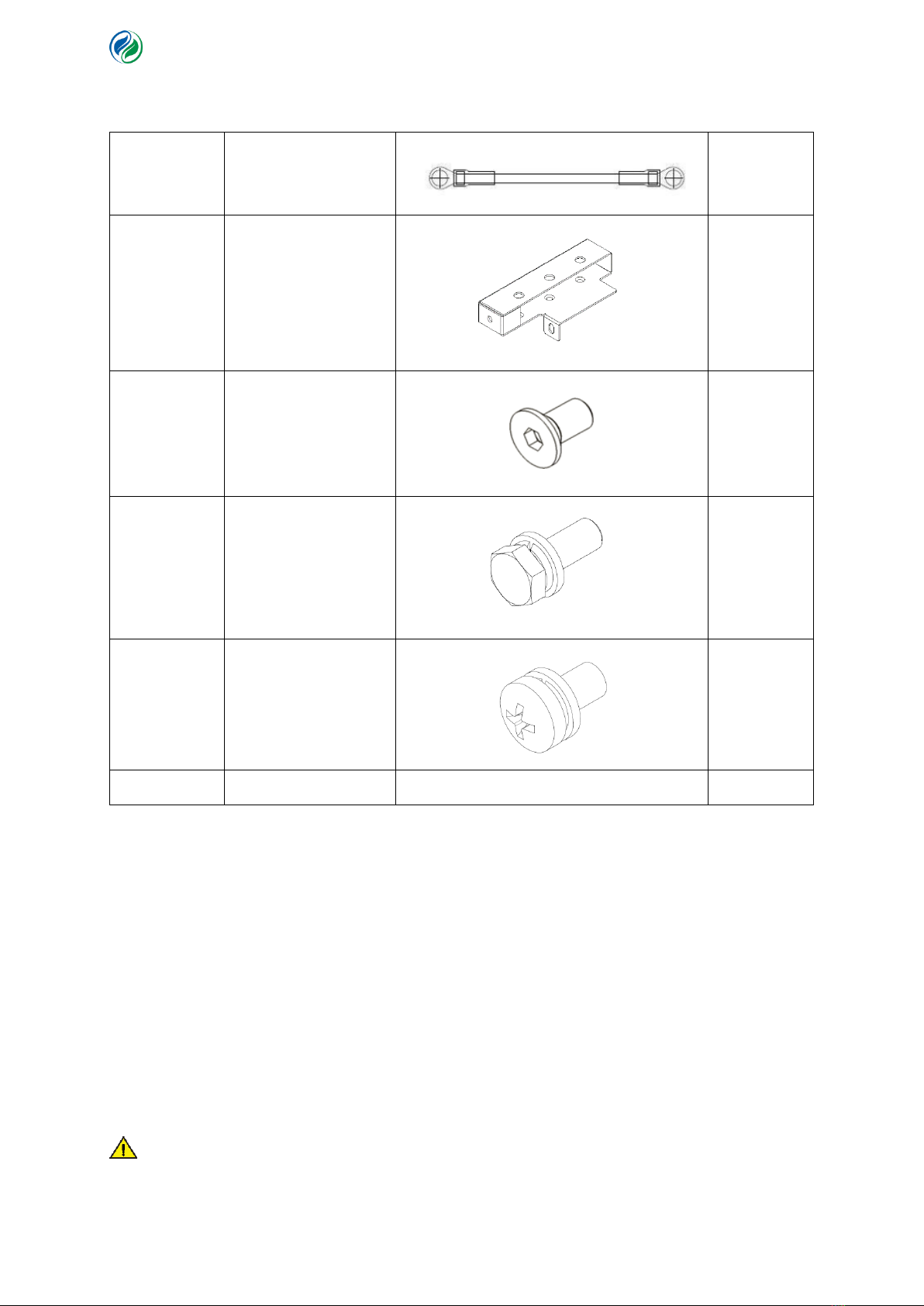

The delivery list of the whole battery system is shown in the following table.
Serial Number
Name
Example
Number
1
Battery system
1
2
Battery power cable
(positive)
1
3
Battery power cable
(negative)
1
4
RJ45 communication
cable
1

MANUAL NAME: LBB051100A Residential Energy Storage Box User Manual REV NO..: V1.2
Date: November 4, 2019
ZHONGNENG TECHNOLOGY (HANGZHOU) CO., LTD
12
5
Grounding cable
1
6
Angle iron
4
7
countersunk screw M6
15
8
Hexagon combination
screw M6
15
9
Pan head combination
screw M6
15
10
Documents
/
1
Table 4 Packing list
5.2 Installation Precautions
When installing the battery system, you must follow the connection method and sequence in the
battery installation instructions, and you must firmly fix the wiring. It is strictly forbidden to short
circuit the positive and negative terminals of the battery, and touch the two terminals of the
battery or the bare wire terminals of the same battery at the same time as this may cause battery
damage or personal injury.
Please follow the wiring diagram of the battery system. When wiring, to avoid damaging the
battery or causing personal injury, please do not squeeze the wire or damage the surface of the
wire.
Note
This document only describes the indoor fixed installation mode. This product is not suited for

MANUAL NAME: LBB051100A Residential Energy Storage Box User Manual REV NO..: V1.2
Date: November 4, 2019
ZHONGNENG TECHNOLOGY (HANGZHOU) CO., LTD
13
outdoor installation..
5.3 Clearance
The following is a schematic diagram of the safe distance between the cabinet and the surrounding objects
according to the relevant standards.
Figure 4 Diagram of Battery Cabinet Clearance
5.4 Tools and Safety Gear
The following tools are required to install the battery system
Wire cutter
Crimping Modular Plier
Screw Driver
Note
Use properly insulated tools to prevent accidental electric shock or short circuits.
If insulated tools are not available, cover the entire exposed metal surfaces of the available tools,
except their tips, with electrical tape.
It is recommended to wear the following safety gear when dealing with the battery system.
Insulated Gloves
Safety Goggles
Safety Shoes
Before installing a power system, make sure that the power system is completely isolated from all electrical

MANUAL NAME: LBB051100A Residential Energy Storage Box User Manual REV NO..: V1.2
Date: November 4, 2019
ZHONGNENG TECHNOLOGY (HANGZHOU) CO., LTD
14
connections. Always follow the instructions in the manual when moving and placing the power system.
Improper handling of the device may result in injuries to persons or damage to the product.
5.5 Installation Steps
5.5.1 Cabinet fixing example

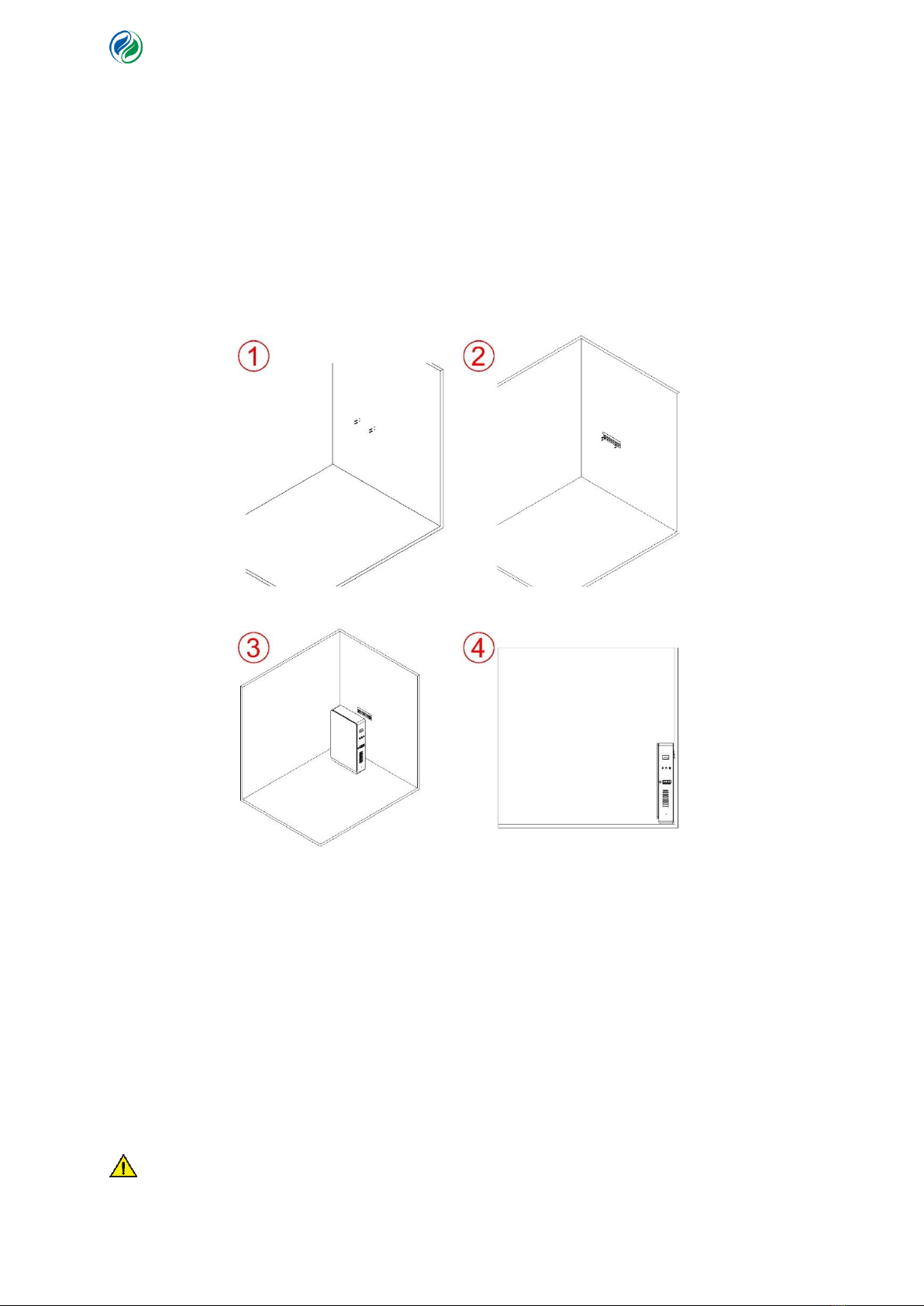

Figure 5 Cabinet fixed installation example
Steps:
As shown in Figure 1 above, use 4 M6 * 50 expansion screws to fix the mounting plate on the
wall.
As shown in Figure 2 above, use the M6 nut to tighten the screw to fix the mounting plate on
the wall.
As shown in Figure 3 above, attach the rear of the cabinet to the mounting bracket on the wall.
As shown in Figure 4 above, the cabinet is supported by the mounting plate fixed on the wall.
Note

MANUAL NAME: LBB051100A Residential Energy Storage Box User Manual REV NO..: V1.2
Date: November 4, 2019
ZHONGNENG TECHNOLOGY (HANGZHOU) CO., LTD
15
The cabinet, mounting plate and screws are not provided by ZNTECH. If you need to provide
them, please contact ZNTECH or an Authorized Reseller in the Territory
5.5.2 Installing Angle Bracket

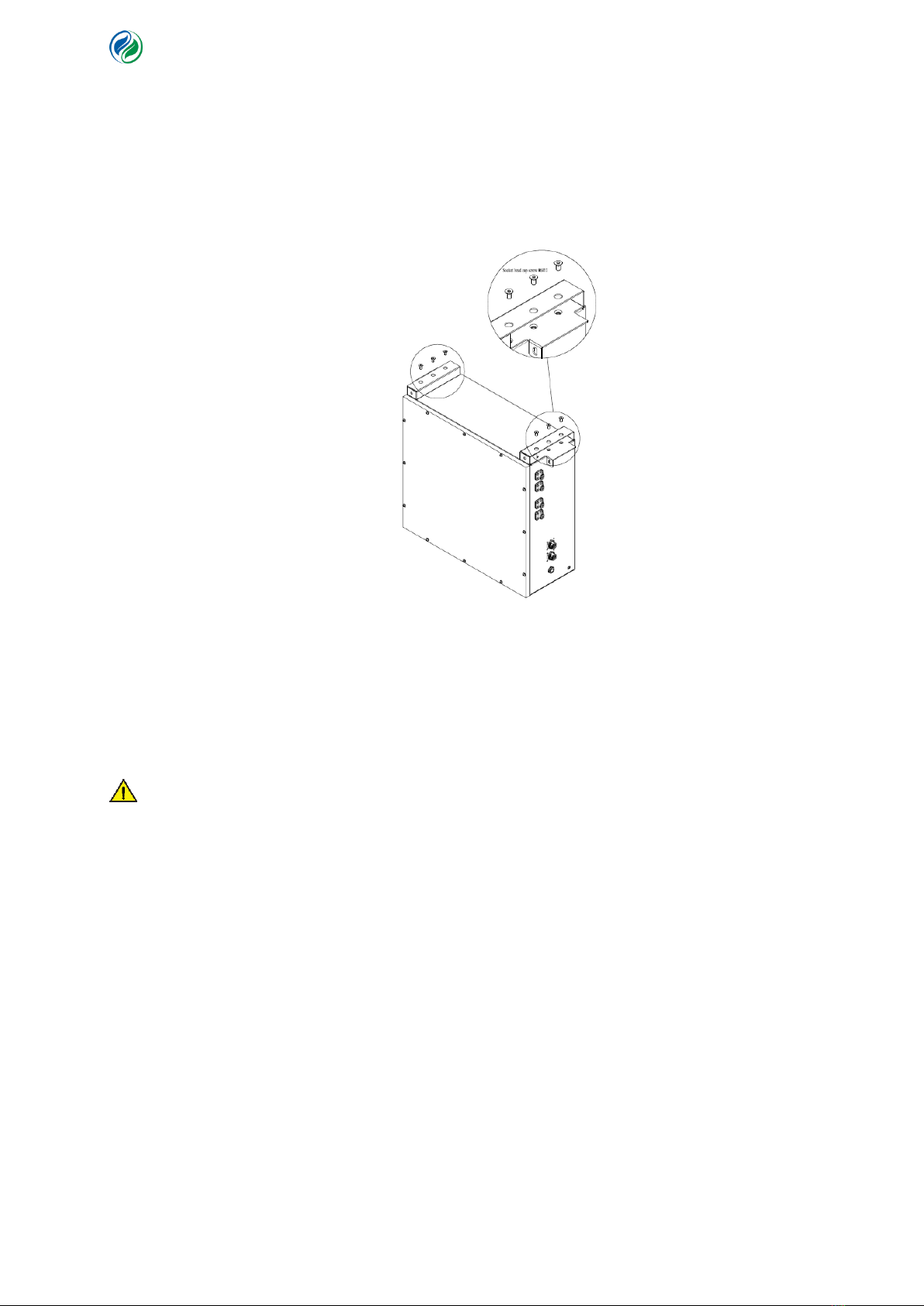

Figure 6 Lock the left and right corner
Steps:
As shown in Figure 6, place the battery system vertically, put the prepared angle iron on both
sides to align the holes and fix it with six M6 x 12mm countersunk screws.
Note
The steps for installing angle brackets on one battery system or two are the same.

MANUAL NAME: LBB051100A Residential Energy Storage Box User Manual REV NO..: V1.2
Date: November 4, 2019
ZHONGNENG TECHNOLOGY (HANGZHOU) CO., LTD
16
5.5.3 Installing single battery system into a cabinet

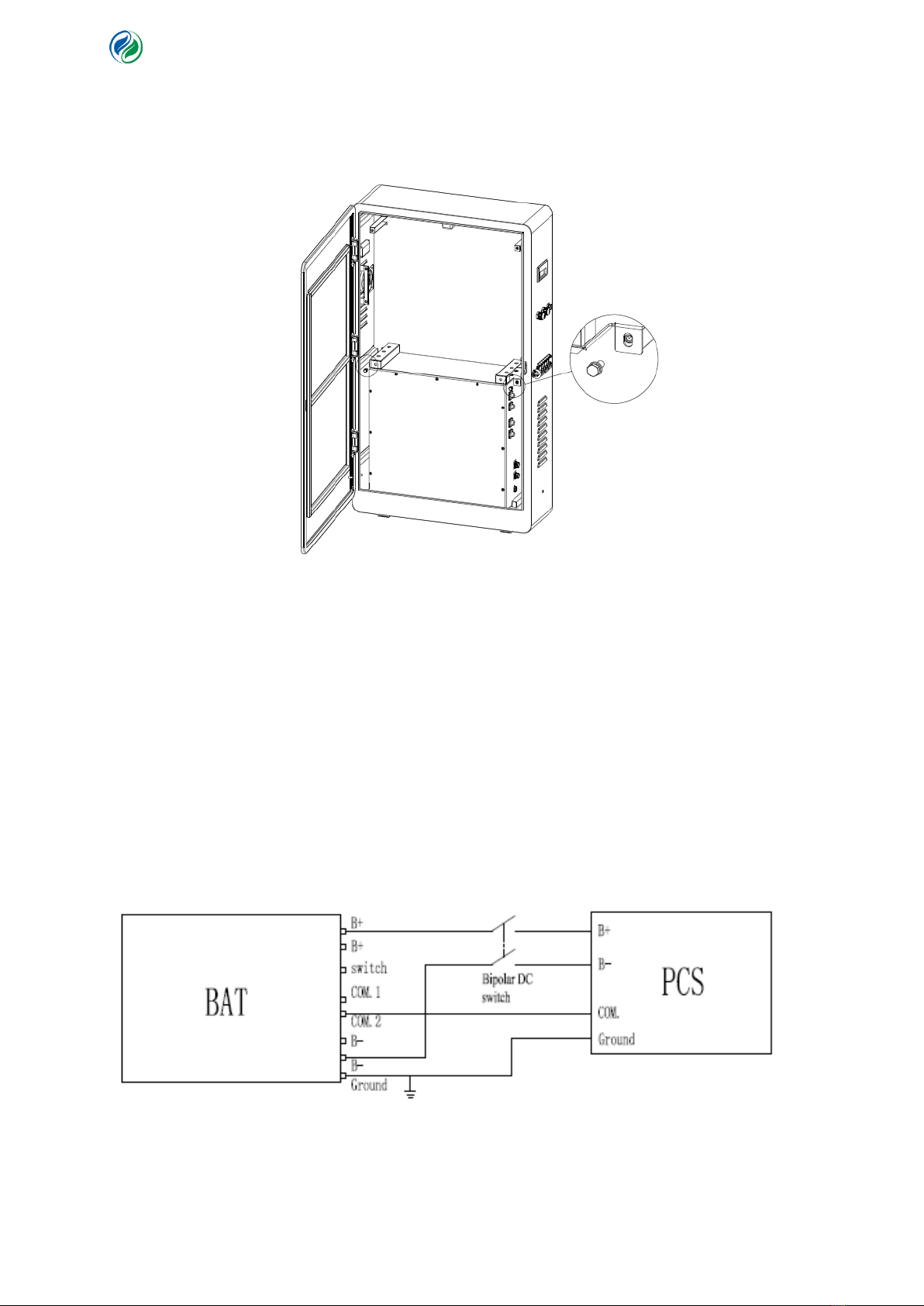

Figure 7 Example of installation diagram of single battery system into a cabinet
Steps:
As shown in Figure 7, put the battery system into the cabinet, and fix it with six M6 x 12mm
external hexagon combination screws. The cabinet should have suitably aligned holes to
facilitate fastening.
5.6 Wiring
1) The wiring schematic diagram of battery system are as follows
Figure 8 Wiring schematic diagram of single battery system

MANUAL NAME: LBB051100A Residential Energy Storage Box User Manual REV NO..: V1.2
Date: November 4, 2019
ZHONGNENG TECHNOLOGY (HANGZHOU) CO., LTD
17
2) The wiring reference diagram of the battery system is as follows.
Figure 9 Installation diagram of single battery system
Warning
The cross-sectional area of the Earth conductor shall not be less than 6 mm2 according to relevant
regulations.
Only qualified and licensed electricians can connect the system to the household electricity
supply/circuits.

MANUAL NAME: LBB051100A Residential Energy Storage Box User Manual REV NO..: V1.2
Date: November 4, 2019
ZHONGNENG TECHNOLOGY (HANGZHOU) CO., LTD
18
5.6.1 Example wiring diagram of single battery system into a cabinet
Figure 10 Cabinet wiring diagram.
Steps:
1) First, insert the positive plug of the Positive Battery Cable into the corresponding socket on the
Battery Module, then connect the other end to the battery side of the D.C. isolating switch a.
Connect the negative plug of the Negative Battery Cable into the negative socket on the Battery
and then connect the other end to the D.C. isolating switch b.
2) Take out the communication cable, install it as shown in Figure 10, connect it to the communication
port on the right side of the cabinet, and then use RJ45 to connect it to the PCS (inverter)
communication port.
3) Use the M6 x 6mm pan head screw to fix one end of the ground wire of the pressed terminal at the
grounding screw, and the other end is connected to the grounding copper bar such as figure 11.
4) The ground wire of PCS or combiner box, etc. is connected to the external grounding copper bar.
Note
Before wiring, the switch on the cabinet shall be in the off state.
Before the positive wire and negative wire are connected to the system, any exposed conductor
part needs to be wrapped with insulating tape to prevent short circuit.
The D.C. Isolating switch and external copper bar are not shipped with the battery system. If
necessary, contact ZNTECH or an Authorized Reseller in the Territory
This unit is not suitable for outdoor installation. An Outdoor Cabinet is not offered by

MANUAL NAME: LBB051100A Residential Energy Storage Box User Manual REV NO..: V1.2
Date: November 4, 2019
ZHONGNENG TECHNOLOGY (HANGZHOU) CO., LTD
19
ZNTECH. If necessary, contact ZNTECH or an Authorized Reseller in the Territory
The number of parallel battery systems affects the current. The following is a list of parameter
descriptions about the selection of circuit breakers (for reference only).
If a battery or batteries are mounted inside a cabinet, the cabinet should be suitably identified and
marked to include information such as (but not limited to) battery identification, capacity, IP rating
and any and all requirements of any relevant Standards.
5.7 Use of D.C. isolating Switch
Each battery system is connected to a D.C. isolating switch with the appropriate voltage and current to ensure
that the system is secure. The recommended D.C. isolating switch is Nader DC80V, 63A DC D.C. isolating
switch. The reference figure is as follows:

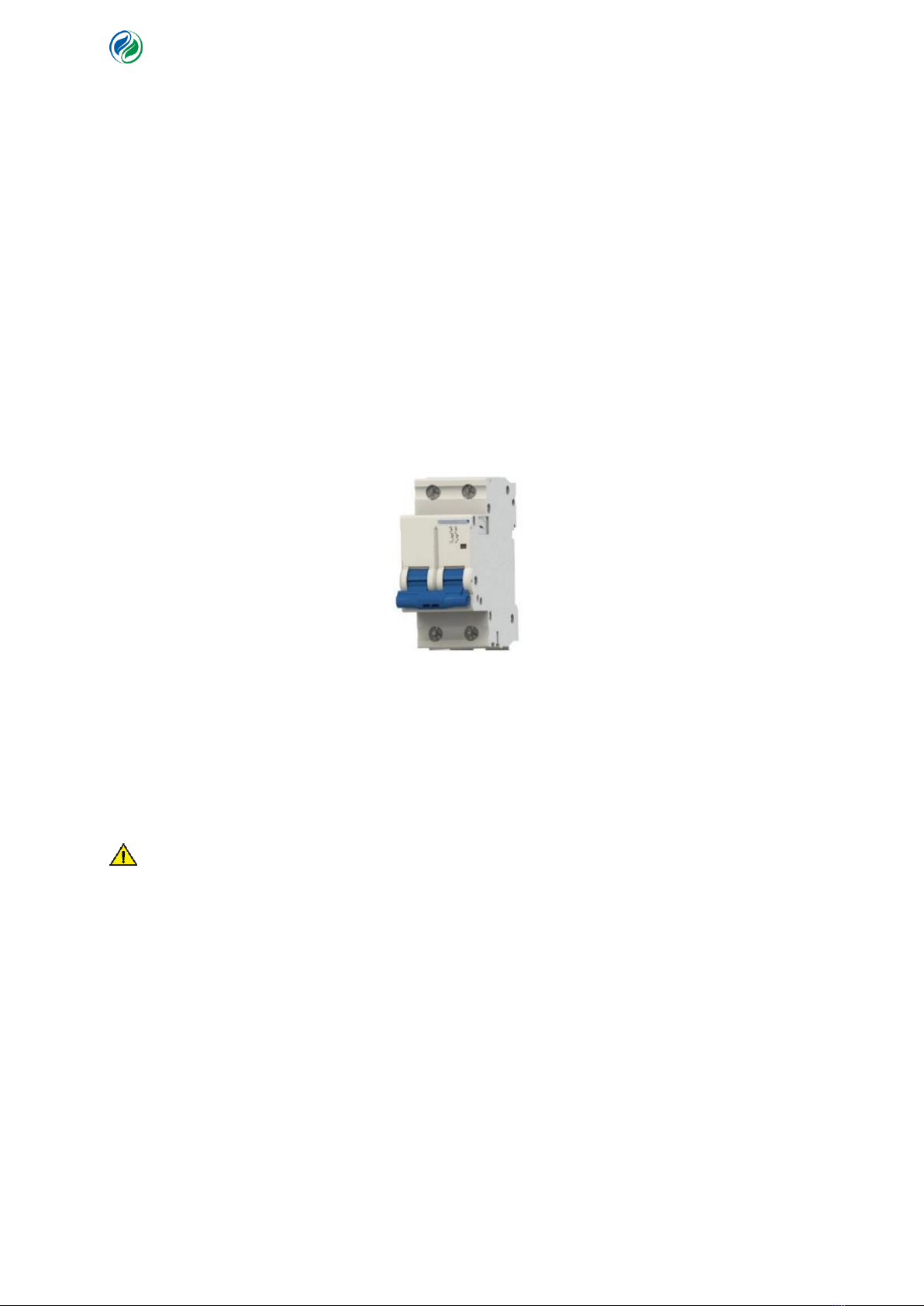

Figure11 Schematic diagram of D.C. isolating switch
The system current changes after different Numbers of packs are connected in parallel, and the current is
generally larger than one single pack. The selection of switches connected to PCS should be based on the
maximum battery current decided by the PCS or the actual working current. If the D.C. switch is not suitable,
then a circuit breaker can be considered.
Note
The D.C. isolating switch shall be selected by the customer. If necessary, contact ZNTECH or
an Authorized Reseller in the Territory
During the transportation and storage of the battery, the switch shall be disconnected to protect
the battery and make it safe.
6. Instructions for Use
6.1 Precautions before Use
1) Inspection, maintenance, service and connection of the power system must be performed by
qualified personnel or qualified trainers.
2) During the assembly process of the power supply system, please be careful not to touch the
