Zodiac PW-5m User manual

Instructions for
installation and use
(to be kept in a safe place)
EN
5M-7M-9M
PW

Summary
Installation page 3
1.1 General .................................................................................................................................................................................. 3
1.1.1 Caution ......................................................................................................................................................................... 3
1.1.2 General terms of delivery, storage and transport ........................................................4
1.2 Operating conditions ............................................................................................................................................4
1.3 Installation ......................................................................................................................................................................4
1.3.1 Selecting an installation site ...............................................................................................................4
1.3.2 Installing the appliance ...........................................................................................................................5
1.3.3 Hydraulic connections ..............................................................................................................................5
1.3.4 Electrical connections .............................................................................................................................6
Operation page 7
2.1 The Control Panel .................................................................................................................................................... 7
2.2 Checks to be performed before operating the appliance............................................. 7
2.3 Starting the appliance ...................................................................................................................................... 7
2.4 Checks to perform after operating the appliance ...............................................................8
2.5 Winterizing ....................................................................................................................................................................8
Maintenance page 9
3.1 Maintenance instructions ................................................................................................................................9
3.2 Recycling the product .......................................................................................................................................9
Error codes page 10
FAQ page 11
Technical information page 12
6.1 Technical specifi cations ..................................................................................................................................12
6.2 Electrical information ...................................................................................................................................... 13
Warranties page 13
Registration on line page 15
Conformity certifi cate page 15
Additional recommendations page 15
10.1 Installation and maintenance ..................................................................................................................15
10.2 Repair .............................................................................................................................................................................16
Appendixes:
- Electrical diagram .................................................................................................................... page 18
- Dimensions ....................................................................................................................................... page 19
1
2
3
4
5
6
7
8
9
10
2

Please read this manual carefully before installing, maintaining
or repairing this appliance!
The symbol indicates important information that must be
taken into account in order to avoid risk of personal injury and/
or damage to the appliance.
The symbol indicates useful information.
Installation
1.1 General
1.1.1 Caution
The product must be installed by a qualifi ed technician according to the
manufacturer’s instructions and in compliance with local regulations. The
installer is responsible for the correct installation of the device and also for
ensuring compliance with local regulations in this respect.
The manufacturer will not be held responsible for any potential issues that
may arise due to failure to comply with local regulations pertaining to in-
stallation.
That this device must be handled by competent and capable people (physi-
cally and mentally) who have received adequate instructions for use (by
reading the user guide or as instructed by the installer).
Persons who do not satisfy these requirements must not handle the appli-
ance so as to avoid exposure to potentially dangerous parts.
In the event of malfunction do not attempt to repair the appliance yourself:
call your retailer.
If a water treatment system (chlorinator, salt chlorinator, etc…) is fi tted on
the fi ltration system of the pool, this system must be installed downstream
from the heat pump.
Must be used exclusively to heat swimming pool water
Not to be used for any other purpose.
1
3

1.1.2 General terms of delivery, storage and transport
Any equipment, including CARRIAGE and PACKING FREE, is shipped at the
recipient’s risk. In the case of damage caused during shipping the recipient
must mention any reservations in writing on the carrier’s delivery note (con-
fi rmation to be sent to the carrier within 48 hours by registered mail and
Acknowledgement of Receipt).
The appliance must be transported and stored upright on its pallet in its
original packaging.
If the appliance has been turned on its side, mention your reservations in
writing to the carrier.
Contents:
+ x2 +
1.2 Operating conditions
Operating range:
• between 7 °C and 32 °C of air temperature
• between 10 °C and 32 °C of water temperature
1.3 Installation
Do not pick up the unit using the outer casing, use the base to lift and move
the unit.
Installation and hydraulic and electrical connections must comply with the
standards that apply in your country.
1.3.1 Selecting an installation site
The appliance must be installed outdoors and there must be adequate
open space surrounding it (see §1.3.3).
4

• The heat pump must be installed at a minimum distance from the end of
the pool so as to avoid exposure to water splashes. The appropriate distance
should be defi ned with reference to the national electrical standards that ap-
ply in the country of installation.
• The heat pump must not be installed:
- near a heat source or near infl ammable gas,
- near a road with a risk of water and mud splashes,
- facing strong wind,
- with the extractor vent oriented towards a window or close to a wall,
- with extractor vent less than 3 meters from a permanent or temporary
obstacle.
Incorrect installation may cause serious damage and/or personal injuries
(possibly death).
Keep the appliance out of the reach of children.
1.3.2 Installing the appliance
• install the 4 stabilizing studs (sup-
plied),
• place onto a stable, solid (concrete
slab type) and level surface,
• protect from risks of fl ooding due to
condensation produced by the appliance
whilst it is operating

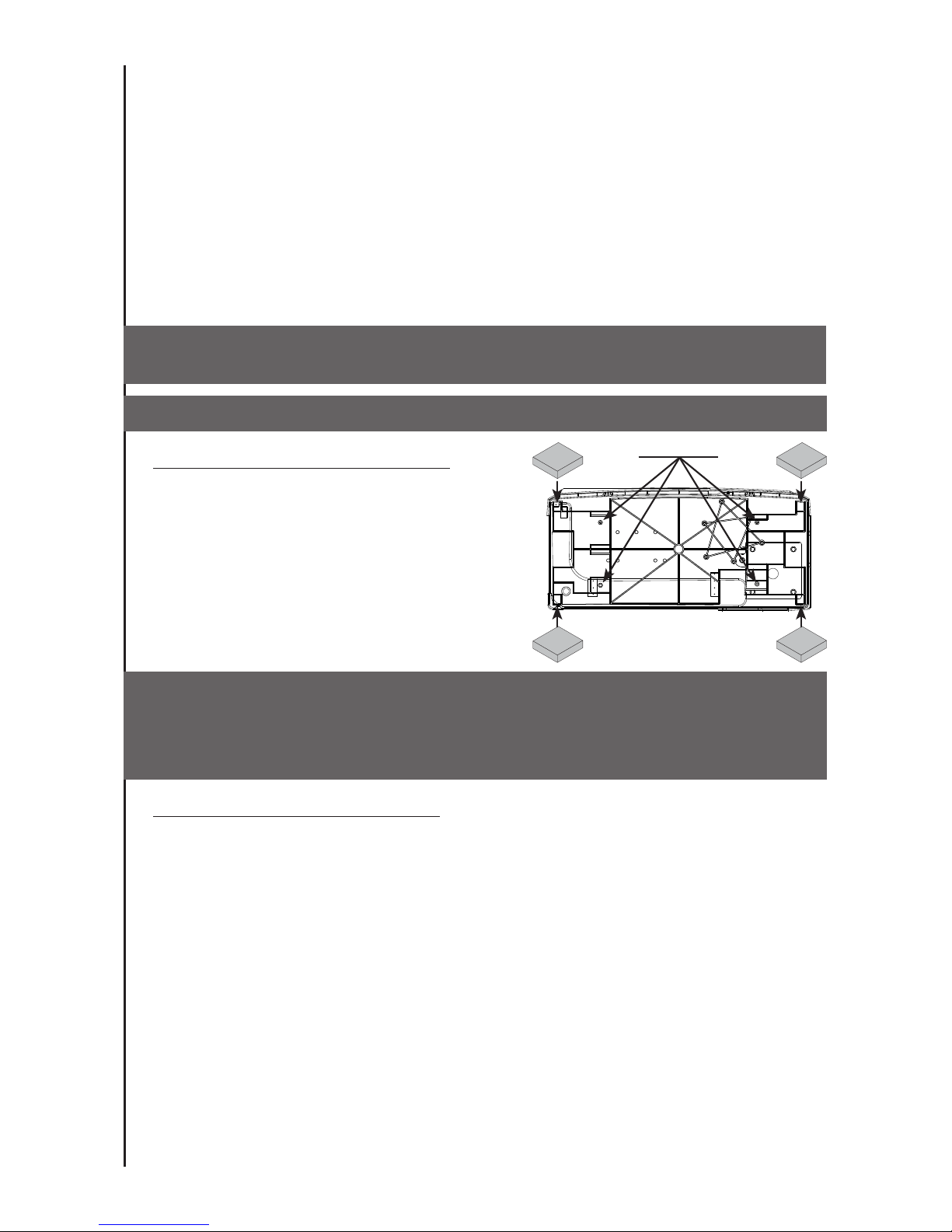

It is possible to fi x the appliance to the ground using the holes in the base
of the appliance or using fi xing rails (not supplied). It is also possible to fi x
the appliance with brackets (not supplied).
A drilling explanation diagram is available on the rear of the packaging box.

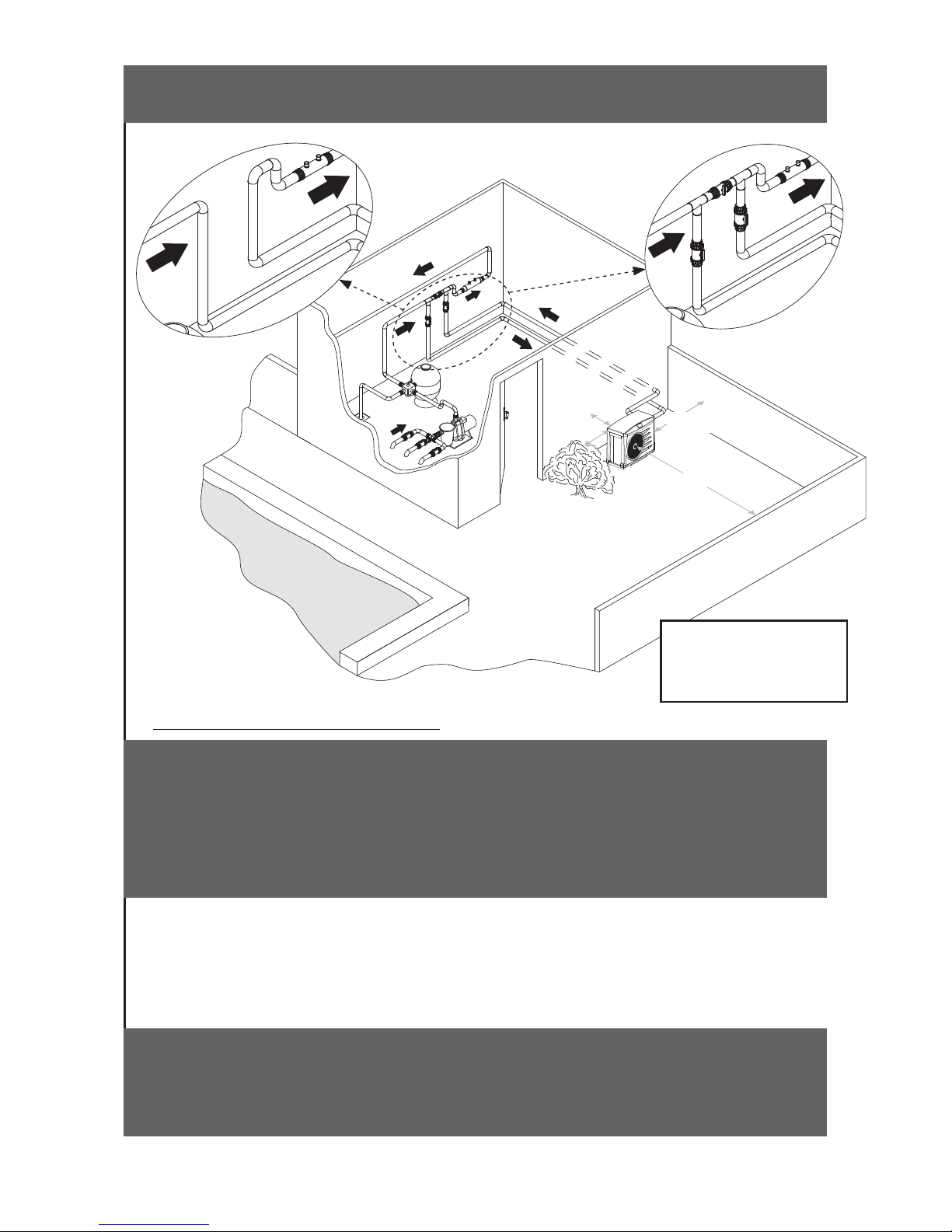

1.3.3 Hydraulic connections
Connections should be made using Ø50 PVC pipe, gluing the pipework con-
nectors to the swimming pool fi ltration system, after the fi lter  and before
any water treatment system . Even if the water fl ow is lower than 8m3/h,
it is recommended that a by-pass installation be used  (valve VB closed,
valves VE and VS open) so as to facilitate interventions on the appliance.
Installing a by-pass is mandatory if the water fl ow is higher than 8m3/h, use
valve VB to adjust the water fl ow and leave valves VE and VS open.
Fixing holes
5

Respect the direction of the hydraulic connection (see § “Dimensions” in
the appendix).
0,2m* 0,8m*
3m*
0,3m*



VE
VB
VS
Without by-pass With by-pass
(recommended)
1.3.4 Electrical connections
Prior to any operation, check that:
- The voltage on the identifi cation plate of the appliance corresponds to the
main voltage available on site.
- the socket and the power supplied are adapted to the power requirements
of the heat pump, and that they are grounded,
- the electrical plug is adapted to the socket available.
• connect the power cord supplied with the appliance to a 16A socket com-
plying with the standards and regulations in force in the country where it
is installed,
• extension cords and adapters must not be used.
• If the power supply cable is not long enough, contact a qualifi ed technician.
Risk of electrical shock inside the device.
Only a fully qualifi ed and approved technician should perform cabling con-
nections inside the appliance.
If the power cable is damaged it must be replaced by a qualifi ed technician.
* Minimum distance
 fi lter
 water treatment
 by-pass
6

Operation
2.1 The Control Panel
88.8°
c
Symbol Designation Not fl ashing Flashing Off
water fl ow Water fl ow is
correct
Water fl ow to low
or no water fl ow /
Heating active Starting up inactive
external pump
(option) Refer to the manual of the optional feature
ambient air
temperature S u f fi c i e n t insuffi cient /
Default See §4
“on/off” button
Button for displaying the temperature of the pool water or for
setting parameters
setting values buttons
2.2 Checks to be performed before operating the appliance
• the hydraulic connections must be tight,
• the unit must be stable (as well as level and upright),
• the electrical supply cable must not be exposed to sharp or hot elements
which could damage it or crush it.
2.3 Starting the appliance
• Open the water supply and adjust the valves, if any (see §1.3.3),
• Connect the heat pump to the power supply : then
,
2
7

• To turn on the appliance: press for 2 seconds on : then
by default the screen will display the requested temperature,
• To set the desired temperature (“requested temperature”) : when the heat
pump is operating, press on or to set the value,
It is possible to read the water temperature:
when water is fl owing through the heat pump, press on :
fl ashes for 10 seconds then displays the fi xed requested
temperature
It is possible to lock the keyboard:
• lock the keyboard: press on and simultaneously for 3 seconds:
will be displayed for 3 seconds then: ,
• unlock the keyboard: press on and simultaneously for 3 seconds:
will fl ash for 4 seconds then: ,
2.4 Checks to perform after operating the appliance
After following the steps for running the heat pump, temporarily cut the wa-
ter circulation to check that the heat pump stops operating:
the water fl ow diode should fl ash.
2.5 Winterizing
Winterizing is essential due to the risk of the condenser freezing. This situ-
ation is not covered by the warranty.
• switch off the heat pump by pressing the button for 2 seconds, then
disconnect the power cable,
• ensure that no water is fl owing through the heat pump,
• drain the water condenser (risk of freezing) by removing the two pool wa-
ter inlet and outlet connections at the back of the heat pump,
• in the case of a full winterizing of the pool: connect the inlet and outlet con-
nections “lightly” without tightening (one turn) in order to avoid foreign
bodies entering into the condenser,
• in the case of winterizing the heat pump alone: do not reconnect the inlet
and outlet connectors, instead place two stops (supplied) on the condenser
water inlet and outlet.
To avoid damaging the appliance with condensation, do not cover it with an
air-tight cover.
8

Maintenance
3.1 Maintenance instructions
A general servicing of the appliance is recommended both when winter-
izing and when restarting in order to ensure the proper operation of your
heat pump, to preserve its performance and to prevent potential failures.
Servicing costs will be borne by the user.
• ensure that no foreign bodies obstruct the fan grid,
• clean the inside of the appliance, do not use solvent-based cleaning products,
• clean the evaporator (for placing see§ “Dimensions” in appendix) with a soft
brush and a fresh water hose (disconnect the power cable), do not twist or
bend the metal blades,
Do not use a high-pressure water hose.
• check the correct operation of the regulator,
• check that the condensation is drained properly whilst the appliance is oper-
ating.
The following operations must be performed by a qualifi ed technician:
• check the correct working condition of all safety components,
• check that all metal elements are earthed,
• check the tightening and connections of the electric cables and the cleanli-
ness of the electrical equipment box,
Incorrectly tightened terminals may cause overheating of the electri-
cal terminal rail, and will void the guarantee.
3.2 Recycling the product
When your appliance has reached the end of its lifecycle, if you
would like to dispose of it or replace it: do not throw it into your
household waste and do not use your household recycling contain-
ers either.
When this symbol is mentioned on an appliance, it means that the equip-
ment must not be disposed of casually. It will be collected selectively
so that it can be reused, recycled or recovered. Any substances it may
contain which are potentially dangerous to the environment will be elim-
inated or neutralised.
Enquire with your retailer for the conditions that apply to the recycling of
your product and to the organisations that can handle its recycling.
3
9

Error codes
Display Designation Cause Solution
Air temperature
sensor fault
Sensor faulty or
disconnected
Replace the sensor,
contact your retailer
or a qualifi ed
technician
Defrost sensor
fault
Sensor defective
or disconnected
Replace the sensor,
contact your retailer
or a qualifi ed
technician
Low pressure
fault
Gas leak on the
refrigerating
circuit
Contact your retailer
or a qualifi ed
technician
High pressure
fault
Insuffi cient water
fl ow or faulty fl ow
sensor
Check the water
fl ow or contact your
retailer or a qualifi ed
technician
Other
Contact your retailer
or a qualifi ed
technician
Water
temperature
sensor fault
Sensor defective
or disconnected
Replace the sensor,
contact your retailer
or a qualifi ed
technician
Defrost cycle
fault (>45
minutes)
Ambient air
temperature too
low
Wait until the air
temperature reaches
the operating
temperature range
The fan is not
operational
Contact your retailer
or a qualifi ed
technician
The evaporator is
clogged up
Clean the evaporator
(see §2.1)
Value for air
temperature
or defrost is
incorrect
Contact your retailer
or a qualifi ed
technician
4
10

FAQ
Is it possible to improve the temperature performance?
A heat pump is designed to extract heat from the surrounding air and trans-
fer it to the pool water. The higher the air temperature, the more heat the
heat pump will be able to transfer to the pool water.
In order to improve the effi ciency of your heat pump it is recommended
that you:
• protect the pool with a cover (fl oating cover, roller cover …), so as to avoid
heat loss,
• choose periods when the outside temperature is mild (> on average 10° C)
in order to facilitate the temperature increase (this may take several days.
The actual time will vary according to weather conditions and the power of
the heat pump),
• the higher the surrounding air temperature, the more effi cient the heat
pump will be.
Check that the fi ltration time is suffi cient:
• during the heating phase, water circulation must be continuous (24h/24),
• maintain the temperature throughout the season, allow for an “automatic”
circulation of at least 12 hrs/day (the longer this time is, the more time the
heat pump will have to function and to heat the water).
Setting the setpoint to maximum will not heat the water any faster.
Why is my heat pump not heating?
Several reasons could explain this situation:
1. At start-up the appliance remains on “pause” for 30 seconds before actually
starting up: check that this time has passed,
2. once the pool has reached the required temperature, the heat pump switches
off: check that the water temperature is lower than the requested tempera-
ture (see §2.4),
3. when there is no water fl ow or when it is insuffi cient, the heat pump will stop:
check that water is fl owing correctly through the heat pump, via an external
circulation system, that the pipework connections are correct and check that
the “water fl ow” diode is lit and not fl ashing,
4. when the outdoor air temperature drops below 7°C, the heat pump will stop:
check the outdoor temperature as well as the “surrounding air temperature”
indicator
5. The heat pump may have detected a malfunction: check to see if an error
code is displayed on the screen, if so refer to §4.
If the problem persists after you have checked all the above points, contact
your retailer.
5
11

The heat pump is giving off water: is this normal?
Your appliance will give off water in the form of condensation. This water is
the humidity contained in the air which condenses on contact with certain
cold components inside the heat pump.
Caution: your appliance can drain several litres of water per day.
Where should my water treatment system be positioned
with respect to the heating system?
The water treatment system (chlorinator, salt chlorinator, etc…) must be
installed preferably downstream from the heat pump (see installation
§1.3.3), and must be compatible with the latter (check with the manufac-
turer).
Technical information
Before working on the appliance, ensure that it is disconnected from the
power supply.
Do not vent R410A into the atmosphere: R410A is a fl uorinated greenhouse
gas, covered by the Kyoto Protocol, with a Global Warming Potential (GWP)
= 1975 - (Directive of the EC 842/2006).
Removing or shunting any of the appliance’s safety elements will automati-
cally void the warranty. Use only original manufacturer parts when replac-
ing faulty or worn parts.
6.1 Technical specifi cations
PW 5M 7M 9M
Single phase voltage 230V-50 Hz
Power consumption* kW 0.98 1.56 2.06
Power restored* kW 4.65 6.52 8.6
Nominal current consumption* A4.45 7.09 9.36
COP* 4.7 4.2 4.2
Average water fl ow-rate m3/h 3 4 5
Maximum water fl ow-rate m3/h 8
Protection calibre A16
*with an ambient air of +15 °C and a pool water of 24 °C, humidity 70%
• unit protection class: IP 24
• refrigerant gas: R410A
• refrigerant charge: see product information plate
6
12

6.2 Electrical information
• the unit is designed for connection to a general power supply with full earth
and neutral or neutral earth systems,
• electrical protection: by circuit-breaker (curve D) or fuse (Am), and with a
30 mA differential trip switch at the head of the supply line (circuit-breaker
or switch),
acceptable tolerance for tension variation: -10%, +7% (while operating)
Warranties
Principle
Unless otherwise stipulated, we contractually guarantee the correct opera-
tion of our new Products. We guarantee that our Products conform to their
technical specifi cations and that they are free of material and manufactur-
ing default.
The present warranty is limited, at our discretion, either to the repair or
exchange for a new or repacked Product, or to the refund of any Products
recognized as being defective by our services. Shipping expenses for the
repaired or replaced Products delivered to the client will be borne by us.
The guarantee excludes any labour costs, travel and/or accommodation ex-
penses incurred as the result of repairs made outside of continental France
and excludes any payment of damages.
All Product returns must fi rst be approved and determined by our services.
Returns sent by the Client without our prior approval will not be accepted.
In particular, the spare parts warranty will only be honoured after analysis
and inspection of the returned spare parts by our company followed by the
decision to replace said parts.
In all cases the seller’s legal warranty will continue to apply.
In order to benefi t from the warranty, the Client and the End User agree to
respect the following parameters concerning the water balance of the swim-
ming pool:
- pH: 6.8 < pH < 7.6
- free chlorine (* : < 3,0 mg/L
- total bromine (*): < 5.0 mg/L
- stabilising agent (if used): < 75 mg/L
- total dissolved metals (iron, manganese, copper, zinc…) : < 0.1 mg/L
(*): Swimming Pool Cleaners must be removed from the pool before using a
shock treatment.
Note: Using water drawn from a well is forbidden.
General limitations
The present warranty does not apply to visible defects that the Client failed
to report upon accepting delivery of the Products.
Also excluded from the warranty are: defects or deterioration due to the
unsuitability of the Product with respect to the end User’s needs, due to
normal wear, to negligence, to incorrect installation or to a use that does
7
13

not conform to the recommendations mentioned in the User Manual, to lack
of maintenance and/or a handling accident, to incorrect storage, and/or by
studies, instructions and/or specifi cations made by our Client.
Any modifi cations made by the Client, by the End User or by any third party
to our Products will automatically void the warranty in full. The same will
apply if original parts were to be replaced with spare parts not sold by us.
Our Client will be responsible for ensuring compatibility of our Products with
any other pool equipment it may be installed with, by checking with the dif-
ferent manufacturers concerned, also for ensuring that all installation and
operating instructions and rules are respected in order for the overall sys-
tem to operate correctly.
In the case of a return of the product to our workshop, shipping expenses to
and fro, will be borne by the end user, except for those expenses mentioned
under paragraph 2 of the present article.
Immobilisation and deprivation of use of an appliance due to repair will not
give the right to compensation.
This warranty will become void in the case of a default in payment or late
payment by our Client for the Product concerned.
Period covered by the warranty
The effective warranty start date is the date mentioned on the sales invoice
for the new Product as issued by our Client to the End User. This document
will be required as proof of purchase in order for the warranty to be effec-
tive. Failing this, our Client shall bear the full cost of any claims made by the
end User under the contractual warranty and after its expiry date.
Under no circumstances shall any repairs or replacements carried out under
the terms of this warranty cause its duration to be extended or renewed.
Particular dispositions for Products of Heating and Dehumidifi cation
range
Unless otherwise specifi ed, we guarantee the correct operation of our new
products installed and put into service by a professional installer (excluding
installation via “retrofi t kit”) for a period of two years starting from the date
mentioned on the invoice as issued by our Client to the end User. Users are
also required to have an approved technician perform regular maintenance
on our products, as detailed in the instructions in the product user guide.
The warranty only covers defaults in materials and craftsmanship that have
been acknowledged by our technical department/services.
The present warranty does not apply to malfunctions and/or degradations
due to external factors unrelated to us (poor power supply, adjustment of
the bypass, incorrect air circulation, bad insulation of the premises, thermal
bridges, incorrect winterization, etc.…).
The heat exchanger of the heat pumps benefi ts from a 5-year warranty
against corrosion.
For any warranty issues, please contact your local retailer.
We recommend that you keep your purchase invoice safe, if you require
assistance for your product.
14

Registration on line
Register your product on our website:
- you will be the fi rst to be informed of new Zodiac products
and special offers,
- You can help us to constantly improve the quality of our products.
Australia – New Zealand www.zodiac.com.au
South Africa www.zodiac.co.za
Europe and rest of the world www.zodiac-poolcare.com
Conformity certifi cate
Z.P.C.E. declares that the herewith products or ranges:
Swimming pool Heat pumps: Zodiac Power 5M - 7M - 9M
are in conformity with the provisions:
of the ELECTROMAGNETIC COMPATIBILITY directive 2004/108/EC.
of the LOW VOLTAGE directive 2006/95/EC.
Additional recommendations
In relation with the Pressurised Equipment Directive (PED-97/23/CE)
10.1 Installation and maintenance
• before beginning any installation, commissioning, operation or maintenance
work, the persons responsible for these tasks must have read and understood
all instructions and recommendations contained in the unit installation in-
structions as well as in the project technical fi le.
• the person responsible for fi nal acceptance of the unit must carry out a visual
inspection to detect any damage the unit may have suffered during transport:
refrigeration circuit, electrical enclosure, frame and casing.
• the unit may not be installed close to:
- a heat source,
- combustible materials,
- the air duct inlet of an adjacent building.
• for certain appliances, it is essential to fi t protection grids if the unit is in-
stalled in an area which is unprotected and easily accessible.
• the appliance may only be installed, commissioned, serviced and repaired
by properly qualifi ed persons in accordance with directives, laws, valid reg-
ulations and acceptable professional practice.
• during installation, repair and maintenance work, it is strictly prohibited to
step on pipes and hoses as these could break and the escaping refrigerant
could cause serious scalding.
8
9
10
15

• when servicing the appliance, the composition and state of heat carrying
fl uid must be checked, as well as the absence of any refrigerant.
• during the annual unit sealing test in accordance with valid legislation, the
high and low pressure switches must be checked to ensure they are secure-
ly fastened to the refrigeration circuit and that they shut-off the electrical
circuit when tripped.
• during maintenance work, ensure there are no traces of corrosion or oil
around refrigeration components.
• before beginning work on the refrigeration circuit, isolate the appliance
and wait several minutes before removing the temperature or pressure
sensors. Certain elements such as the compressor and associated piping
may attain temperatures in excess of 100°C and high pressures with the
consequent risk of severe scalding.
10.2 Repair
• all work on the refrigeration circuit must be carried out with total respect
of valid safety regulations and acceptable professional practice: recupera-
tion of refrigerant, nitrogen brazing, etc…
• all brazing work must be carried out by a qualifi ed brazer/welder,
• in the case of units fi lled with R410A, refer to the specifi c indications in the
installation instructions.
• this unit contains pressurized components, some of which may be manu-
factured by ZPCE, this is the case of piping elements. Only use the original
spare parts indicated in the spare parts list to replace a defective refrigera-
tion component
• replacement pipes must always be made of copper in compliance with
standard NF EN 12735-1.
• leak detection, pressure test:
- never use oxygen or dry air, risk of fi re or explosion,
- use dry nitrogen or the mixture of nitrogen and refrigerant indicated on
the name plate,
- the test pressure for both the high and low pressure circuits must not
exceed 42 bar.
• the high pressure circuit pipes are made of copper and have a diameter
equal to or greater than 1’’5/8. A certifi cate as indicated in §2.1 in compli-
ance with standard NF EN 10204 will be requested from the supplier and
fi led in the installation technical documentation.
• the use of non-original spare parts, modifi cations to the refrigeration cir-
cuit, replacement of the refrigerant with a refrigerant type other than that
indicated on the name plate, use of the appliance under conditions out-
side the application limits indicated in the associated documentation will
result in a cancellation of the EC label and PED conformity and the person
who carried out these modifi cations will be sole responsible for the conse-
quences.
16

• the technical data relative to the safety requirements of the various ap-
plicable directives must be indicated on the name plate. This data must
be recorded in the unit installation instructions which are included in the
installation technical fi le:
- model – code – serial number,
- maximum and minimum OT,
- OP,
- year of manufacture,
- EC label,
- manufacturer’s address,
- refrigerant and weight,
- electrical parameters,
- thermo-dynamic and acoustic performance
As part of our continuous improvement policy our products may be subject
to change without notice.
Version 12/2010
17

Electric diagram
AF Digital display
Earth
C1 Compressor
capacitor
C2 Fan capacitor
C3 Auxiliary pump
capacitor
CD Flow rate controler
E1 High pressure
switch
E2 Low pressure
switch
ED1 Auxiliary pump
F1 Fuse
KM1 Compressor relay
KM2 Fan relay
KM3 Auxiliary pump
relay
KM4 Complementary
relay
M1 Compressor
M2 Fan
M3
Auxiliary pump
(150W-200W
maximum)
P1 Power supply
230V-1N-50Hz
SD1 Water temperature
sensor
SD2 Air temperature
sensor
SD3 Defrost sensor
T1 Transformer
18

Dimensions
840 mm 385 mm
666 mm
PW weight (Kg)
5M 45
7M 47
9M 48



 pool water inlet
 pool water outlet
Evaporator
19

www.zodiac-poolcare.com
Pour plus de renseignements, merci de contacter votre revendeur
For further information please contact your retailer
Para cualquier información adicional contactar con su detallista
Hinweise und Auskünfte erhalten Sie bei Ihrem Händler
Per qualsiasi informazione supplementare, mettetevi in contatto
con il vostro rivenditore al dettaglio
Contacte o seu revendador para obter informaçoes mais detalhadas
Voor nadere inlichtingen kunt u zich wenden tot uw zwembadbouwer
Zodiac : Innovative pool products and services
Your retailer/ votre revendeur
ZODIAC POOL CARE EUROPE / BP 90023, 49180 St Barthélémy d’Anjou cedex-France / S.A.S.U AU CAPITAL DE 517 200 E / SIREN 395 068 679 / RCS PARIS / Pour Qui Pourquoi / Edition 12-2010 / N.C.014.A.EN / H03594
