Zodiac B3 User manual

1905 pacerb3 manual rev2.indd 1 2012/09/13 12:10 PM

3
A BETTER LIFE
For over 100 years we have been motivated by innovation...
and innovation has inspired our greatest successes. Every day
we strive to supply the highest quality products... and constantly
seek to develop INNOVATING products.
Innovation, is what we create every day... for everyone...
for a better life: Because the pool is a source of PLEASURE and JOY...
a place to REUNITE FAMILIES... which CREATES RELATIONSHIPS
and memories... a place where time stands still. That’s the magic of a pool!
At Zodiac®, we manufacture more than just pool equipment... we create
A BETTER LIFE.
Zodiac® South Africa strives to offer world-class excellence in both
products and service. Complemented by a team of dedicated staff
throughout the country, we guarantee premium after sales service.
Should you require assistance on your Zodiac® product, need to locate
a dealer near you or just wish to nd out more information, log onto
our website or call our Customer Care Helpline.
PLEASE SEND US YOUR WARRANTY CARD TO ENSURE
YOUR WARRANTY IS REGISTERED AND RETAIN YOUR
PROOF OF PURCHASE IN THE UNLIKELY EVENT OF
FUTURE WARRANTY CLAIMS.
1905 pacerb3 manual rev2.indd 2 2012/09/13 12:10 PM

3
INDEX
INTRODUCTION 5
SECTION 1 – INSTALLATION 6
Preparing your pool 6
Assembling the Hoses 7
Connecting to the Weir 8
SECTION 2 – CORRECT SETTINGS 9
Auto Weir Valve 9
Correct Balancing 10
Pool Coverage 10
SECTION 3 – CARE AND MAINTENANCE 12
SECTION 4 – PARTS IDENTIFICATION 16
SECTION 5 – TROUBLESHOOTING 17-18
SECTION 6 – OPTIONAL ACCESSORIES 19
SECTION 7 – THE PERFECT PARTNER FOR YOUR 20
PACER B3™
SECTION 8 – GETTING TO KNOW YOU BETTER 21
SECTION 9 – AT YOUR SERVICE 22
1905 pacerb3 manual rev2.indd 3 2012/09/13 12:10 PM

4
5
IMPORTANT INFORMATION
WARNING
RISK OF SUCTION HAZARD, WHICH IF NOT AVOIDED, CAN
RESULT IN SERIOUS INJURY OR DEATH.
READ THIS MANUAL IN ITS ENTIRETY BEFORE INSTALLING AND
OPERATING THE CLEANER.
Do not block the suction ttings in the pool, the suction opening on the
cleaner or the cleaner hoses with any part of your body. Do not expose
your hair, loose clothing, jewellery, etc. to any suction outlet ttings in the
pool/spa or on the cleaner.
• Clean the weir basket, pump basket and pool lter before installing
the cleaner and on a regular basis thereafter.
• Always disconnect the cleaner from the weir before cleaning or
backwashing the pool lter. After cleaning or backwashing, let the
ltration system run for at least ve (5) minutes before re-connecting
the cleaner.
• Remove the cleaner from the pool before chemical or shock
treatments. Wait a minimum of four (4) hours after super
chlorination before re-installing the cleaner.
Read owner’s manual completely before operating the cleaner.
Do not operate outside of the pool.
Do not let children play with cleaner.
1905 pacerb3 manual rev2.indd 4 2012/09/13 12:10 PM

4
5
Dear Customer,
Thank you for purchasing a Pacer B3™. It is through customers such as you
that our position as global market leader in pool care remains unchallenged.
At Zodiac, we are constantly striving to bring the latest innovation and
technology to your pool via our range of products. The Pacer B3™ is
specically designed for small pools but rapidly cleans large pools too.
• In the event of requiring under-warranty repairs, please take your
Pacer B3™ to your closest pool shop or please phone our Customer
Care Helpline 0860 ZODIAC (0860 963 422) and we will either send
out a technician or direct you to your nearest Zodiac repair centre.
THE CONTENTS IN YOUR PACER B3™ BOX ARE AS FOLLOWS:
• One Pacer B3™ Pool Cleaner
• 6 x 1.2m of Long-Life Twist Lock Hose
• One Adjustable Deector Wheel
• One C-Clip Hose Weight
• One Hose Quick Connector
• One Auto Weir Valve with 90˚ Twist Lock Elbow
• One Warranty Card
• One Quick Start Guide
This Pool Cleaner has one registered patent 2009/07320 and additional patents
pending. Pacer™ and B3™ are Trademarks of Zodiac Pool Care South Africa
(PTY) Ltd. Specications and equipment are subject to change without prior notice.
1905 pacerb3 manual rev2.indd 5 2012/09/13 12:10 PM

6
7
While the Pacer B3™ is designed for easy installation, some
preliminary steps will assist the installation process.
Where possible, assembly should take place as close to the weir
as possible.
PREPARING YOUR POOL AND FILTRATION SYSTEM
1) Empty the weir basket.
2) Clean the pump basket.
3) Backwash and rinse the lter until the sight glass is clear.
4) Adjust all return jets (whether your pool has one, two or more) to
point downwards and towards the centre of the pool so that you DO
NOT see a circular water ow or ripples on the surface of your pool.
5) Ensure your water chemistry is correct. See page 12 or below for
more on this.
* When using chemicals, always follow manufacturers’ directions and follow the advice of your
pool professional. Always use protective clothing, gloves and glasses. Store and use chemicals
out of the reach of children.
SECTION 1 – INSTALLATION
Free Chlorine pH Total Alkalinity
(ppm)
Calcium
Hardness (ppm)
Cyanuric Acid
(ppm)
South African
Standard 1 – 3 ppm 7.0 – 7.6 80 – 120 90 – 300 30 – 50
Ideal
reading/range 1 – 3 ppm 7.2 80 – 120 150 – 175 50
1905 pacerb3 manual rev2.indd 6 2012/09/13 12:10 PM

6
7

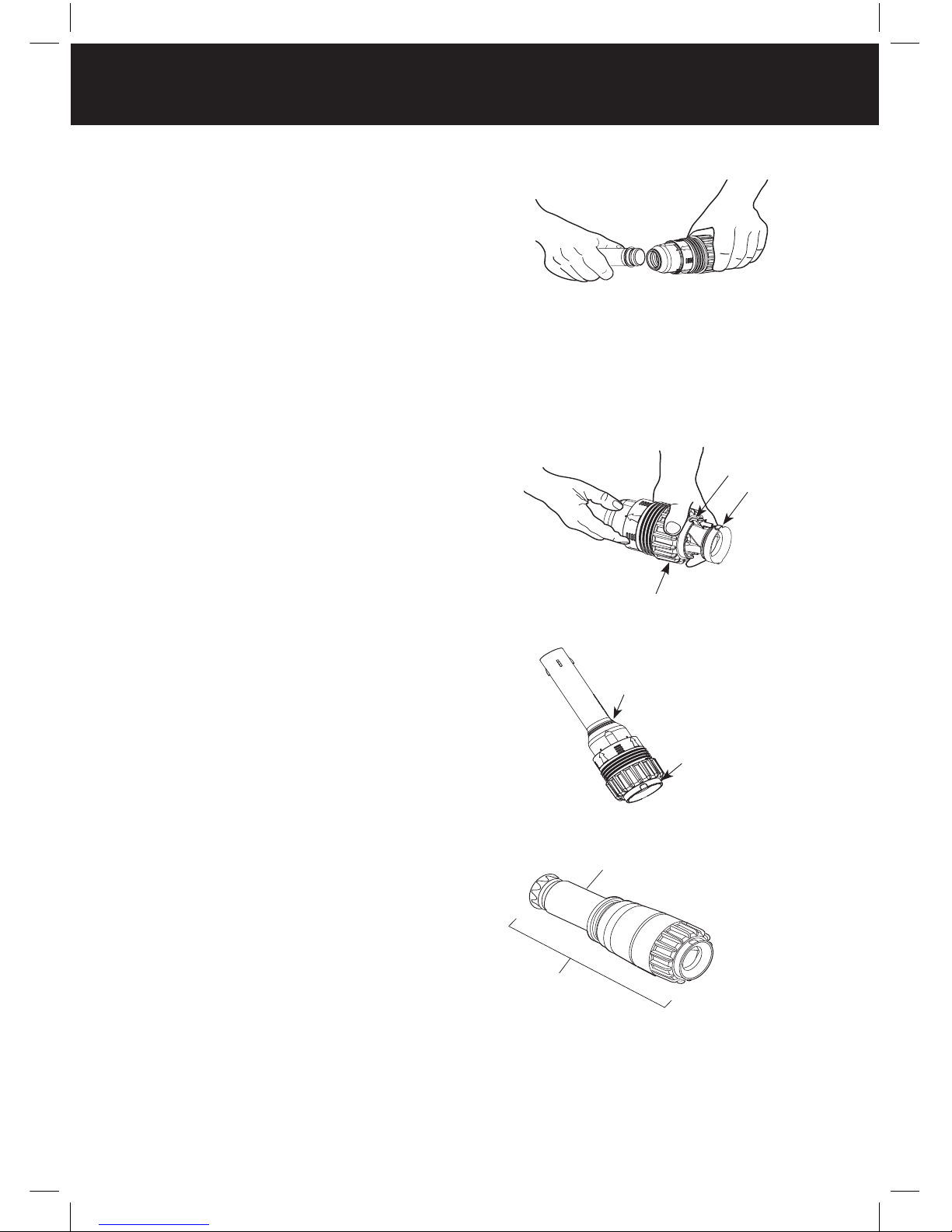

ASSEMBLING THE HOSES
With your swimming pool preparation complete, you are ready to begin
installation.
WARNING: To avoid severe injury, make sure to turn off
the pool pump prior to completing these steps.
Your Hose Quick Connector should already be connected to the cleaner
head when received in the packaging. Remove this part from your cleaner
and begin the following steps. If not already connected to your pool cleaner,
you will nd it in your accessory bag.
1. Connect the rst length of hose to the
Hose Quick Connector and twist until it
locks into place.
2. Add the Adjustable Deector Wheel
by clipping it onto the hose which has
just been connected to the Hose Quick
Connector. This part is adjustable and
can be moved up and down the hose
to deect the cleaner head away from
difcult areas in your pool. You will need
to determine the best position but start
with the Adjustable Deector Wheel as
close to the Hose Quick Connector as
possible (as shown in the illustration).
Lastly, connect your Hose Quick
Connector to the female cuff.
3. Push the Hose Quick
Connector with hose onto
the head of the cleaner until
the two parts lock together.
You can do this above or in
the water.
SECTION 1 – INSTALLATION
Step 1
Step 2
Step 3
1905 pacerb3 manual rev2.indd 7 2012/09/13 12:10 PM

8
9
SECTION 1 – INSTALLATION

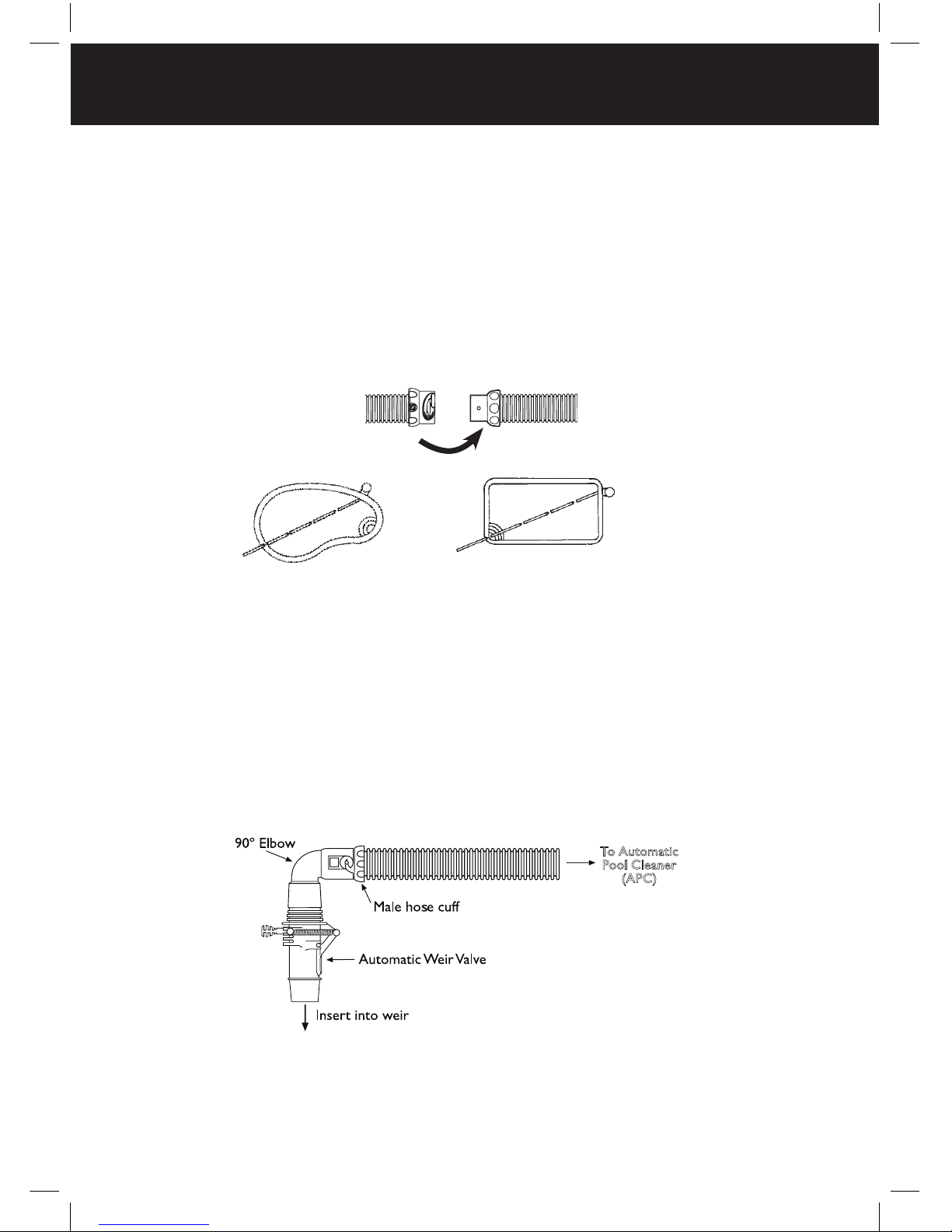

CONNECTING TO THE WEIR
In your accessory bag, you will nd an Auto Weir Valve connected to
a 90º Twist Lock Elbow. This part connects to your weir as described
below. The last hose in your line of hoses will then connect to the 90º
Twist Lock Elbow.
.
To Automatic
Pool Cleaner
(APC)
4. With your rst hose now connected to the cleaner head, continue
connecting the rest of your hose lengths to the rst hose. In order
to connect each hose length together, add the male end of one hose
to the female end of another. Twist until the two parts securely lock
together. Setting 2 on the ratchet system setting is advised, but use
whichever setting you feel is best. Continue connecting your hose
lengths together until your reach the farthest point of your pool
(measured from weir) and then add one extra length.
Note: Ensure only genuine Zodiac Twist Lock Hoses are used for optimum
performance.
x6
Weir
Weir
1905 pacerb3 manual rev2.indd 8 2012/09/13 12:10 PM

8
9
SECTION 2 – CORRECT SETTINGS
You will only need to adjust the Auto Weir Valve if the following occurs:
AUTO WEIR VALVE
The Zodiac Auto Weir Valve is preset at the factory to obtain maximum pool
cleaning efciency. Your Pacer B3™ is preset on setting 2. However, if you
do experience difculties, it can be manually adjusted to one of the three
settings (high, medium or low - see adjustment settings below).
Your Pacer B3™ Pool
Cleaner is performing too
fast and/or climbing above
the level of water.
Your Pacer B3™ Pool
Cleaner is performing slowly
and/or not climbing the pool
walls.
Zodiac
Zodiac
1905 pacerb3 manual rev2.indd 9 2012/09/13 12:10 PM

10
11
SECTION 2 – CORRECT SETTINGS

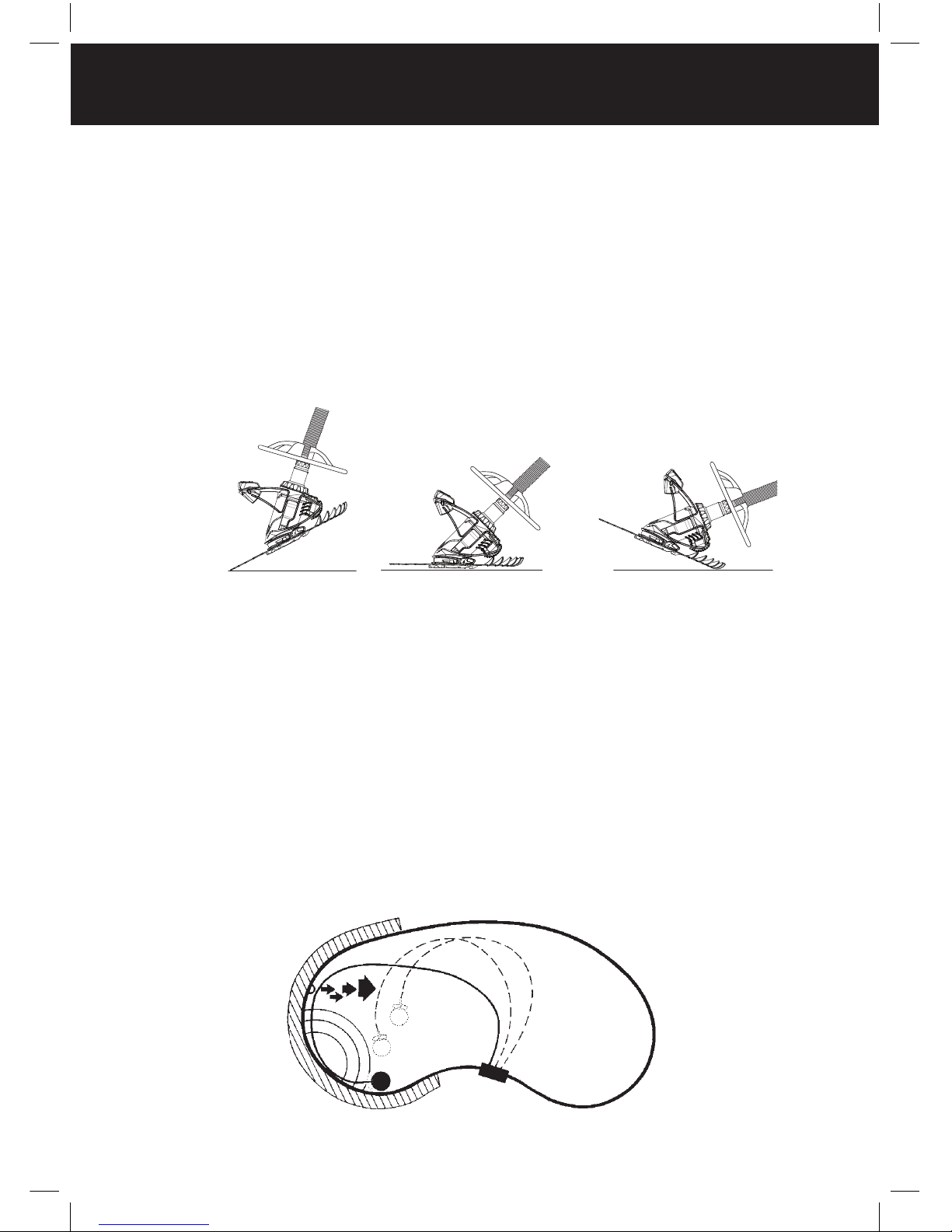

CORRECT BALANCING
The Pacer B3™ cycles on/off with the pool filtration pump, vacuuming
and cleaning surfaces randomly throughout the pool. The coverage of
the cleaner is dependent on the pool’s shape and available water flow.
The main purpose of your Hose Weight is to adjust your cleaner’s
balance which is vital for its performance.
A properly balanced hose will create a 45º angle between the cleaner and
the bottom of the pool. Make sure your disc is flat in the deepest part of
the pool for correct balance.
POOL COVERAGE
While the return line water flow should not affect the natural movement
of the hose, there are occasions where it can be beneficial.
Return line pressure can be used to balance cleaning coverage and guide
the cleaner away from steps and corners.
A return line, located anywhere along the shaded area, can gently push
the hose – allowing the unit to free itself from any in-pool obstacles.
(Move hose weight on rst hose
away from machine head)
(Hose weight in
correct position)
(Move hose weight on rst hose
closer to machine head)
Incorrect
Correct
Balance
Incorrect
1905 pacerb3 manual rev2.indd 10 2012/09/13 12:10 PM

10
11
SECTION 3 – CARE AND MAINTENANCE
Sunlight, water and pool chemicals create a harsh environment.
With care and regular maintenance, your Pacer B3™ will remain
in the best possible condition.
To properly care for your unit:
1. Remove the Pacer B3™ from the pool
before shock treatment and reinstall
at least four hours later.
2. The weir basket, pump basket,
cartridge or sand lter (whichever
is applicable) should be thoroughly
cleaned on a regular basis to ensure
optimum pool cleaner efciency.
3. Before backwashing your lter, always
disconnect the hose from the weir.

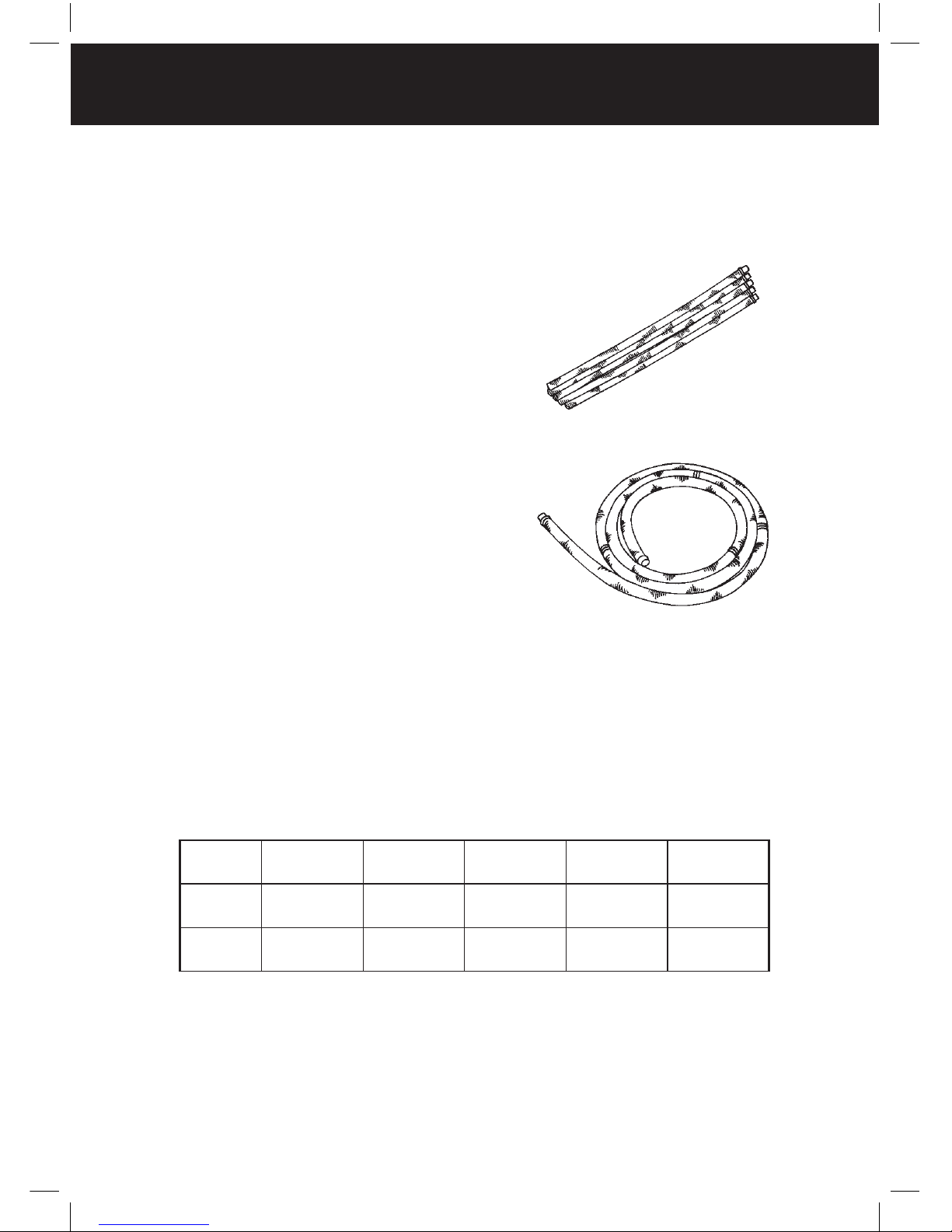

4. Never “coil” the hose and always
store the hose straight.
 : Your pool cleaner will
discolour over time, but this will not
change the performance of the unit.
5. Large foreign objects, such as toys
and branches, should be removed
manually from the pool cleaner.
Zodiac recommends the following water chemistry readings for optimal
performance of any pool equipment.
* When using chemicals, always follow manufacturers’ directions and follow the advice of
your pool professional. Always use protective clothing, gloves and glasses. Store and use
chemicals out of the reach of children.
incorrect
correct
Free Chlorine pH Total Alkalinity
(ppm)
Calcium
Hardness (ppm)
Cyanuric Acid
(ppm)
South African
Standard 1 – 3 ppm 7.0 – 7.6 80 – 120 90 – 300 30 – 50
Ideal
Reading/Range 1 – 3 ppm 7.2 80 – 120 150 – 175 50
1905 pacerb3 manual rev2.indd 11 2012/09/13 12:10 PM

12
13
SECTION 3 – CARE AND MAINTENANCE

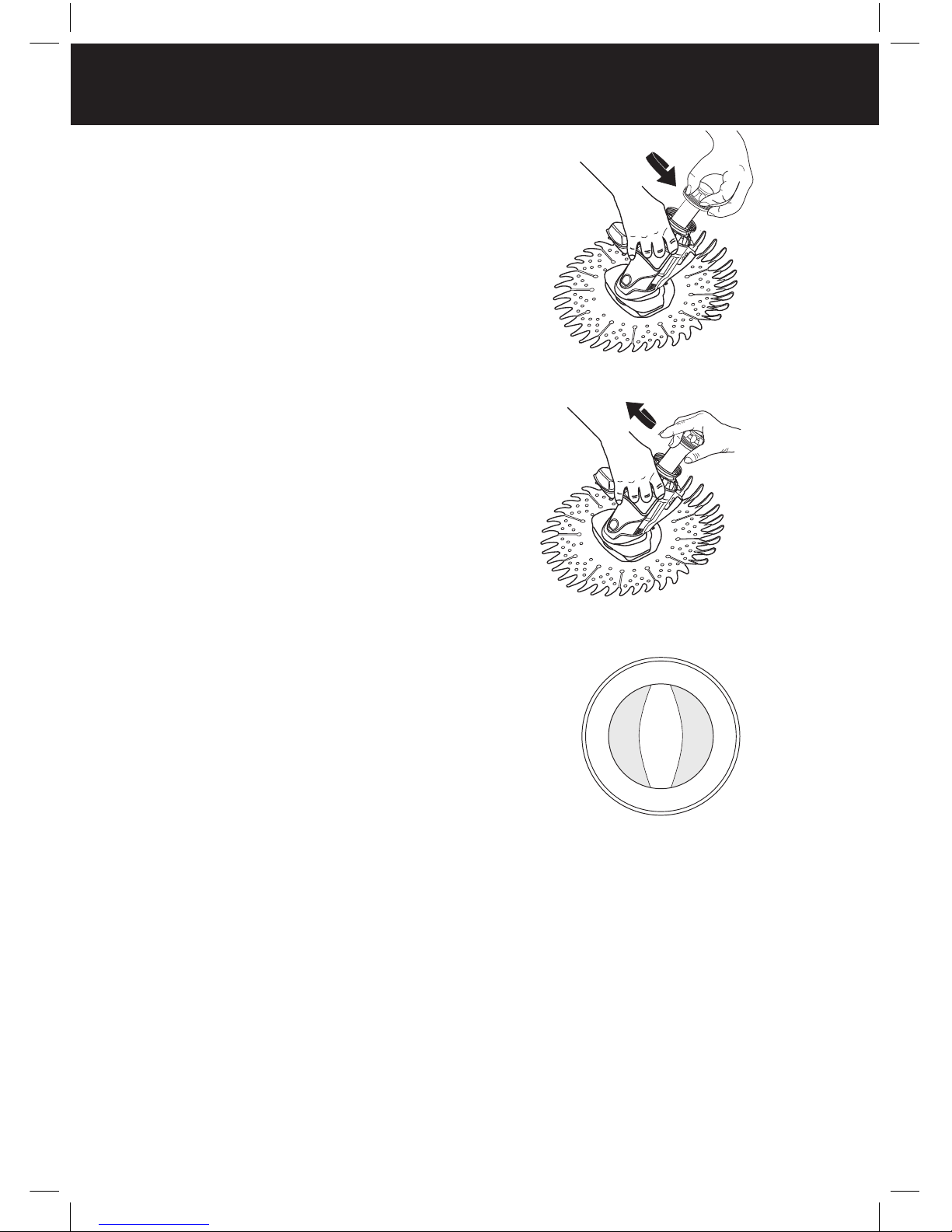

If the cleaner stops, remove the
cleaner from the water and then
check the Diaphragm for blockages.
1. Turn cleaner over (see Figure 1).
2. Inspect Diaphragm for blockages.
If you nd debris or obstacles,
remove carefully. If not blocked,
check the Diaphragm for wear or
damage.
3. Unthread the Handnut by
turning it anti-clockwise
(see Figure 2).
4. Set the Handnut aside. Remove
Engine Assembly.
5. Unthread the Outer Extension
Pipe from the Cup Assembly and
separate Outer Extension Pipe
from Inner Extension Pipe.
(see Figure 4).
Figure 1
Figure 2
WARNING: To avoid severe injury, make sure to turn off the pool
pump prior to completing these steps.
Figure 3
Outer Extension Pipe Cup Assembly
1905 pacerb3 manual rev2.indd 12 2012/09/13 12:10 PM

12
13
SECTION 3 – CARE AND MAINTENANCE
6. Use a breaking action to separate
the Inner Extension Pipe
from the Cup Assembly. Once
separation is achieved, push the
Diaphragm through the Cup
Assembly (see Figure 4).
7. Inspect the Diaphragm for wear
and rinse it thoroughly with
water. Replace it if necessary.
TO REINSTALL DIAPHRAGM:
1. Attach Diaphragm to Inner
Extension Pipe.
2. Insert Inner Extension Pipe and
Diaphragm into Cup Assembly.
Align Diaphragm tabs with
notches and pull straight through
(do not twist) until the edge of
the Diaphragm is visible
(see Figures 5 and 6).
3. Thread on the Outer Extension
Pipe (see Figure 7).
Outer Extension Pipe
Engine
Figure 7
Notch
Cup Assembly
Tab
Figure 5
Figure 4
Edge of
Diaphragm
Figure 6
Ensure the Diaphragm
is ush with
Cup Assembly
1905 pacerb3 manual rev2.indd 13 2012/09/13 12:10 PM

14
15
SECTION 3 – CARE AND MAINTENANCE
4. Insert the engine into the body
and thread the Handnut down
until tight (see Figure 8).
5. Make sure the Outer Extension Pipe
swivels freely by spinning it
(see Figure 9).
After several years of use, you may
nd that the Diaphragm is stretched
and the cleaner works very slowly
or not at all. This doesn’t mean
you need to necessarily purchase a
new Diaphragm. By just resetting
it, you can prolong the life of your
Diaphragm. In order to do this,
follow these steps. If the Diaphragm
is torn, a new Diaphragm needs to
be purchased.
Figure 8
Figure 9
Stretched Diaphragm
1905 pacerb3 manual rev2.indd 14 2012/09/13 12:10 PM

14
15
2
1
1. Follow the steps on page 9 on how to
remove the Engine Assembly from your
pool cleaner.
2. Unthread the Outer Extension Pipe
from the Cup Assembly.
3. On the inner cup of the Cup Assembly,
you will see a number 2. The arrow on
the outer cup will point to this. Grip
both outer cup and inner cup tightly
and turn inner cup anti-clockwise to
unlock (see Figure 10).
4. Wiggle and pull inner cup slightly out
until a new line appears with a number
1 on it (see Figure 11).
5. Turn inner cup clockwise until it locks.
Only when you hear a click, is the setting
now locked on 1 (see Figure 12). Check
Diaphragm gap has closed and reassemble
Engine Assembly as done before.
SECTION 3 – CARE AND MAINTENANCE
Figure 10
2
Inner Cup
Outer Cup
Figure 11
1 2
Inner Cup
Outer Cup
Figure 12
1 2
Inner Cup
Outer Cup
LABEL?
LABEL?
1905 pacerb3 manual rev2.indd 15 2012/09/13 12:10 PM

16
17
SECTION 4 – PARTS IDENTIFICATION
1
4
5
6
7
2
8
10 9
11
3
14 15 16 17 18
20 17
12, 13
No. Description Qty
1. Handnut 1
2. Compression Ring 1
3. Engine Assembly 1
4. Outer Extension Tube 1
5. Cup Assembly 1
6. Inner Extension Tube 1
7. Duralife Diaphragm 1
8. Float 1
9. Bumper 1
10. Body Housing 1
11. Disc 1
12. Auto Weir Valve 1
13. Hose Quick Connector 1
14. Twist Lock Hose (1.2m) 7
15. 90 Degree Twist Lock Elbow 1
16. C-Clip Hose Weight 1
17. Adjustable Deflector Wheel 1
0 1 2 3 4 5 6
6 5 4 3 2 1 0
14
15
13
5
12
15
16
17 19
20
12
2
3
4
6
7
8
9
1
10
11
13
15
14
Zodiac
1905 pacerb3 manual rev2.indd 16 2012/09/13 12:11 PM

16
17
SECTION 5 – TROUBLESHOOTING
PROBLEM CHECKS SOLUTIONS
Your Pacer B3™
works slowly, runs
then stops, or not
at all.
Is the lter clean? Backwash and rinse the lter
thoroughly.
Are the baskets clean? Remove baskets, clean
thoroughly (baskets must be in
good condition).
Is the vacuum lid sitting ush
in the weir?
Remove and re-install.
Is the vacuum lid damaged? Replace vacuum lid.
Are the Auto Weir Valve and
the hose secure?
Make sure that the connections
are sealed.
Is the diaphragm
operational?
Ensure the diaphragm is not
twisted or broken.
Is the diaphragm installed
correctly?
Make sure the edge of the
diaphragm is pulled through the
inside cup properly. (See pg13)
Is the ow too low? Check for:
1) Broken hose section.
2) Debris stuck in hose or
diaphragm.
3) A suction leak – leak in the
system.
4) Plumbing valves not set
correctly to give the cleaner
enough ow.
Your Pacer B3™ is
working slowly and air
bubbles are noticeable
at the return jet.
Is there a suction leak in
the system?
Possible problem areas:
1) Possible leak at pump lid.
2) Check the pump lid O-ring.
3) Possible leak in the hose.
4) Suction leak between weir
and pump piping.
Is the Auto Weir Valve below
the water level?
Check level of water.
1905 pacerb3 manual rev2.indd 17 2012/09/13 12:11 PM

18
19
SECTION 5 – TROUBLESHOOTING
For additional assistance, contact our Customer Care Helpline on 0860
ZODIAC (0860 963 422)
  
Your Pacer B3™
coverage is poor. For
example, the cleaner
does not reach parts
of the pool and leaves
large uncleaned
patches. Or the
cleaner moves in the
same pattern, such as
in the gure 8.
Is the hose affected by the
return ow?
Adjust the return outlet
towards the bottom of the
pool to make sure the jet of
water does not inuence the
direction of the hose.
Are the hoses long enough? Add more sections of hose.
Hose weight location? Move the hose weight 15cm
toward or away from the
cleaner head to change the
balance. If this doesn’t work,
rather remove the hose weight.
Your Pacer B3™ falls
on its side
Is the oat damaged? Return to your nearest pool
store for checking.
Is the Engine Assembly
swivelling freely?
Check the Diaphragm is ush
with the motor housing (See
pg 14).
Remove Engine Assembly from
main body and rinse both body
and Engine Assembly with
water to ush out debris.
1905 pacerb3 manual rev2.indd 18 2012/09/13 12:11 PM

18
19
SECTION 6 – OPTIONAL ACCESSORIES
CYCLONIC LEAF CATCHER™
1905 pacerb3 manual rev2.indd 19 2012/09/13 12:11 PM

20
21
SECTION 7 – THE PERFECT PARTNER FOR YOUR PACER B3™
A Salt Chlorinator from Zodiac.
Installing a Zodiac Salt Chlorinator in conjunction with having a Pacer B3™,
is the effortless way to having a crystal clear pool all the time.
Salt Chlorinators offer both convenience and peace of mind. Zodiac
technology means that you are assured of quality and product excellence.
Zodiac is by far the most widely chosen brand of chlorinator available in
South Africa today.
Your purchase will ensure that you get the best of both worlds. Firstly, you
will enjoy the convenience of a fully automatic product, which allows you to
spend time relaxing at the poolside. – perfect for a modern-day lifestyle. You
will also experience the fantastic soft feeling that only a salt chlorinated pool
can offer.
No more red eyes or itchy skin, just smiles all the way!
A Heat Pump from Zodiac.
Extend your swimming season and get even more pleasure from your pool
by installing a Zodiac Heat Pump.
The market-leading range of Heat Pumps from Zodiac utilises only the best
components and materials, ensuring you total peace of mind and enjoyment
of your pool.
Not only does Zodiac offer the most energy efcient range of Heat Pumps
available today, but also the most environmentally friendly.
To nd out which model and size ts your pool, contact your local Zodiac
dealer, or call the Zodiac Customer Care Helpline 0860 ZODIAC (0860 963
422) or go to www.zodiac.co.za.
1905 pacerb3 manual rev2.indd 20 2012/09/13 12:11 PM
