SHALLOW WELL JET PUMP
MODEL #1461-0006
Español p. 21
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-584-8089, 7:30 a.m. - 5:00 p.m., EST, Monday - Friday.
ATTACH YOUR RECEIPT HERE
Zoeller®is a registered trademark
of Zoeller Co. All Rights Reserved.
024987 D
ZoellerAtHome.com

2
Power supply required...........................................................................115 volts or 230 volts, 60 Hz
(Pump is set by the factory to run on 115 volts)
Maximum water temperature...........................................................................................77°F (25°C)
Individual branch circuit required............................................................................15 Amp minimum
Discharge connection..........................................................................................................1 in. NPT
Suction connection ........................................................................................................1-1/4 in. NPT
Motor duty..................... Continuous duty with enforced air cooling and thermal overload protection
Pressure switch ...........................................................................Preset at 20 PSI “on” / 40 PSI “o󰀨”
Water depth rating ................................................................................................. Maximum of 25 ft.
ITEM # HP VOLTAGE HZ MAX
AMPS
LOCKED
ROTOR
AMPS
CAPACITY - U.S. GALLONS PER MINUTE
AT 20 PSI DISCHARGE PRESSURE
0 FT. 5 FT. 15 FT. 25 FT.
1461-0006 3/4 115/230 60 13/6.5 36.0/18.0 15 10 9 5
• ELECTRICAL SHOCK HAZARD.
Always disconnect power source before performing any work on or near the motor or its
connected load. If the power disconnect point is out-of-sight, lock it in the open position and tag it
to prevent unexpected application of power. Failure to do so could result in fatal electrical shock.
• ELECTRICAL SHOCK HAZARD.
Do not handle the pump with wet hands or when standing in water as fatal electrical shock could
occur. Disconnect main power before handling unit for ANY REASON!
• RISK OF ELECTRIC SHOCK.
These pumps have not been investigated for use in swimming pool areas.
• ELECTRICAL SHOCK ALERT.
Follow all local electrical and safety codes, as well as the National Electrical Code (NEC) and the
Occupational Safety and Health Act (OSHA).
• ELECTRICAL SHOCK ALERT.
Replace damaged or worn wiring cord immediately. Never use an extension cord.
• ELECTRICAL SHOCK ALERT.
Do not kink power cable and never allow the cable to come in contact with oil, grease, hot
surfaces, or chemicals.
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate, or install
the product.
• NOTE: Pumps with the “UL” Mark and pumps with the “US” mark are tested to UL Standard
UL778. CSA certied pumps are certied to CSA Standard C22.2 No. 108. (CUS.)
DANGER
WARNING
PRODUCT SPECIFICATIONS

3
• ELECTRICAL SHOCK ALERT.
Wire motor to correct supply voltage. See motor nameplate and wiring diagrams and check
voltage of power supply.
• ELECTRICAL SHOCK ALERT.
Unit must be securely and adequately electrically grounded. This can be accomplished by wiring
the unit to a ground metal-clad raceway system or by using a separate ground wire connected to
the bare metal of the motor frame or other suitable means.
• ELECTRICAL SHOCK ALERT.
Make certain the electrical power source is adequate for the requirements of the pump.
• ELECTRICAL SHOCK ALERT.
Never use an extension cord with this pump.
• CHEMICAL ALERT.
Prop65 Warning for California residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• HAZARDOUS PRESSURE ALERT.
Install pressure relief valve in discharge pipe. Release all pressure on system before working on
any component.
• EXPLOSION ALERT
Do not use to pump ammable or explosive uids such as gasoline, fuel oil, kerosene, etc. Do not
use in ammable and/or explosive atmospheres.
• PRODUCT DAMAGE MAY RESULT
This pump is not to be used for irrigation or water systems.
• PRODUCT DAMAGE MAY RESULT
Protect the power cable from coming in contact with sharp objects.
• PRODUCT DAMAGE MAY RESULT
Do not run pump dry.
• PRODUCT DAMAGE MAY RESULT
Pump and plumbing must be full of water before startup.
• PRODUCT DAMAGE MAY RESULT
Do not pump water which contains sand, mud, silt, or debris.
• INJURY MAY RESULT
Be careful when touching the exterior of an operating motor. It may be hot enough to be painful
or cause injury.
CAUTION

4
CAUTION
IL1104
Water Level
25 ft.
Max
Suction
Lift
1 in.
Discharge Pipe
1-1/4 in.
Suction
Pipe
Discharge
to Home
Pipe
Support
Foot Valve
1
FOR USE WITH A PRESSURE TANK. DO NOT
USE FOR IRRIGATION APPLICATIONS.
Typical Pump Setup
1. Shallow well jet pumps are designed for use
where the suction lift is 25 ft. or less. They
can be used with drilled or cased wells.
Description Quantity
Pump 1
PREPARATION
Before beginning installation of product, make sure all parts are present. If any part is missing or
damaged, do not attempt to assemble the product. Compare parts to package contents list.
Estimated Installation Time: 2 hours.
Tools Required for New Installation (not included): pipe wrench, pliers, Phillips screwdriver, pipe clamp,
2-step PVC glue system (primer and sealer), thread tape, tire gauge and tire pump
Parts Required for New Installation (not included): well seal, 1-1/4 in. to 1 in. male PVC adapter (2),
1-1/4 in. male PVC adapter, 1 in. male PVC adapter, 1-1/4 in. foot valve, 1-1/4 in. PVC pipe and
couplings, 1 in. PVC pipe and couplings, 1-1/4 in. PVC elbow, 1 in. PVC elbow, 1 in. discharge tee,
galvanized bushing, pressure gauge (optional) or pipe plug, 1-1/4 in. union (optional), 1 in. union
(optional), electrical wire, electrical wire strain relief, 1 in. x 1 in. x 1 in. tee, 3/4 in. x 3/4 in. slip coupling,
1 in. x 1 in. slip adapter, 1 in. x 3/4 in. slip adapter.
IL1102
PACKAGE CONTENTS
GENERAL PUMP INFORMATION

5
IL1472
Water Level
25 ft.
Max
Suction
Lift
1 in.
Discharge Pipe
1-1/4 in.
Suction
Pipe
Discharge
to Home
Pipe
Support
Drive Point
Check
Valve
2
IL1105
1 in. Discharge
1-1/4 in.
Suction
Ventilation - Ventilation and drainage must be provided to prevent damage to the motor from heat
and moisture.
Freezing - Pump and all piping must be protected from freezing. If freezing weather is forecast, drain
pump or remove completely from the system.
Water Supply - The water source must be able to supply enough water to satisfy the capacity of
pump and water needs. See performance chart on page 2.
Suction Lift - Suction lift is the vertical distance from the lowest level of the water to the pump intake.
Pump will move water as long as it is within 25 vertical ft. of the water source.
Horizontal Distance - The horizontal distance is the horizontal measurement between pump suction
and the water source. This distance may a󰀨ect the ability of pump to operate. If it is more than 100 ft.,
call the manufacturer for assistance: 1-800-584-8089.
2. Jet pumps can also be used with dug wells,
driven wells, or with cisterns or lakes.
Pipe And Fittings - Use galvanized steel or
NSF PW Schedule 40 PVC pipe and ttings.
This material is designed for water pressure and
will seal against air and water under pressure.
Do not use DWV ttings, as these are designed
for drains without pressure and will not seal
properly.
CAUTION: The entire system must be air
and water tight for e󰀩cient operation, and to
maintain prime.
Wire Size - The wire size is determined by the distance from the power source to the pump motor
and the horsepower rating of the motor. See the wire chart in ELECTRICAL CONNECTIONS for
proper wire size.

6
IL1104
Water Level
25 ft.
Max
Suction
Lift
1 in.
Discharge Pipe
1-1/4 in.
Suction
Pipe
Discharge
to Home
Pipe
Support
Foot Valve
3a
IL1358
Glue
2
IL1357
Glue
1
3a. NOTE: For drilled (cased) wells, a foot
valve is required in the well at the end of
the pipe to maintain prime.

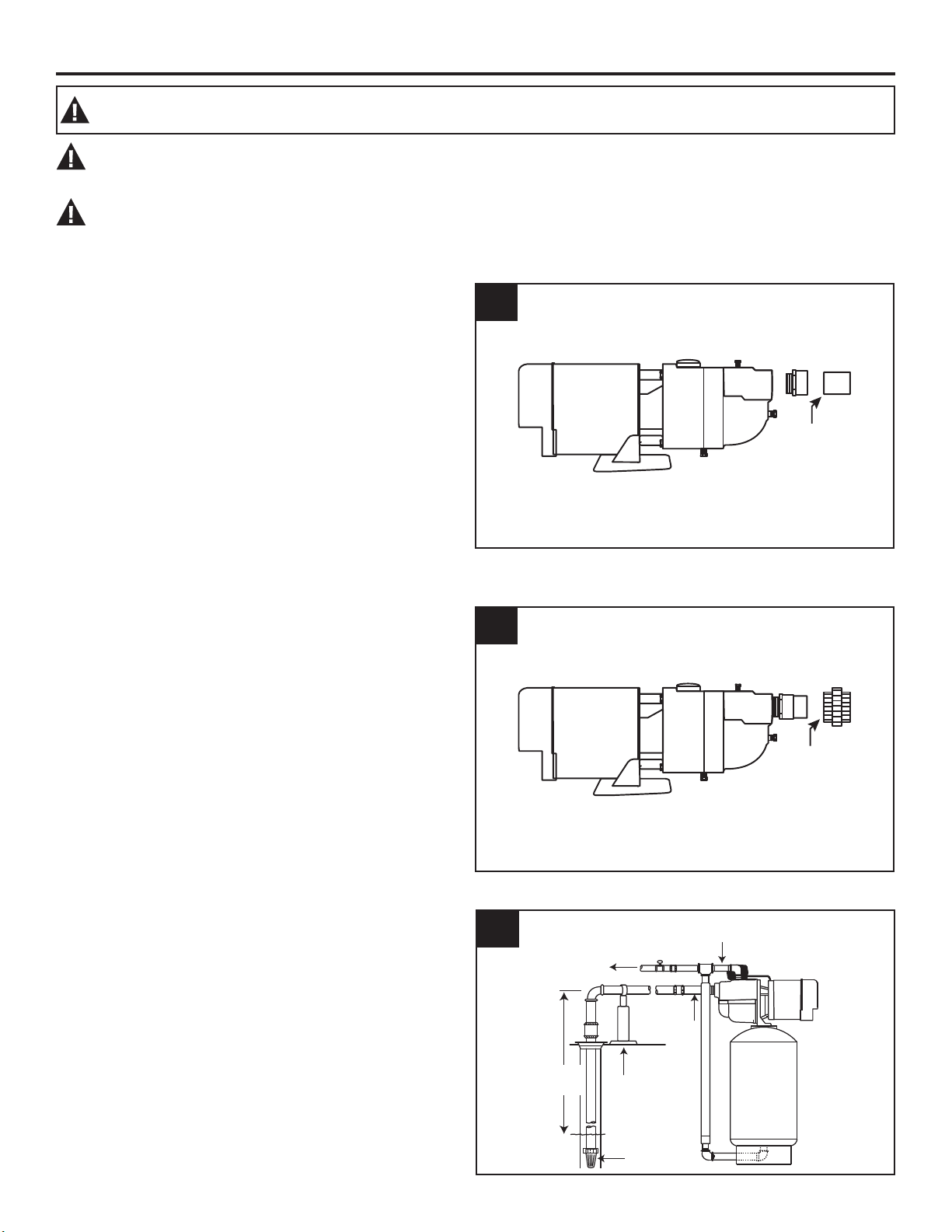

1. Make the connection to your well rst. Wrap
all threaded ttings with pipe tape 5 times and
then apply a pipe paste (pipe dope) to ensure
an air tight connection.
CAUTION: Dry-t entire assembly to ensure proper t before gluing or taping parts.
CAUTION: Follow all proper gluing procedures as specied by the glue manufacturer. Always
glue in a vertical direction whenever possible to prevent glue from dripping inside pipe or ttings
CAUTION: Use pipe tape and pipe paste compound on all male threads. Tighten with wrench to
a snug t and add another 1/4 turn to ensure proper seal.
WELL TO PUMP CONNECTION (SUCTION PIPE)
2. The use of a union (optional) will assist with
easy connection and disconnect.

7
IL1360
4
IL1359
Pump
Flow
Arrow
3b
3b. For driven wells, a check valve is required
at the top of the well to maintain prime. Flow
arrow must point toward pump.
4. Finish the connection to your well with
additional pipe and ttings as needed.
1
IL1361
Tape

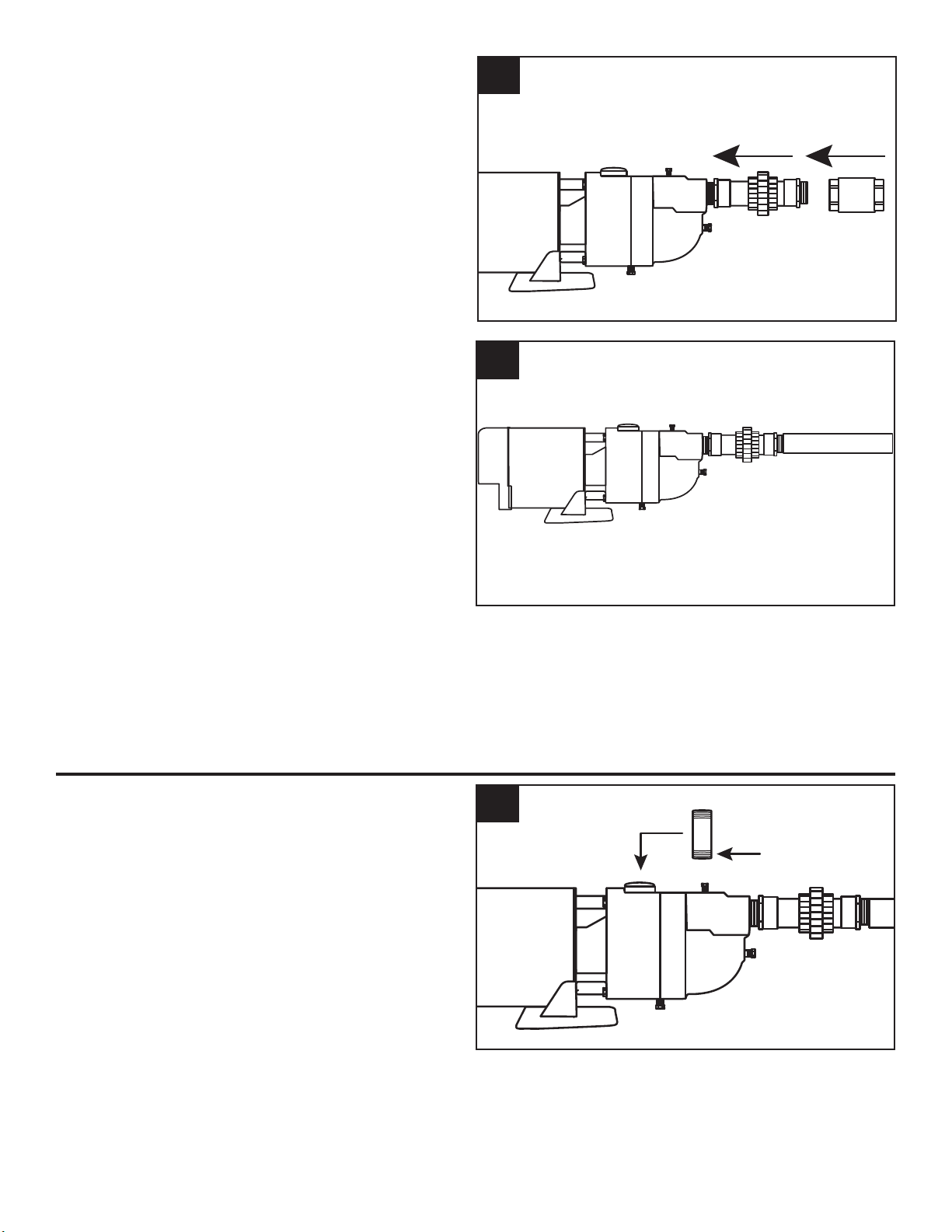

1. Begin the connection to the pressure tank.
Using a 1 in. x 3 in. galvanized nipple, wrap
the threads 5 times with pipe tape or apply
pipe paste (pipe dope) and install in top of
pump.
PUMP TO PRESSURE TANK CONNECTION (DISCHARGE PIPE)

8
IL1364
Glue
4
3
2
IL1363
IL1362
3. Install a 1 in. MPT x 1/4 in. FPT galvanized
bushing and pressure gauge (optional), or a
pipe plug. Do not tighten, as you will prime
your pump later at this location
2. Install a 1 x 1 x 1 in. galvanized tee tting.
4. Continue with ttings and pipe to the pressure
tank. A 1 in. union (optional) is recommended
for easy connection and disconnection.
CHECK TANK PRESSURE
20
20
20
20
Breaker Box
1
1. Completely drain all water from tank by
turning o󰀨 pump and opening a faucet until
water stops.

9
Pressure
gauge Air release valve
Set to
18 psi
2
2. Use a pressure gauge to ensure it’s set to 18
PSI.
a. Use a tire pump to adjust the PSI to 18 PSI
b. If water leaks from the air release valve,
replace the pressure tank.
IL1365
Glue
Adapter
Pipe

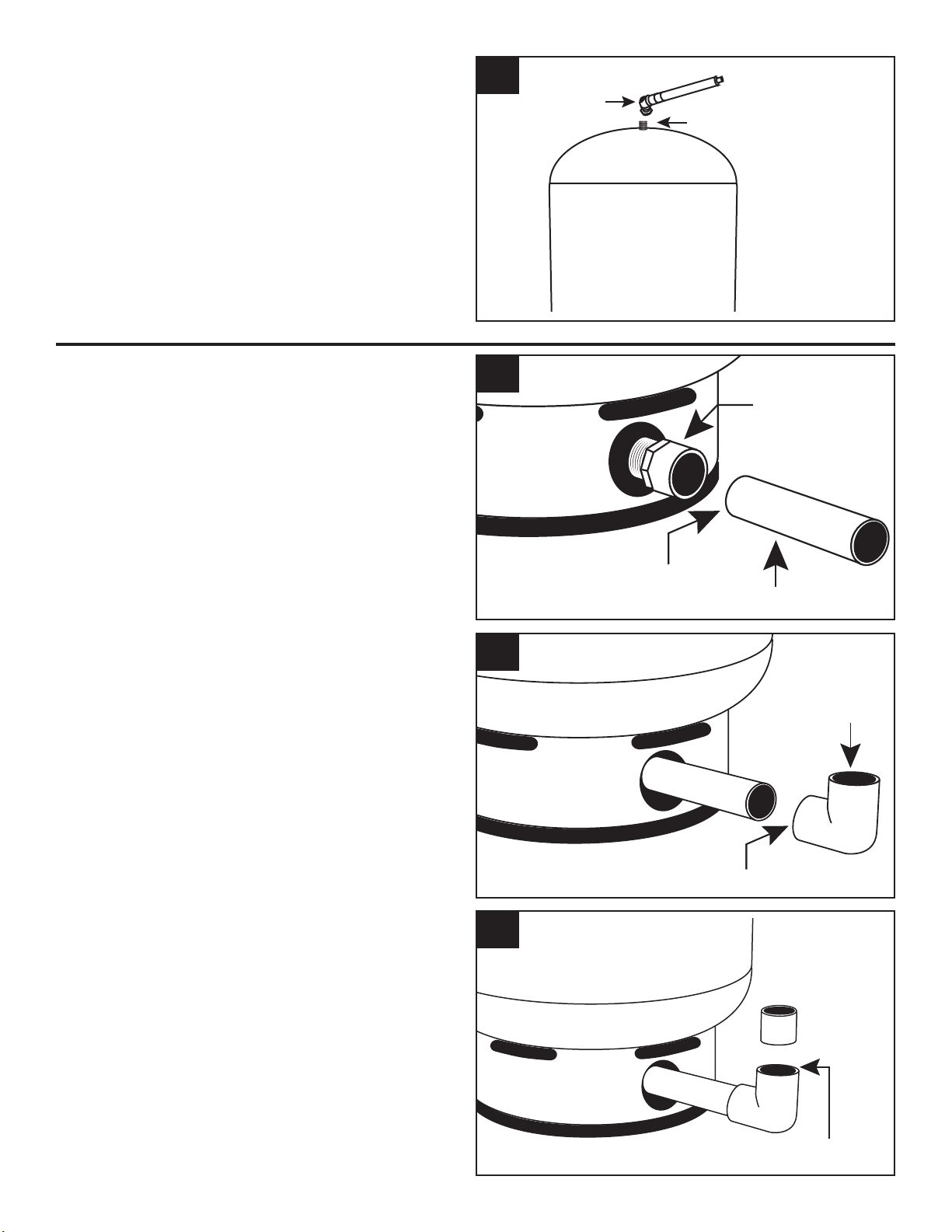

1
1. Most pressure tanks will have a 1 in. inlet
elbow on the bottom. Connect to this elbow
with a 1 in. MPT x 1 in. slip (glue) adapter and
short piece of pipe.
TANK TO HOUSE CONNECTION
Glue
1 in. Pipe
3
IL1366
Glue
Elbow
2
3. Attach a 1 in. pipe (not included) to the
elbow.
2. Attach a 1 in. elbow (not included) to the pipe.

10
Tire gauge
Tank
Air Valve/Stem
6
IL1369
Glue
To House
Plumbing
From Pump
Shut off valve
Reducer
Bushing
5
Glue
Tee
Union
1 in. pipe
4

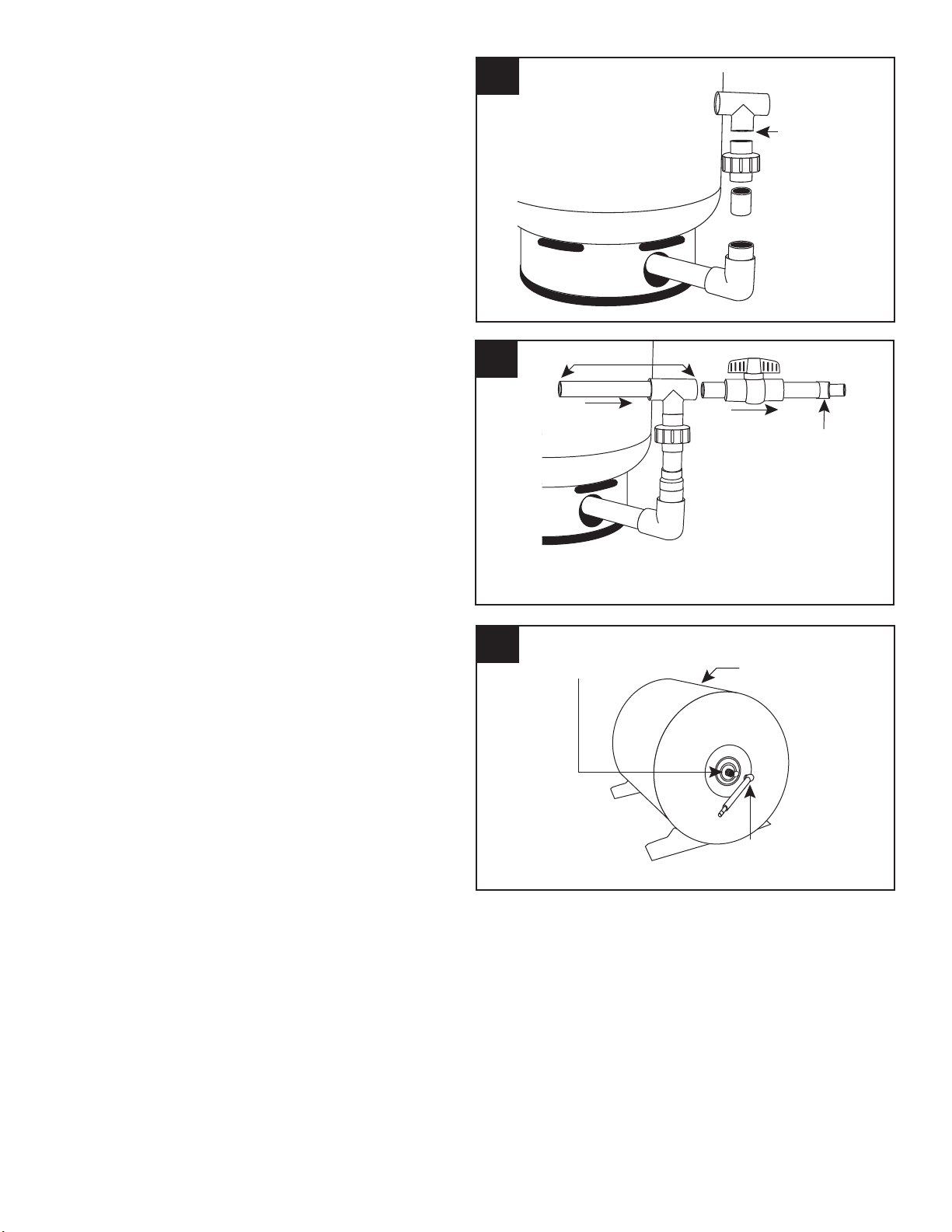

5. Attach the pipe from the pump to the tee
installed in Step 4. Then, from the tee,
install 1 in. pipe and optional shut o󰀨 valve
(not included) to connect tee to house
plumbing. 1 x 3/4 in reducer bushing may
be required to connect to house plumbing.
6. IMPORTANT: Air pressure in the tank
must be 2 PSI lower than the “cut-in” of
the pressure switch. Pump has a 20/40
PSI pressure switch, so tank pressure
must be set at 18 PSI. Locate the air
valve/stem on the tank and check
pressure with a tire gauge (not included).
If air needs to be removed, press down on
valve to bleed o󰀨 air. Use a tire pump or
air compressor to add air if needed.
4. Attach a 1 in. pipe (not included) to the
reducer bushing. Install an optional 1 in.
union (not included) and continue with pipe
and 1 in. x 1 in. x 1 in. tee (not included).

11
WARNING:
• Always disconnect pump from electricity
before performing any work on the motor.
• Under-sized wiring can cause motor failure
and even re. Use proper wire size specied
in the Wire Size Chart.
• Replace damaged or worn wiring cord
immediately.
• Do not kink power cable and never allow the
cable to come in contact with oil, grease, hot
surfaces, or chemicals.
• The pump must be properly grounded using
the proper wire cable with ground.
CAUTION:
• Protect the power cable from coming in
contact with sharp objects.
• All wiring should be performed by a qualied
electrician in accordance with the National
Electric Code and local electric codes.
• Connect the pump to a separate electrical
circuit with a dedicated circuit breaker. Refer
to the Wire Size Chart for proper fuse size.
PUMP ELECTRICAL CONNECTIONS
WIRE SIZE CHART
Distance
from Motor to
Meter
Recommended Copper
Wire and Fuse Sizes
Single Phase Motors
3/4 HP
115 Volt 230 Volt
0-50 Ft.
50-100 Ft.
100-150 Ft.
150-200 Ft.
200-300 Ft.
Fuse Size
(Amps)
14
10
8
8
6
15
14
14
14
14
12
15
L1
L2
AB
L1
L2
AB
115 Volts
Single Phase
Line
230 Volts
Single Phase
Line
Y
E
L
L
O
W
W
H
I
T
E
G
R
E
Y
R
E
D
T
A
N
Y
E
L
L
O
W
W
H
I
T
E
G
R
E
Y
R
E
D
T
A
N
Check Voltage of Power Source
Before Connecting
DO NOT CONNECT ANY GROUND WIRE
TO THESE LEADS
WIRING DIAGRAM
IL1380
Pressure
Switch
1
Wiring the Pressure Switch:
CAUTION: Make certain that the power source
matches the pump requirements. This pump has
a dual voltage motor and can run on 115 V or
230 V. This pump is pre-wired at the factory to
run on 115 V.
NOTE: To change pump voltage, see wiring
diagram on this page or instructions on page 14.
1. Screw the pressure switch into the 1/4 in.
opening on the top of the pump and remove
the switch cover.

12
IL1374
Wire from
motor
4
IL1373
Wire from
motor
3
IL1372
2
3. Thread the cable from the pump motor
through the strain relief into the pressure
switch cavity and tighten both screws on the
strain relief. Do not crush wire.
4. Connect the two motor wires of the motor
cable to the two inside terminals on the
pressure switch.
2. Insert an electrical wire strain relief into the
opening in the side of the pressure switch
closest to the motor.
IL1375
Wire from
motor
Ground Screws
5
5. Connect the green ground wire from the
motor cable to one of the green ground
screws at the bottom of the pressure switch.

13
Wire from
motor
Wire from
power
supply
7
IL1376
Wire from
motor
Pressure
switch
Strain
relief
6
6. Insert an electrical wire strain relief into the
opening in the opposite side of the pressure
switch.
7. Thread the cable from the power supply
through the strain relief and tighten both
screws on the strain relief. Do not crush wire.
Wire
from
motor
Wire from
power
supply
Ground Screws
Green
ground
wire
9
Outside
terminal
Two wires
from power
supply
Outside
terminal
Wire from
motor
Wire from
power
supply
8
9. Connect the green ground wire from the
power supply to the remaining green ground
screw in the pressure switch and re-attach
the pressure switch cover.
8. Connect the two wires from the power supply
to the two outside terminals on the pressure
switch.

14
C
US
LR90197
UL Std. No. 778
ENCLOSURE 3
starwatersystems.com
Pump: ES05S Rev: B
Motor: 98L105
HP: 1/2 PH 1Hz 60
Volts 115/230 S.F. 1.2 Amps 6.4/3.2
S.F. Amps: 8.6/4.3 RPM 3450 Type C
Duty: Cont. Temp 65C KVA Code G
Frame 56L Ins Class B
Factory prewired for 115V Thermally protected automatic
Check voltage of power source Use copper conductors only
ELECTRICAL HAZARD
Improper installation may result in  re, explosion, electrical short or injury. Replace all covers
before operating. Ground motor in accordance with local and national electrical codes.
Disconnect power source before touching internal parts. Motors equipped with automatic
protection may restart without warning.
See instruction manual for proper installation procedure.
Se reporter au manuel d’instructions pour suivre la procédure adéquate d’installation.
Consulte el instructive para conocer el procedimiento de instalación correcto.
L1
L2A B
L1
L2A B
IL0180
YELLOW
115 VOLT
SINGLE PHASE
LINE
230 VOLT
SINGLE PHASE
LINE
WHITE GRAY RED TAN YELLOW WHITE GRAY RED TAN
DATE CODE: 0218* Made in USA
1
To change from 115V to 230V
1. The motor of this pump is dual voltage and
can run on either 115V or 230V. In general,
230V is more economical to run, and
requires a smaller wire size.
NOTE: This pump is pre-wired at the factory to
run on 115 V.
A B
L1 L2
IL1356
230V
G R AY RED
2b
A B
L1 L2
IL1355
G R AY
RED
2a
b. Pull the red wire with the female ag
connector from the “L2” terminal. Place it
to the left on the “B” terminal spade post.
2a. For 230V service, change the following wires
on the terminal board:
a. Using a pair of needle nose pliers, pull the
gray wire with the female ag connector
from the “A” terminal spade post. Place
it to the right on the “B” terminal spade
post.
2c
c. Reinstall the rear motor cover.
NOTE: To change voltage from 230V to 115V,
simply reverse instructions above.

15
IL1351
2
IL1350
Priming Plug
with Pressure
Gauge
Air Relief Plug
1
CAUTION: All pumps must be primed
(lling the cavity with water) before they are
rst operated. This may take several gallons of
water, as the suction line will be lled in addition
to the pump cavity.
1. Remove the priming plug with pressure
gauge and air relief plug.
2. Slowly ll pump cavity until water comes out of
air relief hole on top of the pump.
PUMP PRIMING & STARTUP
IL1352
Water Level in
Pump Cavity
3
3. Replace air relief plug and continue adding
water to pump cavity until water reaches the
top of the priming plug.
IL1352
Water Level in
Pump Cavity
4
4. Check to be sure water in pump cavity stays
constant. If water level goes down, it could
indicate a leak in the foot valve, check valve or
suction pipe.

16
20
20
20
20
Breaker Box
7
IL1353
5
IL1768
Check Valve
Well Point
6
5. Thread in priming plug and then open optional
ball valve if installed by turning handle to line
up with the pipe.
6. PRIMING NOTE: Several priming attempts
may be necessary, depending on the length
of suction pipe and location of check valve if a
well point is being used.
7. Turn on breaker to start pump.
IMPORTANT: If the pump hums instead of
pumping or turns o󰀨 repeatedly, shut pump o󰀨
immediately.
Check voltage. Make sure your incoming voltage
matches the pump wiring voltage. See wiring
guide in the instructions.

17
IL1129
IMPORTANT: If the pump fails to prime
within ve minutes:
Turn power o󰀨 at the breaker box and check
all pipe connections for leaks. All connections
must be water and air tight in order for pump to
operate.
All piping from the well to the pump should slope
slightly upward with no sagging. Support suction
pipe between water source and pump. Unions in
the suction line near the pump and well will aid in
servicing. Be sure to leave enough room so that
wrenches can be used easily.
NOTE: Look for leaks or a milky color in the
discharged water, which indicates an air leak.
Re-prime if necessary, following steps 1 through
6 above. Reset breaker at the breaker box. All
connections must be water and air tight in order
for pump to operate.
CARE AND MAINTENANCE
Winterizing
CAUTION: Drain the entire system if
there is danger of freezing. A drain plug is
provided at the bottom of the pump case for
this purpose.
IL1111
PREVENT
PUMP
DAMAGE!
Remove plug
in freezing
weather
1

18
Please review the following troubleshooting questions before returning a pump as defective.
If you have any questions, please call Customer Service at [phone].
MODEL LIQUID PUMP
LR90197
US
REV
DATE CODE:/CÓDIGO DE FECHA
Made in USA • Hecho en EE.UU.
Kendallville, IN 46755 • USA
QUICK TROUBLE-SHOOTING CHECKLIST
20
20
20
20
RESET
RESET
TEST
TEST
IL1381
C
US
LR90197
UL Std. No. 778
ENCLOSURE 3
starwatersystems.com
Pump: ES05S Rev: B
Motor: 98L105
HP: 1/2 PH 1Hz 60
Volts 115/230 S.F. 1.2 Amps 6.4/3.2
S.F. Amps: 8.6/4.3 RPM 3450 Type C
Duty: Cont. Temp 65C KVA Code G
Frame 56L Ins Class B
Factory prewired for 115V Thermally protected automatic
Check voltage of power source Use copper conductors only
ELECTRICAL HAZARD
Improper installation may result in  re, explosion, electrical short or injury. Replace all covers
before operating. Ground motor in accordance with local and national electrical codes.
Disconnect power source before touching internal parts. Motors equipped with automatic
protection may restart without warning.
See instruction manual for proper installation procedure.
Se reporter au manuel d’instructions pour suivre la procédure adéquate d’installation.
Consulte el instructive para conocer el procedimiento de instalación correcto.
L1
L2A B
L1
L2A B
IL0180
YELLOW
115 VOLT
SINGLE PHASE
LINE
230 VOLT
SINGLE PHASE
LINE
WHITE GRAY RED TAN YELLOW WHITE GRAY RED TAN
DATE CODE: 0218* Made in USA
IL1351
IL1102
1. Check date code to make sure pump is within
warranty period. Date code is the month and the
year.
(Example: 0318 is March of 2018. Date Code is
found on the top of the pump.)
2. Make certain that the power source matches
the pump requirements. This pump has a dual
voltage motor and can run on 115 V or 230 V.
This pump is pre-wired at the factory to run on
115 V.
3. If pump does not run, check the GFI or breaker
panel switch to make it is in full operation.
4. If the pump runs all the time, make sure the
pump has been primed correctly. If pump is not
holding the prime, inspect check valve, foot
valve, and piping, then re-prime.
5. If the pump runs but won’t shut off, check
pressure switch.

19
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Little or no
discharge
1. Casing not initially lled with water 1. Fill pump casing
2. Suction lift too high, or too long 2. Move pump closer to water source
3. Hole or air leak in suction line 3. Repair or replace. Use pipe tape and
pipe sealing compound
4. Foot valve too small 4. Match foot valve to piping or install
one size larger foot valve.
5. Foot valve or suction line not
submerged deep enough in water
5. Submerge lower in water
6. Motor wired incorrectly 6. Check wiring diagram
7. Casing gasket leaking 7. Replace
8. Suction or discharge line valves
closed
8. Open
Pump will not
deliver water
or develop
pressure
1. No priming water in casing 1. Fill pump casing
2. Leak in suction line 2. Repair or replace
3. Discharge line is closed and priming
air has nowhere to go
3. Open ball valve
4. Suction line (or valve) is closed 4. Open
5. Foot valve is leaking 5. Replace foot valve
6. Suction screen clogged 6. Clean or replace
Loss of suction 1. Air leak in suction line 1. Repair or replace
2. Suction lift too high 2. Lower suction lift, install foot valve
and prime
3. Insu󰀩cient inlet pressure or suction
head
3. Increase inlet pressure by adding
more water to tank or increasing back
pressure
4. Clogged foot valve or strainer 4. Unclog
Pump vibrates
and/or makes
excessive
noise
1. Mounting plate or foundation not rigid
enough
1. Reinforce
2. Foreign material in pump 2. Disassemble pump and clean
3. Impeller damaged 3. Replace
4. Worn motor bearings 4. Replace
Pump will not
start or run
1. Improperly wired 1. Check wiring diagram on motor
2. Blown fuse or open circuit breaker 2. Replace fuse or close circuit breaker
3. Loose or broken wiring 3. Tighten connections, replace broken
wiring
4. Stone or foreign object lodged in
impeller
4. Disassemble pump and remove
foreign object
5. Motor shorted out 5. Replace
6. Thermal overload has opened circuit 6. Allow unit to cool, restart after reason
for overload has been determined

20
WARRANTY
REPAIR PARTS
This product is warranted for two years from the date of purchase. Subject to the conditions hereinafter set
forth, the manufacturer will repair or replace to the original consumer any portion of the product which proves
defective due to defective materials or workmanship. To obtain warranty service, contact the dealer from whom
the product was purchased. The manufacturer retains the sole right and option to determine whether to repair
or replace defective equipment, parts, or components. Damage due to conditions beyond the control of the
manufacturer is not covered by this warranty.
THIS WARRANTY WILL NOT APPLY: (a) To defects or malfunctions resulting from failure to properly install,
operate, or maintain the unit in accordance with printed instructions provided; (b) to failures resulting from
abuse, accident, or negligence, or use of inappropriate chemicals or additives in the water; (c) to normal
maintenance services and the parts used in connection with such service; (d) to units which are not installed
in accordance with normal applicable local codes, ordinances, and good trade practices; and (e) if the unit is
used for purposes other than for what it was designed and manufactured.
RETURN OF WARRANTED COMPONENTS: Any item to be repaired or replaced under this warranty must be
returned to the manufacturer at Kendallville, Indiana or such other place as the manufacturer may designate,
freight prepaid.
THE WARRANTY PROVIDED HEREIN IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES, AND MAY
NOT BE EXTENDED OR MODIFIED BY ANYONE. ANY IMPLIED WARRANTIES SHALL BE LIMITED TO
THE PERIOD OF THE LIMITED WARRANTY AND THEREAFTER ALL SUCH IMPLIED WARRANTIES ARE
DISCLAIMED AND EXCLUDED. THE MANUFACTURER SHALL NOT, UNDER ANY CIRCUMSTANCES, BE
LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, SUCH AS, BUT NOT LIMITED TO
DAMAGE TO, OR LOSS OF, OTHER PROPERTY OR EQUIPMENT, LOSS OF PROFITS, INCONVENIENCE,
OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY TYPE OR NATURE. THE LIABILITY
OF THE MANUFACTURER SHALL NOT EXCEED THE PRICE OF THE PRODUCT UPON WHICH SUCH
LIABILITY IS BASED.
This warranty gives you specic legal rights, and you may have other rights which vary from state to
state. Some states do not allow limitations on duration of implied warranties or exclusion of incidental or
consequential damages, so the above limitations may not apply to you.
ITEM DESCRIPTION PART NO.
1Repair Kit includes impeller,
di󰀨user, rotary seal,
quadraseal and di󰀨user
rubber
148141
7
8
1
For replacement parts, call our customer service department at 1-800-584-8089,
7:30 a.m. - 5:00 p.m., EST, Monday - Friday.
In those instances where damages are incurred as a result of an alleged pump failure, the
Homeowner must retain possession of the pump for investigation purposes.
