Zoeller 2701 User manual

1
Español p. 13
GRINDER PUMP
MODEL #2701
Serial Number Purchase Date
Zoeller®is a registered trademark
of Zoeller Co. All Rights Reserved.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-584-8089, 7:30 a.m. - 5:00 p.m., EST, Monday - Friday.
ATTACH YOUR RECEIPT HERE
SW1220 C
ZoellerAtHome.com

2
Please read and understand this entire manual before attempting to assemble, operate, or install the product.
• NOTE: Pumps with the “UL” mark and pumps with the “US” mark are tested to UL Standard UL778. CSA
certied pumps are certied to CSA Standard C22.2 No. 108. (CUS.)
• ELECTRICAL SHOCK ALERT.
To reduce the risk of electric shock, install only a circuit protected by a ground-fault circuit-interruptor (GFCI).
Make certain that the ground fault receptacle is within the reach of the pump’s power supply cord. DO NOT
USE AN EXTENSION CORD.
• ELECTRICAL SHOCK ALERT.
Follow all local electrical and safety codes, as well as the National Electrical Code (NEC) and the
Occupational Safety and Health Act (OSHA).
• ELECTRICAL SHOCK ALERT.
Do not kink power cable, and never allow the cable to come in contact with oil, grease, hot surfaces,
chemicals, or sharp objects. Replace damaged or worn wiring cord immediately.
• ELECTRICAL SHOCK ALERT.
As a safety measure, each electrical outlet should be checked for ground using an Underwriters Laboratory
Listed circuit analyzer, which will indicate if the power, neutral, and ground wires are correctly connected to
your outlet. If they are not, contact a licensed electrician.
• ELECTRICAL SHOCK ALERT.
These pumps are supplied with a 3-prong grounded plug to help protect you against the possibility of
electrical shock. DO NOT UNDER ANY CIRCUMSTANCES REMOVE THE GROUND PIN.
• ELECTRICAL SHOCK ALERT.
To reduce the risk of electric shock, install only a circuit protected by a ground-fault circuit-interruptor (GFCI).
• ELECTRICAL SHOCK ALERT.
Make sure the pump electrical supply circuit is equipped with fuses or circuit breakers of proper capacity. A
separate branch circuit is recommended, sized according the National Electrical Code for the current shown
on the pump name plate.
• CHEMICAL ALERT.
Prop65 Warning for California residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
SAFETY INFORMATION
DANGER
• FIRE/EXPLOSION HAZARD.
Do not pump ammable or explosive uids such as gasoline, fuel oil, kerosene, etc. Do not use in a
ammable and/or explosive atmosphere. Failure to follow these warnings could result in death or serious
injury and/or property damage.
• ELECTRICAL SHOCK HAZARD
.
Always disconnect power source before performing any work on or near the motor or its connected load.
If the power disconnect point is out-of-sight, lock it in the open position and tag it to prevent unexpected
application of power. Failure to do so could result in fatal electrical shock.
• ELECTRICAL SHOCK HAZARD.
Do not handle the pump with wet hands or when standing in water, as fatal electrical shock could occur.
Disconnect main power before handling unit for ANY REASON!
• RISK OF ELECTRIC SHOCK.
These pumps have not been investigated for use in swimming pool areas.
WARNING

3
CAUTION
• PRODUCT DAMAGE MAY RESULT.
Make certain that the power source conforms to the requirements of your equipment.
• PRODUCT DAMAGE MAY RESULT.
Maximum continuous operating water temperature for standard model pumps must not exceed 104°F
(40°C).
Before beginning installation of product, make sure all parts are present. Compare parts with package
contents list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated Installation Time: 2 hours
Tools Required for Assembly (not included): Adjustable wrench, hacksaw, flathead screwdriver,
Phillips screwdriver, tape measure, utility knife, pipe wrench.
Description Quantity
Pump 1
Switch 1
PREPARATION
Parts Required For Assembly (not included): Sewage pump basin minimum 18 in. w x 30 in. deep,
basin cover, basin gasket, 1-1/4 in. check valve, 1-1/4 in. union, gate valve or ball valve as required by
codes, 1-1/4 in. Schedule 40 PVC pipe, 2-step PVC glue system (primer and sealer), cable, or zip ties.
PACKAGE CONTENTS
MOTOR DATA CHART
HP Phase Volts Max Amps
Locked Rotor
Amps
1 1 115 12 34
PERFORMANCE
Item
Number HP Ft. of Head Flow (GPM) Shut Off
Head (Ft.)
Discharge
Size
2701 1
048
47 1-1/4 in.
10 42
20 36
30 28
40 16
SPECIFICATIONS

4
1. The most common application is for draining
bathroom waste water.
This pump is designed to shred ushable
solids such as toilet paper, paper towels,
feminine hygiene products and baby wipes.
It can replace traditional sewage pumps
when pumping to a pressurized sewer
main. These pumps are not recommended
for pumping from a residence to a septic
tank. They are designed to pump long
distances (750 feet or more) and/or high lifts
(minimum of 30 feet).
2. These pumps are shipped with a float switch which
attaches to the discharge pipe. The pump will turn
on automatically when the water level in the basin
reaches the “on” level of the switch.
On
2
Off
3
3. The pump will turn off automatically when the water
level in the basin reaches the “off” level of the switch.
GENERAL PUMP INFORMATION
1

5

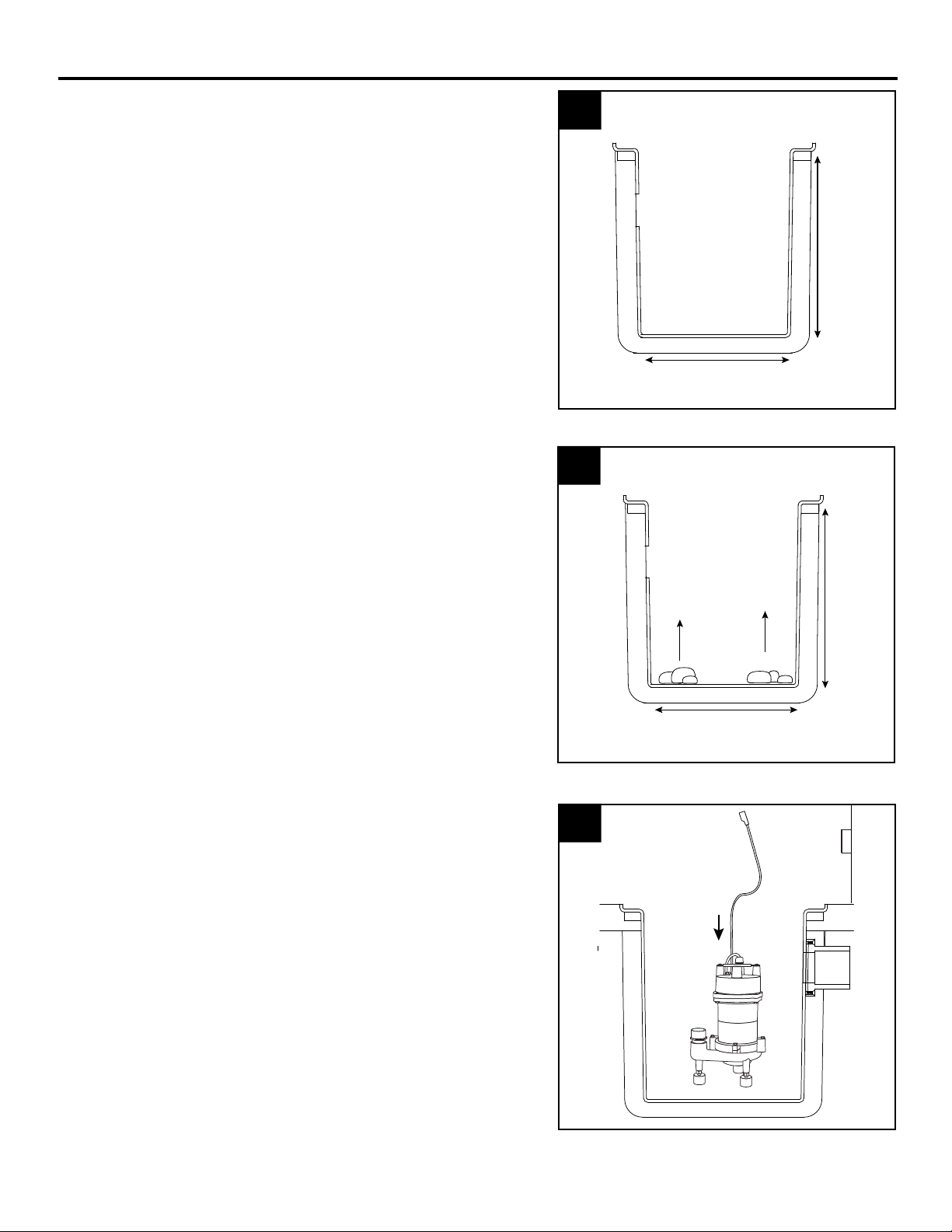

INSTALLATION INSTRUCTIONS
30 in.
18 in.
1. Use a basin (not included) that is at least 18 in. wide
by 30 in. deep. 1
2. Clean the basin of all debris. 2
3. Set the pump on a solid, level surface. A brick or block
(not included) may be installed under the pump to
provide a solid base.
3

6
INSTALLATION INSTRUCTIONS
6
4

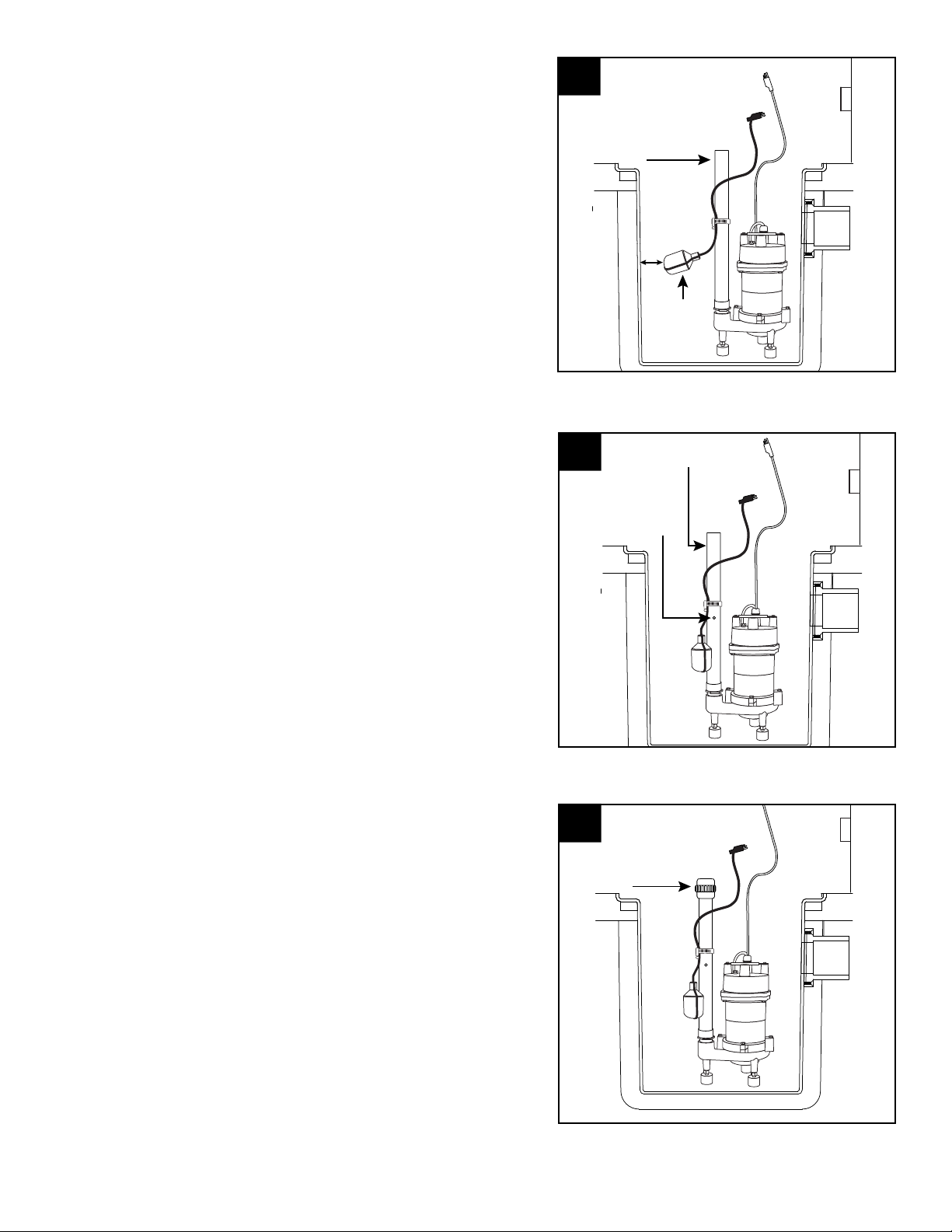

6. Attach the switch securely to the discharge pipe so
that incoming water does not interfere with switch
movement. The best place for the ‘off’ point is above
the motor housing and 180° from the inlet. Never put
the ‘off’ point below the pump discharge.
4. Install rigid 1-1/4 in. discharge pipe (not included)
according to local, regional, and state codes.
Incoming
water
Switch
Discharge
Pipe
5. Use a 2-step PVC glue system (not included) to join
pipe and any ttings needed. 5

7
7
7. Be sure the oat switch is at least 1 in. away from the
side walls of the basin, and free of any obstructions
through the full range of switch motion.
Switch
1 in.
Minimum
Discharge
Pipe
8. Drill a 3/16 in. hole in the discharge pipe above the
pump discharge to prevent air lock. Water stream will
be visible from this hole when the pump is running. The
hole must be cleaned periodically.

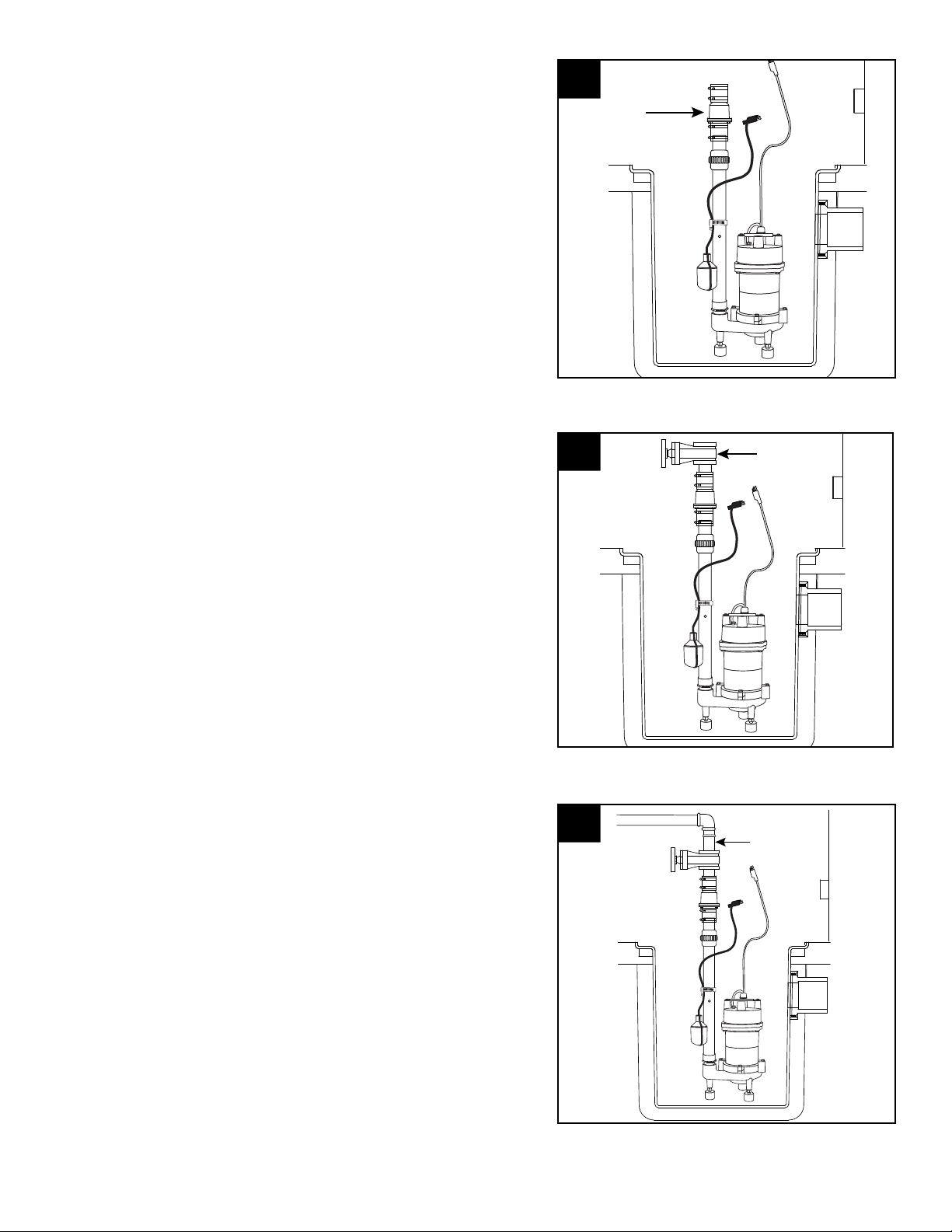

9. Install a 1-1/4 in. union (not included) above the basin
to allow the pump to be removed for cleaning and
service.
Discharge
pipe
3/16 in.
hole
Union
8
9

8
10. Install a 1-1/4 in. check valve (not included) above the
union to prevent back-ow.
11. Install a 1-1/4 in. gate valve or ball valve (not included)
above the check valve as required by local, regional, or
state codes.
12. Connect remaining discharge pipe into main waste
line.
Check
Valve
Gate
Valve
Main
waste line
10
11
12

9

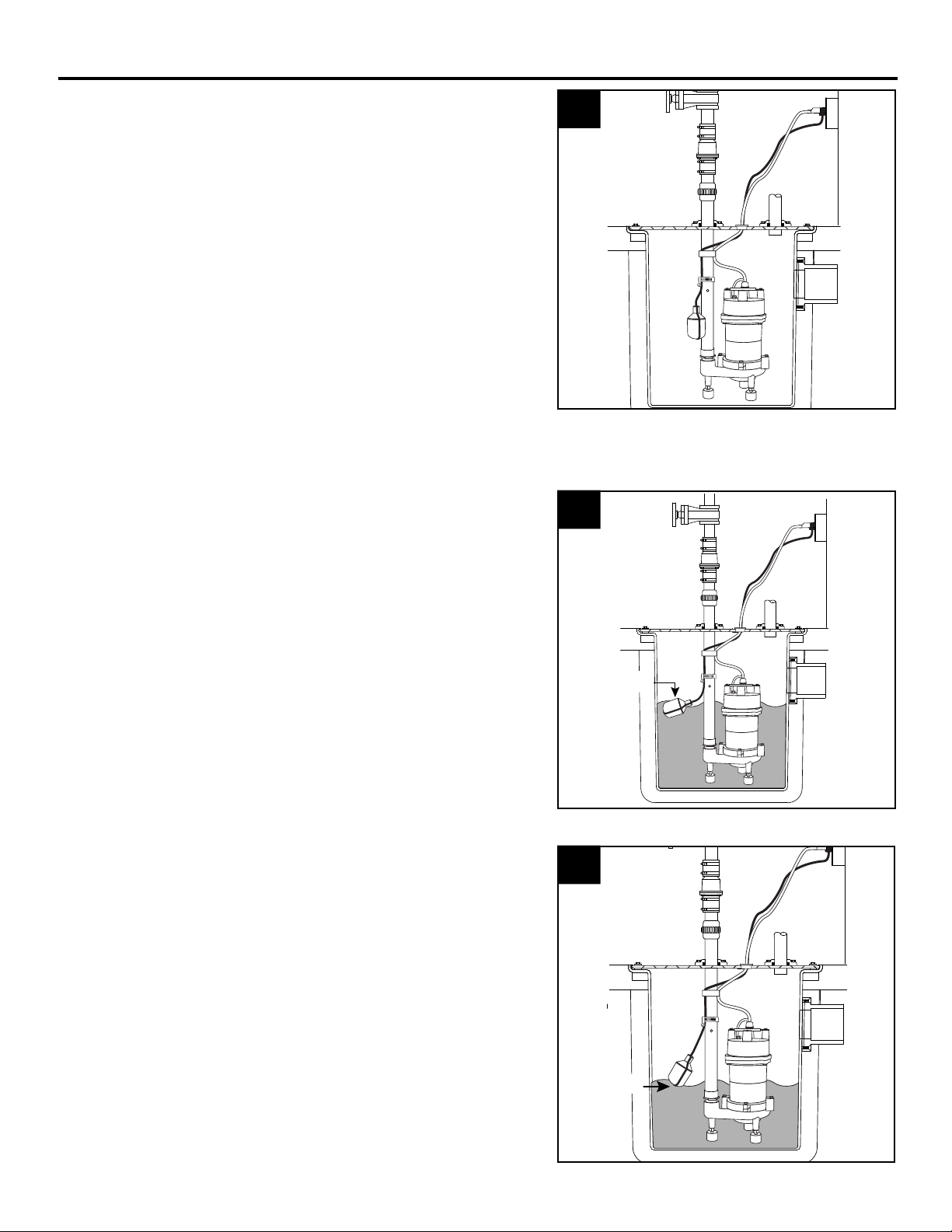

13. Attach power supply cord and switch cord to discharge
pipe using cable or zip ties (not included) to allow the
oat switch to move freely.
14. Plug power supply cord into piggyback switch cord.
Connect piggyback switch cord to a receptacle
protected by a ground fault circuit interruptor (GFCI).
Cable or
zip tie
GFCI
protected
receptacle
13
14
15. Fill the basin with water to check operation. The pump
will start when the water level has reached the switch
“on” level.
On
15

10
INSTALLATION INSTRUCTIONS

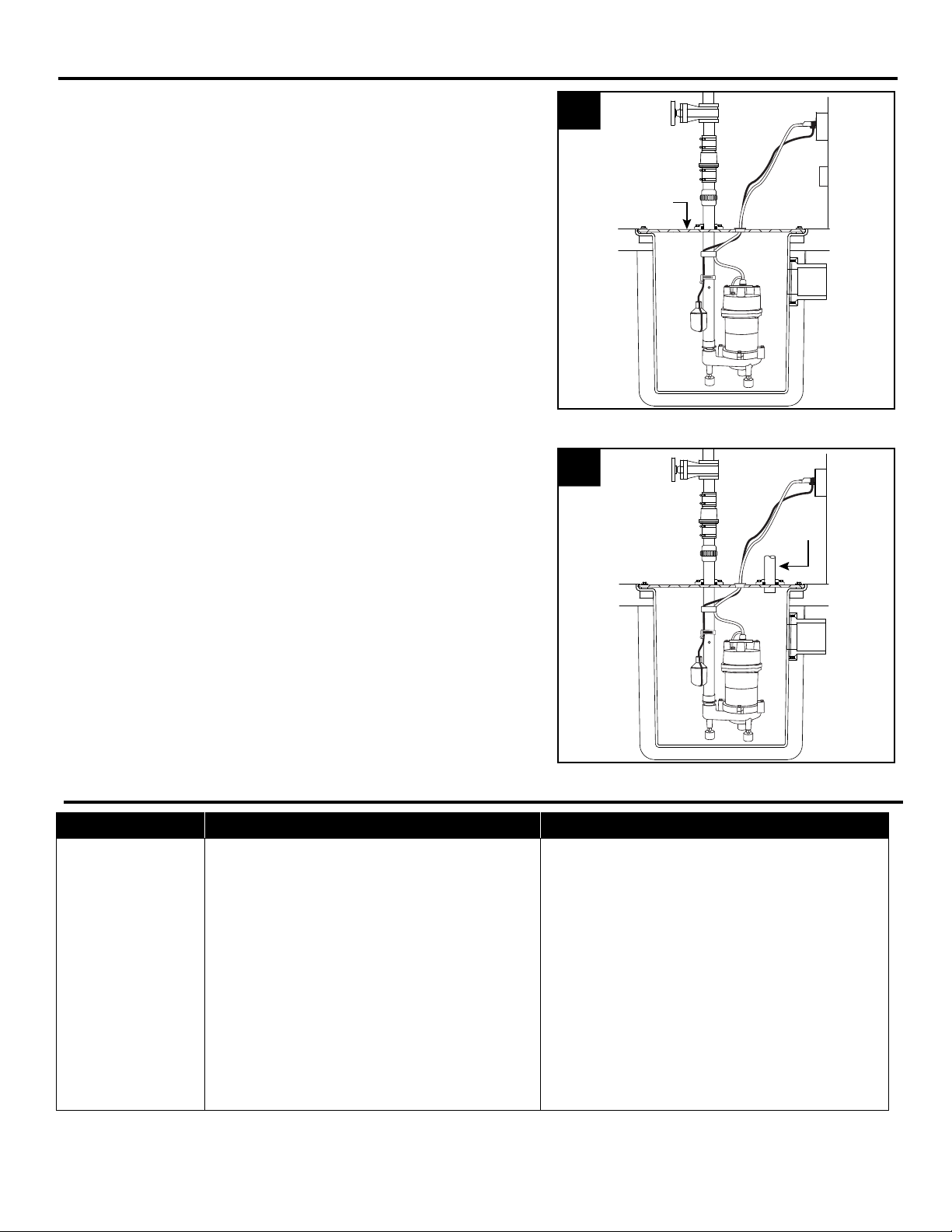

16. Install a basin cover and gasket (not included) on the
top of the basin. This will contain gases and odors,
prevent debris from falling into the basin, and prevent
personal injury. Basin
cover
and
gasket
16
17. Install a vent pipe (not included) according to local,
regional, or state codes to remove gases and odors.
Vent
pipe
17
TROUBLESHOOTING
Problem Possible Cause Corrective Action
Pump will not
start or run.
1. Water level too low. 1. Water must be at the appropriate level
to activate switch.
2. Blown fuse or tripped circuit breaker. 2. If blown, determine cause and then
either replace with properly sized fuse,
or reset breaker.
3. Low line voltage. 3. Contact an electrician.
4. Motor is defective. 4. Replace pump.
5. Switch is defective. 5. Replace switch.
6. Inlet screen clogged. 6. Remove debris.
7. Switch is obstructed. 7. Remove obstruction to ensure free
motion of switch.

11
Problem Possible Cause Corrective Action
Pump starts and
stops too often.
1. Water is back-flowing into basin from
discharge pipe.
1. Install check valve.
2. Switch is defective. 2. Replace switch.
3. Check valve not functioning properly
or leaking.
3. Be sure check valve is installed and
operating properly. Replace check
valve if necessary .
Pump shuts off
and turns on
independently
of switch (trips
thermal overload
protection.)
1. Excessive water temperature. 1. Pump should not be used for water
above
104°F (40°C).
2. Switch is defective. 2. Replace switch.
3. Switch is obstructed. 3. Remove obstruction to ensure free
motion of switch.
4. Discharge pipe is clogged. 4. Remove clog in discharge piping.
5. Low line voltage. 5. Contact an electrician.
Pump is noisy
or vibrates
excessively.
1. Worn bearings. 1. Replace pump.
2. Impeller is clogged or damaged. 2. Where applicable, remove screen
and volute, clean impeller or replace
impeller.
3. Piping attachment to building
structure too rigid or too loose.
3. Install rubber coupling (not included) to
isolate pump vibration from discharge
piping.
Pump will not
shut off.
1. Switch is defective. 1. Replace switch.
2. Switch is obstructed. 2. Remove obstruction to ensure free
motion of switch.
3. Discharge pipe is clogged. 3. Remove clog in discharge piping.
4. Water inflow exceeds pump capacity.
.
4. Re-check sizing calculations to
determine proper pump size.
Pump operates,
but delivers little
or no water.
1. Low line voltage. 1. Contact an electrician.
2. Inlet screen clogged. 2. Remove debris.
3. Broken impeller or debris in impeller
cavity.
3. Where applicable, remove screen
and volute, clean impeller or replace
impeller.
4. Check valve stuck closed or installed
backwards.
4. Be sure check valve is installed and
operating properly. Replace check
valve if necessary .
5. Shut off valve closed. 5. Open shut off valve.

12

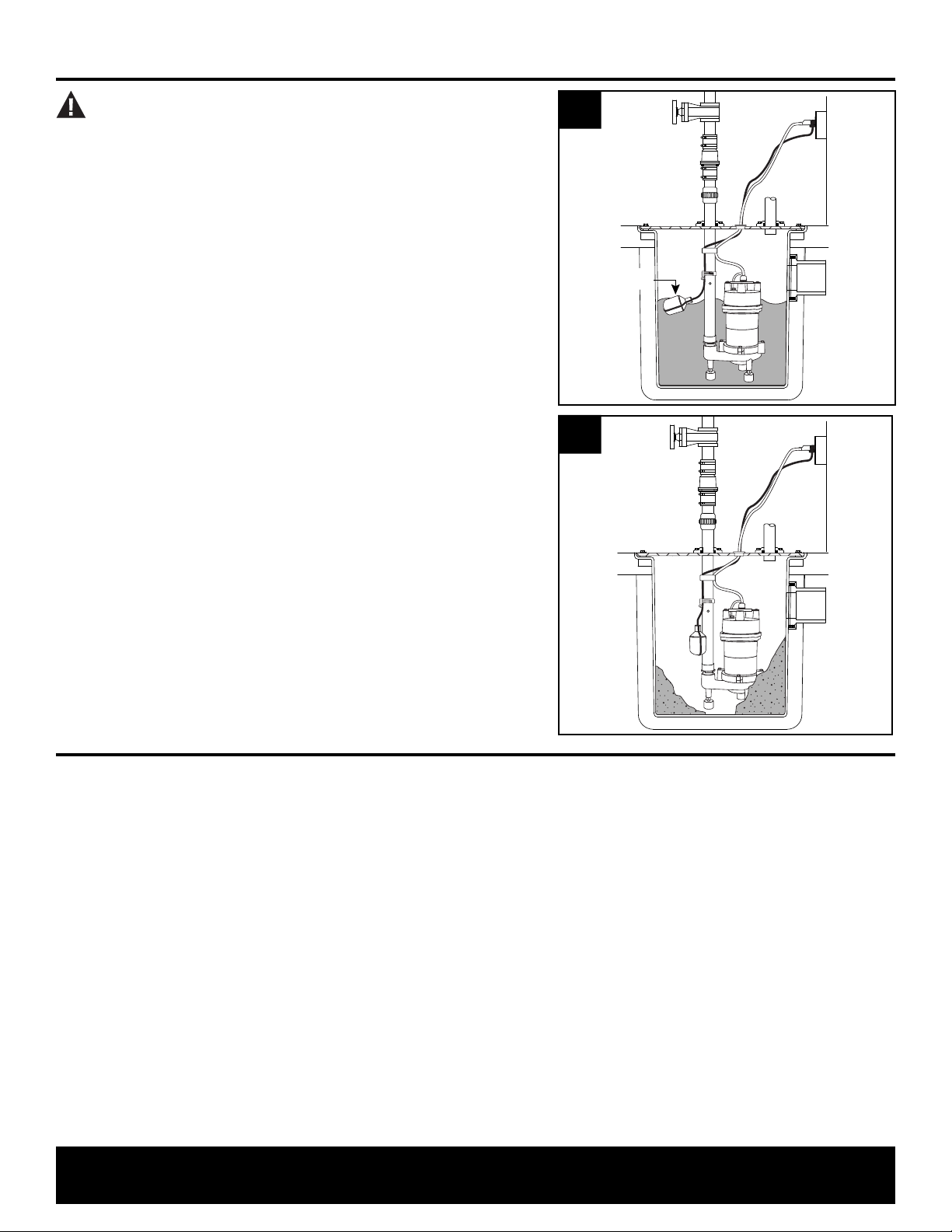

CARE AND MAINTENANCE
WARNING: Always disconnect pump from power
supply before handling.
Inspect and test system for proper operation at least every
three months.
1. Remove any build-up of debris from the switch or float,
and check to be sure it moves freely.
On
1
2
2. Remove any debris from the basin that could interfere
with the operation of the switch.
WARRANTY
This product is warranted for one year afrom the date of purchase or two years from the date of manufacture, whichever occurs rst. Subject
to the conditions hereinafter set forth, the manufacturer will repair or replace to the original consumer, any portion of the product which proves
defective due to defective materials or workmanship. To obtain warranty service, contact the dealer from whom the product was purchased.
The manufacturer retains the sole right and option to determine whether to repair or replace defective equipment, parts or components.
Damage due to conditions beyond the control of the manufacturer is not covered by this warranty.
THIS WARRANTY WILL NOT APPLY: (a) To defects or malfunctions resulting from failure to properly install, operate, or maintain the unit in
accordance with printed instructions provided; (b) to failures resulting from abuse, accident, or negligence, or use of inappropriate chemicals
or additives in the water; (c) to normal maintenance services and the parts used in connection with such service; (d) to units which are not
installed in accordance with normal applicable local codes, ordinances and good trade practices; and (e) if the unit is used for purposes other
than for what it was designed and manufactured.
RETURN OF WARRANTED COMPONENTS: Any item to be repaired or replaced under this warranty must be returned to the manufacturer at
Kendallville, Indiana, or such other place as the manufacturer may designate, freight prepaid.
THE WARRANTY PROVIDED HEREIN IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES, AND MAY NOT BE EXTENDED OR
MODIFIED BY ANYONE. ANY IMPLIED WARRANTIES SHALL BE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY AND
THEREAFTER ALL SUCH IMPLIED WARRANTIES ARE DISCLAIMED AND EXCLUDED. THE MANUFACTURER SHALL NOT, UNDER
ANY CIRCUMSTANCES, BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES, SUCH AS, BUT NOT LIMITED TO
DAMAGE TO, OR LOSS OF, OTHER PROPERTY OR EQUIPMENT, LOSS OF PROFITS, INCONVENIENCE, OR OTHER INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY TYPE OR NATURE. THE LIABILITY OF THE MANUFACTURER SHALL NOT EXCEED THE PRICE
OF THE PRODUCT UPON WHICH SUCH LIABILITY IS BASED.
This warranty gives you specic legal rights, and you may have other rights which vary from state to state. Some states do not allow limitations
on duration of implied warranties or exclusion of incidental or consequential damages, so the above limitations may not apply to you.
In those instances where damages are incurred as a result of an alleged pump failure, the
Homeowner must retain possession of the pump for investigation purposes.
