ZXDSL 831AⅡ
User’s Manual
Document version: 201004012-R3.1
Copyright 2006 ZTE Corporation
All rights reserved.
No part of this documentation may be excerpted, reproduced,
translated, annotated or duplicated, in any form or by any
means without the prior written permission of ZTE
Corporation.
ZTE CORPORATION reserves the right to modify this manual
for product upgrade or other causes without notifying users in
advance.

i
Limited warranty
ZTE warrants that, for one year from the date of delivery by ZTE to
purchaser's designated carrier, the Equipment will remain free from
defects in design, material and workmanship under normal use and
service and will conform in all material respects to the applicable
specifications set forth in purchase order or agreement; ZTE does not
warrant that operation of the Equipment will be error-free or
uninterrupted.
In accordance with ZTE's standard, warranty terms, ZTE shall, at its
option, repair or replace any defective or nonconforming item, provided
that (a) purchaser/End User gives ZTE written notice of the defect or
nonconformity within the warranty period specified above promptly after
Reseller is notified by the End User of the same; and (b) End User
returns the defective item at its expense to ZTE’s nominated Customer
Service Department in accordance with ZTE’s standard parts exchange
procedures.
This warranty does not apply to defects or errors in the Equipment
caused by:(a) reasonable abrasion of equipments; (b)End User’s failure
to follow ZTE’s installation, operation or maintenance instructions or
procedures; (c) End User’s mishandling, misuse, negligence, or
improper installation, uninstall, storage, servicing or operation of the
Equipment; (d) modifications or repairs not made by ZTE or a
ZTE-certified individual;(e) power failures, surges, fire, flood, accident,
actions of third parties or other events outside ZTE’s reasonable control.
(f) usage of products of third Parties, or usage conjunction with third
parties provided that such defects is due to the conjunction;(g) any

ZXDSL 831AⅡUser’sManual
ii
other cause beyond the range of normal usage for equipments. End
User shall assure that Equipment is installed and maintained by ZTE or
ZTE-certified individuals in accordance with ZTE’s certification
procedures; provided that if End User causes or permits services to be
provided by individuals who are not ZTE-certified, the Warranty shall be
void as to all Equipment serviced in breach of this sentence. End User
shall have no right to reject, return, or receive a refund for any
Equipment from ZTE. Any item repaired or replaced by ZTE shall
continue to be warranted for longer of the remainder of the original
warranty period or 90 days from the date the repaired or replaced part
is delivered to the carrier.
THIS WARRANTY (1) IS END USER'S SOLE REMEDY AND ZTE’S
SOLE LIABILITY FOR DEFECTIVE OR NONCONFORMING ITEMS ,
AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED,
IMPLIED OR STATUTORY, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE, UNLESS OTHERWISE REQUIRED
UNDER THE MANDATORY PROVISIONS OF THE CHINESE LAW,
AND (2) IS BETWEEN ZTE AND END USER (AS THE ORIGINAL
PURCHASER FOR END USE) AND MAY NOT BE TRANSFERRED
OR ASSIGNED, BY OPERATION OF LAW OR OTHERWISE,
WITHOUT ZTE’S PRIOR WRITTEN CONSENT.
Limitation of Liability
ZTE SHALL NOT BE LIABLE FOR ANY LOSS OF PROFITS OR
INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM OR ARISING OUT OF OR IN CONNECTION

ZXDSL 831AⅡUser’s Manual
iii
WITH USING OF THIS PRODUCT, WHETHER OR NOT ZTE HAD
BEEN ADVISED, KNEW OR SHOULD HAVE KNOWN OF THE
POSSIBILITY OF SUCH DAMAGES, INCLUDING, BUT NOT LIMITED
TO, LOST PROFITS, COST OF CAPITAL, COST OF SUBSTITUTE
FACILITIES OR EQUIPMENT, ANY DOWNTIME COSTS OR CLAIMS
OF END USERS. THE LIABILITY OF EACH PARTY UNDER
THIS AGREEMENT, WHETHER ARISING OUT OF BREACH OF
CONTRACT (INCLUDING BUT NOT LIMITED TO BREACH OF
WARRANTY) OR TORT (INCLUDING BUT NOT LIMITED TO
NEGLIGENCE AND STRICT LIABILITY) OR UNDER AN
INDEMNIFICATION PROVISION SHALL IN NO EVENT EXCEED THE
AGGREGATE AMOUNT BENIFITED BY ZTE IN THE PRODUCTS
FROM WHICH SUCH LOSS OR DAMAGE DIRECTLY AROSE.
Confidentiality
End User agrees that End User will receive confidential or proprietary
information (“Confidential Information”) in connection with the purchase
and deployment of ZTE Equipment. End User will not disclose ZTE’s
Confidential Information, will use it only for purposes for which it was
disclosed, and must treat it with the same degree of care as it does its
own similar information, but with no less than reasonable care. End
User agrees that the terms herein, the Equipment and all ZTE
documentation is ZTE Confidential Information.

Contents
Chapter 1 Safety Guidance............................................................1
1.1 Safety Check......................................................................................... 1
1.2 Safety Cautions..................................................................................... 1
Chapter 2 Overview .......................................................................3
2.1 Features................................................................................................. 3
2.2 Product Specifications.......................................................................... 4
2.3 Package Check...................................................................................... 4
2.4 System Requirement............................................................................. 5
Chapter 3 Installation Preparation...............................................6
3.1 Hardware Description........................................................................... 6
3.2 Hardware Connection........................................................................... 7
Chapter 4 Install USB Driver......................................................13
4.1 USB Driver Installation...................................................................... 13
4.2 USB Driver Uninstall ......................................................................... 19
Appendix A FAQs.........................................................................22
Appendix B Standard Compliance..............................................25

1
Chapter 1 Safety Guidance
1.1 Safety Check
Before installing the ZXDSL 831A ADSLⅡequipment, you must check the
following items.
1 Electric safety
zEnsure that there are no inflammable, conductive or moist objects
around. Check whether the cables are aged and whether other
electrical appliances are placed stably.
2 Equipment position
zBecause the running electric devices easily generate heat, please
ensure that these devices are positioned in a well ventilated
environment.
zThe devices should be placed on a stable and flat plane.
zNever expose the equipment to direct sunshine, and never place it on a
PC case.
zKeep the equipment away from heat and water.
zCheck whether power supply is available. The input voltage
fluctuation range must be less than 10%. The power plug should not
share one socket with a hair drier, iron or refrigerator.
1.2 Safety Cautions
zRead the user manual carefully before using the equipment.
zNote all Cautions in the user manual and product guide.
zNever use an accessory unbelonging to the equipment without prior
consent of the manufacture, because it may cause fire or product
damage.

ZXDSL 831AⅡUser’sManual
2
zUse the power adapter accompanied in the package.
zRather than directly connecting phones to the ADSL line, led them out
from the phone interface of the splitter.
zNever place any objects on the equipment.
zKeep the equipment dry, ventilated and rainproof, and clean.
zUnplug the power and all connection cables in case of thunderstorms,
to protect the equipment against lightning.
zClean the equipment using a soft and dry cloth rather than liquid or
atomizers. Power off the equipment before cleansing it.
zPower off the idle equipment.
zKeep the ventilation hole clean and prevent any objects from dropping
into the equipment through it. Otherwise, it may cause short circuit
and further cause equipment damage and fire. Do not spray liquid on
the surface of the equipment.
zDo not open the case of the equipment, especially during equipment
power-on.
zBefore plugging/unplugging the power, make sure that the power is off,
thus avoiding surge.
zBe careful when unplugging the power, because the transformer may
be very hot.
zKeep the equipment and all its parts and accessories out of children’s
reach.
Note:
Please read the above safety guidance carefully before equipment use. Users
should assume responsibilities for any accidents due to incompliance with the
above instructions .

3
Chapter 2 Overview
The ZXDSL 831AⅡis an ADSL access device that allows multiple line
transmission modes. The equipment provides a 10/100Base-T Ethernet
interface and a USB port in a local LAN device. Through the high-speed
ADSL access service, the ZXDSL 831A can provide the broadband InternetⅡ
service or enterprise network access service for users.
2.1 Features
The ZXDSL 831AⅡ, as an routing-capable ADSL MODEM, is of the
following characteristics:
zProviding ADSL high-speed Internet access via a common telephone
cable
zSupporting multiple line modes (self-adaptive lines)
zProviding a 10/100Base-T Ethernet interface
zProviding a USB1.1 interface
zMore highly reliable, simpler operation and less power consumption
zSupporting the Bridge or Router mode
zSupporting the built-in PPPoE dialup function
zSupporting the Network Address Translation (NAT) function
zSupporting the DHCP server function
zSupporting the UPnP function
zSupporting the Quick configuration function
zBackup the configuration files to a local computer or upload the saved
configuration files to the ZXDSL 831AⅡ.

ZXDSL 831AⅡUser’sManual
4
2.2 Product Specifications
zEnvironmental requirements
Environmental temperature: 0°C-40°C (32 °F-104°F)
Humidity: 20% - 90% (non-condensing)
zPower specification
Power adapter: Input: AC 100-240V ±10%, 50 Hz
Output: DC 12V, 500mA
zCertification
CE
Note:
In some countries or regions, a DC power adapter may be used instead of an
AC power adapter in accordance with customers' request.
2.3 Package Check
zZXDSL 831AⅡADSL MODEM ×1
zSplitter ×1
zPower Adapter ×1
zRJ-11 telephone cable ×2
zRJ-45 Ethernet cable ×1
zUSB cable ×1
zUser’s Manual ×1

ZXDSL 831AⅡUser’s Manual
5
zQuality Warranty Card ×1
zCertificate of Quality ×1
zCD ×1
Note: for your information only, please refer to the actual product.
Note:
Please use a power adapter that matches the ZXDSL 831AⅡpackage.
2.4 System Requirement
Before installing the ZXDSL 831A , please check theⅡfollowing items.
1 ADSL Services Subscription
If you have subscribed for the ADSL service, your ADSL operator must
provide at least one valid IP address for you (static allocation or dialup
dynamic allocation).
2 Computer configuration
Please make sure that the system has been equipped with the 10M/100M
Ethernet adapter and supports the TCP/IP protocol.
Because ADSL can be used for broadband access and involves a wide range
of multimedia services, you are recommended use a computer with such
configurations as: above PentiumIII, 64 M memory, 10 G hard disk, graphic
accelerating adapter with above 2 M display memory, audio adapter and
sound box.
3 Operating system
Operating systems can be Windows 98SE, Windows Me, Windows 2000 or
Windows XP. For system configuration in the WEB interface, the browser of
Internet Explorer V 6.0 or later.

6
Chapter 3 Installation Preparation
3.1 Hardware Description
Front panel
Figure 3.1-1 Front Panel of the ZXDSL 831AⅡ
Table 3.1-1 Descriptions of the LEDs on the Front Panel
LED No. Color Status Note
Off Power off
Red Flash Power on self-test or software upgrade
Power Green/Red Green On Power is on and the device operates normally
Off No signals are detected
Flash The MODEM is trying to be in the activation status
DSL Green On The MODEM has been activated.
Off The system is under the Bridge mode or the ADSL has
not been connected
Green
Flash There are some data packets passing the MODEM
Green On
The system is under the Route mode and the ADSL has
been connected. The MODEM IP data packet can be
normally transferred (For example, the built-in PPPOE
has been established and the dynamic IP address has
been obtained).
Internet Green/Red
Red On Device attempted to become IP connected and failed (no
DHCP response, no PPPoE response, PPPoE
authentication failed, etc.)
Off The USB interface is in the non-communication statusUSB Green Flash Data is received or sent on the USB interface

ZXDSL 831AⅡUser’s Manual
7
LED No. Color Status Note
On The USB interface is in the communication status
Off The Ethernet interface is in the non-communication
status
Flash Data is received or sent on the Ethernet interface
Ethernet Green
On The Ethernet interface is in the communication status
Rear panel
Figure 3.1-2 Rear Panel of the ZXDSL 831AⅡ
Table 3.1-2 Description of Interfaces on the Rear Panel
Item Introduction
DSL RJ-11 connection interface: The equipment is connected to the ADSL line or
splitter via the telephone line.
USB USB connection interface: Connect it to the PC computer using the USB
cable.
Reset In the power-on state, you can restore the system to the default configuration
by using a thin needle to press this slot for five seconds
Ethernet RJ-45 connection interface: Connect it to the PC computer or other network
devices using the network cable.
PWR Power interface. Connect it to the power adapter.
Power switch
3.2 Hardware Connection

ZXDSL 831AⅡUser’sManual
8
Connection 1
The following connection method is recommended.
Figure 3.2-1 shows the connection between a ZXDSL 831A , computer,Ⅱ
splitter and telephones.
Figure 3.2-1 ZXDSL 831A Connection Schematic Diagram (No Phone sets are Installed Before theⅡ
Splitter)
Connection 2
Figure 3.2-2 shows the connection when the splitter is installed near the
ZXDSL 831A .Ⅱ

ZXDSL 831AⅡUser’s Manual
9

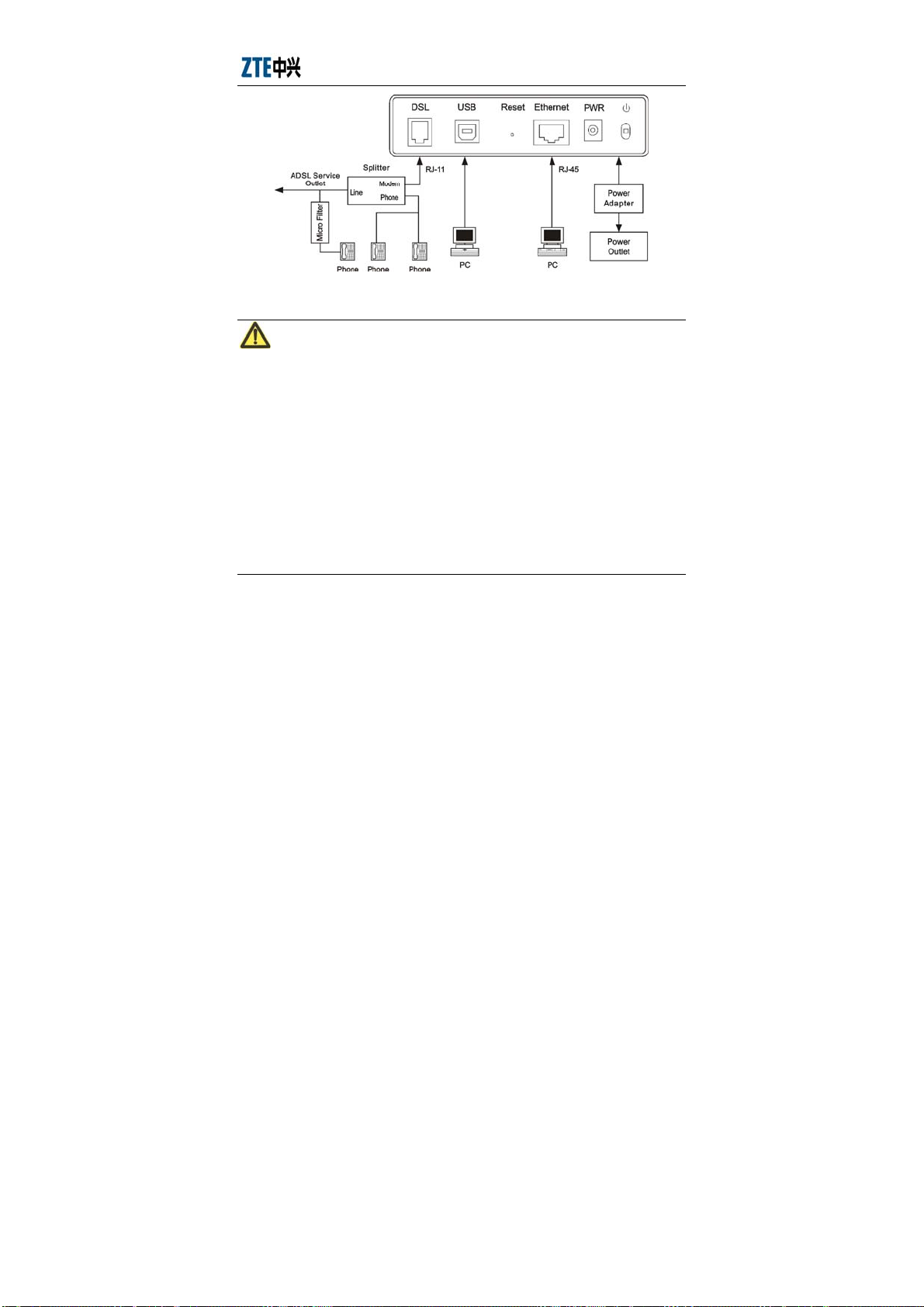

Figure 3.2-2 ZXDSL 831A Connection Schematic Diagram (Phone sets are Installed Before the Splitter)Ⅱ
Note:
In the circumstance where the first connection example is not applicable and
you choose to use the second example, you must install a MicroFilter on the
telephone cable (as illustrated in Figure 3.3-2, do not use a splitter to replace
the MicroFilter).
Installing a telephone directly before the splitter will lead to a failure of
connection between the ZXDSL 831A andⅡthe device at central office side,
or a failure of access into the Internet, or a slow connection speed. If you really
need to add a telephone set before the splitter, you have to add a MicroFilter
before the telephone set. Do not connect several telephones before the splitter.
Moreover, do not connect several telephones with MicroFilters.
The filter is not a standard-configuration device and you should separately
purchase it from the operator.
Connection procedures
1 Power off the equipment before all the other devices are connected.
2 Connect the network cables: Insert the RJ-45 Ethernet cable connector
into the Ethernet interface of the ZXDSL 831A , and connect its otherⅡ

ZXDSL 831AⅡUser’sManual
10
terminal to the Ethernet adapter of the customer computers or ports of other
network devices.
3 Connect the plug of the USB cable into the USB port of the ZXDSL
831AⅡ, connect the other end of the USB cable to the USB port of the PC.
4 Connect the splitter
The splitter has three interfaces, which are described as follows:
zLINE: Connect the user telephone cable (RJ11 interface).
zMODEM (or ADSL): Connect the DSL interface of the ZXDSL 831A .Ⅱ
zPHONE (or TEL): Connect the phone sets.
The installation process is as follows: Connect the DSL interface of the
ZXDSL 831AⅡto the MODEM interface of the splitter using the RJ-11
telephone cable, connect the phone set lines to the PHONE interface of the
splitter, and then connect the user telephone cable port to the LINE interface
of the splitter.
5 Connect the power
Connect one terminal of the power adapter to the PWR interface of the
ZXDSL 831A , and the other terminal to the socket on the wall, and thenⅡ
switch on the power of the ZXDSL 831A equipment.Ⅱ
Checking all connection cables
Check all connection cables following the below procedure.
1 Check the ADSL cable connection
If the DSL LED is on upon power-on of the ZXDSL 831A ,Ⅱit indicates
that the ADSL line is correctly connected (Generally it takes one to two
minutes to perform the ADSL connection).
2 Check the computer connection
If both the LINK LED on the computer adapter and the Ethernet LED of the
ZXDSL 831A turn green,Ⅱit indicates that the computer and the ZXDSL
831A equipment are correctly connected.Ⅱ
3 Check the telephone cable connection

ZXDSL 831AⅡUser’s Manual
11
The telephone cable is correctly connected if the received telephone signals
are normal and free of noise. And the telephone will not be affected no
matter whether the ZXDSL 831A isⅡpowered on or off.

13
Chapter 4 Install USB Driver
If you want the ZXDSL 831A to be connected with a PC throughⅡthe USB
interface, you need to install the USB driver first. Read a certain section below
pertinent to your operating system. If you have already installed the driver,
skip this chapter.
ZXDSL 831AⅡis a device with both Ethernet Interface and USB Interface,
which is independent, you may use either of them to connect to the different
computers, in this way the two computers can connect to the network at one
time. ZXDSL 831AⅡcan be seen as a simple two-port HUB. So, do not
connect both the Ethernet Interface and USB Interface to a same computer.
When using USB Interface, you must install the drivers. After installation, a
virtual network card, "ZTE USB Remote NDIS Device", will be added into the
computer. It has all the functions of a real network card, and it makes
installation more easily
NOTES:
The following shows the steps for Windows
®
XP, the installation,
configuration and uninstall of Windows
®
98 or Windows
®
2000 are similar to
this.
4.1 USB Driver Installation
Descriptions
Install the driver following the system indication. Do not plug the USB cable
until the indication interface pops up (Fig. 4.1-1 for Windows XP). Otherwise,
the driver may not be installed or uninstalled properly.

ZXDSL 831AⅡUser’sManual
14
For Windows XP
The steps are as follows:
1 Connect USB port of the ZXDSL 831AⅡto USB port on your PC with
the USB cable that comes with the ZXDSL 831AⅡ.
2 plug in the power cord, and turn on the power.
3 Once the new hardware is detected as shown in the dialog box below,
Choose "No, not this time". As shown in Figure 4.1-1, Click "Next" button.
Figure 4.1-1
4 The dialog box is as shown in Figure 4.1-2, Choose "Install from a list or
specific location(Advance)", and Click "Next" button.

ZXDSL 831AⅡUser’s Manual
15
Figure 4.1-2
5The dialog box is as shown in Figure 4.1-3. Choose "Search for the
best driver in these locations", and Click "Next" button.
