Zte MF633 User manual

ZTE USB Modem
User Manual

2
Contents
1 Modem Introduction....................................................4
1.1 Introduction..........................................................4
1.2 Warning and Notice..............................................4
1.3 Declaration...........................................................5
1.4 Applicability Scope ..............................................8
1.5 System requirements...........................................8
1.6 Functions..............................................................8
1.7 Specification ........................................................8
2 Installation...................................................................10
2.1 Outline and Parts................................................10
2.2 Hardware Installation ........................................10

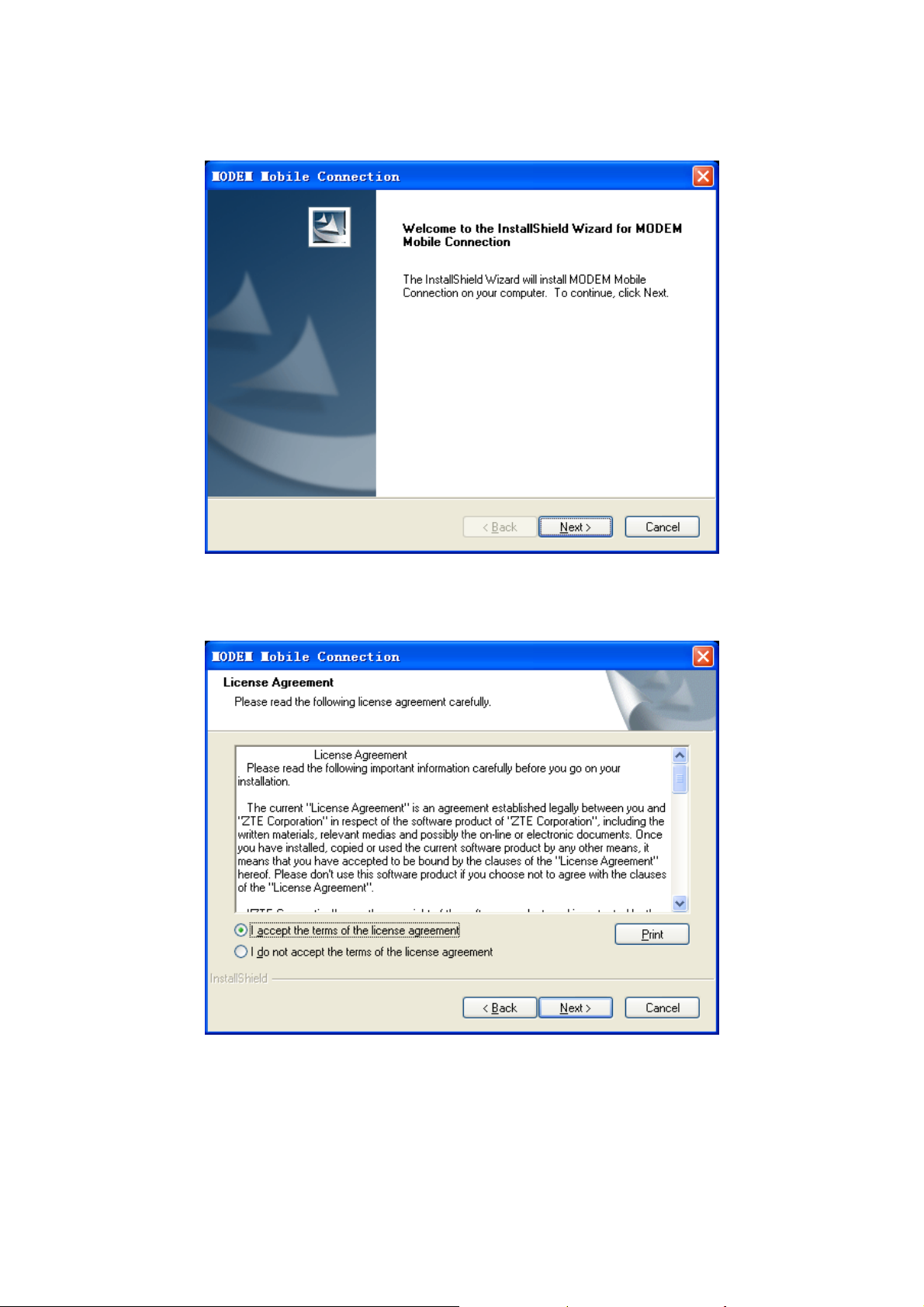

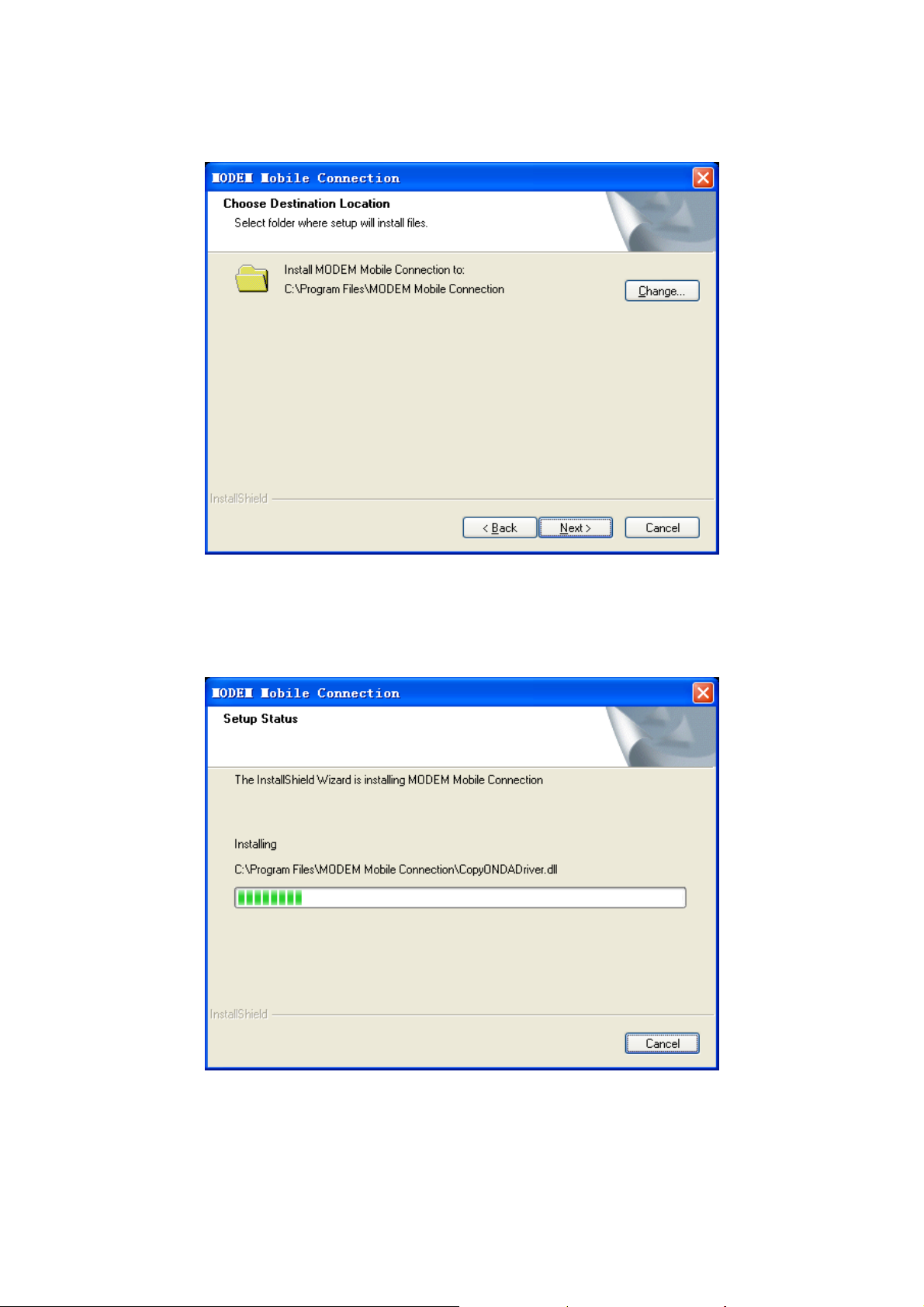

2.3 Software Installation..........................................12

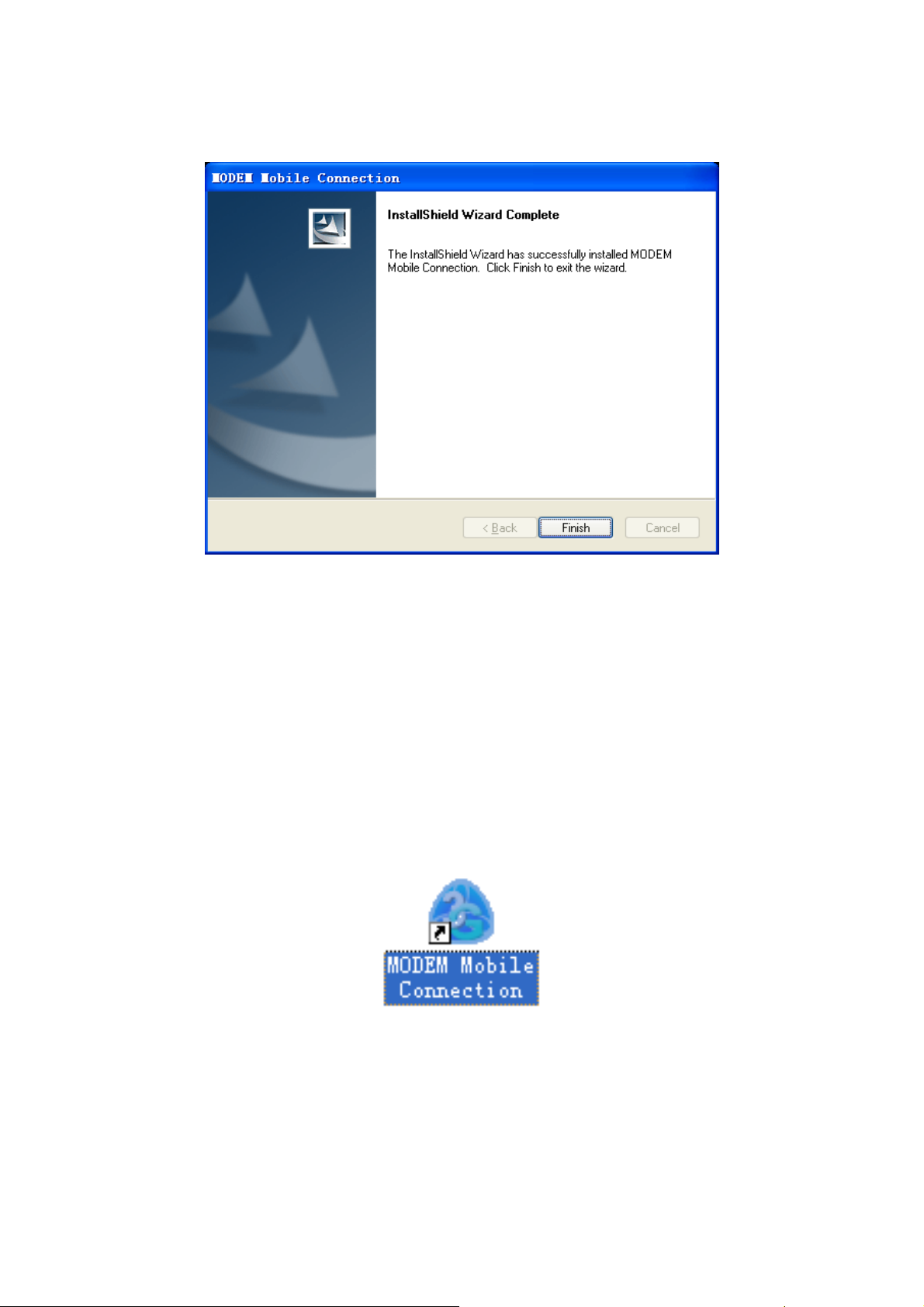

2.4 Run the Application Software............................15
2.5 Hardware Uninstall ............................................16

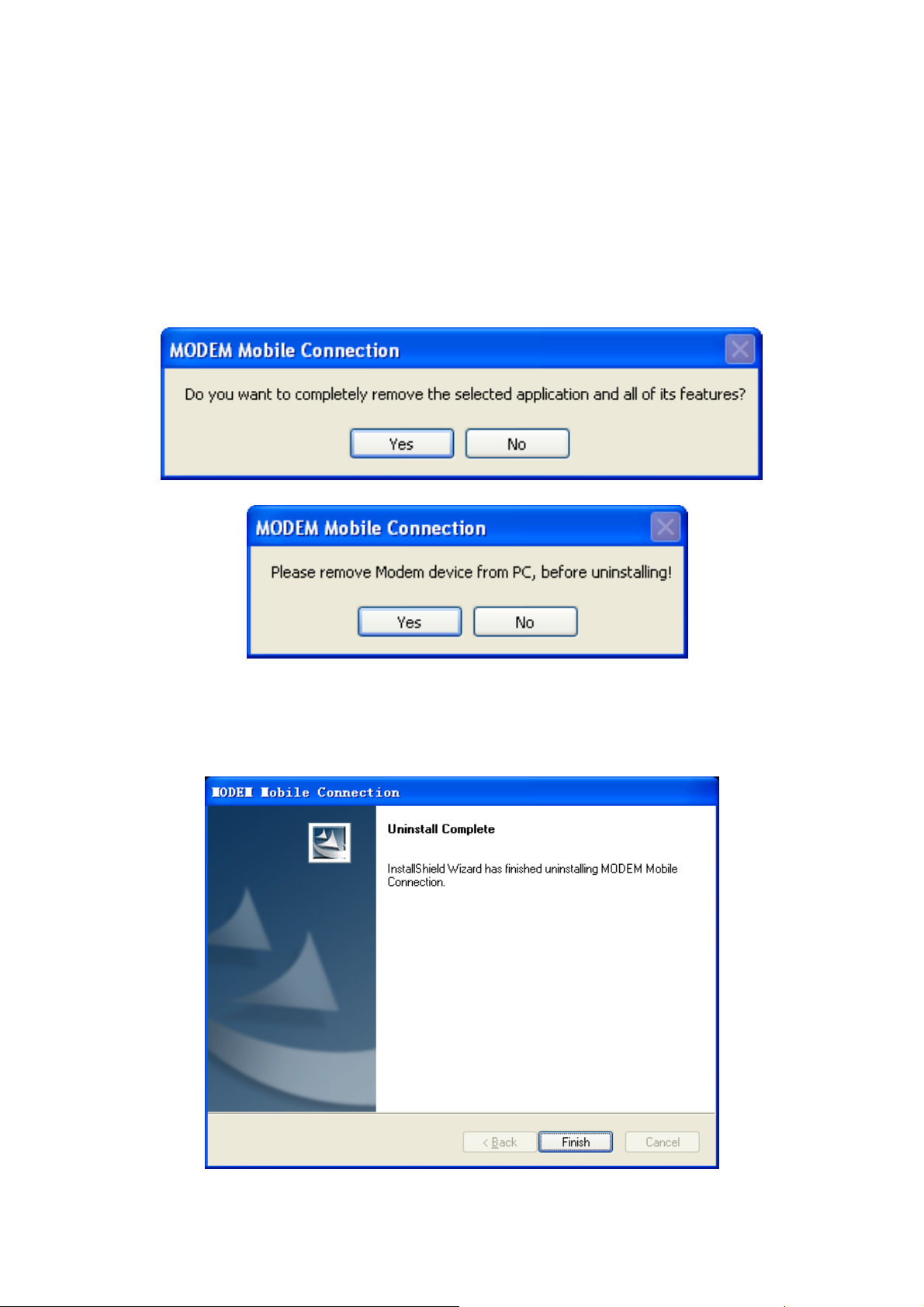

2.6 Software Uninstall..............................................17
3 Functions & Operation.............................................19
3.1 Interface introduction........................................19
3.1.1 Main Interface.......................................................19
3.1.2 Description of Mini Icons .....................................22
3.2 Connecting Internet ...........................................23
3.3 SMS.....................................................................26
3.3.1 Read Short Message..............................................28
3.3.2 Create new message..............................................28
3.3.3 Operating Guide....................................................30
3.4 PhoneBook..........................................................32
3.4.1 Creating a new contact..........................................33
3.4.2 Modifying contacts................................................34
3.4.3 Deleting contacts...................................................34
3.4.4 Sending SMS to a contact .....................................35
3.4.5 Searching for a contact..........................................35

3
3.5 Settings ..............................................................35
3.5.1 Connection Settings ..............................................36
3.5.2 Security Settings....................................................38
3.5.3 Network Settings...................................................39
3.5.4 Message Settings...................................................41
3.5.5 Alert settings .........................................................43
3.6 MicroSD card......................................................43
3.7 Help.....................................................................44
4 FAQ & Answers...........................................................45

4
1 Modem Introduction
1.1 Introduction
Thank you for using ZTE MF633 USB Modem.
To guarantee the modem always in its best condition, please
read this manual carefully and keep it for further use.
The pictures, symbols and contents in this manual are just for
your reference. They might not be completely identical with your
modem. We operate a policy of continuous development. We
reserve the right to update the technical specifications in this
document at any time without prior notice.
The ZTE MF633 USB modem is a multi-mode 3G USB modem,
working in HSPA/UMTS/EDGE/GPRS/GSM networks. With
USB interface connecting to a laptop or a desktop PC, it
integrates the functionality of a modem and a mobile phone
(SMS), and combines mobile communication with Internet
perfectly. It supports data and SMS services through the mobile
phone network, enabling you to communicate anytime and
anywhere.
1.2 Warning and Notice
To the owner
Some electronic devices are susceptible to electromagnetic
interference sent by modem if inadequately shielded, such as
electronic system of vehicles. Please consult the
manufacturer of the device before using the modem if
necessary.
Operating of laptop and desktop PC and modem may
interfere with medical devices like hearing aids and
pacemakers. Please always keep them more than 20
centimeters away from such medical devices when they are
turned on. Turn the modem off if necessary. Consult a

5
physician or the manufacturer of the medical device before
using the modem.
Be aware of the usage limitation when using a modem at
places such as oil warehouses or chemical factories, where
there are explosive gases or explosive products being
processed. Therefore, turn off your modem if required.
Don’t touch the inner antenna area if not necessary.
Otherwise it will affect your modem’s performance.
Store the modem out of the reach of little children. The
modem may cause injury if used as a toy.
Modem
Please use original accessories or accessories that are
authorized. Using any unauthorized accessories may affect
your modem’s performance, and violate related national
regulations about telecom terminals.
Avoid using the modem near metallic structure device or
establishment that can emit electromagnet wave. Otherwise it
may influence receiving signals.
The modem is non-waterproof type, please keep it dry and
store in shady and cool place.
Don’t use the modem immediately after a sudden
temperature change. In such case, it will produce dew inside
and outside the modem, so don’t use it until it becomes dry.
Take the modem carefully. Don’t lose, bend or cause it struck.
Otherwise it will lead to destruct damage.
No dismantling by non-professional and only qualified
maintainer can undertake repair work.
1.3 Declaration
Radio Frequency (RF) Energy
This model MF633 meets the government’s requirements for
exposure to radio waves.
This device is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set
by the Federal Communications Commission of the U.S.
Government:

6
The exposure standard for wireless devices employs a unit of
measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are
conducted using standard operating positions accepted by the
FCC with the device transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR
level of the device while operating can be well below the
maximum value. This is because the device is designed to
operate at multiple power levels so as to use only the poser
required to reach the network. In general, the closer you are to a
wireless base station antenna, the lower the power output.
The highest SAR value for the model device as reported to the
FCC when worn on the body, as described in this user guide, is
1.17 W/kg (Body-worn measurements differ among device
models, depending upon available enhancements and FCC
requirements.)
While there may be differences between the SAR levels of
various devices and at various positions, they all meet the
government requirement.
The FCC has granted an Equipment Authorization for this model
MF633 with all reported SAR levels evaluated as in compliance
with the FCC RF exposure guidelines. SAR information on this
model is on file with the FCC and can be found under the Display
Grant section of http://www.fcc.gov/oet/fccid after searching on
FCC ID: Q78-ZTEMF633.
For body worn operation, this modem has been tested and
meets the FCC RF exposure guidelines for use when plugged
into a laptop PC, positions the handset a maximum of 0.5 cm
from the body. Use of other enhancements may not ensure
compliance with FCC RF exposure guidelines.

7
FCC Compliance
zThis device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
zThis device has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for
help.
Caution:
Changes or modifications not expressly approved by the party
responsible for compliance could void the user‘s authority to
operate the equipment.
zThe antenna(s) used for this transmitter must not be co-located

8
or operating in conjunction with any other antenna or
transmitter.
1.4 Applicability Scope
ZTE USB Modem supports the present mainstream types of
laptops and desktop PCs, such as HP, IBM, Toshiba, Lenovo,
Dell, Sony, etc.
1.5 System requirements
Operating System：Windows 2000 / XP / Vista
Configuration (Recommended):
CPU 1GHz Pentium or above
Hard Disk 50M or above
RAM 512M or above
The performance of the modem may be influenced if
configuration is under the recommended requirement.
1.6 Functions
Functions: SMS service, data service, applied management,
data concurrence, support MicroSD card etc.
1.7 Specification
Interface Type USB2.0
Systems supported Supports most types of laptop and desktop PC.
Operating systems
supported
Windows 2000, XP SP2, Vista
MAC OS

9
Functions
SMS service, Data service, Applications
management, Data concurrent, support MicroSD
card, etc.
Network Standards HSPA/UMTS/EDGE/GPRS/GSM
Transmission speed
(Max)
HSUPA 2.0Mbps UL
HSDPA 7.2Mbps DL
Temperature
Storage: -20°C ~ +60°C
Operation: -10°C ~ +55°C
Dimension 85 mm×25 mm×9.6 mm
Weight About 30g
T-Flash capability Support up to 4GB MicroSD card

10
2 Installation
2.1 Outline and Parts

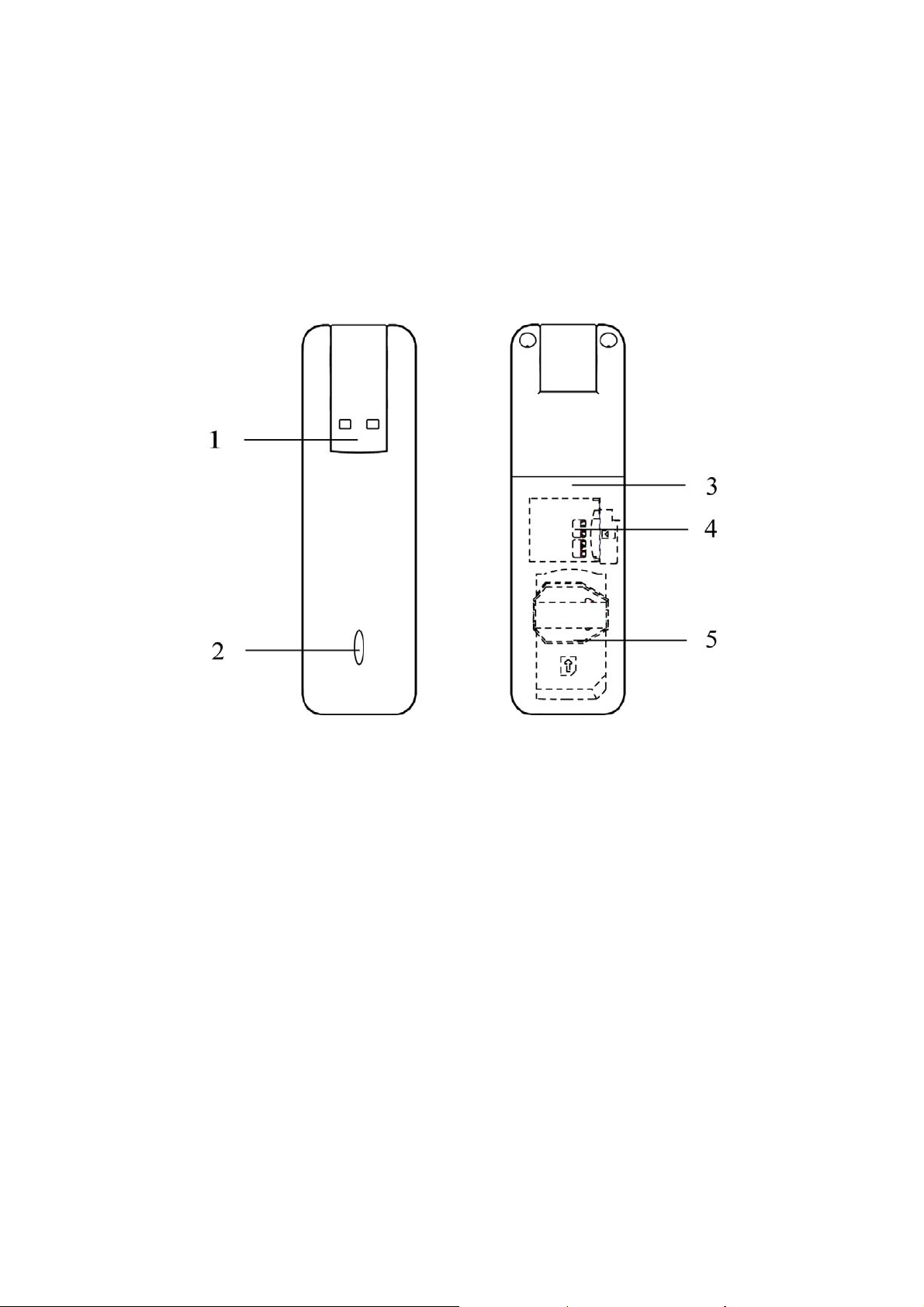

The following figure shows the appearance of the MF633. It is
only for your reference. The actual product may be different.
1. USB Connector
2. Indicator
3. Back Cover
4. MicroSD card slot
5. SIM/USIM card slot
2.2 Hardware Installation
Note: Before the hardware installation, please make sure that
your (U)SIM supports data service, GPRS, EDGE, UMTS or
HSPA etc. If you have questions on this, please consult your
service supplier.

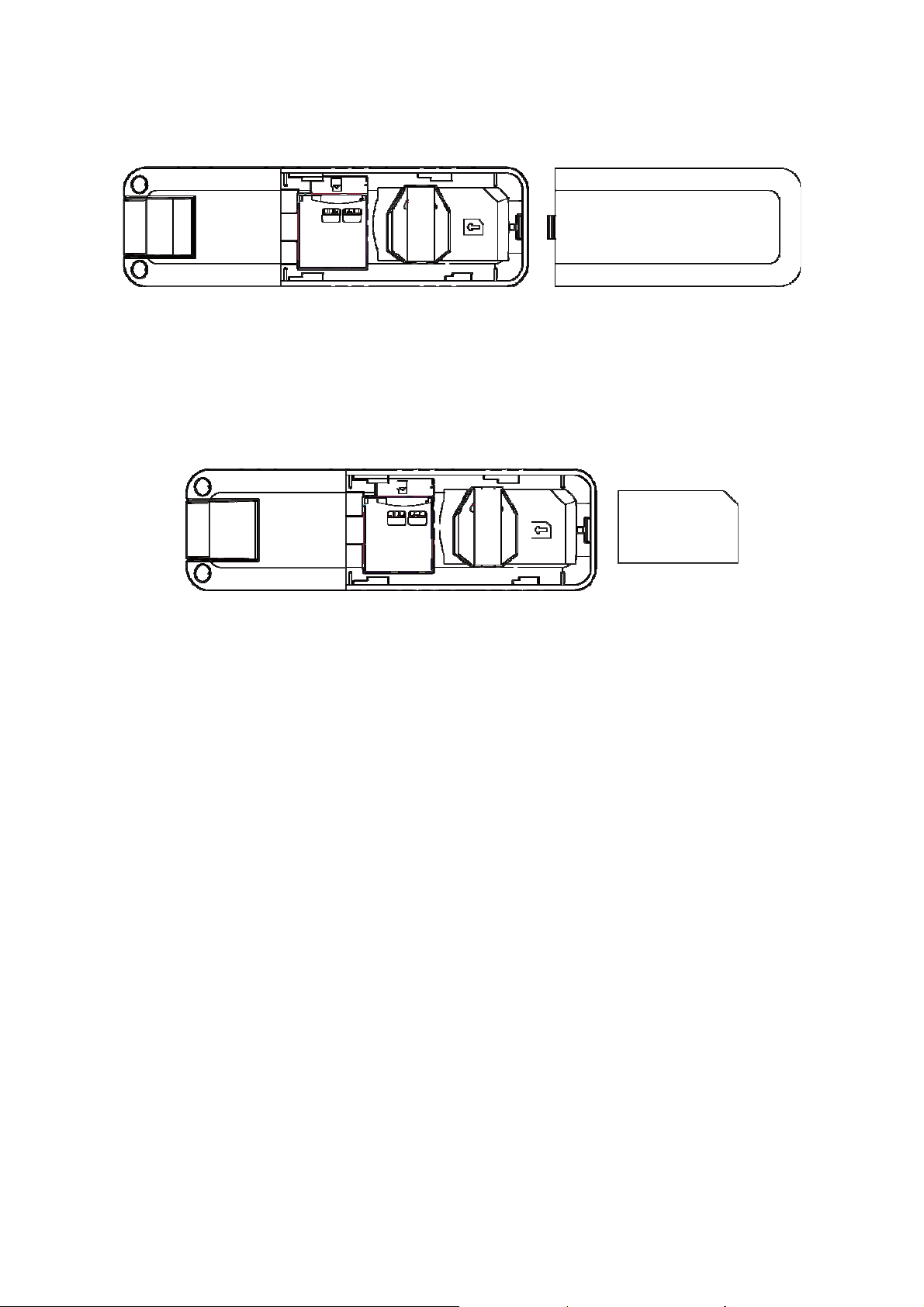

1. Slide the back cover and remove it.

11
2. Insert the SIM/USIM card into the SIM/USIM card slot
Insert the SIM/USIM card with the metal contact area facing
downwards into the slot, shown as the following picture.
3. Insert the MicroSD card into the MicroSD card slot
Note: Only MicroSD card is supported by the modem and do not
use other memory card in the modem.
Insert the MicroSD card into the memory card slot, if you want to
use it. Make sure the metal contact side of the memory card
facing downwards, shown as the following picture.
4. Close the back cover

12
5. Connect the Modem to your laptop or desktop PC
Rotate the USB connector and plug the USB connector into
your computer’s USB port. Make sure that it is tightly inserted.
The OS automatically detects and recognizes new hardware
and starts the installation wizard.
2.3 Software Installation
The system will automatically detect and recognize the new
hardware and display the new icon in the desktop status bar,
indicating that the computer and the USB Modem have been
connected properly. After a few seconds, there will show the
following installation interface.
Note: If the system does not launch installation automatically,
you can run the installation program in path of My Computer >
ZTEMODEM > Install.exe.
The following installation interface will show how to install the
software.

13
zRecommend you to exit other programs, and then click
“Next”.
zRead the agreement carefully. If you agree, choose “I
accept the terms of the license agreement”, and then click
“Next”.

14
zSelect the folder that you want to install the software by
pressing “Change”, and then click “Next”.
zThe system show the installation progress, wait a minute
and the following screen will show up:

15
zClick “Finish” to complete the installation.
Note：If you have problems with installation after the upper
operation, please contact the service provider.
After the installation, select the “Start →Programs” and there
will be a “MODEM Mobile Connection” program group，which
includes “MODEM Mobile Connection” and “Uninstall”. There
will be a Shortcut icon like below on the desktop.
2.4 Run the Application Software
After the modem is correctly connected, click the “Start →
Programs →MODEM Mobile Connection →MODEM Mobile
Connection” menu on the laptop or desktop PC to run the
application software.

16
Or double click the shortcut icon, to run the application software.
After modem initialized, main interface appears. When the
standby icon appears in the taskbar, the modem can work
properly.
2.5 Hardware Uninstall
Close the software application then remove the hardware
following the procedure below.
zFirstly click the “close” button on the menu, and then click
“OK” to close the software.
zThen remove your USB Modem safely.
When you use a MicroSD card in the modem:
zPlease left click the icon in the Windows system tray
bar. Then a menu will popup and indicates the USB devices
list as below:
zSelect “Safely remove the USB disk” which is relevant to
the MicroSD card.
zPull out the USB modem directly, if you want to disconnect
the modem from the laptop or desktop PC.

17
2.6 Software Uninstall
zClose the application program before the software
uninstalls.
zClick “Start→Programs →MODEM Mobile Connection
→Uninstall” menu on the laptop or desktop PC.
zClick “Yes” according to the indication, then the system
begins to uninstall programs.

18
zClick “Finish” to complete the application software
uninstall.

19
3 Functions & Operation
3.1 Interface introduction
3.1.1 Main Interface
The starting screen of the USB Modem software is shown as the
following:
The whole interface is divided into three parts. Related functions
can be executed by operation in the related areas.
1. Function button area:
There will show various function button icons. Select different
function button and it will carry out corresponding operation.

20
Internet: Connect to the Internet.
Short Message (SMS): Send SMS or read SMS.
PhoneBook: Save and view the different information of
the contacts.
Settings: Set normal relative information for the
modem.
Help: Show the help information.
2. System information area:
Show the system status and different kinds of tips.
Icon Explanations
The icon indicates the network signal
intensity. There are 6 stages from none
to the strongest.
The icon indicates there are new SMS at
present.
The icon indicates the current status of
Internet connection is not connected.
The icon indicates the current status of
Internet connection is already connected.
Letter “P”means supporting
packet-switch （P）service, letter “C”
means supporting circuit-switch （C）
service.
SIM/USIM card is in status of roaming.
