2N IP Audio Kit
®
IP Intercom Module
Installation Manual
Version: 2.14

The 2N TELEKOMUNIKACE a.s. is a Czech manufacturer and supplier of
telecommunications equipment.
The product family developed by 2N TELEKOMUNIKACE a.s. includes GSM gateways,
private branch exchanges (PBX), and door and lift communicators. 2N
TELEKOMUNIKACE a.s. has been ranked among the Czech top companies for years
and represented a symbol of stability and prosperity on the telecommunications
market for almost two decades. At present, we export our products into over 120
countries worldwide and have exclusive distributors on all continents.
2N is a registered trademark of 2N TELEKOMUNIKACE a.s. Any product and/or other
®
names mentioned herein are registered trademarks and/or trademarks or brands
protected by law.
2N TELEKOMUNIKACE a.s. administers the FAQ database to help you quickly find
information and to answer your questions about 2N products and services. On www.
faq.2n.cz you can find information regarding products adjustment and instructions for
optimum use and procedures „What to do if...".
2N TELEKOMUNIKACE a.s. hereby declares that the 2N product complies with all
basic requirements and other relevant provisions of the 1999/5/EC directive. For the
full wording of the Declaration of Conformity see the CD-ROM (if enclosed) or our
website at www.2n.cz.
The 2N TELEKOMUNIKACE a.s. is the holder of the ISO 9001:2009 certificate. All
development, production and distribution processes of the company are managed by
this standard and guarantee a high quality, technical level and professional aspect of
all our products.

2N TELEKOMUNIKACE a.s., www.2n.cz 3/57
Content:
1. Product Overview
1.1 Components and Associated Products
1.2 Terms and Symbols
2. Description and Installation
2.1 Before You Start
2.2 Mechanical Installation
2.3 Electric Installation
2.4 Extending Module Connection
2.5 Configuration
2.6 Downloads
3. Technical Parameters
4. Supplementary Information
4.1 Troubleshooting
4.2 Directives, Laws and Regulations
4.3 General Instructions and Cautions

2N TELEKOMUNIKACE a.s., www.2n.cz 4/57
1. Product Overview
Here is what you can find in this section:
1.1 Components and Associated Products
1.2 Terms and Symbols

2N TELEKOMUNIKACE a.s., www.2n.cz 5/57
Basic Features
2N IP Audio Kit
® is a universal and reliable IP intercom module designed for
integration in the third parties' equipment. It is provided with a number of useful
functions that are not quite common in the devices of this category. Featuring the SIP
standard support and compatibility with renowned IP exchange and telephone
manufacturers, can make use of all VoIP services available on the 2N IP Audio Kit
®
market.
2N IP Audio Kit
®is equipped with a 10 W power amplifier for external loudspeaker
connection. If the power output of amplifier is insufficient for your specific application,
you can connect an external power amplifier to the line output. You can also connect
an external electret microphone or another audio signal source to the IP intercom line
output.
2N IP Audio Kit
®allows up to 16 separate buttons or a 16-button matrix keypad to be
connected. Set the button function flexibly according to your specific application
needs. You can set up to three telephone numbers and call time profiles to each of the
buttons to make the called subscriber accessible any time. Configure the buttons as a
numerical keypad, which can be used as a switch activation code lock or for dialling a
preset or any other telephone number.
2N IP Audio Kit
®is equipped with one relay output and two active 12 V outputs. Use
the numerical keypad or, during the call, any telephone to control these outputs. A
wide range of output mode settings help you make use of a high number of
applications.
2N IP Audio Kit
®is equipped with two galvanically isolated digital inputs and three
status signalling outputs.
2N IP Audio Kit
® is very easy to install. All you have to do is connect it to your LAN
using the LAN cable. An integrated two-port LAN switch simplifies installation on sites
with a limited LAN infrastructure. Supply the intercom either from a 9–36 V source or
directly from your PoE supporting LAN.

2N TELEKOMUNIKACE a.s., www.2n.cz 6/57
Use a PC web browser to configure your . Apply the2N IP Audio Kit
®
to administer extensive intercom installations easily and 2N Access Commander
®
quickly.

2N TELEKOMUNIKACE a.s., www.2n.cz 7/57
Advantages of Use
Industrial design and variable mounting options
Wide supply power range + PoE supply
Integrated 10 W power amplifier
External amplifier connection
External microphone/audio signal source connection
Galvanically isolated relay output
Two controlled active 12 V outputs
Two galvanically isolated logic inputs
Up to 3 signalling LED outputs
Up to 16 external buttons/matrix keypad connection
Integrated two-port LAN switch
Bidirectional communication – acoustic echo cancelling
Configuration via web interface/special PC application
SIP 2.0 support
HTTP(S) server for configuration
SNTP client for server time synchronisation
RTSP server for audio streaming
TFTP client for automatic configuration and firmware update

2N TELEKOMUNIKACE a.s., www.2n.cz 8/57
1.1 Components and Associated Products
Basic Units
2N Part No. 9154100
Axis Part No. 01526-001
Intercom module in plastic box
Part No. 9154101 Intercom module without box
Part No. 9154102 Lite intercom module in plastic box

2N TELEKOMUNIKACE a.s., www.2n.cz 9/57
Internal Units and Accessories
Part numbers:
91378365, 01416-001
91378366, 01419-001
2N Indoor Touch
® – black
WiFi (second Part no.)
The elegant internal touch panel, , is 2N Indoor Touch
®
suitable for all . On the panel’s display 2N IP intercoms
not only can you find out who is at the door, but also
start a conversation with the visitor, open the lock or
turn on the light in the entrance hall.
Part number:
91378382, 01425-001 2N Indoor Touch
® desk stand black
Part numbers:
91378365WH, 01417-001
91378366WH, 01420-001
2N Indoor Touch
® – white
WiFi (second Part no.)
The elegant internal touch panel, , is 2N Indoor Touch
®
suitable for all . On the panel’s display 2N IP intercoms
not only can you find out who is at the door, but also
start a conversation with the visitor, open the lock or
turn on the light in the entrance hall.

2N TELEKOMUNIKACE a.s., www.2n.cz 10/57
Part number:
91378382W, 01426-001 2N Indoor Touch
® desk stand white

2N TELEKOMUNIKACE a.s., www.2n.cz 11/57
VoIP Telephones
2N Part No. 91378357
Axis Part No. 01422-001
Grandstream GXV3240 VoIP video telephone
GXV3240 is the successor to the popular GXV3140 model,
which allows comfortable video calls in the IP network.
Touchscreen and keyboard control.
2N Part No. 91378358
Axis Part No. 01421-001
Grandstream GXV3275 VoIP telephone
GXV3275 is the successor to the popular GXV3175 model,
which allows comfortable video calls in the IP network.
Touchscreen control.

2N TELEKOMUNIKACE a.s., www.2n.cz 12/57
Electric Locks
Part No. 932071E BEFO 11211
12 V / 230 mA DC
low consumption
Part No. 932081E BEFO 11221 with momentum pin
12 V / 230 mA DC
low consumption
For opening of the lock a short electrical impuls is sufficient,
which unlocks the lock. Lock is then open until someone closes
the door.
Part No. 932091E BEFO 11211MB with mechanical blocking
12 V / 230 mA DC
low consumption
Enables mechanically close or open the lock. When opened,
the lock is open all the time. When closed, it behaves as
standart electrical lock.

2N TELEKOMUNIKACE a.s., www.2n.cz 13/57
Part No. 932072E BEFO 31211
fail-safe
12 V / 170 mA DC
The failsafe lock is closed when electricity is switched on.
When electricity is interrupted, the lock is opened.
Part No. 932061E BEFO 211211 door signalling, low consumption
12 V / 230 mA
A regular lock with a built-in contact to indicate whether the
door is open or closed.
Part No. 932062E BEFO 321211
fail-safe, door signalling
12 V / 170 mA
The failsafe lock is closed when electricity is switched on.
When electricity is interrupted, the lock is opened.
It contains a built-in contact to indicate whether the door is
open or closed.
Tip
FAQ: Electric locks – Difference between locks in 2N IP intercoms
accesories
Power Supply

2N TELEKOMUNIKACE a.s., www.2n.cz 14/57

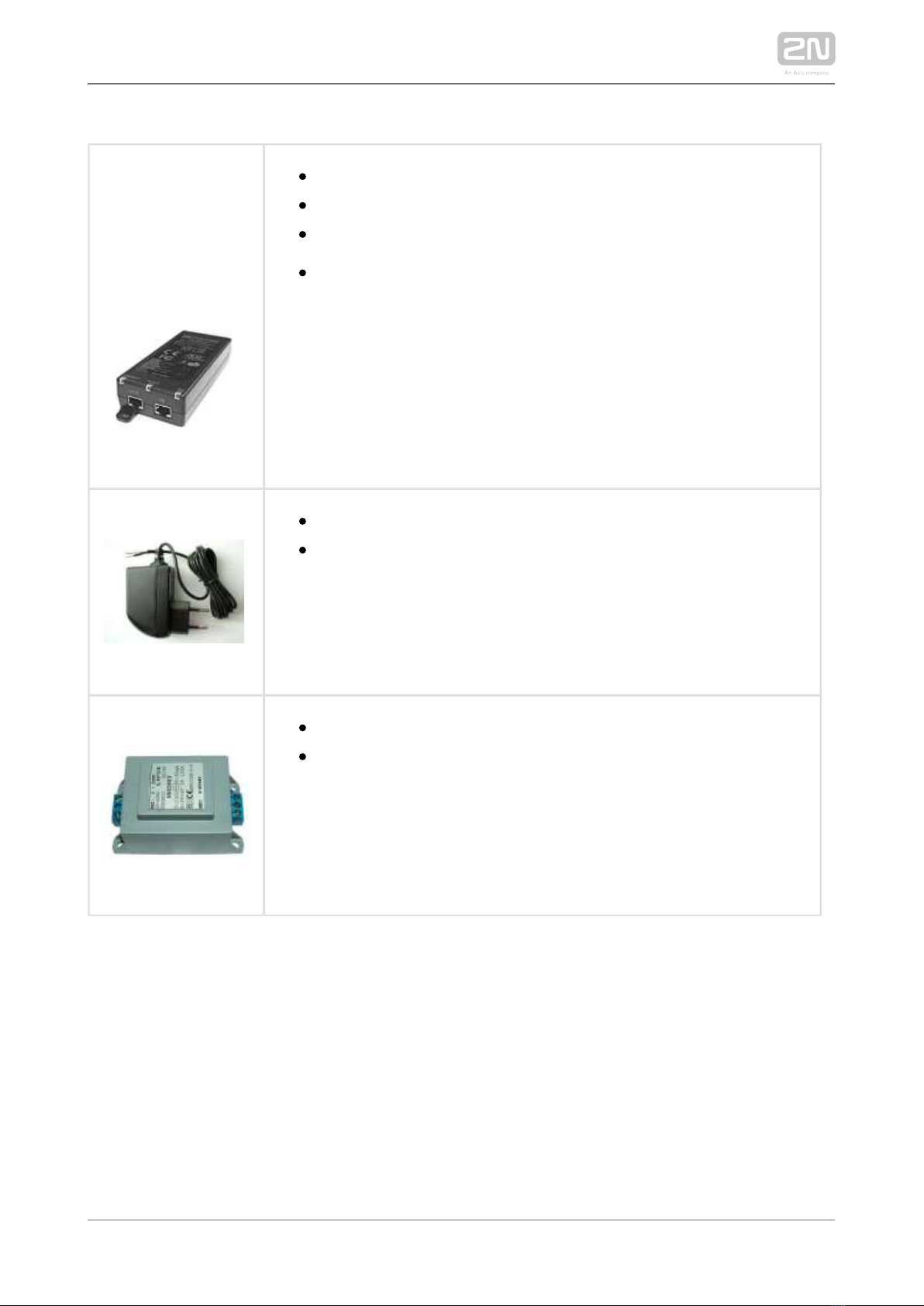

Power Supply
Part Numbers:
91378100, 01394-001
91378100E
91378100US, 01403-
001
PoE injector – without cable
PoE injector – with EU cable
PoE injector – with US cable
ethernet switch For power supply of intercom via cable when PoE
is not available.
Part No. 91341481E Adapter 12 V / 2 A
A stabilised power supply has to be used if the Ethernet (PoE)
power supply is not available.
Part No. 932928 12 V transformer
For external power supply of the lock with 12 V AC voltage.

2N TELEKOMUNIKACE a.s., www.2n.cz 15/57
Two-wire connection
Part numbers:
9159014EU
US, 01404-0019159014
UK9159014
2N 2Wire
®
set of 2 adaptors and power source for EU/US/UK
The converter allows you to use existing wiring (2 2N 2Wire
®
wires) from your original door bell or door intercom to connect
any IP device. You don’t have to configure anything, and you
only need one 2N 2Wire
®unit at each end of the cable and a
power source connected to at least one of these units.
PoE The unit then provides 2N 2Wire
®power not only to the
second converter, but also to all other connected IP end
devices.

2N TELEKOMUNIKACE a.s., www.2n.cz 16/57
External switches
2N Part No. 9159010
Axis Part No. 01386-
001
2N
®Security Relay
A handy add-on that significantly enhances door entry security as it
prevents tampering with the intercom and forced opening of the
lock. To be installed between intercom and lock, powered by the
intercom.
2N Part No.
9137410E
Axis Part No. 01397-
001
External IP Relay – 1 output
HTTP Standalone IP device which can be controlled by commands
sent by , which can thus control devices on unlimited 2N IP intercom
distance.
2N Part No.
9137411E
Axis Part No. 01398-
001
External IP Relay – 4 outputs, PoE
HTTP Standalone IP device which can be controlled by commands
sent by , which can thus control devices on unlimited 2N IP intercom
distance.

2N TELEKOMUNIKACE a.s., www.2n.cz 17/57
Sensors and switches
Part No. 9159013 Exit button
A button for connection to a logic input for opening a door inside
a building.
2N Part No. 9154004
Axis Part No. 01479-
001
Water-proof metal button
Hole diameter 19 mm, button diameter 22 mm.
2N Part No. 9159012
Axis Part No. 01388-
001
Magnetic door contact
Set for installation on a door, enabling the status of door opening
to be ascertained. Used when the intercom is used for door
protection, to detect when the door is not closed or forced open.

2N TELEKOMUNIKACE a.s., www.2n.cz 18/57
Audio accessories
2N Part No. 9154001
Axis Part No. 01478-001
Electret microphone with self-adhesive layer.
Sensitivity 42 dB, operating temperature 5–35 °C.
Adhesion surface 25 x 25 mm.
Cable length 2.9 m.
Must be protected from water penetration.
2N Part No. 9154002
Axis Part No. 01478-001
Speaker with self-adhesive layer.
External dimensions 60 x 60 mm, actual speaker diameter 45
mm.
Cable length 1.4 m.
Must be protected from water penetration.

2N TELEKOMUNIKACE a.s., www.2n.cz 19/57
License
2N Part No.
9137905
Axis Part No.
01376-001
Enhanced Audio
2N Part No.
9137906
Axis Part No.
01377-001
Enhanced Video
2N Part No.
9137907
Axis Part No.
01378-001
Enhanced Integration
2N Part No.
9137908
Axis Part No.
01379-001
Enhanced Security
2N Part No.
9137909
Axis Part No.
01380-001
Gold
2N Part No.
9137910
Axis Part No.
01381-001
InformaCast
2N Part No.
9137915
Axis Part No.
01382-001
NFC

2N TELEKOMUNIKACE a.s., www.2n.cz 20/57
Tip
Refer to the Configuration Manual for 2N IP intercoms, Subs. 3.2
for details. Function Licensing
Tip
For more accessories and particular advice please contact your local
distributor of 2N products.
