3M Aqua-Pure ASB1001 User manual

At a Glance:
• Helps Reduce Arsenic III and V
• Meets current Safe Drinking Water Act Regulation of
<10 ppb when operated and maintained in accordance with
manufacturer’s instructions
Applications:
• Arsenic Reduction
Product Benefits:
• Solid state microprocessor with front panel accessibility specifically designed and
programmed to help provide arsenic reduction filtration under most environmental
conditions
• Unique plug and play control system for one button setup for the consumer/install-
er with 3 pre-programmed backwash cycles
• The 12-volt output adapter for easy installation
• The titanium oxide media (MetSorbtm HMRG) consistently helps reduce effluent
water to below the federally regulated limit of 10 ppb of both Arsenic III and V*
• Media tested to HMRG** toxicity characteristic leaching procedures showing spent
media did not detect any contaminants above regulatory limits
- Tests provided by independent lab. Contact 3M Purification Inc. for a copy of
results.
* Also known as Arsenite (AS III) and Arsenate (AS V)
** HMRG (Heavy Metal Removal Granules)
Units Not for sale in California, Iowa, Wisconsin, or Quebec.
Models:
ASB1001 / ASB2001 / ASB3001
Residential Arsenic Reduction Systems
Spec #
Quantity
ASB1001
Product Specifications:
Model
Number
Media
(Cu. Ft.) Pipe Size Dimensions Flow Rates
Height. Diameter Service1Backwash
ASB1001 1.0
1” NPT
53” (134.6 cm) 10” (25.4 cm) 5 gpm (18.9 lpm) 2.7 gpm (10.2 lpm)
ASB2001 2.0 63” (160 cm) 12” (30.5 cm) 10 gpm (37.9 lpm) 3.2 gpm (12.1 lpm)
ASB3001 3.0 74” (188 cm) 14” (35.6 cm) 15 gpm (56.8 lpm) 5.3 gpm (20.1 lpm)
NOTE:
1 Service Flow is calculated at an EBCT of 1.5 minutes. Greater arsenic reduction can be achieved by reducing flow rates

Spec #
Quantity
Model Number
Part Number
Control Valve Performance
Operating
Pressure
Operating
Temperature Height Weight Power (Volts)
Current
(amps)
Recommended
Tank Size Backwash (min) Fast Rinse (min)
20-125 psi
(138-862 kPa)
40-110°F
(4-43.3°)
7 3/8”
(18.7 cm)
4.5 lb
(2 kg)
12 V
AC Adapter
Included
0.5 6-22 gallons
(22.3-83.3 liters)
64
10 6.7
14 8

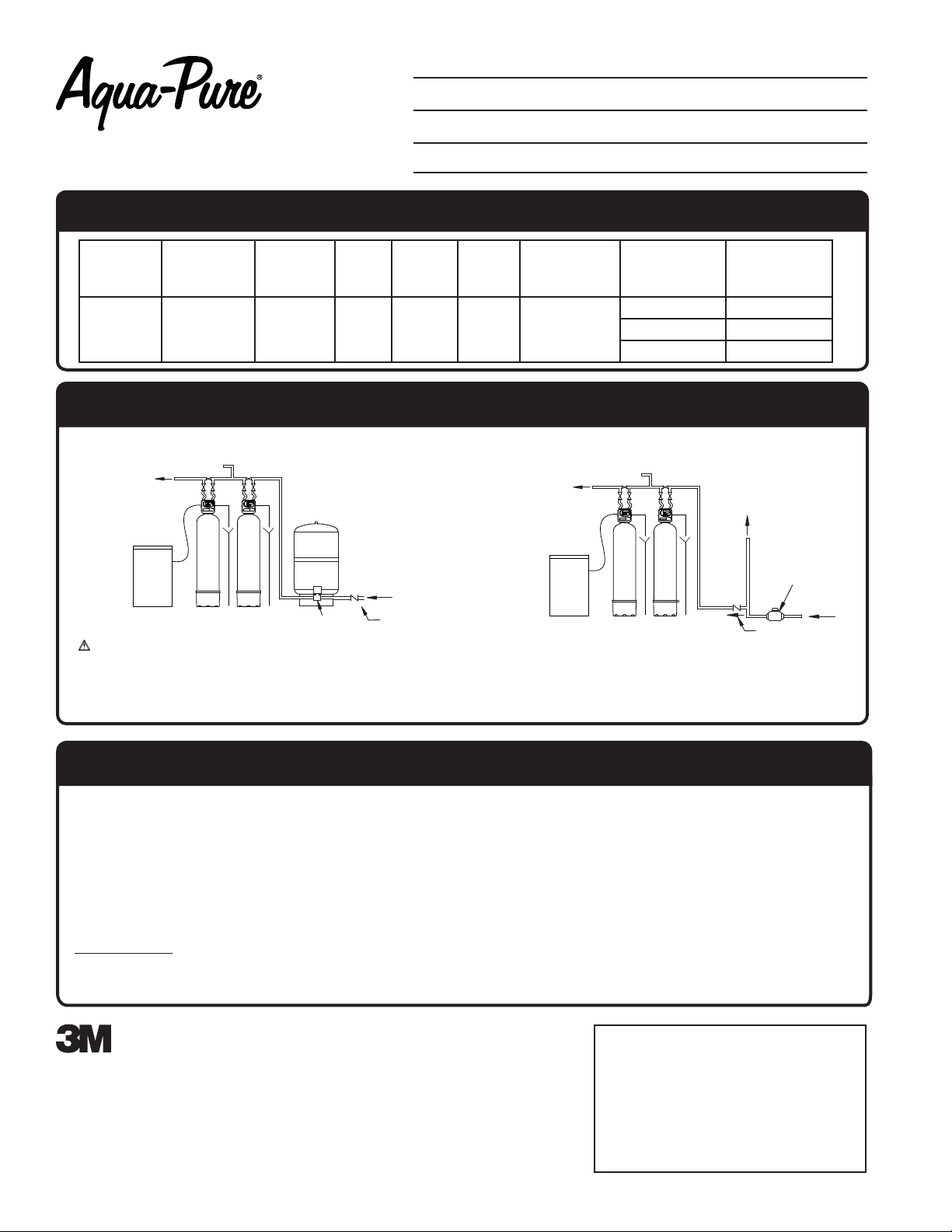

Typical Installation:
TANK
SWITCH
PRESSURE
PRESSURE
WELL
WATER
INCOMING
WELL INSTALLATION
SOFT WATER
TREATED WATER
TREATED
WATER
INCOMIN
G
METER
HIGH DEMAND
OR OTHER
LAWN SPRINKLERS
WATER FOR
CHECK VALVE
PUBLIC WATER SUPPLY INSTALLATION
SOFT WATER
TREATED WATER
TREATED
CHECK VALVE
BRINE
TANK
WATER
SOFTENER
ARSENIC
REDUCTION
SYSTEM
WASTE DRAIN WASTE DRAIN
BRINE
TA N K
WATER
SOFTENER
ARSENIC
REDUCTION
SYSTEM
WASTE DRAIN WASTE DRAIN
Distributed by:
3M Purification Inc.
400 Research Parkway
Meriden, CT 06450, U.S.A.
Tel [phone]
[phone]
Fax [phone]
www.aquapure.com
www.3Mpurification.com
Please recycle. Printed in U.S.A.
Aqua-Pure is a trademark of 3M Company used under license.
3M is a trademark of 3M Company.
© 2011 3M Company. All rights reserved.
70-0201-9305-1
REV 1211
WARNING
To reduce the risk associated with the ingestion of contaminants:
• Do not use with water that is microbiologically unsafe or of unknown quality without
adequate disinfection before or after the system.
Units Not for sale in California, Iowa, Wisconsin or Quebec.
Limited Warranty:
3M Purification Inc. warrants this Product to be free from defects in material and workmanship during normal use for the warranty period set forth below. The warranty period commences
from the date of purchase. This warranty does not cover failures resulting from abuse, misuse, alteration or damage not caused by 3M Purification Inc. or failure to follow installation
and use instructions. No warranty is given as to the service life of any filter cartridge, membrane, or media as it will vary with local water conditions and water consumption. 3M
PURIFICATION INC. MAKES NO OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR ANY IMPLIED WARRANTY OR CONDITION ARISING OUT OF A COURSE OF DEALING, CUSTOMER OR USAGE
OF TRADE. If the Product is found defective within the warranty period, your exclusive remedy and 3M Purification Inc.’s sole obligation shall be, at 3M Purification Inc.’s option, to
replace or repair the Product or refund the purchase price of the Product. This warranty does not cover labor. The remedy stated in this paragraph is Customer’s sole remedy and 3M
Purification Inc.’s exclusive obligation.
Warranty Period: One (1) year on the entire product unit; Five (5) years on the media tank only (does not include internal component parts); Five (5) years on the control valve; and Five
(5) years on salt storage container and components*
For additional information, see the entire Limited Warranty located in the product Installation and Operating Instruction manual.
Limitation of Liability: 3M Purification Inc. will not be liable for any loss or damage arising from this 3M Purification Inc. product, whether direct, indirect, special, incidental, or
consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability. Some states and countries do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you.
*Water Softeners Only
CAUTION
To reduce the risk associated with property damage due to water leakage:
• Read and follow Use Instructions before installation and use of this system.
Diagrams shown are for quick reference only. Installation must be performed in
accordance with the Installation and Use Manual accompanying the product
