3One data IES7110 Series User manual

IES7110 Series
Managed Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili, Nanshan District,
Shenzhen
Website:
www.3onedata.com
Tel:
[phone]
Fax:
[phone]
【Package checklist】
Please check whether the package and accessories are intact
while using the switch for the first time.
1.
Industrial Ethernet switch
2.
Certification
3.
Quick installation guide
4.
Warranty card
5.
DIN-Rail mounting attachment
6
CD
7.
Power line (standard
configuration of AC equipment)
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】

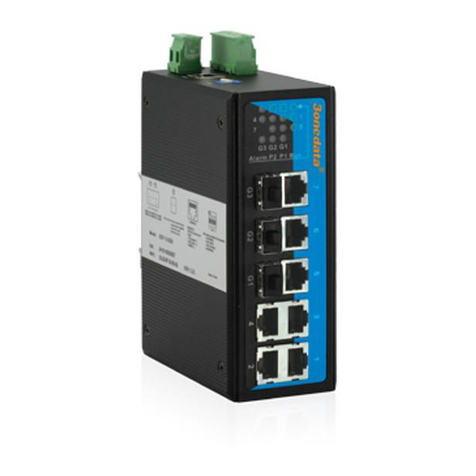

This series are 100M/Gigabit managed DIN-Rail industrial
Ethernet switch. Models as follows:
Model I. IES7110-2GS-P (12～48VDC) (2 Gigabit SFP + 8
100M copper ports + 2 12~48VDC power supplies)
Model II. IES7110-2GS-P (100～240VAC/DC) (2 Gigabit
SFP + 8 100M copper ports + 1 100~240VAC/DC power
supply)
Model III. IES7110-2GS-2F-P (12～48VDC) (2 Gigabit SFP +
6 100M copper ports + 2 100M fiber ports + 2 12~48VDC
power supplies)
Model IV. IES7110-2GS-2F-P (100～240VAC/DC) (2 Gigabit
SFP + 6 100M copper ports + 2 100M fiber ports + 1
100~240VAC/DC power supplies)
Model V. IES7110-2GS-4F-P (12～48VDC) (2 Gigabit SFP +
4 100M copper ports + 4 100M fiber ports + 2 12~48VDC
power supplies)
Model VI. IES7110-2GS-4F-P (100～240VAC/DC) (2 Gigabit
SFP + 4 100M copper ports + 4 100M fiber ports + 1
100~240VAC/DC power supply)
Model VII. IES7110-3GS-P (12～48VDC) (3 Gigabit SFP + 7
100M copper ports + 2 12~48VDC power supplies)
Model VIII. IES7110-3GT-P (12～48VDC) (3 Gigabit
copper ports + 7 100M copper ports + 2 12~48VDC power
supplies)
【Panel design】
Rear view, Top view and Bottom view
Front view of DC products
Model I Model III Model V
Model VII Model VIII
Front view of AC products

Model II Model IV Model VI
1. DIN-Rail mounting kit
2. Grounding screw
3. Relay alarm output terminal block
4. Console port
5. DC dual power supply input terminal block
6. DIP switch
7. AC single power supply input terminal block
8. Relay alarm indicator ALM/Alarm
9. Power supply input status indicator P1/P2/PWR
10. Device running indicator RUN
11. 100M Ethernet port connection indicator
12. Gigabit Ethernet port connection indicator
13. 1000Base-SFP Ethernet SFP slot
14. 10/100Base-TX Ethernet copper port
15. 100Base-FX Ethernet fiber port
16. 10/100/1000Base-T(X) Ethernet copper port
【Mounting Dimension】
Unit: mm
Attention before mounting:
Don't place or install the device in area near water or
moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power
supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;
please don't directly contact to avoid scalding.
【DIN-Rail Mounting】
For convenient usage in industrial environments, the product
adopts 35mm DIN-Rail mounting, mounting steps as below:
Check whether the DIN-Rail mounting kit thatStep 1 comes with the device is installed firmly.
Insert the bottom of DIN-Rail mounting kit (one sideStep 2 with spring support) into DIN-Rail, and then insert
the top into DIN-Rail.
Tips:
Insert a little to the bottom, lift upward and then insert
to the top.
Check and confirm the product is firmly installed onStep 3 DIN-Rail, and then mounting ends.
【Disassembling DIN-Rail】
Power off the device.Step 1 After lift the device upward slightly, first shift out theStep 2 top of DIN-Rail mounting kit, and then shift out the
bottom of DIN-Rail, disassembling ends.
Attention before powering on:
Power ON operation: first connect power line to the
connection terminal of device power supply, and then
power on.
Power OFF operation: first unpin the power plug, and
then remove the power line, please note the operation
order above.
【Power Supply Connection】
DC dual power supply
The products of model I, model III,
model V, model VII and model VIII
support DC dual power supply. And they
provide 4 pins power input terminal
blocks and two independent DC power
supply systems of PWR1 and PWR2.
The power supply supports nonpolarity and anti-reverse
connection. It can normally operate after reverse connection.
Power supply range: 12～48VDC
AC single power supply
The products of model II, model IV and
model VI support AC single power
supply and provide 4 pins 7.62mm pitch
power input terminal blocks. The definitions of terminal blocks
as follows: N/-, PG, L/+.
Power supply range: 100～240VAC/DC.
【Relay Connection】

Relay terminal blocks are a pair of normally
open contacts in the alarm relay of the device.
They are open circuit in the status of normal no
alarm, and closed when any warning message occurs. For
example: they are closed and send out alarm when power off.
The product supports 1 relay warning message output, and
warning messages output of the DC power supply or network
abnormal alarm output. It can be connected to alarm indicator,
alarm buzzer, or other switching value collecting devices for
timely warning operating staffs when the warning message
occurs.
【DIP Switch Settings】
The product provides 4 pins DIP switch for
function settings, where "ON" is the enable valid
terminal. Please power on again before
changing the DIP switch status.
DIP switch definitions as follows:
DIP
Definition
Operation
1.
reserved
-
2.
Restore factory
defaults
Set the DIP switch to ON, the
device will automatically
restore factory defaults, and
then turn off the DIP switch.
3.
Upgrade
Set the DIP switch to ON for
upgrading the device, and
then turn it off.
4.
Reserved
-
【Console Port Connection】
The device provides 1 procedure debugging port based on
serial port, and can manage the CLI command line of the
device after connected to PC. The interface adopts RJ45 port,
the RJ45 pins definition as follows:
Pin No.
2
3
5
Definition
TXD
RXD
GND
【Checking LED Indicator】
The function of each LED is described in the table as below:
LED
Status
Description
PWR/P1/P
2
ON
Power supply is connected and
running normally
OFF
Power supply is disconnected and
running abnormally.
ALM/Alarm
ON
Power supply and port link alarm
OFF
Power supply and port link without
alarm
RUN
ON
The device is powering on or
abnormal.
OFF
The device is powered off or
abnormal.
Blinking
Blink once per second, the device
is running well.
Link/ACT
(1-7/8,G1-
G2/G3)
ON
Ethernet port connection is active.
Blinking
Data transmitted
OFF
Ethernet port connection is
inactive.
【Logging in to WEB Interface】
This device supports WEB management and configuration.
Computer can access the device via Ethernet interface. The
way of logging in to device’s configuration interface via IE
browser is shown as below:
Configure the IP addresses of computer and theStep 1 device to the same network segment, and the
network between them can be mutually accessed.
Enter device’s IP address in the address bar of theStep 2 computer browser.
Enter device’s username and password in the loginStep 3 window as shown below.
Click “OK”button to login to the WEB interface ofStep 4 the device.
Note:
The default IP address of the device is “192.168.1.254”.
The default username and password of the device is
“admin”.
If the username or password is lost, user can restore it to
factory settings via device DIP switch or management
software; all modified configurations will be cleared
after restoring to factory settings, so please backup
configuration file in advance.
Please refer to user manual for specific configuration
method of logging in to WEB interface and other
configurations about network management function.
【Specification】
Panel
Gigabit SFP
1000Base-SFP, SFP slot
Gigabit copper port
10/100/1000Base-T(X)
self-adapting RJ45 port, full/half
duplex self-adaption or specified
operating mode, support
MDI/MDI-X self-adaption

100M copper port
10/100Base-T(X) self-adapting
RJ45 port, full/half duplex
self-adaption or specified
operating mode, support
MDI/MDI-X self-adaption
100M fiber port
100Base-FX, optional SC/ST/FC
port
Console port
CLI command management port
(RS-232), RJ45
Alarm interface
2 pins 7.62mm pitch terminal
blocks, support 1 relay alarm
information output, the current
load capacity is 1A@24VDC
Indicator
Power indicator, running
indicator, interface indicator and
alarm indicator
Exchange attributes
Backplane bandwidth
7.6G
Packet buffer size
1Mbit
MAC table size
8K
Power supply
Input power supply
12~48VDC or
100~240VAC/VDC
DC power supply supports dual
power supply redundancy,
nonpolarity and anti-reverse
connection
Support built-in overcurrent 4.0A
or 5.0A protection
Access terminal
4 pins 7.62mm pitch terminal
blocks
Consumption
No-load
≤6.14W@24VDC
Full-load
≤9.24W@24VDC
Environmental Limits
Working temperature
-40~75℃
Storage temperature
-40~85℃
Working humidity
5%~95% (no condensation)
Protection grade
IP40 (metal shell)
