3Q 3Q-MG-F18 User manual

Instruction Manual

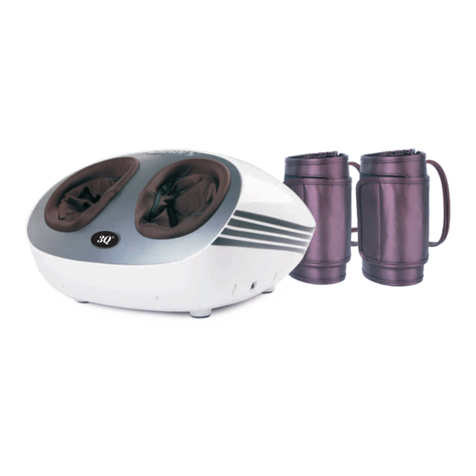

3Q Foot Massager With Heat
Model:3Q-MG-F18
Heat
Air massage
KneadingRolling
3Q lnternational, Inc.
6910 Salashan Parkway, Suite B6
Ferndale,WA 98248
United States
Tel: [phone]
Fax: [phone]
http://www.3QInternational.com

Thanks for choosing 3Q-MG-F18 3Q Foot Massager
With Heat. Please read this manual carefully before
using, Keep this manual properly for any necessary time.
Contents
Product Features
Operation Instruction
Product Maintenance and Attentions
Simple Malfunction Analysis and How to Deal with
Specification
Spare Parts and Function
Control Panel Instruction
Product Features
Nice appearance, portable and convenient.
Combines shiatsu, kneading, and air pressure massage with
heating functionality.
Kneading and shiatsu massage covers all acupuncture points
from toes to heels.
Air pressure massage relieves stress and provides relaxation.
Air pressure with three intensities.
Automatic and manual mode available.
Low and high temperature settings.
Timed automatic shut down function(15 minutes).
Safe and reliable 12V DC adapter.
Spare Parts and Function
1. Control panel: control the products' massage functions.
2. The position of rolling massage heads: massage forefoot area.
3. The position of shiatsu massage heads: massage the foot arch area.
4. The position of the kneading massage head: massage the heel area.
5. The position of the air bag: provide air pressure massage function.
6. Detachable and washable cloth cover.
7. DC12V/3A adapter.
3Q Foot Massager with Heat Manual
8. Deflate safety key
8

Control Panel Instruction
Operation Instruction
Automatic Working Mode
Manual Working Mode
Product Maintenance and Attentions
1.Please do not massage the area on the foot where there is
trauma or ulceration.
2.To prevent overload of the massage, please don't stand on
it or sit on it.
3. For new users continuous use is not recommended. The time
should be increased after you have adapted to it.
4. A duration of 30 minutes or less per session is recommended.
1. Kneading: Toggles kneading function on and
off when in manual mode
2. Air Pressure: Switches between three levels
of air pressure when in manual mode
3. Auto: Selects between the two automatic modes
4. Heating: Adjust between low and high
temperature when in either mode
5. Power: Turns massager on and off
Plug output jack of adapter into power cord jack of the foot
massager then plug input jack of the adapter into an AC power
outlet. A flashing LED indicator and a buzzer indicates that the
massager is operational.
1. Press the power button and the massager will start up in
automatic mode A. The left indicator LED, Kneading LED and
air massage LEDs will be on.
The following functions will be enabled:
a.Combination of air pressure massage with kneading function
b.Air pressure massage function
c.Kneading Massage function
the three functions above will cycle for 15 minutes before
automatic shut down occurs.
2. Pressing the auto button again will change to automatic mode b.
The following functions will be enabled:
a. Air pressure massage function
b. Kneading massage function
c. Combination of air massage with kneading function
*
3. Pressing the auto button again will change to manual mode.
The following functions will be enabled:
a. Pressing the Kneading Button will toggle the kneading
function on and off
b. Pressing the Air Massage Button will select between three
intensity levels as indicated by the LED color (green, yellow,
red)
c. Pressing the Heat button will alternate between low and high
temperature
The massager's auto shutdown function will activate after
15 minutes. This will turn off the massager.
*
Heat insensitive users should pay attention to the
surface of the application.
the three functions above will cycle for 15 minutes before
automatic
shut down occurs.
*

Simple Malfunction Analysis
and How to Deal With
Phenomena Possible Cause How to Deal With
Does not work?
Stop working?
1. The power supply is
not on
1.Connect power
supply
2. Power plug is poor
contact 2.Check the plug
3. “Power” button has
not been pressed
3.Press“power”
button
1. Power off
1. Check whether the
power supply interface
is connected well
2. Massage time is over
15mins
2. Turn on “power”
button again
Specification
Product name: 3Q Foot Massager With Heat
Model No.: 3Q-MG-F18
Voltage: DC12V
Power: 40W
1、This appliance does not intend to provide to the people who are physical
disability,sensory or nerve defect or lack of experience and common sense
to use,unless they got the supervision and guildance about how to use this
equipment from the people who take responsibility to their safety.
2. Children must be supervised to ensure that they will not take instruments to play .
5. If abnormal conditions appear during operation of the massager
such as overheating or abnormal scents immediately power off
and disconnect the massager.
6. After each session power off the system by pressing the Power
button on the controller followed by disconnecting the power plug.
Applying excessive force to the cord may result in damage.
7. Ensure the adapter is unplugged before cleaning the product.
8. Cleaning of the massager should be done using soft cotton sheets
and neutral detergents.
9. If you are receiving medical treatment or any of the following
cases, please consult your doctor and use it in accordance
with doctor's orders.
10.Do not forcibly drag or pull the power cord.
11.Do not use the massager in water or high humidity environments.
If the massager is submerged in water turn off the power and
unplug the adapter before removing the massager.
12.Do not place the massager under a pillow or blanket while in
operation.
13.Do not cover the massager while in operation. This may result in
over heating, malfunctions and damage.
14.Avoid using the massager near stoves and other heat sources.
15.Only original accessories and parts from the manufacturer should
be used with the product.
16.Dismantling or maintenance of the product by unauthorized
personnel will void any warranty`s.
17.For your personal safety and the operation of the product do not
open the zipper. We will not be responsible for any damages
incurred by such behavior.
● Cancer
● Chronic or serious disease
● Severe heart disease
● Cardiac pacemaker
● Other metal utensils, such as prosthetic
● Mental illness
● Pregnant women or children
