4 Moms rockaRoo User manual

#4M-012-01
rockaRoo™

PARTS
PIÈCES
PIEZAS
PEÇAS
1.
2.
3.
4.
5.
6.
IMPORTANT! KEEP FOR FUTURE REFERENCE
IMPORTANT! CONSERVER POUR RÉFÉRENCE ULTÉRIEURE
¡IMPORTANTE! CONSERVE PARA REFERENCIA FUTURA
IMPORTANTE! MANTER PARA REFERÊNCIA FUTURA

4
1 3
90°
2
ASSEMBLY
ASSEMBLAGE
ENSAMBLADO
MONTAGEM

2 4
1 3

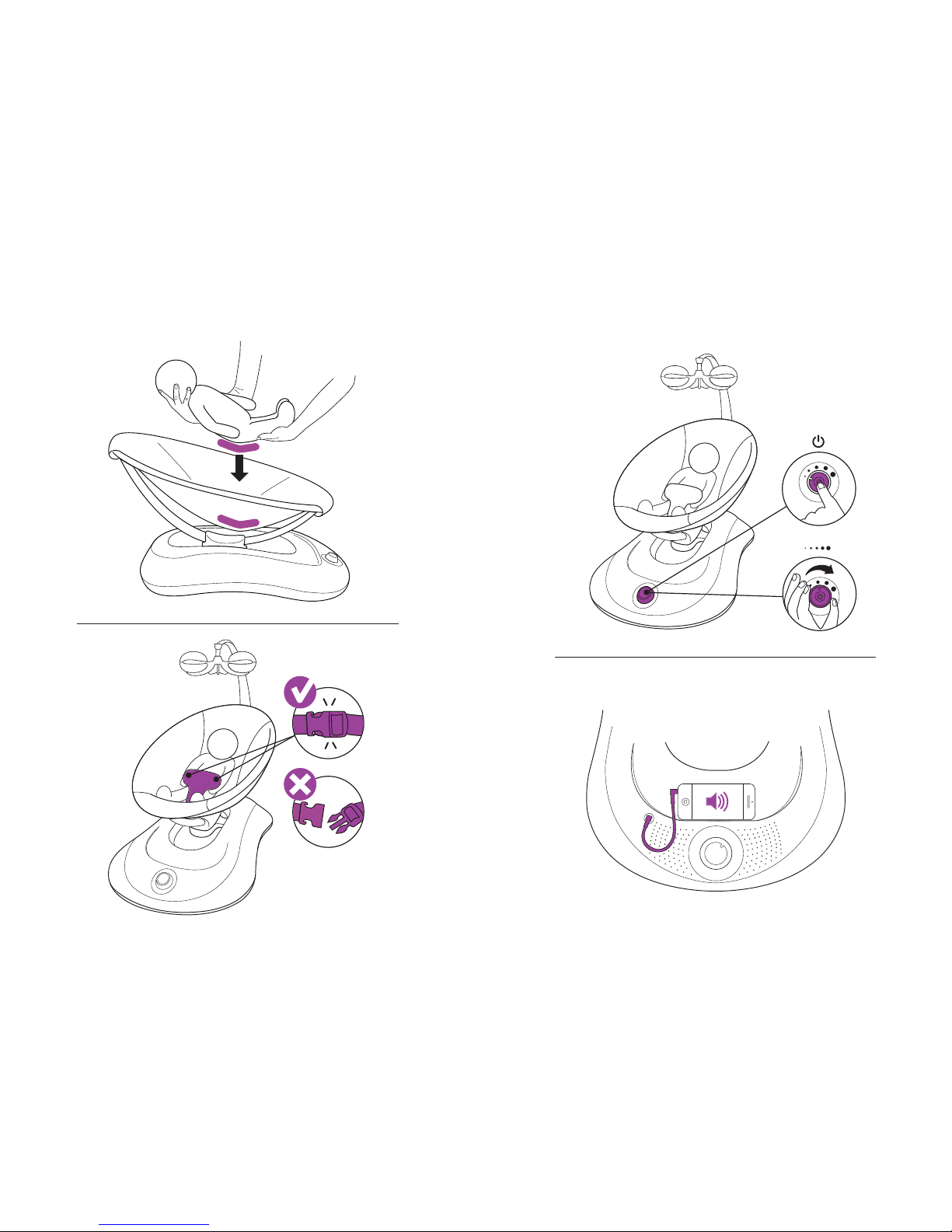

OPERATION
FONCTIONNEMENT
OPERACIÓN
OPERAÇÃO

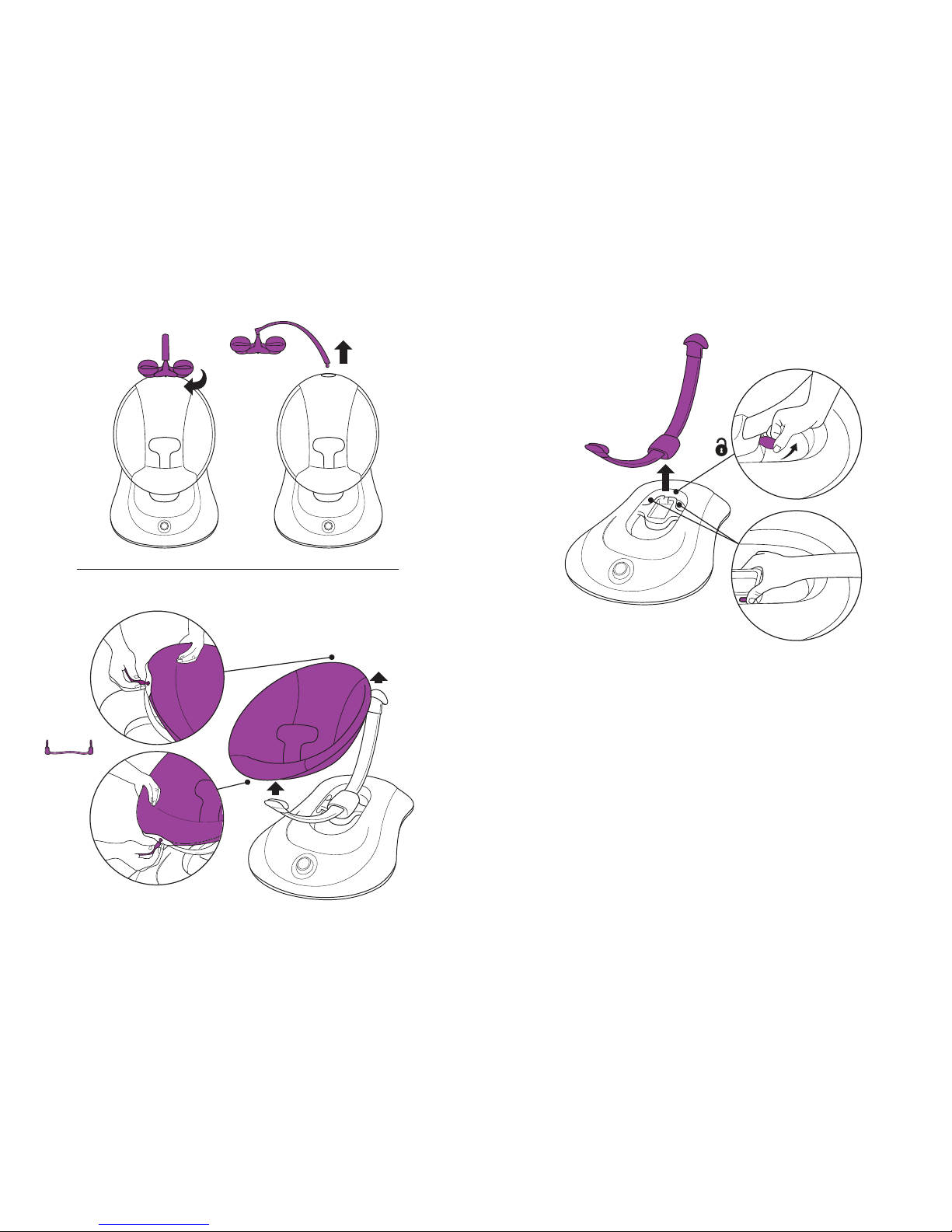

DISASSEMBLY
DÉMONTAGE
DESMONTAJE
DESMONTAGEM
2
13
90°

TABLE OF CONTENTS
TABLE DES MATIÈRES / ÍNDICE / ÍNDICE
English.......................................................................10-15
Français ....................................................................16-21
Español.....................................................................22-27
Português .................................................................28-33

English
1110
Care
For your child’s continued safety, periodically inspect the product to
ensure that all connections are securely fastened and that they do not
show signs of wear or abuse. When not in use, you may store the power
cord, MP3 cord and manual in the seat back pocket for safe keeping.
Cleaning your rockaRoo™
• The fabric seat and fabric toys are machine washable. Wash them
in cold water on the gentle cycle. Do not use bleach. Tumble dry
separately on low heat and remove promptly.
• After washing, zip the seat fabric back onto the seat ring so that the
hole for the toy bar is at the top of the seat. Snap the seat fabric into
place at both ends. Do not install the seat fabric upside down.
• The base, metal and plastic seat parts, and toy bar can be wiped
clean using a mild cleaning solution and a soft, damp cloth.
Do not immerse the base, seat parts, or toy bar.
• Disconnect the rockaRoo™from the power supply before
cleaning the base.
Troubleshooting Problems
Unit has stopped and light ring
ashed briey.
The unit doesn’t turn on.
I can’t hear music from an
attached music playing device.
Problem Solution
Check for any obstruction that
may have blocked seat motion.
Clear the obstruction and press
the button to resume. If this
doesn’t resolve the issue, the child
may have been placed too high
or too low in the seat. Adjust the
position of the child and press the
button to resume.
Check that the unit is connected
to a power source.
Try adjusting the volume on the
music playing device. If it still
doesn’t work, check to make
sure the MP3 cord is plugged in
completely on both ends.
Troubleshooting Problems
The toy bar won’t go in
completely
The lever won’t go down when
I press on it
I can’t get the seat ring to
come out during disassembly
The speed does not increase
when I adjust the knob to
the right.
Problem Solution
Make sure the toy bar is pointing
to the side when you place it in
the hole. Press down and rotate
the toy bar to the front. If it still
doesn’t work, try pointing the toy
bar towards the other side before
rotating it to the front.
In order to ensure a secure
connection the lever needs to be
pressed with a certain amount
of force. Try pressing down with
additional force.
Use the end of the MP3 cord to
press into the hole and compress
the round lock feature. With it still
compressed, lift that end of the
seat ring off of the base. Repeat for
the other end.
Check the position of the child in
the seat. If the child is positioned
too far forward or too far back,
adjust their position and wait a few
seconds for the speed to adjust.
For customers in the US & Canada only:
If you have any further questions or comments not covered here,
please contact Customer Service:
Phone: [phone] Email: [email protected]
For international customers:
Please visit http://www.4moms.com/support/international

English
WARNING
FAILURE TO FOLLOW THESE WARNINGS AND ASSEMBLY
INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.
READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE
OF THE DEVICE. ADULT ASSEMBLY REQUIRED. DO
NOT USE THIS DEVICE IF IT IS DAMAGED OR BROKEN.
KEEP SMALL PARTS AWAY FROM CHILDREN.
In the event of damage or problems, discontinue use and
contact 4moms®Customer Service.
FALL HAZARD
Never leave child unattended.
Use only on oor. Never use on any elevated surface.
Cam Lever must be locked before use
(See step 1 in Assembly Instructions).
Always use the restraint system. Adjust the restraint system to
t snugly around your child.
The weight of child must not exceed 25lbs (11.3 kg).
Do not use the rockaRoo™once your child can sit unaided or
attempts to climb out.
Never use the toy bar to carry the rockaRoo™.
Do not lift the rockaRoo™while occupied.
Never use the rockaRoo™as a car seat.
Do not use the rockaRoo™if any components are
broken or missing.
Do not use accessories or replacement parts other than
those approved by 4moms®.
Storage pocket is intended for the power cord, MP3 cord and
manual. Do not store any other items in the seat back pocket.
Do not use product near water. Do not use the rockaRoo™
base or power supply if either has been exposed to liquid.
SUFFOCATION HAZARD
The rockaRoo™is not intended for prolonged periods of sleeping.
Never use on a soft surface (bed, sofa, cushion), as seat may
tip over and cause suffocation.
Never add a pillow, comforter or padding. Use only the seat
provided by 4moms®. The 4moms®newborn insert may be
used with the rockaRoo™.
Some newborns cannot sit in a reclined or upright position
and have special needs. Check with your doctor about when
to start using this product.
STRANGULATION HAZARD:
Child can strangle in loose restraint straps. NEVER leave child in
product when straps are loose or undone.
DO NOT place product in any location where there are cords,
such as window blind cords, drapes, phone cords, etc.
Strings can cause strangulation. DO NOT place items with a string
around your child’s neck, such as hood strings or pacier cords
while using product.
DO NOT suspend strings over the product or attach strings to toys.
Do not hang toys from the toy bar other than those provided by
4moms®for use with this product.
Choking Hazard: Keep MP3 cord away from infant.
DO NOT USE PRODUCT without the fabric seat.
THIS PRODUCT REQUIRES ADULT ASSEMBLY. Follow assembly
instructions carefully. If you experience any difculties, please
contact 4moms®Customer Service.
Only use the power cord provided. Do not place the power cord
within arm's reach of the baby.
For indoor use only.
1312

English
Warranty
4moms®warrants to the original purchaser of every new 4moms®
rockaRoo™that the unit will be free from defects in material and
workmanship, under normal and proper use as specied by
4moms®, and upon proper usage in accordance with the instruction
manual supplied with each rockaRoo™unit. 4moms®’ obligation
under this warranty is limited to a period of twelve (12) months from
the date of purchase and in the country of original purchase. If the
unit is determined by 4moms®to have been defective within twelve
(12) months of purchase, the warranty will cover the repair of the
unit, including labor charges, and defective parts or assemblies.
The warranty shall include standard labor charges and applicable
parts as determined by 4moms®. 4moms®assumes no liability for
parts or labor coverage for component failure or other damage
to the unit resulting from improper usage or failure to clean and/or
maintain product as set forth in the warranty provided with the unit.
This warranty does not cover claims resulting from misuse, failure
to comply with the instructions on installation, maintenance and
use, abuse, alteration, involvement in an accident, and normal
wear and tear. 4moms®does not assume any responsibility for
personal injury or property damage incurred due to improper use or
unauthorized modication of the rockaRoo™.
Registration
While 4moms®does extensive testing above and beyond that
required by law, if through some unforeseen circumstance we need
to issue a recall, we ask that you please register your rockaRoo™.
We have two easy ways to register: either ll out the enclosed
registration card or register online at www.4moms.com.
For U.S. & Canada Customers Only
Compliance
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Warning: Changes or modications to this unit not expressly approved
by Thorley Industries LLC d.b.a 4moms®could void the user’s authority
to operate the equipment.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
For U.S. & Canada Customers Only
1514

Français
Entretien
Pour garantir la sécurité permanente de votre enfant, inspectez
régulièrement le produit pour vous assurer que toutes les connexions
sont solides et qu’elles ne présentent aucun signe d’usure ou d'abus.
Lorsqu’ils ne sont pas utilisés, vous pouvez ranger le cordon électrique,
le cordon du MP3 et le manuel dans la pochette arrière du siège.
Nettoyage de votre rockaRoo™
• La housse et les jouets en tissu sont lavables en machine. Lavez-les
à l’eau froide, cycle délicat. N'utilisez pas d’eau de javel. Séchez-les
séparément à basse température à la sécheuse et sortez-les rapidement.
• Après lavage, fermeture du tissu de dossier de siège sur la bague
de siège de telle sorte que le trou pour la barre de jouet est dans la
partie supérieure du siège. Enclenchez le tissu siège en place aux
deux extrémités. Ne pas installer le tissu du siège à l'envers.
• La base, les pièces métalliques et en plastique du siège et l’arc à
jouets peuvent être essuyés avec un chiffon doux humide imbibé
d’un détergent doux. N’immergez pas la base, les pièces du siège ou
l’arc à jouets.
• Débranchez le rockaRoo™avant de nettoyer la base.
En cas de problème
Le rockaRoo™s’est arrêté est
l'anneau lumineux clignote
brièvement.
Le rockaRoo™ne s’allume pas.
Je ne peux pas entendre la
musique jouée sur un lecteur
de musique branché.
Problème Solution
Vériez que le mouvement du
siège ne soit pas bloqué. Dégagez
toute obstruction et appuyez sur
le bouton pour le remettre en
marche. Si le problème n’est pas
résolu, l'enfant peut être assis trop
haut ou trop bas dans le siège.
Réglez la position de l’enfant
et appuyez sur le bouton pour
remettre le siège en marche.
Vériez qu’il est bien branché à
une source de courant.
Essayez de régler le volume
du lecteur de musique. S’il ne
fonctionne toujours pas, vériez
que le cordon du MP3 est bien
enfoncé de chaque côté.
En cas de problème
L’arc à jouets ne s’enfonce
pas complètement.
Le levier ne s’abaisse pas
lorsque j'appuie dessus.
Je n'arrive pas à sortir l’anneau
du siège lors du démontage.
La vitesse reste la même
lorsque je tourne le bouton
vers la droite.
Problème Solution
Assurez-vous que l'arc à jouets est
orienté sur le côté lorsque vous le
placer dans le trou. Appuyez sur
l’arc et faites-le tourner vers l’avant.
Si vous ne parvenez toujours pas
à le mettre en place, essayez de
l'orienter de l'autre côté avant de
le faire pivoter vers l'avant.
Pour assurer une connexion
sécurisée, le levier doit être
enfoncé avec une certaine force.
Essayez d’appuyer un peu plus fort.
Utilisez l'extrémité du cordon du
casque pour l’enfoncer dans le
trou et comprimer le système de
verrouillage arrondi. En maintenant
la pression, soulevez cette
extrémité de l’anneau de siège de
la base. Répétez de l'autre côté.
Vériez la position de l'enfant dans
le siège. S’il est trop en avant ou
trop en arrière, repositionnez-le et
attendez quelques secondes que
la vitesse s’ajuste.
Clients des États-Unis et du Canada uniquement :
Pour toute autre question ou tout commentaire non traités ici, veuillez
contacter le service après-vente :
Téléphone : 1-888-614-6667 Courriel : [email protected]
Clients internationaux :
Veuillez vous rendre sur le site http://www.4moms.com/support/international
1716
