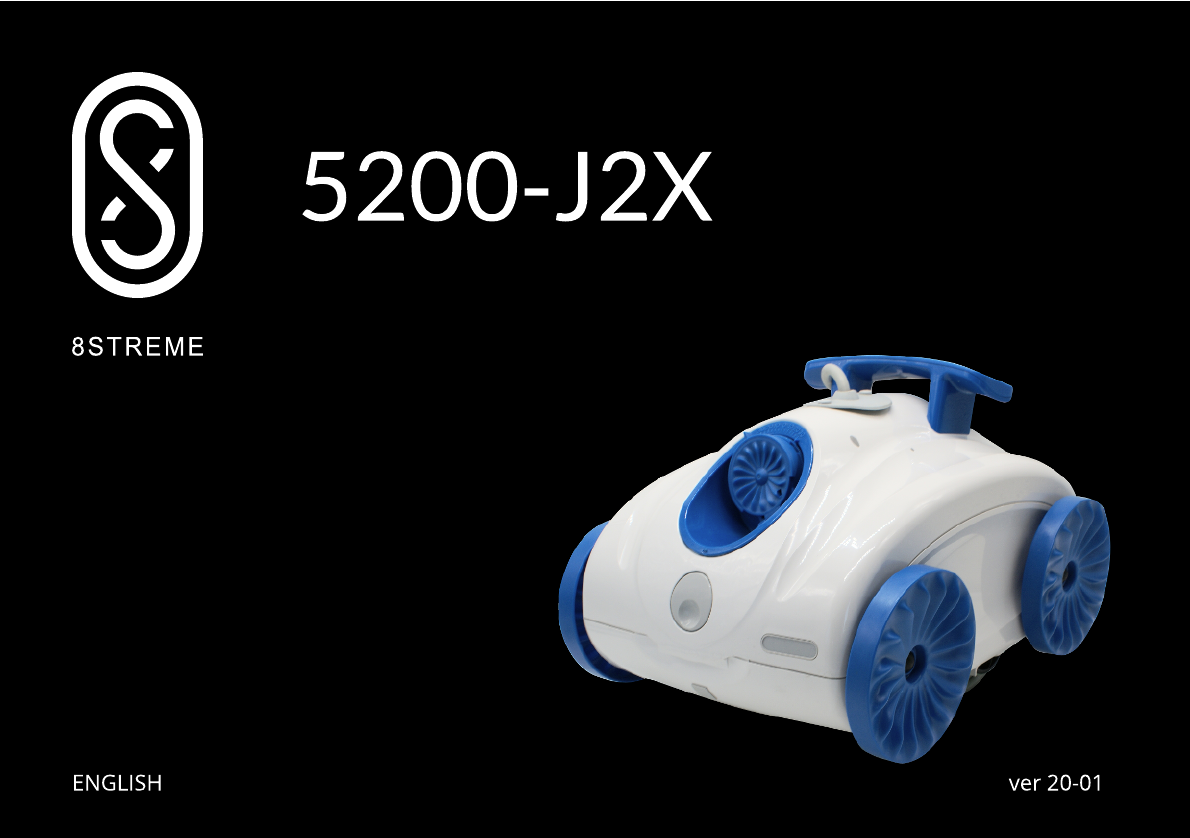

8 STREME 5200-J2X User manual

5200-J2X
ver 20-01ENGLISH

EN
Congratulationsonthepurchaseof your new 8STREME5200-J2Xpool cleaner.It isapowerful autonomousrobot
deliveredreadyto use. Thisrobot comeswith aneasyaccessibledebrisbag.
Pleasecheck thepackageto makesurethat all partsareready to beinstalled.
If any partsaremissingor damaged,pleasecontact 8STREMEdirectly on www.8streme.eu
5200-J2X
Page2

EN
01Product features
02Warningsand Safetyinformations
03Packagecontents
04Start-up
05Adjusting Direction and Speed Control
06Cleaning thefilter bag
07Cleaning theimpeller
08Cleaning therollers
09Troubleshooting

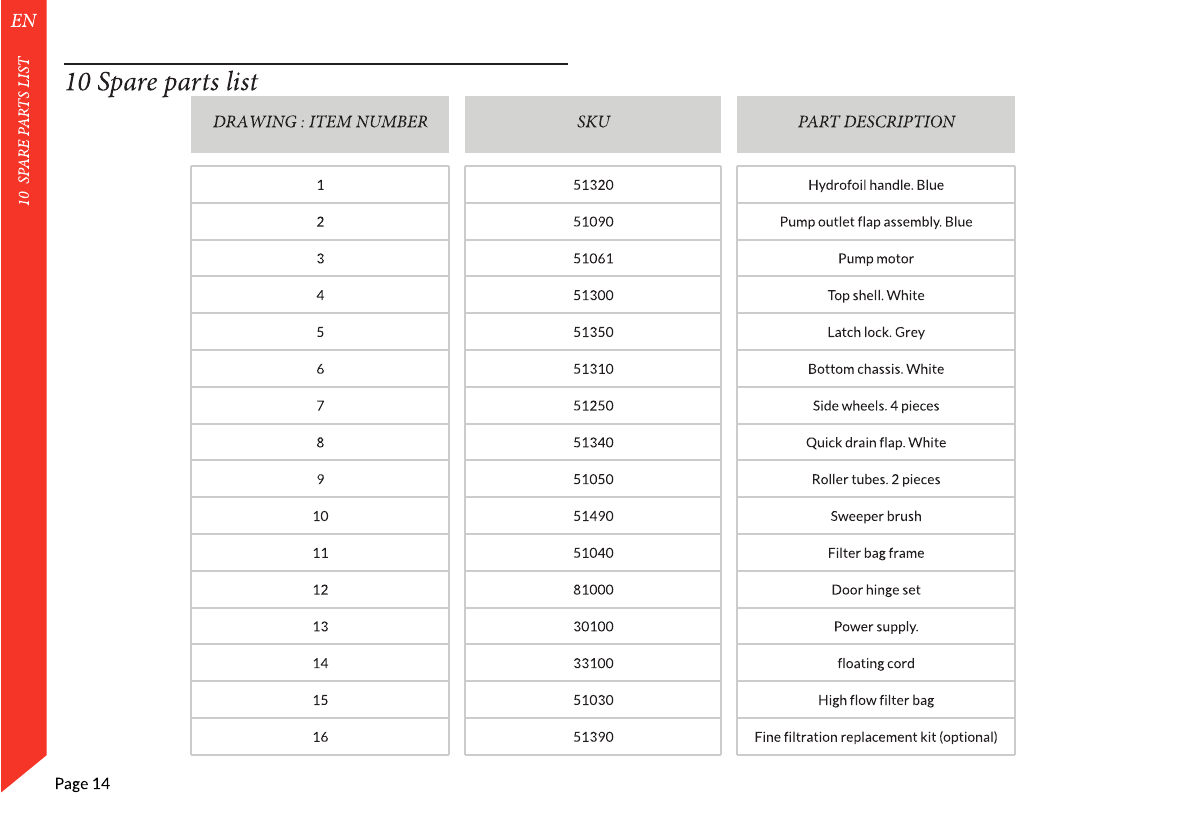

10Sparepartslist
11Sparepartsdrawing
.................................................................... p04.
......................................................... p04.
.................................................................... p05.
.................................................................... p06.
............................................... p08.
.................................................................... p09.
.................................................................... p10.
.................................................................... p10.
.................................................................... p11.
.................................................................... p14.
.................................................................... p15.
Tableofcontents
Page3

EN
MaximumDepth:1,20m
Maximumsizeof thepool:4.50m
Input current:100-130VAC/ 200-230V AC
Output current:<20VDC

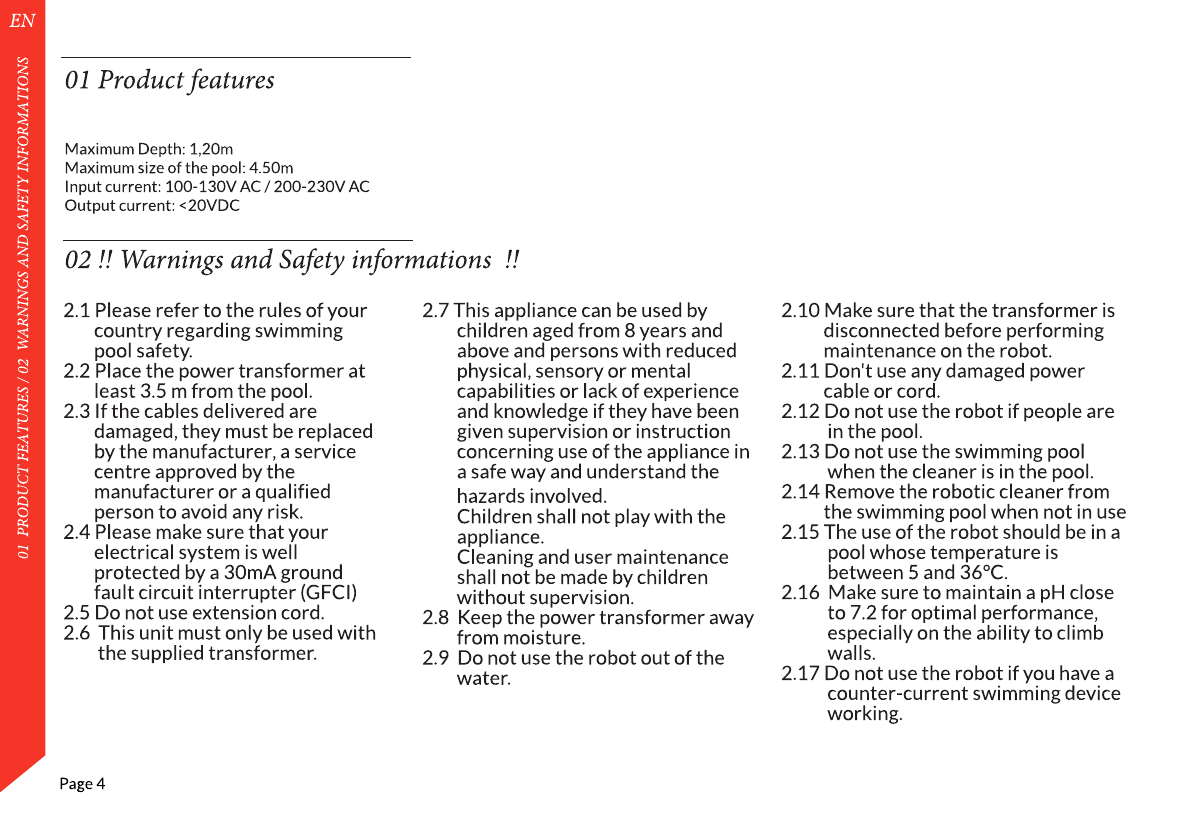

01Product features
01 PRODUCT FEATURES/ 02 WARNINGSAND SAFETYINFORMATIONS
Page4
02!!WarningsandSafetyinformations !!
2.1 Pleaserefer to therulesof your
country regardingswimming
pool safety.
2.2 Placethepower transformer at
least 3.5 mfrom thepool.
2.3 If thecablesdelivered are
damaged,theymust bereplaced
bythemanufacturer,aservice
centreapproved by the
manufacturer or aqualified
person toavoidanyrisk.
2.4 Pleasemakesurethat your
electrical systemiswell
protectedbya30mAground
fault circuit interrupter (GFCI)
2.5 Donot useextensioncord.
2.6 Thisunit must onlybeusedwith
thesuppliedtransformer.
2.7 Thisappliancecan beusedby
childrenagedfrom8 yearsand
aboveandpersonswithreduced
physical,sensoryor mental
capabilitiesor lack of experience
andknowledgeif they havebeen
givensupervisionor instruction
concerninguseof theappliancein
asafeway and understand the
hazardsinvolved.
Childrenshall not play with the
appliance.
Cleaninganduser maintenance
shall not bemadebychildren
without supervision.
2.8 Keepthepower transformer away
frommoisture.
2.9 Donot usetherobot out of the
water.
2.10 Makesurethat thetransformer is
disconnected beforeperforming
maintenanceontherobot.
2.11 Don't useany damagedpower
cableor cord.
2.12 Do not usetherobot if peopleare
inthepool.
2.13 Do not usetheswimmingpool
when thecleaner isinthepool.
2.14 Removetheroboticcleaner from
theswimmingpool whennot inuse
2.15 Theuseof therobot should bein a
pool whosetemperatureis
between 5 and 36°C.
2.16 Makesuretomaintain apH close
to7.2 for optimal performance,
especiallyon theabilityto climb
walls.
2.17 Do not usetherobot if youhavea
counter-current swimmingdevice
working.

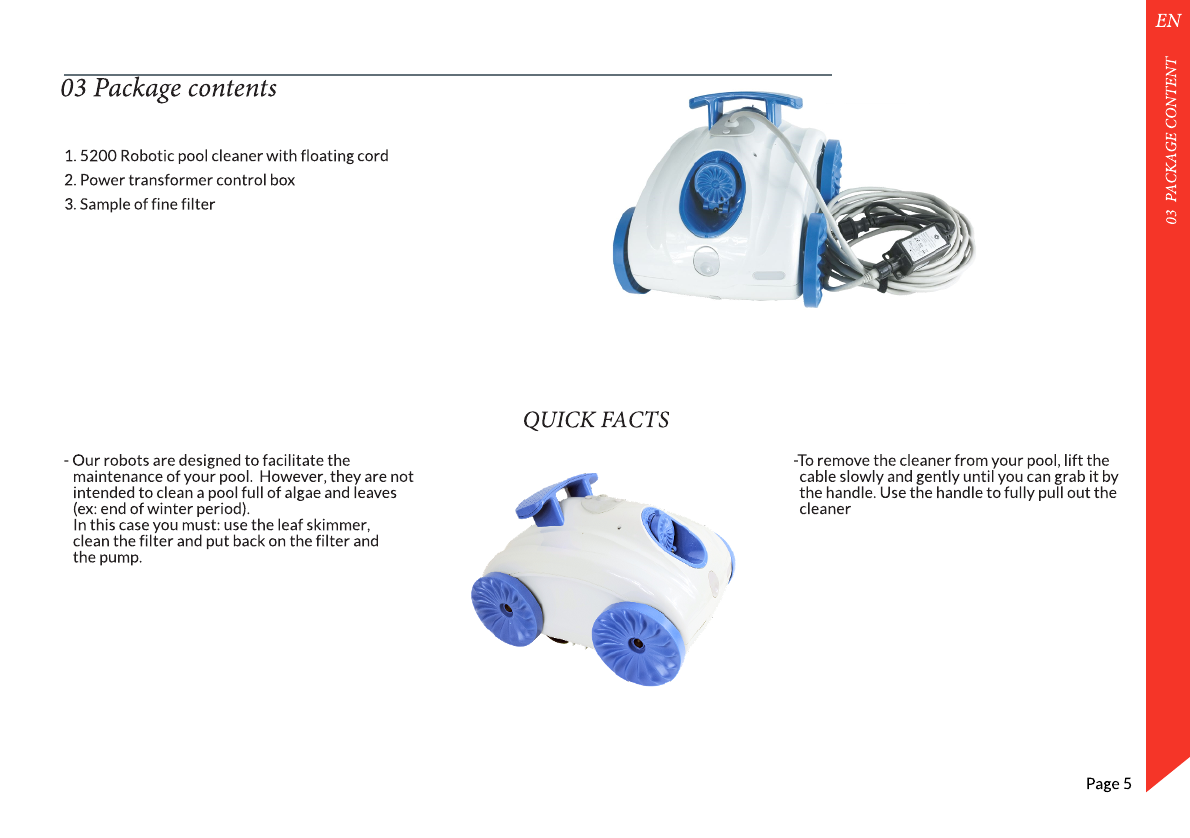

1.5200 Roboticpool cleaner with floatingcord
2.Power transformer control box
3.Sampleof finefilter
03Packagecontents
-Our robotsaredesignedtofacilitatethe
maintenanceof your pool. However,they arenot
intended to clean apool full of algaeandleaves
(ex:endof winter period).
In thiscaseyou must:use the leaf skimmer,
clean thefilter and put back on thefilter and
thepump.
-Toremovethecleaner fromyour pool,lift the
cableslowly and gently until youcangrab it by
thehandle.Usethehandleto fully pull out the
cleaner
QUICKFACTS
EN
03 PACKAGECONTENT
Page5

EN

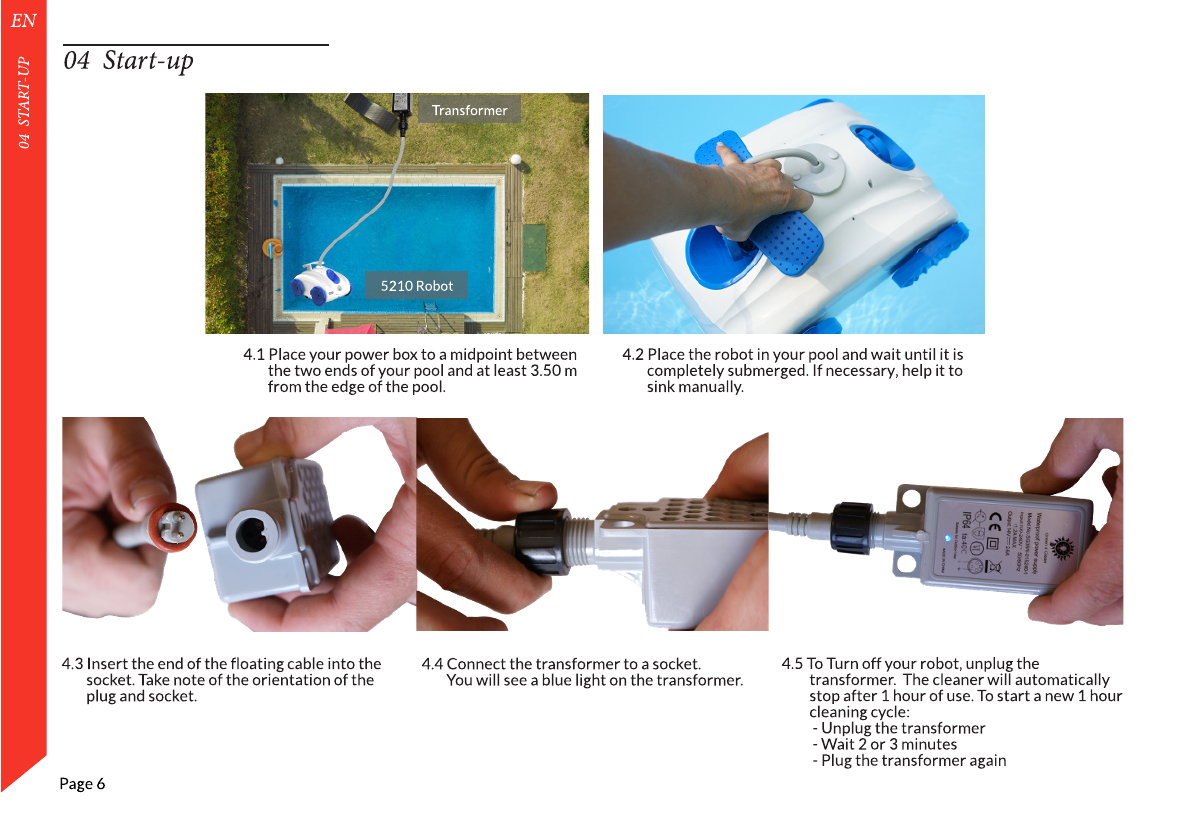

04 Start-up
04 START-UP
4.1 Placeyour power box to amidpoint between
thetwo endsof your pool andat least 3.50 m
fromtheedgeof thepool.
4.2 Placetherobot inyour pool and wait until it is
completely submerged.If necessary,helpit to
sink manually.
Transformer
5210 Robot
4.4 Connect thetransformer to asocket.
You will seeabluelight on thetransformer.
4.3 Insert theend of thefloatingcableinto the
socket.Takenoteof theorientationof the
plugand socket.
4.5 ToTurn off your robot,unplugthe
transformer. Thecleaner will automatically
stop after 1 hour of use.To start anew 1 hour
cleaningcycle:
- Unplugthetransformer
- Wait 2 or 3 minutes
- Plugthetransformer again
Page6

EN

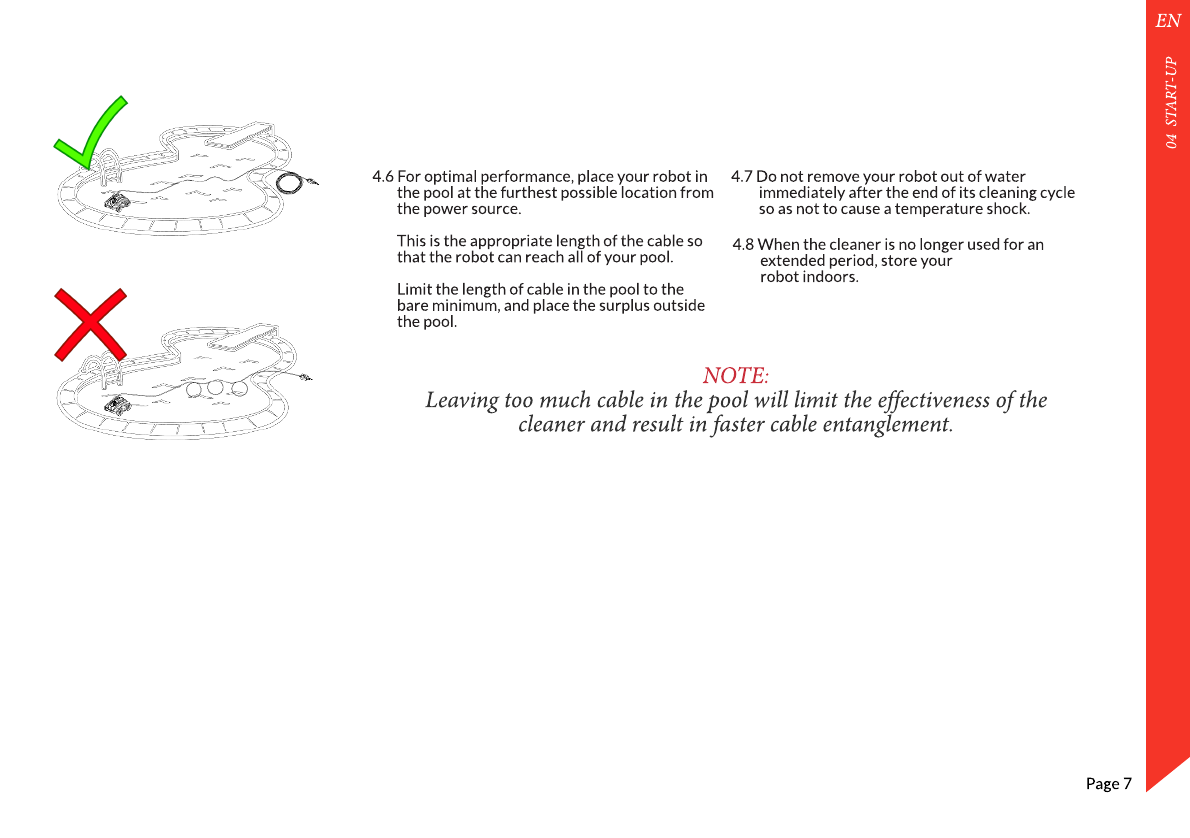

4.6 For optimal performance,placeyour robot in
thepool at thefurthest possible location from
thepower source.
Thisistheappropriatelength of thecableso
that therobot can reachall of your pool.
Limit thelength of cablein thepool to the
bareminimum,andplacethesurplusoutside
thepool.
NOTE:
Leavingtoomuchcableinthepool will limit theeffectivenessofthe
cleaner andresult infaster cableentanglement.
04 START-UP
4.7 Do not removeyour robot out of water
immediately after theendof itscleaningcycle
so asnot to causeatemperatureshock.
4.8 Whenthecleaner isno longer used for an
extended period,storeyour
robot indoors.
Page7

EN
05 ADJUSTINGDIRECTION AND SPEED CONTROL

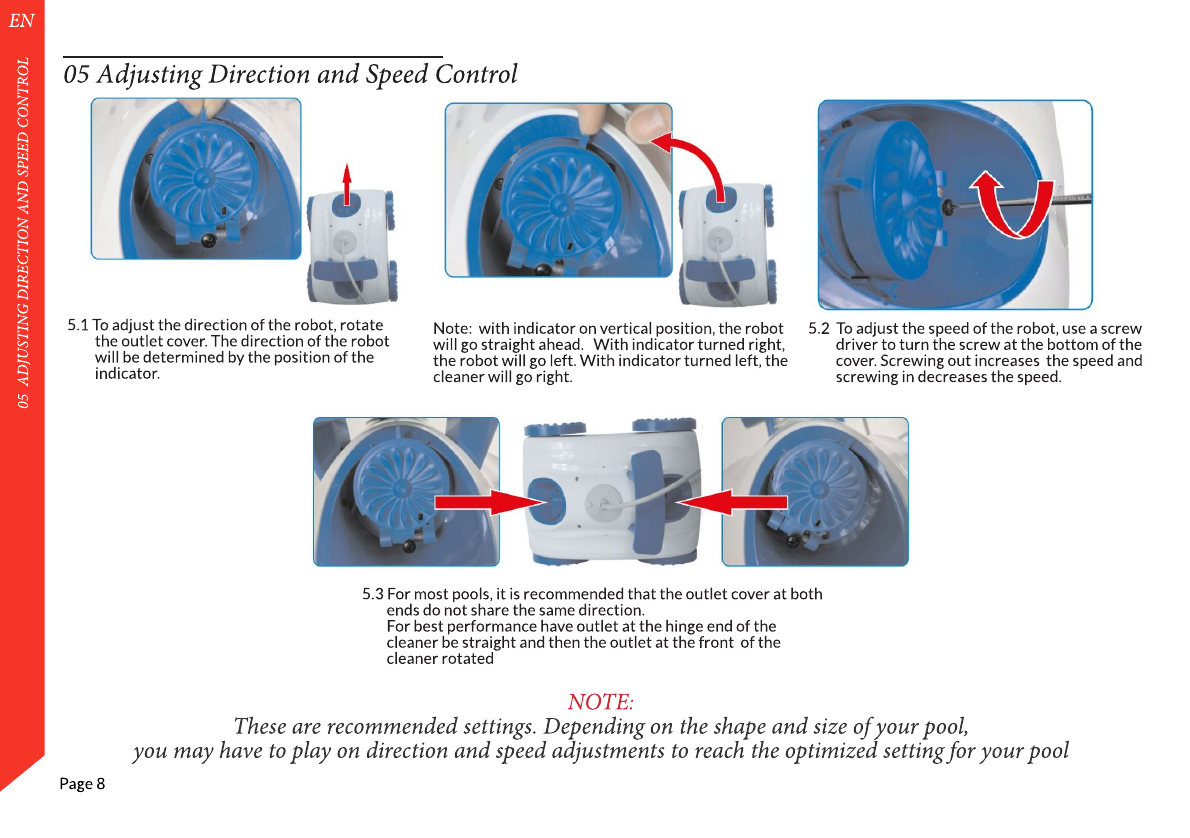

05AdjustingDirectionandSpeedControl
5.2 To adjust thespeedof therobot,useascrew
driver to turn thescrew at thebottomof the
cover.Screwingout increases thespeedand
screwingin decreasesthespeed.
5.1 To adjust thedirection of therobot,rotate
theoutlet cover.Thedirectionof therobot
will bedeterminedby theposition of the
indicator.
Note: withindicator on vertical position,therobot
will go straight ahead. With indicator turned right,
therobot will goleft.With indicator turnedleft,the
cleaner will goright.
5.3 For most pools,it isrecommendedthat theoutlet cover at both
endsdo not sharethesamedirection.
For best performancehaveoutlet at thehingeendof the
cleaner bestraight andthentheoutlet at thefront of the
cleaner rotated
NOTE:
Thesearerecommendedsettings.Dependingontheshapeandsizeofyour pool,
youmayhavetoplayondirectionandspeedadjustmentstoreachtheoptimizedsettingfor your pool
Page8

EN
6.1 Pressin thebuttonat thefront of thecleaner
andlift upthetop shell.Continueto
lift up theshell until you hear a?click?at the
hingeandtheshell staysin place.
06Cleaningthefilter bag
6.5 Dumpout the debrisinsidethebag.Usea
hoseto spraywater andclean thebag.
06 CLEANINGTHEFILTERBAG
6.2 Pull back theredtabsononesideand
completely lift upbagframeonthat side.
6.4 Pull off theelasticband onthebagfrom frame
6.3 Repeat for opposite side.
6.6 Wrap elasticband of bagback onto theframe.
Aligntheredribbonwiththetab of theblack
plasticframe.
Pull back thered tabsandpush theframe
back into theopening.The frameisall the
way in whenthetabsaresittingontopof
theframe.
Page9

EN
07 CLEANINGTHEIMPELLER/ 08CLEANINGTHEROLLERS

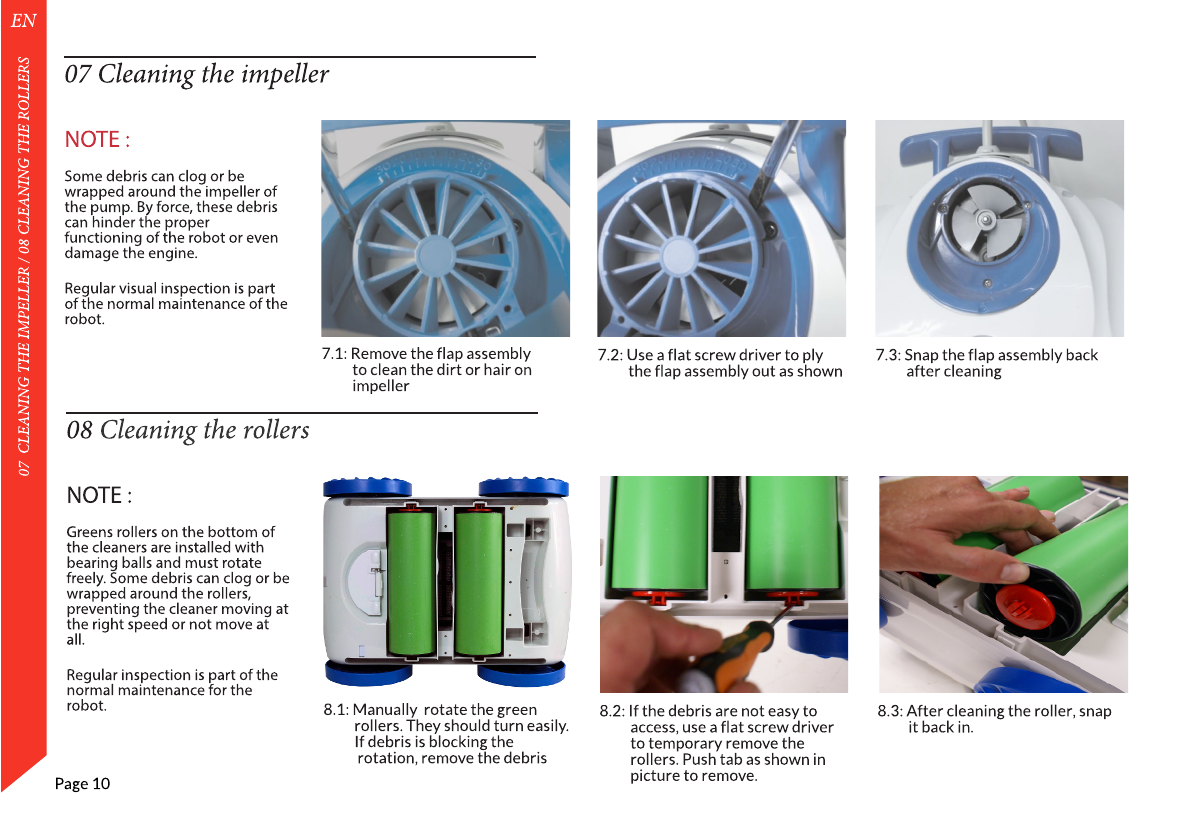

07Cleaningtheimpeller
NOTE:
Somedebriscan clog or be
wrapped around theimpeller of
thepump.Byforce,thesedebris
can hinder theproper
functioning of therobot or even
damagetheengine.
Regular visual inspection ispart
of thenormal maintenanceof the
robot.
7.1:Removetheflapassembly
tocleanthedirt or hair on
impeller
7.2:Useaflat screw driver toply
theflapassembly out asshown 7.3:Snapthe flapassembly back after cleaning
08Cleaningtherollers
NOTE:
Greensrollerson thebottom of
thecleanersareinstalled with
bearing ballsand must rotate
freely.Somedebriscan clog or be
wrapped around therollers,
preventing thecleaner moving at
theright speed or not moveat
all.
Regular inspectionispart of the
normal maintenancefor the
robot. 8.1:Manually rotatethegreen
rollers.They shouldturneasily.
If debrisisblockingthe
rotation,removethedebris
8.2:If thedebrisarenot easy to
access,useaflat screw driver
totemporaryremovethe
rollers.Push tabasshownin
pictureto remove.
8.3:After cleaningtheroller,snap
it back in.
Page10

EN
PROBLEM
Therobot floatsonthesurface.
Therobot doesnot clean all areasof thepool.
Therobot doesnot recover debrisduringoperation.
Fineparticles(dust or dirt,pollen...)areejectedby
theimpeller.
- Immersionof the robot in the pool.
- Use of the finefilter.
- Water level in the pool.
-Not enough/ toomuch cablefloatinginthepool.
- The robot doesnot receiveenoughpower.
- Bagclogged / full.
- An object isstuck in theimpellersor thegrids
locatedin front of the impeller.
- Debrisaretoo fine,therobot ismadeto pick up
theparticlesmorethan50microns(withthefine
filter insidethebasket).
CAUSE(S)
-Whenyouput therobot inthepool,let it sinkand
reachthe floor beforeyou turn it on.
- If you useanoptional finefilter,removethefilter
fromitsplasticwrap,immersethefilter in thewater
sothat it isalreadywet beforeyou put it intherobot
and let therobot settleonthefloor beforeyou
turn it on.
- If your pool water level istoo high,therobot might
turn aroundand takein theair if it touchesthetop
seats,inthiscaseto adjust thelevel of thepool.
-Makesurethelengthof floatingcableintroduced
in thepool isjust therequired length.
- Removeanyexcesscablelength fromthepool and
leavethisexcesslength outsidethepool next to the
power supply box.
- Insert the robot at the center point of the pool.
If your pool isoval or rectangular,thispoint isthe
middleof thelength.
- Checktheconnection of the cables.
-Clean thebag.Clean thefine
filter if youuse thisaccessory.
-Checkif thebagisproperly inserted.(See
chapter Cleaningof thefilter bag).
-Checkthat thereareno foreignobjectsinthe
impellersor blockedinthegridin front of the
impellers.
-Checktheattachment of thebag,pressit if
necessary to lock it.
- Useafinefilter (check itemnumber ontheparts
drawing16,sku51390 filters)on the
other hand do not forget that it isthefiltrationof
your swimmingpool which ensuresthecleaningof
theparticlesof lessthan50 microns.
SOLUTION(S)
9TROUBLESHOOTING
9 TROUBLESHOOTING
Page11

EN
Therobot movesinonedirection
Therobot doesnot moveand thefiltrationpump
doesnot work either.Therobot doesn't work any
longer.
Thepumprunsbut therobot doesnot move.The
robot turnson but staysonthespot.
Therobot stopsafter afew minutes
-An object blockstherollers,thewheelsof therobot
or interferingwith themovement of therobot.
-Therobot isnot connectedto apower source.
-Power off
-No/ not enough power istransmittedtotherobot
- An object blocksthe rollers,.
-Possibility of motor problem
-Connectionof thefloatingcable
-Possibility of fault of thefloatingcable
-Possibility of motor leakage
-Unplugpower supplyand takerobot out of water.
Openthecleaner toinspect thecleaner.
-Checkthat thereareno foreignobjectsinthe
impellers.
-Check that thereareno foreign object blockingthe
rollerslocatedbelow thecleaner.
-Checkthat thepower sourceisactivebyplugging
another deviceinto the power outlet.
- Checkthat the power supply isturnedon.
- Check all connectionsof therobot to the power
source.
-Checkthat thereareno foreignobjectsinthe
impellers.
-Unplugthepower andtakeout therobot inthe
water.Openthecover of thebasket andremovethe
basket.
-Checkthat thereareno foreignobjectsinthe
impellers.
- Check that thereareno foreign object blockingthe
rollerslocatedbelow thecleaner.
-Contact theAfter-salesService
-Checktheconnectionof thefloatingcable.
Disconnect and reconnect asneeded.
-Checkthestatusof theconnectorsat theendsof
your cables(damaged,rusted,etc.)
PROBLEM CAUSE(S) SOLUTION(S)
9 TROUBLESHOOTING
Therobot movesslower thanbefore -Therobot istoo heavy - Theflow isnot sufficient
-Cablesconnections
-Checkthebagandcleanit if necessary.
-Checkthat thereareno foreignobjectsinthe
impellers.
-Check that thereareno foreign object blockingthe
rollerslocatedbelow thecleaner.
-Checkthestatusof theconnectorsat theendsof
your cables(damaged,rusted,etc.)
Page12

EN

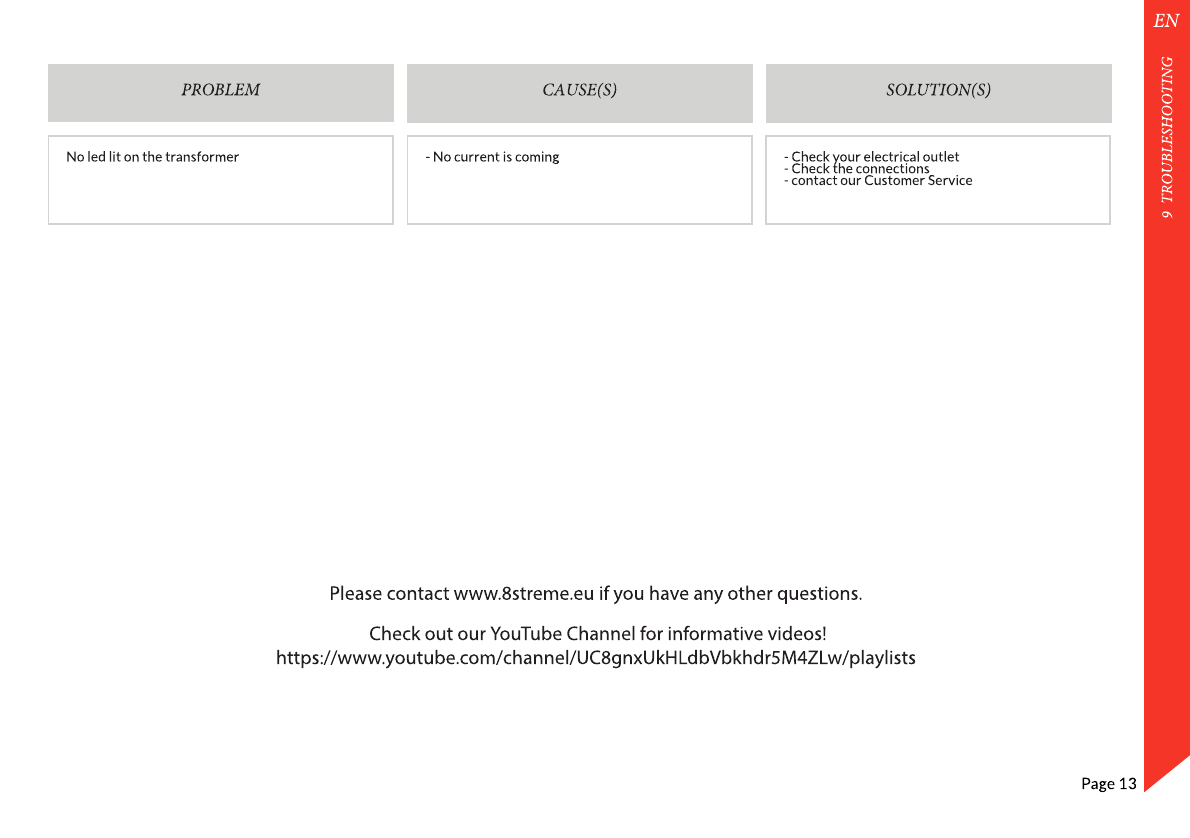

No led lit on thetransformer - No current iscoming - Check your electrical outlet
- Check the connections
-contact our Customer Service
Pleasecontact www.8streme.eu if you haveanyother questions.
Checkout ourYouTubeChannel for informativevideos!
https://www.youtube.com/channel/UC8gnxUkHLdbVbkhdr5M4ZLw/playlists
PROBLEM CAUSE(S) SOLUTION(S)
9 TROUBLESHOOTING
Page13

EN
DRAWING:ITEM NUMBER SKU PART DESCRIPTION
10Sparepartslist
10 SPAREPARTSLIST
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
51320
51090
51061
51300
51350
51310
51250
51340
51050
51490
51040
81000
30100
33100
51030
51390
Hydrofoil handle.Blue
Pumpoutlet flapassembly.Blue
Pumpmotor
Topshell.White
Latchlock.Grey
Bottomchassis.White
Sidewheels.4 pieces
Quick drainflap.White
Roller tubes.2 pieces
Sweeper brush
Filter bagframe
Door hingeset
Power supply.
floatingcord
High flow filter bag
Finefiltrationreplacement kit (optional)
Page14

EN
11 Sparepartsdrawing
11 SPAREPARTSDRAWING
Page15
