8 STREME 7320 User manual

7320
ver 20-01ENGLISH

E
Congratulationsonthepurchaseof your new 8STREME7320pool cleaner.It isapowerfulautonomousrobot delivered
ready to use.Ideal for poolsof all sizesandin all forms.Thisrobot comeswith aneasy accessibledebrisbasket alongwith
floatingrotarycouplingwhichlimitscableentanglement.
Pleasecheck thepackageto makesurethat all partsareready to beinstalled.
Werecommend that youcheck theconnectionsof thecablesfromthecleaner to thefloatingrotary couplingplug
(chapter 5).If anypartsaremissingor damaged,pleasecontact 8STREMEdirectly on www.8streme.eu
7320
Page2

EN
01Product features
02Warningsand Safetyinformations
03Packagecontent
04Installationof sidebrushes
05Start-up
06 Climbing walls
07Cleaning thefilterbasket
08Cleaning theimpeller
09IndicatorLights/ LED
10Troubleshooting

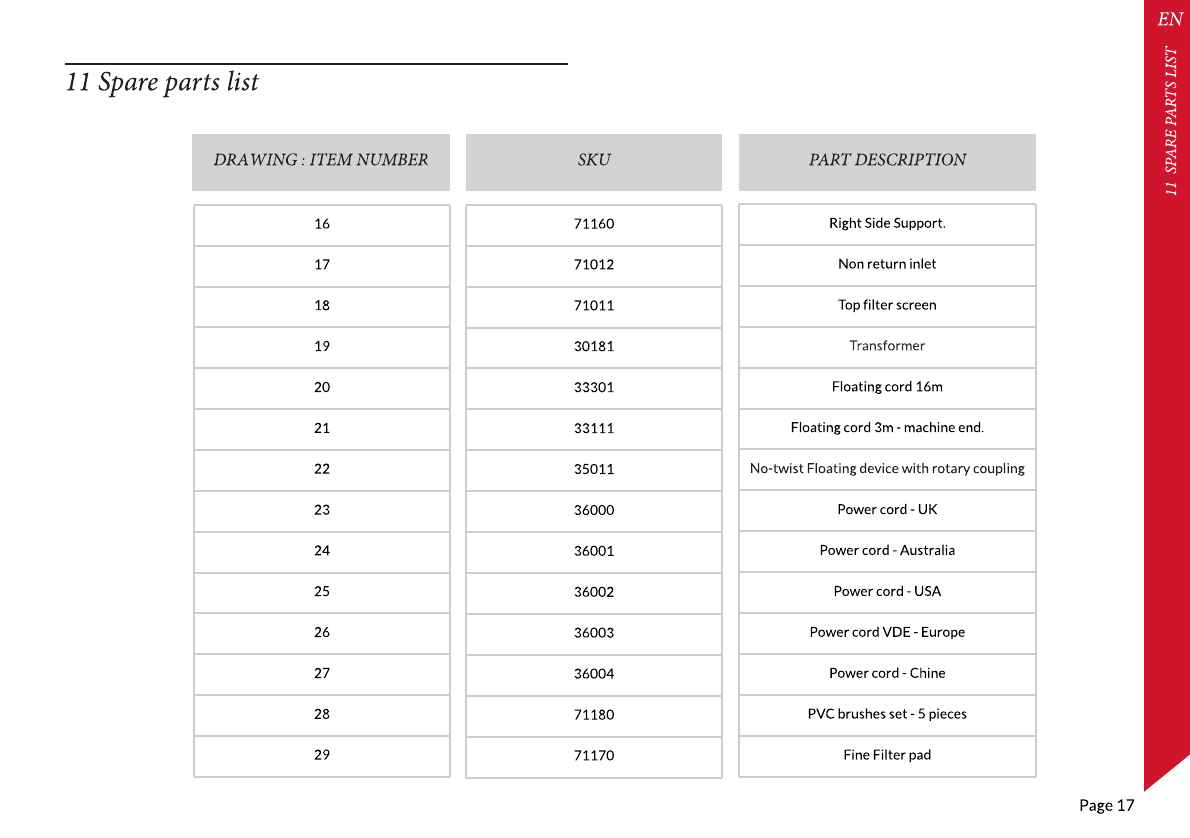

11Sparepartslist

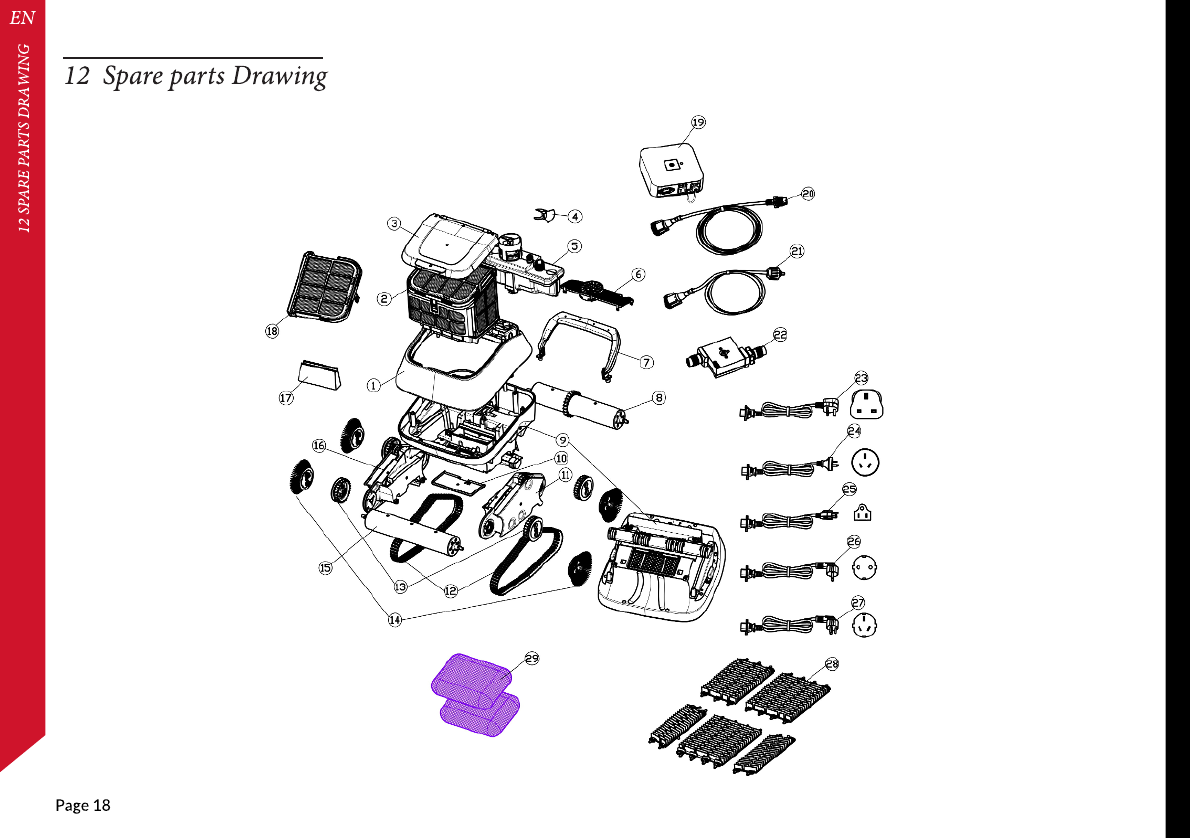

12Sparepartsdrawing
.................................................................... p04.
.................................................................... p04.
.................................................................... p05.
.................................................................... p06.
.................................................................... p07.
.................................................................... p09.
.................................................................... p10.
.................................................................... p11.
.................................................................... p12.
.................................................................... p13.
.................................................................... p16.
................................................................... p18.
Tableofcontents
Page3

EN
MaximumDepth:2,5m
Maximumsizeof thepool:11mx5.50m
Input current:100-130VAC/ 200-230V AC
Output current:<24VDC
01Product features
01 PRODUCT FEATURES/ 02 WARNINGSAND SAFETYINFORMATIONS
Page4
02!!WarningsandSafetyinformations !!
2.1 Pleaserefer to therulesof your
countryregardingswimming
pool safety.
2.2 Placethepower transformer at
least 3.5 mfromthepool.
2.3 If thecablesdeliveredare
damaged,they must bereplaced
bythemanufacturer,aservice
centreapproved by the
manufacturer or aqualified
persontoavoidanyrisk.
2.4 Pleasemakesurethat your
electrical systemiswell
protectedbya30mA ground
fault circuit interrupter (GFCI)
2.5 Donot useextensioncord.
2.6 Thisunit must onlybeusedwith
thesuppliedtransformer.
2.7 Thisappliancecanbeused by
children agedfrom8 yearsand
aboveandpersonswithreduced
physical,sensoryor mental
capabilitiesor lack of experience
and knowledgeif theyhavebeen
givensupervisionor instruction
concerninguseof theappliancein
asafeway and understand the
hazardsinvolved.
Childrenshall not playwiththe
appliance.
Cleaninganduser maintenance
shall not bemadeby children
without supervision.
2.8 Keepthepower transformer away
frommoisture.
2.9 Donot usetherobot out of the
water.
2.10 Makesurethat thetransformer is
disconnectedbeforeperforming
maintenanceontherobot.
2.11 Don't useany damagedpower
cableor cord.
2.12 Do not usetherobot if peopleare
inthepool.
2.13 Do not usetheswimmingpool
whenthecleaner isinthepool.
2.14 Removetheroboticcleaner from
theswimmingpool when not inuse
2.15 Theuseof therobot shouldbeina
pool whosetemperatureis
between 5 and 36°C.
2.16 MakesuretomaintainapH close
to7.2 for optimal performance,
especiallyontheability to climb
walls.
2.17 Do not usetherobot if youhavea
counter-current swimmingdevice
working.

EN
03PACKAGECONTENT
1.7310 Roboticpool cleaner
2.Power transformer control box
3.Longcord
4.No-twist Floatingdevicewithrotary coupling
5.Sampleof finefilter
6.Sidebrushes(4 units)+ screws
03Packagecontent
Side brushes and screws are in the
filter basket
-Our robotsaredesignedto facilitatethe
maintenanceof your pool. However,theyarenot
intended to clean apool full of algaeandleaves
(ex:endof winter period).
In thiscaseyou must:use theleaf skimmer,
clean the filter and put back onthefilter and
thepump.
-A tilecoatingleadstofaster wear of thebrushes
and belts.Pleasecheck theseregularly.
-To removethecleaner fromyour pool,lift the
cableslowly and gently until youcan grabit
bythehandle.Usethehandleto fully pull out
thecleaner
-Inorder toaccessthefilter basket,place
handsasshown in picture.Push with thumbs
to unlock lid.
QUICKFACTS
Page5

EN

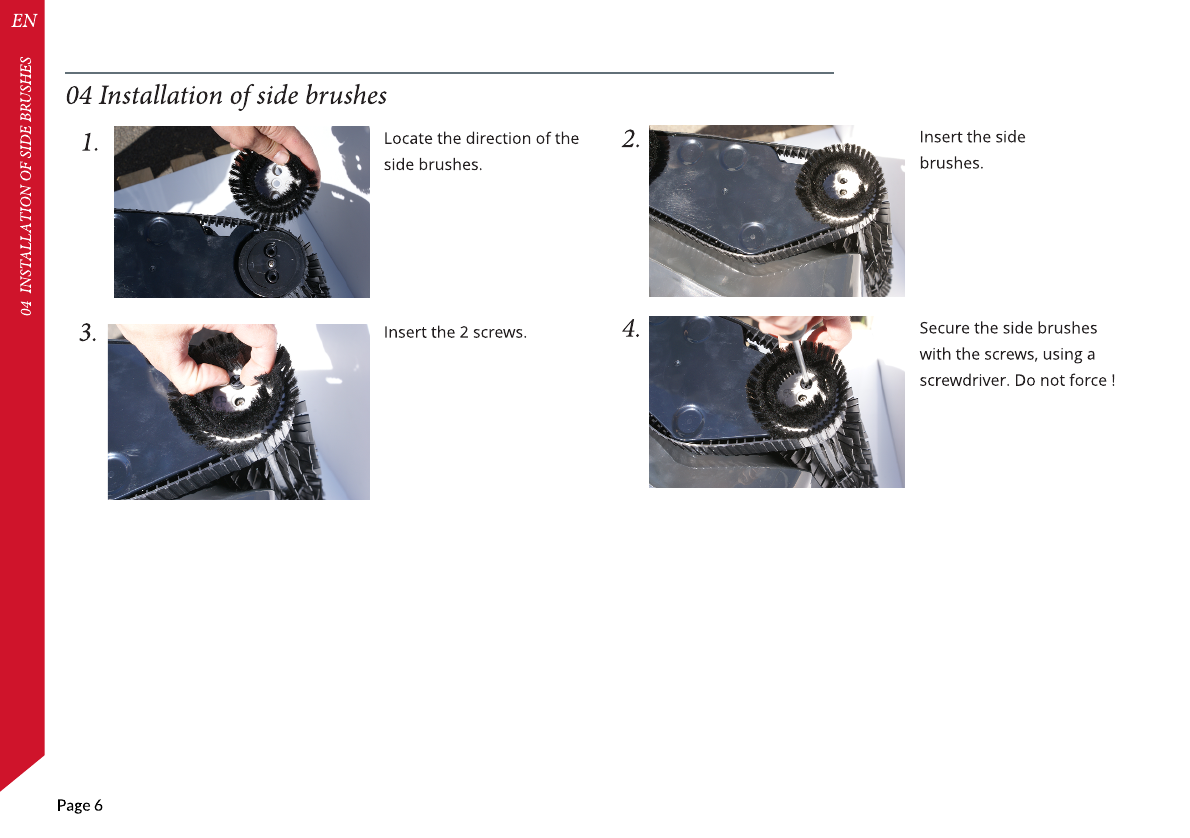

04 INSTALLATION OF SIDEBRUSHES
Page6
04Installationofsidebrushes
1. 2.
3. 4.
Locate the direction of the
side brushes.
Insert the side
brushes.
Insert the 2 screws. Secure the side brushes
with the screws, using a
screwdriver. Do not force !

05 START-UP
EN
Page7

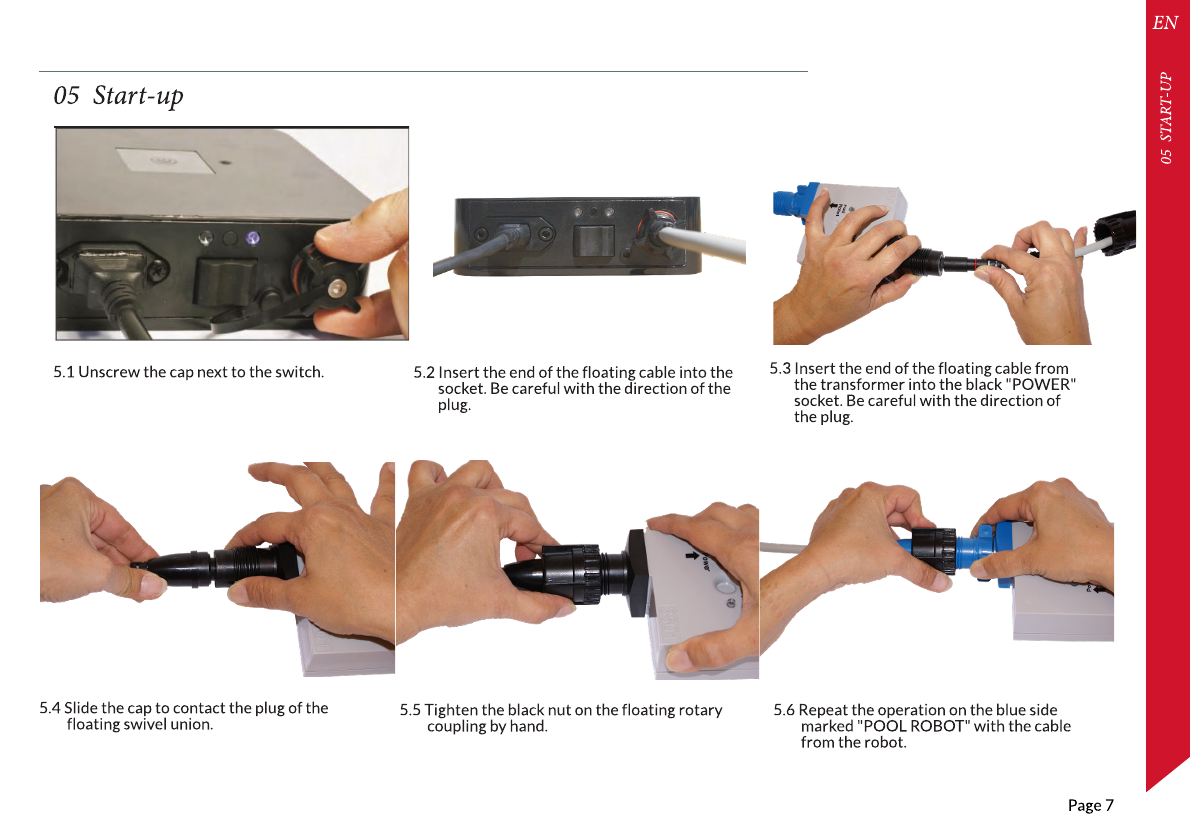

05 Start-up
5.2 Insert theendof thefloatingcableinto the
socket.Becareful with thedirectionof the
plug.
5.1 Unscrew thecap next to the switch.
5.6 Repeat theoperation ontheblueside
marked "POOLROBOT" with thecable
fromtherobot.
5.3 Insert theendof thefloatingcablefrom
thetransformer into theblack"POWER"
socket.Becareful with thedirectionof
theplug.
5.4 Slidethecap to contact the plugof the
floatingswivel union. 5.5 Tighten theblack nut on thefloatingrotary
couplingbyhand.

FR
05 START-UP
Page8
EN 05 Start-up
5.7 Placeyour power box to amidpoint between
thetwo endsof your pool andat least 3.50 m
fromtheedgeof thepool.
5.8 Placetherobot in your pool andwait until it is
completely submerged.If necessary,helpit to
sink manually.
5.9 Screw thenut of thefloatingcablefirmly.
Presstheswitchonthesideof the
transformer to turn it on.
A bluelight appears. To select the1 Hour
Cleaningcycle,presson theleft sideof the
switch lyingunder thebluelight of the
transformer.Toselect the3 HoursCleaning
cycle,presson the left sideof theswitch.
5.10 Presstheon/ off button located at the top of
thecasetoactivateyour robot.
Blue+ orangelights = 1 H cleaningcycleenabled
Blue+ redlights = 3 H cleaningcycleenabled
Power supply
No-Twist floating
device
7320 Robot

EN
05START-UP/ 06 CLIMBINGWALLS
Page9

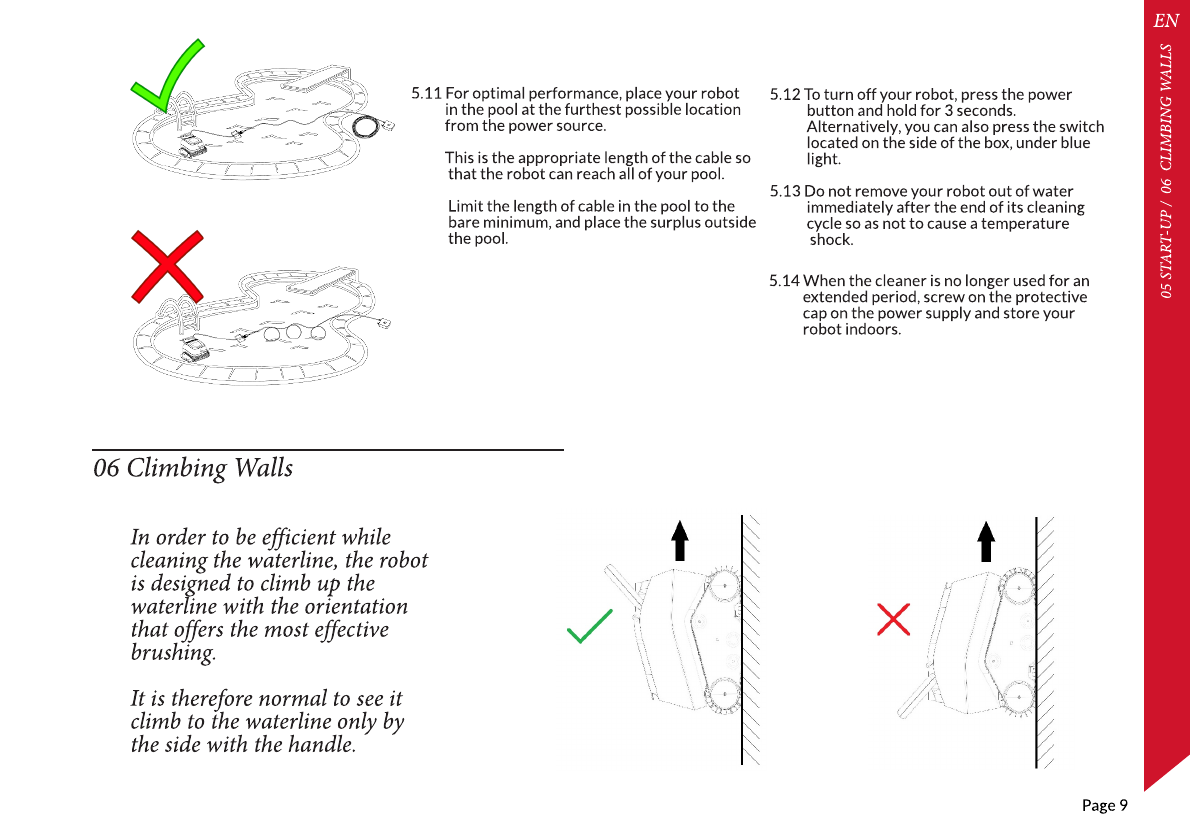

5.11For optimal performance,placeyour robot
inthepool at thefurthest possiblelocation
fromthepower source.
Thisistheappropriatelength of thecableso
that therobot can reachall of your pool.
Limit thelength of cablein thepool to the
bareminimum,andplacethesurplusoutside
thepool.
5.12 Toturn off your robot,pressthepower
button and holdfor 3 seconds.
Alternatively,you can also presstheswitch
located onthesideof thebox,under blue
light.
5.13Donot removeyour robot out of water
immediately after theendof itscleaning
cycleso asnot tocauseatemperature
shock.
5.14Whenthecleaner isnolonger usedfor an
extendedperiod,screw ontheprotective
caponthepower supplyandstoreyour
robot indoors.
Inorder tobeefficient while
cleaningthewaterline,therobot
isdesignedtoclimbupthe
waterlinewiththeorientation
that offersthemost effective
brushing.
It isthereforenormal toseeit
climbtothewaterlineonlyby
thesidewiththehandle.
06ClimbingWalls

EN
Page10

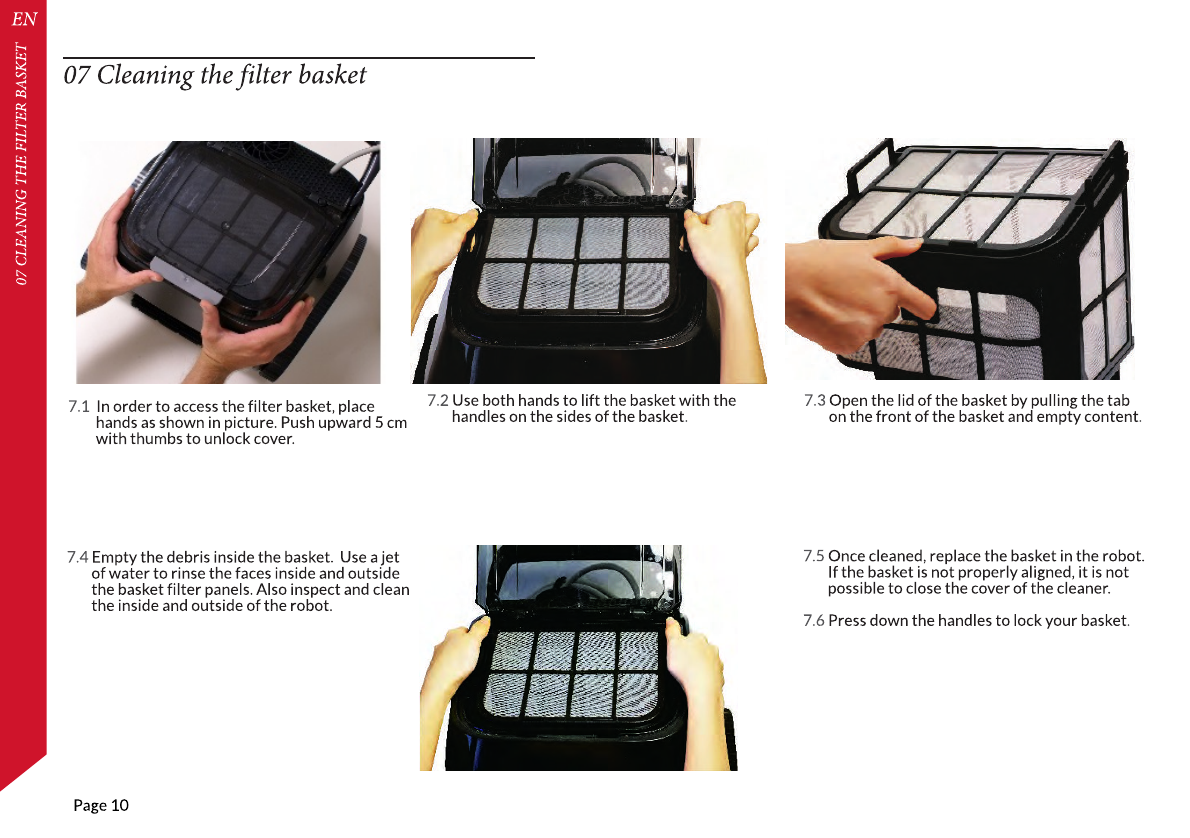

07CLEANINGTHEFILTERBASKET
7.1 In order toaccessthefilter basket,place
handsasshown in picture.Push upward 5 cm
with thumbsto unlock cover.
7.2 Useboth handsto lift thebasket with the
handleson thesidesof thebasket.
7.5 Oncecleaned,replacethe basket in the robot.
If thebasket isnot properlyaligned,it isnot
possibletoclosethecover of thecleaner.
7.6 Pressdown thehandlesto lock your basket.
7.3 Open thelidof thebasket by pullingthetab
onthefront of thebasket andempty content.
07Cleaningthefilter basket
7.4 Empty the debrisinsidethebasket. Useajet
of water to rinsethefacesinsideandoutside
thebasket filter panels.Alsoinspect andclean
theinsideandoutsideof therobot.

EN

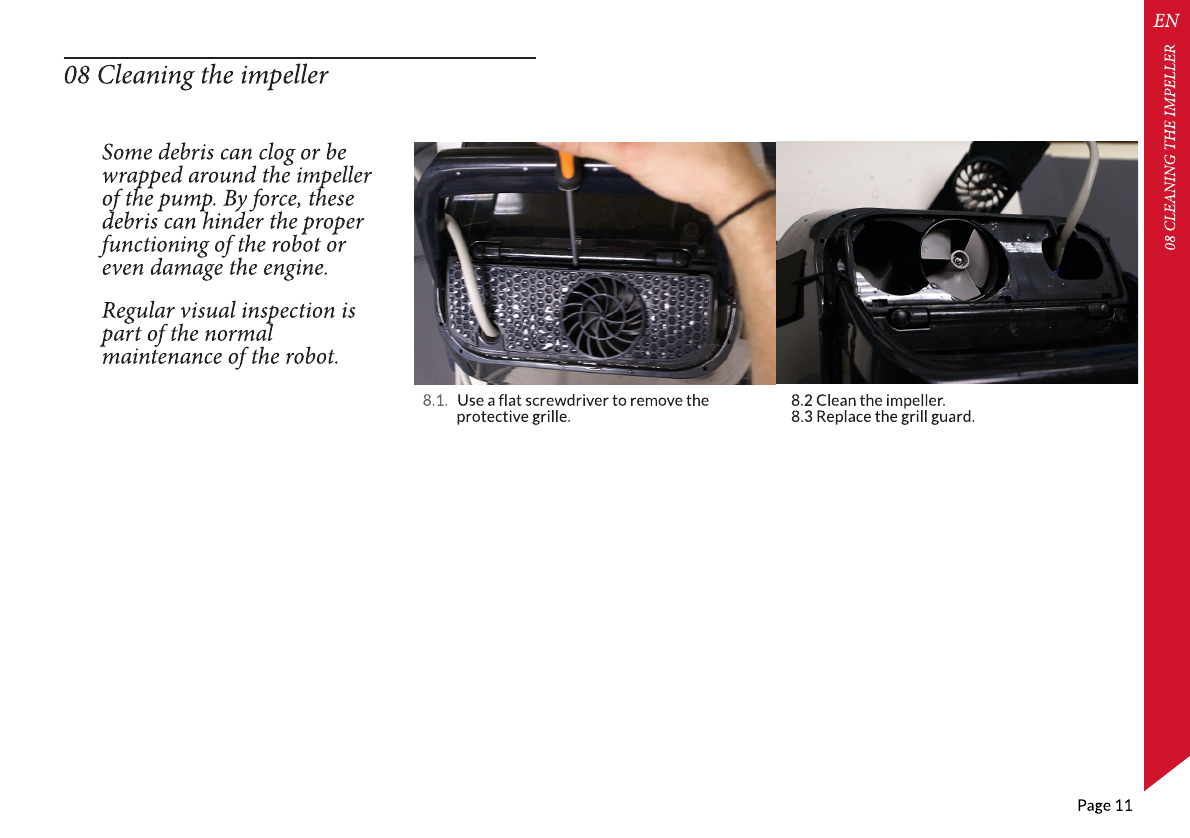

08CLEANINGTHEIMPELLER
Page11
Somedebriscanclogor be
wrappedaroundtheimpeller
ofthepump. Byforce,these
debriscanhinder theproper
functioningoftherobot or
evendamagetheengine.
Regular visual inspectionis
part ofthenormal
maintenanceoftherobot.
8.1. Useaflat screwdriver to removethe
protectivegrille. 8.2 Cleantheimpeller. 8.3 Replacethegrill guard.
08Cleaningtheimpeller

EN

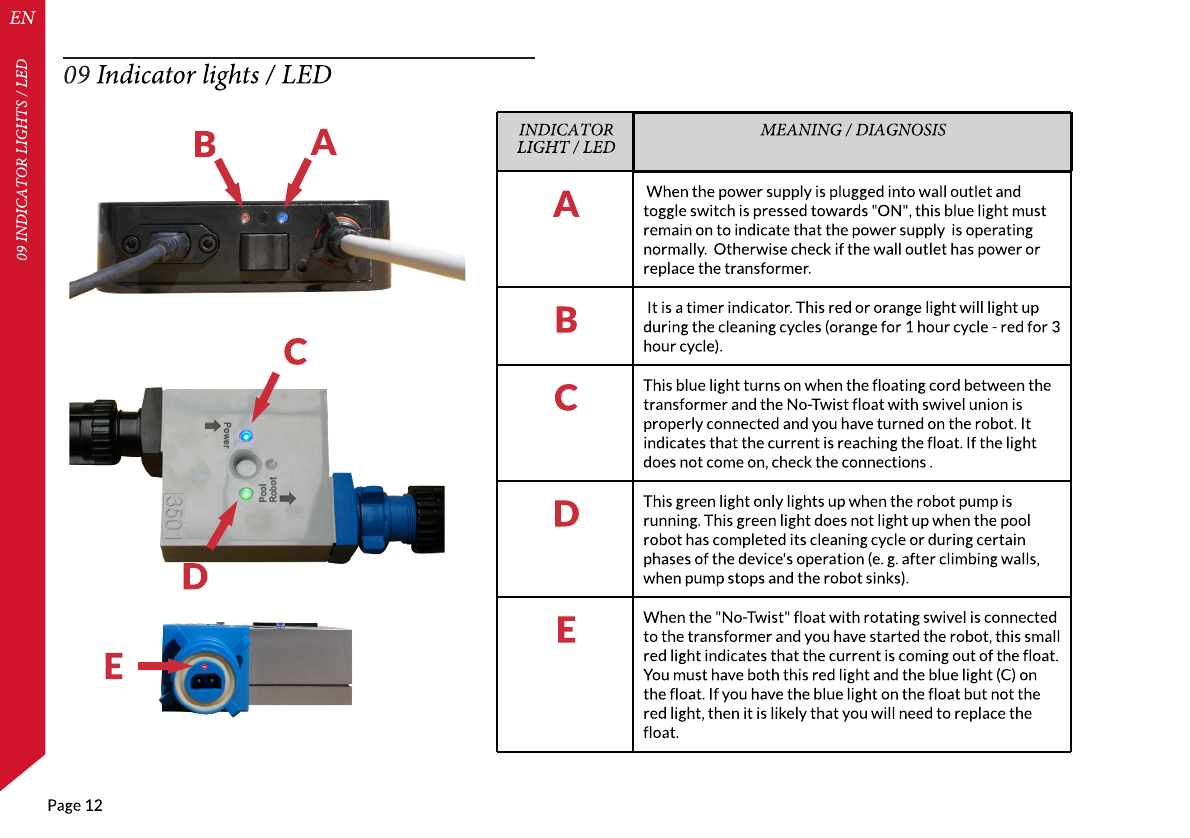

09INDICATORLIGHTS/ LED
Page12
09Indicator lights/ LED
INDICATOR
LIGHT / LED MEANING/ DIAGNOSIS
AWhenthepower supplyispluggedinto wall outlet and
toggleswitchispressedtowards"ON",thisbluelight must
remainon toindicatethat thepower supply isoperating
normally. Otherwisecheck if thewall outlet haspower or
replacethetransformer.
BIt isatimer indicator.Thisredor orangelight will light up
duringthecleaningcycles(orangefor 1 hour cycle-redfor 3
hour cycle).
CThisbluelight turnson whenthefloatingcordbetween the
transformer and theNo-Twist float with swivel union is
properly connectedand youhaveturnedontherobot.It
indicatesthat thecurrent isreachingthefloat.If thelight
doesnot comeon,check theconnections.
DThisgreen light only lightsup when therobot pumpis
running.Thisgreenlight doesnot light up whenthepool
robot hascompleteditscleaningcycleor duringcertain
phasesof thedevice'soperation (e.g.after climbingwalls,
whenpumpstopsandtherobot sinks).
EWhenthe"No-Twist" float with rotatingswivel isconnected
tothetransformer andyouhavestartedtherobot,thissmall
red light indicatesthat the current iscomingout of thefloat.
You must haveboththisredlight and thebluelight (C)on
thefloat.If youhavethebluelight on thefloat but not the
redlight,thenit islikely that you will need to replacethe
float.
BA
C
D
E

EN
PROBLEM CAUSE(S) SOLUTION(S)

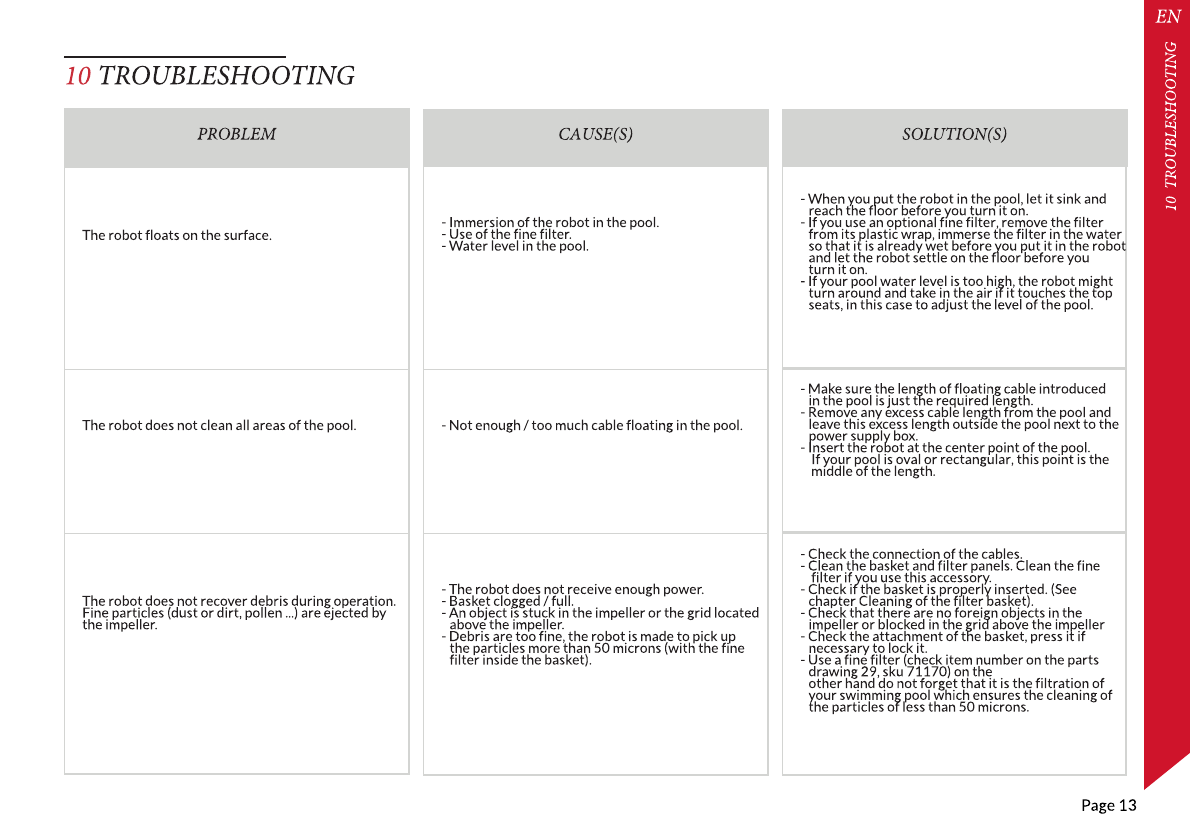

10TROUBLESHOOTING
10 TROUBLESHOOTING
Page13
Therobot floatson thesurface.
Therobot doesnot clean all areasof thepool.
Therobot doesnot recover debrisduringoperation.
Fineparticles(dust or dirt,pollen...)areejectedby
theimpeller.
- Immersion of the robot in the pool.
- Use of thefinefilter.
- Water level in thepool.
-Not enough / too muchcablefloatingin thepool.
- The robot doesnot receive enough power.
- Basket clogged / full.
- An object isstuck in the impeller or the grid located
abovetheimpeller.
- Debrisare too fine,therobot ismadeto pick up
theparticlesmorethan50 microns(withthefine
filter insidethebasket).
-Whenyouput therobot inthepool,let it sink and
reach thefloor beforeyou turn it on.
- If you useanoptional finefilter,removethefilter
fromitsplasticwrap,immersethefilter inthewater
so that it isalready wet beforeyou put it in therobot
andlet therobot settleon thefloor beforeyou
turn it on.
- If your pool water level istoohigh,therobot might
turnaround and takeintheair if it touchesthetop
seats,inthiscaseto adjust thelevel of thepool.
-Makesurethelength of floatingcableintroduced
in thepool isjust therequiredlength.
- Removeany excesscablelength fromthepool and
leavethisexcesslength outsidethepool next to the
power supply box.
- Insert therobot at the center point of the pool.
If your pool isoval or rectangular,thispoint isthe
middleof thelength.
- Check theconnection of the cables.
-Cleanthebasket andfilter panels.Cleanthefine
filter if you use thisaccessory.
-Checkif thebasket isproperly inserted.(See
chapter Cleaningof thefilter basket).
-Checkthat therearenoforeignobjectsin the
impeller or blockedin thegridabovetheimpeller
-Checktheattachment of thebasket,pressit if
necessary to lock it.
- Use afinefilter (check itemnumber on the parts
drawing29,sku71170)onthe
other handdonot forget that it isthefiltration of
your swimmingpool whichensuresthecleaningof
the particlesof lessthan 50 microns.

EN
PROBLEM CAUSE(S) SOLUTION(S)
10 TROUBLESHOOTING
Page14
Therobot movesinonedirection.
Therobot doesnot moveandthefiltrationpump
doesnot work either.Therobot doesn't work any
longer.
Thepumprunsbut therobot doesnot move.The
robot turnsonbut staysonthespot.
Robot doesnot climbwalls.
-Anobject blockstherollers,thewheelsof therobot
or interferingwith themovement of therobot.
-Therobot isnot connected to apower source.
-Power off.
-No/ not enough power istransmittedtotherobot .
- An object blocksthe rollers,the belts,the wheels
of the robot or thepath.
-Possibility of motor problem.
-Therobot istooheavy.
- Theflow isnot enough.
-Thewallsaretooslippery .
-Thehandleof therobot ispoorlydirected.
- pH level istoo high.Keepthe pH level closeto 7.2
toavoidslipperywalls
-Checkthat thereareno foreignobjectsinthe
impeller locatedabovethe motor.
-Check that thereareno foreign object blockingthe
hydrauliccircuit or thebrushesandbeltsunder the
robot andsides.
-Checkthat thepower sourceisactiveby plugging
another deviceinto thepower outlet.
- Check that the power supply isturnedon.
- Check all connectionsof therobot to thepower
source.
-Unplugthepower and takeout therobot inthe
water.Openthecover of thebasket andremovethe
basket.
-Checkthat therearenoforeignobjectsin the
impeller locatedabovethe motor.
-Checkthat therearenoforeignobject blockingthe
hydrauliccircuit or thebrushesandbeltsunder the
robot and sides.
-Contact theAfter-salesService
-Checkthat thecollectionof debrisbasket isn't full
-Checkandcleanif need theimpeller of thepump
or thegrid at thetopof theimpeller (propeller on
topof therobot toward thehandle)
-Presenceof algaeon thewallsor fatty deposits.
Removealgaeusingthechemical treatment of
water and manual brush to removethesefatty
deposits.
-Checkthat thehandleof therobot isdirectedto
therear.Thecableshouldbeabovethehandle.
Therobot goesround incircles. - A belt isdamaged.
- oneof the4 sidewheelsisdamaged or unscrewed.
- Check the conditionof thedrive belts.
If necessary,replacethefaulty belt.
-Checkthewheelsboltedtotheendsof therollers.
Thesewheelsfit on theroll andthenscrew.

EN
-Checktheconnectionof thefloatingcable.
Disconnect andreconnect asneeded.
-Checkthestatusof theconnectorsat theendsof
your cables(damaged,rusted,etc.)
- Connection of thefloatingcable.
-Possibility of fault of thefloatingcable.
-Possibility of motor leakage.
Therobot stopsafter afew minutes.
Therobot movesslower thanbefore.
TheblueLED on the"No-Twist" floating device does
not light up(light Cof Chapter 9).
No ledlit on thetransformer.
Thebluelight ontheNo-Twist Floatingdeviceison
but the cleaner doesnot work ( light Cof Chapter 9 ).
Therobot leavestracesonthefloor or onthewalls.
- The robot istoo heavy.
- The flow isnot sufficient.
-Cablesconnections.
-Badconnectionbetweenthetransformer and
theNo-Twist floatingdevice.
-Possibility of No-Twist floatingdeviceproblem
- Youdidnot presstheon/off button locatedabove
thetransformer.
-Thecurrent isnot reachingthetransformer.
-BadconnectionbetweentheNo-Twist floating
deviceandthecleaner
-Possibility of No-Twist floatingdeviceproblem
-Possibility of motor problem.
- Stateof thebrushesand/or transmissionbelts.
-Checkthat thedirt collectingbasket isnot full.
-Checkand cleanif necessarythepumpimpeller or
thegrid abovetheimpeller (propeller at thetop
of therobot towardsthehandle).
-Check all thecableconnections(seechapter 5).
- TurnON thecleaner by pressingtheON / OFF
button locatedontopof thetransformer.
- Check all theconnectionsof thecables between
thetransformer andtheNo-Twist floatingdevice.
- Contact theAfter-salesService
- Check your electrical outlet .
- Check theconnections.
-contact our Customer Service.
- Check if theconnectionat the "No-twist" float
outlet,blueoutlet "Pool Cleaner" iscorrect and
waterproof.
- If thebluelight Cison,youshouldalsohaveared
light on at thefloat outlet (light EinChapter 8).
If thisisnot thecase,it islikely that thefloat is
defective.
- If both blueandredlightsareonbut therobot does
not work,pleasecontact your dealer or our
after-salesserviceat [e-mail]
-Thesebrushesandbeltsarewear-and-tear parts,
Pleasecheck themandchange themif necessary.
Pleasecontact www.8streme.eu if you haveanyother questions.
PROBLEM CAUSE(S) SOLUTION(S)
10 TROUBLESHOOTING
Page15
Thebluelight onthetransformer ison but theredor
orangedonot lit (timer light Bof Chapter 9). -Cleaner not activated -Badcablesconnections.
-Transformer problems
- TurnON thecleaner by pressingtheON / OFF
button locatedontopof thetransformer.
- Checkyour electrical outlet .
- Donot useextension cord
- Contact our Customer Service.

EN
DRAWING:ITEM NUMBER SKU PART DESCRIPTION
11Sparepartslist
11 SPAREPARTSLIST
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
71000
71010
71020
71040
71050
71070
71080
71090
71100
71110
71120
71130
71142
71200
71150
TopShell.
Debrisbasket (parts17,and 18 included)
Cover.
Impeller
Pumpmotor block
Pumpcover lid.Black
Handle
Gearedroller tube.Black
Gearedroller tube.Black
Fast drainflap.
Left SideSupport.
Drive belts.Black - 2 pieces
Gearedwheelswith 2 holes - 4 pieces
Soft round scrubbingbrush - 4 pieces
Front roller assembly
Page16

EN
DRAWING:ITEM NUMBER SKU PART DESCRIPTION
11Sparepartslist
11 SPAREPARTSLIST
Page17
16
17
18
19
20
21
22
23
24
25
26
27
28
29
71160
71012
71011
30181
33301
33111
35011
36000
36001
36002
36003
36004
71180
71170
Right SideSupport.
Non return inlet
Topfilter screen
Transformer
Floatingcord16m
Floatingcord3m- machineend.
No-twist Floatingdevicewith rotary coupling
Power cord - UK
Power cord - Australia
Power cord- USA
Power cord VDE- Europe
Power cord -Chine
PVCbrushesset - 5 pieces
FineFilter pad

EN
12 SparepartsDrawing
12SPAREPARTSDRAWING
Page18
