8 STREME 7310 User manual

7310
ver 20-01ENGLISH

EN
Congratulationsonthepurchaseof your new 8STREME7310pool cleaner.It isapowerfulautonomousrobot delivered
ready to use.Ideal for poolsof all sizesandin all forms.Thisrobot comeswith aneasy accessibledebrisbasket alongwith
floatingrotarycouplingwhichlimitscableentanglement.
Pleasecheck thepackageto makesurethat all partsareready to beinstalled.
Werecommendthat youcheck theconnectionsof thecablesfrom thecleaner to thefloatingrotary couplingplug(chapter
4).If any partsare missingor damaged,pleasecontact 8STREMEdirectly on www.8streme.eu
7310
Page2

EN
01Product features
02Warningsand Safetyinformations
03Packagecontents
04Start-up
05 Climbing walls
06Cleaning thefilterbasket
07Cleaning theimpeller
08IndicatorLights/ LED
09Troubleshooting

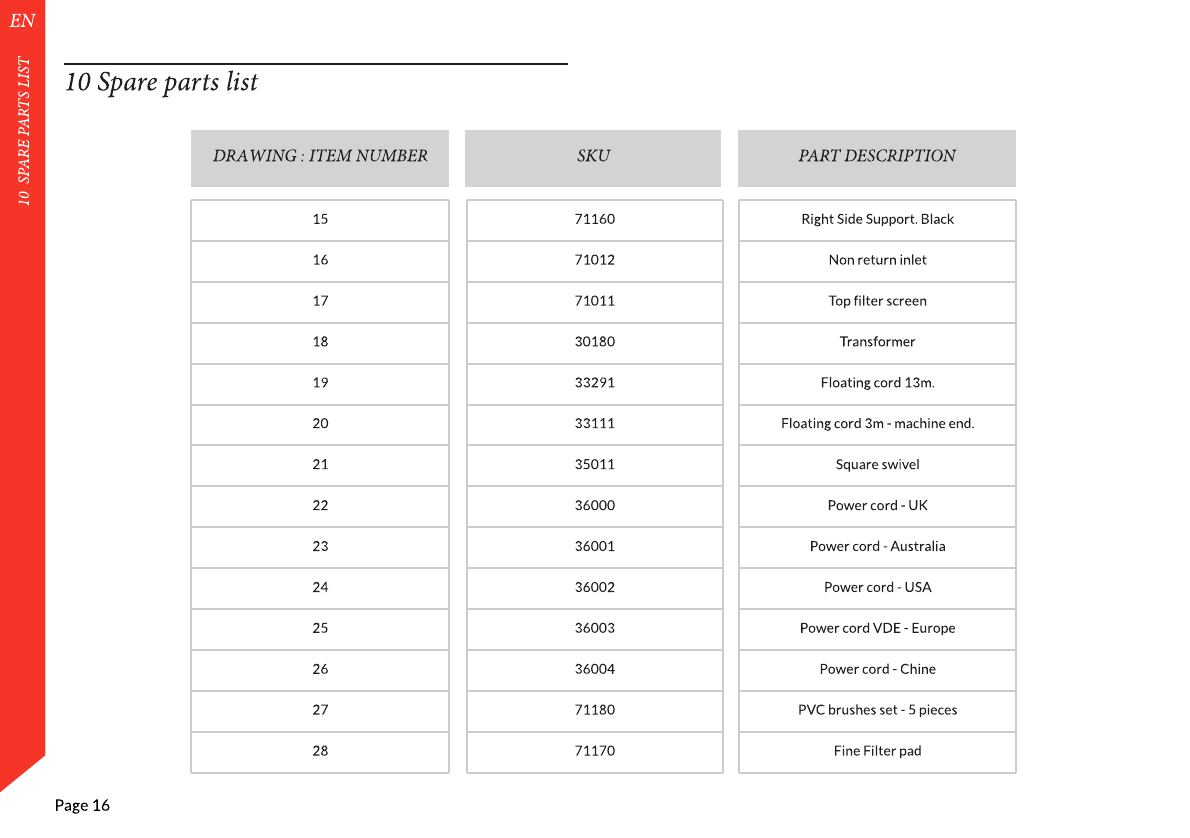

10Sparepartslist
11Sparepartsdrawing
.................................................................... p04.
........................................................... p04.
.................................................................... p05.
.................................................................... p06.
.................................................................... p08.
.................................................................... p09.
.................................................................... p10.
.................................................................... p11.
.................................................................... p12.
.................................................................... p15.
.................................................................... p17.
Tableofcontents
Page3

EN
MaximumDepth:2,5m
Maximumsizeof thepool:10mx5m
Input current:100-130VAC/ 200-230V AC
Output current:<24VDC
01Product features
02!!WarningsandSafetyinformations !!
2.1 Pleaserefer to therulesof your
countryregardingswimming
pool safety.
2.2 Placethepower transformer at
least 3.5 mfromthepool.
2.3 If thecablesdeliveredare
damaged,they must bereplaced
bythemanufacturer,aservice
centreapproved by the
manufacturer or aqualified
persontoavoidanyrisk.
2.4 Pleasemakesurethat your
electrical systemiswell
protectedbya30mA ground
fault circuit interrupter (GFCI)
2.5 Donot useextensioncord.
2.6 Thisunit must onlybeusedwith
thesuppliedtransformer.
2.7 Thisappliancecanbeused by
children agedfrom8 yearsand
aboveandpersonswithreduced
physical,sensoryor mental
capabilitiesor lack of experience
and knowledgeif theyhavebeen
givensupervisionor instruction
concerninguseof theappliancein
asafeway and understand the
hazardsinvolved.
Childrenshall not playwiththe
appliance.
Cleaninganduser maintenance
shall not bemadeby children
without supervision.
2.8 Keepthepower transformer away
frommoisture.
2.9 Donot usetherobot out of the
water.
2.10 Makesurethat thetransformer is
disconnectedbeforeperforming
maintenanceontherobot.
2.11 Don't useany damagedpower
cableor cord.
2.12 Do not usetherobot if peopleare
inthepool.
2.13 Do not usetheswimmingpool
whenthecleaner isinthepool.
2.14 Removetheroboticcleaner from
theswimmingpool when not inuse
2.15 Theuseof therobot shouldbeina
pool whosetemperatureis
between 5 and 36°C.
2.16 MakesuretomaintainapH close
to7.2 for optimal performance,
especiallyontheability to climb
walls.
2.17 Do not usetherobot if youhavea
counter-current swimmingdevice
working.
01 PRODUCT FEATURES/ 02 WARNINGSAND SAFETYINFORMATIONS
Page4

EN
-Our robotsaredesignedto facilitatethe
maintenanceof your pool. However,theyarenot
intended to clean apool full of algaeandleaves
(ex:endof winter period).
In thiscaseyou must:use theleaf skimmer,
clean the filter and put back onthefilter and
thepump.
-A tilecoatingleadstofaster wear of thebrushes
and belts.Pleasecheck theseregularly.
-To removethecleaner fromyour pool,lift the
cableslowlyandgently until youcan grabit by
thehandle.Usethehandleto fully pull out the
cleaner
- In order to accessthe filter basket,place handsas
shown in picture.Push with thumbsto unlock lid.
QUICKFACTS
03 PACKAGECONTENTS
Page5
1.7310 Roboticpool cleaner
2.Power transformer control box
3.Longcord
4.No-twist Floatingdevicewith rotary coupling
5.Sampleof finefilter
03Packagecontents

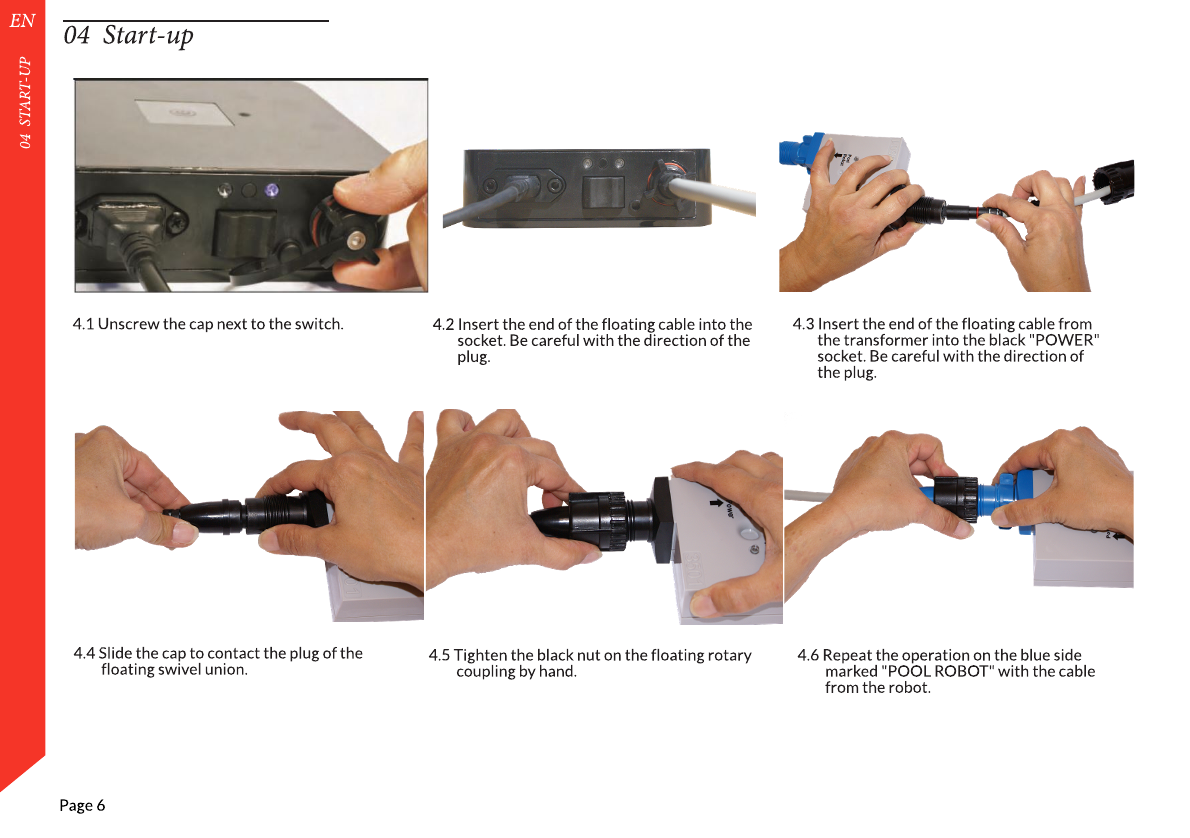

04 Start-up
4.2 Insert theend of thefloatingcableinto the
socket.Becareful with thedirectionof the
plug.
4.1 Unscrew thecapnext to the switch. 4.3 Insert theendof thefloatingcablefrom
thetransformer into theblack "POWER"
socket.Becareful withthedirectionof
theplug.
EN
04 START-UP
Page6
4.6 Repeat theoperation ontheblueside
marked "POOLROBOT" with thecable
fromtherobot.
4.4 Slidethecap tocontact theplugof the
floatingswivel union. 4.5 Tightentheblack nut on thefloatingrotary
couplingby hand.

4.7 Placeyour power box to amidpoint between
thetwo endsof your pool andat least 3.50m
fromtheedgeof thepool.
4.8 Placetherobot in your pool and wait until it is
completely submerged.If necessary,help it to
sink manually.
Power supply
No-Twist floating
device
7310 robot
4.9 Screw thenut of thefloatingcablefirmly.
Presstheswitchonthesideof the
transformer to turn it on.
Abluelight appears.
4.10 Presstheon/off button locatedabovethe
transformer to turn on the robot.
Aredlight appears.
At theendof thecleaningcycletheredlight
will turnoff.
EN
04 START-UP
Page7

EN

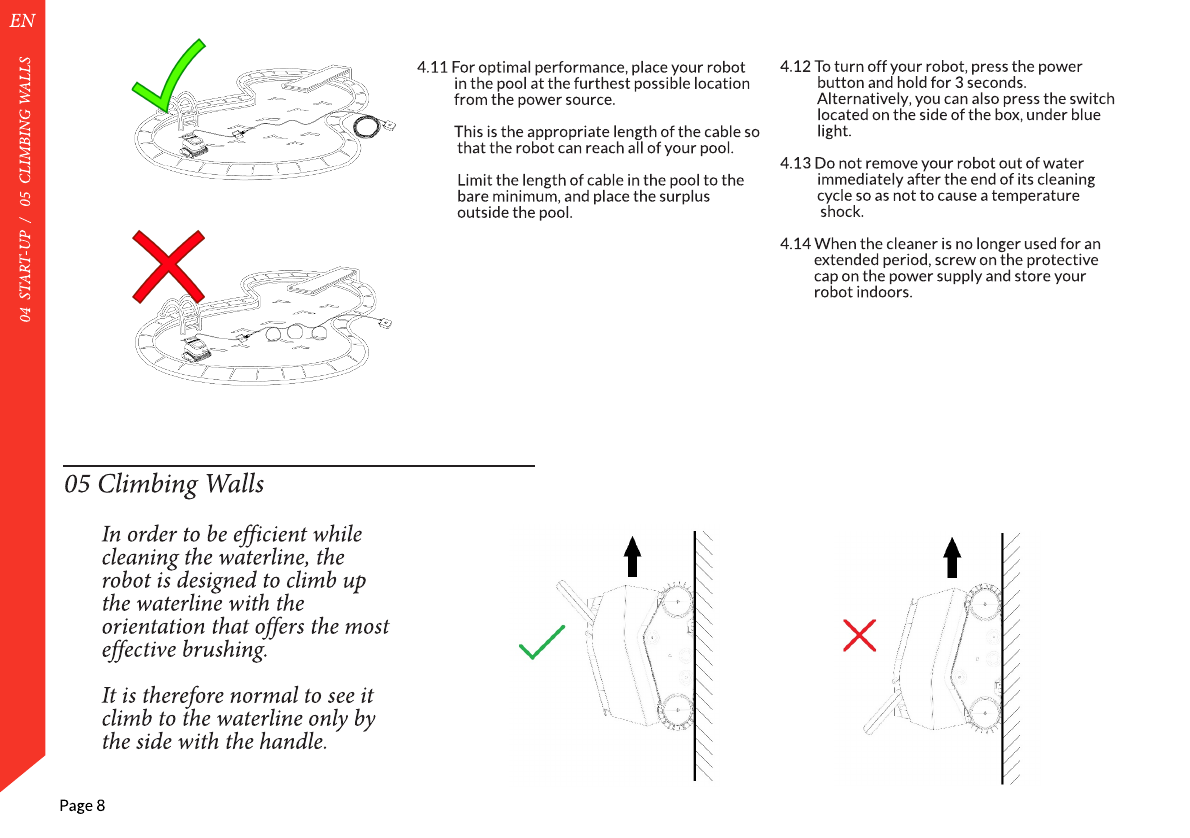

4.11For optimal performance,placeyour robot
inthepool at thefurthest possiblelocation
fromthepower source.
Thisistheappropriatelength of thecableso
that therobot canreachall of your pool.
Limit thelength of cablein thepool to the
bareminimum,andplacethesurplus
outsidethepool.
04 START-UP / 05 CLIMBINGWALLS
4.12 To turnoff your robot,pressthepower
button and hold for 3 seconds.
Alternatively,youcanalsopresstheswitch
locatedon thesideof thebox,under blue
light.
4.13Donot removeyour robot out of water
immediately after theendof itscleaning
cycleso asnot to causeatemperature
shock.
4.14 Whenthecleaner isno longer usedfor an
extended period,screw ontheprotective
capon the power supply and storeyour
robot indoors.
Page8
Inorder tobeefficient while
cleaningthewaterline,the
robot isdesignedtoclimbup
thewaterlinewiththe
orientationthat offersthemost
effectivebrushing.
It isthereforenormal toseeit
climbtothewaterlineonlyby
thesidewiththehandle.
05ClimbingWalls

EN

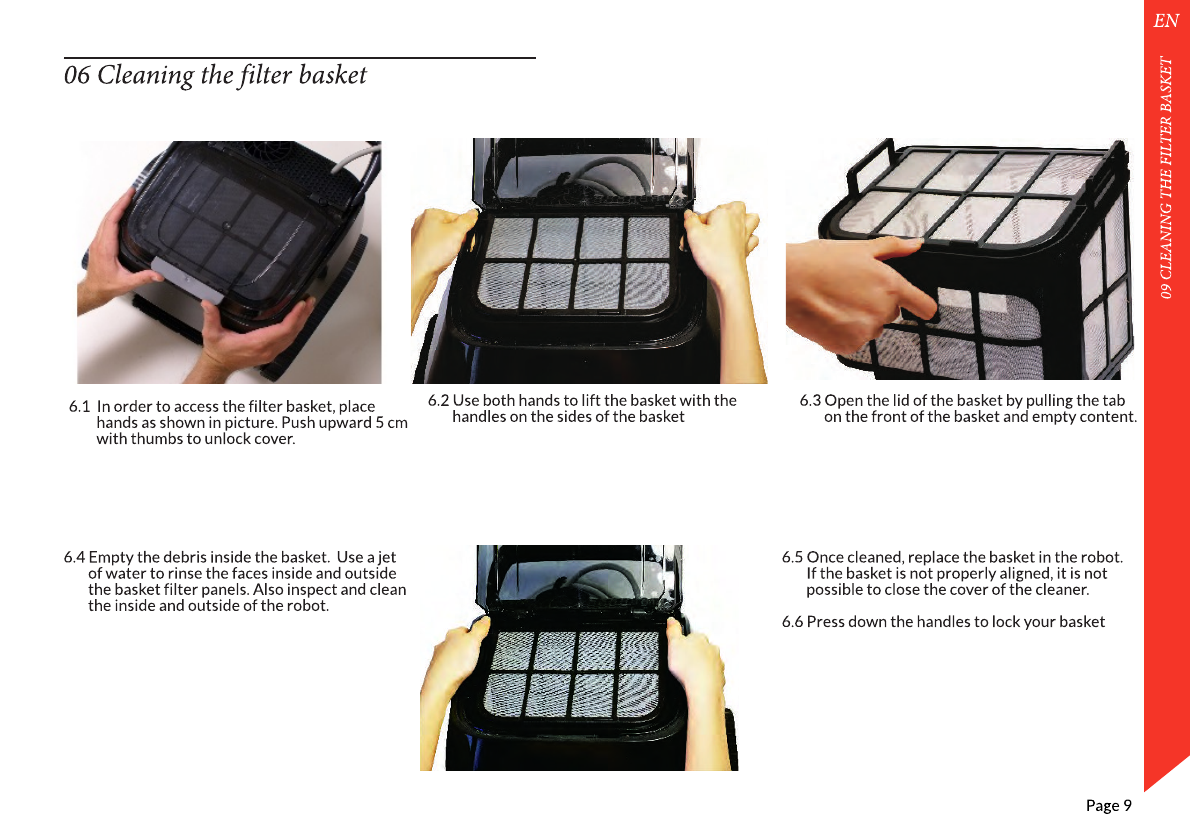

09CLEANINGTHEFILTERBASKET
Page9
6.1 In order toaccessthefilter basket,place
handsasshowninpicture.Pushupward5 cm
with thumbsto unlock cover.
6.2 Useboth handsto lift thebasket with the
handleson thesidesof thebasket
6.5 Oncecleaned,replacethe basket in the robot.
If thebasket isnot properlyaligned,it isnot
possibleto closethecover of thecleaner.
6.6 Pressdown thehandlesto lock your basket
6.3 Open thelid of the basket bypullingthetab
onthefront of thebasket and empty content.
06Cleaningthefilter basket
6.4 Empty the debrisinsidethebasket. Useajet
of water to rinsethefacesinsideandoutside
thebasket filter panels.Alsoinspect and clean
theinsideandoutsideof therobot.

EN
07 CLEANINGTHEIMPELLER
Page10
Somedebriscanclogor be
wrappedaroundtheimpeller
ofthepump. Byforce,these
debriscanhinder theproper
functioningoftherobot or
evendamagetheengine.
Regular visual inspectionis
part ofthenormal
maintenanceoftherobot.
7.1. Useaflat screwdriver to removethe
protectivegrille. 7.2 Clean theimpeller. 7.3 Replacethegrill guard.
07Cleaningtheimpeller

EN

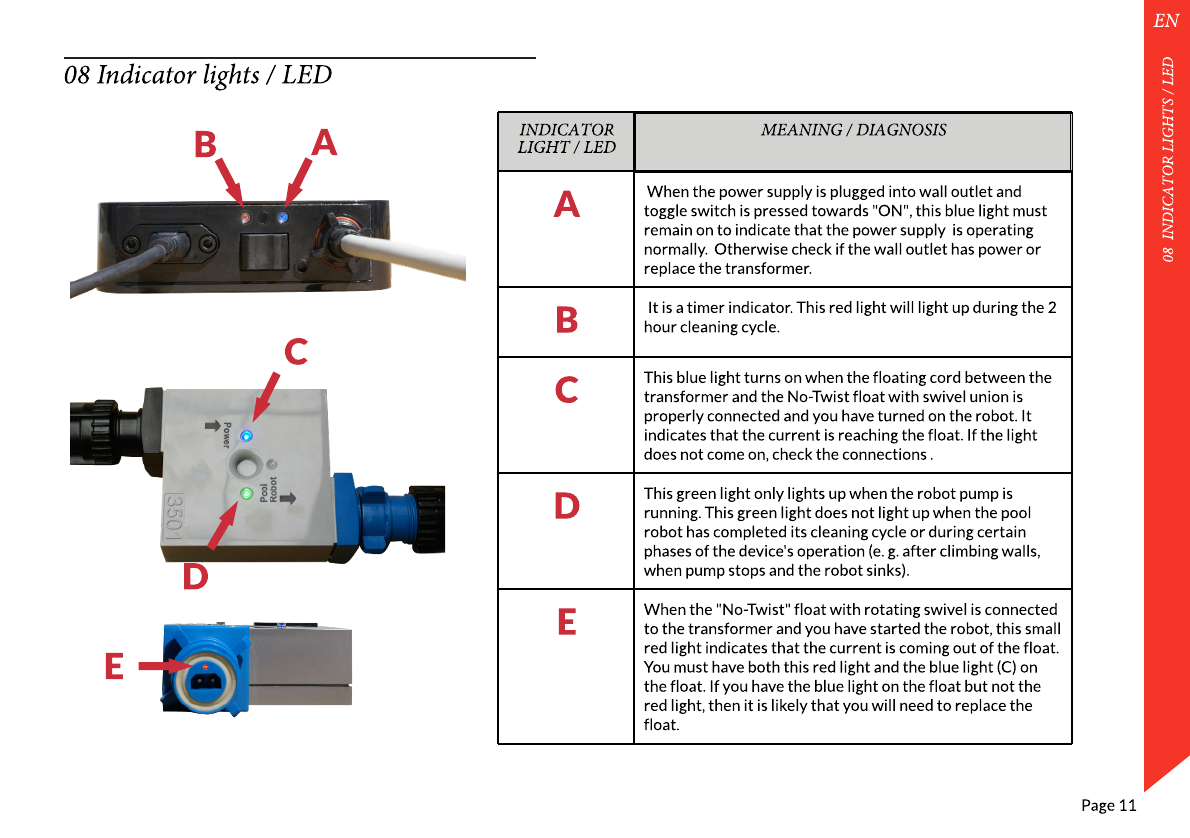

08 INDICATORLIGHTS/ LED
Page11
08Indicator lights/ LED
INDICATOR
LIGHT / LED MEANING/ DIAGNOSIS
AWhenthepower supplyispluggedintowall outlet and
toggleswitchispressedtowards"ON",thisbluelight must
remainon to indicatethat thepower supply isoperating
normally. Otherwisecheck if thewall outlet haspower or
replacethetransformer.
BIt isatimer indicator.Thisredlight will light upduringthe2
hour cleaningcycle.
CThisbluelight turnson whenthefloatingcordbetween the
transformer andtheNo-Twist float with swivel union is
properly connectedandyouhaveturnedontherobot.It
indicatesthat thecurrent isreachingthefloat.If thelight
doesnot comeon,check theconnections.
DThisgreenlight only lightsup when the robot pump is
running.Thisgreen light doesnot light upwhen thepool
robot hascompleteditscleaningcycleor duringcertain
phasesof thedevice'soperation (e.g.after climbingwalls,
whenpumpstopsandtherobot sinks).
EWhenthe"No-Twist" float with rotatingswivel isconnected
tothetransformer andyouhavestartedtherobot,thissmall
redlight indicatesthat the current iscomingout of the float.
You must haveboth thisredlight and thebluelight (C)on
thefloat.If youhavethebluelight on thefloat but not the
redlight,thenit islikely that you will needto replacethe
float.
BA
C
D
E

EN

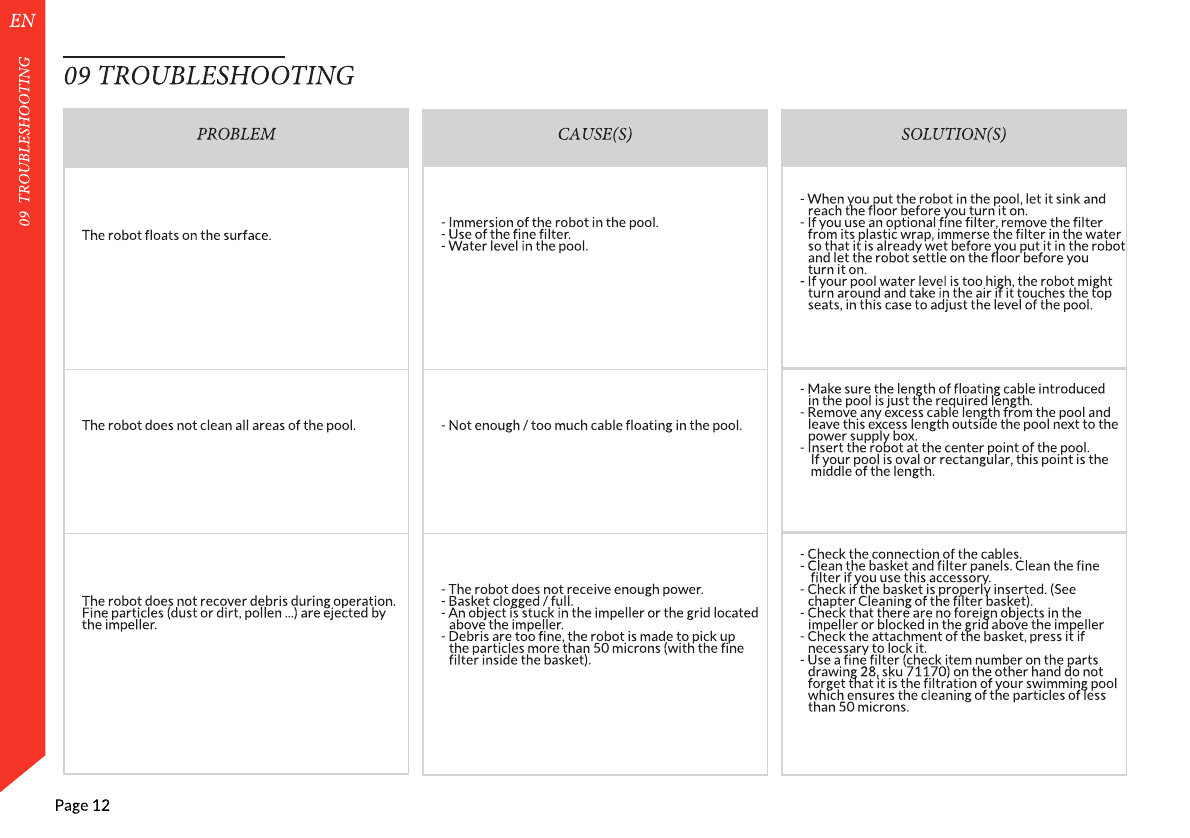

PROBLEM
Therobot floatsonthesurface.
Therobot doesnot clean all areasof thepool.
Therobot doesnot recover debrisduringoperation.
Fineparticles(dust or dirt,pollen...)areejectedby
theimpeller.
- Immersion of therobot in thepool.
- Useof the fine filter.
- Water level inthepool.
-Not enough / too muchcablefloatingin thepool.
- Therobot doesnot receiveenough power.
- Basket clogged / full.
- Anobject isstuck in theimpeller or thegrid located
abovetheimpeller.
-Debrisaretoo fine,therobot ismadeto pickup
the particlesmorethan50 microns(with thefine
filter insidethebasket).
CAUSE(S)
-Whenyou put therobot inthepool,let it sink and
reachthefloor beforeyou turn it on.
- If you useanoptional finefilter,removethefilter
fromitsplasticwrap,immersethefilter inthewater
sothat it isalready wet beforeyou put it intherobot
and let therobot settleon thefloor beforeyou
turn it on.
- If your pool water level istoo high,the robot might
turnaroundandtakeintheair if it touchesthetop
seats,inthiscase to adjust thelevel of thepool.
-Makesurethelength of floatingcableintroduced
in thepool isjust the required length.
- Removeany excesscablelengthfrom thepool and
leave thisexcesslength outsidethepool next tothe
power supply box.
- Insert therobot at the center point of the pool.
If your pool isoval or rectangular,thispoint isthe
middleof thelength.
- Check the connection of the cables.
-Cleanthebasket andfilter panels.Clean thefine
filter if you use thisaccessory.
-Checkif thebasket isproperly inserted.(See
chapter Cleaningof thefilter basket).
-Checkthat therearenoforeignobjectsinthe
impeller or blockedinthegridabovetheimpeller
-Checktheattachment of thebasket,pressit if
necessary to lock it.
- Use afinefilter (check itemnumber on the parts
drawing28,sku 71170)ontheother handdonot
forget that it isthefiltration of your swimmingpool
whichensuresthecleaningof theparticlesof less
than50microns.
SOLUTION(S)
09TROUBLESHOOTING
09 TROUBLESHOOTING
Page12

EN
Therobot movesinonedirection.
Therobot doesnot moveandthefiltrationpump
doesnot work either.Therobot doesn't work any
longer.
Thepumprunsbut therobot doesnot move.The
robot turnsonbut staysonthespot.
Robot doesnot climbwalls.
-An object blockstherollers,thewheelsof therobot
or interferingwiththemovement of therobot.
-Therobot isnot connected to apower source.
-Power off.
-No/ not enoughpower istransmittedto therobot .
- An object blocksthe rollers,the belts,thewheels
of therobot or the path.
-Possibility of motor problem.
-Therobot istoo heavy.
- The flow isnot enough.
-Thewallsaretoo slippery .
-Thehandleof therobot ispoorly directed.
- pH level istoo high.Keep the pH level closeto 7.2
toavoidslipperywalls
-Checkthat therearenoforeignobjectsin the
impeller locatedabovethe motor.
- Check that therearenoforeignobject blockingthe
hydrauliccircuit or thebrushesandbeltsunder the
robot andsides.
-Checkthat thepower sourceisactiveby plugging
another deviceinto thepower outlet.
- Check that the power supply isturnedon.
- Check all connectionsof therobot to thepower
source.
-Unplugthepower andtakeout therobot in the
water.Openthecover of thebasket andremovethe
basket.
- Check that thereareno foreign objectsinthe
impeller locatedabovethe motor.
- Check that thereareno foreign object blockingthe
hydrauliccircuit or thebrushesandbeltsunder the
robot andsides.
-Contact theAfter-salesService
-Checkthat thecollection of debrisbasket isn't full
-Checkandcleanif needtheimpeller of thepump
or thegrid at thetopof theimpeller (propeller on
topof therobot toward thehandle)
-Presenceof algaeonthewallsor fatty deposits.
Removealgaeusingthe chemical treatment of
water and manual brush to removethese fatty
deposits.
-Checkthat thehandleof therobot isdirectedto
therear.Thecableshouldbeabovethehandle.
PROBLEM CAUSE(S) SOLUTION(S)
09 TROUBLESHOOTING
Therobot goesroundin circles. - A belt isdamaged.
- oneof the 4 sidewheelsisdamagedor unscrewed.
- Check thecondition of thedrivebelts.
If necessary,replacethe faulty belt.
-Checkthewheelsboltedto theendsof therollers.
These wheelsfit ontheroll and thenscrew.
Page13

EN
-Checktheconnectionof thefloatingcable.
Disconnect andreconnect asneeded.
-Checkthestatusof theconnectorsat theendsof
your cables(damaged,rusted,etc.)
- Connectionof thefloatingcable.
-Possibility of fault of thefloatingcable.
-Possibility of motor leakage.
Therobot stopsafter afew minutes.
Therobot movesslower thanbefore.
TheblueLED on the"No-Twist" floating device does
not light up(light Cof Chapter 8).
No ledlit on thetransformer.
Thebluelight ontheNo-Twist Floatingdeviceison
but thecleaner doesnot work (light Cof Chapter 8 ).
Therobot leavestraceson thefloor or on thewalls
- Therobot istoo heavy.
- Theflow isnot sufficient.
-Cablesconnections.
-Badconnectionbetweenthetransformer and
theNo-Twist floatingdevice.
-Possibility of No-Twist floatingdeviceproblem
- Youdidnot presstheon/off button locatedabove
thetransformer.
-Thecurrent isnot reachingthetransformer.
-BadconnectionbetweentheNo-Twist floating
deviceandthecleaner
-Possibility of No-Twist floatingdeviceproblem
-Possibility of motor problem.
- Stateof thebrushesand/or transmissionbelts
-Checkthat thedirt collectingbasket isnot full.
- Check and clean if necessary thepump impeller or
thegridabovetheimpeller (propeller at thetop
of therobot towardsthehandle).
- Check all thecableconnections(seechapter 4).
- TurnON thecleaner by pressingtheON / OFF
button locatedontopof thetransformer.
- Checkall theconnectionsof thecables between
thetransformer and theNo-Twist floatingdevice.
- Contact theAfter-salesService
- Check your electrical outlet .
- Check theconnections.
-contact our Customer Service.
- Check if theconnectionat the "No-twist" float
outlet,blueoutlet "Pool Cleaner" iscorrect and
waterproof.
- If thebluelight Cison,youshouldalsohaveared
light onat thefloat outlet (light Ein Chapter 8).
If thisisnot thecase,it islikelythat thefloat is
defective.
- If both blueandredlightsareonbut therobot does
not work,pleasecontact your dealer or our
after-salesserviceat [e-mail]
-Thesebrushesandbeltsarewear-and-tear parts,
Pleasecheck themand change themif necessary
Pleasecontact www.8streme.eu if you haveanyother questions.
PROBLEM CAUSE(S) SOLUTION(S)
09 TROUBLESHOOTING
Page14

EN
DRAWING:ITEM NUMBER SKU PART DESCRIPTION
10Sparepartslist
10 SPAREPARTSLIST
1
2
3
4
5
6
7
8
9
10
11
12
13
14
71000
71010
71020
71040
71050
71070
71080
71090
71100
71110
71120
71130
71140
71150
TopShell.Dark grey
Debrisbasket (parts16,and17 included)
Toplid.smoke
Impeller
Pumpmotor block
Pumpcover lid.Black
Handle
Gearedroller tubeasembly .Black
Bottomchassis.Darkgrey
Fast drainflap.Dark grey
Left SideSupport.Black
Drive belts.Black - 2 pieces
Gearedwheel.Grey - 4 pieces
Front roller tube.
Page15

EN
DRAWING:ITEM NUMBER SKU PART DESCRIPTION
10Sparepartslist
10 SPAREPARTSLIST
15
16
17
18
19
20
21
22
23
24
25
26
27
28
71160
71012
71011
30180
33291
33111
35011
36000
36001
36002
36003
36004
71180
71170
Right SideSupport.Black
Non returninlet
Topfilter screen
Transformer
Floatingcord13m.
Floatingcord3m- machineend.
Squareswivel
Power cord -UK
Power cord -Australia
Power cord- USA
Power cord VDE- Europe
Power cord- Chine
PVCbrushesset - 5 pieces
FineFilter pad
Page16

EN
11 Sparepartsdrawing
11 SPAREPARTSDRAWING
Page17
