8 STREME 7310 User manual

7310
ver 19-01ENGLISH

EN
Congratulationsonthepurchaseof your new 8STREME7310pool cleaner.It isapowerfulautonomousrobot delivered
ready to use.Ideal for poolsof all sizesandin all forms.Thisrobot comeswith aneasy accessibledebrisbasket alongwith
floatingrotarycouplingwhichlimitscableentanglement.
Pleasecheck thepackageto makesurethat all partsareready to beinstalled.
Werecommendthat youcheck theconnectionsof thecablesfrom thecleaner to thefloatingrotary couplingplug(chapter
5).If any partsare missingor damaged,pleasecontact 8STREMEdirectly on www.8streme.eu
7310
Page2

EN
01Product features
02Warnings
03Packagecontents
04Start-up
05Cablesconnection
06Cleaning thefilterbasket
07Cleaning theimpeller
08Wallsclimbing
09Troubleshooting
10Sparepartslist

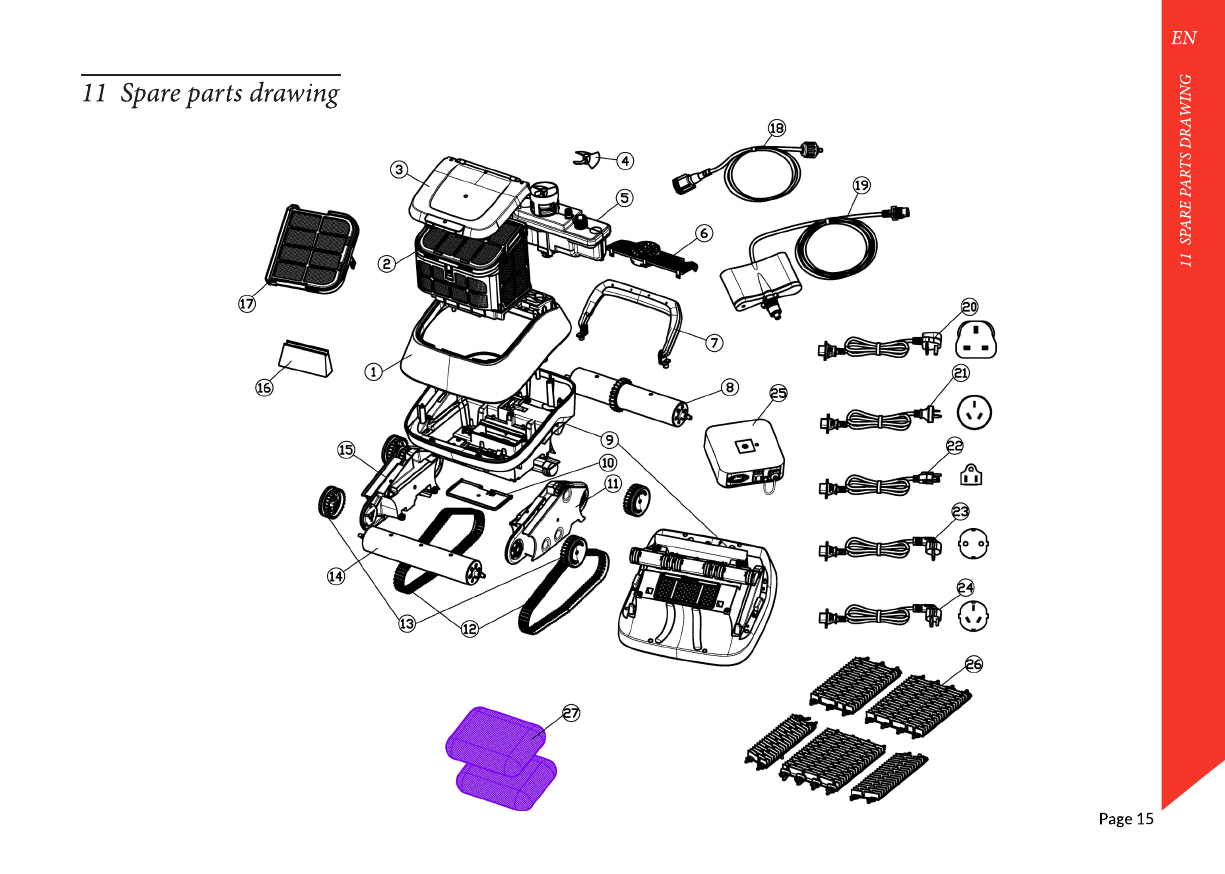

11Sparepartsdrawing
.................................................................... p04.
.................................................................... p04.
.................................................................... p04.
.................................................................... p05.
.................................................................... p07.
.................................................................... p08.
.................................................................... p09.
.................................................................... p09.
.................................................................... p10.
.................................................................... p13.
.................................................................... p15.
Tableofcontents
Page3

EN
MaximumDepth:2,5m
Maximumsizeof thepool:10mx5m
Input current:100-130VAC/ 200-230V AC
Output current:<24VDC

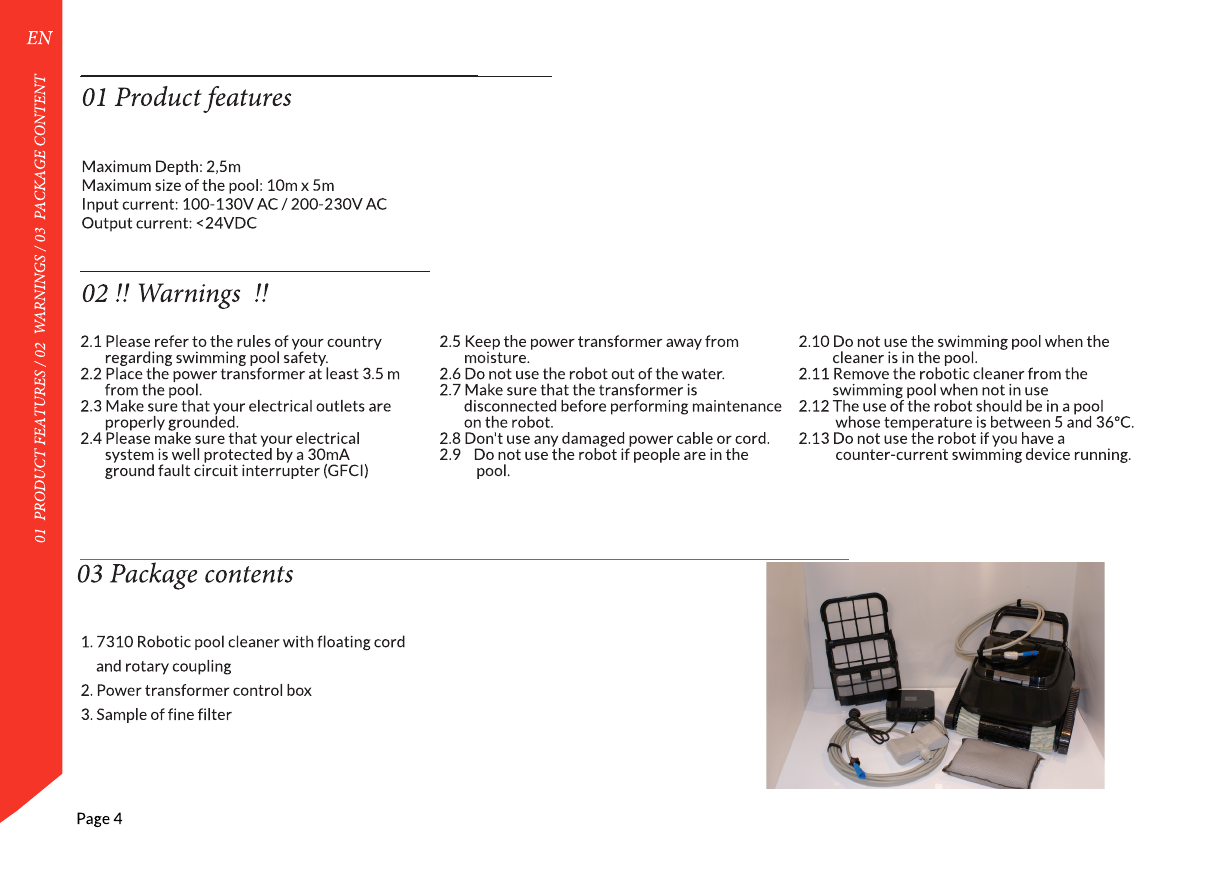

01Product features
02!!Warnings !!
2.1 Please refer to therulesof your country
regardingswimmingpool safety.
2.2 Placethepower transformer at least 3.5 m
fromthepool.
2.3 Makesurethat your electrical outletsare
properlygrounded.
2.4 Please makesurethat your electrical
systemiswell protectedby a30mA
ground fault circuit interrupter (GFCI)
2.5 Keep thepower transformer away from
moisture.
2.6 Donot usetherobot out of thewater.
2.7 Makesurethat thetransformer is
disconnectedbeforeperformingmaintenance
ontherobot.
2.8 Don't use any damaged power cableor cord.
2.9 Do not usetherobot if peopleareinthe
pool.
2.10 Do not usetheswimmingpool whenthe
cleaner isinthepool.
2.11 Removetheroboticcleaner from the
swimmingpool whennot in use
2.12 Theuse of therobot shouldbein apool
whosetemperature isbetween 5 and 36°C.
2.13 Do not usetherobot if you havea
counter-current swimmingdevicerunning.
1.7310 Roboticpool cleaner with floatingcord
androtarycoupling
2.Power transformer control box
3.Sampleof finefilter
03Packagecontents
01 PRODUCT FEATURES/ 02 WARNINGS/ 03 PACKAGECONTENT
Page4

EN
04 Start-up
* YOURCLEANERROBOT COMESPRE-ASSEMBLED IN THEBOX.
-Our robotsaredesignedto facilitatethe
maintenanceof your pool. However,theyarenot
intended to clean apool full of algaeandleaves
(ex:endof winter period).
In thiscaseyou must:use theleaf skimmer,
clean the filter and put back onthefilter and
thepump.
-A tilecoatingleadsto faster wear of thebrushes
and belts.Pleasecheck theseregularly.
-To removethecleaner fromyour pool,lift the
cableslowlyandgently until youcan grabit by
thehandle.Usethehandleto fully pull out the
cleaner
- In order to accessthe filter basket,place handsas
shown in picture.Push with thumbsto unlock lid.
QUICKFACTS
Insert theendof thefloatingcableinto the
socket.Takenoteof theorientationof theplug
andsocket.

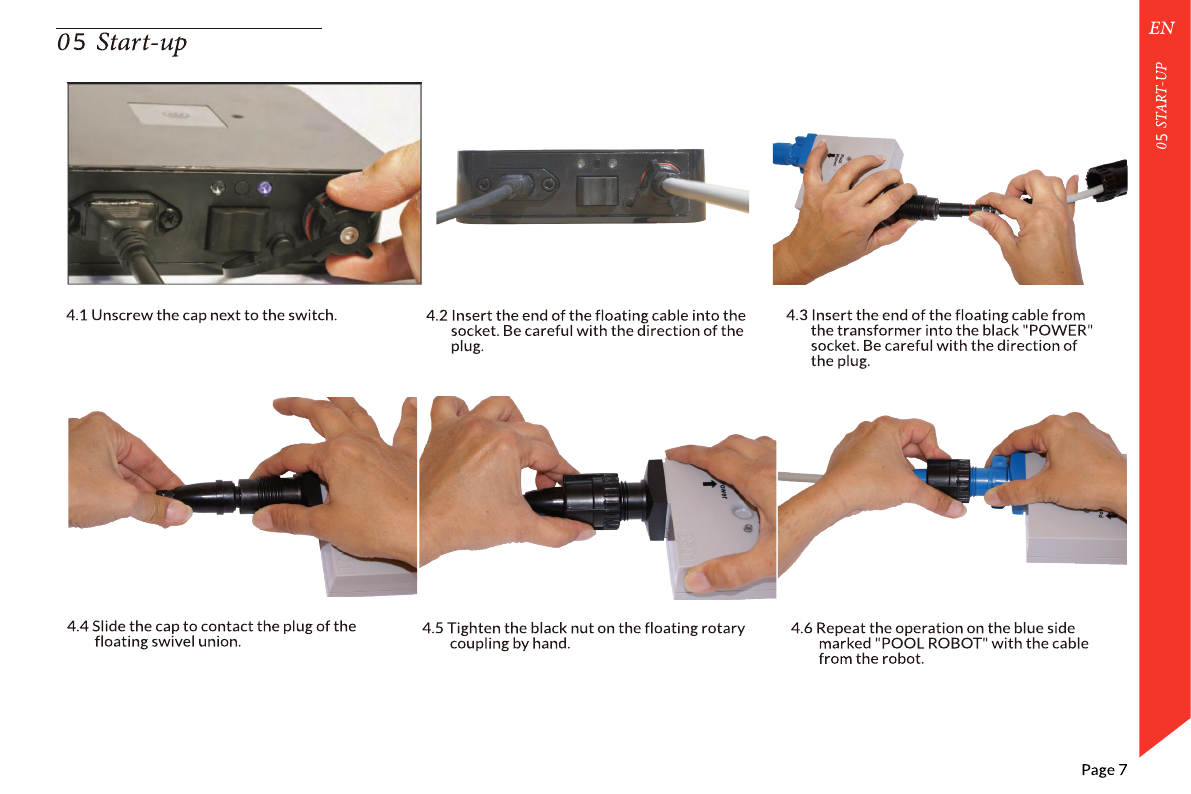

4.1 Unscrew thecap next to the switch.
04 START-UP
4.2 Screw thenut of thefloatingcablefirmly.
Presstheswitch onthehousingof the
transformer under bluelight.Thiswill activate
thepower source.
Page5

EN

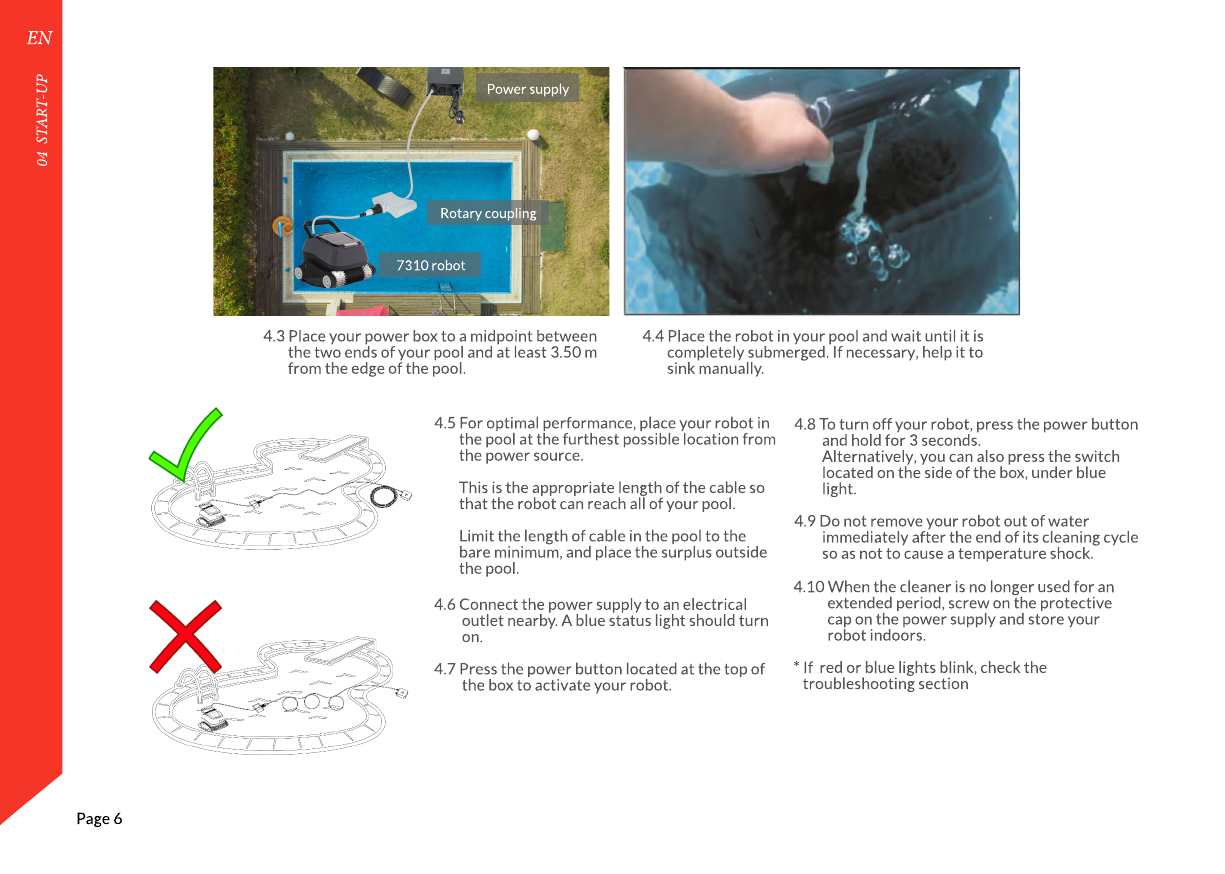

4.3 Placeyour power box to amidpoint between
thetwo endsof your pool and at least 3.50 m
fromtheedgeof thepool.
4.5 For optimal performance,placeyour robot in
thepool at thefurthest possiblelocationfrom
thepower source.
Thisistheappropriatelengthof thecableso
that therobot canreachall of your pool.
Limit thelength of cableinthepool to the
bareminimum,andplacethesurplusoutside
thepool.
4.4 Placetherobot in your pool andwait until it is
completely submerged.If necessary,help it to
sink manually.
4.6 Connect thepower supply to an electrical
outlet nearby.A bluestatuslight shouldturn
on.
4.7 Pressthe power button located at the top of
theboxto activateyour robot.
04 START-UP
4.8 To turn off your robot,pressthe power button
andhold for 3 seconds.
Alternatively,youcanalso presstheswitch
locatedonthesideof thebox,under blue
light.
4.9 Donot removeyour robot out of water
immediately after theendof itscleaningcycle
soasnot to causeatemperatureshock.
4.10Whenthecleaner isnolonger usedfor an
extended period,screw ontheprotective
cap onthe power supply and storeyour
robot indoors.
*If redor bluelightsblink,checkthe
troubleshootingsection
Page6
Power supply
Rotary coupling
7310 robot

EN

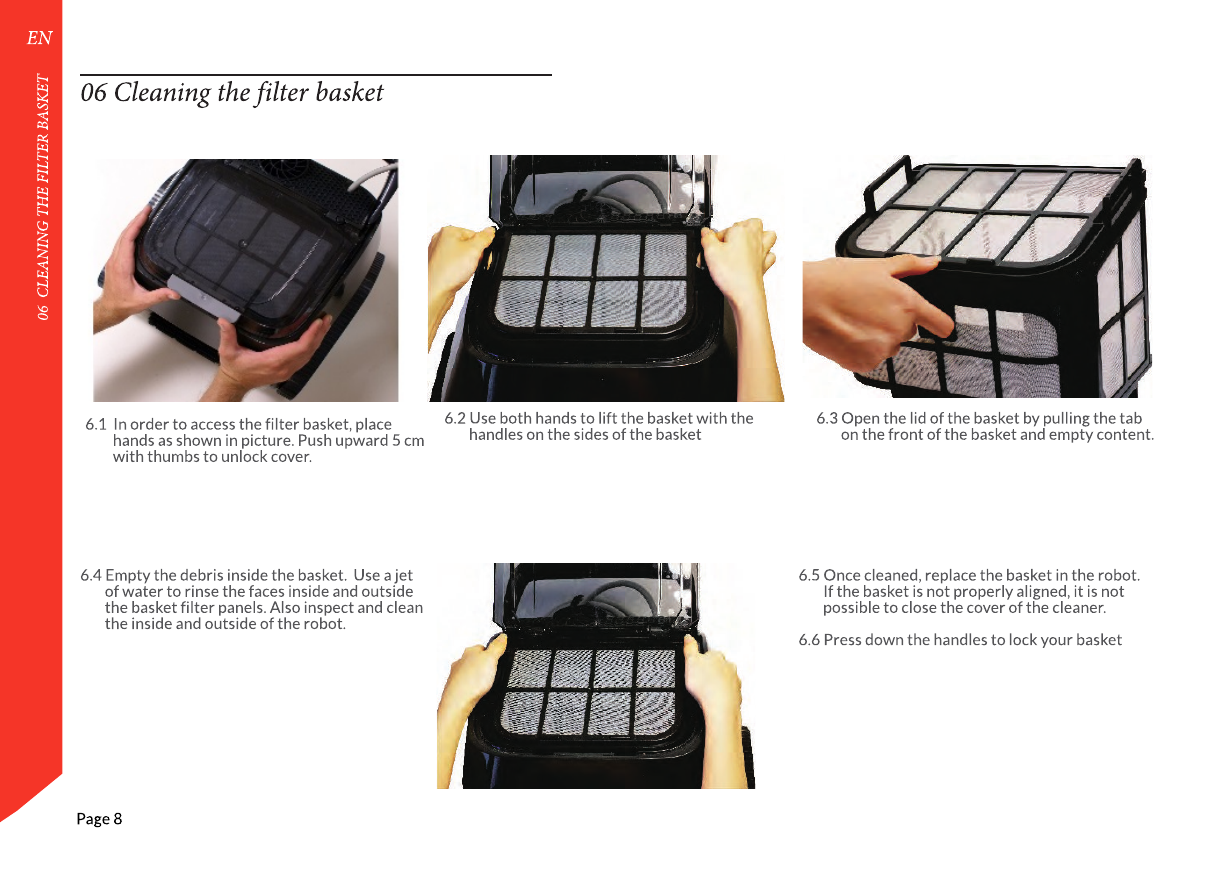

6.1 In order toaccessthefilter basket,place
handsasshown in picture.Push upward 5 cm
with thumbsto unlock cover.
6.2 Useboth handsto lift thebasket with the
handlesonthesidesof thebasket
6.5 Oncecleaned,replacethebasket in therobot.
If thebasket isnot properly aligned,it isnot
possibleto closethecover of thecleaner.
6.6 Pressdown the handlesto lock your basket
6.3 Open thelidof thebasket by pullingthe tab
onthefront of thebasket and empty content.
06Cleaningthefilter basket
6.4 Empty thedebrisinsidethebasket. Use ajet
of water to rinsethefacesinsideandoutside
thebasket filter panels.Also inspect andclean
theinsideand outsideof therobot.
06 CLEANINGTHEFILTERBASKET
Page8

EN
Somedebriscanclogor be
wrappedaroundtheimpeller
ofthepump.Byforce,these
debriscanhinder theproper
functioningoftherobot or
evendamagetheengine.
Regular visual inspectionis
part ofthenormal
maintenanceoftherobot.
7.1. Useaflat screwdriver toremovethe
protectivegrille. 7.2 Clean theimpeller. 7.3 Replacethegrill guard.
07Cleaningtheimpeller
07 CLEANINGTHEIMPELLER/ 08 WALLSCLIMBING
Inorder tobeefficient while
cleaningthewaterline,the
robot isdesignedtoclimbup
thewaterlinewiththe
orientationthat offersthemost
effectivebrushing.
It isthereforenormal toseeit
climbtothewaterlineonlyby
thesidewiththehandle.
08WallsClimbing
Page9

EN
PROBLEM
Therobot floatsonthesurface.
Therobot doesnot clean all areasof thepool.
Therobot doesnot recover debrisduringoperation.
Fineparticles(dust or dirt,pollen...)areejectedby
theimpeller.
- Immersion of therobot in thepool.
- Useof the fine filter.
- Water level inthepool.
-Not enough / too muchcablefloatingin thepool.
- Therobot doesnot receiveenough power.
- Basket clogged / full.
- Anobject isstuck in theimpeller or thegrid located
abovetheimpeller.
-Debrisaretoo fine,therobot ismadeto pickup
the particlesmorethan50 microns(with thefine
filter insidethebasket).
CAUSE(S)
-Whenyou put therobot inthepool,let it sink and
reachthefloor beforeyou turn it on.
- If you useanoptional finefilter,removethefilter
fromitsplasticwrap,immersethefilter inthewater
sothat it isalready wet beforeyou put it intherobot
and let therobot settleon thefloor beforeyou
turn it on.
- If your pool water level istoo high,the robot might
turnaroundandtakeintheair if it touchesthetop
seats,inthiscase to adjust thelevel of thepool.
-Makesurethelength of floatingcableintroduced
in thepool isjust the required length.
- Removeany excesscablelengthfrom thepool and
leave thisexcesslength outsidethepool next tothe
power supply box.
- Insert therobot at the center point of the pool.
If your pool isoval or rectangular,thispoint isthe
middleof thelength.
- Check the connection of the cables.
-Cleanthebasket andfilter panels.Clean thefine
filter if you use thisaccessory.
-Checkif thebasket isproperly inserted.(See
chapter Cleaningof thefilter basket).
-Checkthat therearenoforeignobjectsinthe
impeller or blockedinthegridabovetheimpeller
-Checktheattachment of thebasket,pressit if
necessary to lock it.
- Use afinefilter (check itemnumber on the parts
drawing27,sku 71170 filtersaresold by 2)on the
other hand do not forget that it isthefiltrationof
your swimmingpool whichensuresthecleaningof
theparticlesof lessthan 50 microns.
SOLUTION(S)
09TROUBLESHOOTING
09 TROUBLESHOOTING
Page10

EN
Therobot movesinonedirection
Therobot doesnot moveandthefiltrationpump
doesnot work either.Therobot doesn't work any
longer.
Thepumprunsbut therobot doesnot move.The
robot turnsonbut staysonthespot.
Robot doesnot climbwalls
-An object blockstherollers,thewheelsof therobot
or interferingwiththemovement of therobot.
-Therobot isnot connectedtoapower source.-
Power off
-No/ not enoughpower istransmittedto therobot
- An object blocksthe rollers,the belts,thewheels
of therobot or the path.
-Possibility of motor problem
-Therobot istoo heavy
- Theflow isnot enough
-Thewallsaretoo slippery
-Thehandleof therobot ispoorly directed
-Checkthat therearenoforeignobjectsin the
impeller locatedabovethe motor.
- Check that thereareno foreign object blockingthe
hydrauliccircuit or thebrushesandbeltsunder the
robot andsides.
-Checkthat thepower sourceisactiveby plugging
another deviceinto thepower outlet.
- Check that the power supply isturnedon.
- Check all connectionsof therobot to thepower
source.
-Unplugthepower andtakeout therobot in the
water.Openthecover of thebasket andremovethe
basket.
- Check that thereareno foreign objectsinthe
impeller locatedabovethe motor.
- Check that thereareno foreign object blockingthe
hydrauliccircuit or thebrushesandbeltsunder the
robot and sides.
-Contact theAfter-salesService
-Checkthat thecollection of debrisbasket isn't full
-Checkandcleanif needtheimpeller of thepump
or thegrid at thetopof theimpeller (propeller on
topof therobot toward thehandle)
-Presenceof algaeonthewallsor fatty deposits.
Removealgaeusingthe chemical treatment of
water and manual brush to removethese fatty
deposits.
-Checkthat thehandleof therobot isdirectedto
therear.Thecableshouldbeabovethehandle.
PROBLEM CAUSE(S) SOLUTION(S)
09 TROUBLESHOOTING
Therobot goesroundin circles -A belt isdamaged
- oneof the 4 sidewheelsisdamagedor unscrewed
- Check thecondition of thedrivebelts.
If necessary,replacethe faulty belt.
-Checkthewheelsboltedto theendsof therollers.
These wheelsfit ontheroll and thenscrew.
Page11

EN
-Checktheconnectionof thefloatingcable.
Disconnect and reconnect asneeded.
-Checkthestatusof theconnectorsat theendsof
your cables(damaged,rusted,etc.)
-Connectionof thefloatingcable
-Possibility of fault of thefloatingcable
-Possibility of motor leakage
Therobot stopsafter afew minutes
Therobot movesslower thanbefore
Redlight flashes.
Thelightsflashoneafter theother
TheredandblueLEDsflashsimultaneously
No ledlit on thetransformer
Therobot leavestraceson thefloor or on thewalls
-Therobot istooheavy
- Theflow isnot sufficient
-Cablesconnections
-Badconnection
-Possibility of motor problem
- Theelectrical current doesnot reachtherobot
- Theelectrical connectionismadeto therobot,but
thediagnosticsystemdetectsaproblem.
-Nocurrent iscoming
- Stateof thebrushesand/or transmissionbelts
-Checkthat thedirt collectingbasket isnot full
- Check and clean if necessary thepump impeller or
thegridabovetheimpeller (propeller at thetop
of therobot towardsthehandle)
- Check all thecableconnections(seechapterson
electrical connections).
- Check all theconnectionsof thecables
-Contact theAfter-salesService
- Check all theelectrical connections(seechapters
on theelectrical connections).If moisture is
present onthefittings,let drybeforeconnecting
thefittingsagain.
-Turn ontheswitchof thepower supply
- Check if the connectionsare correct and tight.
If theproblempersists,pleasecontact your dealer
or our Customer Serviceat [e-mail]
- Check your electrical outlet
- Check theconnections
-contact our Customer Service
-Thesebrushesandbeltsarewear-and-tear parts,
Pleasecheck themand change themif necessary
Pleasecontact www.8streme.eu if you haveanyother questions.
PROBLEM CAUSE(S) SOLUTION(S)
09 TROUBLESHOOTING
Page12

EN
DRAWING:ITEM NUMBER SKU PART DESCRIPTION
10Sparepartslist
10 SPAREPARTSLIST
1
2
3
4
5
6
7
8
9
10
11
12
13
14
71000
71010
71020
71040
71050
71070
71080
71090
71100
71110
71120
71130
71140
71150
TopShell.Dark grey
Debrisbasket (parts16,and17 included)
Cover.smoke
Impeller
Pumpmotor block
Pumpcover lid.Black
Handle
Gearedroller tube.Black
Bottomchassis.Darkgrey
Fast drainflap.Dark grey
Left SideSupport.Black
Drive belts.Black - 2 pieces
Wheels.Grey - 4 pieces
Front roller tube.
Page13

EN
DRAWING:ITEM NUMBER SKU PART DESCRIPTION
10Sparepartslist
10 SPAREPARTSLIST
15
16
17
18
19
20
21
22
23
24
25
26
27
71160
71012
71011
3311
3329
36000
36001
36002
36003
36004
30180
71180
71170
Right SideSupport.Black
Non returninlet
Topfilter screen
Floatingcord3m- machineend.Grey
Floatingcordwith rotary coupling13m
Power cord -UK
Power cord -Australia
Power cord- USA
Power cord VDE- Europe
Power cord- Chine
Power Supply
PVCbrushesset - 5 pieces
FineFilter pad -2 pieces
Page14

EN
11 Sparepartsdrawing
11 SPAREPARTSDRAWING
Page15
