Aaeon SBC-590 User manual

SBC-590
Full-size PCI/ISA
Pentium CPU Card
with SVGA

Copyright Notice
This document is copyrighted 1996. All rights are reserved.
AAEON Technology Inc. reserves the right to make improvements
to the products described in this manual at any time without
notice.
No part of this manual may be reproduced, copied, translated or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However the
original manufacturer assumes no responsibility for its use, nor for
any infringements upon the rights of third parties which may result
from its use.
Acknowledgements
VIA is a trademark of VIA Technology, Inc.
ALG is a trademark of Avance Logic, Inc.
AMD is a trademark of Advanced Micro Devices, Inc.
Award is a trademark of Award Software International, Inc
Cyrix is a trademark of Cyrix Corporation.
IBM, PC/AT, PS/2 and VGA are trademarks of International
Business Machines Corporation.
Intel and Pentium are trademarks of Intel Corporation.
Microsoft Windows ®is a registered trademark of Microsoft Corp.
UMC is a trademark of United Microelectronics Corporation.
All other product names or trademarks are properties of their
respective owners.
Part No. 2006590002 3rd Edition
Printed in Taiwan September 1997

Packing list
Before you begin installing your card, please make sure that the
following materials have been shipped:
• 1 SBC-590 CPU card
• 1 6-pin mini-DIN dual outlet adapter for keyboard and PS/2
mouse
• 1 Hard disk drive (IDE) interface cable (40 pin)
• 1 Floppy disk drive interface cable (34 pin)
• 1 Parallel port adapter (26 pin) and COM2 adapter (9 pin) kit
• 3 Utility disks with SVGA utility programs and drivers
• PC/104 Expansion connector converter (pin headers)
• PC/104 Module mounting supports
If any of these items are missing or damaged, contact your
distributor or sales representative immediately.
FCC STATEMENT
THISDEVICECOMPLIESWITHPART 15 FCC RULES. OPERATIONIS
SUBJECTTOTHEFOLLOWINGTWOCONDITIONS:(1)THISDEVICE
MAYNOTCAUSEHARMFULINTERFERENCE.(2)THISDEVICE MUST
ACCEPTANYINTERFERENCERECEIVEDINCLUDINGINTERFERENCE
THATMAYCAUSEUNDESIREDOPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TOCOMPLY
WITH THE LIMITS FOR A CLASS "A" DIGITAL DEVICE, PURSU-
ANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE
DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINTST
HARMFUL INTERFERENCEWHEN THE EQUIPMENT IS OPERATED
IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENER-
ATES, USES, AND CAN RADIATE RADIO FREQENCY ENERGYAND ,
IFNOTINSTATLLED ANDUSED IN ACCORDANCEWITH THE
INSTRUCTION MANUAL, MAY CAUSEHARMFUL INTERFERENCE
TO RADIO COMMUNICATIONS.OPERATION OF THIS EQUIPMENT
IN A RESIDENTIALAREA IS LIKELY TO CAUSE HARMFUL
INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED
TOCORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

Contents
Chapter 1: General Information ................................... 1
Introduction .............................................................................. 2
Features.................................................................................... 3
Specifications ........................................................................... 4

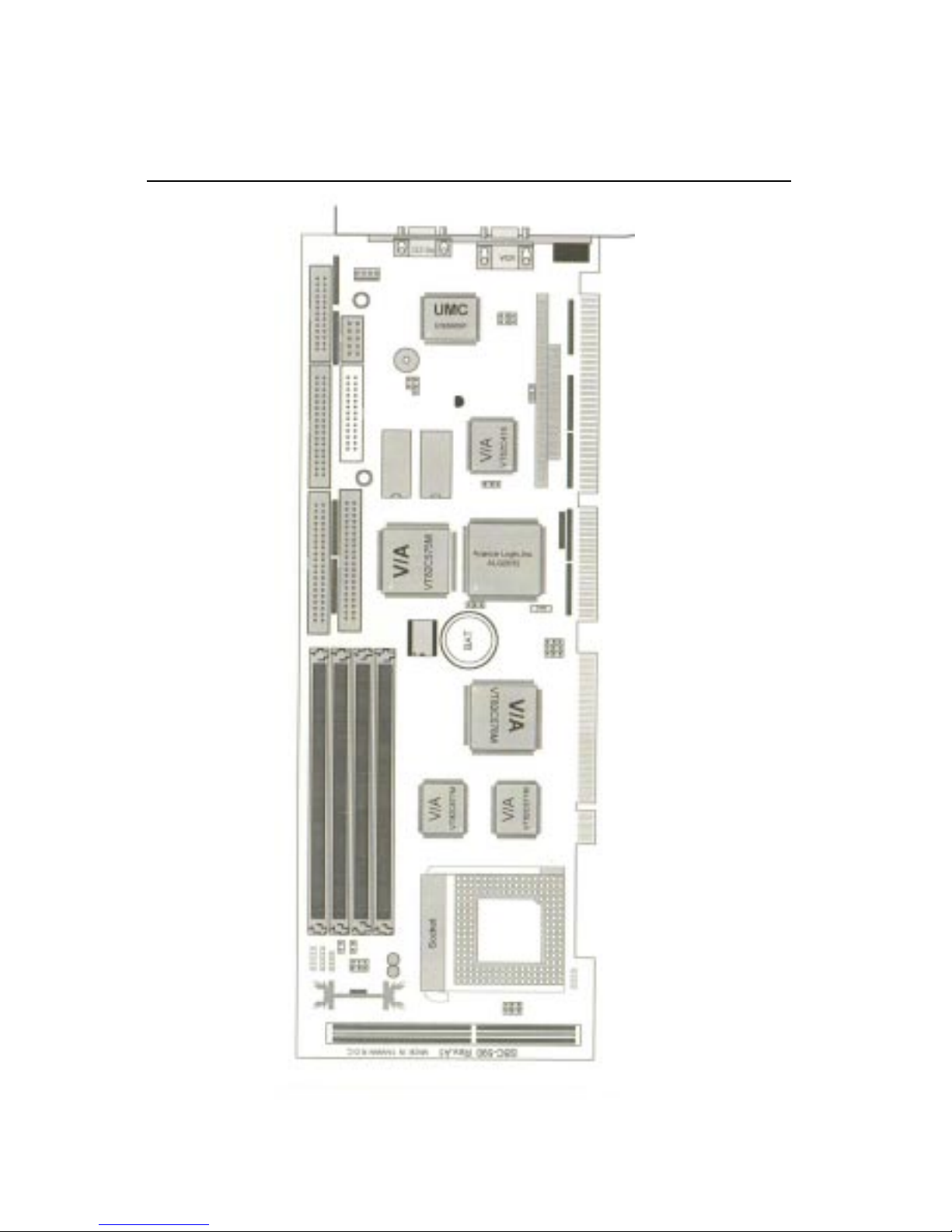

Board layout ............................................................................. 6

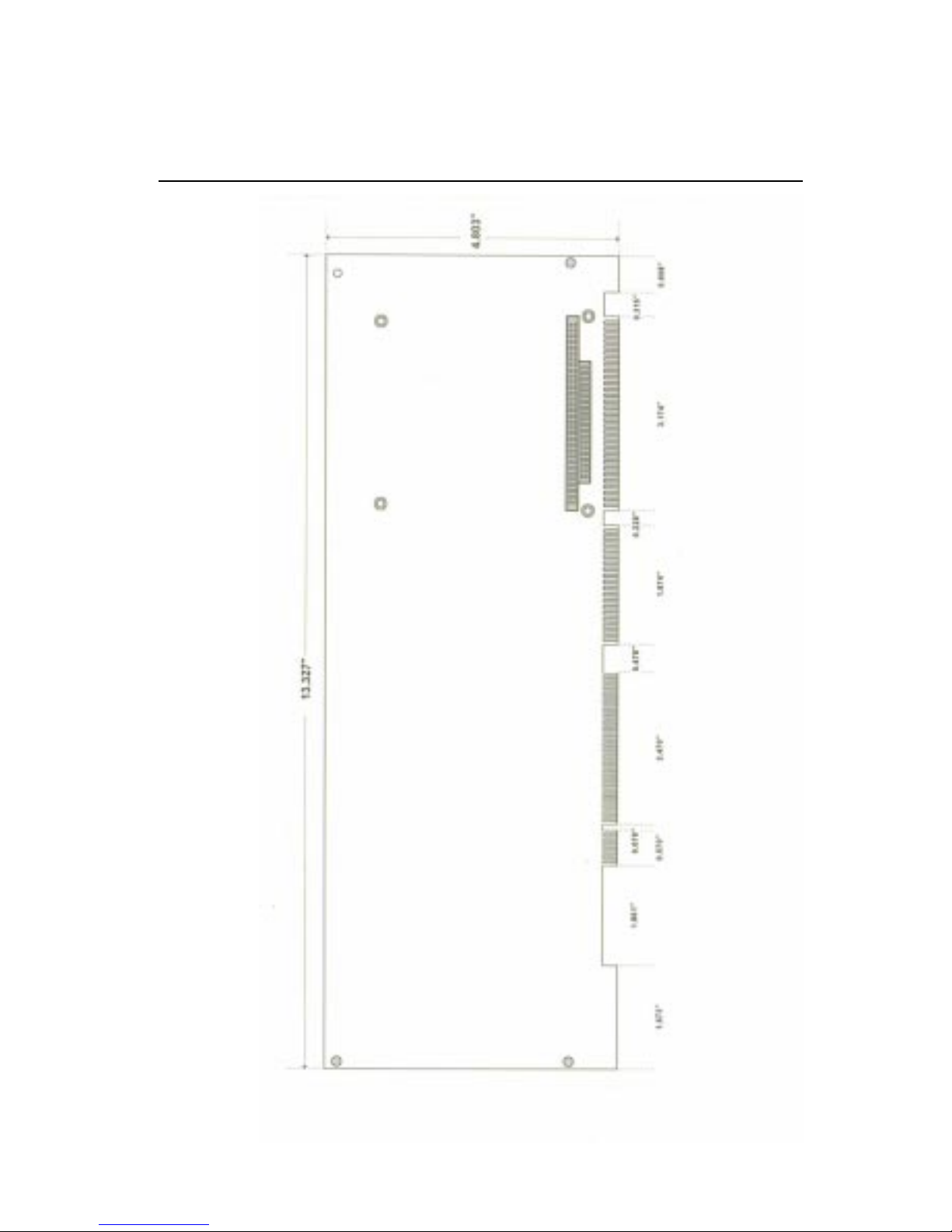

Carddimensions ....................................................................... 7
Chapter 2: Hardware Configuration ............................. 9
Jumpers and connectors..........................................................10
Locating jumpers and connectors............................................ 11
Settingjumpers ........................................................................12
Safety precautions...................................................................13
Installing the CPU ...................................................................14
Removing a CPU ....................................................................14
Installing the CPU ...................................................................14
CPU Clock Ratio Select (J1,J2)..............................................15
CPU VCC Select (J3, J4) .......................................................16
CPU/PCI Clock Slelect (J5, J6, J7) ........................................17
On-Board VGA ENABLE/DISABLE (J8)............................18
Clear CMOS (J9) ....................................................................18
PS/2 Mouse/IRQ12 Select (J10).............................................19
Internal Buzzer Control (J11) ..................................................19
Watchdog Timer Control (J12) ................................................19
Watchdog Timer Programming ...............................................19
COM1 IRQ Control (J14) .......................................................20
COM2 IRQ Control (J13) .......................................................20
Installing DRAM (SIMMs) .....................................................20

Chapter 3: Connecting Peripherals ............................ 23
IrDA Tx/Rx Header (CN1) ..................................................... 26
Power LED and Keylock (CN2) ............................................ 26
External Speaker (CN3).......................................................... 27
CPU cooling fan power connector (CN4)............................... 27
Hard Drive LED (CN5) .......................................................... 27
Reset Switch (CN6) ................................................................ 27
Enhanced IDE (CN7, CN8).................................................... 28
Floppy Drive (CN9)................................................................ 28
DisplayConnections ............................................................... 28
Parallel Port (CN14) ............................................................... 30
Power Supply connections...................................................... 30
Power supply connector (CN15, CN19)................................. 30
Serial Ports (CN18, CN12)..................................................... 31
Keyboard & PS/2 Mouse (CN20, CN17)............................... 32
Chapter 4: Award BIOS Setup .................................. 35
Enteringsetup ......................................................................... 36
Standard CMOS setup ............................................................ 37
BIOS features setup................................................................ 38
CHIPSET features setup ........................................................ 42
Power management setup ....................................................... 43
PCI configuration setup .......................................................... 44
Load BIOS defaults ................................................................ 45
Load setup defaults................................................................. 45
Passwordsetting ..................................................................... 45
IDE HDD auto detection ........................................................ 45
Save & Exit setup ................................................................... 45
Exitwithoutsaving.................................................................. 45

Chapter 5: SVGA Setup ............................................ 47
Windows3.1x Driver Installation ........................................... 48
Windows95Installation ......................................................... 49
InstallationProcedure ............................................................ 49
Windows NT 3.51 ................................................................. 50
InstallationProcedure ............................................................ 50
OS/2 Warp ............................................................................. 51
InstallationProcedure ............................................................ 51
Appendix A: Programming the Watchdog Timer .. 55
Appendix B: Installing PC/104 Modules ................... 57

Chapter 1 General Information 1
1
General
Information
This chapter gives background informa-
tion on the SBC-590.
Sections include:
• Card specifications
• Board layout
CHAPTER

2SBC-590 User'sManual
Introduction
The SBC-590 is an all-in-one single board Pentium computer with an
on-board SVGA controller, with PCI-bus and ISA-bus support. It
packs all the functions of an industrial computer with display capabili-
ties on a single full-size card. The SBC-590 is fully PC/AT compati-
ble, so your software will run without modifications.
The on-board PCI-bus SVGA controller uses the ALG 2032 chipset
with 1 MB shared memory. This chipset, used with the local PCI-bus,
enables 32-bit graphic throughput and has a built-in Standard
Feature Connector. These features make the SBC-590 particularly
suited for graphics intensive applications.
Another feature of the SBC-590 is the inclusion of a high speed local
bus IDE controller. This controller supports (through ATA PIO)
mode 3 and mode 4 hard disks, which enables data transfer rates in
excess of 11 MB/sec. Up to four IDE devices can be connected,
including large hard disks, CD-ROM drives, tape backup drives or
other IDE devices. The built-in enhanced IDE controller provides a
4-layer 32-bit posted write-buffer and a 4-layer 32-bit read-prefetch-
buffer to accomplish the IDE boost in performace improvements.
On-board features also include two high-speed RS-232 serial ports
with 16C550 UARTs, one bidirectional SPP/EPP/ECP parallel port
and a floppy drive controller. In addition to the Pentium's 16 KB of
on-chip cache memory, the SBC-590 comes with an extra 256 KB or
512 KB of second level memory on-board.
If program execution is halted by a program bug or EMI, the board's
16-stage watchdog timer can automatically reset the CPU or generate
an interrupt, provided the watchdog timer has been programmed in
advance. This ensures reliability in unmanned or stand-alone systems.
The SBC-590 supports 5V EDO DRAM. It also provides four 72-pin
SIMM (Single In-line Memory Module) sockets for its on-board
system DRAM. These sockets give you the flexibility to configure
your system from 1 MB to 128 MB of DRAM using the most eco-
nomical combination of SIMMs.

Chapter 1 General Information 3
Features
•Accepts Intel Pentium 75-200 MHz CPUs and other compatible CPUs at
66/60/50/40 MHz (external clock speed)
•Fully PC/AT-compatible PCI/ISA-bus CPU card
•On-board 32-bit PCI-bus SVGA controller
•Built-in, fast PCI enhanced IDE controller; supports four IDE devices
(large hard disks, CD-ROM, tape backup, etc.)
•Supports 5 V EDO DRAM and up to 128 MB of on-board DRAM
• Supports pipeline burst SRAM module
•Two high-speed serial RS-232 ports (16C550 UARTs with 16-byte FIFO);
IRQ3, 4, or IRQ 10, 11 can be individually selected
•One enhanced bidirectional parallel port; supports SPP/EPP/ECP
•Watchdog timer (64 steps, 1 seconds per step)
•On-board keyboard and PS/2 mouse connector
•Connectors for PC/104 module expansion
•"Green" function; supports power management
•Supports a Feature Connector

4SBC-590 User'sManual
Specifications
• CPU: Intel Pentium 75-200 MHz CPUs and other compatible CPUs at 66/
60/50/40 MHz (external clock speed)
• Bus interface: ISA and PCI (PC/AT) bus
• Data bus: 64 bit
• Processing ability: 64 bit
• Chipset: VT 82C575/82C576/82C577
• RAM memory: 1 MB to 128 MB. Uses four 72-pin SIMM sockets
supporting EDO RAM
• L2 Cache memory size: 256 KB/512 KB 2nd level cache memory
(Supports pipeline burst SRAM module)
• Shadow RAM memory: Supports system and video BIOS shadow
memory
• Display controller: SVGA, PCI-bus, ALG 2032 chipset with 1 MB shared
video memory. Provides 32-bit graphic through-put. Supports resolutions
up to 1280 x 1024 in 16 colors, 1024 x 768 in 256 colors,
• Feature connector: 26-pin header for external VGA Display
• Enhanced IDE hard disk: Fast PCI bus. Supports up to four enhanced
IDE (ATA-2)
• Driver interface: Large hard disk drives or other enhanced IDE devices.
Supports mode 3 and mode 4 hard disks (data transfer rate, minimum of
11.1 MB/sec)
• Floppy disk drive interface: Supports up to two floppy disk drives, 5.25"
(360 KB and 1.2 MB) and/or 3.5" (720 KB, 1.44 and 2.88 MB)
• Bidirectional parallel port:Configurable to LPT1, LPT2, LPT3 or
disabled. Supports SPP/EPP/ECP standards
• Serial ports: Two serial RS-232 ports; use 16C550 UARTs with 16-byte
FIFO buffer. Supports speeds up to 115 Kbps. Ports can be individually
configured from COM1 to COM4 or disabled.
• BIOS: Award BIOS
• Watchdog timer: Can generate a system reset or IRQ15. The time interval
is software selectable from 1 to 64 seconds.

Chapter 1 General Information 5
• PC/104: 104-pin connector for a 16-bit bus
• DMA channels: 7
• Interrupt levels: 15
• Keyboard or PS/2 mouse connector: A 6-pin mini DIN keyboard
connector is located on the mounting bracket for easy access to the
keyboard and PS/2 mouse.
• Bus speed: 8 MHz for ISA bus; 20/25/30/33 MHz (for PCI bus) dependent
upon CPU clock speed
• Max. power requirements: +5 V @ 5 A
• Power supply voltage: +5 V (4.75 V to 5.25 V)
• Operating temperature: 32 to 140oF (0 to 60oC)
• Board size: 13.3" (L) x 4.8" (W) (338 mm x 122 mm)
• Board weight: 1.2 lbs (0.5 Kg)

6SBC-590 User'sManual
Board layout

Chapter 1 General Information 7
Card dimensions
SBC-590 Rev. A1 MADE IN TAIWAN R.O.C.

8SBC-590 User'sManual

Chapter 2 Installation 9
2
Hardware
Configuration
This chapter gives background informa-
tion on the SBC-590. It explains howe to
configure the card and prepare it for
installation into your PC.
Sections include:
• Jumper settings
• Safety precautions
• Installing DRAM (SIMMs)
CHAPTER

10 SBC-590 User's Manual
Jumpers and connectors
Connectors on the board link it to external devices such as hard
disk drives, a keyboard or floppy drives. In addition, the board has
a number of jumpers that allows you to configure your system to
suit your application.
The table below lists the function of each of the board jumpers and
connectors.
Jumpers and connectors
Label Function
J1, J2 CPU clock ratio
J3, J4 CPU working voltage setting
J5, J6, J7 CPU, PCI clock setting
J8 On-board VGA enable/disable
J9 Clear CMOS control
J10 PS/2 mouse/IRQ12 control
J11 Internal buzzer control
J12 Watchdog timer control
J13 COM2 IRQ control
J14 COM1 IRQ control
CN1 IrDA Tx/Rx header
CN2 Keylock connector
CN3 Speaker connector
CN4 CPU fan power connector
CN5 HDD LED connector
CN6 RESET connector
CN7 Primary IDE
CN8 Secondary IDE
CN9 Floppy drive
CN10 Feature connector
CN11, CN13 PC/104 connector
CN12 COM2
CN14 Printer Port
CN15 Power connector (-5V, -12V, Gnd)
CN16 VGA connector
CN17 Keyboard connector
CN18 COM1
CN19 Power connector (+5V, +12V, Gnd)
CN20 Keyboard and PS/2 mouse connector

Chapter 2 Installation 11
SBC 590 486SX/DX/DX2/DX4 CPU CARD Rev. B1
Locating jumpers and connectors
SIMM
SOCKET
SECOND-
ARY IDE
PRIMARY
IDE
FLOPPY
DISK
FEATURE
CONNECTOR
PRINTER
COMA VGA KB/PS2 MOUSE
KB CONNNECTOR
PC/104
CONNECTOR
CACHE
SOCKET
COMB

12 SBC-590 User's Manual
11
11
133
33
3
22
22
2
OpenOpen
OpenOpen
Open ClosedClosed
ClosedClosed
Closed Closed 2-3Closed 2-3
Closed 2-3Closed 2-3
Closed 2-3
OpenOpen
OpenOpen
Open ClosedClosed
ClosedClosed
Closed Closed 2-3Closed 2-3
Closed 2-3Closed 2-3
Closed 2-3
1 2 3
Setting jumpers
You configure your card to match the needs of your application by
setting jumpers. A jumper is the simplest kind of electric switch. It
consists of two metal pins and a small metal clip (often protected
by a plastic cover) that slides over the pins to connect them. To
“close” a jumper you connect the pins with the clip. To “open” a
jumper you remove the clip. Sometimes a jumper will have three
pins, labeled 1, 2 and 3. In this case you would connect either pins
1 and 2 or 2 and 3.
The jumper settings are schematically depicted in this manual as
follows:
A pair of needle-nose pliers may be helpful when working with
jumpers.
If you have any doubts about the best hardware configuration for
your application, contact your local distributor or sales representa-
tive before you make any changes.
Generally, you simply need a standard cable to make most
connections.

Chapter 2 Installation 13
Safety precautions
Warning! Always completely disconnect the power cord
from your chassis whenever you are working on
it.Do not make connections while the power is
on, sensitive electronic components can be
damaged by the sudden rush of power.Only
experienced electronics personnel should open
the PC chassis.
Caution! Always ground yourself to remove any static
charge before touching the CPU card.Modern
electronic devices are very sensitive to static
electric charges.Use a grounding wrist strap at
all times.Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis.
