ABB TMAX XT XT2 THERMOMAGNETIC Installation instructions
—
INSTRUCTION HANDBOOK
1SDH002292A1001 - ECN000285442
TMAX XT XT2 THERMOMAGNETIC
Disassembly instructions
3
Disassembly instruction tmaX Xt Xt2 tHermomaGnetic
1. SCOPE
Scope of this document is to illustrate the step-by-step disassembly process of ABB SACE Tmax XT XT2
moulded case circuit breaker equipped with a thermomagnetic trip unit.
Document is focused on Tmax XT XT2 3p IEC version, anyway it allows to cover other versions of Tmax
XT XT2 circuit breaker equipped with a thermomagnetic trip unit with just few slight differences to be
taken into account.
Gloves Glasses Safety shoes Protective clothes
4. TOOLS
Disassembly operations require the use of tools (e.g. screwdriver, torx key, pliers, …); tools to be used
are specified inside each phase of the disassembly process (see Chapter 6).
3. PERSONAL PROTECTIVE EQUIMENT (PPE)
When performing disassembly, following safety Personal Protective Equipment (PPE) must be worn:
2. SAFETY NOTES
Before proceeding with any disassembly operation, it’s mandatory to put the circuit breaker in open
position.
Disassembly operations of circuit breakers must be performed by qualified and skilled personnel in
the electrical field (IEV 195-04-01: person with relevant education and experience to enable him or her
to perceive risks and to avoid hazards which electricity can create) and having a detailed knowledge of
circuit breakers.
Disassembly activites must be performed in an ergonomic workspace able to ensure protection of per-
sons demanded to perform disassembly activities.
Applicable national legislation and international standards in force at the time of disassembly of circuit
breakers must be taken into account in addition to prescriptions illustrated in this document.
ABB declines any responsibility for injury to people or damage to property resulting from a failure to
comply with the instructions set out in this document and with any applicable safety standard.
4
INSTRUCTION HANDBOOK
If disassembled parts require a separate treatment a specific indication is provided inside each phase
with reason why for the separate treatment (see Chapter 6).
Description Position inside circuit breaker Quantity
Cap kits In correspondence of circuit breaker connection terminals
Cases for microswitches In the right hole of the circuit breaker
Plug In the left hole of the circuit breaker
Tripping shaft Mounted on the operating mechanism
Trip lever In the left hole of the circuit breaker
Open/close lever In the left hole of the circuit breaker
Trimmers Mounted on trip unit front
Lever In the trip unit
Shaft In the trip unit
Magnetic shaft In the trip unit
6. DISASSEMBLY PROCESS
Circuit breakers disassembly process is constituted by a sequence of operations to be performed on
products after their dismounting from original installation. For each phase following information is
provided:
applicable)
5. SEPARATE TREATMENT
Table below lists parts requiring a separate treatment adding information about part location inside
circuit breakers and related quantity.
5
Disassembly instruction tmaX Xt Xt2 tHermomaGnetic
Tools
Allen key
Flat screwdriver
(Thermoplastics containing brominated flame retardants)

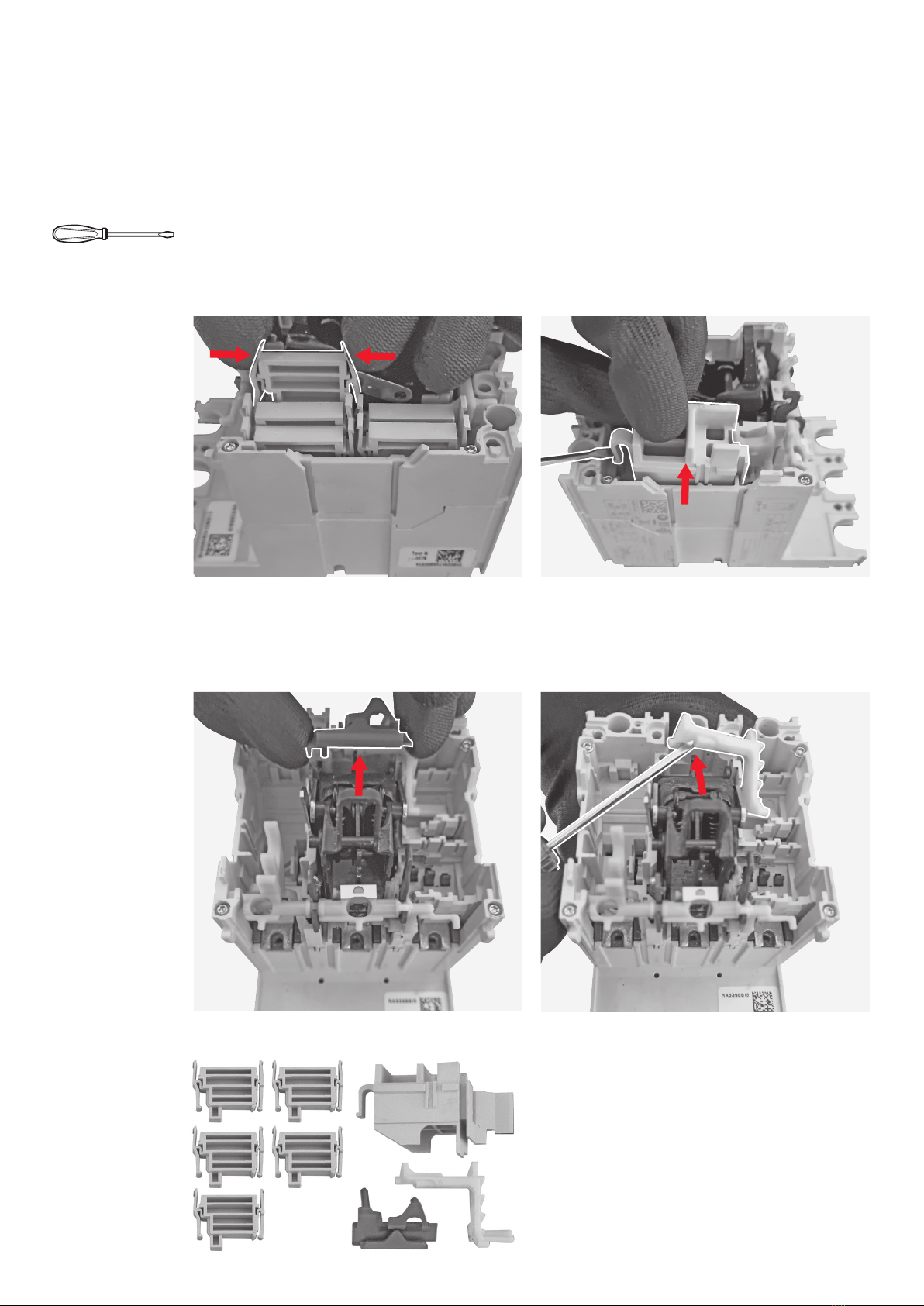

6.1 PHASE 1 – CAP KITS
1
By means of the allen key remove the screws
connected with the cap kits.
2
Insert the flat screwdriver as shown in the
picture and push it up in order to remove the
cap kits.
Actions to be performed
Disassembled parts
5mm
6
INSTRUCTION HANDBOOK
Tools
Cross screwdriver

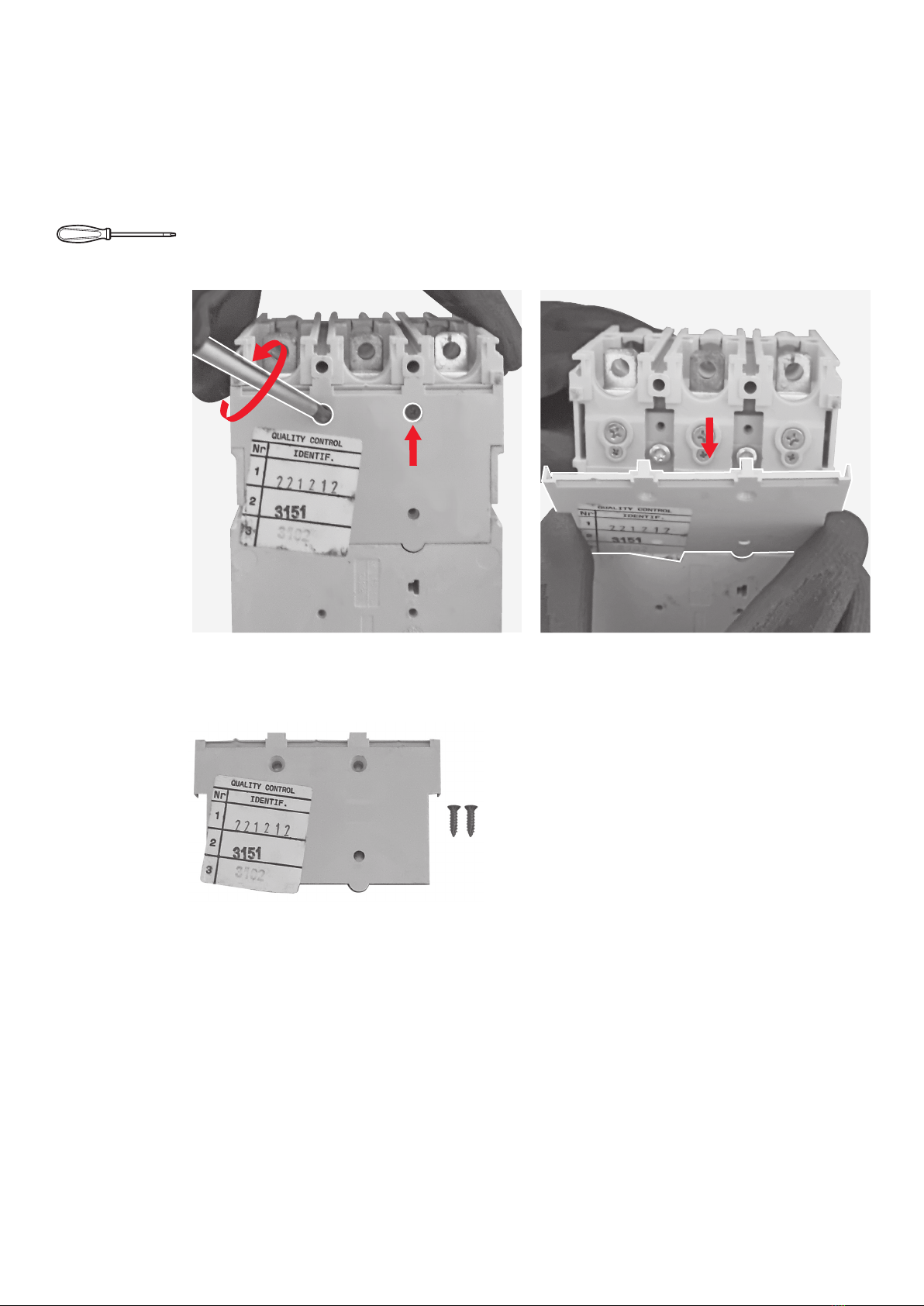

6.2 PHASE 2 – BREAKING PART FRONTAL
3
By means of the cross screwdriver unscrew the
2 screws fixing the braking part frontal to the
circuit breaker main structure.
5
Manually lift a little bit the breaking part
frontal and complete the removal pulling the
breaking part frontal as indicated by the arrow.
6
By means of the flat screwdriver push up the
reset test rod and manually remove the reset
test rod.
4
By means of the cross screwdriver push the
trip test button.
Actions to be performed
Disassembled parts
Flat screwdriverFlat screwdriver
7
Disassembly instruction tmaX Xt Xt2 tHermomaGnetic
6.3 PHASE 3 – TOGGLE AND ITS PROTECTION
7
Manually lift the toggle and its protection and
after separate the toggle from its protection.
Actions to be performed
Disassembled parts
7
Tools
–
8
INSTRUCTION HANDBOOK

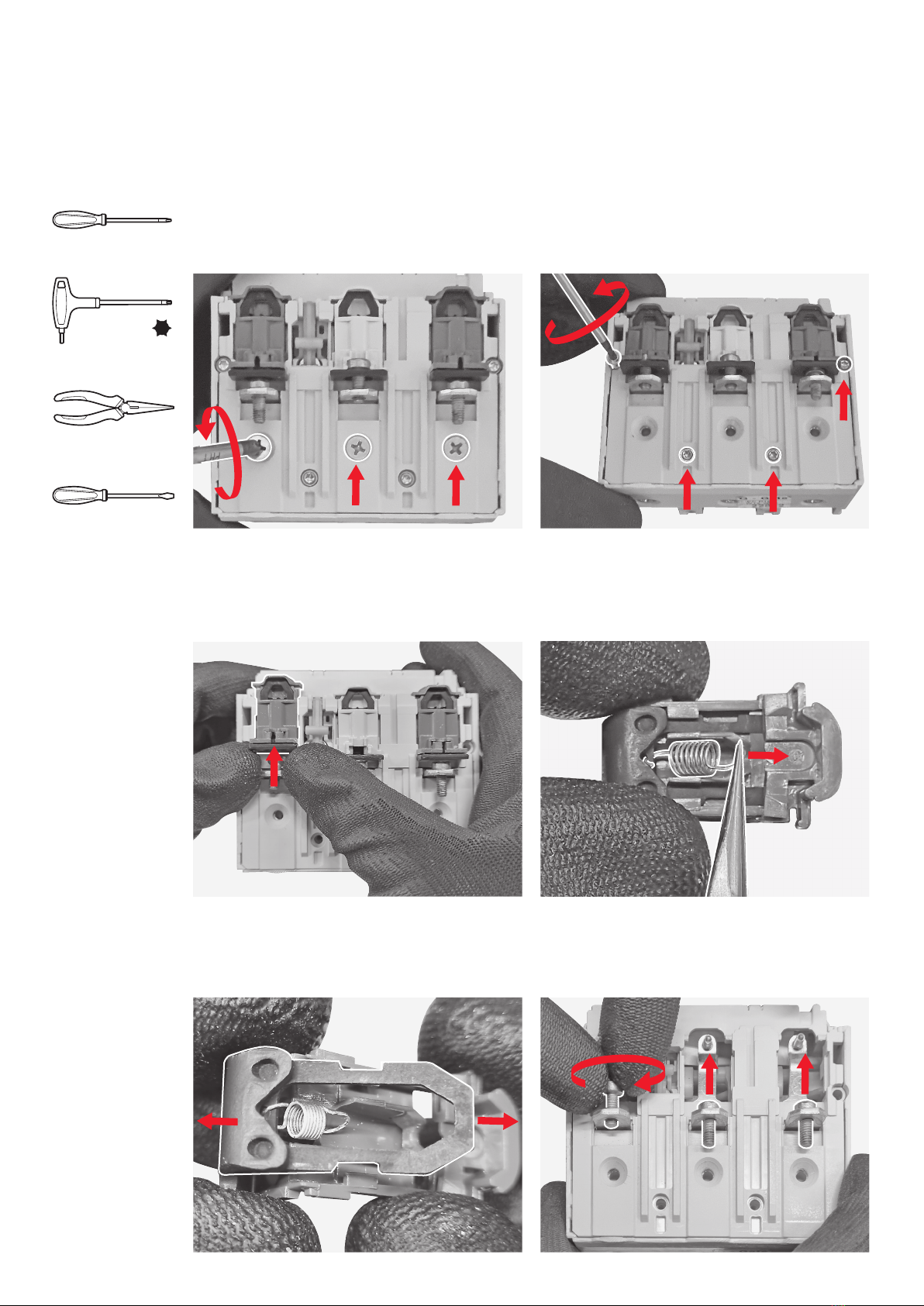

6.4 PHASE 4 – TRIP UNIT
8
By means of the cross screwdriver unscrew the
2 screws fixing the trip unit frontal to the trip
unit main structure.
10
By means of the torx key unscrew the 3 screws
fixing the trip unit to the circuit breaker
breaking part.
9
Manually disassemble the transparent
protection from the trip unit frontal.
11
Manually slightly pull the trip unit as indicated
by the arrow and after lift the trip unit in order
to complete the removal.
Actions to be performed
Tools
Cross screwdriver
Torx key
No. 15
Disassembled parts
9
Disassembly instruction tmaX Xt Xt2 tHermomaGnetic

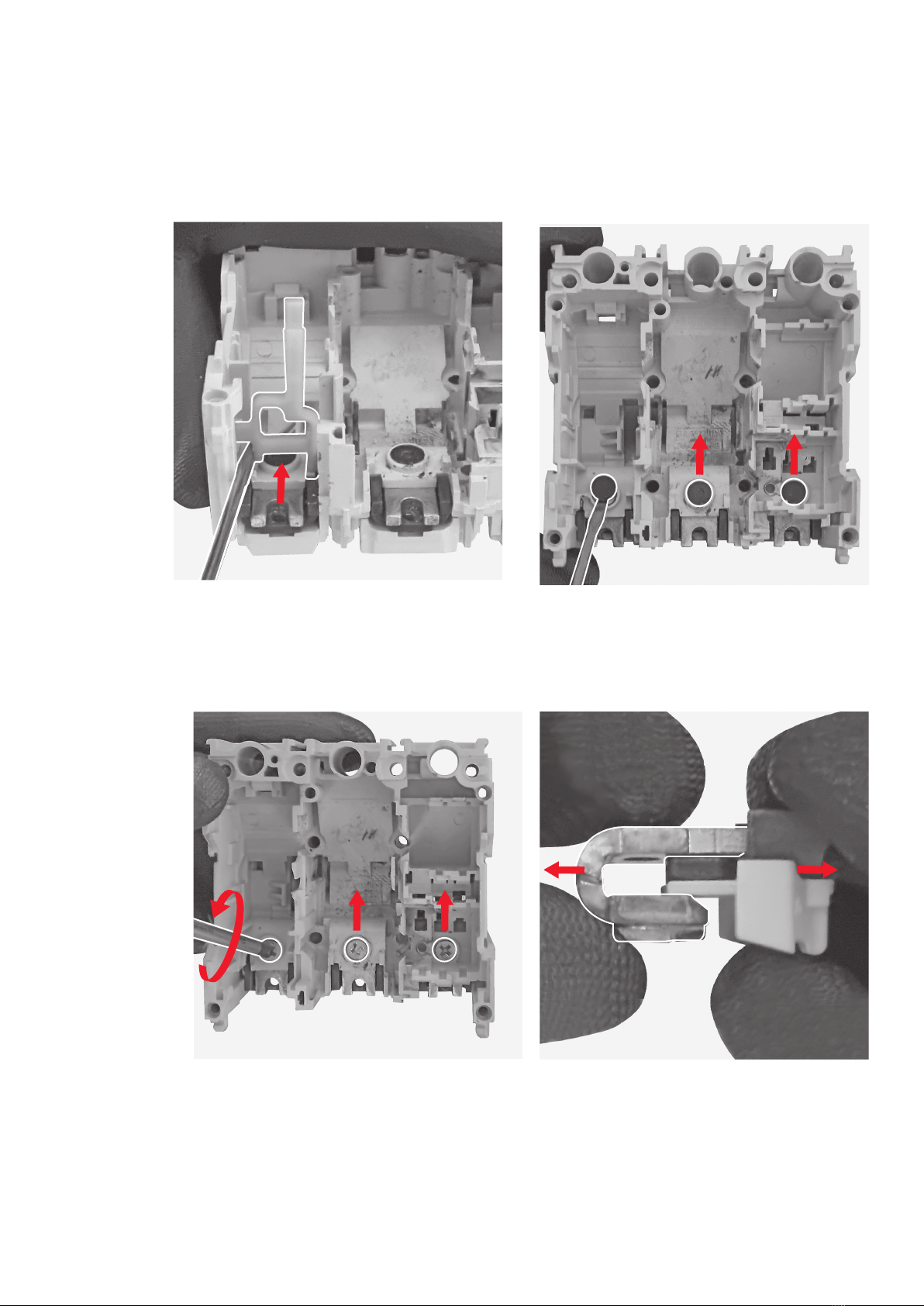

6.5 PHASE 5 – PLASTIC PARTS MOUNTED ON THE BREAKING PART
12
Manually slightly push the 2 flaps present on
each case for microswitch located in the right
hole of the breaking part as indicated by the
arrows and after manually lift each case for
microswitch to complete the removal.
14
Manually lift cable crossing cover located in the
upper part of the breaking part.
13
By means of the flat screwdriver lift the plug
located in the left hole of the breaking part and
after manually complete the removal of the
plug.
15
By means of the flat screwdriver lift the white
plastic lever located in the upper part of the
breaking part and after manually complete the
removal of the white plastic lever.
Actions to be performed
Flat screwdriver
Disassembled parts
brominated flame retardants)
(Thermoplastics containing brominated flame
retardants)
Tools
10
INSTRUCTION HANDBOOK
6.6 PHASE 6 – REAR COVER
16
By means of the cross screwdriver unscrew the
2 screws fixing the rear cover to the breaking
part.
17
Manually remove the rear cover.
Actions to be performed
Disassembled parts
Cross screwdriver
Tools
11
Disassembly instruction tmaX Xt Xt2 tHermomaGnetic
Torx key
Tools
No. 8
No. 20
Flat screwdriver
Pliers

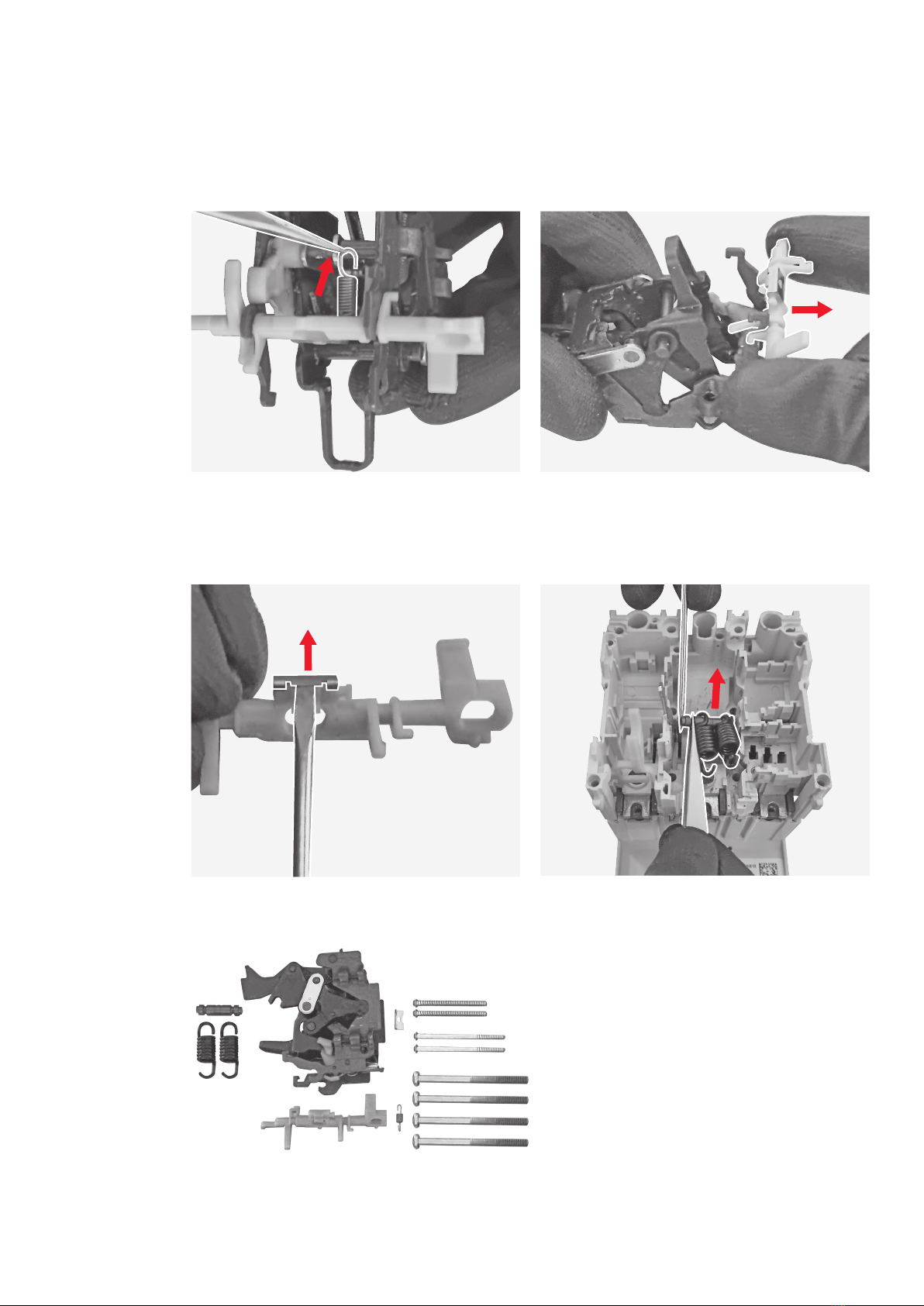

6.7 PHASE 7 – OPERATING MECHANISM AND TRIPPING SHAFT
Actions to be performed
18
By means of the torx key (size 20) unscrew
the 4 screws located in the back part of the
breaking part.
19
By means of the torx key (size 8) unscrew the 4
screws located at the corners of the breaking
part cover.
21
Manually lift the operating mechanism and
after manually complete removal operation.
20
By means of the flat screwdriver unhook the 2
springs mounted on the operating mechanism.
12
INSTRUCTION HANDBOOK
24
By means of the flat screwdriver remove the
metal plate mounted on the tripping shaft.
22
By means of the pliers remove the spring
mounted in the middle of the operating
mechanism.
23
Manually remove the tripping shaft from the
operating mechanism pulling it as indicated by
the arrow.
Disassembled parts
(Thermoplastics containing brominated flame
retardants)
25

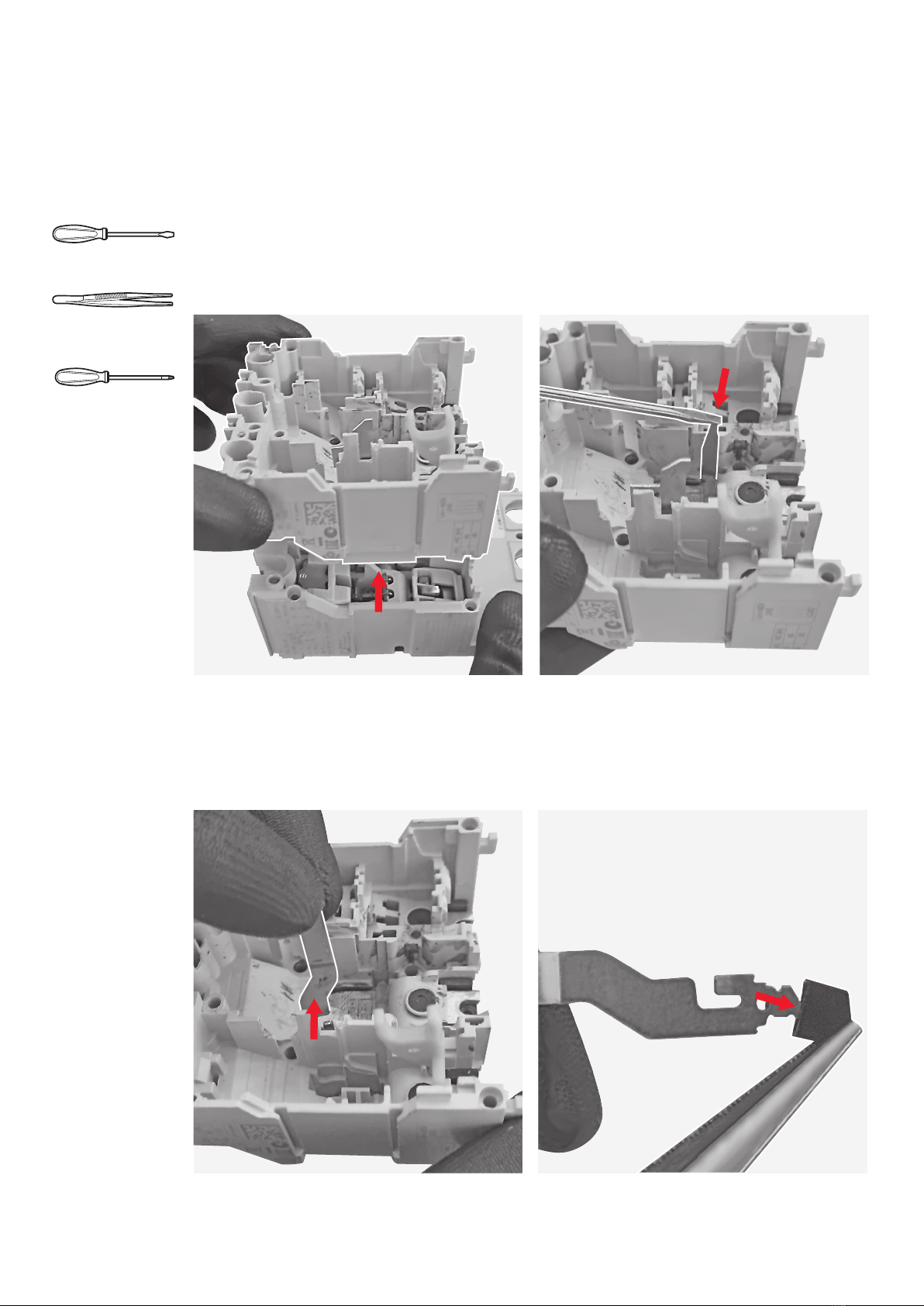

By means of the flat screwdriver and by means
of the pliers dismount the pin and remove
the pin and the 2 springs mounted on the pin
itself.
13
Disassembly instruction tmaX Xt Xt2 tHermomaGnetic
Tools
6.8 PHASE 8 – BREAKING PART COVER AND CONNECTED PARTS
Actions to be performed
Flat screwdriver
Pliers
Cross screwdriver
26
Manually lift the breaking part cover.
28
Manually lift the motor operator lever located
between the hole previously hosting the
operating mechanism and the left hole and
after manually remove the motor operator
lever.
27
By means of the flat screwdriver push down
the block lever located between the hole
previously hosting the operating mechanism
and the right hole and after manually remove
the block lever.
29
By means of the pliers remove the hood
mounted on the motor operator lever removed
at previous step.
14
INSTRUCTION HANDBOOK
30
By means of the flat screwdriver slightly push
on the right the trip lever mounted in the
bottom part of the breaking part and then lift
the lever in order to complete the removal.
32
By means of the cross screwdriver unscrew
the 3 screws located in the bottom part of
the breaking part; the terminals connections
between the breaking part and the trip unit
will fall from the breaking part by gravity.
31
By means of the flat screwdriver remove the
3 plugs located in the bottom part of the
breaking part.
33
Manually separate the plastic part from
the metal parts constituting the terminals
connections removed at previous step.
15
Disassembly instruction tmaX Xt Xt2 tHermomaGnetic
34
close lever and after manually complete the
Disassembled parts
containing brominated flame retardants)
(Thermoplastics containing brominated flame retardants)
16
INSTRUCTION HANDBOOK
35
Manually lift the moving contacts assembly
together with the arching chambers connected
with the lower part of the moving contacts
assembly.
37
By means of the flat screwdriver lift the arching
chambers still present in the breaking part
base and after manually complete the removal
of the arching chambers.
36
Manually remove the arching chambers from
the lower moving contacts.
38
By means of the flat screwdriver push the
plates mounted inside the arching chambers
out of the arching chambers.
Disassembled parts
6.9 PHASE 9 – MOVING CONTACTS AND ARCHING CHAMBERS
Actions to be performed
Tools
Flat screwdriver
17
Disassembly instruction tmaX Xt Xt2 tHermomaGnetic

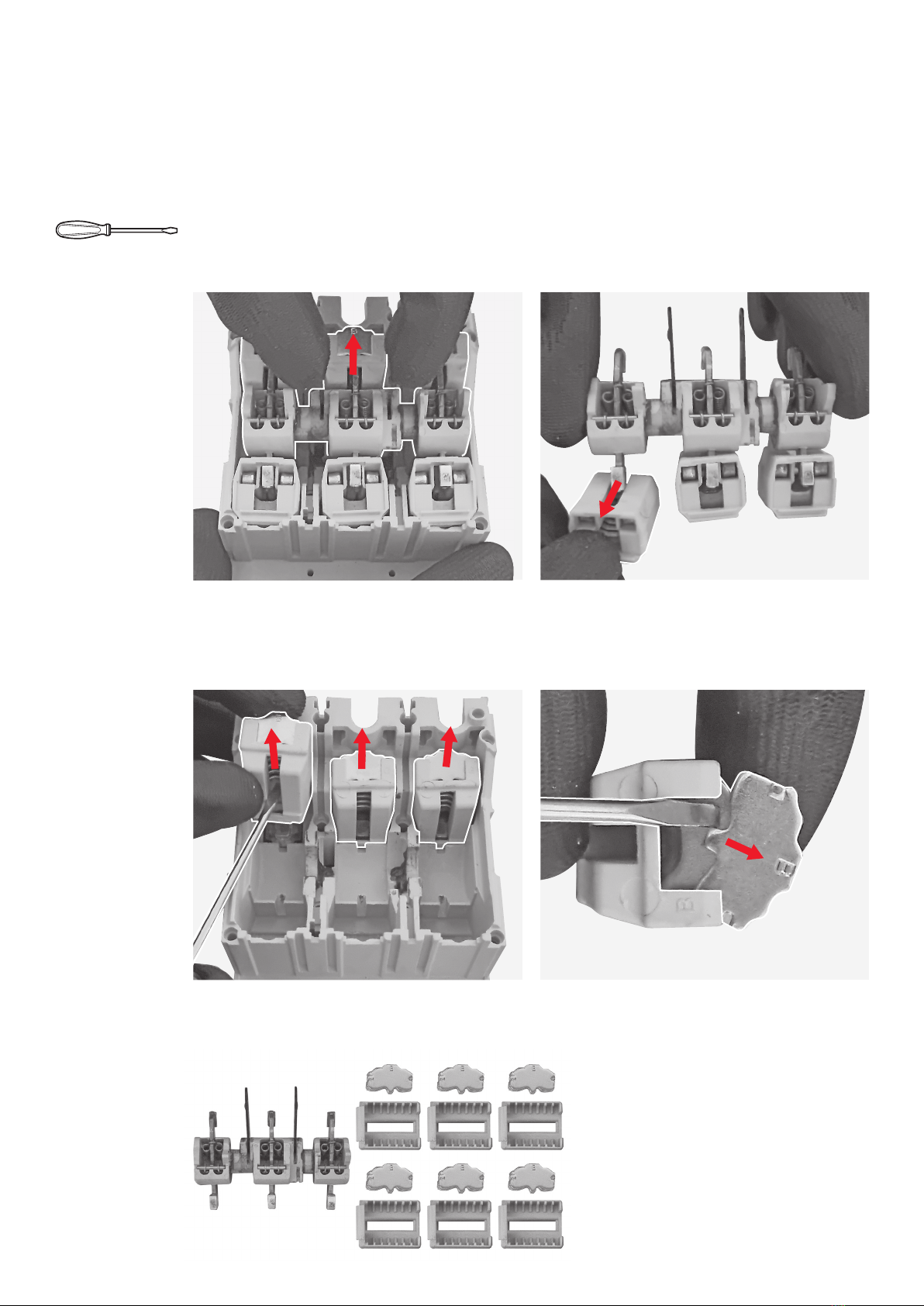

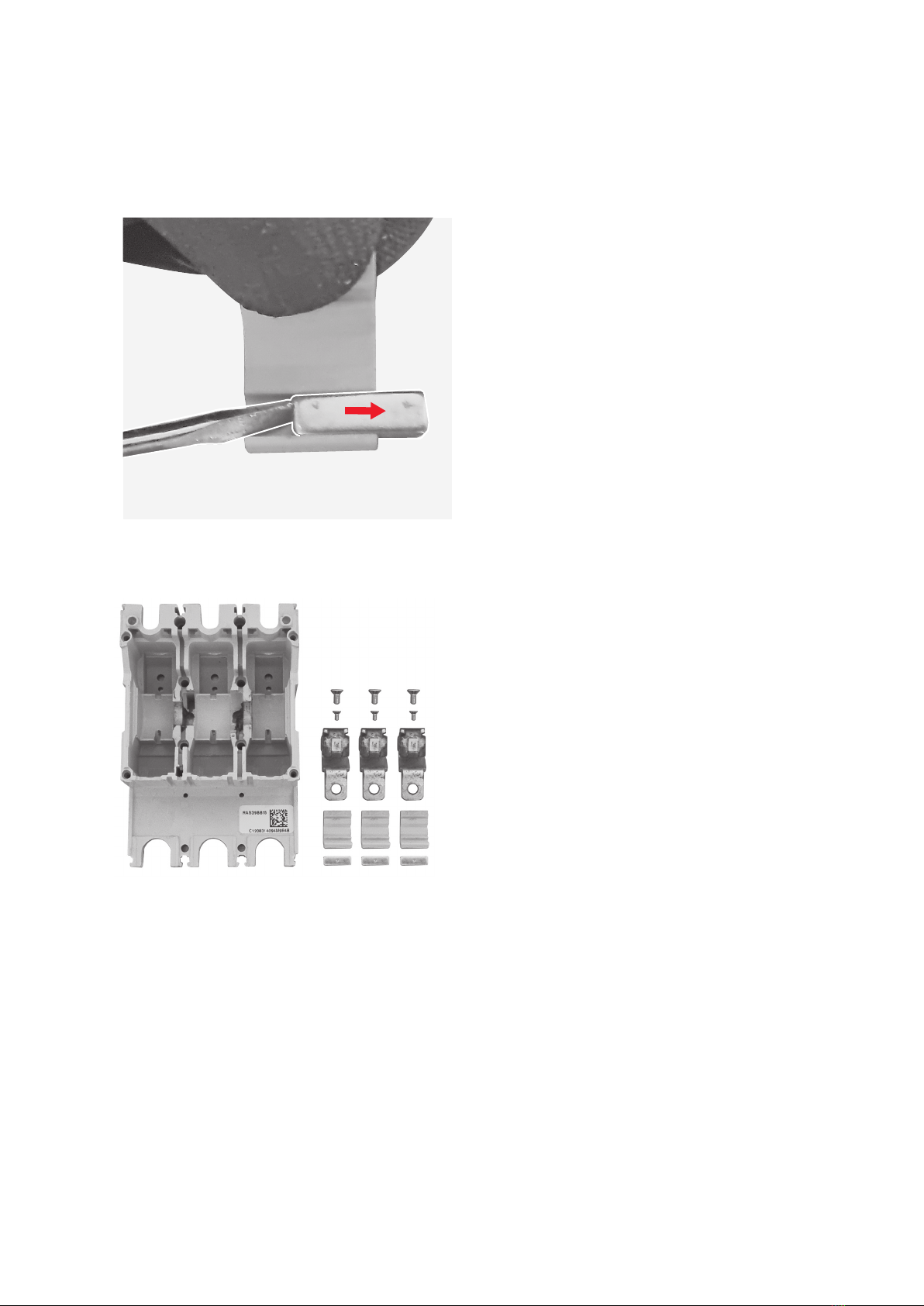

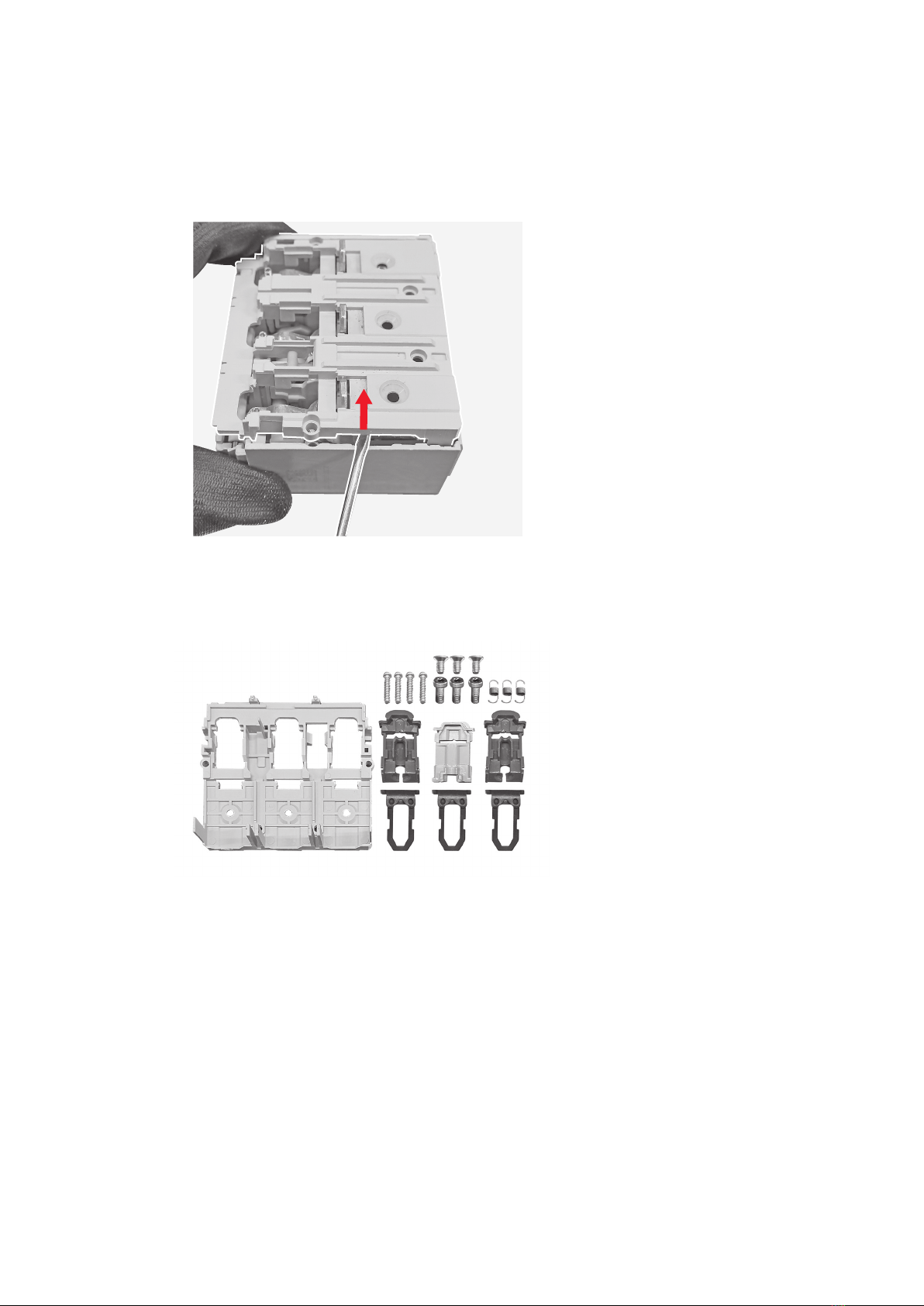

6.10 PHASE 10 – FIXED CONTACTS
Actions to be performed
Tools
Flat screwdriver
Cross screwdriver
39
By means of the cross screwdriver unscrew
the 3 screws located in the back part of the
breaking part base.
41
Manually push the fixed contacts as indicated
by the arrow.
40
By means of the cross screwdriver unscrew
other the 3 screws located in the back part of
the breaking part base.
42
Manually separate the plastic part from the
metal part constituting the fixed contacts.
18
INSTRUCTION HANDBOOK
43
By means of the flat screwdriver remove the
metal plate mounted on the the plastic part
constituting the fixed contacts.
Disassembled parts
19
Disassembly instruction tmaX Xt Xt2 tHermomaGnetic
6.11 PHASE 11 – TRIP UNIT COVER AND I3 ASSEMBLY
Actions to be performed
44
By means of the cross screwdriver unscrew the
3 screws fixing the trip unit cover to the trip
unit.
46
Manually push the 3 I3 assemblies as indicated
by the arrow.
45
By means of the torx key unscrew the 4 screws
fixing the trip unit cover to the trip unit.
47
By means of the pliers remove the spring
mounted on the I3 assembly.
48
Manually separate the I3 support and the I3
group.
49
Manually remove the 3 screws located on the
top of the trip unit.
Tools
Flat screwdriver
Pliers
Torx key
No. 8
Cross screwdriver
20
INSTRUCTION HANDBOOK
50
By means of the flat screwdriver lift the top
cover of the trip unit and manually complete
the removal.
Disassembled parts
Other manuals for TMAX XT XT2 THERMOMAGNETIC
1
Table of contents
Other ABB Industrial Electrical manuals
ABB
ABB Arc Guard System TVOC-2-COM Instruction sheet
ABB
ABB TMAX XT XT7 Installation instructions
ABB
ABB Advance User manual
ABB
ABB DCS800 User manual
ABB
ABB Smile 41 AS-i Series User manual
ABB
ABB EBS862 User manual
ABB
ABB SGF User manual
ABB
ABB Tmax RC223 T3 User manual
ABB
ABB Baldor BC145 Installation instructions
ABB
ABB ACS580MV User manual
ABB
ABB SACE Tmax XT5 User manual
ABB
ABB Tmax XT XT3 Installation instructions
ABB
ABB HT843602 User manual
ABB
ABB POLIM-D User manual
ABB
ABB SACE Emax 2 User manual
ABB
ABB Sace Tmax XT XT5 THERMOMAGNETIC Installation instructions
ABB
ABB V-Contact VSC Series Quick guide
ABB
ABB UZE User manual
ABB
ABB Relion 670 series Quick start guide
ABB
ABB MNS-SG User manual
Popular Industrial Electrical manuals by other brands
Murata
Murata GRM1555C1HR80WA01 Series Reference sheet
Murata
Murata GQM2195C2E180GB12 Series Reference sheet
THORLABS
THORLABS BLINK user guide
Cooper Power Systems
Cooper Power Systems Kyle GV installation instructions
Murata
Murata GRM21BC80G476ME15 Series Reference sheet
Datem
Datem Neptune 5000 Technical manual
