ABB flexTronics User manual

Product manual │27.08.2021
Busch-Watchdog
ABB flexTronics
Branding -- Releas e 2018-01-01

Table of contents
Product manual 2CKA001473B5204
│
2
Table of contents
1 Notes on the instruction manual....................................................................................................................4
2 Safety .............................................................................................................................................................5
2.1 Information and symbols used...........................................................................................................5
2.2 Intended use ......................................................................................................................................6
2.3 Improper use ......................................................................................................................................6
2.4 Target group / Qualifications of personnel.........................................................................................6
2.4.1 Operation ..................................................................................................................................... 6
2.4.2 Installation, commissioning and maintenance .............................................................................. 6
2.5 Safety instructions..............................................................................................................................7
3 Information on protection of the environment ...............................................................................................8
3.1 Environment .......................................................................................................................................8
4 Overview ........................................................................................................................................................9
4.1 Design lines........................................................................................................................................9
4.2 Basic principles ..................................................................................................................................9
5 Overview of product range ..........................................................................................................................10
5.1 Applications ......................................................................................................................................10
5.2 Compatibility.....................................................................................................................................10
5.3 ABB flexTronics Movement detectors..............................................................................................11
5.4 Device overview ...............................................................................................................................12
5.4.1 Mounting possibilities ................................................................................................................. 13
5.5 Setting options / control ...................................................................................................................14
6 Device Functions .........................................................................................................................................16
6.1 Overview of functions.......................................................................................................................16
6.2 Functions..........................................................................................................................................22
6.3 Detection range................................................................................................................................24
6.4 Switching capacity............................................................................................................................30
7 Technical data .............................................................................................................................................32
8 Connection, installation / mounting .............................................................................................................34
8.1 Requirements for the electrician ......................................................................................................34
8.2 Mounting / dismantling .....................................................................................................................35
8.3 Electrical connection ........................................................................................................................37
9 Commissioning ............................................................................................................................................38
10 Operation .....................................................................................................................................................39
10.1 Operation of sensors........................................................................................................................39
10.2 Device settings of settings ...............................................................................................................41
10.3 Extension operation (Option) ...........................................................................................................43
10.4 Special functions of the comfort sensors.........................................................................................44
10.5 Device settings of the dimmer .........................................................................................................46

Table of contents
Product manual 2CKA001473B5204
│
3
10.5.1 Introduction ................................................................................................................................ 46
10.5.2 Operating modes........................................................................................................................ 46
10.5.3 Minimum brightness ................................................................................................................... 47
11 Maintenance ................................................................................................................................................48
11.1 Cleaning ...........................................................................................................................................48
12 Information about planning and application ................................................................................................49
12.1 Principles of function / principles of operation .................................................................................49
12.1.1 The difference between movement detectors / presence detectors............................................ 49
12.1.2 Principles of function .................................................................................................................. 50
12.1.3 Lens types.................................................................................................................................. 52
12.1.4 Detection ranges / detection levels............................................................................................. 52
12.2 Case studies.....................................................................................................................................55
12.2.1 Corridor ...................................................................................................................................... 55
12.2.2 Stairwell ..................................................................................................................................... 58
12.3 Sources of interference....................................................................................................................60
13 Notes............................................................................................................................................................61
14 Index ............................................................................................................................................................62

Notes on the instruction manual
Product manual 2CKA001473B5204
│
4
1 Notes on the instruction manual
Please read through this manual carefully and observe the information it contains. This will
assist you in preventing injuries and damage to property, and ensure both reliable operation and
a long service life for the device.
Please keep this manual in a safe place.
If you pass the device on, also pass on this manual along with it.
ABB accepts no liability for any failure to observe the instructions in this manual.
If you require additional information or have questions about the device, please contact ABB or
visit our Internet site at:
www.BUSCH-JAEGER.com

Safety
Product manual 2CKA001473B5204
│
5
2 Safety
The device has been constructed according to the latest valid regulations governing technology
and is operationally reliable. It has been tested and left the factory in a technically safe and
reliable state.
However, residual hazards remain. Read and adhere to the safety instructions to prevent
hazards of this kind.
ABB accepts no liability for any failure to observe the safety instructions.
2.1 Information and symbols used
The following Instructions point to particular hazards involved in the use of the device or provide
practical instructions:
Danger
Risk of death / serious damage to health
– The respective warning symbol in connection with the signal word "Danger"
indicates an imminently threatening danger which leads to death or serious
(irreversible) injuries.
Warning
Serious damage to health
– The respective warning symbol in connection with the signal word "Warning"
indicates a threatening danger which can lead to death or serious
(irreversible) injuries.
Caution
Damage to health
– The respective warning symbol in connection with the signal word "Caution"
indicates a danger which can lead to minor (reversible) injuries.
Attention
Damage to property
– This symbol in connection with the signal word "Attention" indicates a
situation which could cause damage to the product itself or to objects in its
surroundings.
NOTE
This symbol in connection with the word "Note" indicates useful tips and
recommendations for the efficient handling of the product.
The following safety symbols are used in the operating manual:
This symbol alerts to electric voltage.

Safety
Product manual 2CKA001473B5204
│
6
2.2 Intended use
The flex device combinations for movement detectors are used for switching lighting systems in
dependence of brightness and/or movement. It is designed only for interior areas of buildings
and for wall mounting.
The flex device combinations for movement detectors are not suitable for use as an intrusion or
attack alarm since they lack the required security against sabotage in accordance with the
German VdS (Authority on Safety and Security) regulations.
2.3 Improper use
Each use not listed in Chapter 2.2 “Intended use“ on page 6 is deemed improper use and can
lead to personal injury and damage to property.
ABB is not liable for damages caused by use deemed contrary to the intended use of the
device. The associated risk is borne exclusively by the user/operator.
The device is not intended for the following:
■Unauthorized structural changes
■Repairs
2.4 Target group / Qualifications of personnel
2.4.1 Operation
No special qualifications are needed to operate the device.
2.4.2 Installation, commissioning and maintenance
Installation, commissioning and maintenance of the device must only be carried out by trained
and properly qualified electrical installers.
The electrical installer must have read and understood the manual and follow the instructions
provided.
The electrical installer must adhere to the valid national regulations in his/her country governing
the installation, functional test, repair and maintenance of electrical products.
The electrical installer must be familiar with and correctly apply the "five safety rules" (DIN VDE
0105, EN 50110):
1. Disconnect
2. Secure against being re-connected
3. Ensure there is no voltage
4. Connect to earth and short-circuit
5. Cover or barricade adjacent live parts

Safety
Product manual 2CKA001473B5204
│
7
2.5 Safety instructions
Danger - Electric voltage!
Electric voltage! Risk of death and fire due to electric voltage of 100 … 240 V.
Dangerous currents flow through the body when coming into direct or indirect
contact with live components. This can result in electric shock, burns or even
death.
■Work on the 100 … 240 V supply system may only be performed by
authorised and qualified electricians.
■Disconnect the mains power supply before installation / disassembly.
■Never use the device with damaged connecting cables.
■Do not open covers firmly bolted to the housing of the device.
■Use the device only in a technically faultless state.
■Do not make changes to or perform repairs on the device, on its components
or its accessories.
■Keep the device away from water and wet surroundings.
Caution! - Risk of damaging the device due to external factors!
Moisture and contamination can damage the device.
■Protect the device against humidity, dirt and damage during transport,
storage and operation.

Information on protection of the environment
Product manual 2CKA001473B5204
│
8
3 Information on protection of the environment
3.1 Environment
Consider the protection of the environment!
Used electric and electronic devices must not be disposed of with domestic
waste.
– The device contains valuable raw materials which can be recycled.
Therefore, dispose of the device at the appropriate collecting depot.
All packaging materials and devices bear the markings and test seals for proper disposal.
Always dispose of the packaging material and electric devices and their components via the
authorized collecting depots and disposal companies.
The products meet the legal requirements, in particular the laws governing electronic and
electrical devices and the REACH ordinance.
(EU Directive 2012/19/EU WEEE and 2011/65/EU RoHS)
(EU REACH ordinance and law for the implementation of the ordinance (EC) No.1907/2006).

Overview
Product manual 2CKA001473B5204
│
9
4 Overview
4.1 Design lines
This system manual serves for the technical planning of the simple to complex installations of
movement detectors.
The different design lines of the device groups and devices are not listed in this system manual.
The sections for the design line are marked with a "xxx" at the article numbers of the respective
devices.
Please obtain the desired current design versions and the corresponding complete article
numbers as well as the order numbers from the respective product catalogues or the online
catalogue at https://busch-jaeger-catalogue.com.
4.2 Basic principles
Information about basic functions and principles of operation of the devices are available at
Chapter 12 “Information about planning and application“ on page 49.

Overview of product range
Product manual 2CKA001473B5204
│
10
5 Overview of product range
5.1 Applications
Lighting systems can be controlled intelligently, according to need, with movement detectors.
The choice of the right device depends on the type of rooms, the size of the area to be
monitored, the installation situation and the type of movement to be detected. In rooms that are
entered by people, other detection situations than, for example, in stairwells are used.
In addition to the detection situations, the devices are different with regard to the operating
technology.

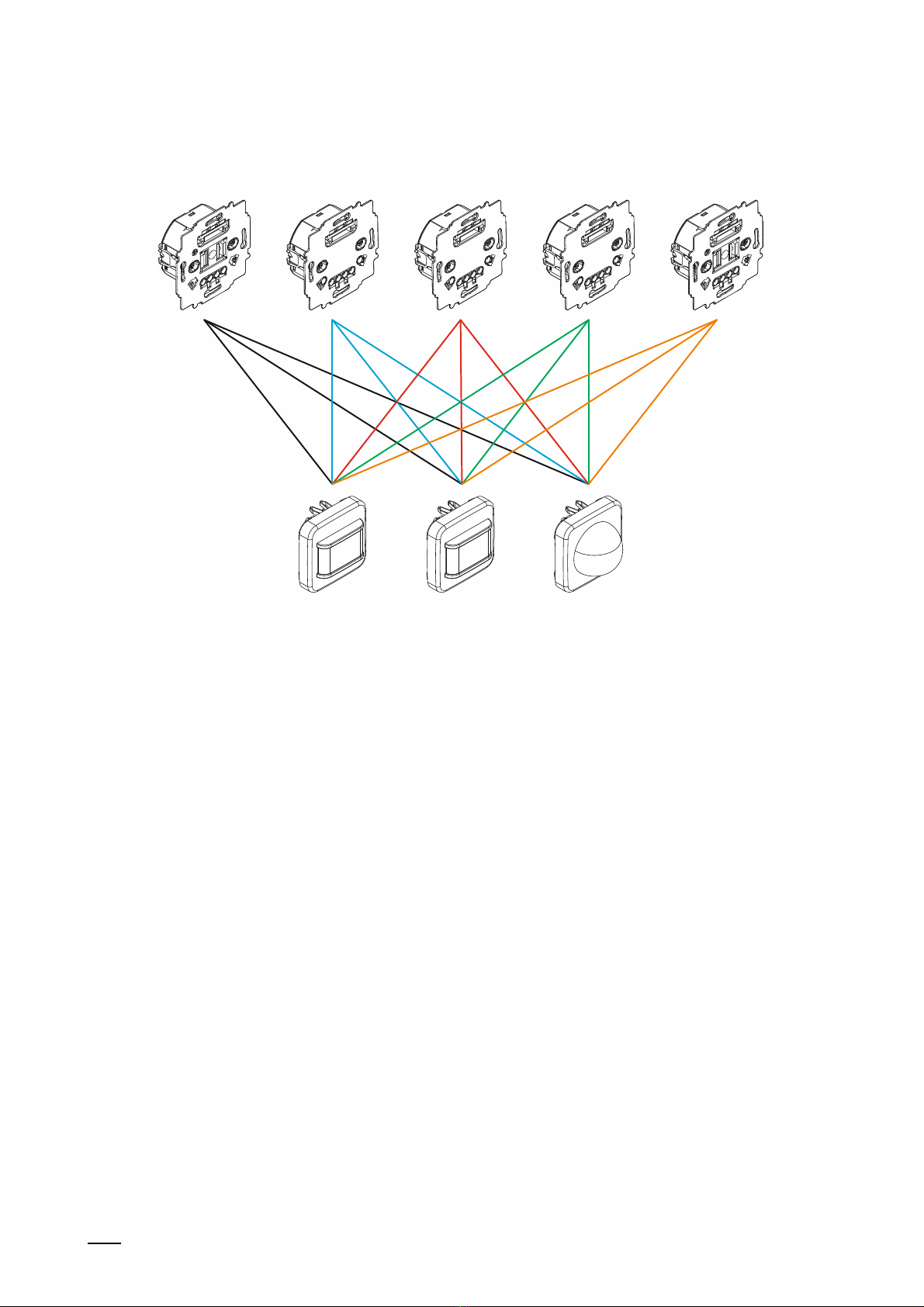

5.2 Compatibility
The movement detectors from product group ABB flexTronics are not compatible with
movement detectors of the following series:
■Busch-Watchdog 180 flush-mounted standard sensor
■Busch-Watchdog 180 flush-mounted sensor, Comfort II
■Flush-mounted inserts with the 6-pin round interface, such as:
■Busch-Universal relay switch insert 6401 U-102-500
■Busch-Universal 2-gang 1-way insert 6402 U-500
■Busch-Watchdog MOS FET insert 6804 U-101-500
■Busch-Watchdog Relay insert 6812 U-101-500
■Busch-Watchdog Extension unit insert 6805 U-50x
The movement detectors from product group ABB flexTronics can therefore not be integrated
into installations with movement detectors of the following series:
■Busch-Watchdog 180 flush-mounted standard sensor
■Busch-Watchdog 180 flush-mounted sensor, Comfort II

Overview of product range
Product manual 2CKA001473B5204
│
11
5.3 ABB flexTronics Movement detectors
Fig. 1: ABB flexTronics Movement detector
ABB flexTronics devices have a modular design. The sensor and the actuator are isolated from
each other.
– The desired function of the mounted movement detector is determined from the combination
of the actuator and sensor used.
– The mounted movement detector is operated by means of the sensor.
The interfaces between the sensors and the actuators are standardised.
– One sensor can be combined with all actuators.
– One actuator can be combined with all sensors.
In this way, all available actuators, sensors, switches, etc. of the ABB flexTronics devices can
be combined with each other in a purely physical manner. This does not always makes sense,
however.
This product manual provides information about the useful combinations for the implementation
of movement detectors for light control.

Overview of product range
Product manual 2CKA001473B5204
│
12
5.4 Device overview
In the following you will find an overview of actuators, sensors and control elements for the
implementation of lighting control with movement detectors.
The brief descriptions of the characteristics provide an initial orientation. For a detailed overview
of the characteristics and use cases of the devices:
■Characteristics (device functions): see chapter 6 “Device Functions“ on page 16
■Use cases: see chapter 12.2 “Case studies“ on page 55
The following actuator variants are available for combining movement detectors:
E-contact
64814 U-500
e-contact insert flex, 1-
gang
Residential applications and legacy installations
in locations where an N-busbar is not available.
– Noiseless switching of lighting systems.
– 2-wire connection (neutral busbar is not
required, but can be connected as an option)
64811 U-500
Relay insert flex, 1
gang
64821 U-500
Relay insert flex, 2
gang
For all popular applications
– Switching of lighting systems.
64891 U-500
Extension unit insert
flex
For all popular applications
– Expansion of the coverage and the detection
range.
– Setup of extension operation.
Dimmer
64851 U-500
LED dimmer insert flex,
1gang
For all popular applications
– The device is used for switching and/or
dimming lighting systems.

Overview of product range
Product manual 2CKA001473B5204
│
13
The following sensor variants are available for combining movement detectors:
Basic
64761-xxx-500
Busch-Watchdog
180 flex, Basic sensor
with select lens
Applications in rooms
– Switching of lighting systems in dependence
of brightness and/or movement.
Comfort
64762-xxx-500
Busch-Watchdog
180 flex, Comfort
sensor with select lens
Applications in rooms
– Switching of lighting systems in dependence
of brightness and/or movement.
– Additional local operation via switching
rocker with selectable switch-off prewarning
for use in public stairwells.
Comfort multilens
64764-xxx-500
Busch-Watchdog
180 flex, Comfort
sensor with multi-lens
Applications in stairwells
– Switching of lighting systems in dependence
of brightness and/or movement.
– Additional local operation via switching
rocker with selectable switch-off prewarning
for use in public stairwells.
– Also suitable for mounting heights of 2.2 m.
5.4.1 Mounting possibilities
The wall mounting / ceiling mounting of the flush-mounted inserts takes place in a standard
flush-mounted box or device box. The following mounting situations are possible, for example:
Wall mounting
■Stone walls
■Plaster walls
■Hollow walls
■Insulated walls
The devices are not suitable for:
■Purely surface mounting
If a flush-mounted installation is not desired or not possible, the flush-mounted inserts can also
be mounted in surface-mounted housings for flush-mounted inserts.

Overview of product range
Product manual 2CKA001473B5204
│
14
5.5 Setting options / control
Depending on the device, the following methods for setting or configuration are available. When
used as an extension unit, only the brightness switching threshold is set. The main units are
used to control the switch-off delay.
Trimmers on the sensors
Fig. 2: Setting via trimmers: sensors
The trimmers for setting devices are located on the rear side of the sensors.
– To set devices using the trimmers: see chapter 10.2 “Device settings of settings“ on page 41
Setup via the rocker buttons on the sensors
1
2
1
2
Fig. 3: Setting via rocker buttons: sensors
Available on the devices:
■Busch-Watchdog 180 flex, Comfort sensor with select lens
■Busch-Watchdog 180 flex, Comfort sensor with multi-lens
The rocker buttons [1] / [2] are used to set the switch-off prewarning and the memory function.
– For setting the special functions via the rocker buttons: see chapter 10.4 “Special functions
of the comfort sensors“ on page 44.

Overview of product range
Product manual 2CKA001473B5204
│
15
Trimmers on the flush-mounted inserts (only in the case of dimmers)

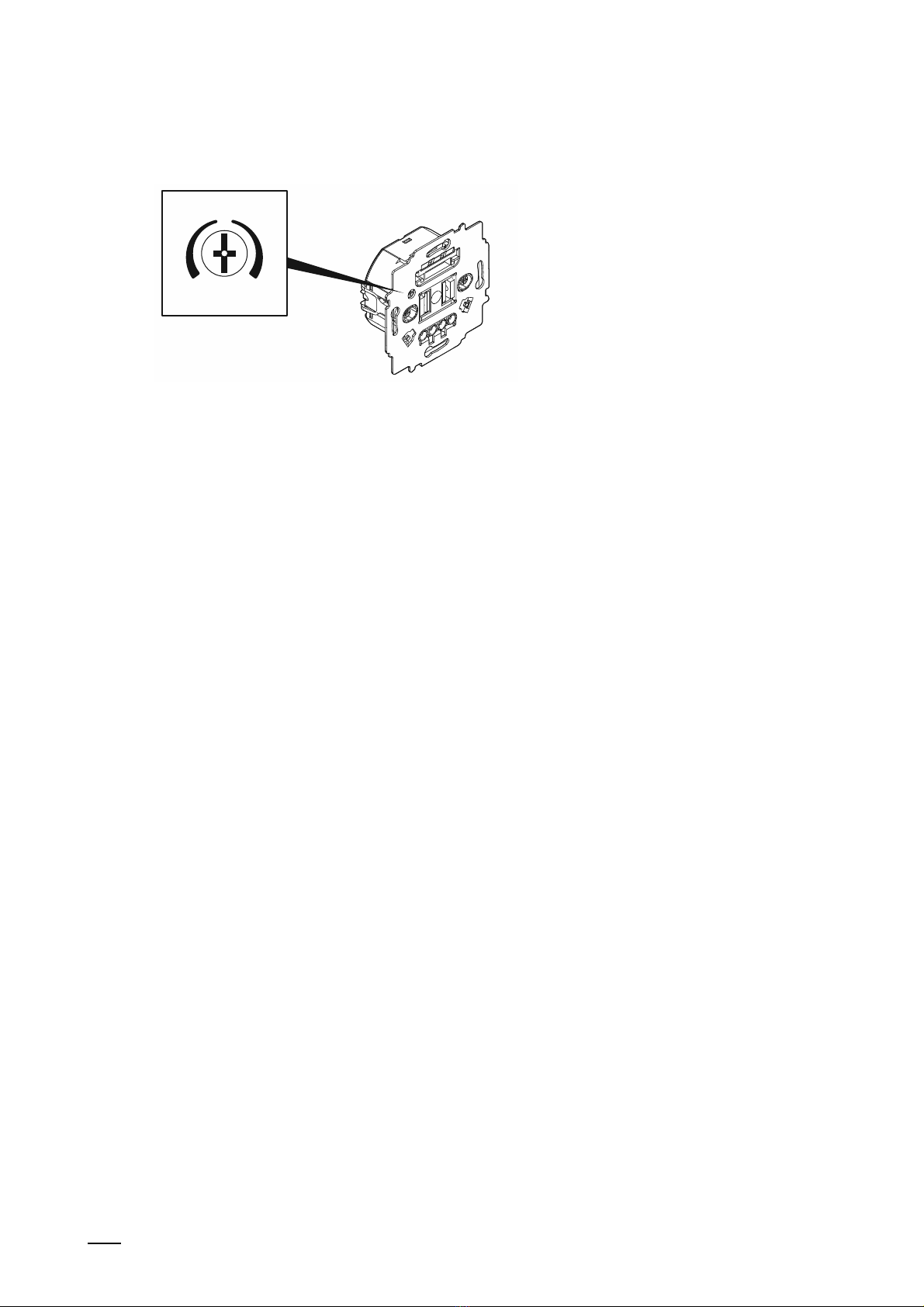

Fig. 4: Setting via trimmers: flush-mounted insert of dimmer
On the front of the flush-mounted insert, there is a trimmer for setting the operating mode and
the minimum brightness.
– see chapter 10.5 “Device settings of the dimmer“ on page 46.

Device Functions
Product manual 2CKA001473B5204
│
16
6 Device Functions
6.1 Overview of functions
Fig. 5: 180 flex, Basic sensor with select lens: Functions in combination with flush-mounted inserts
64761-xxx-500 180 flex, Basic sensor with select lens
Functions in combination with:
64814 U-500 e-contact insert flex, 1-gang 64811 U-500 Relay insert flex, 1 gang 64821 U-500 Relay insert flex, 2 gang 64891 U-500 Extension unit insert flex 64851 U-500 LED dimmer insert flex, 1gang
Purpose
Movement detectors X X — X X
Movement detector
Control of channel 2 via extension
input
— — X — —
Soft ON/OFF X — — — X
Noiseless switching X — — — X
Old installations without N-busbar in
the connection unit X — — — X
Stairwell — — — — —
Coverage increase as extension
unit — — — X —

Device Functions
Product manual 2CKA001473B5204
│
17
Features
Local operation via integrated
rocker switch — — — — —
Extension operation via additional
push-button possible X X X — X
Brightness-value threshold X X X X X
Minimum brightness — — — — X
Permanent light — — — — —
Memory function — — — — —
Short-time pulse for e.g. automatic
staircase lighting — X X — —
Switch off delay X X X — X
Switch-off warning — — — — —
Test mode X X X X X

Device Functions
Product manual 2CKA001473B5204
│
18

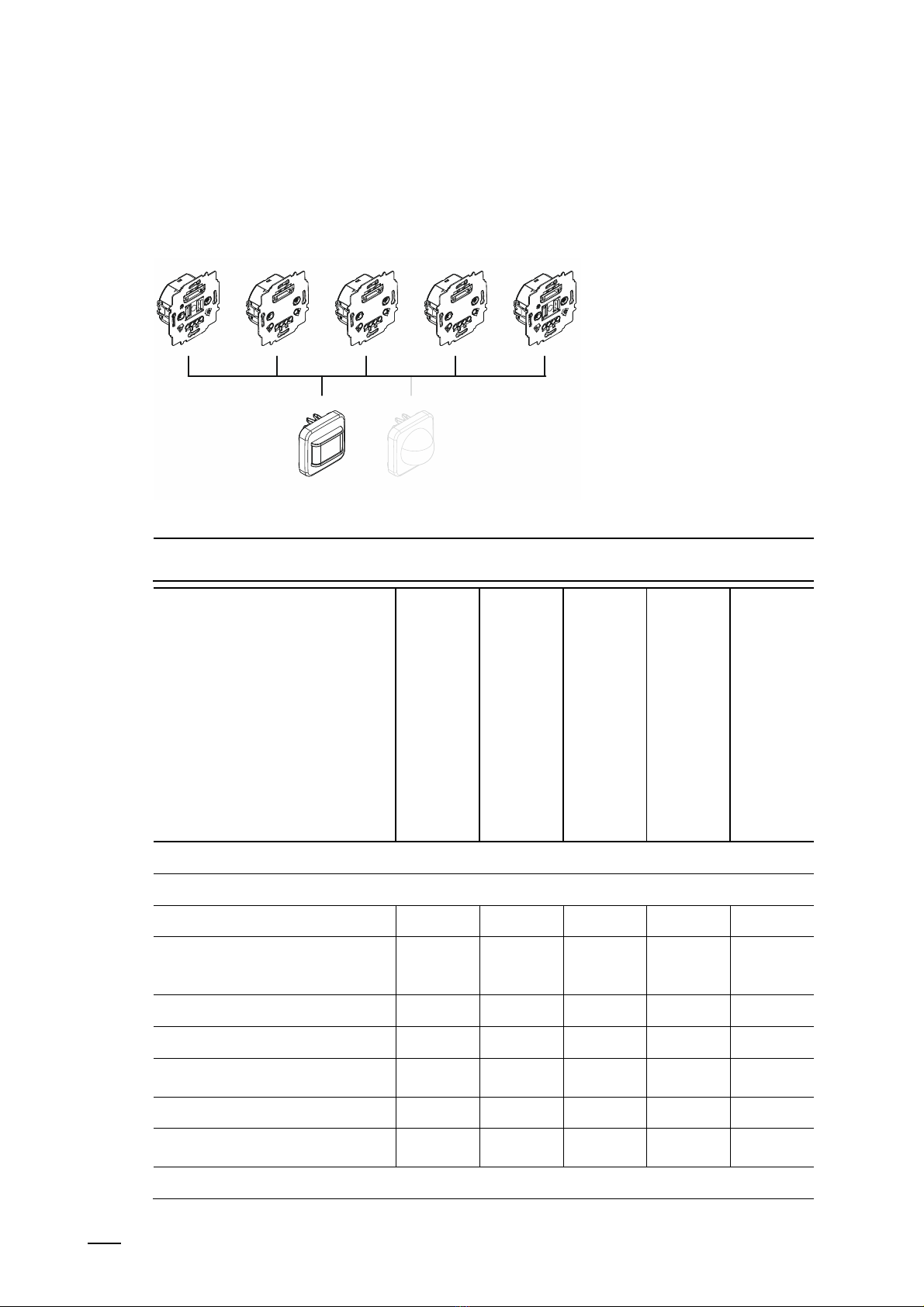

Fig. 6: 180 flex, Comfort sensor with select lens: Functions in combination with flush-mounted inserts
64762-xxx-500 180 flex, Comfort sensor with select lens
Functions in combination with:
64814 U-500 e-contact insert flex, 1-gang 64811 U-500 Relay insert flex, 1 gang 64821 U-500 Relay insert flex, 2 gang 64891 U-500 Extension unit insert flex 64851 U-500 LED dimmer insert flex, 1gang
Purpose
Movement detectors X X — X X
Movement detector
Control of channel 2 via extension
input
— — X — —
Soft ON/OFF X — — — X
Noiseless switching X — — — X
Old installations without N-busbar in
the connection unit X — — — X
Stairwell X 1) X
1) — X 1) X 1)
Coverage increase as extension
unit — — — X —
Features
Local operation via integrated
rocker switch X X X X X
Extension operation via additional
push-button possible X X X — X

Device Functions
Product manual 2CKA001473B5204
│
19
Brightness-value threshold X X X X X
Minimum brightness — — — — X
Permanent light X X X — —
Memory function — — — — X
Short-time pulse for e.g. automatic
staircase lighting — X X — —
Switch off delay X X X — X
Switch-off warning X X X — X
Test mode X X X X X
1) Only one detection level

Device Functions
Product manual 2CKA001473B5204
│
20

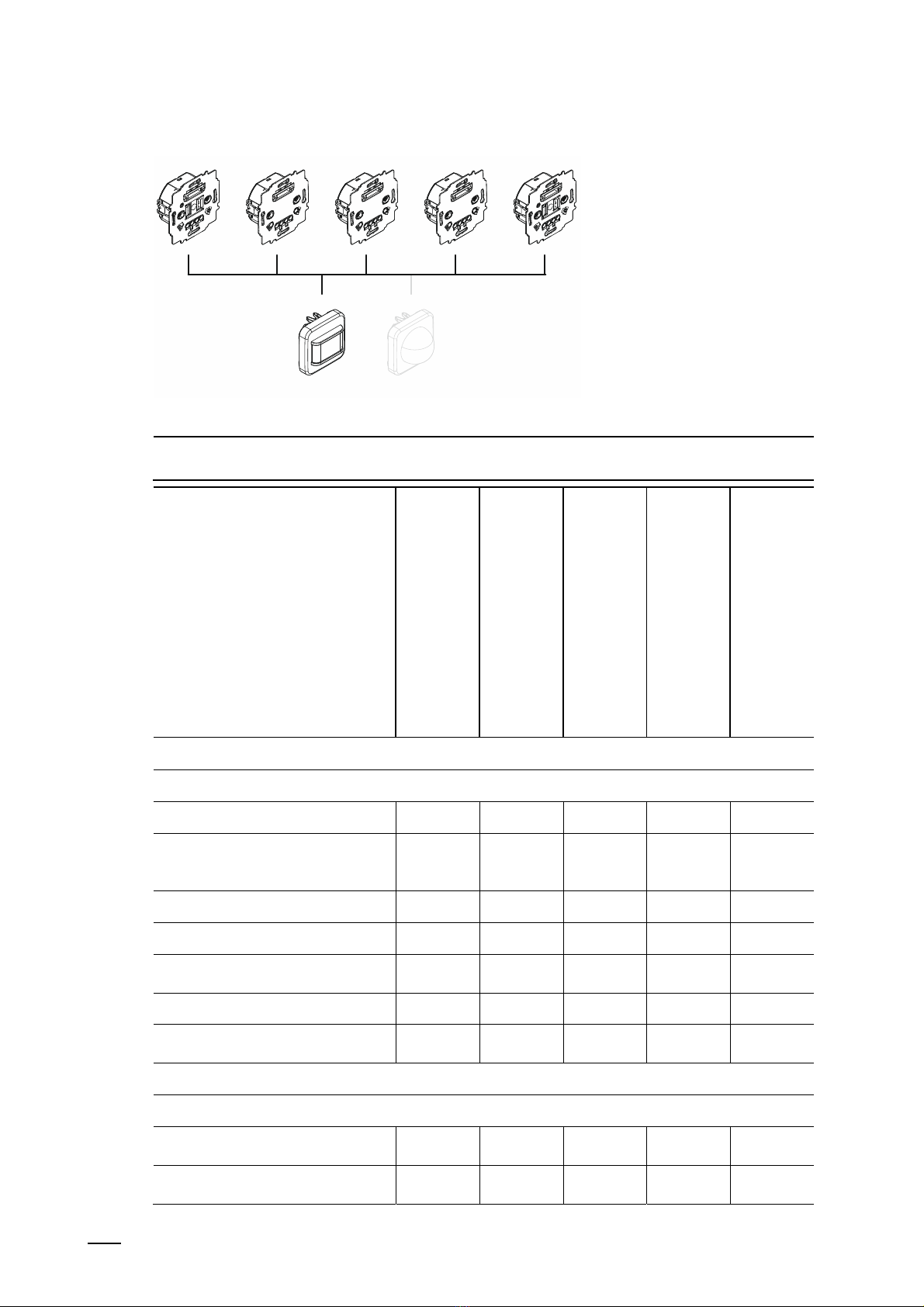

Fig. 7: 180 flex, Comfort sensor with multi-lens: Functions in combination with flush-mounted inserts
64764-xxx-500 180 flex, Comfort sensor with multi-lens
Functions in combination with:
64814 U-500 e-contact insert flex, 1-gang 64811 U-500 Relay insert flex, 1 gang 64821 U-500 Relay insert flex, 2 gang 64891 U-500 Extension unit insert flex 64851 U-500 LED dimmer insert flex, 1gang
Purpose
Movement detectors X X — X X
Movement detector
Control of channel 2 via extension
input
— — X — —
Soft ON/OFF X — — — X
Noiseless switching X — — — X
Old installations without N-busbar in
the connection unit X — — — X
Stairwell X X — X X
Coverage increase as extension
unit — — — X —
Features
Local operation via integrated
rocker switch X X X X X
Extension operation via additional
push-button possible X X X — X
