— SureWave SFC User Manual
––
STATIC FREQUENCY CONVERTER
SureWave SFC™
User Manual

ABOUT THIS DOCUMENT
2/78
––

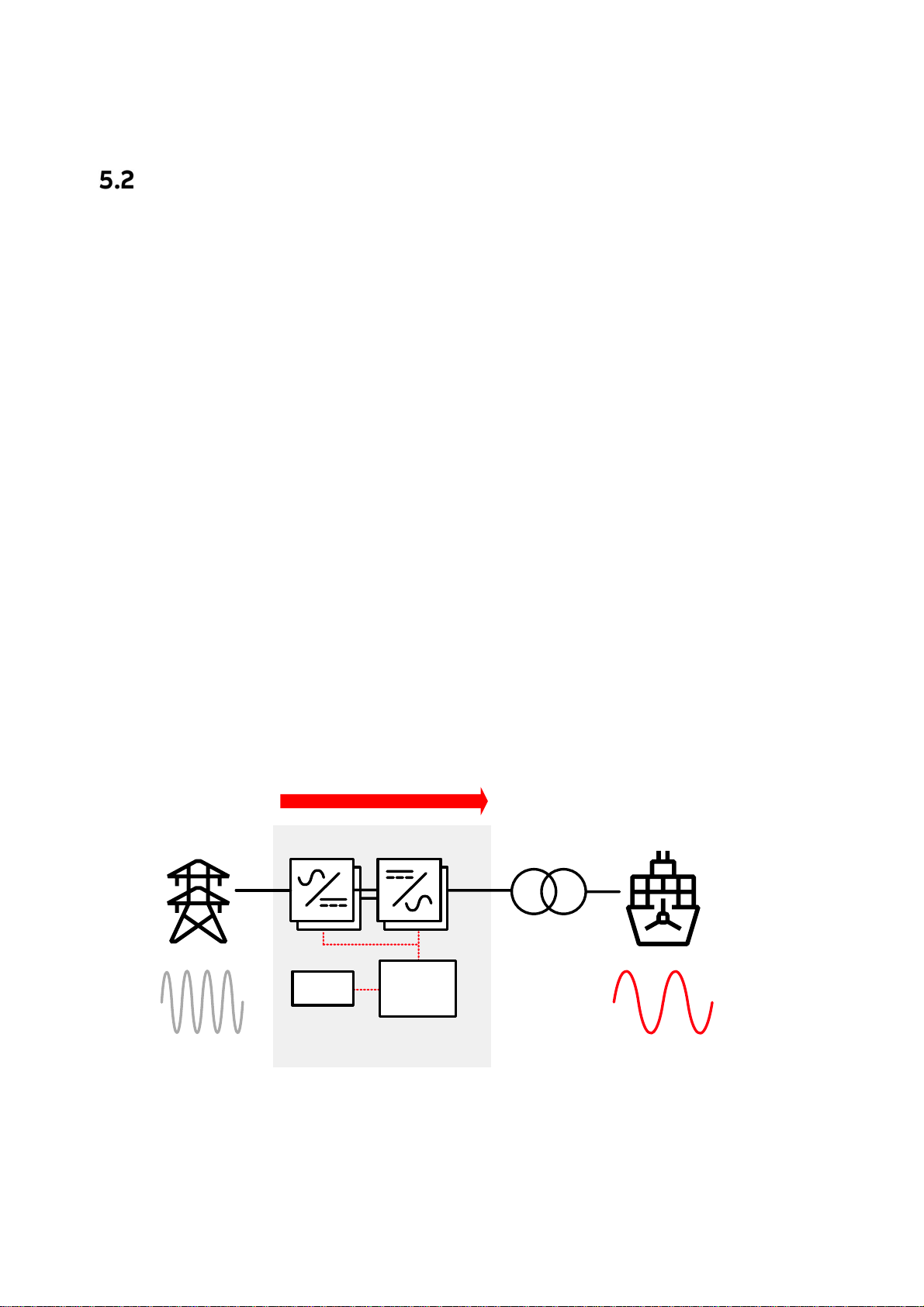

ABB’s SureWave is the new generation of
Static Frequency Converter (SFC) allows
the connection of 60 Hz powered equip-
ment to a 50 Hz supply network and 50
Hz powered equipment to a 60 Hz supply
network.
Additionally, the SureWave SFC can sta-
bilize the frequency and the voltage to
allow the correct operation of sensitive
equipment when the supply is not suffi-
ciently regulated.
The SureWave’s high efficiency also con-
tributes to sustainability, potentially
represents a carbon emissions reduction
of 351 tons over a typical 15-years
lifespan

ABOUT THIS DOCUMENT
3/78
––
1About this document
–– Document information
1.1.1 Copyright notice
The information in this manual is subject to change withoutnotice. This manual and parts
thereof must not bereproducedor copied, or disclosed tothird parties, nor usedfor anyunau-
thorized purpose without written permission from ABB Ltd.
The hardware and software describedin this manual are provided under a license and may be
used, copied, or disclosed onlyin accordancewith theterms of such license
1.1.2 Document identification
Ownership: ABB Ltd.,Power Conditioning Products
Document Number: 2UCD400000E001
Issue Date:2021.10
Revision: Rev. A
1.1.3 Contact information
Address: ABB Ltd. Napier 4110, 111, Main North Road. NewZealand
Web: https://new.abb.com/power-converters-inverters/grid-interconnections/indus-
trial/pcs120-sfc
1.1.4 Equipment covered by the manual
This manual covers thestandard SureWave SFCproduct and provides general information regard-
ing:
Generalfunctions of the SFC
Operation
Component enclosures
Graphical Display Module (GDM)
Control and adjustments
This manual does not claimto cover all variations and details of the SureWave SFC, nor to con-
sider all eventualities thatmay arise duringthe operation ofthe product.
Installation, commissioning, andmaintenanceof the product arecovered elsewhere. If the
SureWave SFCis adapted to specific customerneedsor applications, and handling, installation,

ABOUT THIS DOCUMENT
4/78
and operation of the product are affectedby these modifications, the extra information required
to cover these adaptions will be supplied in extradocumentation.
If information is requiredbeyond the instructions in this manual, please refer thematterto ABB
1.1.5 Target groups and required qualifications
The product presented in this manual is partof an industrial environment wherevoltages arepre-
sent that contain a potentialhazardof electricshock and/or burn.For this reason, only personnel
who havea thorough knowledge of theSFC and the industrial environment and have obtained
the requiredqualification may handle, install, operate,or maintain the product.
The manual addresses personnel who areresponsible for operation andmaintenance of the
SureWave SFC. The personnel must carry out thelisted tasks in a manner thatdoes not cause
physical harmor danger,and that ensures thesafe and reliable functioning of the product.
“Commissioning of the SureWave SFC must only be performed by
qualified and certified ABB personnel.”
Handling
The personnel must be skilled and experienced in unpacking andtransporting heavy equipment.
Mechanical installation
The personnel must be qualified to prepare the installation site according to thesite and equip-
ment requirements and to perform the installation accordingly.
Electrical installation
The personnel must have asound knowledge of the relevant electrical codes and specifications
covering lowvoltage equipment, beexperiencedwith electrical wiring principles, and knowthe
electrical symbols typically used in wiring diagrams.
Operation
The personnel include all persons who operatethe SureWave SFC from theHMI. Thosepeople
must know the functions of the GDM, beadequately trained for the SFC,andunderstand its oper-
ation process.
Maintenance
The personnel include all persons who:
• are qualifiedto carry out preventiveand corrective maintenance on SureWave SFC as de-
scribed in this manual.
• are thoroughly familiar with theproduct.
•have a sound knowledgeof the relevantelectricalcodes and specifications covering low
voltage equipment.
• are ableto assess the hazardsassociatedwith the energy sources of the SureWaveSFC
system and act correspondingly.
• know the safe shutdown procedures for the SureWave SFC system

ABOUT THIS DOCUMENT
5/78
1.1.6 Responsibilities of the user
It is theresponsibility of those in chargeof the SureWave SFC to ensurethat each person involved
in the installation, operation or maintenanceof the product has received the appropriate training
and hasthoroughly read and clearlyunderstoodthe instructions in this manual andthe relevant
safety instructions
1.1.7 Intended use of equipment
Those inchargeof theSureWave SFCmust ensurethat the product is only used as specifiedin
the contractualdocuments, operatedunder the conditions stipulated in the technical specifica-
tions and on the rating plateof the product, and serviced in theintervals asspecifiedby ABB.
Use outside the scope of the specifications, and unauthorized modifications andconstructional
changes of the SureWaveSFCwill render the warranty void
Intended equipment usealso implies that only spareparts recommended and approved by ABB
may be used.
1.1.8 Quality certificates and applicable Standards
The following certificates andconformity declarations are availablefrom ABB:
– ISO 9001certificates stating that ABB Ltd in Napier has implemented and maintains aman-
agement system that fulfils therequirements of thenormative standards.
– EC conformity declaration.
– Individual IEC
Sta
ndardnumber
Standard name
IEC60146
-
1
Semiconductor converters
–
General requirements
IEC60146-2 Semiconductor converters –
Self commutated semiconductor converters
IEC61000-6-2 EMC generic standards -
Immunity standardfor industrial environments
IEC6100-6-4 EMC generic standards -
Emission standard for industrial environments
IEC/EN60947-1 Low voltage switchgear and control gear -
General rules
IEC/EN60947-2 Low voltage switchgear and control gear -
Circuit breakers
IEC62477-1 Safety requirements for power electronicconverter systems
and equipment
-
General
WEEE
Waste electrical and electronic equipment directive
Table 1-1: Summary of applicable standards

ABOUT THIS DOCUMENT
6/78
1.1.9 Items covered by delivery
Deliveryof a SureWave SFCcomprises the followingitems:
250 kVA to 750 kVA:
1 enclosure,identified as PE120-U1
This carriesthe universal controller (main), graphical display module (GDM) andpower electron-
ics building blocks (PEBBs) tomake a complete staticfrequency converter.
Input and output circuit breakers areNOTsupplied with thesemodels and must be sourcedsepa-
rately.
1 MVA to 1.5 MVA
4 enclosures, as follows:
1. Input enclosure (Term. Enclosure-UAx) completewith circuit breaker
2. PE120-U1 enclosure (main), carrying the universal controller, GDM and PEBBs.
3. PE120-U2enclosure (hub), carryingPEBBs, and universal controller.
4. Output enclosure(Term.Enclosure-UAx) completewith circuit breaker
1.75 MVA to 2.25 MVA:
5 enclosures, as follows:
1. Input enclosure (Term. Enclosure-UAx) completewith circuit breaker
2. PE120-U1enclosure (main),carryingthe universal controller (main), GDM and PEBBs.
3. PE120-U2enclosure (hub), carryingPEBBs, and universal controller.
4. PE120-U3 enclosure(hub), carrying PEBBs, anduniversal controller.
5. Output enclosure(Term.Enclosure-UAx) completewith circuit breaker
1.1.10 Identifying the delivery
The SFC andaccessories are identified by thetype code printed on the rating label. The label is
locatedon the backof the PE120-1 enclosuredoor.
The Label provides information on the SureWave SFC rated voltage,frequency, ratedcurrent and
auxiliary power supply.

ABOUT THIS DOCUMENT
7/78
–– Abbreviations & Terms
The following table lists terms and abbreviationsuser should be familiar with when using this
manual.Some of theterms and abbreviations used in the manualareunique to ABB andmight
differ from the common use.
Abbreviation/Term Meaning
SFC Static Frequency Converter
LV Low Voltage.
Voltage level up to 1000 V
ac
or 1500 V
dc.
LV PSU 24 Vdc internal power supply for fans and electronics
MV Medium Voltage.
Voltage level between 1 kV
ac
and 35 kV
ac
.
PCS120 Power Conversion System 120.
The PCS120is the product platform for the ABB power conditioning
products.
PEBB
Power ElectronicBuilding Block.
PE120-U<n> Platform Enclosure 120.
PE120 is theenclosure that contains severalPEBB. ThePE120 could
be maincontroller or hub
.
MC Main Controller.
UC120
main controller located in thePE120
-
U
1 enclosure.
HUB HUB controllers are located in PE120-U2 and PE120-U3 cabinets re-
spectively. Themainfunction is to transferthe information to the
main controller.
GDM Graphical Display Module.
Has the local Human Machine Interface(HMI) and it is located in the
PE120-U1enclosure.
HMI
HumanMachine Interface
CB Circuit Breaker
PE Chassis Protective Earth.
PE-I Inverter Earth.
PCC Point of Common Coupling.
The PCC is the pointin the electrical power supply system where
the responsibility of theutilitychanges to theindustrial customer.
The utility is responsiblefor providing clean voltage and current
with respect to harmonicdistortion up to thePCC.The industrial
customer is responsiblenot to distort voltage and current by its
electrical systems.
Line voltage
RMS lineto line voltage of themainpower supplyo
f the inpu
t.
PCB
Printed Circuit Board.

ABOUT THIS DOCUMENT
8/78
Abbreviation/Term Meaning
EMC Electromagnetic Compatibility.
All measures to suppress electromagnetic disturbances caused by
different electrical equipment in the same electromagnetic environ-
ment, and to strengthen the immunityof the equipment to such
disturbances.
RTD ResistanceTemperature Detector.
The RTDis a temperaturesensor wherethe change in electricalre-
sistance is used tomeasurethe temperature.
Table 1-2: Summary of abbreviations
–– Trademarks
Names that are believedto be trademarks of other companies and organizations aredesignated
as such. The absence or presenceof such a designation should howevernot be regarded asan
offenceof the legalstatus of any trademark. The following registrations andtrademarks are
used in this manual:
Abbreviation/Term Meaning
Modbus
™
Registered trademark of
S
chneider
E
lectric
USA,
Inc
SureWave
Registered trademarkof ABB Ltd
Table 1-3: Trademarks
–– Related documentation
Document type Document title Document Number
Drawings 250 kVA to 750kVA Layout drawings 2UCD42000E102
Drawings
1 MVA kVA to 1.5MVA
Layout drawings
2UCD42000E10
1
Drawings
1.75 MVAto 2.25 MVA
Layout drawings
2UCD42000E10
3
Specifications
PCS120
SFC
Technical Specifications
2UCD4
2
0000E0
02
Installation
PCS120 SFC Installation Manual
2UCD420000E003
Service
Service Manual
2UCD4
2
0000E
400
Health & Safety
Health andSafety Risk Assessment
2UCD400000E601
Table 1-4:Summary of related documentation

9/78 SUREWAVE SFC USER MANUAL
––
2 Introduction
Thank you for selecting ABB asyour preferredsupplierof frequency conversion equipment and
congratulations on your choice of the SureWave SFC to support your installation.
ABB’s SureWave SFCis the latest Static Frequency Converter developed with ABB’syears of ex-
perience with markettrends and knowledge in the field.
The new generation of StaticFrequency Converters allows connection of 60 Hzpowered equip-
mentto a 50 Hzsupply network and50Hz poweredequipment to a 60Hz supplynetwork.
Please carefully readthis User Manual, which containsall the necessaryinformation and de-
scribes all you needto knowabout theuse of the SFC.The UserManual describes the function
of the SFC, its operation,system components, themeaning of the system events related to the
user interface andprovides procedures for startingand stoppingthe equipment.
Please refer to the Installation Manual, for details on how to prepare the installation site, weight,
dimensions, andprocedures for moving,installing, and connectingthe SFC.
While every care hasbeen taken toensurethe completeness and accuracy of this manual, ABB
assumes no responsibility or liability for anylosses ordamages resultingfrom theuseof the in-
formation contained in this document.
Thank you for choosingABB

10/78 SUREWAVE SFC USER MANUAL
––
Contents
1 About this document.........................................................................................................................3
Document information..................................................................................................................... 3
Abbreviations & Terms......................................................................................................................7
Trademarks.........................................................................................................................................8
Related documentation....................................................................................................................8
2 Introduction........................................................................................................................................9
3 Safety................................................................................................................................................12
Safety notices................................................................................................................................... 14
General safety information............................................................................................................15
Possible residual risks.....................................................................................................................16
4 Cyber security.................................................................................................................................. 17
Deployment guidelines ...................................................................................................................17
5 Product description.........................................................................................................................18
Single line diagram.......................................................................................................................... 18
Operating principle..........................................................................................................................19
User interface...................................................................................................................................20
Major SFC components...................................................................................................................21
Cooling system ................................................................................................................................24
6 Selecting transformer configuration.............................................................................................26
Industrial application......................................................................................................................26
Shoreto ship (Converter on shoreside).....................................................................................26
On-board shore power................................................................................................................... 27
Specifying transformer..................................................................................................................28
SizingTransformers........................................................................................................................28
7 Model definition...............................................................................................................................29
Platform code...................................................................................................................................29
SureWave product code.................................................................................................................29
Power rating .....................................................................................................................................29
Input cable routing & CB................................................................................................................30
Output cable routing & CB .............................................................................................................31
Ingress protection............................................................................................................................31
Input voltage..................................................................................................................................... 32
Input frequency................................................................................................................................ 32
Output voltage.................................................................................................................................32
Output frequency........................................................................................................................33
Operation...................................................................................................................................... 33
Input termination side...............................................................................................................34
RFI configuration.........................................................................................................................34
External LV PSU feed...................................................................................................................35
8 Technical specifications..................................................................................................................36
250 kVA to 2.25 MVArange specifications.................................................................................36
Dimensional data............................................................................................................................. 37
Circuit breaker specifications.......................................................................................................38
9 Technical specifications................................................................................................................. 40

11/78 SUREWAVE SFC USER MANUAL
Power connections to SFC.............................................................................................................40
I/O interfaces................................................................................................................................... 41
AuxiliaryAC power supply for LV PSU.........................................................................................48
10 User Interface.................................................................................................................................50
Graphic Display Module (GDM)................................................................................................50
Navigation buttons......................................................................................................................51
11 Operation of theSFC .....................................................................................................................66
Machine state flow diagram.....................................................................................................66
System start.................................................................................................................................68
Operation modes ........................................................................................................................68
VSI vs virtual generator..............................................................................................................69
SureWave SFC performance......................................................................................................70
RemoteAC bus Synchronization...............................................................................................71
System EPO................................................................................................................................... 74
Hard fault ...................................................................................................................................... 74
12 Maintenance schedule...................................................................................................................75

12/78 SUREWAVE SFC USER MANUAL
––
3Safety
AR
!ﺮﻳﺬﺤﺗ:ﺪﻬﺟﻲﺋﺎﺑﺮﻬﻛﺮﻄﺧ
ﻊﺟارتﺎﻤﻴﻠﻌﺗﻞﻴﻐﺸﺘﻟا .
ﻞﺼﻓاءﺎﺑﺮﻬﻜﻟاﻢﻗوﺎﻬﻨﻴﻣﺄﺘﺑﻞﺒﻗﻞﻤﻌﻟااﺬﻫزﺎﻬﺠﻟا
ﻪﻴﺒﻨﺗ
!
ﺐﺠﻳ
مﺪﻋ
ﺐﻴﻛﺮﺘﻟا
ﻻإ
ﻦﻣ
لﻼﺧ
ﺺﺨﺷ
ﻋ
ﺔﻳارد
لﺎﺠﻤﺑ
ﺔﻴﻨﻘﺘﻟا
ﺔﻴﺋﺎﺑﺮﻬﻜﻟا
.
BG
Предупреждение:Опасно напрежение!
Вижте инструкциите за работа.
Изключете и блокирайте захранването преди да работите с устройството.
Внимание!Да се монтира само от експерт електротехник.
CS
Varování: Nebezpečné napětí!
Viz návod k obsluze.
Před zahájením prací na tomto zařízení odpojte a uzamkněte napájení.
Pozor! Toto zařízení smí instalovat pouze osoba s elektrotechnickou
odborností.
DA
Advarsel: Farlig elektrisk spænding!
Se betjeningsvejledningen.
Frakobl enheden, og afbryd strømforsyningen, før du arbejder med denne enhed.
Giv agt! Installation må kun foretages af personer med elektroteknisk
ekspertise.
DE
Warnung: Gefährliche Spannung!
Siehe Bedienungsanleitung.
Vor dem Arbeiten Gerät ausschalten und von der Spannungsversorgung trennen.
Achtung! Installation nur durch elektrotechnische Fachkraft.
EL
Προειδοποίηση:Επικίνδυνη τάση!
Ανατρέξτε στις οδηγίες λειτουργίας.
Αποσυνδέστε και απομονώστε την παροχή ισχύος προτού ξε κινήσετε τις εργασίες σε αυτήν τη συσκευή.
Προσοχή!Ηεγκατάσταση πρέπει να γίνεται μόνο από αδειούχο ηλεκτρολόγο εγκαταστάτη.
EN
Warning: Hazardous voltage!
Refer to installation instructions.
Disconnect and lock out power before working on this device.
Attention! Installation by person with electrotechnical expertise only.
ES
Advertencia: ¡Tensión peligrosa!
Consulte las instrucciones de funcionamiento.
Antes de trabajar con este dispositivo, desconecte y bloquee la corriente.
¡Atención! La instalación debe ser realizada únicamente por un técnico
electricista.
ET
Hoiatus: Elektrilöögi oht!
Lisateavet vaadake kasutusjuhendist.
Enne selle seadmega töötamist ühendage lahti ja lukustage toide.
Tähelepanu! Seadet tohib paigaldada ainult elektrotehnilise kogemusega isik.
FI
Varoitus: Vaarallinen jännite!
Katso käyttöohje.
Katkaise virta ja estä virran kytkeminen lukituksella ennen töiden aloittamista.
Huomio! Asennuksen saa suorittaa vain henkilö, jolla on kokemusta sähkötekniikasta.
FR
Avertissement: Tension dangereuse!
Consultez les consignes d’utilisation.
Débranchez et verrouillez l’alimentation électrique avant d’entreprendre des travaux sur cet appareil.
Attention! L’installation doit être effectuée uniquement par une personne ayant une expertise en élec-
trotechnique.
HR Upozorenje: Opasan napon!

13/78 SUREWAVE SFC USER MANUAL
Pogledajte upute za uporabu.
Odspojite i isključite struju prije rada na ovom uređaju.
Pažnja! Ugradnja je dopuštena samo osobama stručnim u području elektrotehnike.
HU
Figyelmeztetés: Veszélyes feszültség!
Lásd a használati utasítást.
Válassza le és zárja ki az áramellátást, mielőtt a berendezésen dolgozni kezd.
Figyelem! Az üzembe helyezést csak elektrotechnikai szakértelemmel rendelkezőszemély végezheti el.
IT
Attenzione: Tensione pericolosa!
Fare riferimento alle istruzioni per l’uso.
Prima di intervenire su questo dispositivo, scollegare e isolare tutte le fonti di alimentazione.
Attenzione! L’installazione deve essere eseguita esclusivamente da un installatore qualificato.
LT
Įspėjimas: Pavojinga įtampa!
Žr. naudojimo instrukcijas.
Atjunkite ir laikinai užblokuokite maitinimąprieš dirbdami su šiuo įrenginiu.
Dėmesio! Įrengti gali tik asmuo, turintis elektrotechniko patirties.
LV
Brīdinājums: Bīstams spriegums!
Skatiet darba norādījumus.
Pirms sākat darbu ar šo ierīci, atvienojiet un bloķējiet strāvas padevi.
Uzmanību! Uzstādīšanu drīkst veikt tikai persona ar zināšanām par elektrotehniku.
NL
Waarschuwing: Gevaarlijke spanning!
Raadpleeg de bedieningsinstructies.
Koppel dit apparaat los van de stroomvoorziening voordat u werkzaamheden uitvoert.
Let op! Installatie mag alleen worden uitgevoerd door een monteur met elektrotechnische expertise.
NO
Advarsel: Farlig spenning!
Se i bruksanvisningen.
Koble fra og steng av strømmen før du arbeider på denne enheten.
Forsiktig! Montering skal kun utføres av kvalifiserte personer med elektrokompetanse.
PL
Ostrzeżenie: Niebezpieczne napięcie!
Patrz: instrukcja obsługi.
Przed rozpoczęciem wykonywania pracy z tym urządzeniem odłącz i zablokuj zasilanie.
Uwaga! Montażmoże wykonywaćwyłącznie osoba posiadająca doświadczenie elektrotechniczne.
PT
Aviso: Tensão perigosa!
Consulte as instruções de operação.
Desconecte e desligue a energia elétrica antes de trabalhar nesse dispositivo.
Atenção! A instalação deve ser feita apenas por uma pessoa com especialidade eletrotécnica.
RO
Avertisment: Tensiune electricăpericuloasă!
Consultați instrucțiunile de utilizare.
Deconectați și închideți sursa de energie înainte de a lucra cu acest
dispozitiv.
Atenție! Instalare
RU
Внимание:Опасное электрическое напряжение!
Обратитесь кинструкциям по эксплуатации.
Отключите питание иобесточьте устройство перед началом работ.
Внимание!Установка должна выполняться только специалистом по электротехническим работам.
SK
Výstraha: Nebezpečné napätie!
Pozrite si návod na použitie.
Pred začatím prác na tomto zariadení odpojte a zablokujte napájanie.
Pozor! Inštaláciu smie vykonávaťlen osoba s odbornými znalosťami v oblasti elektrotechniky.
SL
Opozorilo: Nevarna napetost!
Glejte navodila za uporabo.
Pred delom na tej napravi izklopite in zaklenite električno napajanje.
Pozor! Namestitev sme izvesti samo elektrotehnični strokovnjak.
SV
Varning: Livsfarlig spänning!
Se i bruksanvisningen.
Frånkoppla och blockera anläggning eller en anläggningsdel innan arbeite utförs.
Obs! Får endast installeras av behörig elektriker.
TR Uyarı: Tehlikeli gerilim!

14/78 SUREWAVE SFC USER MANUAL
Çalışma talimatlarına bakın.
Bu cihaz üzerinde çalışmadan önce elektriği kesin ve kilitleyin.
Dikkat! Yalnızca elektroteknik uzmanlığa sahip kişiler tarafından kurulabilir.
ZH
警告：高压危险!
请参见操作手册
操作本设备前请断开并锁定电源。
注意！安装仅限专业电工人员。
Table 3-1: Safetyinstructions
Safetyinstructions areused to highlight a potentialhazard when workingon the equipment.
Safetyinstructions mustbe strictly followed!Non-compliancecan jeopardize thesafety of per-
sonnel, the equipment, and the environment.
This manual contains important information regarding the operation of the ABB SureWaveSFC
and provides technicaland operational guidance for operators. The following safety instructions
are to be observed.

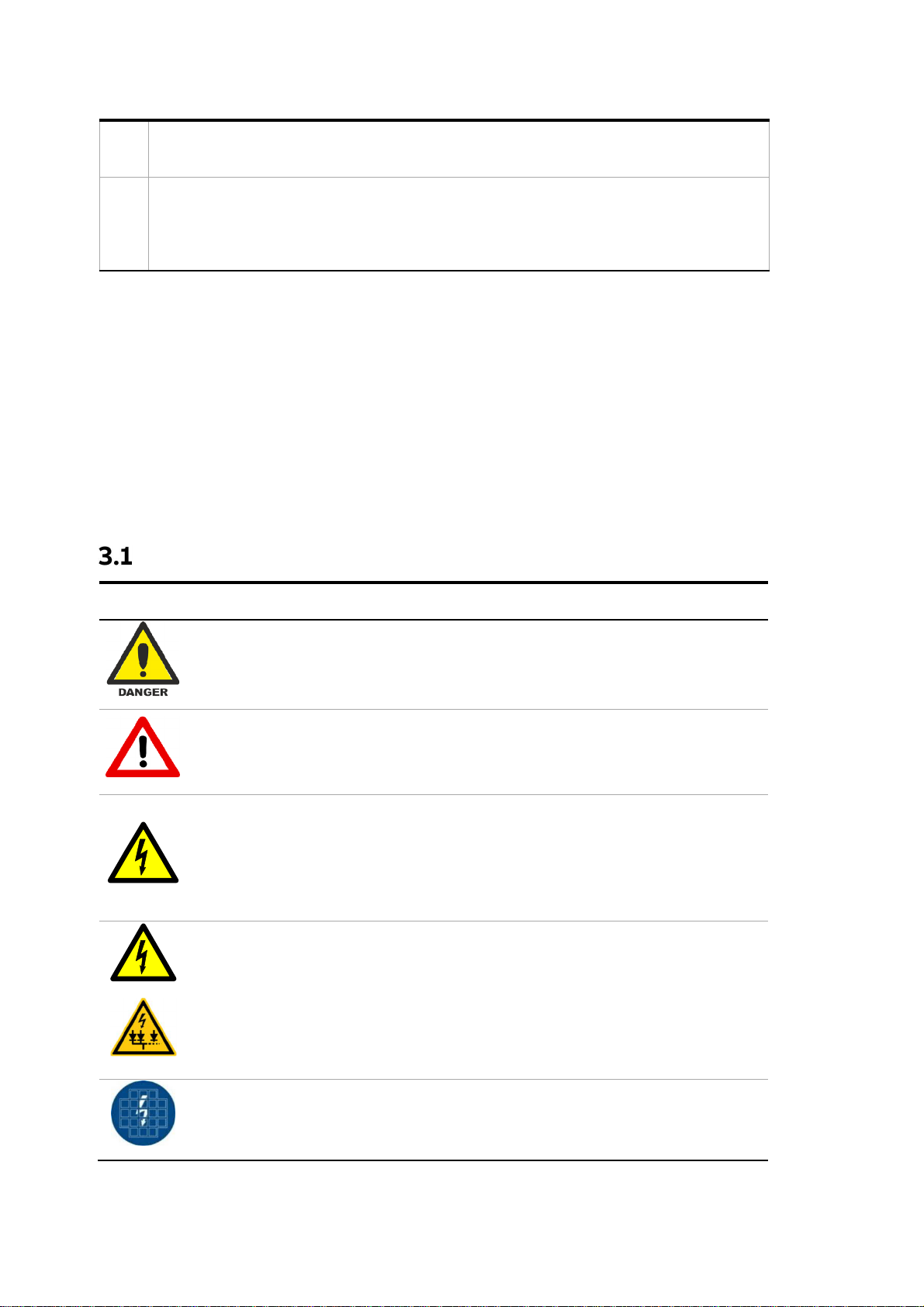

–– Safety notices
Sign Meaning
DANGER
This manual provides information for thesafe operation of theSureWave SFC.
It does NOT provide installation, commissioning or serviceinformation. For
such information, refer to the appropriate manual.
CAUTION – Trained operators
All operations onthe SureWave SFCmust only be carried out by a trainedopera-
tor familiar with the contents of thismanual. Hazardous conditions could arise
from incorrect adjustment.
DANGER – Hazardous voltages
An Operator must not open doorsor panels markedas containing hazardous
voltages. Manyparts in thisproduct, including printedcircuit boards operate at
lethal high voltages. Stored energycomponents such as batteries and capaci-
tors canhold this voltage even after the openingof isolation switches.DO NOT
TOUCH com
ponents or connections that may have voltage present.
DANGER – Stored charge
Storedcharge is present after the deviceis switchedoff. When the SFC is pow-
ered down, lethal voltageswill remain in the energystorage elements andthe
completeSureWave SFC shouldbe considered live. To remove thishazard, en-
ergy storagewill needto be isolated and locked off, and filter capacitors dis-
charged. This mayonly be doneby trained technical personnel while following
the stipulatedisolation, grounding, and lockout procedures.
DANGER – Protective covers
Normaloperation of this productrequires all protective covers to be in place
and all doors secured closed.

15/78 SUREWAVE SFC USER MANUAL
DANGER – Personal Protective Equipment
Ensuresafety glasses and other appropriatePPEare worn while working if any
part of theunit could be energized. Observe siterequirements for PPE while
operating this equipment.
DANGER – Arc flash
Arc flash isa dangerous phenomenon associatedwith operation at low volt-
ages. It may be caused byswitchgear failure, insulation breakdown or foreign
object intrusion. It mayresult in severe burns,severe eye injury, blindness or
death. To minimizethe risk, keep all doors closed and covers inplace while op-
eratingthe equipment. Observeany arcflash protection boundaries that may
be in place around the
SFC
enclosures.
DANGER – Potential material hazardof batteriesand capacitors
If a capacitor is damaged electrically or physically, the resultingdebris could
represent a material hazard. Refer to the appropriate Material SafetyData
Sheet for information onsafe handlingand disposal.
Table 3-2: Safety notices
Safetylabels are attached to the enclosures to alert personnelof potentialhazards when work-
ing on theequipment. The instructions on the safety labelsmust alwaysbe followed,and the la-
bels must be kept in a perfectly legiblecondition.
–– General safety information
3.2.1 Operator duties
The scope of work for an operator of theSureWave SFC is tocontrol and monitor the SFCfrom
the GDM, digital I/O and orMODBUS interface, or froma remoteweb page. Anoperator is not
normally authorized to undertake any maintenance, service,or repair work.
The operator may be authorized to provideassistance to a maintenance,serviceor repair tech-
nician, by performinghis or her dutiesunder the direction of a serviceteam. If so, the operator
must bewearingPPE to the samelevelas thoseof the serviceteam.
3.2.2 Before energization
Beforethe SFC is energized,inspect to makesure:
any maintenancework beingdone onthe SFChas been completedand signed off, and
all tools andequipment are removed.
All covers onthe SFC enclosures aresecurely fastened,and all doors areclosed, locked,
and/or bolted.

16/78 SUREWAVE SFC USER MANUAL
–– Possible residual risks
The following risks can arise from a SureWave SFC system and pose a
hazard to people. These risks must therefore be considered by the
system integrator and/or the plant owner when assessing the risks of
the machinery.
The SFCis a high energypower conversion machine. Components may be dislodgedor dam-
aged duringtransport, orwhen being installed, commissioned,operatedor serviced,due to, for
example:
•Damage during transport,
•Incorrectlyassembled or installed equipment,
• Wrongly connected cables,
•External influence on,or damage to the equipment,
• Wrong parameter settings,
•Operation of the equipment outsidethe scope of thespecifications,
• Software errors,
•Faulty hardware.
Hazardous touchvoltages can bepresent on SureWaveSFC system components caused by, for
example:
•Operation of the equipment outsidethe scope of thespecifications,
•External influence on,or damage to the equipment,
• Induced voltages by external equipment,
•Condensation on equipment components or pollution,
•Faulty hardware,
• The usedof inappropriate tools during servicing,
For all of the abovereasons, alwaysoperate with allside and rearpanels in place and all doors
shut andlatched

17/78 SUREWAVE SFC USER MANUAL
––
4 Cyber security
Overview
This product is designed to be connected to and to communicate information and datavianet-
work interface.
It is customer's sole responsibility to provide and continuously ensurea secure connection be-
tween the product and customer network or anyothernetwork (as the case may be). Customer
shall establish andmaintain any appropriate measures(such as butnot limitedto the installa-
tion offirewalls, applicationof authenticationmeasures, encryption of data,installation of anti-
virus programs, etc.) to protect the product, thenetwork, its system and the interface against
any kindof security breaches,unauthorizedaccess,interference, intrusion, leakage and/or theft
of data or information.
ABB andits affiliates arenot liable for damages and/or losses relatedto suchsecurity breaches,
anyunauthorized access, interference, intrusion,leakage and/or theft of dataor information.
–– Deployment guidelines
The recommendedCyber Security deployment for the SureWave SFC is for it to beonly used in a
trusted network with restricted access. The user is responsible for creating a defense-in-depth
protection byallocating firewall solutions to eachnetwork.
For secureremoteaccess, usea VPNconnection – the SureWave SFC is not approved byABB for
direct Internet connection. Theuser of theproduct should be aware thatthe unsecurenature of
the Modbus TCP protocol exposes thecommunication between the product and the control sys-
tem. Authentication and integrity of transmitted information is not providedby the proto-col.
This enables certain types of attacks, such as man-in-the-middle attacks, eavesdroppingattacks
and replay attacks for instance. The main security is providedthrough monitoring thecyber se-
curity, topology (asset management) andcorrect operation of the datanetworks usingthe
cyber security monitoringmodules andfeatures of thefirewalls and managedswitches

18/78 SUREWAVE SFC USER MANUAL
––
5Product description
Overview
The ABB SureWave SFCis a high-performance high-efficiency static frequency converter system
that provides a stable three-phasepower supply with fixed voltageand frequency. The supply
source is likely to beof differentvoltageand frequency tothat requiredby the load.
A typical application of a frequency converter is the supplyof electrical power to a shipwhen it
is in harbor. The shipwill beable to be suppliedwith electrical power without running any on-
boardgenerators. This hasmajor benefits in reduction of noise and pollution, reduction in run-
ning timeof shipboard generators, and overall energy savings.
The SureWave SFCuses ABB’s new generation PCS120 powermodules to convert the incoming
utility to DC, then convert this DC back to 3-phase AC for supplying the loadat the required fre-
quency and voltage. The PCS120 power modules arecompact and efficient, which contribute to
the overallSureWave SFCbeing a compact powerful converter system with afast-dynamic re-
sponse to load changes and ahigh overloadmargin.
The SureWave SFC installation may be stand alone,operatingthe loadwithout anyparallel con-
nected generating capacity. Or it may be connected in parallel with an existinggenerator bus,
whereit maybe started to seamlesslytake over the load from thegenerator(s). Alternatively, it
may beconnectedin parallelto oneor more SureWave SFC. Each of these possibilities is best
catered for by selecting one of severaloperating modes.
–– Single line diagram
PEBBs
Input
50/60 Hz
SureWave SFC
UC
Controller
GDM
Output Isolation
Transformer
Output
50/60 Hz
Figure 5-1: SureWave SFC SLD

19/78 SUREWAVE SFC USER MANUAL
–– Operating principle
Refer to Figure5-1: SureWave SFC SLD. The SureWave SFC employsPowerElectronics Building
Blocks (PEBBs) in sets of two. The PEBB connectedto theincoming utility is configuredas an
active rectifier, which converts the incoming ACto DC. The PEBB connectedto the load func-
tions as an inverter, to provide the loadwith clean power at the required voltage and frequency.
The PEBB pairs arethen paralleledto givethe requiredoutput rating, up toa maximum of
2.25MVAat 480Vac output. Morethan one SureWave SFCmay beconnectedin parallel if the to-
tal required ratingexceeds 2.25MVA.
The outputof the SureWave SFC is at a fixedfrequency andvoltage, to suit the loadrequire-
ments. Thanks to thedouble conversion architecture, the output voltage is tolerant to signifi-
cant voltage distortion and transients from incomingvoltage.
5.2.1 Generator mode
In generator mode (VGen)the SFC emulates the behavior of arealrotary generator and thus in-
teractswith the power system in the sameway as a traditionalsynchronous machine. This be-
havior is achieved purelythrough power electronic control and there are no largespinning
masses.
In this mode the SFC can be configured to run as a standalone power sourcewith tighttolerance
voltageand frequency regulation (Isochronous) for a fixed application or as apower sourcerun-
ning in parallel with othergenerators with voltage andfrequency droop enabled.
In generator mode the bumpless load transfer toand from another generator or generators.
The system canalso synchronize to an external bus to connect anothernode tothe outputof
the SureWave SFC.
PEBBs
SureWave SFC
UC
Controller
GDM
Output Isolation
Transformer
V/F
Figure 5-2: SureWave in Generator mode

20/78 SUREWAVE SFC USER MANUAL
5.2.2 Power flow control mode
In powerflowcontrol mode (Fix Power), when in parallel with anothersourcethe SFChas the
ability to provide fixed Pand Q power flowon theoutput. This is used when interfacing genera-
tors to a grid where power flow to and from the grid must be controlled.
Setpoints for both real power (P) and reactive power (Q) can be set.
PEBBs
SureWave SFC
UC
Controller
GDM
Output Isolation
Transformer
P/Q
Figure5-3: SureWave in Fix Power
–– User interface
The primary user interface is via adoor mounted touch screen GraphicalDisplay Module (GDM).
The displayis a 10” resistive touchscreen with a user-friendlyintuitive interface.
The integratednavigation screen gives easy accessibility to anyinformation on the SureWave
SFC, it shows the system status and provides access to the operating parameters and event his-
tory.The mimic diagram gives the users a clearviewof the status of thesystem.
Figure 5-4: SureWave HMI
