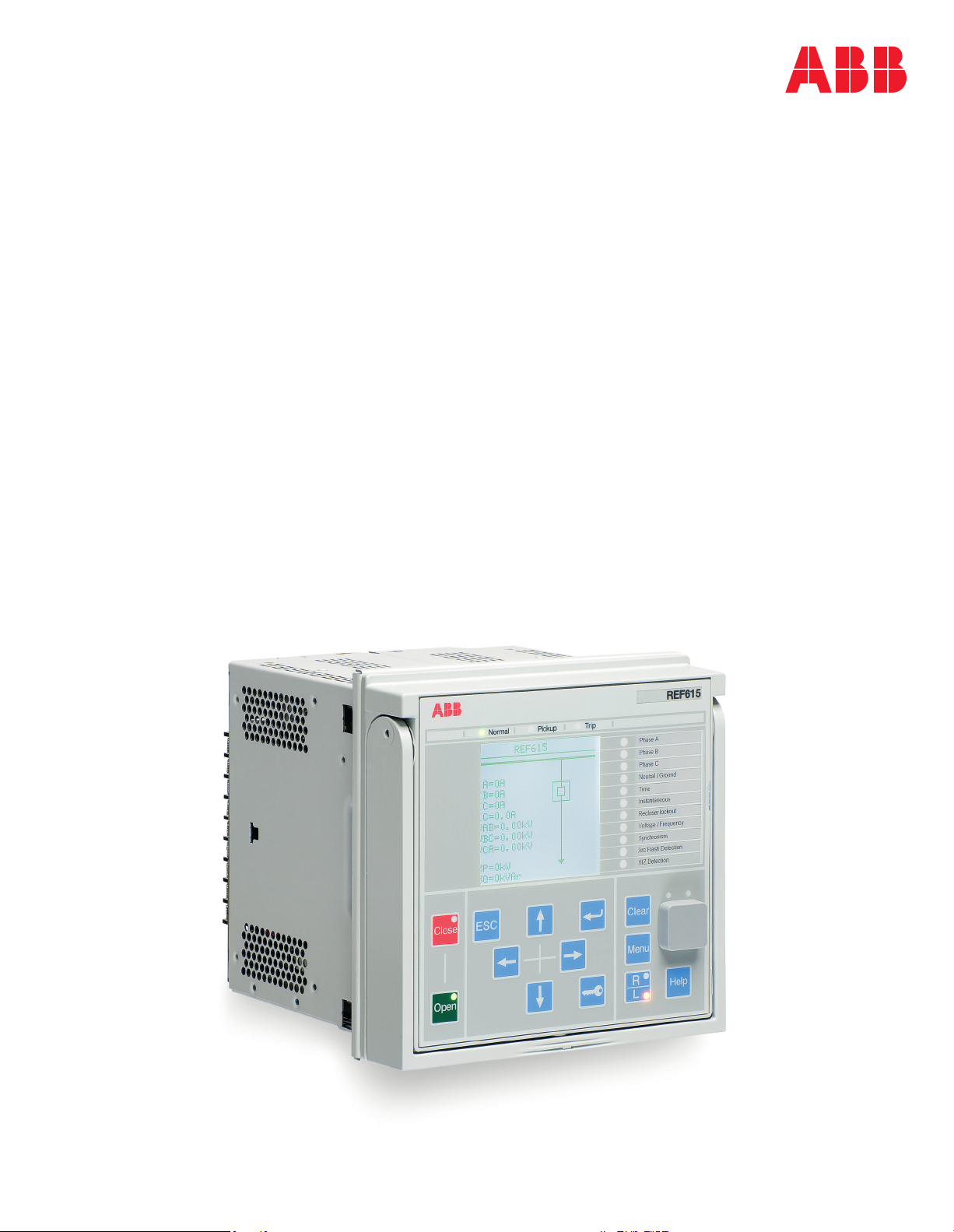

RELION® 615 SERIES
Feeder Protection and Control
REF615 ANSI
Application Manual

Document ID: 1MAC109016-MB
Issued: 2019-06-07
Revision: C
Product version: 5.0 FP1
© Copyright 2019 ABB. All rights reserved

Copyright
This document and parts thereof must not be reproduced or copied without written
permission from ABB, and the contents thereof must not be imparted to a third party, nor
used for any unauthorized purpose.
The software or hardware described in this document is furnished under a license and may
be used, copied, or disclosed only in accordance with the terms of such license.
Trademarks
ABB and Relion are registered trademarks of the ABB Group. All other brand or product
names mentioned in this document may be trademarks or registered trademarks of their
respective holders.
Warranty
Please inquire about the terms of warranty from your nearest ABB representative.
www.abb.com/mediumvoltage
www.abb.com/substationautomation

Disclaimer
The data, examples and diagrams in this manual are included solely for the concept or
product description and are not to be deemed as a statement of guaranteed properties. All
persons responsible for applying the equipment addressed in this manual must satisfy
themselves that each intended application is suitable and acceptable, including that any
applicable safety or other operational requirements are complied with. In particular, any
risks in applications where a system failure and/or product failure would create a risk for
harm to property or persons (including but not limited to personal injuries or death) shall
be the sole responsibility of the person or entity applying the equipment, and those so
responsible are hereby requested to ensure that all measures are taken to exclude or
mitigate such risks.
This product has been designed to be connected and communicate data and information
via a network interface which should be connected to a secure network. It is the sole
responsibility of the person or entity responsible for network administration to ensure a
secure connection to the network and to take the necessary measures (such as, but not
limited to, installation of firewalls, application of authentication measures, encryption of
data, installation of anti virus programs, etc.) to protect the product and the network, its
system and interface included, against any kind of security breaches, unauthorized access,
interference, intrusion, leakage and/or theft of data or information. ABB is not liable for
any such damages and/or losses.
This document has been carefully checked by ABB but deviations cannot be completely
ruled out. In case any errors are detected, the reader is kindly requested to notify the
manufacturer. Other than under explicit contractual commitments, in no event shall ABB
be responsible or liable for any loss or damage resulting from the use of this manual or the
application of the equipment.

Conformity
This product complies with the directive of the Council of the European Communities on
the approximation of the laws of the Member States relating to electromagnetic
compatibility (EMC Directive 2014/30/EU) and concerning electrical equipment for use
within specified voltage limits (Low-voltage directive 2014/35/EU). This conformity is
the result of tests conducted by ABB in accordance with the product standards EN 50263
and EN 60255-26 for the EMC directive, and with the product standards EN 60255-1 and
EN 60255-27 for the low voltage directive. The product is designed in accordance with the
international standards of the IEC 60255 series and ANSI C37.90. This product complies
with the UL 508 certification.

Table of contents
Section 1 Introduction............................................................................5
This manual.............................................................................................. 5
Intended audience.................................................................................... 5
Product documentation.............................................................................6
Product documentation set..................................................................6
Document revision history................................................................... 6
Related documentation........................................................................7
Symbols and conventions.........................................................................7
Symbols...............................................................................................7
Document conventions........................................................................ 8
Functions, codes and symbols............................................................ 8
Section 2 REF615 overview................................................................ 15
Overview.................................................................................................15
Product version history...................................................................... 16
PCM600 and relay connectivity package version..............................17
Operation functionality............................................................................ 17
Optional features............................................................................... 17
Physical hardware.................................................................................. 18
Local HMI................................................................................................21
Display...............................................................................................22
LEDs..................................................................................................23
Keypad.............................................................................................. 23
Web HMI.................................................................................................24
Authorization...........................................................................................25
Communication.......................................................................................26
Self-healing Ethernet ring.................................................................. 27
Ethernet redundancy......................................................................... 28
Section 3 REF615 standard configurations.........................................31
Standard configurations .........................................................................31
Addition of control functions for primary devices and the use of
binary inputs and outputs.................................................................. 35
Connection diagrams..............................................................................37
Standard configuration D........................................................................ 42
Applications....................................................................................... 42
Table of contents
REF615 ANSI 1
Application Manual

Functions........................................................................................... 42
Default I/O connections................................................................ 43
Default disturbance recorder settings...........................................44
Functional diagrams.......................................................................... 47
Functional diagrams for protection............................................... 47
Functional diagrams for disturbance recorder.............................. 56
Functional diagrams for condition monitoring...............................57
Functional diagrams for control and interlocking.......................... 59
Functional diagrams for measurement functions..........................61
Functional diagrams for I/O and alarm LEDs............................... 62
Functional diagrams for other functions....................................... 65
Functional diagrams for other timer logics....................................65
Functional diagrams for communication.......................................66
Standard configuration F........................................................................ 67
Applications....................................................................................... 67
Functions........................................................................................... 67
Default I/O connections................................................................ 68
Default disturbance recorder settings...........................................70
Functional diagrams.......................................................................... 72
Functional diagrams for protection............................................... 73
Functional diagrams for disturbance recorder.............................. 87
Functional diagrams for condition monitoring...............................88
Functional diagrams for control and interlocking.......................... 90
Functional diagrams for measurement functions..........................92
Functional diagrams for I/O and alarm LEDs............................... 94
Functional diagrams for other functions....................................... 97
Functional diagrams for other timer logics....................................97
Functional diagrams for communication.......................................99
Standard configuration L.........................................................................99
Applications....................................................................................... 99
Functions......................................................................................... 100
Default I/O connections.............................................................. 100
Default disturbance recorder settings.........................................102
Functional diagrams........................................................................ 104
Functional diagrams for protection............................................. 105
Functional diagrams for disturbance recorder............................ 121
Functional diagrams for condition monitoring.............................122
Functional diagrams for control and interlocking........................ 124
Functional diagrams for measurement functions........................127
Functional diagrams for I/O and alarm LEDs............................. 129
Table of contents
2REF615 ANSI
Application Manual

Functional diagrams for other functions..................................... 131
Functional diagrams for other timer logics..................................131
Functional diagrams for communication.....................................132
Standard configuration N...................................................................... 133
Applications..................................................................................... 133
Functions......................................................................................... 133
Default I/O connections.............................................................. 134
Default disturbance recorder settings.........................................136
Functional diagrams........................................................................ 138
Functional diagrams for protection............................................. 139
Functional diagrams for disturbance recorder............................ 153
Functional diagrams for condition monitoring.............................153
Functional diagrams for control and interlocking........................ 156
Functional diagrams for measurement functions........................158
Functional diagrams for I/O and alarm LEDs............................. 160
Functional diagrams for other functions..................................... 163
Functional diagrams for other timer logics..................................163
Functional diagrams for communication.....................................164
Standard configuration P...................................................................... 165
Applications..................................................................................... 165
Functions......................................................................................... 165
Default I/O connections.............................................................. 166
Default disturbance recorder settings.........................................168
Functional diagrams........................................................................ 170
Functional diagrams for protection............................................. 171
Functional diagrams for disturbance recorder............................ 182
Functional diagrams for condition monitoring.............................183
Functional diagrams for control and interlocking........................ 186
Functional diagrams for measurement functions........................188
Functional diagrams for I/O and alarm LEDs............................. 190
Functional diagrams for other timer logics..................................195
Functional diagrams for communication.....................................196
Section 4 Requirements for measurement transformers...................197
Current transformers.............................................................................197
Current transformer requirements for overcurrent protection.......... 197
Current transformer accuracy class and accuracy limit factor....197
Non-directional overcurrent protection....................................... 198
Example for non-directional overcurrent protection....................199
Section 5 Protection relay's physical connections.............................201
Table of contents
REF615 ANSI 3
Application Manual

Inputs.................................................................................................... 201
Energizing inputs............................................................................. 201
Phase currents........................................................................... 201
Ground current........................................................................... 201
Phase voltages........................................................................... 201
Ground voltage........................................................................... 202
Sensor inputs..............................................................................202
Auxiliary supply voltage input.......................................................... 202
Binary inputs....................................................................................203
Optional light sensor inputs............................................................. 205
RTD/mA inputs................................................................................ 206
Outputs................................................................................................. 207
Outputs for tripping and controlling..................................................207
Outputs for signalling.......................................................................208
IRF...................................................................................................209
Section 6 Glossary............................................................................ 211
Table of contents
4REF615 ANSI
Application Manual

Section 1 Introduction
1.1 This manual
The application manual contains application descriptions and setting guidelines sorted per
function. The manual can be used to find out when and for what purpose a typical
protection function can be used. The manual can also be used when calculating settings.
1.2 Intended audience
This manual addresses the protection and control engineer responsible for planning, pre-
engineering and engineering.
The protection and control engineer must be experienced in electrical power engineering
and have knowledge of related technology, such as protection schemes and principles.
1MAC109016-MB C Section 1
Introduction
REF615 ANSI 5
Application Manual

1.3 Product documentation
1.3.1 Product documentation set
Planning & purchase Engineering Installation Commissioning Operation Maintenance Decommissioning, deinstallation & disposal
Quick start guide
Quick installation guide
Brochure
Product guide
Operation manual
Installation manual
Connection diagram
Engineering manual
Technical manual
Application manual
Communication protocol manual
IEC 61850 engineering guide
Point list manual
Cyber security deployment guideline
GUID-12DC16B2-2DC1-48DF-8734-0C8B7116124C V2 EN
Figure 1: The intended use of documents during the product life cycle
Product series- and product-specific manuals can be downloaded from the
ABB Web site http://www.abb.com/relion.
1.3.2 Document revision history
Document revision/date Product version History
A/2018-02-26 5.0 FP1 First release
B/2019-05-08 5.0 FP1 Content updated
C/2019-06-07 5.0 FP1 Content updated
Section 1 1MAC109016-MB C
Introduction
6REF615 ANSI
Application Manual

Download the latest documents from the ABB Web site
http://www.abb.com/substationautomation.
1.3.3 Related documentation
Name of the document Document ID
Modbus Communication Protocol Manual 1MAC057386-MB
DNP3 Communication Protocol Manual 1MAC052479-MB
IEC 61850 Engineering Guide 1MAC053584-RG
Engineering Manual 1MAC108982-MB
Installation Manual 1MAC051065-MB
Operation Manual 1MAC054853-MB
Technical Manual 1MAC059074-MB
Cyber Security Deployment Guideline 1MAC052704-HT
1.4 Symbols and conventions
1.4.1 Symbols
The electrical warning icon indicates the presence of a hazard which could
result in electrical shock.
The warning icon indicates the presence of a hazard which could result in
personal injury.
The caution icon indicates important information or warning related to the
concept discussed in the text. It might indicate the presence of a hazard
which could result in corruption of software or damage to equipment or
property.
The information icon alerts the reader of important facts and conditions.
1MAC109016-MB C Section 1
Introduction
REF615 ANSI 7
Application Manual

The tip icon indicates advice on, for example, how to design your project
or how to use a certain function.
Although warning hazards are related to personal injury, it is necessary to understand that
under certain operational conditions, operation of damaged equipment may result in
degraded process performance leading to personal injury or death. Therefore, comply
fully with all warning and caution notices.
1.4.2 Document conventions
A particular convention may not be used in this manual.
• Abbreviations and acronyms are spelled out in the glossary. The glossary also
contains definitions of important terms.
• Push button navigation in the LHMI menu structure is presented by using the push
button icons.
To navigate between the options, use and .
• Menu paths are presented in bold.
Select Main menu/Settings.
• LHMI messages are shown in Courier font.
To save the changes in nonvolatile memory, select Yes and press .
• Parameter names are shown in italics.
The function can be enabled and disabled with the Operation setting.
• Parameter values are indicated with quotation marks.
The corresponding parameter values are "Enabled" and "Disabled".
• Input/output messages and monitored data names are shown in Courier font.
When the function picks up, the PICKUP output is set to TRUE.
• Dimensions are provided both in inches and mm. If it is not specifically mentioned,
the dimension is in mm.
• This document assumes that the parameter setting visibility is "Advanced".
1.4.3 Functions, codes and symbols
Table 1: Functions included in the relay
Function IEC 61850 IEC 60617 ANSI/C37.2-2008
Protection
Three-phase non-directional overcurrent
protection, low stage
PHLPTOC1 3I> (1) 51P-1
PHLPTOC2 3I> (2) 51P-2
Three-phase non-directional overcurrent
protection, high stage
PHHPTOC1 3I>> (1) 50P-1
PHHPTOC2 3I>> (2) 50P-2
Table continues on next page
Section 1 1MAC109016-MB C
Introduction
8REF615 ANSI
Application Manual

Function IEC 61850 IEC 60617 ANSI/C37.2-2008
Three-phase non-directional overcurrent
protection, instantaneous stage
PHIPTOC1 3I>>> (1) 50P-3
Three-phase directional overcurrent
protection, low stage
DPHLPDOC1 3I> -> (1) 67/51P-1
DPHLPDOC2 3I> -> (2) 67/51P-2
Three-phase directional overcurrent
protection, high stage
DPHHPDOC1 3I>> -> (1) 67/50P-1
DPHHPDOC2 3I>> -> (2) 67/50P-2
Non-directional ground-fault protection, low
stage
EFLPTOC1 Io> (1) 51G
EFLPTOC2 Io> (2) 51N-1
Non-directional ground-fault protection, high
stage
EFHPTOC1 Io>> (1) 50G-1
EFHPTOC2 Io>> (2) 50G-2
EFHPTOC3 Io>> (3) 50N-1
EFHPTOC4 Io>> (4) 50N-2
Non-directional ground-fault protection,
instantaneous stage
EFIPTOC1 Io>>> (1) 50G-3
EFIPTOC2 Io>>> (2) 50N-3
Directional ground-fault protection, low
stage
DEFLPDEF1 Io> -> (1) 67/51N-1
DEFLPDEF2 Io> -> (2) 67/51N-2
Directional ground-fault protection, high
stage
DEFHPDEF1 Io>> -> (1) 67/50N-1
DEFHPDEF2 Io>> -> (2) 67/50N-2
Admittance-based ground-fault protection EFPADM1 Yo> -> (1) 21YN-1
EFPADM2 Yo> -> (2) 21YN-2
EFPADM3 Yo> -> (3) 21YN-3
Wattmetric-based ground-fault protection WPWDE1 Po> -> (1) 32N-1
WPWDE2 Po> -> (2) 32N-2
WPWDE3 Po> -> (3) 32N-3
Transient/intermittent ground-fault
protection
INTRPTEF1 Io> -> IEF (1) 67NIEF
Harmonics-based ground-fault protection HAEFPTOC1 Io>HA (1) 51NHA
Negative-sequence overcurrent protection NSPTOC1 I2> (1) 46-1
NSPTOC2 I2> (2) 46-2
Phase discontinuity protection PDNSPTOC1 I2/I1> (1) 46PD
Residual overvoltage protection ROVPTOV1 Uo> (1) 59G
ROVPTOV2 Uo> (2) 59N-1
ROVPTOV3 Uo> (3) 59N-2
Three-phase undervoltage protection PHPTUV1 3U< (1) 27-1
PHPTUV2 3U< (2) 27-2
PHPTUV3 3U< (3) 27-3
Table continues on next page
1MAC109016-MB C Section 1
Introduction
REF615 ANSI 9
Application Manual

Function IEC 61850 IEC 60617 ANSI/C37.2-2008
Three-phase overvoltage protection PHPTOV1 3U> (1) 59-1
PHPTOV2 3U> (2) 59-2
PHPTOV3 3U> (3) 59-3
Positive-sequence undervoltage protection PSPTUV1 U1< (1) 47U-1
PSPTUV2 U1< (2) 47U-2
Negative-sequence overvoltage protection NSPTOV1 U2> (1) 47-1
NSPTOV2 U2> (2) 47-2
Three-phase remnant undervoltage
protection
MSVPR1 3U< (1) 27R-1
MSVPR2 3U< (2) 27R-2
Frequency protection FRPFRQ1 f>/f<,df/dt (1) 81-1
FRPFRQ2 f>/f<,df/dt (2) 81-2
FRPFRQ3 f>/f<,df/dt (3) 81-3
FRPFRQ4 f>/f<,df/dt (4) 81-4
FRPFRQ5 f>/f<,df/dt (5) 81-5
FRPFRQ6 f>/f<,df/dt (6) 81-6
Three-phase thermal protection for feeders,
cables and distribution transformers
T1PTTR1 3Ith>F (1) 49F-1
High-impedance differential protection for
phase A
HIAPDIF1 dHi_A>(1) 87A
High-impedance differential protection for
phase B
HIBPDIF1 dHi_B>(1) 87B
High-impedance differential protection for
phase C
HICPDIF1 dHi_C>(1) 87C
Circuit breaker failure protection CCBRBRF1 3I>/Io>BF (1) 50BF-1
CCBRBRF2 3I>/Io>BF (2) 50BF-2
Three-phase inrush detector INRPHAR1 3I2f> (1) INR-1
Switch onto fault CBPSOF1 SOTF (1) SOTF-1
Master trip TRPPTRC1 Master Trip (1) 86/94-1
TRPPTRC2 Master Trip (2) 86/94-2
TRPPTRC3 Master Trip (3) 86/94-3
TRPPTRC4 Master Trip (4) 86/94-4
TRPPTRC5 Master Trip (5) 86/94-5
Arc protection ARCSARC1 ARC (1) AFD-1
ARCSARC2 ARC (2) AFD-2
ARCSARC3 ARC (3) AFD-3
Table continues on next page
Section 1 1MAC109016-MB C
Introduction
10 REF615 ANSI
Application Manual

Function IEC 61850 IEC 60617 ANSI/C37.2-2008
Multipurpose protection MAPGAPC1 MAP (1) MAP-1
MAPGAPC2 MAP (2) MAP-2
MAPGAPC3 MAP (3) MAP-3
MAPGAPC4 MAP (4) MAP-4
MAPGAPC5 MAP (5) MAP-5
MAPGAPC6 MAP (6) MAP-6
MAPGAPC7 MAP (7) MAP-7
MAPGAPC8 MAP (8) MAP-8
MAPGAPC9 MAP (9) MAP-9
MAPGAPC10 MAP (10) MAP-10
MAPGAPC11 MAP (11) MAP-11
MAPGAPC12 MAP (12) MAP-12
MAPGAPC13 MAP (13) MAP-13
MAPGAPC14 MAP (14) MAP-14
MAPGAPC15 MAP (15) MAP-15
MAPGAPC16 MAP (16) MAP-16
MAPGAPC17 MAP (17) MAP-17
MAPGAPC18 MAP (18) MAP-18
Fault locator SCEFRFLO1 FLOC (1) 21FL-1
Loss of phase PHPTUC1 3I< (1) 37-1
High-impedance fault detection PHIZ1 HIF (1) HIZ-1
Underpower protection DUPPDPR1 P< (1) 32U-1
DUPPDPR2 P< (2) 32U-2
Reverse power/directional overpower
protection
DOPPDPR1 P>/Q> (1) 32R/32O-1
DOPPDPR2 P>/Q> (2) 32R/32O-2
Multifrequency admittance-based ground-
fault protection
MFADPSDE1 Io> ->Y (1) 67YN-1
Interconnection functions
Directional reactive power undervoltage
protection
DQPTUV1 Q> ->,3U< (1) 32Q-27
Low-voltage ride-through protection LVRTPTUV1 U<RT (1) 27RT-1
LVRTPTUV2 U<RT (2) 27RT-2
LVRTPTUV3 U<RT (3) 27RT-3
Voltage vector shift protection VVSPPAM1 VS (1) 78V-1
Power quality
Current total demand distortion CMHAI1 PQM3I (1) PQI-1
Table continues on next page
1MAC109016-MB C Section 1
Introduction
REF615 ANSI 11
Application Manual

Function IEC 61850 IEC 60617 ANSI/C37.2-2008
Voltage total harmonic distortion VMHAI1 PQM3U (1) PQVPH-1
VMHAI2 PQM3U(B) PQVPH-2
Voltage variation PHQVVR1 PQMU (1) PQSS-1
PHQVVR2 PQ 3U<>(B) PQSS-2
Voltage unbalance VSQVUB1 PQUUB (1) PQVUB-1
Control
Circuit-breaker control CBXCBR1 I <-> O CB (1) 52-1
CBXCBR2 I <-> O CB (2) 52-2
Disconnector control DCXSWI1 I <-> O DCC (1) 29DS-1
DCXSWI2 I <-> O DCC (2) 29DS-2
Grounding switch control ESXSWI1 I <-> O ESC (1) 29GS-1
Disconnector position indication DCSXSWI1 I <-> O DC (1) 52-TOC
DCSXSWI2 I <-> O DC (2) 29DS-1
DCSXSWI3 I <-> O DC (3) 29DS-2
Grounding switch indication ESSXSWI1 I <-> O ES (1) 29GS-1
ESSXSWI2 I <-> O ES (2) 29GS-2
Autoreclosing DARREC1 O -> I (1) 79
Synchronism and energizing check SECRSYN1 SYNC (1) 25
Condition monitoring
Circuit-breaker condition monitoring SSCBR1 CBCM (1) 52CM-1
SSCBR2 CBCM (2) 52CM-2
Trip circuit supervision TCSSCBR1 TCS (1) TCM-1
TCSSCBR2 TCS (2) TCM-2
Current circuit supervision CCSPVC1 MCS 3I (1) CCM
Current transformer supervision for high-
impedance protection scheme for phase A
HZCCASPVC1 MCS I_A(1) MCS-A
Current transformer supervision for high-
impedance protection scheme for phase B
HZCCBSPVC1 MCS I_B(1) MCS-B
Current transformer supervision for high-
impedance protection scheme for phase C
HZCCCSPVC1 MCS I_C(1) MCS-C
Fuse failure supervision SEQSPVC1 FUSEF (1) 60-1
SEQSPVC2 FUSEF (2) 60-2
Runtime counter for machines and devices MDSOPT1 OPTS (1) OPTM-1
Measurement
Load profile record LDPRLRC1 LOADPROF (1) LoadProf
Three-phase current measurement CMMXU1 3I (1) IA, IB, IC
Sequence current measurement CSMSQI1 I1, I2, I0 (1) I1, I2, I0
Table continues on next page
Section 1 1MAC109016-MB C
Introduction
12 REF615 ANSI
Application Manual

Function IEC 61850 IEC 60617 ANSI/C37.2-2008
Residual current measurement RESCMMXU1 Io (1) IG
Three-phase voltage measurement VMMXU1 3U (1) VA, VB, VC
VMMXU2 3U (2) VA, VB, VC (2)
Residual voltage measurement RESVMMXU1 Uo (1) VG
Sequence voltage measurement VSMSQI1 U1, U2, U0 (1) V1, V2, V0
VSMSQI2 U1, U2, U0(B) V1, V2, V0 (2)
Single-phase power and energy
measurement
SPEMMXU1 SP, SE SP, SE-1
Three-phase power and energy
measurement
PEMMXU1 P, E (1) P, E-1
RTD/mA measurement XRGGIO130 X130 (RTD) (1) X130 (RTD) (1)
Frequency measurement FMMXU1 f (1) f
IEC 61850-9-2 LE sampled value sending SMVSENDER SMVSENDER SMVSENDER
IEC 61850-9-2 LE sampled value receiving
(voltage sharing)
SMVRECEIVER SMVRECEIVER SMVRECEIVER
Other
Minimum pulse timer TPGAPC1 TP (1) 62TP-1
TPGAPC2 TP (2) 62TP-2
TPGAPC3 TP (3) 62TP-3
TPGAPC4 TP (4) 62TP-4
Minimum pulse timer (second resolution) TPSGAPC1 TPS (1) 62TPS-1
Minimum pulse timer (minute resolution) TPMGAPC1 TPM (1) 62TPM-1
Pulse timer PTGAPC1 PT (1) 62PT-1
PTGAPC2 PT (2) 62PT-2
Time delay off TOFGAPC1 TOF (1) 62TOF-1
TOFGAPC2 TOF (2) 62TOF-2
TOFGAPC3 TOF (3) 62TOF-3
TOFGAPC4 TOF (4) 62TOF-4
Time delay on TONGAPC1 TON (1) 62TON-1
TONGAPC2 TON (2) 62TON-2
TONGAPC3 TON (3) 62TON-3
TONGAPC4 TON (4) 62TON-4
Set-reset SRGAPC1 SR (1) SR-1
SRGAPC2 SR (2) SR-2
SRGAPC3 SR (3) SR-3
SRGAPC4 SR (4) SR-4
Table continues on next page
1MAC109016-MB C Section 1
Introduction
REF615 ANSI 13
Application Manual

Function IEC 61850 IEC 60617 ANSI/C37.2-2008
Move MVGAPC1 MV (1) MV-1
MVGAPC2 MV (2) MV-2
Generic control point SPCGAPC1 SPC (1) SPC-1
SPCGAPC2 SPC (2) SPC-2
Analog value scaling SCA4GAPC1 SCA4 (1) SCA4-1
SCA4GAPC2 SCA4 (2) SCA4-2
SCA4GAPC3 SCA4 (3) SCA4-3
SCA4GAPC4 SCA4 (4) SCA4-4
Integer value move MVI4GAPC1 MVI4 (1) MVI4-1
Generic up-down counters UDFCNT1 UDCNT (1) CTR-1
UDFCNT2 UDCNT (2) CTR-2
UDFCNT3 UDCNT (3) CTR-3
UDFCNT4 UDCNT (4) CTR-4
Section 1 1MAC109016-MB C
Introduction
14 REF615 ANSI
Application Manual
