Abode Atlas Monobloc Quad AT2166 User manual

Atlas Monobloc Quad
5 Year Warranty
Terms and Conditions:
In the unlikely event that you should experience any
defect in the materials or workmanship of your new
Abode product within 5 years of purchase, the
purchaser’s sole remedy shall be the replacement (at the
manufacturer’s discretion) of all or any part of the
product that is defective. All working parts and valves are
guaranteed for a period of 5 years from purchase.
Decorative surface finishes and O-rings are guaranteed
for 1 year from the date of purchase provided that our
advice concerning care has been observed and no
scouring agents have been used. This is provided that the
product has been used for normal domestic purposes
only and that the care, installation and maintenance
instructions have been observed. The warranty extends
to the original purchaser only.
Marks, scuffs and scratches caused by improper
installation or accidental damage are not covered by this
guarantee. Neither are shade variations or any damage
or defect caused by incorrect installation or abuse of the
fitting.
As we are continuously improving and developing our
range of products, finishes & colours, in the event of a
valid claim, we may not be able to provide an identical
replacement for the defective product throughout the
guarantee period. Where an identical product is no
longer available, we will supply the nearest equivalent
from our then current product range. In assessing your
claim, we must be given the opportunity to discuss your
claim, review your proof of purchase and or inspect the
product as installed prior to removal. Any agreed product
return must be packaged as received and complete.
No other warranties, express or implied, are made,
including merchantability or fitness for a particular
purpose. Under no circumstances shall the manufacturer
be liable for any loss or damage arising from the
purchase, use or inability to use this product, or for any
special, indirect, incidental or consequential damages.
No liability is accepted for consequential damage to
other household fixtures, fittings or furnishings arising
from this claim, even if attached to the product. No
installer, dealer, agent or employee of Abode has the
authority to modify the obligations or limitations of this
warranty.
Important Care Instructions for your Product:
To maintain the appearance of this product, ensure that it is regularly cleaned only using a clean, soft damp cloth. A solution
of warm water and a mild liquid detergent may be used where necessary, and then the fitting rinsed thoroughly and wiped
dry. Any other cleaning action or use of common domestic cleaning products will invalidate your warranty.
If the product has a plastic aerator insert at the end of the spout it should be unscrewed and the plastic internal insert only
removed and cleaned or descaled to maintain flow performance. Do not use descaling solution on any decorative metal
housing, rinse the insert thoroughly before reattaching in the reverse order.
Abrasive cleaners, scouring cleaners and acidic cleaners must not be used on this product under any circumstances. Avoid
contact with all solvents (including chlorinated solvents, ketones or acetones as these may result in surface deterioration or
etching). Also avoid contact with any harsh household chemicals such as oven cleaners, drain cleaners, rust removers, paint
strippers and toilet bowl cleaners, bar keepers friend or Brasso.
Please leave these instructions for your customer.
Parts and Contents:
Key
Description
Qty
A Mixertap body 1
B Base plinth 1
C Upper seal 1
D Fixing stud 1
E White triangular stabilizer
(for stainless steel sinks only) 1
F Rubber horseshoe 1
G Metal horseshoe 1
H Fixing nut 1
I Hot & Cold Flexi tails 2
Installation Instructions:
Preparation
Before installing the new product it is essential that you thoroughly flush through the supply pipes in order to remove any
remaining solder, swarf or impurities from your system. Failure to carry out this simple procedure could cause problems or
damage to the workings of the product or reduce performance invalidating the warranty.
We strongly recommend best practice of installing particle filters and isolation valves to both the hot and cold feed pipes in an
accessible position. This will help to prevent premature failure of the valves and ease any future maintenance.
All parts should be removed from their packaging and inspected for any transport damage prior to installation.
Shut off (isolate) your hot and cold water supply locally at the point of installation before continuing with the installation. If the
water cannot be isolated locally the turn off the mains stopcock and power to any heating system, now open the lowest tap or
drain point in the system until both hot and cold supplies are fully drained.
This product requires a 35mm∅tap hole, if replacing an existing product, remove it and clean the end of the hot and cold feed
pipes using wire wool, the tap hole area should be free from dirt and sealant.
Loosely position the product and fittings to check if any alteration to the existing pipework is required, if needed, do this now.
If the product is single flow (see section important technical data “flow characteristics”) then non return (check) valves must be
installed to comply with regulations. Some products are supplied with non-return valves this will be noted in the instructions.
⚠
Correct use of Flexible Hose Connectors
If this product is supplied with flexible hose connections for ease of installation you must observe the conditions below,
failure to observe these standard installation guidelines will invalidate the warranty for your product.
Always screw
the flexi hoses
into the
product only
by hand,until
feeling
mechanical
rest, a spanner
must not be
used on the
product end of
the connecting
hose.
Always use the
pipes provided
and not an
alternative
substitute
The braiding
on the flexible
hose must not
be in contact
with anything
else, for
example
chemicals,
internal or
external room
walls or
dissimilar
metals or
materials or
sharp objects.
Never twist or
stretch the
flexible hose
during
installation.
Do not
overtighten the
hexagonal end
of the hose
connecting to
the supply
feeds when
using a spanner
causing the
hose to twist.
Hoses must
not be double
bent in
multiple
directions
kinked or
looped.
Observe the
minimum
bend radius of
50mm.
Before
assembling the
hose to the
product ensure
the hose
ferrule has
been crimped
(as highlighted)
on both ends of
the hose after
the braided
hose sleeve.
Both ends of
the hose must
have a
minimum
50mm
straight
section before
any bend.
50mmØ
Installation:
1. Screw in the studded rod (D) into the base of the tap (A).
2. Place the base plinth (B) then upper seal (C) onto the base of the tap (A).
3. Screw the hot & cold water flexi tail pipes (I) into the base of the tap.
4. Place the mixertap (A) onto the sink or worktop, pass the flexi tail pipes (I) and studded rod (D) through the taphole.
5. If fitting the tap to a stainless steel sink the white triangular stabilizer (F) can be placed where shown to help to stabilize
the weight of the tap.
6. Pass the rubber and then metal horseshoe (F & G) over the studded rod (D) and around the tail pipes.
7. Fasten the fixing nut (H) securely onto the fixing stud (D) to fix the tap into its correct location.
8. Connect the hot and cold flexi tail pipes (I) to the water mains using a ½” BSP x 15mm compression fittings.
After Installation:
Once you have visually checked the new fittings and connections, ensure that all taps and drains are closed except the new
product which should be left open. Turn on (reconnect) the water supplies, check carefully for leaks around the installation and
product function. Once you are sure of no leaks, close the new product and recheck for leaks, turn on the water heating power.
Clean and dry the product of any marks from installation then cover the product with the bag provided to protect it until use.
Important Technical Data
Minimum operating pressure:0.2 bar
Maximum operating pressure:5.5 bar*
Flow characteristics:Dual flow
Maximum hot water temperature: 60°C*
Recommended hot water temperature:46°C
*If these temperatures or pressures are exceeded, even for short periods, damage can result and will void your warranty.
In these instances, reduce the incoming water temperature and or install a pressure reducing valve. Ensure that your Abode
product is fitted in accordance with Local Water Byelaws or regulations by a qualified installer.
These installation guidelines have been prepared for your direction and you must exercise due care at all times. We do not
accept responsibility for problems that may occur through improper installation. Whilst installing the product take care not to
accidentally loosen any screwed assemblies.
Manufacturers Product Reference: AT2166-69
©Abode - 9/2020
Unit L, Zenith Park, Whaley Road, Barnsley, S75 1HT
Tel: (+44) 01226 283434 or www.abodedesigns.co.uk
All errors and omissions excepted.

This manual suits for next models

3

Other Abode Plumbing Product manuals

Abode Chao AB4042 User manual

Abode

Abode Chao AB4042 User manual

Abode Burford Monobloc AT2170 User manual

Abode

Abode Burford Monobloc AT2170 User manual

Abode Ludlow Bridge AT1029 User manual

Abode

Abode Ludlow Bridge AT1029 User manual

Abode Astbury 3 Part AT3050 User manual

Abode

Abode Astbury 3 Part AT3050 User manual

Abode Harmonie AB1201 User manual

Abode

Abode Harmonie AB1201 User manual

Abode Vixo User manual

Abode

Abode Vixo User manual

Abode Hex Professional AT2094 User manual

Abode

Abode Hex Professional AT2094 User manual

Abode Tubist T Spray User manual

Abode

Abode Tubist T Spray User manual

Abode Globe Single Lever AT2146 User manual

Abode

Abode Globe Single Lever AT2146 User manual

Abode Globe Aquifier AT2173 User manual

Abode

Abode Globe Aquifier AT2173 User manual

Abode ACT3023 User manual

Abode

Abode ACT3023 User manual

Abode Vixo User manual

Abode

Abode Vixo User manual

Abode ACT3030 User manual

Abode

Abode ACT3030 User manual

Abode MARIDO ACT3034-36 User manual

Abode

Abode MARIDO ACT3034-36 User manual

Abode BromptonBridge 5662 User manual

Abode

Abode BromptonBridge 5662 User manual

Abode AB2450 User manual

Abode

Abode AB2450 User manual

Abode Langley Bridge User manual

Abode

Abode Langley Bridge User manual

Abode Harmonie AB1201 User manual

Abode

Abode Harmonie AB1201 User manual

Abode Ceramic Inset Sink AX4002 User manual

Abode

Abode Ceramic Inset Sink AX4002 User manual

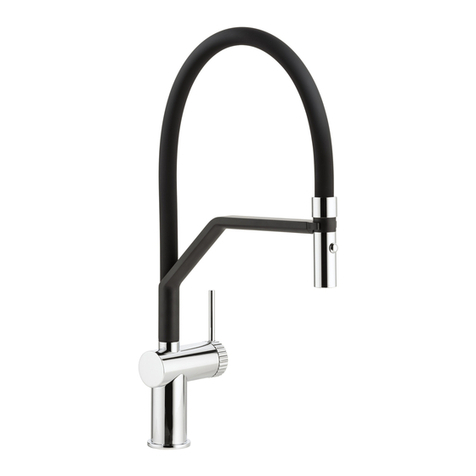

Abode Fraction Single Lever Professional AT2160 User manual

Abode

Abode Fraction Single Lever Professional AT2160 User manual

Abode Tubist Single Lever Pull Out AT2131 User manual

Abode

Abode Tubist Single Lever Pull Out AT2131 User manual

Abode Astbury 5685 User manual

Abode

Abode Astbury 5685 User manual

Abode Fraction Single Lever Pull Out Spray AT2156 User manual

Abode

Abode Fraction Single Lever Pull Out Spray AT2156 User manual

Abode Brompton 3 Part AT3048 User manual

Abode

Abode Brompton 3 Part AT3048 User manual

Popular Plumbing Product manuals by other brands

Brizo Virage 65430LF Series quick start guide

Brizo

Brizo Virage 65430LF Series quick start guide

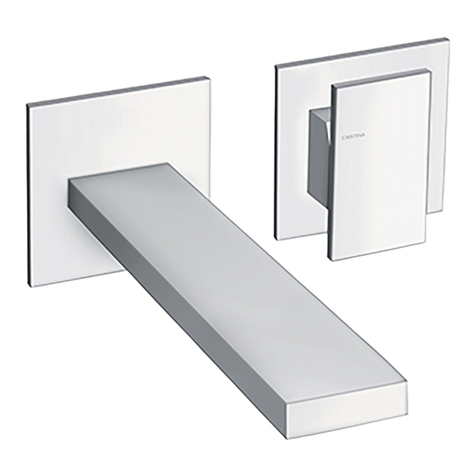

CRISTINA TABULA CRITA256 installation instructions

CRISTINA

CRISTINA TABULA CRITA256 installation instructions

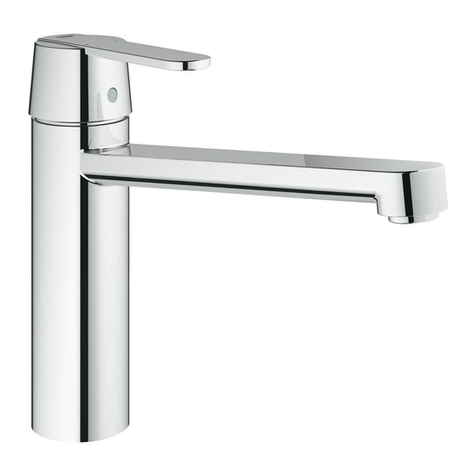

Grohe Get manual

Grohe

Grohe Get manual

resideo Braukmann NK300S installation instructions

resideo

resideo Braukmann NK300S installation instructions

American Standard MOMENTS 2506.101 installation instructions

American Standard

American Standard MOMENTS 2506.101 installation instructions

Homewerks Tosca H91K-51D-CH manual

Homewerks

Homewerks Tosca H91K-51D-CH manual

Brizo MultiChoice 75 Series installation instructions

Brizo

Brizo MultiChoice 75 Series installation instructions

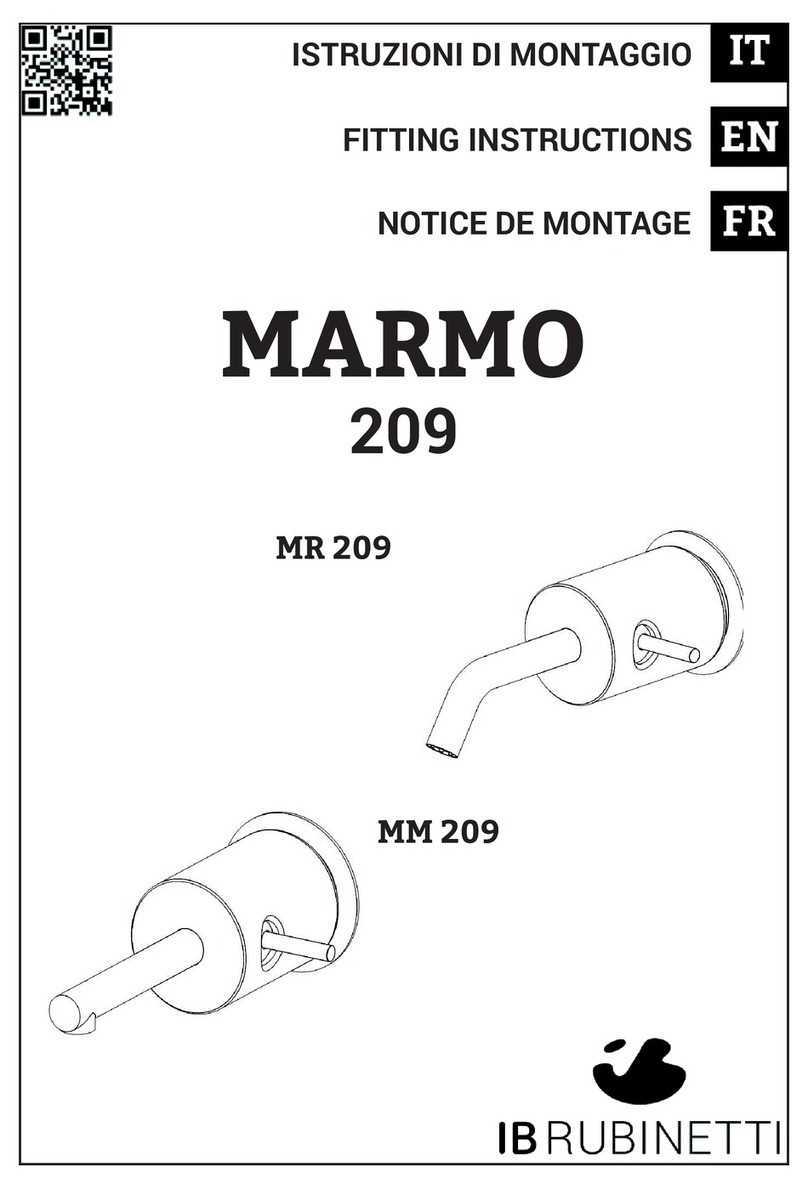

IB RUBINETTI MARMO 209 Fitting instructions

IB RUBINETTI

IB RUBINETTI MARMO 209 Fitting instructions

Sterling CARTHAGE 11445-NA Specifications

Sterling

Sterling CARTHAGE 11445-NA Specifications

Moen 7622SRS manual

Moen

Moen 7622SRS manual

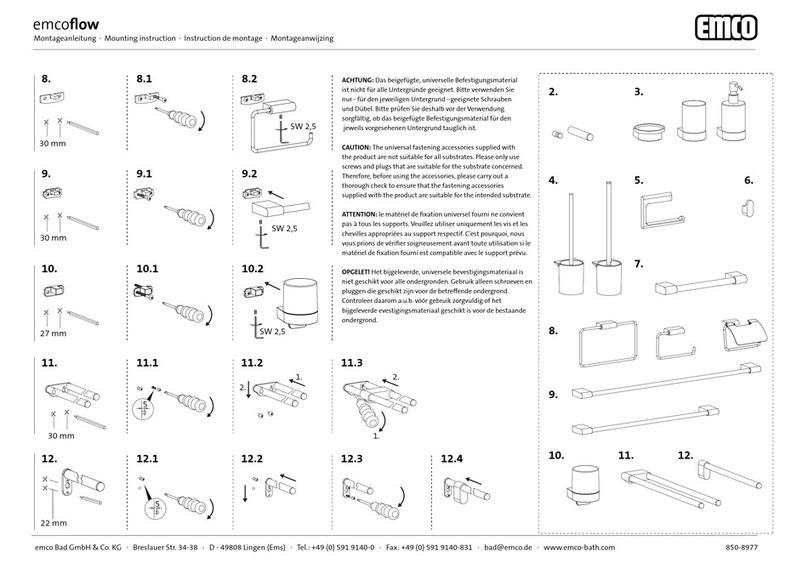

Emco emcoflow Mounting instruction

Emco

Emco emcoflow Mounting instruction

Hans Grohe Joleena 04772 Series manual

Hans Grohe

Hans Grohe Joleena 04772 Series manual

Sunlighten Solo System user manual

Sunlighten

Sunlighten Solo System user manual

Hans Grohe Talis M54 210 2jet 72800 3 Series Instructions for use/assembly instructions

Hans Grohe

Hans Grohe Talis M54 210 2jet 72800 3 Series Instructions for use/assembly instructions

TLV T8N instruction manual

TLV

TLV T8N instruction manual

Blanco 513-827 Specification sheet

Blanco

Blanco 513-827 Specification sheet

MEXDA CC-04 Installation instruction

MEXDA

MEXDA CC-04 Installation instruction

Creda AquaNoir Installation and user guide

Creda

Creda AquaNoir Installation and user guide

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
