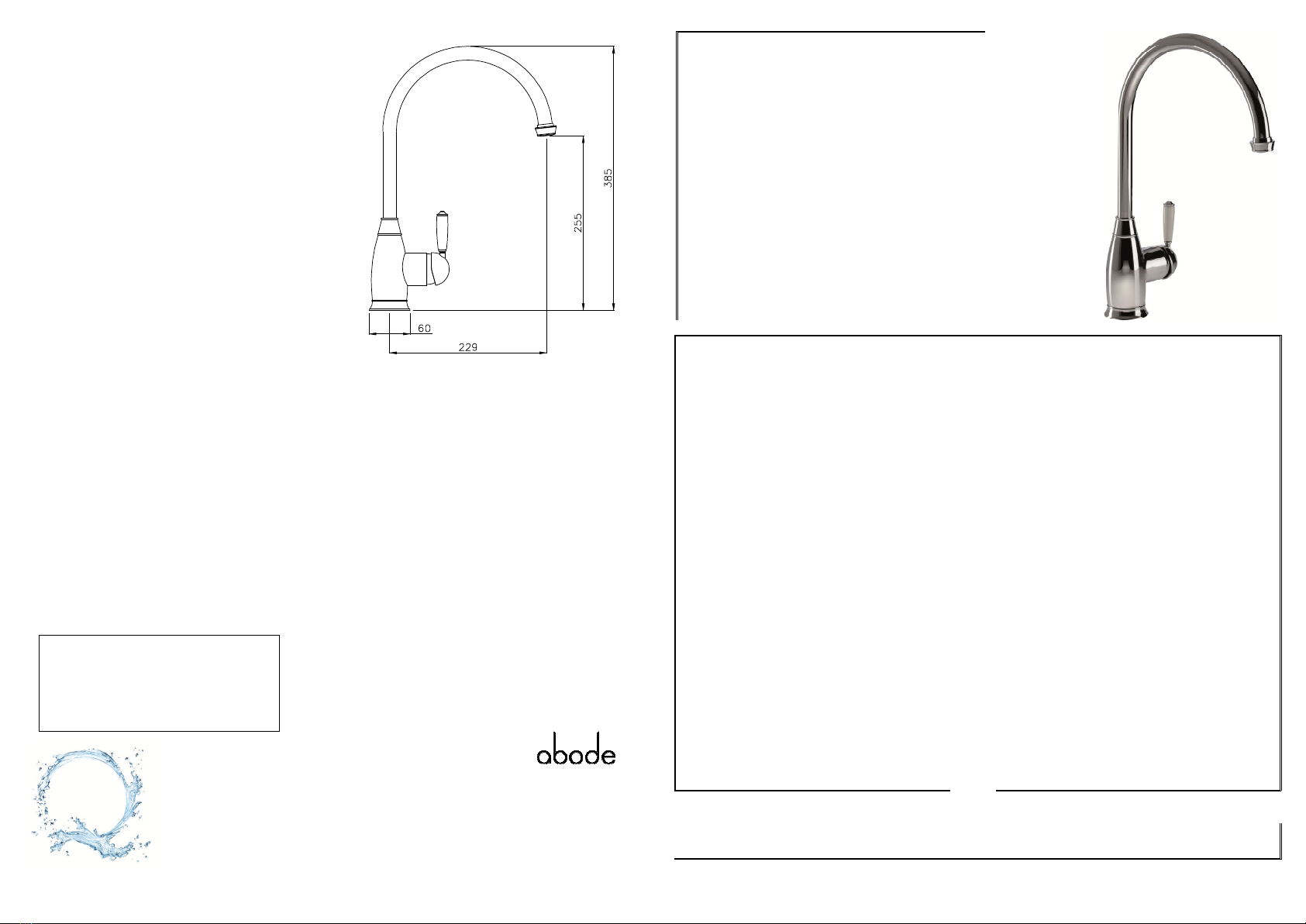

Abode Astbury 5685 User manual

Important Technical Data
Minimum operating pressure 0.5 bar
Maximum operating pressure 5.5 bar*
Maximum hot water temperature 70°C*
Recommended hot water temperature 46°C
Note If these temperatures or pressures are
exceeded, even for short periods, damage can
result. In these instances a thermostatic mixing or
pressure reducing valve should be installed.
Abode taps use WRAS, KIWA, NSF or recognised
approved components or are manufactured in
accordance with recognised European or
international standards. Please ensure that your
Abode Kitchen mixer is fitted in accordance with
Local Water Byelaws.
These installation guidelines have been prepared
for your direction and you must exercise due care
at all times. We do not accept responsibility for
problems that may occur through improper
installation. Whilst assembling the tap take care
not to accidentally loosen any screwed
assemblies.
Abode is a registered trademark of Abode Home
Products Limited.
Manufacturers Product Reference
©Abode
2/2013
5685
Quintessentially…
Abode Home Products Limited, Unit L,
Zenith Park, Whaley Road, Barnsley,
S75 1HT.
Tel [phone] Fax [phone]
www.abode.eu
All errors and omissions excepted.
Astbury
Single Lever
5 Year Warranty,
Terms And Conditions
In the unlikely event that you should experience
any defect in the materials or workmanship of
your new Abode mixer within 5 years of
purchase, the purchaser’s sole remedy shall be
the replacement (at the manufacturer’s
discretion) of all or any part of the product that is
defective. All working parts and valves are
guaranteed for a period of 5 years from
purchase. Decorative surface finishes and O-
rings are guaranteed for 1 year from the date of
purchase provided that our advice concerning
care has been observed and no scouring agents
have been used. This is provided that the mixer
or tap has been used for normal domestic
purposes and that the care, installation and
maintenance instructions have been observed.
The warranty extends to the original purchaser
only.
Marks, scuffs and scratches caused by improper
installation or accidental damage are not
covered by this guarantee. Neither are shade
variations or any damage or defect caused by
incorrect installation or abuse of the fitting.
As we are continuously improving and
developing our range of products, finishes &
colours, in the event of a valid claim, we may
not be able to provide an identical replacement
for the defective product throughout the
guarantee period. Where an identical product is
no longer available, we will supply the nearest
equivalent from our then current product range.
In assessing your claim, we must be given the
opportunity to inspect the product as installed
prior to removal. Any product returns must be
packaged as received and complete.
No other warranties, express or implied, are
made, including merchantability or fitness for a
particular purpose. Under no circumstances shall
the manufacturer be liable for any loss or
damage arising from the purchase, use or
inability to use this product, or for any special,
indirect, incidental or consequential damages.
No liability is accepted for consequential
damage to other household fixtures, fittings or
furnishings arising from this claim, even if
attached to the product. No installer, dealer,
agent or employee of Abode Home Products
Limited has the authority to modify the
obligations or limitations of this warranty.
Please leave these instructions for your customer
Q

Parts and Contents:
Key Description Qty
A Mixertap body 1
B Threaded fixing column 1
C Base plinth 1
D Upper seal 1
E Triangular stabilising
bracket 1
F Lower rubber washer 1
G Metal washer 1
H Fixing nut 1
I Flexible tail pipes 2
Installation Preparation:
All parts should be removed from their packaging and inspected for any transport damage prior to
installation. You should check you have the required hot and cold supply pressure also.
Before installing the new mixer it is essential that you thoroughly flush through the supply pipes in
order to remove any remaining solder, swarf or impurities from your system. Failure to carry out this
simple procedure could cause problems or damage to the workings of the mixertap.
We recommend installing particle filters and isolation valves to both the hot and cold feed pipes in
an accessible position. This will help to prevent premature failure of the valves and ease any future
maintenance.
Shut off your water heating system and ensure that your mains stopcock is closed. Open the lowest
hot and cold taps in the house and allow the water to run until the cold-water storage tank and
pipes are fully empty. Please note, the hot water storage cylinder (if applicable) may remain full.
This mixertap requires a 35mm∅ tap hole, if replacing an existing tap, remove the tap & clean the
end of the feed pipes using wire wool the tap hole area should be free from dirt and sealant.
Loosely position the tap and tail pipes to check if any alteration to the existing pipework is required, if
this is the case do this now.
If placing the tap through a worktop for example the taphole should be sealed in accordance with
the worktop manufactures instructions, your should pay particular care that the seal between the
worktop and the tap is correctly seated.
Installation:
1. Pass the base plinth (C), then upper seal (D) over the threaded fixing column(B). Pass the
threaded fixing column through the tap hole.
2. Whilst holding the tap in place on the tap hole, pass the lower rubber washer (F), metal washer
(G) then fixing nut (H) over the flexible tail pipes (I) onto the threaded fixing column(B).
Nb. you may need to pass the flexible tail pipes through the above parts one at a time by gently
bending the pipes. The Triangular stabilising bracket (E) is only required when fitting the tap to a
stainless steel sink.
3. Whilst holding the tap centrally to the tap hole and the logo on the base plinth facing forward
tighten the fixing nut (H).
4. Connect the hot and cold tail flexible pipes (I) to the water mains using ½” BSPx15mm
compression fittings. Note Non-return valves are factory fitted into tail pipes (I).
After Installation:
Once you have visually checked the installation of the new tap and all
connections, ensure that all other fittings are closed except the new tap which
should be left open. Turn on your water heating system and ensure that your mains
stopcock is open. Reconnect both the hot and cold water supplies to this fitting.
Check the function of flow and function of hot, cold and mixed water.
Turn off the tap and check carefully for any leaks around all connections on the
fitting and adjoining plumbing. If possible return to the installation after a longer
period to double check for slower leaks. If pressure testing equipment is available
check the installation to the maximum recommended pressure.
Clean the tap to remove any marks created during installation as instructed then
place a bag over the product to protect the tap until it is ready for use. The
installation should be periodically checked for damage, if the property is left
unattended for a prolonged period we recommend isolating water supplies.
Care Instructions For Your Kitchen Sink Tap:
To maintain the appearance of this product, ensure that it is regularly cleaned only
using a clean, soft damp cloth. A solution of warm water and a mild liquid
detergent may be used where necessary, and then the fitting rinsed thoroughly
and wiped dry. Any other cleaning action will invalidate your warranty. If the
mixertap has a diffuser it should be unscrewed and cleaned periodically in water.
Abrasive cleaners, scouring cleaners and acidic cleaners must not be used under
any circumstances. Avoid contact with all solvents (including chlorinated solvents,
ketones or acetones as these may result in surface deterioration or etching). Also
avoid contact with any harsh household chemicals such as oven cleaners, drain
cleaners, rust removers, paint strippers and toilet bowl cleaners, bar keepers friend
or Brasso.
