ABS-Lock® X-T / ABS-Lock® X-T-WDO
Montageanleitung / Installation Manual
ABS-Lock® X-T
ABS-Lock® X-T WDO
EN795:2012, A
1
i
ABS-Lock X-T-WDO
LX-T-WDO-XXX
ABS-Lock X-T
LX-T-X X X
All manuals and user guides at all-guides.com

2

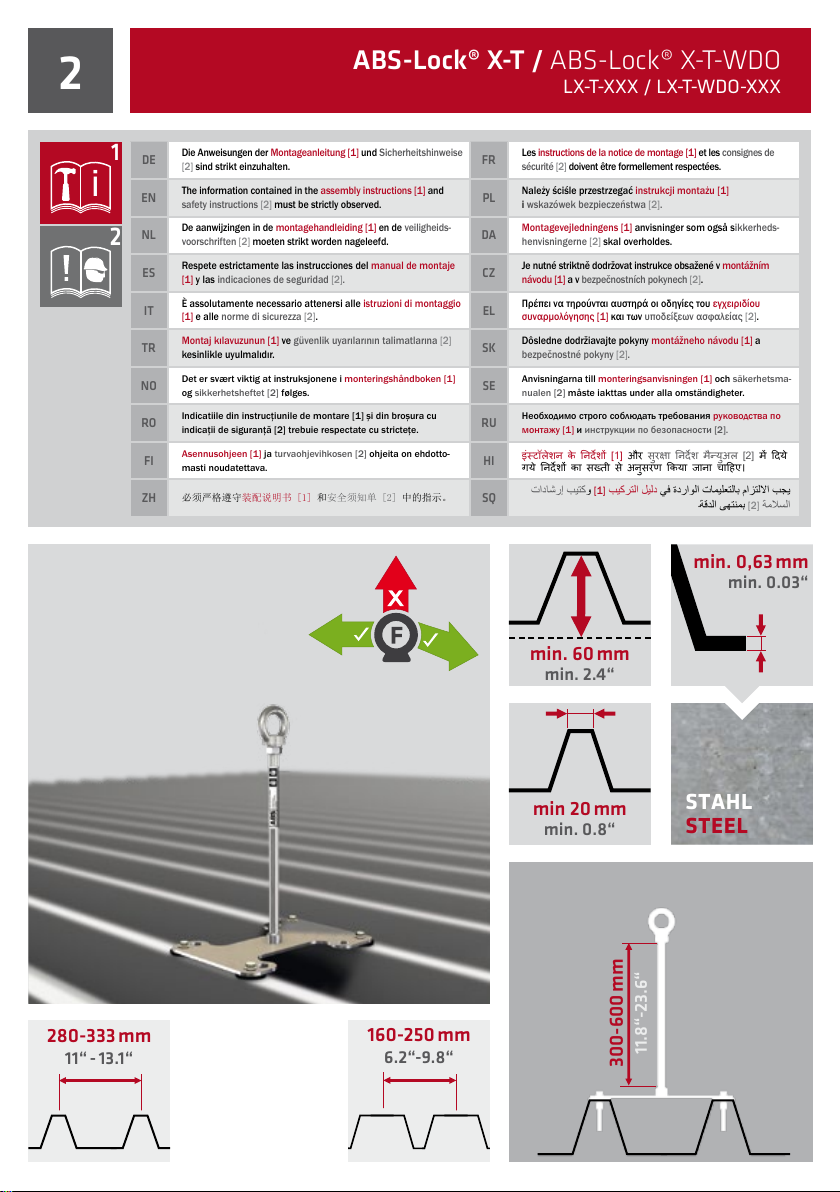

ABS-Lock® X-T / ABS-Lock® X-T-WDO
LX-T-XXX / LX-T-WDO-XXX
STAHL
STEEL
min. 0,63mm
min. 0.03“
280-333mm
11“- 13.1“
160-250mm
6.2“-9.8“
min. 60mm
min. 2.4“
min 20mm
min. 0.8“
300-600mm
11.8“-23.6“
DE Die Anweisungen der Montageanleitung [1] und Sicherheitshinweise
[2] sind strikt einzuhalten. FR Les instructions de la notice de montage [1] et les consignes de sécurité [2] doivent être formellement respectées.
EN The information contained in the assembly instructions [1] and
safety instructions [2] must be strictly observed. PL Należy ściśle przestrzegać instrukcji montażu [1] i wskazówek bezpieczeństwa [2].
NL De aanwijzingen in de montagehandleiding [1] en de veiligheids-
voorschriften [2] moeten strikt worden nageleefd. DA Montagevejledningens [1] anvisninger som også sikkerheds- henvisningerne [2] skal overholdes.
ES Respete estrictamente las instrucciones del manual de montaje
[1] y las indicaciones de seguridad [2].CZ Je nutné striktně dodržovat instrukce obsažené v montážním návodu [1] a v bezpečnostních pokynech [2].
IT È assolutamente necessario attenersi alle istruzioni di montaggio
[1] e alle norme di sicurezza [2].EL Πρέπει να τηρούνται αυστηρά οι οδηγίες του εγχειριδίου συναρμολόγησης [1] και των υποδείξεων ασφαλείας [2].
TR Montaj kılavuzunun [1] ve güvenlik uyarılarının talimatlarına [2]
kesinlikle uyulmalıdır. SK Dôsledne dodržiavajte pokyny montážneho návodu [1] a bezpečnostné pokyny [2].
NO
Det er svært viktig at instruksjonene i monteringshåndboken [1]
og sikkerhetsheftet [2] følges.
SE
Anvisningarna till monteringsanvisningen [1] och säkerhetsma-
nualen [2] måste iakttas under alla omständigheter.
RO
Indicatiile din instrucțiunile de montare [1] și din broșura cu
indicații de siguranță [2] trebuie respectate cu strictețe.
RU
Необходимо строго соблюдать требования руководства по
монтажу [1] и инструкции по безопасности [2].
FI
Asennusohjeen [1] ja turvaohjevihkosen [2] ohjeita on ehdotto-
masti noudatettava.
HI
 

ZH
必须严格遵守装配说明书 [1] 和安全须知单 [2] 中的指示。
SQ
ﺕﺍﺩﺎﺷﺭﺇ ﺐﻴﺘﻛﻭ [1] ﺐﻴﻛﺮﺘﻟﺍ ﻞﻴﻟﺩ ﻲﻓ ﺓﺩﺭﺍﻮﻟﺍ ﺕﺎﻤﻴﻠﻌﺘﻟﺎﺑ ﻡﺍﺰﺘﻟﻻﺍ ﺐﺠﻳ
ﺔﻗﺪﻟﺍ ﻰﻬﺘﻨﻤﺑ [2] ﺔﻣﻼﺴﻟﺍ
2
1
.
i
.
All manuals and user guides at all-guides.com

3
ABS-Lock® X-T / ABS-Lock® X-T-WDO
LX-T-XXX / LX-T-WDO-XXX
2
5
1
3
4
4x
6
7
4
1
5
2
6
3
7
STAHL
STEEL
24 15/16“
Nm
13 1/2“
Nm
20 25/32“
All manuals and user guides at all-guides.com

4ABS-Lock® X-T
LX-T-XXX
2STAHL
STEEL
20 25/32“
1
2
All manuals and user guides at all-guides.com

5
ABS-Lock® X-T
LX-T-XXX
5 mm
13/64“
LX-KIPPDÜBEL
LX-TOGGLE BOLT
3
4
All manuals and user guides at all-guides.com

6
ABS-Lock® X-T / ABS-Lock® X-T-WDO
LX-T-XXX / LX-T-WDO-XXX
10Nm
7.4 lbf ft
13 1/2“
Nm
5
6
7
70Nm
52lbf ft
24 15/16“
Nm
All manuals and user guides at all-guides.com

7
ABS-Lock® X-T / ABS-Lock® X-T-WDO
LX-T-XXX / LX-T-WDO-XXX
Kontakte |Contact persons
Vertrieb & Technische Beratung
Sales & Technical Support
[phone]
[e-mail]
Schulung
Training
[phone]
[e-mail]
Montagevorbereitung
Assembly
[phone]
[e-mail]
Contact USA
Kontakt USA
1-724-612-6484
[e-mail]
www.absturzsicherung.de
-
-
-
-
-
-
-
Mustertypenschild /
Sample only
4 5
Normen / Standards
Max. Nutzer gleichzeitig /
Max. No. of simultaneous users
Modellnummer / Model number
Materialien / Materials
Dekra geprüft / Dekra tested
-
6
7
11
12
13
ABS SAFETY GMBH
Kevelaer, Germany
[e-mail]
www.absturzsicherung.de
3 1 2
Chargennummer /
Batch number
9
Z-14.9-688
10
0158
8
EN353-2
EN354
EN355
EN360
EN361
EN362
max 3
PSA
All manuals and user guides at all-guides.com

8ABS-Lock® X-T-WDO
LX-T-WDO-XXX
2
20 25/32“
STAHL
STEEL
26 1 1/32“
STAHL
STEEL
1
2b
2a
All manuals and user guides at all-guides.com

9
ABS-Lock® X-T-WDO
LX-T-WDO-XXX
3
4
All manuals and user guides at all-guides.com

10 ABS-Lock® X-T / ABS-Lock® X-T-WDO
