ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30082EK 11/07/16
ASSEMBLY INSTRUCTIONS
Absco Ezi - Slider
Model: 30082E
We thank you for choosing an Australian made shed. For further assistance please
visit our detailed instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be number ONE, so please let us
know what you think of our instructions. Feedback makes us better.
[email protected]

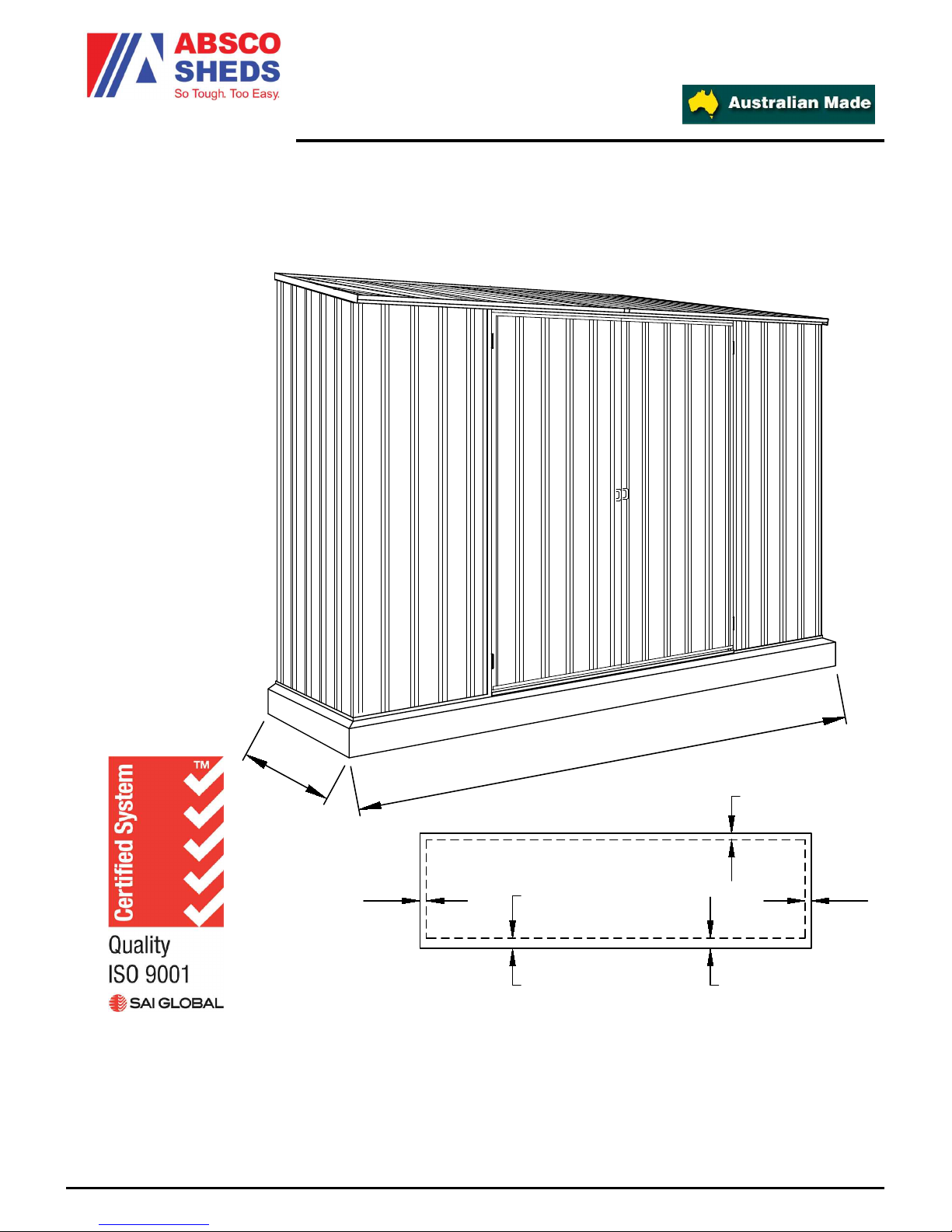

3100mm
910mm
ROOF AREA: 3000mm X 900mm
BASE AREA: 3000mm X 780mm
FRONT WALL HEIGHT: 1805mm
REAR WALL HEIGHT: 1950mm
DOOR OPENING:
1440mm WIDE
1740mm HIGH
CONCRETE SLAB: 3100mm X 910mm
50mm
REAR
80mm
FRONT
CONCRETE SLAB
SHED BASE
50mm
50mm

PAGE 2
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30082EK 11/07/16
Absco Ezi - Slider Model: 30082EK
GENERAL INSTRUCTIONS
A NOTE ON SAFETY
·The site for the shed must be level.
·It is recommended that the shed be set on a 100mm concrete slab and
anchored down appropriately (refer page 15 for details).
·Anchor sets are not supplied as standard items with this product.
·Before commencing any assembly, read through these instructions in
detail to gain a thorough understanding of assembly methods and
associated details.
·Unpack the carton and carefully identify and check off all the parts
against the parts described and illustrated on pages three and four.
·Some parts may have sharp edges. It is advisable to wear gloves when
handling these items and safety glasses if drilling holes. Sensible shoes
are highly recommended.
·Do not erect your shed in windy conditions, ensure that the shed is
securely anchored to a solid foundation immediately after construction is
completed.
·It is highly recommended to erect the shed with two or more people.
TOOLS REQUIRED
3mm
4mm OPTIONAL
SITE PREPARATION

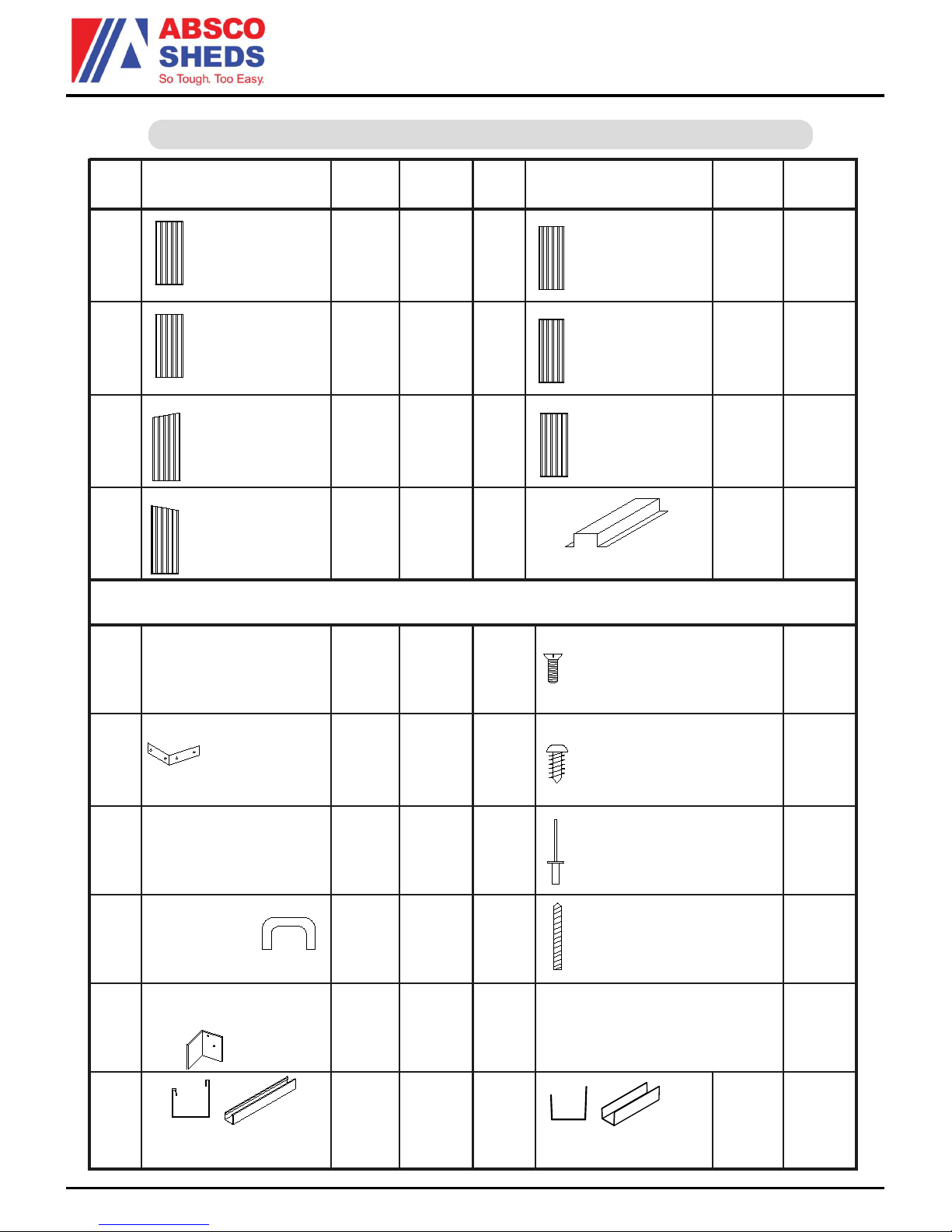

COMPONENTS PACKING LIST - CHECK OFF ALL COMPONENTS
PAGE 3
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30082EK 11/07/16
Absco Ezi - Slider Model: 30082EK
2
'ROLLTRACK' WHEEL
ASSEMBLY
SELF TAPPING
SCREWS
2
PRESTIGE
"C" DOOR
HANDLES
3mm POP RIVETS
ASSEMBLY
INSTRUCTIONS
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT
DESCRIPTION
PART
No. CHECK
QTY QTY
CONTENTS OF FITTINGS PACKET
3mm DRILL BIT
1915 X 773mm 43B
STEEL SHEET
2
1
1
4
2
2
1915 X 773mm 43C
STEEL SHEET
STEEL SHEET
1915mm X 773mm X4L
STEEL SHEET
1915mm X 773mm X4R
STEEL SHEET
898mm X 773mm 43G
STEEL SHEET
1785mm X 773mm 30D
STEEL SHEET
1740mm X 773mm 43F
150 X 150
CORNER ANGLE
DOOR TRACK
BRACKETS
2
4261
260
4mm X 25mm BOLTS
(USE IN DOOR HANDLES)
262
3m ROLL OF
BRUSH-SEAL SELF
ADHESIVE BRUSH PILE
STRIP
1
2264
10x10 PLASTIC
ANGLE
263
4
220
100
1
1
295GS
HAT= 1496.5mm
13A
CHANNEL
L = 393mm
1CSJ
7CHANNEL JOINER
L= 200mm (7.9")

PAGE 4
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30082EK 11/07/16
Absco Ezi - Slider Model: 30082EK

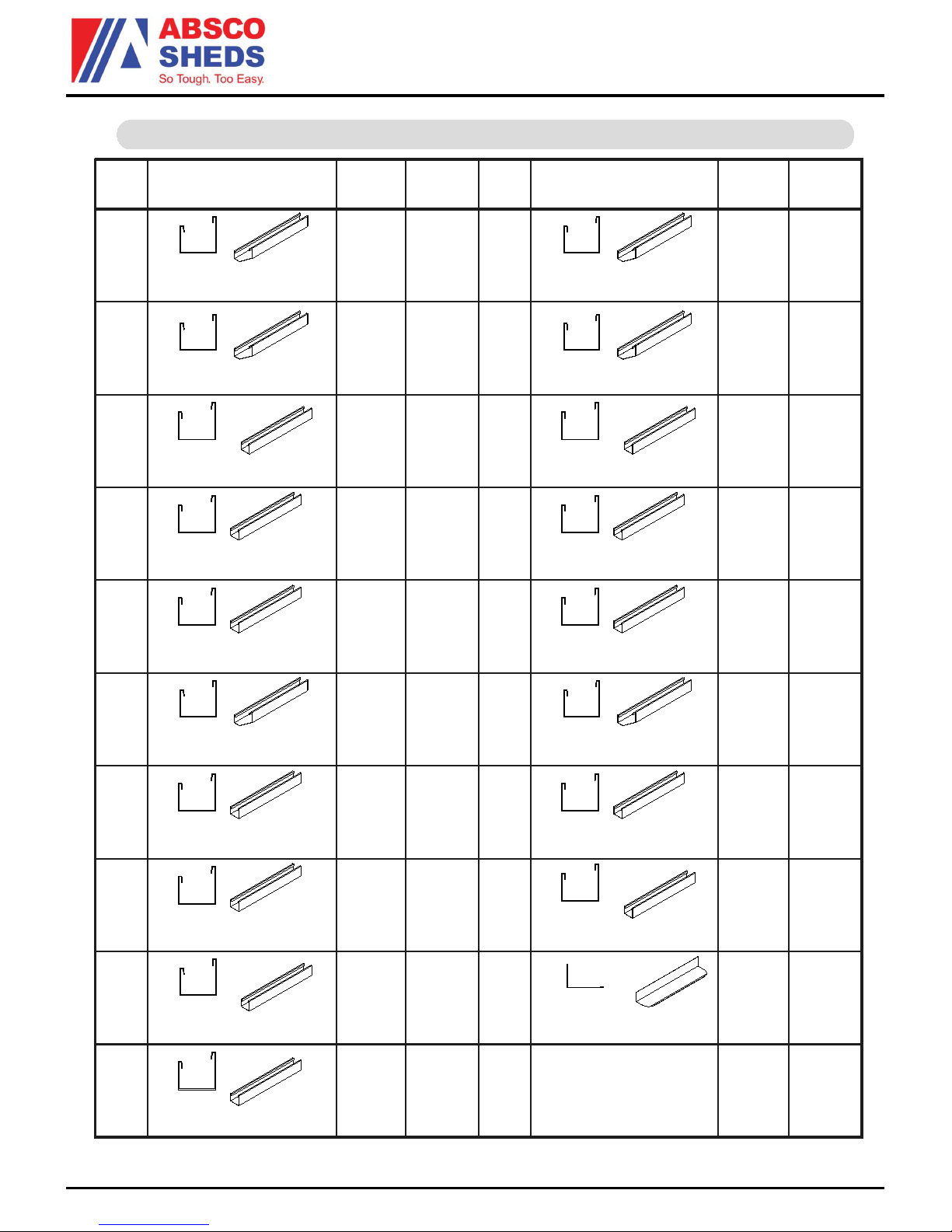

COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS
2
2
2
61B
CHANNEL
L = 786mm
CHANNEL
L = 773mm
81J
79D
CHANNEL
L = 1445mm
4
4
1
288K
LIP TRIM L= 898mm
58C
CHANNEL
L = 773mm
58L
CHANNEL
L = 1740mm
80C
CHANNEL
L = 1785mm
2
55HL
CHANNEL
L = 1496.5mm
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT
DESCRIPTION
PART
No. CHECK
QTY QTY
1
1
1
1
2
55FL
CHANNEL
L = 1496.5mm
55GL
CHANNEL
L = 1496.5mm
55BL
CHANNEL
L = 1496.5mm
81BL
CHANNEL
L = 1496.5mm
81AL
CHANNEL
L = 1496.5mm
155HR
CHANNEL
L = 1496.5mm
1
1
1
1
2
55FR
CHANNEL
L = 1496.5mm
55GR
CHANNEL
L = 1496.5mm
55BR
CHANNEL
L = 1496.5mm
81BR
CHANNEL
L = 1496.5mm
81AR
CHANNEL
L = 1496.5mm

Absco Ezi - Slider Model: 30082EK
PAGE 5
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30082EK 11/07/16
20mm
15mm
QTY = 10pcs.
CHANNEL
(0.79")
(0.59")
PUSH PUSH
CHANNEL
CSJ

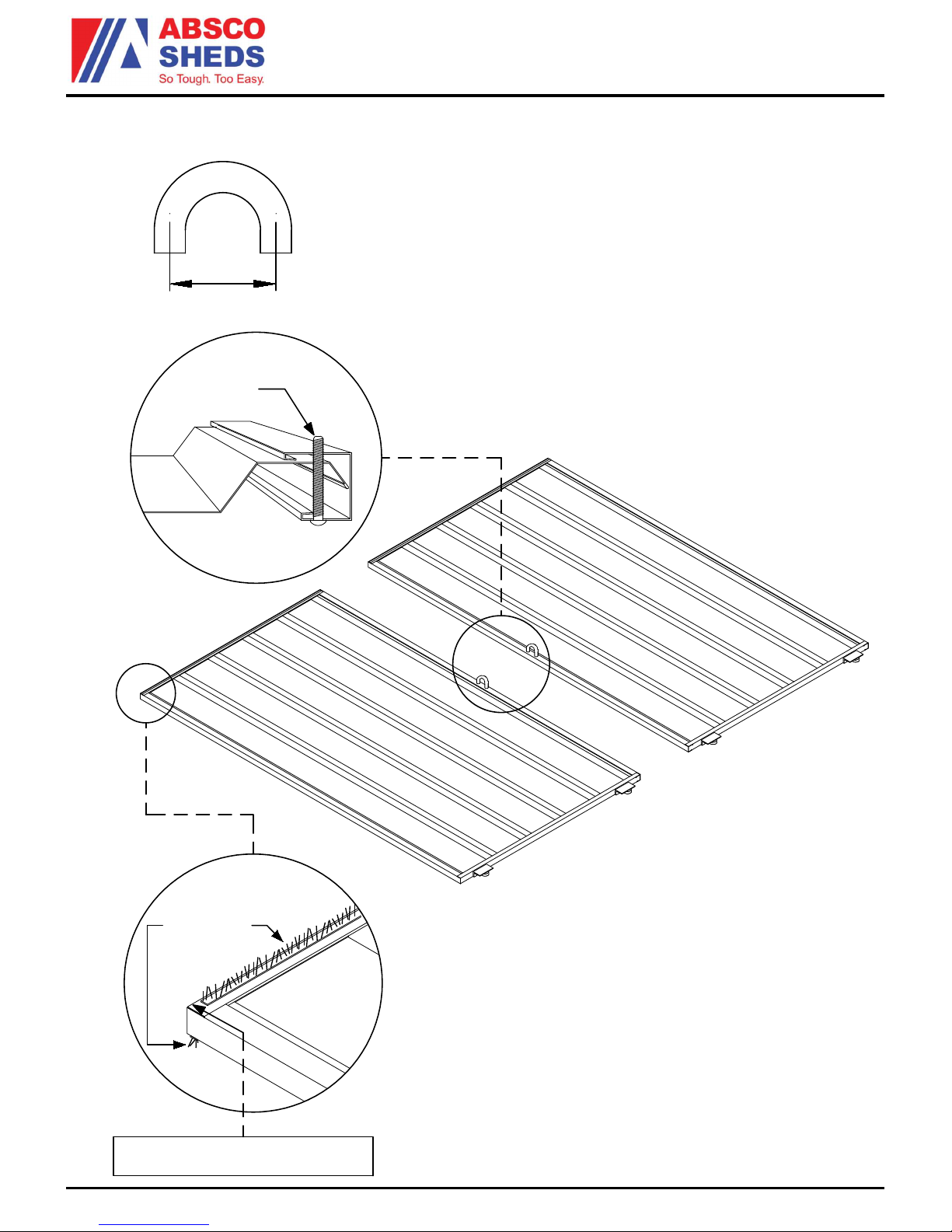

INSTRUCTIONS FOR JOINING SPLICED CHANNELS
CSJ
CSJ
HIGH-SIDE
CHANNEL
LOW-SIDE
CHANNEL
CSJ
CSJ
CSJ
= =
= =
==
=
=
STEP 1.
Position the channels and the CSJ
joiner channel so the center of the
CSJ is in line with the end of each
channel to be joined together.
STEP 2.
Join the first channel to the CSJ by inserting the center
of the CSJ (on an angle) to the end of the channel
where the JOIN>> text is marked. Push down one side
of the CSJ until you hear a 'click'.
STEP 3.
Join the second channel to the CSJ
by positioning the <<JOIN end of the
channel at the center of the CSJ
(on an angle). Push the CSJ into
the channel until you here a 'click'.
=
The joined channels should now
look like the picture above with the
CSJ positioned equally inside of the
joined channels.
FINISHED CHANNEL
=
NOTE: THE TEXT MARKED ON ALL PARTS MUST BE SHOWN ON THE SAME SIDE AS EACH OTHER.
JOIN>> <<JOIN JOIN>>
JOIN>> SJ
JOIN>>
<<JOIN
JOIN>> <<JOIN
J
CSJ
DRILL 4mm (0.16") x 3mm (0.12")
(2 PER A SIDE) HOLES TO
SECURE SECTIONS TOGETHER.
(THESE SCREWS MAY HAVE TO
BE TEMPORARILY REMOVED
AND REPLACED DURING LATER
ASSEMBLY)

ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30082EK 11/07/16
Absco Ezi - Slider Model: 30082EK
PAGE 6
=
=
=
=
=
=
1 X 55GR
2993mm (117.8")

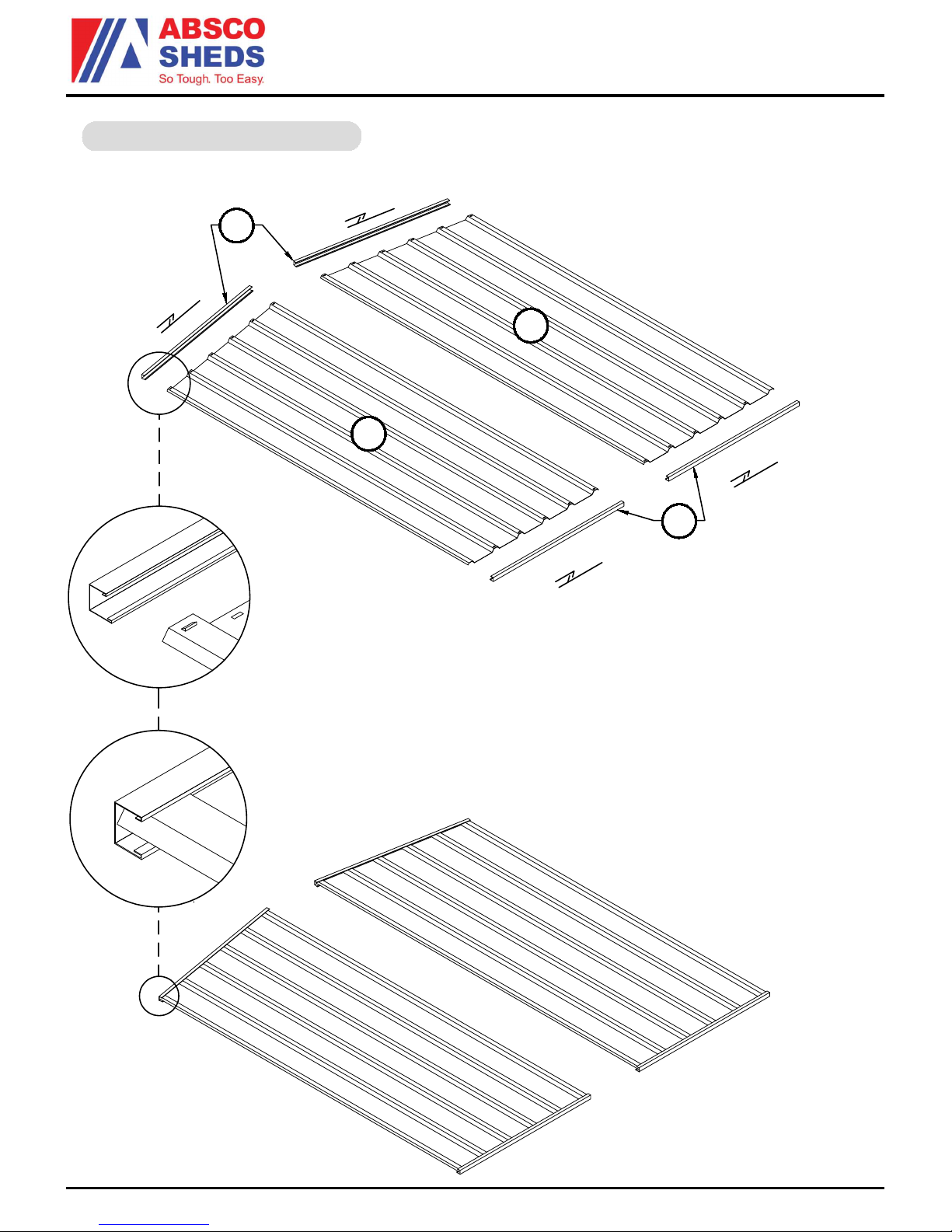

STEP 1. PRE-ASSEMBLY OF SPLICED CHANNELS
2 x 81A
1 x 55G
1 x 55B
1 x 55G
1 x 81B

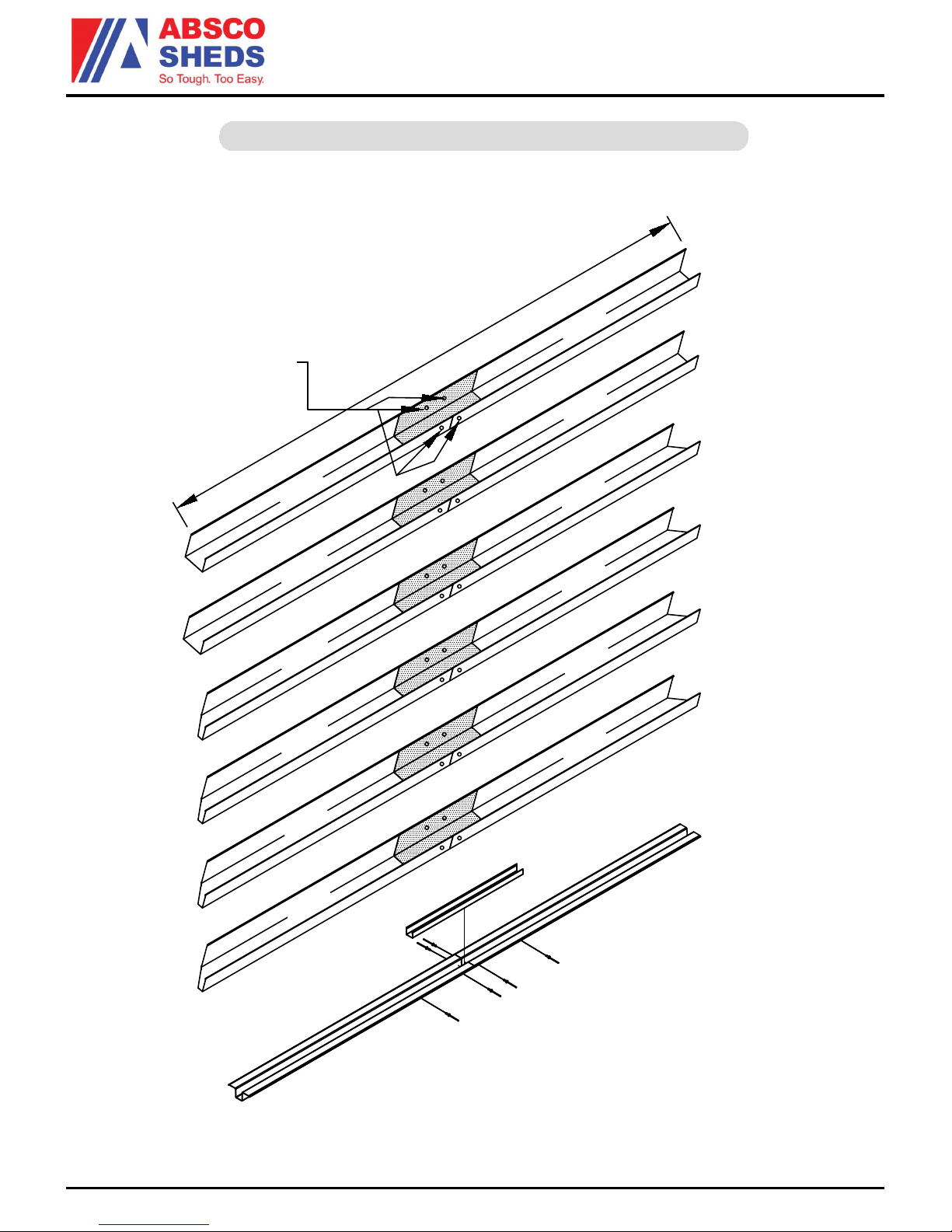

NOTE: JOIN TOGETHER 14 X CHANNEL SECTIONS USING 7 X CHANNEL JOINERS (PART CSJ)
81BR
81BL
55GL
55GR
55BR
55BL
55GR
55GL
81AL
81AR
2 X 81AR
2 X 81AL
1 X 55GL
1 X 55BR
1 X 55BL
1 X 55GR
1 X 55GL
1 X 81BR
1 X 81BL
NOTE: SOME CHANNELS HAVE
HOLES IN THEM - YOU WILL NEED
TO RE-DRILL HOLES ON ANY
CHANNEL WHERE THE CSJ
JOINING CHANNEL COVERS
HOLES ON THE CHANNELS
YOU ARE CONNECTING
1 x 55F
55FR
55FL
1 X 55FR
1 X 55FL
NOTE: CHANNELS 55G, 55F, & 55H ARE BEST SECURED TOGETHER
USING POP RIVETS THROUGH THE 15mm HIGH (FRONT) EDGE.
THIS MINIMISES INTERFERENCE WITH THE SLIDING DOORS
=1 x 95G
2 X 95GS
13A
POP RIVETS
FRONT
BACK

Absco Ezi - Slider Model: 30082EK
VIEW OF ROOF COMPONENTS
PAGE 7
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30082EK 11/07/16
88K
81A
88K
81A
43G
43G
43G
43G

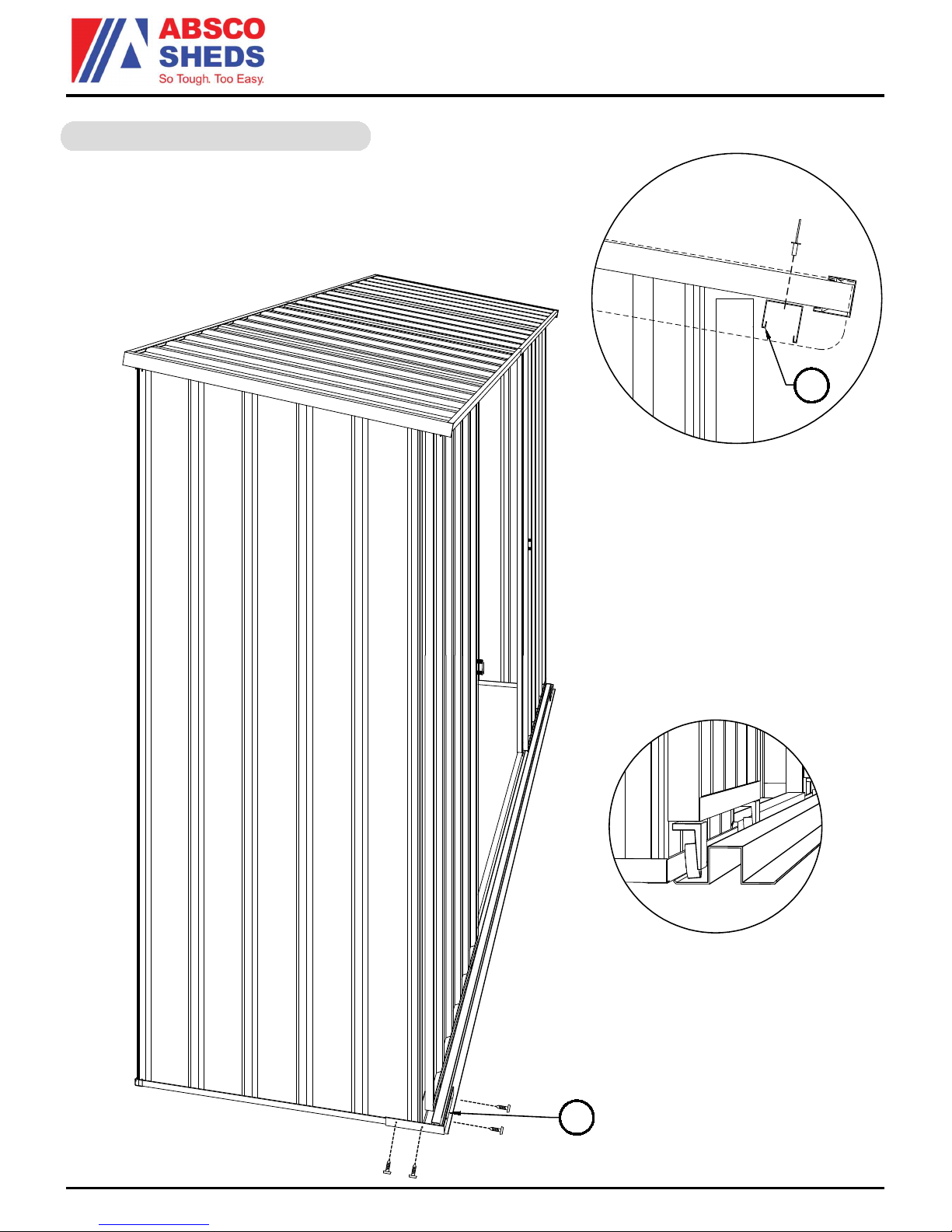

VIEW OF WALL COMPONENTS
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30082EK 11/07/16
Absco Ezi - Slider
Model: 30082EK
PAGE 8
43B
43C
43C
43B
30D
X4L
30D
X4R
80C
80C
79D
61B
81J
81B
55B
61B
81J
55F
55H
79D
55G
95G
260
58L
58C
260
58L
58C
58C
58L
43F
43F

PAGE 9
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30082EK 11/07/16
Absco Ezi - Slider Model: 30082EK
ABSCO ASSEMBLY INTRODUCTION
FASTENING SYMBOLS

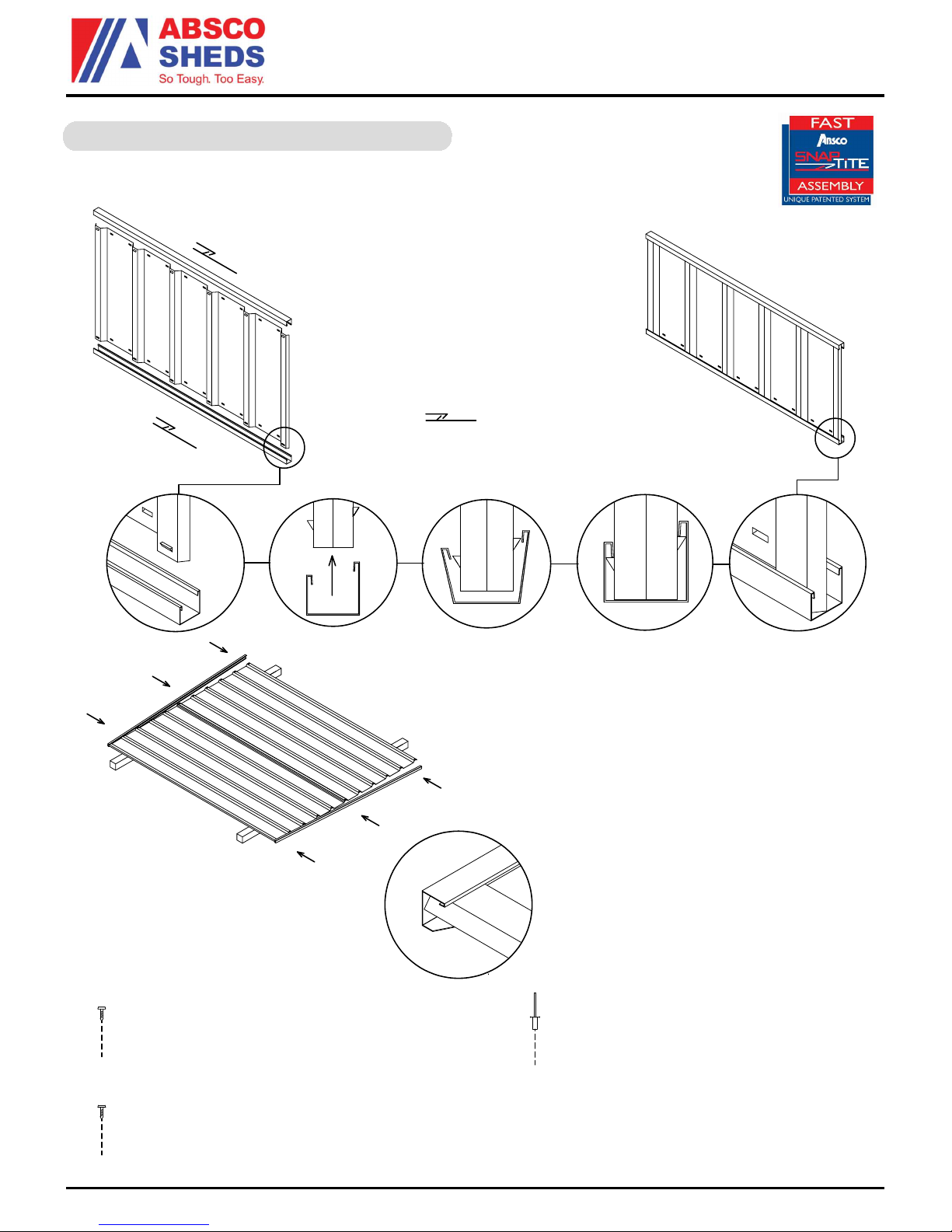

The snap-tite assembly system locks all perimeter channels to all roof and wall
sheets without the need for tools and fasteners .
To pre-assemble the four wall panels
and two roof panels, the perimeter
channels are secured to the top and
bottom of each panel using the
snaptite system, as detailed on the
following pages wherever you see
the symbol.
Position sheets on timbers,
trestles or partly over edge of
concrete slab.
Each perimeter channel must finish flush
with the edges of the sheets. the snap-tite
system allows adjustment for this
process by simply tapping the channel
along the sheets until each end is neatly
flush.
Join pre-punched sections together with self
tapping screws.
Drill 3mm holes and join sections together with
self tapping screws.
Position the channel over the sheet,
drill 3mm holes in the sheet using the
pre-punched holes in the channel
as a guide. Secure sections together
using 3mm pop rivets.
NOTE: Self tapping screw can be used
instead of rivets, but the head of the screw
may scratch the surface of the steel sheets
when sliding the doors open and closed.
PUSH
PUSH
HIGH SIDE
HIGH SIDE
PUSH
HIGH SIDE
HIGH SIDE
After joining sheets together,
position channel over one end of the
sheets, gently tapping it over the
snaptite lugs, working along the
sheets to the other end.
HIGH SIDE
SNAP
T TE
i
SNAP
T TE
i
SNAP
T TE
i
D

REAR PANEL ASSEMBLY
PAGE 10
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30082EK 11/07/16
Absco Ezi - Slider Model: 30082EK
43B
43C
43C
43B
SNAP
T TE
i
SNAP
T TE
i
55B
81B

PAGE 11
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30082EK 11/07/16
Absco Ezi - Slider Model: 30082EK
SIDE PANEL ASSEMBLY
(TWO REQUIRED)
X4L
X4R
SNAP
T TE
i
SNAP
T TE
i
SNAP
T TE
i
SNAP
T TE
i
61B
81J

ROOF PANEL ASSEMBLY
PAGE 12
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30082EK 11/07/16
Absco Ezi - Slider Model: 30082EK
43G
43G
43G
43G
SNAP
T TE
i
81A
88K
81A
88K
ONE ROW OF
HOLES THIS END
TWO ROWS OF
HOLES THIS END

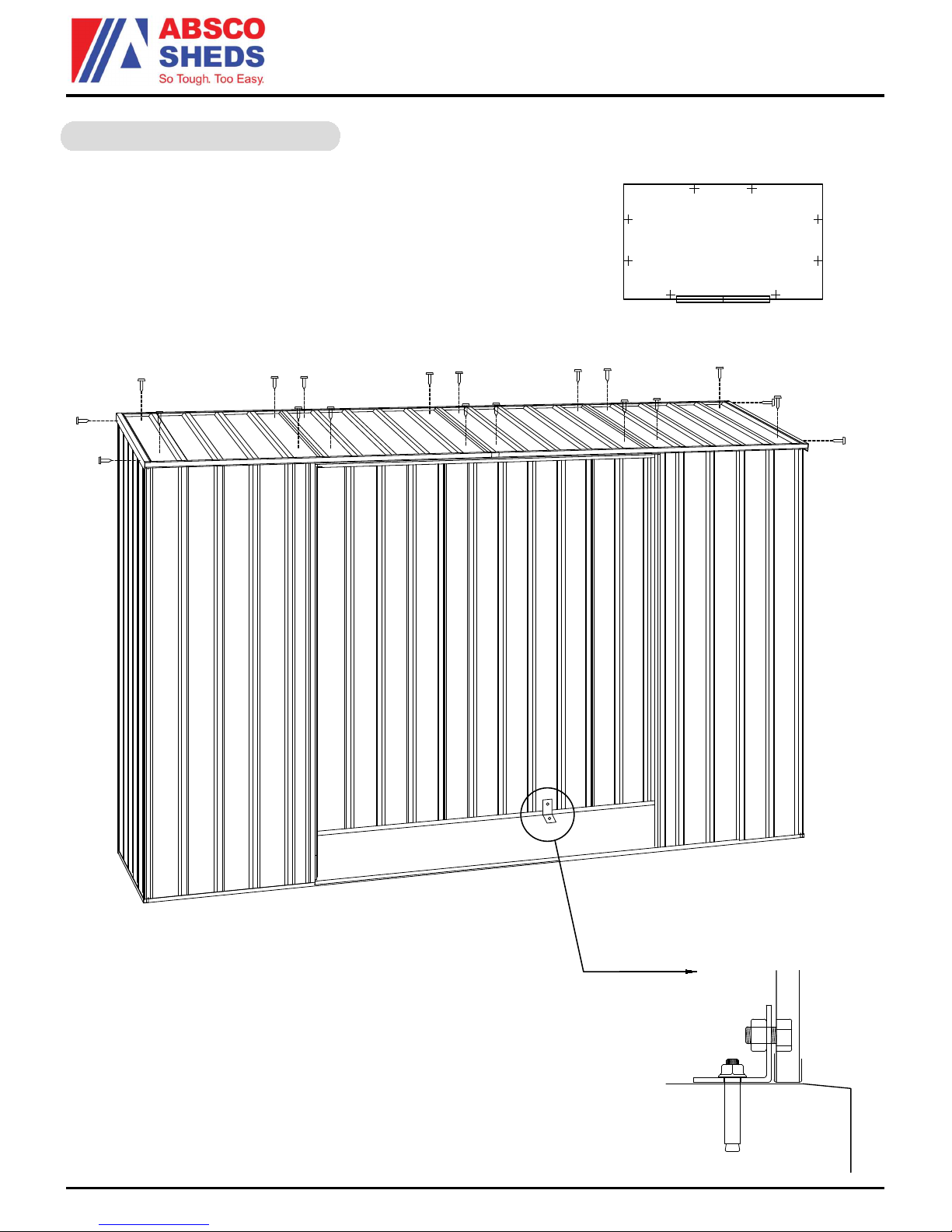

SECURE THIS ROW OF
HOLES TO THE REAR
WALL (REFER PAGE 14)
SECURE THIS ROW OF
HOLES TO THE FRONT
WALL (REFER PAGE 14)
SECURE THIS ROW OF HOLES TO
PART 55H. (REFER PAGE 16)
SNAP
T TE
i

FRONT PANEL ASSEMBLY

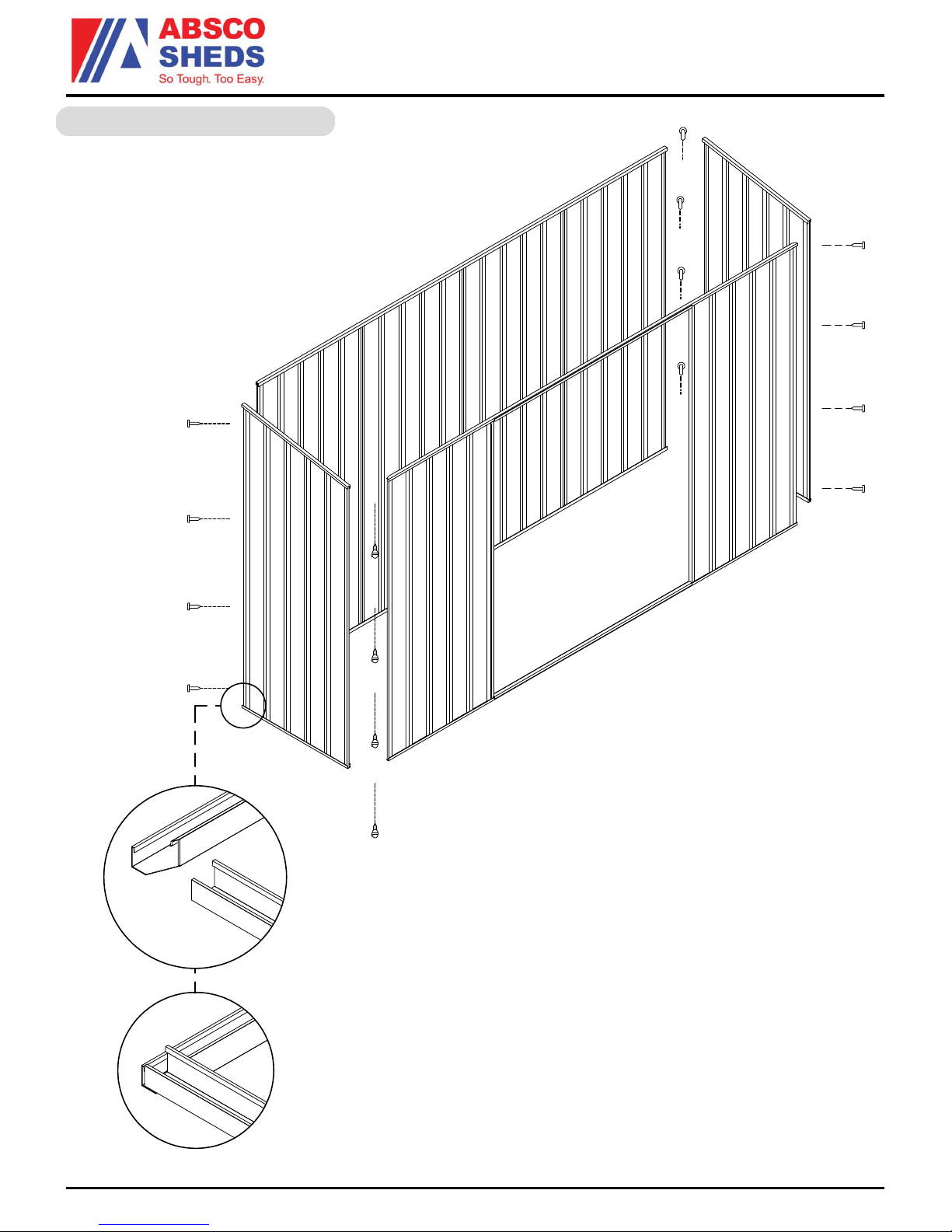

PAGE 13
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30082EK 11/07/16
Absco Ezi - Slider Model: 30082EK
SNAP
T TE
i
SNAP
T TE
i
SNAP
T TE
i
SNAP
T TE
i
55F
30D
30D
80C
55G
79D
NOTE: PRE-PUNCHED
EDGE HOLES TO THE
OUTSIDE ENDS OF THE
PANEL.
15mm
FLANGE
20mm FLANGE
NOTE: THERE ARE NO
PRE-DRILLED HOLES
FOR THESE PANELS.
PLEASE PRE-DRILL
BEFORE ASSEMBLY.

DOOR PANEL ASSEMBLY
PAGE 14
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30082EK 11/07/16
Absco Ezi - Slider Model: 30082EK
(TWO REQUIRED)
D
50mm
SNAP
T TE
i
SNAP
T TE
i
58C
43F
58L
58C
58L
261

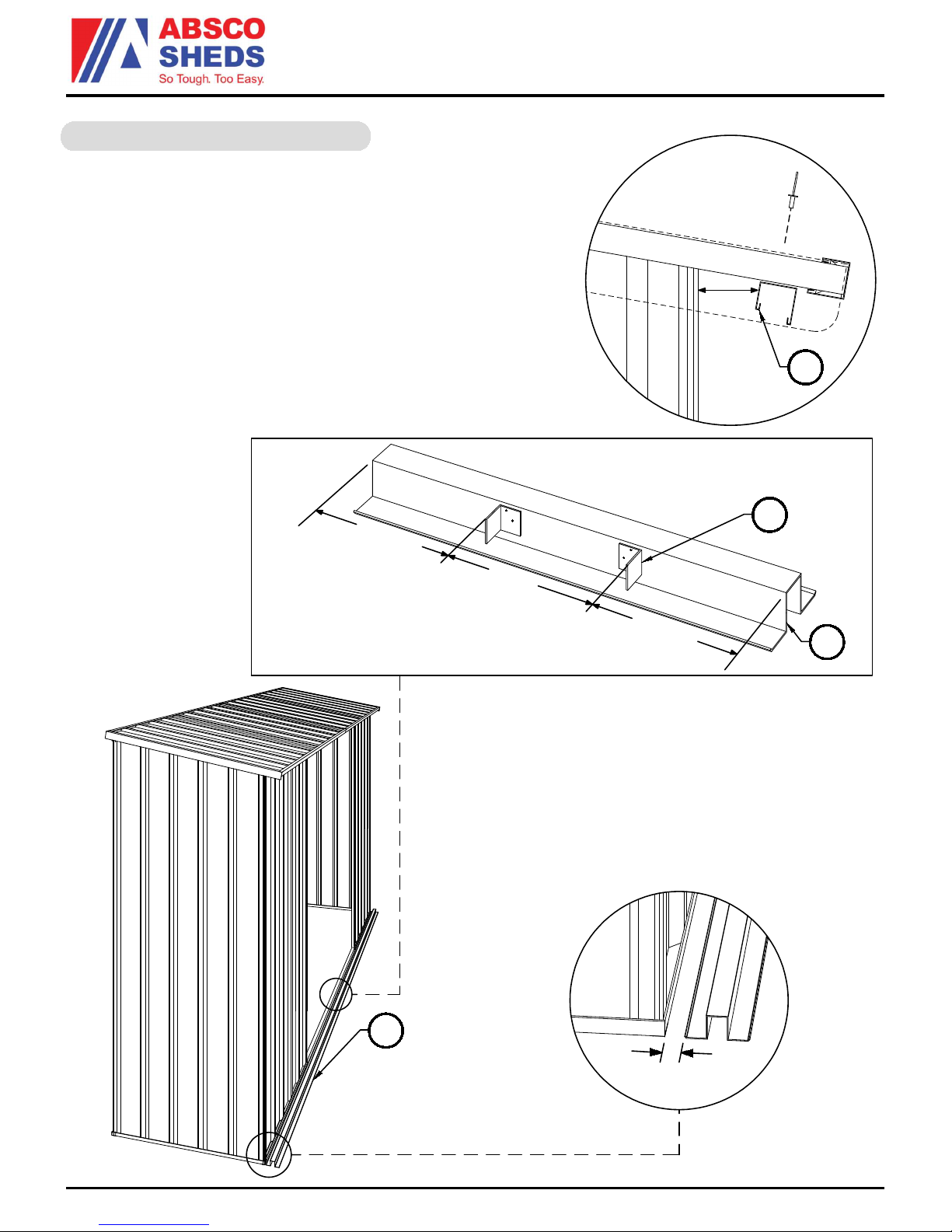

NOTE: THE LOCATING DISTANCE FOR THE ROLLER
CARRIAGE OF 50mm NEEDS TO BE ACCURATE SO
AS TO ACHIEVE THE DOOR STOPPING DISTANCE OF
97mm AS NOTED ON PAGE 16.
WHEN INSTALLING THE DOORS, USE THIS
SCREW TO ADJUST THE HEIGHT, AND ALSO
LEVEL THE DOORS SO THEY BUTT UP FLUSH TO
EACH OTHER.
WHEEL ASSEMBLY HEIGHT
ADJUSTMENT SCREW
15mm FLANGE
20mm FLANGE
D
NOTE: THERE ARE NO
PRE-DRILLED HOLES
FOR THESE PANELS.
PLEASE PRE-DRILL
BEFORE ASSEMBLY.

PAGE 15
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30082EK 11/07/16
Absco Ezi - Slider Model: 30082EK
CHECK THAT THE HOLE CENTRE OF EACH DOOR HANDLE IS
32mm AS SHOWN. (SOME DOOR HANDLES MAY DIFFER)
MARK OUT THE HOLE CENTRES HALF WAY UP EACH DOOR. IT IS
IMPORTANT TO USE A GREAT DEAL OF ACCURACY WHEN
MARKING AND DRILLING THESE HOLES.
ENSURE THAT YOU MATCH THE DOORS UP AS A PAIR WHEN
FITTING THE HANDLES.
CAREFULLY DRILL 4mm OR 5/32" HOLES THROUGH BOTH SIDES
OF THE CHANNEL AND SHEET AS SHOWN.
FIT THE DOOR HANDLES USING THE 25mm BOLTS SUPPLIED.
A NORMAL PADLOCK CAN BE
INSERTED THROUGH BOTH
DOOR HANDLES FOR ADDED
SECURITY IF DESIRED.
THE BRUSH PILE STRIP IS USED TO REDUCE NOISE
WHEN SLIDING THE DOORS.
CUT THE ROLL OF BRUSH PILE SUPPLIED INTO FOUR
PIECES ABOUT 750mm LONG.
THE SELF ADHESIVE STRIPS ARE TO BE BONDED TO
THE TOP OF THE DOORS ONLY, ON BOTH SIDES
AS SHOWN.
ENSURE THAT SURFACES TO BE ADHERED TO ARE
CLEAN AND DRY.
PEEL OFF THE BACKING TAPE AND PRESS FIRMLY IN
POSITION FOR A PERMANENT BOND.
PART
262
32mm
4/4mm X 25mm
BOLT
FIT BRUSH PILE:
PART 263
BRUSH PILE
POSITION THE STRIPS TO THE
VERY TOP EDGE OF THE DOOR.
FIT DOOR HANDLES:

PAGE 16
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30082EK 11/07/16
Absco Ezi - Slider Model: 30082EK
PANEL CONSTRUCTION
NOTE: Take care to ensure all wall panels
are not positioned upside down. The top
channel of each panel is pre-punched for
attaching roof sheets. The base channels
are not pre-punched.
SIDE WALL PANEL CHANNELS FIT
INTO THE NOTCHED FRONT AND
REAR WALL PANEL CHANNELS

FINAL CONSTRUCTION
ANCHORING OF SHED
LOCATION OF 8
CONCRETE ANCHORS
PAGE 17
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30082EK 11/07/16
Absco Ezi - Slider Model: 30082EK
DYNABOLT
BOLT & NUT
STEEL
ANGLE
SLAB
WALL
SHEET
- EACH ANCHOR CONSISTS OF ONE NUT, BOLT,
DYNABOLT AND STEEL ANGLE
- DRILL A 10mm HOLE INTO THE WALL SHEET
- DRILL A 10mm HOLE INTO THE CONCRETE

95G
55H
95G
264
FIT THE SLIDING DOOR TOP RAIL SUPPORT
CHANNEL (55H) TO THE ROOF PANEL AT
PRE-PUNCHED LOCATIONS USING POP
RIVETS AS SHOWN.
THE DISTANCE OF 97mm ALLOWS FOR 3mm
CLEARANCE TO ENSURE THE DOORS BUTT NEATLY
TOGETHER.
THESE ANGLES WILL PREVENT THE DOORS FROM
SLIDING PAST THE CENTRE POINT OF THE DOOR
OPENING, AS EACH DOOR ROLLER CARRIAGE MAKES
CONTACT WITH THE PLASTIC ANGLES.
FIT TWO SMALL PLASTIC ANGLES (PART 264) TO
THE SLIDING DOOR BASE TRACK AS SHOWN WITH
TWO POP RIVETS PER ANGLE.
MARK A LINE 10mm FROM
THE FRONT OF THE SHED
FOR POSITIONING THE
SLIDING DOOR TRACK. (95G)
(NOT TO SCALE)
ROOF
W
A
L
L
S
I
D
E
32mm
1448mm
97mm
1448mm
10mm
PAGE 18
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30082EK 11/07/16
Absco Ezi - Slider Model: 30082EK
DOOR TRACKS AND TRIMS

D
O
O
R
ROOF
55H
LIFT THE DOORS INTO POSITION, WITH THE TOP OF
EACH DOOR LOCATED BETWEEN THE FRONT WALL
AND THE TRACK SUPPORT (55H) FRONT TRIM AS
SHOWN, BEFORE MOVING THE BOTTOM TRACK INTO
POSITION.
SECURE THE SLIDING DOOR
TRACK TO THE SHED WITH THE
CORNER ANGLE BRACKET (260)
260
D
D
DD
THE DOORS SHOULD GLIDE SMOOTHLY
ON THE BOTTOM TRACK AS SHOWN.
REMEMBER TO ADJUST THE BOTTOM ROLLERS
AS NOTED ON PAGE 12, SO BOTH DOORS BUTT
UP NEATLY TOGETHER, BEFORE SECURING THE
TRACK TO THE SHED.
PAGE 19
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30082EK 11/07/16
Absco Ezi - Slider Model: 30082EK
DOOR TRACKS AND TRIMS

1 | P a g e
AUSTRALIA PRODUCT WARRANTY
AGAINST
DEFECTS
Congratulations on your purc ase of an ABSCO SHED
ABSCO SHEDS, including garden s eds, garden beds, aviaries, storage units, garages,
awnings and carports are made using ig quality Australian made steel.
We are pleased to advise we warrant t at t e steel coating will not rust, crack, flake peel or
blister for 30 years from date of purc ase, w en installed wit in Australia.
T is warranty does not apply to surface deterioration of panels caused by ‘Swarf” (Tiny
particles of steel debris left from cutting, grinding or drilling operations) t at as not been
removed after building construction, or as a result of contact wit damp soil, c emicals,
fertilisers or ot er corrosive substances.
T is warranty covers any Absco product used for normal domestic use and installed in
accordance wit t e installation instructions. T e warranty does NOT cover Damage caused
by storms, wind, rain snow or poor foundations.
T is warranty does NOT cover ABSCO products installed in severe coastal, industrial or ot er
ig ly corrosive environments. T e warranty does not cover fasteners (screws, nuts, bolts,
rivets, asps or sliding padbolts).
T e warranty is limited to replacement and delivery of components and does not include any
labour or installation costs. T e benefits given by t e warranty are in addition to your ot er
rig ts and remedies under a law in relation to t e goods or services to w ic t e warranty
relates.
T e warranty applies to t e exclusion of all ot er representations, guarantees or warranties
express or implied, our goods come wit guarantees t at cannot be excluded under t e
Australian consumer law and is not transferable. You are entitled to a replacement or refund
for a major failure and for compensation for any ot er foreseeable loss or damage. You are
also entitled to ave t e goods repaired or replaced if t e goods fail to be of an acceptable
quality and t e failure does not amount to a major failure. For furt er information go to
ttp://www.consumerlaw.gov.au.
Please retain a proof of purc ase (sales docket or invoice) or register your warranty wit in 30
days of purc ase ere: www.absco.com.au/register_warranty.p p
In t e unlikely event a warranty claim is made, it must be supported by p otograp ic evidence
and details of t e defect, including component part numbers, toget er wit proof of purc ase
documentation (or on-line registration of purc ase) and forwarded to t e address below.
Upon receipt of t e warranty claim, t e Customer Service Manager will contact you wit in
t ree business days to advise you of t e assessment outcome of t e claim, w ic may include
your expenses incurred in making t e claim.
THE CUSTOMER SERVICE MANAGER, ABSCO INDUSTRIES, PO BOX 119 ACACIA RIDGE QLD AUSTRALIA 4110
PHONE: [phone] FAX: [phone] EMAIL: warr[email protected]
Issued 01 January 2013
