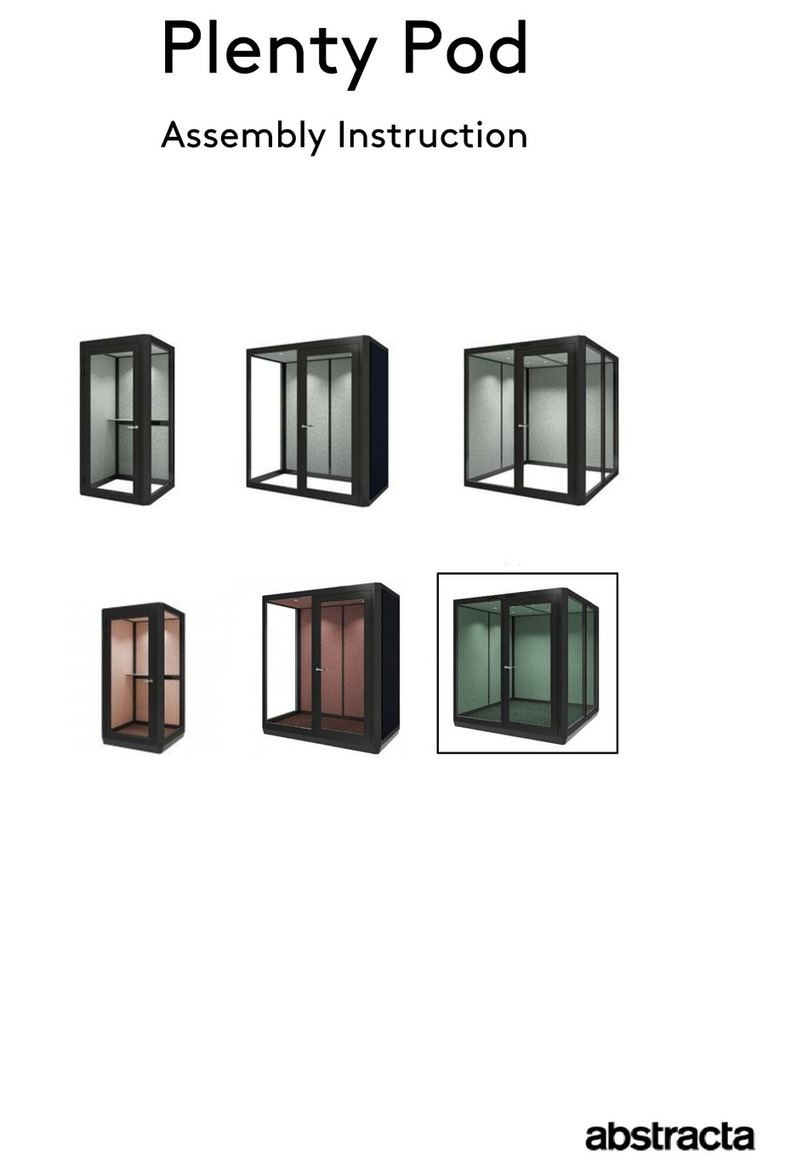

ABSTRACTA Plenty Pod Small User manual

2(33)
Abstracta AB Mounting Instruction Plenty Pod Small Fix 2021-05-24
Including the following screws and fasteners for
Plenty Pod Small
Pos
Art.nr
Pcs
Description
1
575 046 04
26
4,2 x 25 screw with drill bit
2
575 045 04
12
4,2 x 14 screw with drill bit
3
377 001 01
3
UP-bracket (pairs, right-left)
4
54342146
6
Distance plate
5
537 063 04
6
U-rail connector
6
534 195 60
1
Cable lead-through
7
543 422 10
1
Tabletop
8
543 422 94
2
Table bracket
9
543 410 09
4
Screw cap washer
10
543 410 08
4
Screw cap
11
570 048 04
4
Screw M6 x 25
12
570 008 04
4
Screw M4 x 12

3(33)
Abstracta AB Mounting Instruction Plenty Pod Small Fix 2021-05-24
Required tools
•Spirit-level
•Screwdriver
•Ratchet
•Bit set, Ph, Torx, Insex
•Rubber hammer

4(33)
Abstracta AB Mounting Instruction Plenty Pod Small Fix 2021-05-24

5(33)
Abstracta AB Mounting Instruction Plenty Pod Small Fix 2021-05-24
Mounting.
Start with evening out the floor module which you want to
set up your pod on.
(An uneven floor can especially complicate mounting the glaswalls
and fitting in the door)
Do not screw the Plenty Pod into the floor if it contains
floor heating, electric cables, water pipes or the like.
Plenty Pod stands stable without fixing.
If you need to attach Plenty Pod to the floor, use the
appropriate screw and plug. Not included.

6(33)
Abstracta AB Mounting Instruction Plenty Pod Small Fix 2021-05-24
Place the U-rails according to picture below
Connect the U-rails and corners with U-rail connector. Only
between U-rails and corners, not for threshold.

7(33)
Abstracta AB Mounting Instruction Plenty Pod Small Fix 2021-05-24
Place the distance plate according to picture.
U-rail connectors

8(33)
Abstracta AB Mounting Instruction Plenty Pod Small Fix 2021-05-24
Place the premounted wall module socket first

9(33)
Abstracta AB Mounting Instruction Plenty Pod Small Fix 2021-05-24
Place the bottom frame profiles.
Place the frame profile form on the of the vertical profile and make
sure that the hammerhead bolt is fitted into the middle track of the
vertical profile (Fig A). When the hammerhead bolt is inserted into the
track, push the frame profile down to the floor (Fig B). Then tighten the
set screw until the profile is fixed to the vertical frame (Fig D). The edge
of the profile should align with the outer edge of the floor. Repeat
with the profile on the opposite side.
Fig A Fig B
Fig C Fig D

10(33)
Abstracta AB Mounting Instruction Plenty Pod Small Fix 2021-05-24
Mount the two separate vertical profile.

11(33)
Abstracta AB Mounting Instruction Plenty Pod Small Fix 2021-05-24
Pull the frame out of the floor and screw in the screw from below.

12(33)
Abstracta AB Mounting Instruction Plenty Pod Small Fix 2021-05-24
Mount the two separate vertical profile.

13(33)
Abstracta AB Mounting Instruction Plenty Pod Small Fix 2021-05-24
Place the threshold L-profile bracket into the
threshold before placing it into the track of the
vertical profile.

14(33)
Abstracta AB Mounting Instruction Plenty Pod Small Fix 2021-05-24
Place the threshold between the two vertical
profiles and squeeze them together so that there
is no gap between them and the threshold.
Drag it down to the floor.

15(33)
Abstracta AB Mounting Instruction Plenty Pod Small Fix 2021-05-24
Fixate the L-profile in the vertical profiles.
Mount the top horizontal profiles between the
vertical profiles.

16(33)
Abstracta AB Mounting Instruction Plenty Pod Small Fix 2021-05-24
Placement of profiles
Right top and
bottom horizontal
profile
Left top and
bottom horizontal
profile
Threshold
Wall module with
electrical socket
Front horizontal
profile
Separate vertical
profiles

17(33)
Abstracta AB Mounting Instruction Plenty Pod Small Fix 2021-05-24
Fabric wall mounting
Find out which walls are going to have fabric, respectively glasses. For fabric
walls, mount the vertical and horizontal L-profile profiles as shown below.
L-profile
2 pcs 2038 mm
2 pcs 970 mm
L-profile is mounted with screw
(575 045 04, 4,2x14).
Start with the vertical L-profiles,
then the horizontal.

18(33)
Abstracta AB Mounting Instruction Plenty Pod Small Fix 2021-05-24
Mount the UP-brackets (377 001 01).

19(33)
Abstracta AB Mounting Instruction Plenty Pod Small Fix 2021-05-24
Place the acoustic walls inside, behind the L-
profiles.

20(33)
Abstracta AB Mounting Instruction Plenty Pod Small Fix 2021-05-24
Outside wall panels
Begin at the top by hooking
the track of the L-profile onto
the UP bracket (377 001 01).
The lower part of the wall
panel should hang loosely.
377 001 01
Push the wall panel to
the frame without
connecting it to the
bottom.
