Abus Eycasa CASA30100 User manual

1
Eycasa Door & House
Wireless Video System
User Guide
Version 07/2013
Original user guide in German.
Retain for future reference.

2
English
Introduction
Dear customer,
Thank you for purchasing this product.
This product complies with current European regulations.
The declaration of conformity can be obtained from:
ABUS Security-Center GmbH & Co. KG
Linker Kreuthweg 5
86444 Affing
GERMANY
To maintain this status and to guarantee safe operation, it is your obligation to observe these operating
instructions.
Read the entire user guide carefully before starting operation of the product, and pay attention to all operating
instructions and safety information.
All company names and product descriptions are trademarks of the corresponding owner. All rights
reserved.
In the event of questions, please contact your local maintenance specialist or dealer.
Warning as required by § 201 StGB (German Criminal Code):
Whosoever unlawfully makes an audio recording of the privately spoken words of another, or uses or makes a
recording thus produced accessible to a third party, shall be liable to imprisonment or a fine.
Whosoever unlawfully overhears with an eavesdropping device the privately spoken words of another not
intended for his attention, or publicly communicates, verbatim or the essential content of, the privately spoken
words of another, recorded or overheard, shall incur the same penalty.
Disclaimer
This user guide has been produced with the greatest of care. Should you discover any missing information or
inaccuracies, please let us know about them.
ABUS Security-Center GmbH does not accept any liability for technical and typographical errors, and reserves
the right to make changes to the product and operating instructions at any time and without prior warning.
ABUS Security-Center GmbH is not liable or responsible for direct or indirect damages resulting from the
equipment, performance, and use of this product. No forms of guarantee are accepted for the contents of this
document.

3
English
Explanation of symbols
The triangular high voltage symbol is used to warn of the risk of
injury or health hazards (e.g. caused by electric shock).
The triangular warning symbol indicates important notes in this user guide which must
be observed.
This symbol indicates special tips and notes on the operation of the unit.
Important safety information
All guarantee claims are invalid in the event of damage caused by non-compliance with
this user guide. We cannot be held liable for resulting damage.
In the event of material or personal damage caused by improper operation or non-
compliance with the safety information, we cannot be held liable. All guarantee claims
are void in such cases.
This device has been manufactured in accordance with international safety standards.
Please read the following safety instructions carefully.
Safety information
1. Power supply
The power supply is 12 V DC from a power supply unit.
Only operate devices using power sources which supply the line voltage specified on the type plate. If you
are unsure of the power supply at the installation location, contact your power supply company. Disconnect
the device from the power supply before carrying out maintenance or installation work.
2. Overloading
Avoid overloading electrical sockets, extension cables, and adapters, as this can result in fires or electric
shocks.
3. Liquids
Make sure that no liquids of any type are able to enter the device.
4. Cleaning
Only use a damp cloth to clean the device. Do not use corrosive cleaning materials.
Disconnect the device from the power supply while doing so.
5. Accessories
Only connect devices that are suitable for the intended purpose. Otherwise, hazardous situations or
damage to the device can occur.
6. Installation position
The Eycasa video door station is designed for use in protected outdoor areas. The Eycasa main unit is
only intended for use indoors. The products may be damaged if they are dropped, even from a low height.
Install the products so that no direct sunlight can shine on the image sensor. Pay attention to the
installation instructions in the corresponding section of this user guide.
Never place the devices close to heaters, stoves, other sources of heat, or in direct sunlight.
Only operate the devices at locations where temperatures within the permitted ambient temperature range
prevail.

4
English
7. Wireless transmission
The wireless range depends on a variety of environmental factors. The local conditions at the installation
site may have a negative impact on the range. A range of up to 100 m can be achieved if there is line of
sight between the receiver and transmitter, and a range of up to 30 meters can be achieved indoors (this
can be less depending on the situation in the building).
The following environmental conditions compromise both the range and frame rate:
Mobile communication masts, high-tension pylons, electrical wires, ceilings and walls, devices with the
same or an adjacent wireless frequency.
Warnings
Observe all safety and operating instructions before putting the device into operation for the first time.
1. Observe the following information to avoid damage to the power cable and plug:
Do not modify or manipulate the power cable or plug.
Do not pull the cable when disconnecting the device from the power –always take hold of
the plug.
Ensure that the power cable is positioned as far away as possible from any heating
equipment, as this could otherwise melt the plastic coating.
The power supply unit of the outdoor camera must be protected from damp and moisture.
2. Follow these instructions. Non-compliance with these instructions could lead to an electric shock.
Never open the housing of the outdoor camera or power supply unit.
Do not insert any metallic or flammable objects into the device.
Use overvoltage protection to prevent damage caused by overvoltage (e.g. electrical
storms).
3. Disconnect defective devices from the power immediately and contact your specialist dealer.
If in doubt, have a specialist technician carry out assembly, installation, and connection of the
device. Improper or unprofessional work on the power supply or domestic installation puts both
you and other persons at risk.
Connect the installations so that the power supply circuit and low-voltage circuit always run
separately from each other. They should not be connected at any point or be able to become
connected as a result of a malfunction.
Avoid the following adverse conditions during operation:
Moisture or excess humidity (Eycasa main unit)
Extreme heat or cold
Direct sunlight (Eycasa video door station)
Dust or flammable gases, vapors, or solvents
Strong vibrations
Strong magnetic fields (e.g. next to machines or loudspeakers)
The camera must not be directed toward the sun, as otherwise the sensor may be
destroyed. (Eycasa video door station)
Unpacking the device
Handle the device with extreme care when unpacking it.
If the original packaging has been damaged, inspect the device. If the device shows signs of
damage, return it in the original packaging and inform the delivery service.

5
English
Contents
1. Intended use.............................................................................................................. 6
2. Eycasa system components .................................................................................... 6
3. Features and functions............................................................................................. 7
4. Device description .................................................................................................... 8
4.1 Description of the Eycasa main unit................................................................... 8
4.2 Description of the Eycasa video door station..................................................... 9
4.3 Description of the Eycasa outdoor camera...................................................... 13
5. Pairing the system components............................................................................ 14
5.1 Pairing the Eycasa components in the Eycasa main unit................................. 14
5.2 Pairing the Eycasa video door station.............................................................. 14
5.3 Pairing the Eycasa outdoor camera................................................................. 17
6. Mounting the system components........................................................................ 18
6.1 Mounting the Eycasa main unit........................................................................ 18
6.2 Mounting the Eycasa video door station.......................................................... 19
6.3 Mounting the Eycasa outdoor camera ............................................................. 21
7. System operation.................................................................................................... 22
7.1 Start-up of the Eycasa main unit...................................................................... 22
7.2 Operating the live view.................................................................................... 22
7.3 Event list and event behavior.......................................................................... 23
7.3.1 Doorbell event............................................................................................... 24
7.3.2 Proximity key event....................................................................................... 25
7.3.3 Motion event ................................................................................................. 25
7.4 General system settings .................................................................................. 26
7.4.1 PIN lock settings........................................................................................... 26
7.4.2 Software update settings .............................................................................. 27
7.4.3 Language settings......................................................................................... 27
7.4.4 Screen saver settings ................................................................................... 28
7.4.5 Audio volume settings................................................................................... 28
7.4.6 Time and date settings.................................................................................. 29
7.5 Camera settings............................................................................................... 29
7.6 Proximity key settings...................................................................................... 32
7.7 Factory settings................................................................................................ 34
8. Maintenance and cleaning...................................................................................... 35
8.1 Maintenance .................................................................................................... 35
8.2 Cleaning........................................................................................................... 35
9. Disposal ................................................................................................................... 35
10. Technical data ......................................................................................................... 36

6
English
1. Intended use
The Eycasa wireless intercom system, consisting of a main unit and the video door station, gives you the
advantage of using 2.4 GHz wireless digital radio (for video data) and DECT (for audio data) to operate your
video intercom. Alternatively, the video door station can be operated on a permanent power supply
(recommended) or on batteries at the front door. By connecting the video door station to an electronic door
opener, when the doorbell is pressed, the door can be opened from inside using the touchscreen of the main
unit –in addition to the video display and voice communication. Alternatively, the optional proximity key
allows convenient opening of the door from outside on the video door station.
The Eycasa door & house wireless video system can be expanded with additional components from the
Eycasa family: Eycasa outdoor cameras (monitoring of driveways or gardens). The system can manage a
total of up to four cameras from the Eycasa product family.
For a detailed description of functions, refer to Section 3, “Features and functions”.
2. Eycasa system components
CASA30200
Eycasa main unit
CASA30100 CASA30150
Eycasa video door station Eycasa battery set
(optional)
CASA30500 (optional)
Eycasa outdoor camera
FUBE50020 (optional)
Proximity key

7
English
3. Features and functions
Eycasa door & house wireless video system for watching, speaking, listening, and switching
The Eycasa door & house wireless video system set contains the Eycasa video door station and Eycasa
main unit
Secure wireless transmission using 2.4 GHz digital wireless for video and 1.9 GHz DECT for audio
Wireless range up to 30 meters (may be less depending on structural conditions) for all Eycasa system
components to the main unit indoors
System expandable to include up to three additional cameras
Eycasa main unit with 7" touchscreen and built-in microphone and loudspeaker
Eycasa video door station for use in protected outdoor areas with integrated night vision in close
proximity to the camera and control of an electronic door opener
Eycasa outdoor camera with built-in night vision in close proximity to the camera




Wireless connection
2.4 Ghz digital wireless (video)
1.9 Ghz DECT (audio)
The main unit is the heart
of the system.
Equipped with a 7"
touchscreen color display
and intuitive user menu.
Flexible use with wall or
table installation.
The door station
provides video images,
communication, and door
opening all in one.
It can be fitted in
standard-sized intercom
systems –vertically or
horizontally, even without
power supply. IP54
approved for use in
protected outdoor areas.
IR wireless outdoor
cameras can be
integrated for viewing all
around the house. This
installation is particularly
useful for areas which are
hard to see, such as
terraces or cellar
entrances.




8
English
4. Device description
4.1 Description of the Eycasa main unit

Board marker
Used for writing short notes on the memo board. Dry erase
board marker.

Microphone
Intercom for Eycasa video door station and Eycasa
FamilyCare camera.

Memo board
Glass plate for short notes with Eycasa board marker.

Eycasa control buttons
Switch to event list.
Switch to live image.
Back button (within menus).

Volume control
+: Increases the volume during voice communication.
-: Reduces the volume during voice communication.

SD card
Slot for SD card for software updates.
Supports SD cards up to 32 GB SDHC.











9
English
4.2 Description of the Eycasa video door station

Table mount
Removable table mount, can be used instead of the included
wall mount.

Power supply
12 V DC / 1 A
Device starts automatically when powered by line voltage.

RJ45 connection
Integrated network access, 10/100 Mbps.
For internal testing purposes only.

Loudspeaker
System loudspeaker for outputting audio.

Camera
Camera module with fixed lens including photo sensor

Status LED
Indicates the current device status
LED red
Permanently lit
The sequence for doorbell
ringing is being carried
out.
LED green
Permanently lit
Voice connection has
been established.
LED red
Flashing
No wireless connection to
the main unit or device is
not paired.
LED red +
green
Flashing fast
Pairing mode active.
LED off
Permanent
Indicates that the device
is ready to operate when
voltage is present.










Rear

10
English

Doorbell button
Backlit doorbell button (not in battery mode).
Backlighting switches on automatically in night mode (camera
photo sensor).
When the doorbell button is pressed, a connection to the
Eycasa main unit is established with a video image.

Microphone
Built-in microphone for two-way voice communication with
Eycasa main unit or handset.

ABUS logo
Logo can be rotated 90° with horizontal installation of the video
door station.

Proximity reader
Built-in proximity reader for use of the ABUS wireless chip key
(FUBE50020) for opening the door on the door station.
Not available in battery mode.

Connector block
(Rear)
Connector block for power and relay contacts (potential-free,
NO)
Voltage: 12–24 V AC/DC
Relay 1 = door opener
Relay 2 = electronic chime
Not available in battery mode.

Battery compartment
Removable battery compartment for 6 x AA batteries (1.5 V).
Use CASA30150 for this.

Microphone
Two-way communication for Eycasa main unit.

Loudspeaker
Integrated loudspeaker.
Important:
The video door station is subject to limitations in battery mode to ensure the longest possible
battery life. The following functions are disabled:
proximity key, backlighting of the doorbell button, door opener function (no relay triggering),
continuous video transmission.
In battery mode, the door station operates in a power-saving mode and wakes up when the
doorbell is pressed. In this case, it takes approx. 5 seconds to establish a connection to the
main unit.
We recommend that you run the video door station on a permanent power supply to be able
to use the full functionality.

11
English
Connection examples for an electronic door opener/door bell
Description of the terminal block
Description
Note
12V-24
AC/DC
Network connection for video door station 12-24V direct current or
12-24V alternating current
RELAY
1
Terminal connector for electronic door opener.
Potential-free relay, NO (normally open)
RELAY
2
Terminal connector for electronic door bell.
Potential-free relay, NO (normally open)
Connection for an electronic door opener:
Connect the electronic door opener to RELAY 1, using either a separate power supply unit (version A) or
directly (version B) via the power supply of the video door station.
For version B, take note of the permitted power supply for your door opener:
A voltage that is too high can damage your door opener.
If the power consumption is too high for the switching procedure, the network supply
for your video door station can fail. Ensure that the power supply unit for your video
door station has a sufficient rating (min. 1A or higher).
230V
230V
230V
Version A
Version B

12
English
Connection for an electronic door bell:
Connect the electronic door bell to RELAY 2. Before use, ensure that your door bell has a suitable opening
contact for triggering. The door bell is supplied with power via the door bell’s intended voltage source (separate
power supply unit or batteries).
When using an electromechanical door bell, use the power supply via RELAY 2 so that the
bell is triggered when switched by closing the circuit.
The function to trigger the door bell via RELAY 2 requires the software version Eycasa 1.5 or
higher. You can download the software free of charge from the following website:
http://www.abus.com/ger/Sicherheit-
Zuhause/Tuersicherheit/Tuersprechsysteme/Eycasa/Eycasa-Tuer-Haus-Funk-Videosystem
230V
230V
Electronic
door bell
230V
Electromechanical
door bell

13
English
4.3 Description of the Eycasa outdoor camera

Antenna
Screw-on antenna for 2.4 GHz digital wireless.

Photo sensor
Sensor for switching between day and night mode.

Camera
Camera with fixed lens.

Power LED
LED red
Permanently lit
Power supply connected.
LED off
Permanent
No power supply connected.

Link LED
LED green
Lit
Camera is providing an image
signal to the main unit.
LED green
Flashing
Pairing mode active.
LED off
Permanent
Camera not paired or not
accessible through the main
unit.

IR LEDs
Built-in IR LEDs. Activated in night mode.

PIR sensor
The PIR sensor reports motion detection to the Eycasa main
unit.

Camera mount
Wall mount for camera mounting.

Pairing button
Pairing button for programming the wireless camera in the
Eycasa main unit.

Power supply
Connection for 5 V DC / 1 A power supply













14
English
5. Pairing the system components
5.1 Pairing the Eycasa components in the Eycasa main unit
We recommend that you pair the video door station in the entrance area to camera position 1 (factory setting
with the CASA31000). All other components can be paired to any of the other camera positions. Pair the
components as follows:
1. Connect your Eycasa main unit and the components to be paired to the associated power supply unit /
power supply.
2. Wait until your Eycasa main unit has completed the boot process, and switch to the configuration menu
by pressing the button.
3. Click the “Cameras” menu item and select a free camera channel.
4. Press the “Pair camera” button to start the pairing process using the setup wizard.

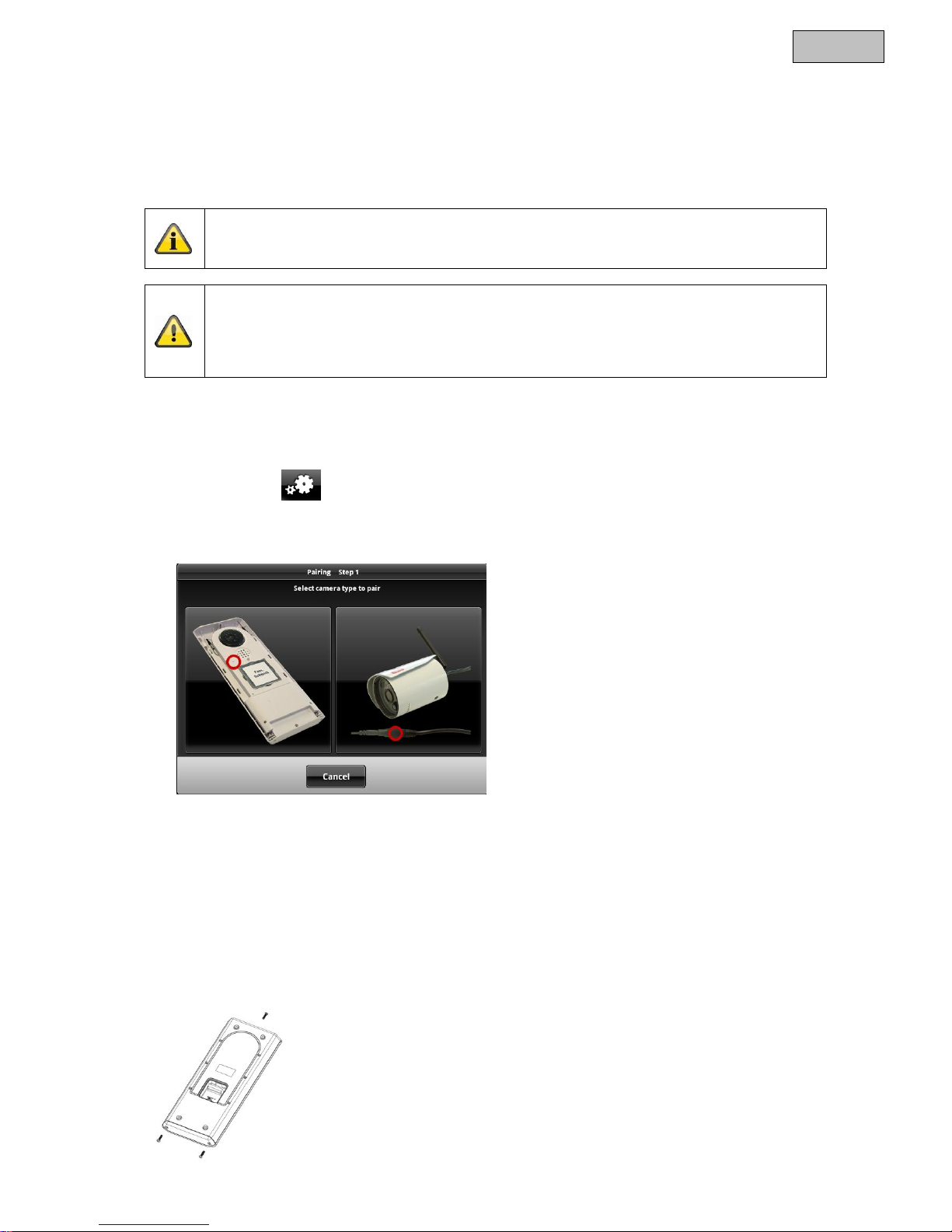

5. In the setup wizard, select your camera model as shown in the figure.
The setup steps are described below separately for each camera type.
5.2 Pairing the Eycasa video door station
Connect your video door stations with the power before starting the pairing process. Your video door station
indicates the current status by the flash code on the status LED. If the video door station is not paired in your
Eycasa main unit, the status LED flashes red.
The video door station housing must now be opened for the pairing process. Use the included screwdriver to
loosen the safety screws above the lens and below the battery compartment.
Note:
The CASA31000 Eycasa video door station and Eycasa main unit included in delivery are
already programmed at the factory.
Important:
Before you begin installing, make sure that the wireless transmission range is adequate at the
site of the required installation.
Start pairing the system components before you perform the final installation of the individual
Eycasa components.

15
English
First remove the battery compartment to be able to remove the front cover.
You can now continue the pairing process for your video door station. The setup wizard of your main unit
should show the following view:
A notification message will appear that a camera already paired to the selected camera slot will be
overwritten by this action. Press Next if you are sure you want to continue with the pairing process.
If your video door station is running on batteries, then you need to press the doorbell button once to wake up
the device from standby mode. Now press the pairing button on your video door station. The status LED on
your video door station flashes alternately red and green to indicate that the pairing process has started. The
pairing process is active for 120 seconds. Press the “Next” button.

16
English
Your Eycasa main unit connects to your video door station. The process can take several seconds. The
setup wizard will signal whether the process is complete or whether it needs to be repeated due to a pairing
error.
If the message “Video door station was successfully paired” appears, the pairing process is finished. The
status LED goes out on your video door station, signaling readiness.
You can proceed with installation of the unit from Chapter 6.
Note:
If you want to test the video door station after initial start-up, note that there can be audio
feedback loops both in the loudspeaker of the door station and the main unit if the devices
are too close to each other. This is normal and occurs only when both devices are installed in
the same room.

17
English
5.3 Pairing the Eycasa outdoor camera
Ensure that your Eycasa outdoor camera is supplied with power.
You can now proceed with the pairing process for your outdoor camera. The setup wizard of your main unit
should show the following screen:
Follow the instructions on the screen and press and hold the pairing button on the power cable of the
camera. The link LED of the camera starts to flash. Now press “Next” without releasing the pairing button.
Once the message “Camera pairing succeeded” appears, you can release the pairing button. The pairing
process is completed. If an error occurs during the process, repeat the previous pairing steps.
You can now proceed with the installation of the Eycasa outdoor camera from Chapter 6.

18
English
6. Mounting the system components
6.1 Mounting the Eycasa main unit
The Eycasa main unit can be installed either on a table or wall. When delivered, the table mount is already
attached, allowing you to place the device wherever you would like indoors. Alternatively, the back cover of
the main unit can be replaced with the included wall mount. The following steps describe how to install the
wall mount.
1. •Remove the table mount on the rear of the device by pushing the back cover downwards and off. Be
sure not to touch or damage electronic components while the main unit is open.
2. Put the wall mount into the desired position on the wall and mark the drill holes. The distance between
the two holes is 102 mm.
3. Attach the screws using wall plugs and put on the wall mount. The wall mount should be completely
screwed together only after placement onto the screw heads.
Important:
Choose the installation location of the main unit so that optimal range of all Eycasa
components is possible. Make sure that a distance of no more than 30 m (depending on the
building characteristics, this can be less) from the main unit is not exceeded. Additional walls
can reduce the wireless range. Test the range before installation.

19
English
4. Now place the main unit on the wall mount and connect the included power supply unit.
Ž
6.2 Mounting the Eycasa video door station
The Eycasa video door station can be mounted either horizontally or vertically. The video door station is
designed for use in protected outdoor areas, thanks to its degree of protection of IP54.
Use the included screwdriver to loosen the safety screws above the lens and below the battery
compartment.
If you are operating your video door station with a permanent power supply (bell
transformer), remove the cover of the terminal connector on the rear of the device.
Be sure to reinstall the sealing ring later.
First remove the battery compartment to be able to remove the front cover.
Note:
In case of horizontal installation, in the settings you need to change the orientation of the
video image to 90° to the left or right.

20
English
You can now open the plastic cover of the doorbell button and attach your nameplate. For labeling, you can
use the included nameplate or the PDF template on the included CD.
Connect the power (12–24 V AC/DC) and an optional electronic door opener (RELAY 1) and/or an electronic
door bell (RELAY2) to the terminal block of the video door station.
If you operate the video door station alternatively using batteries, insert the batteries into the battery
compartment. Pay attention to the polarity when inserting the AA batteries.
Note:
In software version 1.0, RELAY 2 is disabled for the Eycasa main unit.
Important:
When operating with a permanent power supply (e.g.: bell transformer), the video door station
requires up to 800 mA at 12 V. Make sure that downstream consumers (such as electronic
door openers) do not exceed the total output of the voltage source.
Important:
The video door station is subject to limitations in battery mode to ensure the longest possible
battery life. The following functions are disabled:
Proximity key, backlighting of the doorbell button, door opener and door bell function (no relay
triggering), continuous video transmission.
We recommend that you run the video door station on a permanent power supply to be able
to use the full functionality.
55 mm
55 mm
