Acer Liquid Z630S Quick Guide
Model: T04
This revision: 10/2015
Product information
For detailed product information, please go to www.acer.com.
For service and support information, or to download the User
Guide, drivers and applications, please follow the instructions
below:
1. Go to www.acer.com and click Support > DRIVERS AND
MANUALS.
2. Select appropriate items from Group > Series > Products.
3. Select the operating system from the drop-down menu.
Acer Liquid Z630S Smartphone
Model number:
Serial number:
Date of purchase:
Place of purchase:
Android is a trademark of Google Inc. Use of this trademark is
subject to Google Permissions.

Your smartphone
111
4 3
9
8
5 7
10
6
2
No . It e m De sc r i ptio n
1
3 . 5 mm
headphone
jac k
2 M i cr o U SB
conn ecto r
Co nnec t s t o ste ero
he adphon es .
Co nnec t s t o a USB cable /
cha r ge r .
3
F ro n t camera Fro n t - faci ng camera s u i t ab le f o r
video ch a t s and s e lf - por t rai t s .
4
P hone
s pea k e r
E m i t s audio f r om y o ur smar t phone ;
sui t able f o r ho ldi ng t o your ea r .
5 Touchscreen Touchscreen t o displ a y da t a ,
phone con t en t and en t er
i n fo r m at i on .

English
No. Item Description
6 Handsfree
speaker
Emits audio from your
smartphone; suitable for
handsfree use.
7 Power button Press to turn the screen on/off
or enter sleep mode; press and
hold to turn the smartphone on
or off.
8 Volume up/
down button
Increases or decreases the
phone volume.
9 Flash LED flash for taking photos in
low-light environments.
10 Spaker Internal Spaker.
11 Camera A camera for taking high-
resolution images.
Note:
For more on howyour computer can help you to be
more productive, please refer to the User’s Manual.
The User’s Manual can be downloaded from the Acer
support website by going to:
http://go.acer.com/?id=17883

Specifications
Note
Specifications may vary depending on region and configuration.
Performance
• 1.3 GHz octa-core processor
• System memory:
•32 GB
• 3 GB
• Android operating system
Display
•5.5.0" IPS LCD,1280 x 720 resolution
Multimedia
Formats supported:
Type Formats
Image JPEG, GIF, PNG, BMP
Audio playback MP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC,
MIDI, WAVE
Ringtone MP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC,
MIDI, WAVE
Video recording H.263, H.264, MPEG4
Video playback H.263, H.264, MPEG4, VP8
USB connector
• Micro USB connector
• USB client
• DC power-in (5.2 V, 1.35 A)

Connectivity
• Bluetooth 4.0 + EDR
• IEEE 802.11b/g/n
• EU：LTE Band 800(B20) / 1800(B3) / 2100(B1) / 2600MHz(B7) MHz
• EU：WCDMA 900(B8) / 1900(B2) / 2100(B1) MHz
• US：LTE Band 1900(B2) / 1700(B4) / 2600(B7) / 700MHz(B12) MHz
• US：WCDMA 850(B5) / 1900(B2) / 1700(B4) MHz
• JP：LTE Band 2100(B1) / 1800(B3) / 800(B19) / 1500(B21) / 700(B28) MHz
• JP：WCDMA 800(B19) / 2100(B1) / 1700(B9) / 800(B6) MHz
•TW：
LTE Band 3 (1710-1770 MHz)
LTE Band 8 (885-915 MHz)
LTE Band 28 (703-748 MHz)
•TW：WCDMA 900(B8) / 1900(B2) / 2100(B1) MHz
• GSM 850 / 900 / 1800 / 1900 MHz
• HSPA / GPRS / EDGE
• GPS
Frequencies depend on model.
「因應各地區/國家所屬之規範、頻道及開放時程等服務細項的不同，請
依據當地主管機關與電信業者實際公告資訊為主。如服務細則有所變更，
請自行洽詢電信業者，恕不另行通知。」

Camera
•8 MP rear camera
• Auto-focus
• LED flash
• 8 MP front camera
• Fixed focus
Expansion
• microSD memory card slot (up to 32 GB)
Battery
•3900 mAh Li-Polymer battery (replaceable)
Note
Length of battery operation will depend on power consumption which is
based on system resource use. For example, constantly using the backlight
or using power-demanding apps will shorten battery life between charges.
Dimensions
Height
156.9 mm
Width 77.4 mm
Thickness 8.9 mm
Weight 165 g (with battery)

English
2
Setting up for the first time
Inserting the SIM cards and microSD card
1. Turn off the phone by pressing and holding
the power button.

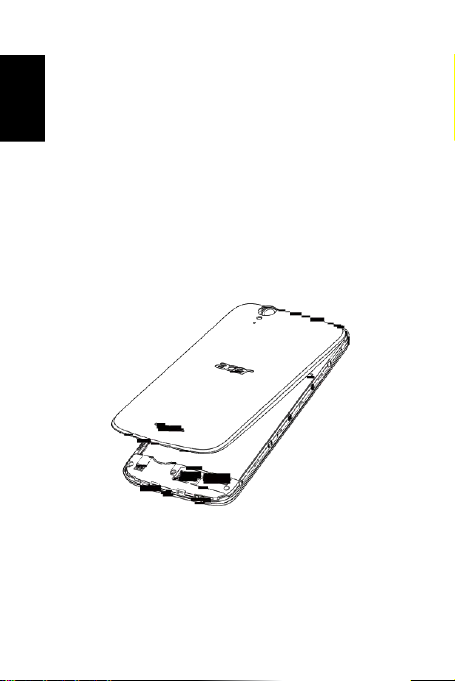

2. Insert your fingernail into the notch located at
the bottom of the phone and remove the
cover as illustrated.

English
3
3. Insert the SIM or microSD card as shown.
SIM2 (Optional)
Micro SD
SIM1
* Note: Your smartphone may be equipped with one or two SIM slots
depending on model.
4. Align the gold-colored connectors on the
battery with the connectors at the top of the
battery compartment and insert the battery.

4
5. Replace !he cover by aligning !he !abs on
!he
cover in!o !he slo!s on !he phone. Gen!ly
press !he cover un!il i! snaps in place

English
5
Charging your phone
For initial use, you need to charge your smartphone for
eight hours. After that you can recharge the battery as
needed.
Connect the AC adapter cord to the micro USB
connector on your smartphone. Plug the AC adapter
into any AC outlet and charge the device.
It is normal for the phone to heat up when charging or
during long periods of use.
All phones are factory tested before release.
Resetting and restarting the phone
Open Settings from the Applications menu, then tap
Backup & reset. Tap Factory data reset and then tap
Reset phone. Tap Erase everything to format your
phone.
If your phone is no longer responding, press and hold
the power button for 10 seconds to restart the phone.

Safety
Battery information
Thisproduct uses a Lithium-polymer battery. Do not use it in a
humid, wet and/or corrosive environment.Do not put, store or
leave your product in or near a heat source, in a high
temperaturelocation, instrong direct sunlight, in a microwave
oven or in a pressurized container, and do not expose it to
temperatures over 60 °C ( 140 °F). Failure to follow these
guidelines maycause the battery to leak acid, become hot,
explode or ignite and cause injury and/or damage. Do not
pierce, open or disassemble the battery. If the battery leaks
and you come into contact with the leaked fluids, rinse
thoroughly with water and seek medical attention immediately.
Forsafety reasons, and to prolong the lifetime of the battery,
charging will not occur at low ( b elow 0 °C/
32 °F) or high (over 45 °C /113 °F) temperatures.
Thefull performance of a new battery is achieved only after
two or three complete charge and discharge cycles. The
battery can be charged and discharged hundreds of times,
but it will eventuallywear out. Whenthe talk and standby
times are noticeably shorter than normal, buy a new battery.
Useonlymanufacturerapproved batteries, and recharge your
battery onlywith manufacturer approved chargersdesignated
for this device.
Unplug the charger from the electrical plug and the device
when not in use. Do not leave a fully charged battery
connected to theACcharger,since overcharging mayshorten
its lifetime. If left unused, a fully charged battery will lose its
charge over time. If the battery is completely discharged, it
maytake a few minutesbeforethe charging indicator appears
on the display or before any calls can be made.
Use the battery only for its intended purpose. Never use any
charger or battery that is damaged.
Do not short-circuit the battery. Accidental short-circuiting
can occur when a metallic object such as a coin, clip, or pen
3

causes direct connection of the positive (+) and negative (- )
terminals of the battery. Theselook like metal strips on the
battery. This might happen, for example, when you carry a
spare battery in your pocket or purse. Short-circuiting the
terminals may damage the battery or the connecting object.
Leavingthe battery in hot or cold places, such as in a closed
car in summer or winter conditions, will reduce the capacity
and lifetime of the battery. Always try to keep the battery
between 15 °C and 25 °C (59°F and 77 °F). A device with a
hot or cold battery may not work temporarily, even when the
battery is fully charged. Battery performance is particularly
limited in temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode.
Batteries may also explode if damaged. Disposeof batteries
according to local regulations. Please recycle when possible.
Do not dispose as household waste.
Replacing the battery
Your smartphone uses a Lithium-polymer battery. Replace
the battery with the same type as that which came bundled
with your product. Use of another battery may present a risk
of fire or explosion.
Warning! Batteries may explode if not handled
properly. Do not disassemble or disposeof them in
fire. Keep them away from children. Follow local
regulations when disposing of used batteries.
Disposal and recycling information
Do not throw this electronic device into the trash
when discarding.
To minimize pollution and ensure utmost protection
of the global environment, please recycle. For more
information on the Waste from Electrical and
Electronics Equipment (WEEE) regulations, visit www . acer -
gro u p.com / public / Sus tainability
4

EEEyönetmeligine uygundur.
It is compliant with EEE regulations.
Regulatory information
Compliant with Russian regulatory certification
RoHS compliance
This product is in compliance with Directive 2011/65/EC of
the European Parliamentand of the Council of 8 June2011,
on the restriction of the use of certain hazardoussubstances
in electrical and electronic equipment (RoHS) and its
amendments.
Prevention of hearing loss
A pleine puissance, l’écoute prolongée du baladeur
peut endommager l’oreille de l’utilisateur.
Note: For France,mobile headphones or earphones for this
device have been tested to comply with the Sound Pressure
requirementlaid down in the applicable NFEN50332-1:2000
and/or NFEN 50332-2:2003standards as required by French
Article L. 5232-1.
Caution: Permanent hearing loss may occur if
earphones or headphones are used at high
volume for prolonged periods of time.
Wirelessoperation channels for different domains
N. America 2.412-2.462 GHz Ch01 through Ch11
Japan 2.412-2.484 GHz Ch01 through Ch14
EuropeETSI 2.412-2.472 GHz Ch01 through Ch13
5

List of National Codes
Thisequipment may be operated in the following countries:
Country
Austria
Belgium
Cyprus
Czech Republic
Denmark
Estonia
Finland
France
Germany
Greece
Hungary
Ireland
Italy
Latvia
Lithuania
Luxembourg
ISO 3166
2 letter code
AT
BE
CY
CZ
DK
EE
FI
FR
DE
GR
HU
IE
IT
LV
LT
LU
Country
Malta
Netherlands
Poland
Portugal
Slovakia
Slovenia
Spain
Sweden
United Kingdom
Iceland
Liechtenstein
Norway
Switzerland
Bulgaria
Romania
Turkey
ISO 3166
2 letter code
MT
NT
PL
PT
SK
SL
ES
SE
GB
IS LI
NO
CH
BG
RO
TR
Certificate Information
( S AR)
Thisdevice meets the EU requirements (1 999/519/ E C ) on the
limitation of exposure of the generalpublic to ele c t r om agn e tic
fields by way of health protection.
Thelimits are part of extensiverecommendations for the
protection of the generalpublic. These recommendations
have been developed and checked by independent scientific
organizationsthrough regular and thorough evaluations of
scientific studies. To guarantee the safety of all persons,
regardlessof age and health, the limits include a significant
safety buffer.
Before radio devices can be put in circulation, their
agreement with European laws or limits must be confirmed;
only then may the CE symbol be applied.
Theunit of measurement for the European Coun cil' s
recommended limit for mobile telephones is the "Specific
Absorption Rate" (SAR). This SAR limit is 2.0W/kg, averaged
over 10 g of body tissue. It meets the requirements of the
6

International Commission on Non-Ionizing Radiation
Protection (ICNIRP) and was included in the European
Standard EN 50360 for mobile radio devices. The SAR
regulation for mobile telephones is in line with European
Standard EN 62209-1. The maximum SAR value is calculated
at the highest output levelin all frequencybands of the
mobile telephone.
For body worn operation, this phone (EU model ) has been
tested and meets the ICNIRP exposure guidelines, and was
included in the European Standard EN 62311 and EN 62209-
2 for use with accessories that contain no metal and that
position the handset a minimum of 1.5 cm from the body. Use
of other accessoriesmaynot ensure compliance with ICNIRP
exposure guidelines. If you do not use a body - w or n accessory
and are not holding the phone at the ear,position the handset
a minimum of 1.5 cm from your body when the phone is
switched on.
During use, the actual SAR levelis usuallymuch lower than
the maximum value,because the mobile telephone works in
different output levels. It only transmits with as much output
as is required to reach the network. In generalthe following
applies: Thecloser you are to a base station, the lower the
transmission output of your mobile telephone. The tested
SAR of this device is as follows:
CE
Head (W/kg)
Body ( W /k g )
0.389
0.428
7

Lithium-ion battery warning
ATTENZ ION E ! Rischio di e s pl osi one della b a tt er i a s e so sti tui t a
in modo errato. Sos t it ui re la batteria con un una di tipo
uguale o equivalente consigliata dalla fabbrica. No n
disperdere le ba tt erie ne l l’a mbie nt e.
VOR S ICHT ! Explosi onsg e f a h r bei unsachgemäßen Aus t ausch
der Batterie. E rs a t z nur durch denselben oder einem vo m
Hersteller empfohlenem ähnlichen Typ. Ents orgung
gebr a u c h t e r Batterien nach Angaben d e s Herstellers .
ADVARS E L I ! Lithiumbatteri - Eksplosionsfare ved f e jl agti g
håndtering. Udskiftning må kun ske med batteri af sam m e
fabrikat og type. Levér det brugte batteri t ilb a g e til
l eve r a n døren.
VARNING! Explosionsfara vid felaktigt batteribyte. Anv ä nd
samma batterityp eller en ekvivalent typ so m
rekommenderas av apparattillverkaren. Ka ss er a använt
batteri enligt fabrikantens ins trukti on.
VAROITUS! P a r i st o voi räjähtää, j o s se on virhe e lli se sti
asennettu. Vaihda paristo ainoastaan la it ev almi sta jan
sousittelemaan tyyppiin. Hävitä käytetty paristo va l mi sta ga n
ohjeiden mukaises t i.
ATTENTION ! Il y a danger d’explosion s ’il y a r e mpla cem ent
i n co rre c t de la ba tt e rie . Remplacer uniq u e me n t avec une
batterie du mêre type ou d’ un type équivalent r e com m andé
par le constructeur.Mettre au rebut l es ba tt erie s us agées
conformément aux in str uc t i ons du fabri c a n t .
ADVARSEL! Eks plosjons f are ved feilaktig s ki ft e av b a tt er i .
Be nyt t samme batteritype eller en ti lsv a r e nd e type a nbe fa lt
av a pp a ra tf abr i k anten . Brukte batterier ka ss er es i henho l d
til fabrik a n t e ns i n str uk sjon er .
Please directly from the dealer purchase correct to adapter OR
Please follow to the below spec purchase adapter to avoid
dangerous
8

0682
Acer Incorporated
Declaration of Conformity
We, Acer Incorporated,
of 8F., No. 88, Sec. 1, Xintai 5th Rd., Xizhi Dist, New Taipei City, 22181, Taiwan
Declare under sole responsibility that the product:
Model: T04
Description: Smart Handheld
To which this declaration relates, is in conformity with the following standards and/or other
normative documents:
• EN 301 511 V9.0.2
• EN 301 908-1 V7.1.1; EN 301 908-2 V6.2.1; EN301 908-13 V6.2.1
• EN 300 328 V1.9.1
• EN 300 440-1 V1.6.1; EN 300 440-2 V1.4.1
• EN 301 489-1 V1.9.2; EN 301 489-3 V1.6.1; EN 301 489-7 V1.3.1
• EN 301 489-17 V2.2.1; EN 301 489-24 V1.5.1
• EN 55022:2010/AC:2011 Class B; EN 55024:2010
• EN 55013:2013; EN 55020:2007/A11:2011
• EN 60950-1:2006+A11:2009+A1:2010+A12:2011
• EN 50332-1:2013; EN 50332-2:2013
• EN 50360:2001/A1:2012;EN 62311:2008; EN 62209-1:2006; EN 62209-2:2010;
EN 62479:2010,EN50566:2013/AC:2014
• EN 50581:2012
We hereby declare that the above named product is in conformance to all the essential
requirements of the the RoHS Directive 2011/65/EU and R&TTE Directive(1999/5/EC)issued
by the Commission of the European Community.
The conformity assessment procedure referred to in Article 10 and detailed in Annex [IV] of
directive 1999/5/EChas been followed related to Articles:
• R&TTEArticle 3.1 (a) Health and Safety
• R&TTE Article 3.1 (b) EMC
• R&TTEArticle 3.2 Spectrum Usage
with the involvement of the following Notified Body:
CETECOM, Untertuerkheimer Str. 6 –10 66117 Saarbruecken
Identification mark: 0682 (Notified Body) CE
The technical documentation relevant to the above equipment will be held at:
Acer Incorporated
8F., No. 88, Sec. 1, Xintai 5th Rd., Xizhi Dist, New Taipei City, 22181, Taiwan
Authorized person:
Name: Harriot SL Lee
For the address/telephone number of Acer service center, please refer to the warranty
card.

FCC regulations
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interferencein a
residential installation. This equipment generates, uses and can radiated
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technicianfor help.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.

IC regulations
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement."
CAN ICES-3(B)/NMB-3(B)

RF exposure information (SAR)
This device meets the FCC/IC requirements on the limitation of exposure of
the general public to electromagneticfields by way of health protection.
The unit of measurement for the FCC/IC limit is the "Specific Absorption
Rate" (SAR). The SAR limit set by the FCC/IC is 1.6 W/kg, averaged over 1
g of tissue. The FCC and IC have granted an Equipment Authorization for
this device with all reported SAR levels evaluated as in compliance with the
FCC and IC RF exposure guidelines. SARinformation on this device is on
file with the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on the FCC ID for your device,
which can be found on the product labeling of your device.
For body-worn operation, this device has been tested use with accessories
that contain no metal and that position the handset a minimum of 1.0 cm
from the body. Use of other accessories may not ensure compliance with
RF exposure. If you do not use a body-worn accessory and are not holding
the device at the ear, position the handset a minimum of 1.0 cm from your
body when the device is switched on.
During use, the actual SAR level is usually much lower than the maximum
value. In general, the closer you are to a base station, the lower the
transmission output of your device. To reduce exposure to RF energy, use a
hands-free accessory or other similar option to keep this device away from
your head and body.
This phone meets the FCC and IC requirements on the limitation of
exposure of the general public to electromagnetic fields by way of health
protection.
The highest SARvalue of this device islisted below:
FCC (W/kg @1g)
IC (W/kg @1g)
Head
0.28
0.28
Body
1.15
1.15
