Acteon SOPIX Series User manual

User’s manual
SOPIX SERIES

ENGLISH
SOPIX SERIES • User’s manual 1
Contents
FOREWORD....................................................................................................2
DIGITAL X-RAY SYSTEM INTRODUCTION ................................................................... 3
PRECAUTIONS FOR USE......................................................................................5
STANDARDS AND REGULATIONS............................................................................ 8
SYSTEM CONFIGURATION.................................................................................. 14
INSTALLATION AND CONNECTION ........................................................................ 16
USE ........................................................................................................... 18
MAINTENANCE .............................................................................................. 20
AFTER-SALES SERVICE ..................................................................................... 23
TECHNICAL FEATURES ..................................................................................... 25

ENGLISH
SOPIX SERIES • User’s manual
2
FOREWORD
Thank you for placing trust in us by purchasing a SOPIX series system.
The SOPIX series comprises the SOPIX, SOPIX², SOPIX inside and SOPIX² inside systems. This user’s manual applies to each of the
systems in the SOPIX series.
To optimise the use of this device, we recommend you read the owner’s manual thoroughly before using a SOPIX series system and
carefully follow the instructions contained in this manual.
Please carefully consider the messages “CAUTION”, “WARNING”, and “NOTE” when using the system.
WARNING: the term WARNING describes potential incidents likely to jeopardize safety.
!
CAUTION: the term CAUTION refers to incidents that may interfere with smooth running of the imaging system and cause minor
injuries.
NOTE : the term NOTE highlights particular points in order to aid system maintenance or clarify important information.
!
CAUTION: Federal laws restrict these devices to sale by or on the order of a dentist.
NOTE : Some models described in this manual may not be available for sale in United States.Please consult Sopro’s representative
for availability
REWO

ENGLISH
SOPIX SERIES • User’s manual 3
DIGITAL X-RAY SYSTEM INTRODUCTION
2.1. FUNCTIONS AND PERFORMANCE
The SOPIX series digital X-ray imaging systems are intended to be used by a dental practitioner. The sensor (located in the patient’s
mouth just like a silver film) captures the X-rays produced by the generator. Then it transmits this data to the computer to display
the X-ray image on the screen.
All the images captured with the SOPIX series system can be recalled onto the screen with the Sopro Imaging software provided with
the system. This software manages the display, processing and storage of images taken with the SOPIX series system.
A.C.E™ (Automatic Control Exposure) technology, patented by SOPRO, provides the system with outstanding features. In real time
it analyses the quantity of energy received by the sensor, which fixes the image acquisition once it has received the energy needed
to produce a good-quality image. As a result, every image is protected against overexposure.
Integration of the SOPIX inside and SOPIX² inside systems into the X-Mind unity X-ray generator from the company De Götzen, which
is a member of the ACTEON group, provides a communication that is unique in the world. Once the sensor has received the energy
necessary to obtain a good-quality image, it sends the information to the generator which cuts X-ray emission. The dose received
by the patient is thus adapted to his/her dental morphology. Since the A.C.E technology affects exposure time, when used in
combination with X-Mind Unity X-Ray generator, the SOPIX Inside and SOPIX2 Inside A.C.E feature is an automatic exposure control
technology.
M INTR

ENGLISH
SOPIX SERIES • User’s manual
4
2.2. PARTS LIST
The SOPIX or SOPIX² dental digital X-ray system is composed of the following elements:
• A sensor, size 1, linked to its controller via a cable of 3.70 meters total length
or
• A sensor, size 2, linked to its controller via a cable of 3.70 meters total length
• A sensor holder.
The SOPIX inside or SOPIX² inside dental digital X-ray system is composed of the following elements:
• A sensor, size 1, linked to its controller via a cable of 0.70 meter in length.
• A sensor, size 2, linked to its controller via a cable of 0.70 meter in length.
• A sensor holder ready-positioned on the controller.
• An installation manual.
• A 5 meter USB active repeater cable.
All the digital X-ray systems in the SOPIX series combine the following elements:
• A batch of 10 sensor sleeves.
• A CD-ROM of SOPRO Imaging software.
• Multilingual user’s manual incorporated into the Sopro-Imaging software CD-ROM.
• A quick startup guide.
• A poster presenting sensor precautions for use.
• Optional: the positioning kit.
The SOPIX series systems are packaged in a custom carton. This carton should be kept for future possible transportation. For more
details about these products, please refer to our catalogue or contact our commercial service.
NOTE :
The SOPIX series systems and their accessories have been designed to maximize performance and safety. The use of different origin
accessories may reduce the performance and safety of these devices. Only use SOPRO accessories and authorized SOPRO after-sales
services.

ENGLISH
SOPIX SERIES • User’s manual 5
PRECAUTIONS FOR USE
3.1. SAFETY INSTRUCTIONS
WARNING:
• Comply with the operating and storage requirements to avoid any risk of electric shock or degradation of the SOPIX series system.
• Never insert any metallic object into the device, in order to avoid any risk of electric shock, fire, short-circuit or hazardous
discharge.
• Do not put the device in a humid environment or where it could be sprayed with water, in order to avoid any risk of degradation
of the SOPIX series system or any risk of electric shock.
• Only use the connecting cable(s) supplied with the SOPIX series system in order to avoid any risk of electric shock or degradation
of the system.
!
CAUTION:
• Do not open the system and do not try to take it apart or modify it, in order to avoid any risk of malfunctioning of the SOPIX series
system.
• Always connect the device to a USB port to avoid any risk of malfunctioning of the SOPIX series system. For more information,
please refer to section 3.5 of this manual.
WARNING:
Sopix Series Sensors require x-rays: Before using this x-ray system please refer to the regulation in force in your area concerning
paediatric patients, pregnant women and anyone with health issues that contraindicate the use of x-rays. Investigate and make sure
of this condition before start the exposure.
WARNING:
Modification of these systems, without the permission of the manufacturer, is prohibited.
WARNING:
If the system is modified an appropriate control and test should be performed to ensure that the system can still be used safely.
TIONS

ENGLISH
SOPIX SERIES • User’s manual
6
3.2. SYSTEM OPERATING ENVIRONMENT
Refer to section 10 “Technical features”.
3.3. TRANSPORT AND/OR STORAGE ENVIRONMENT OF THE SYSTEM
Refer to section 10 “Technical features”.
3.4. PRECAUTIONS FOR THE SENSOR(S)
It is imperative to take some precautions for use of the sensors, particularly:
!
CAUTION:
• YOU MUST handle the sensor with great care.
• YOU MUST use a positioning kit to correctly place the sensor.
• YOU MUST use a disinfectant wipe to clean the sensor.
• YOU MUST put the sensor on its support.
• DO NOT ask the patient to bite the sensor or the connecting cable.
• DO NOT immerse the sensor.
• DO NOT open the sensor or controller in case of failure.
• DO NOT use protections other than the SOPRO sensor sleeves.
WARNING:
• YOU MUST use a SOPRO sensor sleeve for each patient.
• DO NOT put the sensor in an autoclave.
• DO NOT drop the sensor.
• DO NOT hold the sensor with clamp forceps.
• DO NOT hold the sensor by the connecting cable.
• DO NOT roll over or walk on the connecting cable.
• DO NOT use abrasive product to clean the sensor.

ENGLISH
SOPIX SERIES • User’s manual 7
3.5. PRECAUTIONS FOR THE USB PORT
Most current motherboards are equipped with two USB channels. Each channel has two USB ports to which various peripherals can
be connected.
!
CAUTION:
It is advisable to dedicate a High Speed USB channel to the digital X-ray system. This will ensure that the performance and the
transmission speed of the SOPIX series system data will not be affected by the fact that another peripheral is on the same channel.
3.6. ELECTROMAGNETIC INTERFERENCE
Electromagnetic compatibility (CEM) is the ability of electronic device elements to correctly interact in an electronic environment.
Although the SOPIX series systems were designed with due regard to this compatibility and comply with the electromagnetic
interference thresholds established by the regulatory agency, there is no guarantee about the interference likely to occur on a
particular installation.
If a SOPIX series system generates interference with radio-communication services (which can be determined by switching it off and
on), the user is recommended to try to correct this phenomenon by taking some or all of the following measures:
• Change the direction of the receiving antenna.
• Reposition the product in relation to the receiver.
• Distance the computer from the receiver.
The SOPIX series digital X-ray systems were designed and tested to be used in a domestic environment, class B Group 1, according
to CISPR11 standard.
3.7. ELECTROSTATIC INTERFERENCE
A strong electrostatic discharge may logically disconnect a SOPIX series system from the computer’s USB (Universal Serial
Bus) port. In most cases, the SOPIX series system recovers by itself. Thereafter, it is wise to:
• Set up the sensor sleeve before putting the SOPIX series system in readiness for image acquisition,
• Dissipate your static charge by touching, for example, a metallic part of the dental chair before taking an X-ray image.

ENGLISH
SOPIX SERIES • User’s manual
8
STANDARDS AND REGULATIONS
4.1. COMPLIANCE WITH STANDARDS AND REGULATIONS
Compliance with European Community directives
The SOPIX series system design, manufacturing and distribution comply with the requirements of the European Medical Devices
Directive 93/42/EEC.
SOPRO certifies that this device underwent control tests and was declared as complying with the restrictions imposed by the safety
standards for medical electrical equipment (IEC 60601-1) and electromagnetic compatibility (IEC 60601-1-2).
Medical device vigilance
Like any medical device, SOPIX series systems are subject to medical device vigilance provisions; any serious malfunction should
then be the subject of a report to the competent authorities and to the manufacturer as soon as possible and as precisely as possible.
Scrapping the system
SOPIX series systems bear the recycling symbol according to the European directive 2002/96/EC concerning waste electrical and
electronic equipment (WEEE).
By correctly disposing of this device, you will avoid damaging the environment and human health.
The symbol appearing on the device or on the accompanying documentation indicates that this product cannot under any
circumstances be treated as household waste. Therefore, it should be given to a waste collection center that handles electrical and
electronic equipment recycling. Standards in force in the country of installation relating to waste disposal must be observed. For
more details about the treatment, recovery and recycling of this device, please contact your dental device distributor (or failing
that, the ACTEON group site) regarding the recommended procedure.
AND

ENGLISH
SOPIX SERIES • User’s manual 9
WARNING:
To avoid any risk of environmental contamination likely to cause mild or serious injuries, be sure to dispose of the device and its
accessories as special waste.
Electromagnetic compatibility
Guidance and manufacturer’s declaration – electromagnetic emissions
The SOPIX series systems are intended for use in the electromagnetic environment specified below. The
customer or the user of the SOPIX series systems should assure that it is used in such an environment.
Emissions test Compliance Electromagnetic environment - Guidance
RF emissions
CISPR 11 Group 1
The SOPIX series systems use RF energy only for its internal function.
Therefore, its RF emissions are very low and are not likely to cause
any interference in nearby electronic equipment.
RF emissions
CISPR 11 Class B The SOPIX series systems are suitable for use in all establishments,
including domestic establishments and those directly connected to
the public low-voltage power supply network that supplies buildings
used for domestic purposes.
Harmonic current emissions
EN 61000-3-2 Not applicable
Voltage fluctuations / Flicker
EN 61000-3-3 Applicable

ENGLISH
SOPIX SERIES • User’s manual
10
Guidance and manufacturer’s declaration – electromagnetic immunity
The SOPIX series systems are intended for use in the electromagnetic environment specified below. The customer
or the user of the SOPIX series systems should assure that it is used in such an environment.
Immunity test IEC 60601
test level Compliance level Electromagnetic environment Guide
Electrostatic
discharges
EN 61000-4-2
± 6 kV when in contact
± 8 kV in the air
± 6 kV
± 8 kV
Floors should be wood, concrete or ceramic tile. If
floors are covered with synthetic material, the relative
humidity should be at least 30 %.
Fast transient bursts
EN 61000-4-4
± 2 kV for the feed cables
± 1 kV for the input/out-
put cables
± 2 kV
± 1 kV
Mains power quality should be that of a typical
commercial or hospital environment.
Voltage shocks
EN 61000-4-5
±1 kV line(s) to line(s)
±2 kV line(s) to earth
± 1 kV
N.A.
Mains power quality should be that of a typical
commercial or hospital environment.
Voltage dips, short
interruptions and
voltage variations
EN 61000-4-11
<5 % UT(>95 % dip in UT)
for 10 ms
40 % UT (60 % dip in UT)
for 100 ms
70 % UT(30 % dip in UT)
for 500 ms
<5 % UT(>95 % dip in UT)
for 5 sec
< 5% Ut
10 ms
< 40% Ut
100 ms
< 70% Ut
500 ms
< 5% Ut
5 s
Mains power quality should be that of a typical
commercial or hospital environment. If the user of
a SOPIX series system requires continued operation
during power mains interruptions, it is recommended
that the SOPIX series systems be powered from an
uninterruptible power supply or a battery.
Power frequency
(50/60 Hz) magnetic
field IEC 61000-4-8
3 A/m 3 A/m
Power frequency magnetic fields should be at levels
characteristic of a typical location in a typical
commercial or hospital environment.
NOTE : UT is the a.c. mains voltage prior to application of the test level.

ENGLISH
SOPIX SERIES • User’s manual 11
Guidance and manufacturer’s declaration – electromagnetic immunity
The SOPIX series systems are intended for use in the electromagnetic environment specified below. The customer
or the user of the SOPIX series systems should assure that it is used in such an environment.
Immunity test IEC 60601
test level Compliance level Electromagnetic environment Guide
Conducted RF
EN 61000-4-6
Radiated RF
EN 61000-4-3
3 Vrms
150 kHz to 80 MHz
3 V/m
80 MHz to 2.5 GHz
3V
3V/m
Portable and mobile RF communications equipment should
be used no closer to any part of the SOPIX series systems,
including cables, than the recommended separation distance
calculated from the equation applicable to the frequency of
the transmitter.
Recommended separation distance
d = 1.16√P
d = 1.16√P 80 MHz to 800 MHz
d = 2.33√P 800 MHz to 2.5 GHz
where is the maximum output power rating of the
transmitter in watts (W) according to the transmitter
manufacturer and dis the recommended separation distance
in metres (m).
Field strengths from fixed RF transmitters, as determined
by an electromagnetic site survey,a should be less than the
compliance level in each frequency range.b
Interference may occur in the vicinity of equipment
marked with the following symbol:
NOTE 1:At 80 MHz and 800 MHz, the higher frequency band applies.
NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption
and reflection from structures, objects and people.

ENGLISH
SOPIX SERIES • User’s manual
12
a. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios,
amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the elec-
tromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field
strength in the location in which the SOPIX series systems are used exceeds the applicable RF compliance level above, the SOPIX
series systems should be observed to verify normal operation. If abnormal performance is observed, additional measures may be
necessary, such as reorienting or relocating the SOPIX series systems.
b. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
Recommended separation distances between portable and mobile
RF communication equipment and the SOPIX series systems
The SOPIX series systems are intended for use in an electromagnetic environment in which radiated RF disturbances are
controlled. The customer or the user of the SOPIX series systems can help prevent electromagnetic interference by maintaining
a minimum distance between portable and mobile RF communications equipment (transmitters) and the SOPIX series systems as
recommended below, according to the maximum output power of the communications equipment.
Rated maximum output
power
of transmitter
W
Separation distance according to frequency of transmitter - m
150 kHz to 80 MHz 80 MHz to 800 MHz 800 MHz to 2,5 GHz
d = 1.6 √P d = 1.6 √P d = 2.33 √P
0.001 0.116 0.116 0.233
0.1 0.366 0.366 0.736
1 0.16 1.16 2.33
10 3.66 3.66 7.36
100 11.6 11.6 23.3
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be
estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1:At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and
reflection from structures, objects and people.

ENGLISH
SOPIX SERIES • User’s manual 13

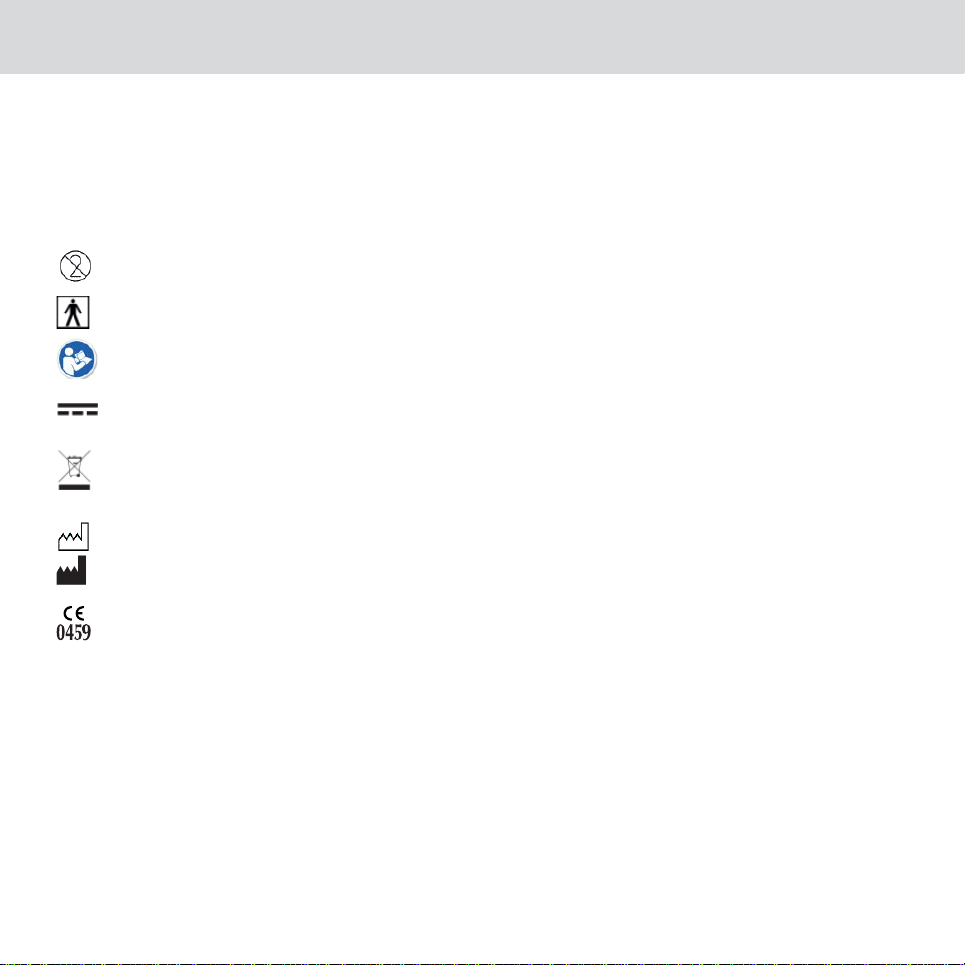

4.2. KEY TO STANDARDISED SYMBOLS
The symbols appearing on the connection housings identify the SOPIX series systems according to the international standards IEC
60601-1 and IEC 60417.
Sensor sleeve for single use.
“Type BF applied part”.
Follow instructions for use.
Continuous voltage.
Disposal of electrical and electronic equipment marketed after 13 August 2005. This symbol indicates that the product
cannot be treated with domestic waste.
For medical devices, this symbol is accompanied by the year of manufacture (expressed in four digits).
For medical devices, this symbol is accompanied by the name and address of the manufacturer.
Product compliance according to the European Medical Devices Directive 93/42/EEC.

ENGLISH
SOPIX SERIES • User’s manual
14
SYSTEM CONFIGURATION
5.1. COMPUTER SYSTEM REQUIREMENTS
To use one of the SOPIX series systems, you must make sure the computer and its peripherals do not have any limitation of use that
might affect personal safety. It should also meet the following requirements:
Windows® configuration:
Minimum Configuration Recommended Configuration
Operating system Windows® XP Pro SP3 Windows® 7 Pro SP1
Processor Intel® Pentium IV – 1.3 GHz Intel® Core 2
Memory 512 MB 2 GB or more
Hard disk 250 GB 320 GB or more
USB ports 2 USB2.0 Hi-Speed ports 4 USB2.0 Hi-Speed ports
Video board Graphic board 32 MB of unshared video RAM
compatible with DirectX 9
Chipset Nvidia or ATI / 512 MB RAM unshared
video RAM compatible with DirectX 9 or
higher.
USB Chipset Intel or NEC® / RENESAS® Intel or NEC® / RENESAS®
Screen resolution 1024 x 768 1280 x 1024 or more
MAC® configuration:
Minimum Configuration Recommended Configuration
Computer MAC® Book Pro 13.3’’ or iMac® 21.5’’ iMac® 27’’
Operating system MAC® OS X 10.6 Snow Leopard MAC® OS X 10.7 Lion
Processor Intel® Core 2 Intel® Core i7
Memory 2 GB 4 GB
ONFI

ENGLISH
SOPIX SERIES • User’s manual 15
5.2. IMAGING SOFTWARE
The SOPIX series systems are provided with the Sopro Imaging dental imaging software, running in Windows® and MAC®. It is
versatile software that captures, processes, and files the X-ray images taken with the SOPIX series systems, but also allows network
sharing of your data.
Sopro Imaging can also interface with third party software (dental practice management software, imaging software). For more
information, please contact your distributor.
5.3. COMPATIBILITY WITH X-RAY GENERATORS
The SOPIX and SOPIX² digital X-ray systems are potentially compatible with all intraoral X-ray generators. Nevertheless, we
recommend X-Mind generators from De Götzen, a member of the ACTEON group, which are perfectly adapted to the SOPIX and
SOPIX² systems and provide very good system performance.
The digital imaging systems SOPIX inside and SOPIX² inside were designed to operate in combination with the X-Mind unity generator
from De Götzen to create unique communication that reduces the level of X-ray emission.
Since the A.C.E technology affects exposure time, when used in combination with X-Mind Unity X-Ray generator, the SOPIX Inside and
SOPIX2 Inside A.C.E feature is an automatic exposure control technology.The suggested technique factors and dosimetry information
pediatric population are described in X Mind unity operator’s manual Chapter 5 and Chapter 6. To obtain the default exposure times,
please select SOPIX2 Inside/Child table. It is the operator’s responsibility to protect the patient against unnecessary or excessive
radiation doses.
For more information on this topic please consult : http://pedrad.org/associations/5364/ig/Procedures/DigitalRadiography/
EducationalMaterials.aspx

ENGLISH
SOPIX SERIES • User’s manual
16
INSTALLATION AND CONNECTION
6.1. INSTALLATION OF SOPIX INSIDE AND SOPIX² INSIDE TO THE ARM OF THE X-RAY GENERATOR
Refer to the installation manual for SOPIX inside and SOPIX² inside provided with the system.
WARNING: Installation must be performed by a specialized, SOPRO-authorized technician.
6.2. INSTALLATION OF SOPRO IMAGING SOFTWARE
Refer to the Sopro Imaging installation manual to be found on the Sopro Imaging software CD-ROM in the document directory.
6.3. SOPIX SERIES SYSTEM INSTALLATION
Before installing the SOPIX series digital X-ray system, make sure the computer is connected to a correctly earthed socket.
Now, go through the following steps:
!
CAUTION: Insert the Sopro Imaging software CM-ROM into the CD drive in order to install the drivers.
• Select the device driver by checking the box “SOPIX/SOPIX2”.
• Click on “Install selected items”.
• After clicking on “Install selected items”, the “Minimum requirements” window appears.
• When verification is finished, click on “Ok”.
N AND

ENGLISH
SOPIX SERIES • User’s manual 17
• Follow the successive steps displayed on the screen.
• Connect the SOPIX series system USB connector to the computer.
!
CAUTION:
• Never connect the USB cable to the port found on the computer front plate.
• In fact, the connectors found on the computer front plate are much more sensitive to the various forms of USB signal interference
and this may cause a malfunction of the digital X-ray system.
• For electrical safety reasons, the computer to which the imaging system is to be connected, as well as the peripherals, must
comply with standard IEC 60950-1 (EN 60950-1). Make sure their manuals indicate that they do comply with this standard and that
they provide a cleaning and/or disinfecting procedure.
• The elements connected to SOPIX series systems should not be placed within the patient’s environment, in compliance with
standard IEC 60601-1-1 (EN 60601-1-1). The minimum horizontal distance between the patient and these elements is 1.5 meters.
The minimum vertical distance between the patient and these elements is 2.5 meters.
• No mobile stand with multiple plugs, no extension cord (other than that supplied by SOPRO) should be connected to the system.
Check the electrical installation compliance with the standards in force in the country where the system is located.
6.4 SETTING UP SOPRO IMAGING SOFTWARE WITH A SOPRO SERIES SYSTEM
Refer to the Sopro Imaging user’s manual to be found on the Sopro Imaging software CD-ROM in the document directory.

ENGLISH
SOPIX SERIES • User’s manual
18
USE
The SOPIX series systems are intended to be used by a dental practitioner. Their use does not require any special training. Consult
the instructions in this manual.
7.1. ACQUISITION OF AN X-RAY IMAGE
First, switch on the PC on which the SOPIX series system is installed and launch the imaging software (Sopro Imaging, for example).
• Set your generator and the timer.
• Slip the sensor into a sensor sleeve
WARNING:
Always verify device integrity before using it, no breaks in plastic parts, no cut wires : risk of electric shock.
Before each examination, it is mandatory to apply to the collimator cone (Beam Limiting Device) a disposable protection sheath
designed to cover the end part of the X-ray unit, which is more susceptible of being directly contaminated during the X-ray exposure:
risk of cross-contamination
NOTE :
For further information, please refer to section 7.2 “Using sensor sleeves”.
• Place the sensor in the patient’s mouth parallel to the long axis of the tooth with the active face against the tooth.
WARNING:
If using a positioning kit, refer to the instructions provided with this kit. In order to prevent any risk of cross-contamination, always
observe the necessary precautions and hygiene measures described in these instructions.
• Move the generator closer to the patient’s head. Make sure the generator tube is perpendicular to the sensor positioning.
• Activate the timer trigger.
Once the exposure is finished, the imaging software downloads the x-ray image onto the screen.
U
S
E
USE

ENGLISH
SOPIX SERIES • User’s manual 19
If using SOPIX inside or SOPIX² inside, the imaging software downloads the data from the X-Mind unity X-ray generator (settings,
programmed and real exposure time, dose delivered to the area of irradiated tissues (DAP), dose saving for the patient, etc.) thanks
to the ACE technology combined with the X-Mind unity.
!
CAUTION:
If the image file is damaged, do not use it for diagnosis.
7.2. USING SENSOR SLEEVES
In order to ensure maximum hygienic safety for the patient, it is imperative to cover the SOPIX series sensor with a disposable sensor
sleeve.
WARNING:
- Wear gloves to place the sensor sleeves,
- Change the sensor sleeve for each new patient,
- Preferably use the sensor sleeves especially designed for the SOPIX series systems,
- Keep the sensor sleeves in a dry and clean place,
- Dispose of the used sensor sleeves with other biologically and potentially hazardous infected waste,
- NEVER USE FINGER COTS.
It is advisable to be well-prepared and stock up with plenty of disposable sensor sleeves because a SOPIX series system can no longer
be used once you have run out of these consumables.
NOTE :
If the sensor sleeve is torn when examining a patient or if the SOPIX series sensor has been contaminated when withdrawing the
sensor sleeve, it is essential to fully disinfect the SOPIX series sensor and the first 40cm of cable. In order to do this, please refer
to the table in the “sensor maintenance” section.
