Quick Installation Guide
LPR-100
6-Channel Desktop Standalone IVS
V180607

2 Quick Installation Guide
Thank you for purchasing ACTi Standalone IVS License Plate Recognition (LPR).
This guide contains all the information you need to quickly set up the LPR
system via local display interface.
For detailed instructions on installation and operation, please search for the
product manuals on http://www.acti.com/downloadcenter.
The items below are required for installation:
• Monitor (with HDMI or DVI input and the cable)
• USB mouse
• USB keyboard
• Network cameras
• Network cables
• Power-over-Ethernet (PoE) switch
• OneACTi-certied3.5-inchSATAharddiskdrive(HDD)
Findthecertieddiskmodelsathttp://www.acti.com/hddselector

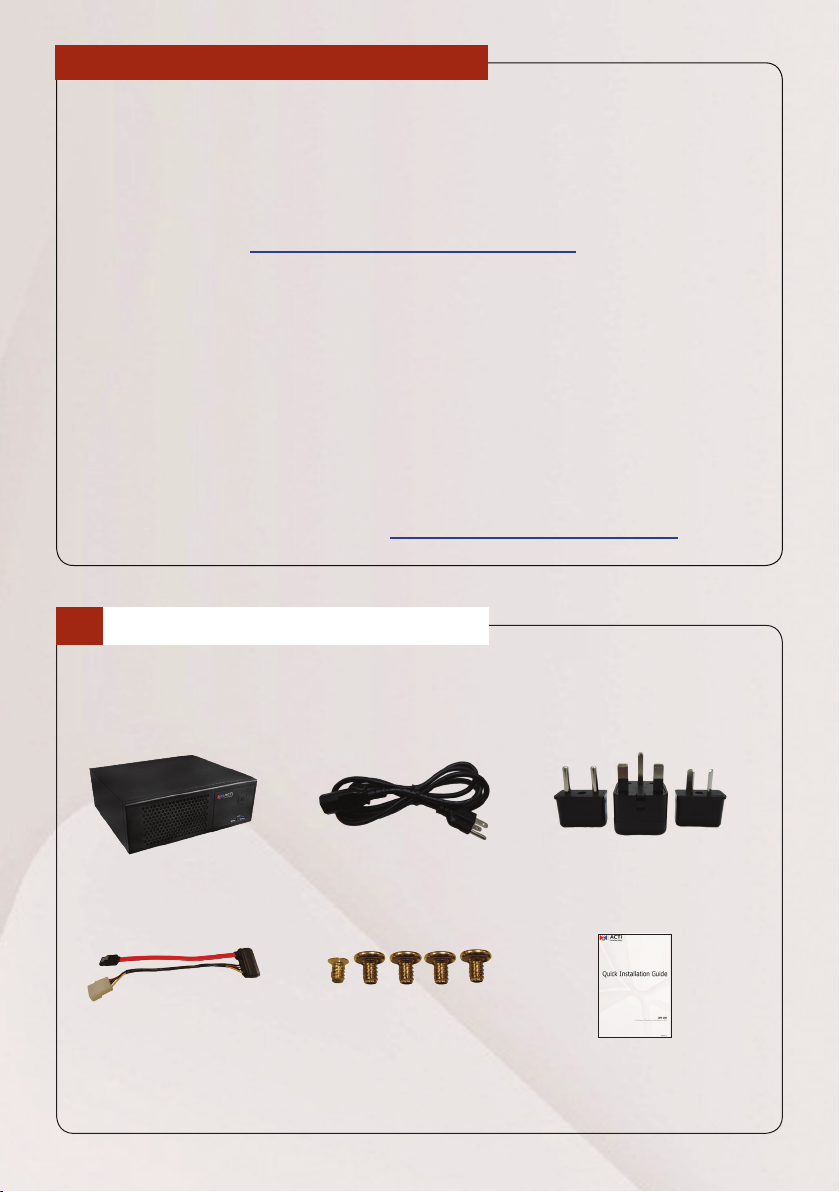

This package includes the following items:
LPR Unit Power Adapter Socket Converters
SATA Cable HDD Screws Quick Installation Guide
UNPACK
1
BEFORE YOU START

Quick Installation Guide 3
REAR PANEL
1 2 3 4 5
7 8 10
1 Power Connector
2 Display Port
3 LAN Ports x 2
4 COM Port x 2
(for RS-232)
5 Audio Output
6 eSATA Connector
7 HDMI Port
8 USB3.0Portsx4
9 DVI Connector
10
Audio Input
FRONT PANEL
1 Power Button
2 USB3.0Portsx2
2
1
AT A GLANCE
2
9
6

4 Quick Installation Guide
An optional hard disk drive or HDD (sold separately), can be installed inside the
LPR to store license plate recognition results.
MAKE SURE THE UNIT IS NOT CONNECTED TO POWER before installing the
hard disk.
INSTALL THE HARD DISK
3
Step 1
Remove the two (2)
screws; then slide the
top cover backwards to
pull off the cover.
Step 2
Remove the screw
securing the HDD plate;
then lift to remove the
plate.
Step 7
Connect the other end
of the SATA cable to the
mainboard.
Step 8
Connect the power
connector of the HDD to
the mainboard.
Step 9
Secure the plate with
one (1) screw. Close the
LPR with the top cover.
Step 4
Attach the side screw to
xtheHDDpositionon
the plate.
Step 6
Connect the bundled
SATA cable to the SATA
connector on the HDD.
Step 3
Orient the HDD on
the plate with its SATA
connector facing towards
the black foam.
Step 5
On the underside of the
plate,attach2to4screwsto
secure the HDD.
NOTE: Applicable screw holes vary
depending on the HDD models. At least
2 screws are required to secure the HDD.

Quick Installation Guide 5
The example below displays a local network consisting of an LPR, network
cameras and basic required peripherals to start using the device.
CONNECT THE DEVICES
4
Power-Over-Ethernet
(PoE) Switch
eSATA Storage
USB Devices
HDMI Monitor
Power Source
Cameras
START UP
5
1. On the front panel, press the POWER BUTTON
to turn on the LPR.
NOTE: To assign a static IP address to the LPR, after entering
Windowsoperatingsystem,congurethenetworksettingsin
Windows Network and Sharing Center.
2. On the Windows logonscreen,type“123456”
to enter the Windows system.
LPR

6 Quick Installation Guide
INITIALIZE THE HARD DISK
6
After installing the hard disk, use the Windows Disk Management to initialize
the disk to enable LPR to save the video recordings for event purposes.
1. In Windows Search Box, search and
enter “Computer Management”.
2. Select Disk Management. The Initialize Disk pop-up window will appear.
3.Select GPT as the partition style, and then click OK.
5.Follow the wizard to create the disk volume, assign the drive letter and
volumelabel.Repeatsteps4and5tocreateothervolumes,asneeded.
4.Right-click on the initialized disk
and select New Simple Volume.

Quick Installation Guide 7
The LPR is already equipped with the ALPR Server workstation software.
1. On Windows destop, double-click the IVS Client icon.
2. Input the server IP address and port number, account and password to log
in.
Account: admin
Password: 123456
“123456”isthedefaultpasswordoftheNVR
administrator’s user account. For security reasons,
please remember to change it.
7
LOGIN
Understanding the Home Screen
Click to access the corresponding pages or functions.
To switch interface language
To input additional
channel license key
To manage user
accounts
To manage system
settings
To manage event
notications
To manage server
storage
To activate License Plate
Recognition and view results
To add video source for
license plate recognition

8 Quick Installation Guide
1. On the Home screen, click Device .
2. Click Add then select the video source type from the list.
3.Input the device properties, and then click Apply.
4.Repeat above steps to add more devices. The added devices will appear on
the left panel.
5.To return to the main screen, click on the top left corner.
8
ADD VIDEO SOURCE
Green : Connected
Red : Disconnected

Quick Installation Guide 9
CREATE ANALYSIS
9
1. On the Home screen, click Main .
2. On the left is a channel list that shows the available number of channels. Click
on an empty channel and then the Create Analysis icon.
3.On the pop-up window, type the analysis name and click OK.
4.Click to select the video source.

10 Quick Installation Guide
5.The added devices are shown on the left panel, drag a video source to the
right window.
6. The video image appears on the screen.
To narrow down the area in which the algorith will actively run, draw the
Region of Interest (ROI), where the license plate will appear.

Quick Installation Guide 11
Resize to set the Maximum Plate Size Reference Frame
Resize to set the Minimum Plate Size Reference Frame
Click to draw ROI:
Polygon
Rectangle
Timeline
Input
Properties
Import/ExportConguration
7. Modify the default settings as needed.
Play Video
Select to access ALPR settings
When measuring the license
plate appearing in the view, use
the pause button freeze the
image for snapshots.
TIP:
Select the Countryfromthepredenedlisttoincreasetheaccuracyof
recognition results.
Numeric values of the
Minimum License Plate Size and
Maximum License Plate Size.
Set recording buffer time
8. Click Start to start running the analysis.

12 Quick Installation Guide
9. The Analysis page appears. Drag the channel to the right to see the live view.
10. Double-click the live view to display the Result window.
x 2
11. To see the list of results, click License Plate Recognition Result.

Quick Installation Guide 13
12. Select the video source and covered schedule, then click Search .
The list of recognized licenses will be shown on the list.
13. Check the box of the license plates data to export, then click Export .
Check to
select all
14. Selectthefoldertosavetheexportedle,thenclickStart.

Due to continuous product improvements, some contents may have changed from the
time this documentation was printed.
You can download the latest user documentation, which shall prevail over the printed
version provided in the package, from
http://www.acti.com/downloadcenter .
