ActionTec USB Bluetooth User manual

1. Introduction 1
ContactingTechnical Support 2
2. Installing the USB Wireless Bluetooth Adapter 3
2.1 Install the Software 3
2.2 Connect the Adapter 7
3. Configuring your Bluetooth Adapter 10
3.1 Install the Software 10
3.2 Creating a Bluetooth Connection 10
3.3 Configure the Adapter 11
3.4 Connect to Another Device 12
4. Working with Bluetooth Software 17
4.1 TheBluetooth Tray 17
4.2 Access My Bluetooth Places 18
4.3 Finding Bluetooth Devices 18
4.4 Finding Bluetooth Services 19
4.5 Bluetooth Connection Status 21
4.6 Bluetooth Devices and Services 22
4.7 Send to Bluetooth 24
5. Configuring for Other Services / Applications 26
5.1 Opening Bluetooth Configuration 26
5.2 Bluetooth Services vs. Applications 26
5.3 The Bluetooth Exchange Folder 27
5.4 Configuration Settings 27
5.5 Bluetooth Applications 28
5.6 Bluetooth Services 38
5.7 Hardware Settings 48
5.8 Accessibility Settings 50
5.9 Discovery Settings 52
Table of Contents Page
i

ii
Notices
53
Regulatory Compliance Notices 53
Warranty statements 55
Proprietary Notice and Disclaimer
Unless otherwise noted, this document and the information herein disclosed are propri-
etary to Actiontec Electronics, Inc the manufacturer. Any person or entity to whom this
document is furnished or who otherwise has possession thereof, by acceptance agrees that
it will not be copied or reproduced in whole or in part, nor used in any manner except to
meet the purposes for which it was delivered.
The information in this document is subject to change without notice and should not
be construed as a commitment by Actiontec the manufacturer. Although Actiontec the
manufacturer will make every effort to inform users of substantive errors, Actiontec the
manufacturer disclaims all liability for any loss or damage resulting from the use of this
document or any hardware or software described herein, including without limitation
contingent, special or incidental liability.
Note: PC is a trademark of IBM Corporation. Windows 98 , Windows 98 SE, Windows NT,
andWindowsXPis atrademark ofMicrosoft Inc.All otherbrand orproduct namesand logos
used in this manual are trademarks or registered trademarks of their respective holders.

1
Introduction
Thank you for purchasing the Actiontec USB Wireless Bluetooth Adapter.
Now you can truly enjoy the freedom of wireless connectivity with Actiontec's
Bluetooth Adapter. Simply plug this tiny adapter into any USB port on your
computer, and you can exchange information between it and any other
Bluetooth enabled device. Imagine sharing your Internet connection by simply
requesting it from any computer, or PDA. Connect on the go by using your cell
phone as a high speed modem or simply print to any bluetooth enabled printer,
The Actiontec USB Wireless Bluetooth Adapter lets you enjoy the freedom of true
mobility whether you're at the office or on the move.
What is Bluetooth?
Bluetooth is a worldwide standard for digital wireless communication and data
exchange between multiple devices. Bluetooth compliant devices exchange data
by establishing a relationship with each other, the first device acting as a client,
requests a connection, while the second device acting as a server accepts or rejects
that request. Some Bluetooth devices can behave as client and server; however
other devices can only behave as a client.
Package Contents
§Actiontec USB Wireless Bluetooth Adapter
§Installation CD
§Quick start guide
§Kid Defender Trial CD-ROM
1

2
Minimum System Requirements
§Microsoft Windows 98SE, ME, 2000, XP
§Available USB Port
§Pentium 90 or faster
§16MB or RAM
§TCP/IP installed
Technical Support
Actiontec Electronics prides itself on making high-quality, durable,
high-performance products. If you need assistance, the Actiontec Technical
SupportDepartmentisavailable everyday24hoursaday to provide professional
support.
Actiontec Electronics, Inc.
760 N. Mary Avenue
Sunnyvale, CA 94085
Technical Support
Phone: [phone]
E-mail: [email protected]
Internet: www.actiontec.com/support

InstallingtheUSB Wireless
BluetoothAdapter
The instructions that follow provide a visual guide to setting up the Actiontec
USB Wireless Bluetooth Adapter. It is recommended the user follow these
instructions prior to attempting any other procedures. This manual will guide
you through the hardware and software installation and configuration.
2.1 Install the Software
☞ STOP!!!: YoumustinstalltheBluetoothSoftwarePRIORtoconnecting
your Bluetooth Adapter to the computer. If you have already
connected the Bluetooth Adapter, please remove it now and restart
your computer.

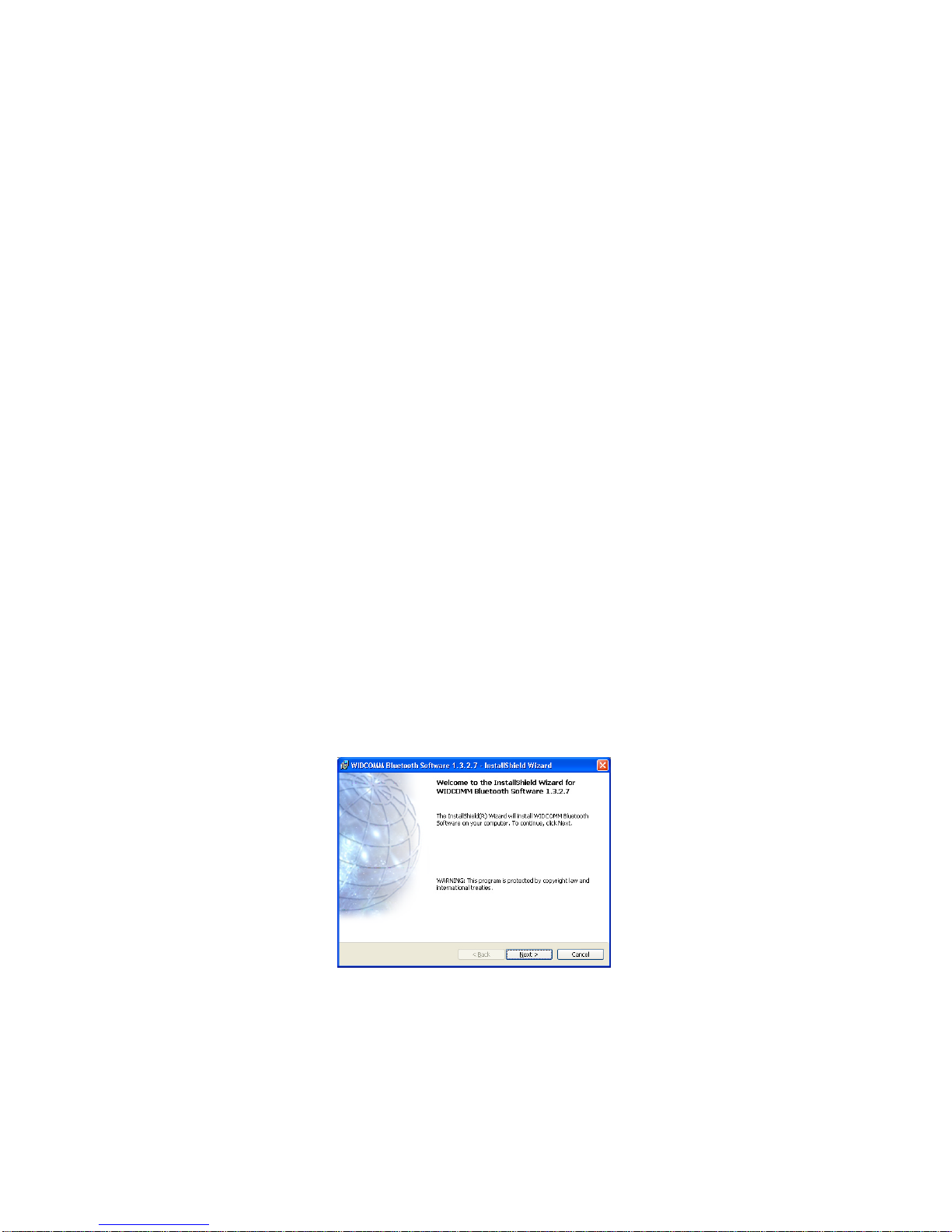

1. Make sure your computer is turned on, then put the Actiontec Installation
CD-ROM in your CD-ROM drive.
2. The Installation software should start automatically. This may take a few
moments.
When you see this window. Click Next to continue
☞ Note: If you do not see the window above, click Start on the taskbar
and then select Run. Type d:/setup (or e:/setup, depending on the
drive letter of your CD-ROM drive), then click OK.
3
2

4
Actiontec USB Wireless Bluetooth Adapter

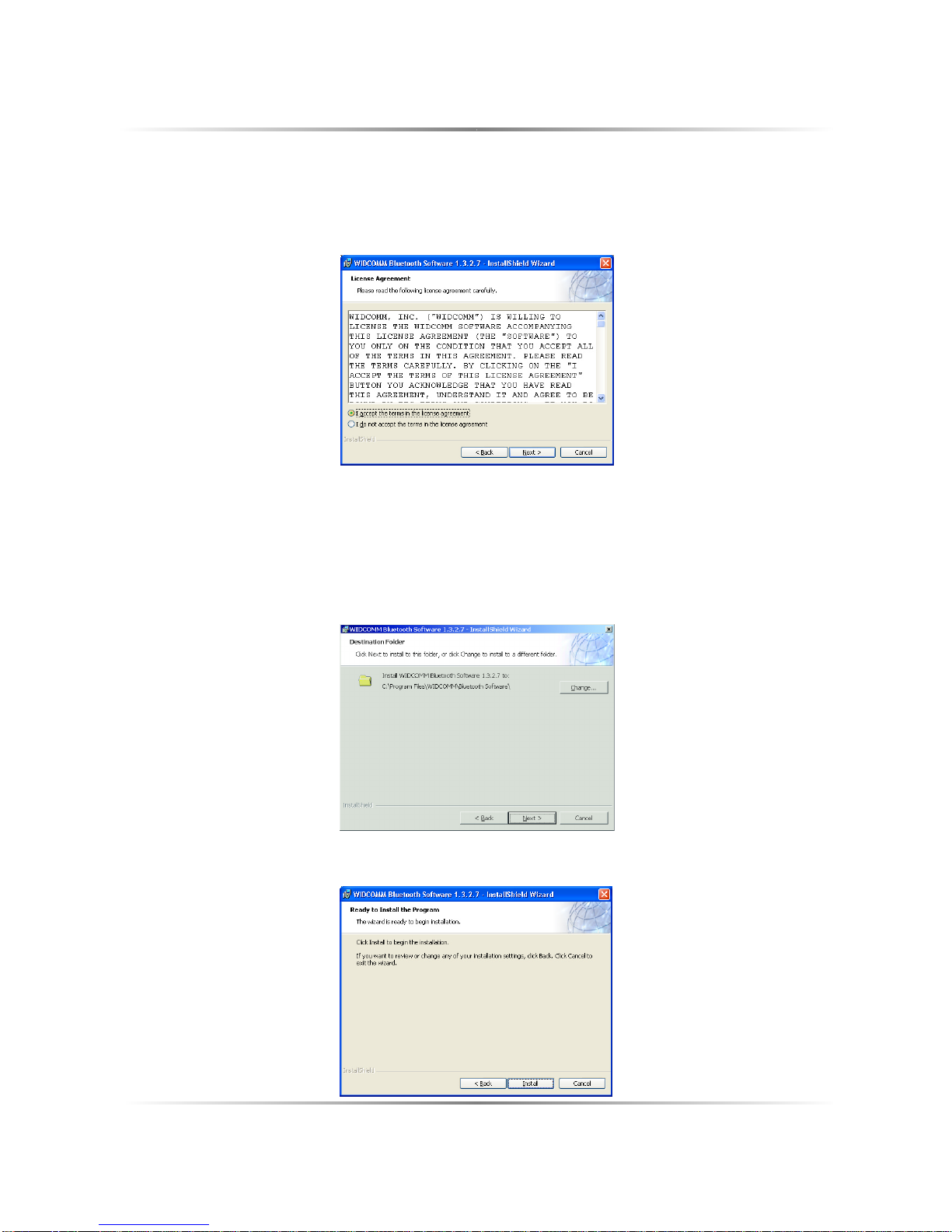

3. When you see the License Agreement screen appear, read the License
Agreement carefully. Click the circle next to “I accept the terms in the license
agreement” and then click Next to continue.
☞ Note: If you do not agree with the terms of the license agreement,
click the circle next to “I do not accept the terms in the license
agreement”andclick Next. Now youhaveterminatedthe installation
of this Bluetooth Adapter.
4. Click Next to continue.
5. Click Install to continue.

5
Chapter 2 Installing the USB Wireless Bluetooth Adapter

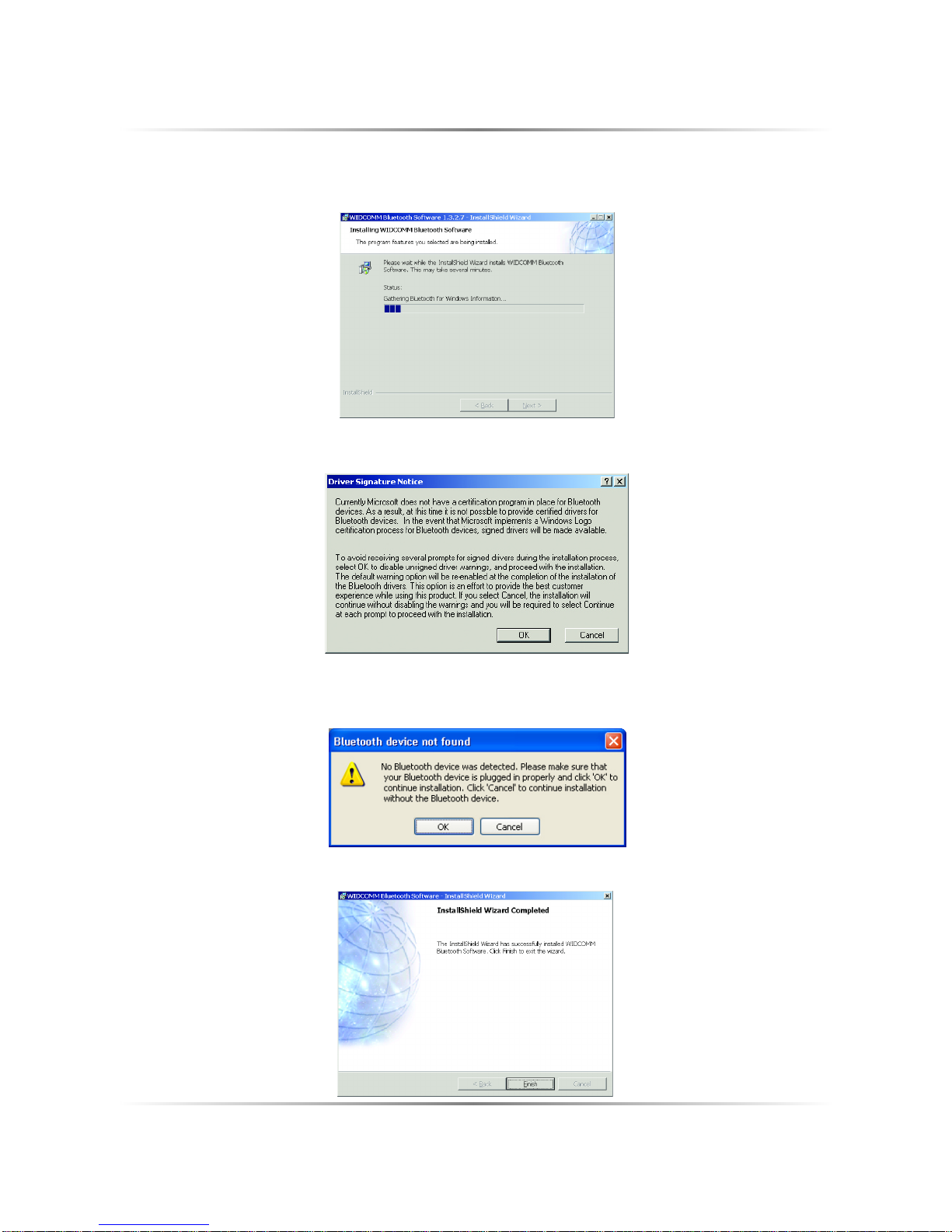

6. You will see this window. Please be patient as it will take several minutes to
install your Bluetooth software.
7. You may see this screen. If you do, click OK.
8. When the following screen appears, click Cancel to continue this installation.
Do NOT plug your Bluetooth Adapter into your computer at this time.
9. Click Finish to complete the software installation.

6
Actiontec USB Wireless Bluetooth Adapter

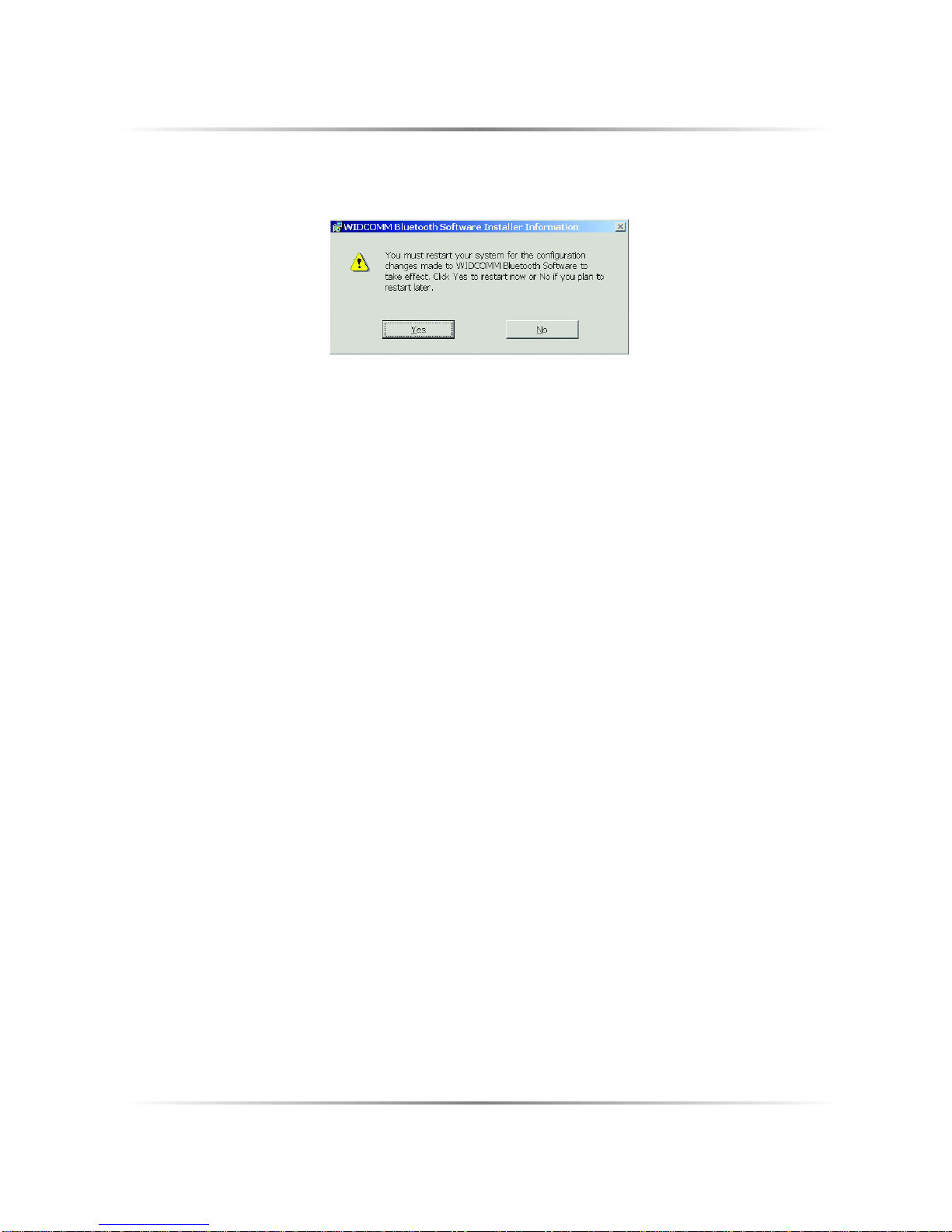

10. Click Yes to complete the software installation and restart your computer
now.

7
Chapter 2 Installing the USB Wireless Bluetooth Adapter
2.2 Connect the Adapter
1. Get the Bluetooth Adapter from the Actiontec Quick Start Kit
2. Take the cap off of the Bluetooth Adapter.
3. Follow the instructions for the type of computer that you are using.
Windows XP Users! You may see a Found New Hardware Wizard screen, once
you connect the Bluetooth Adapter to your computer. Please see below for
detailed instructions.

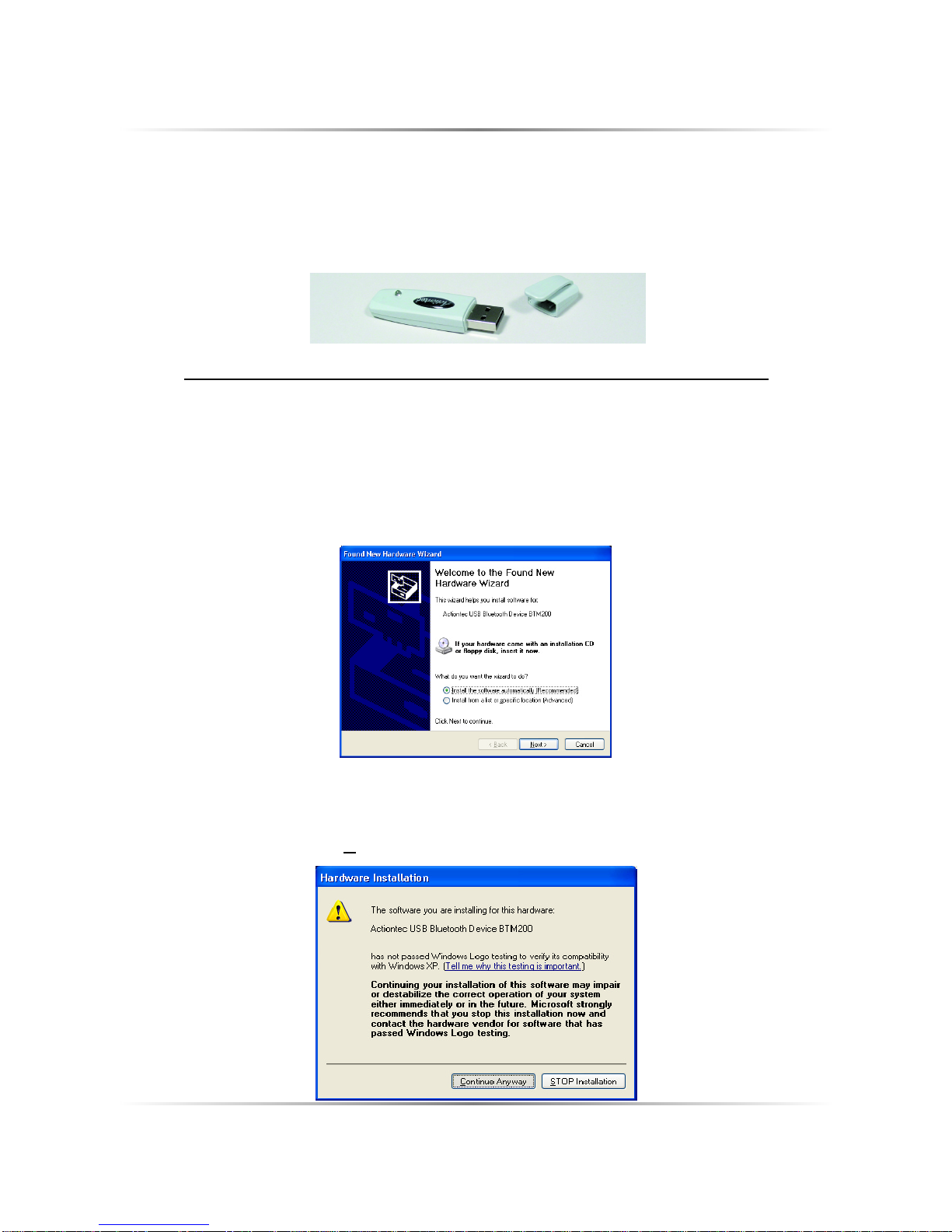

a. The “Found New Hardware Wizard” will run and the following screen will
appear, make sure “Install the software automatically (Recommended)” is
selected. When ready click Next to continue.
b. The“Found New Hardware Wizard” will automatically search for the appro-
priate drivers, once found it will request whether you would like to proceed
or not. In order to proceed with the installation, when the following window
appears, click on Continue Anyway.

8
Actiontec USB Wireless Bluetooth Adapter

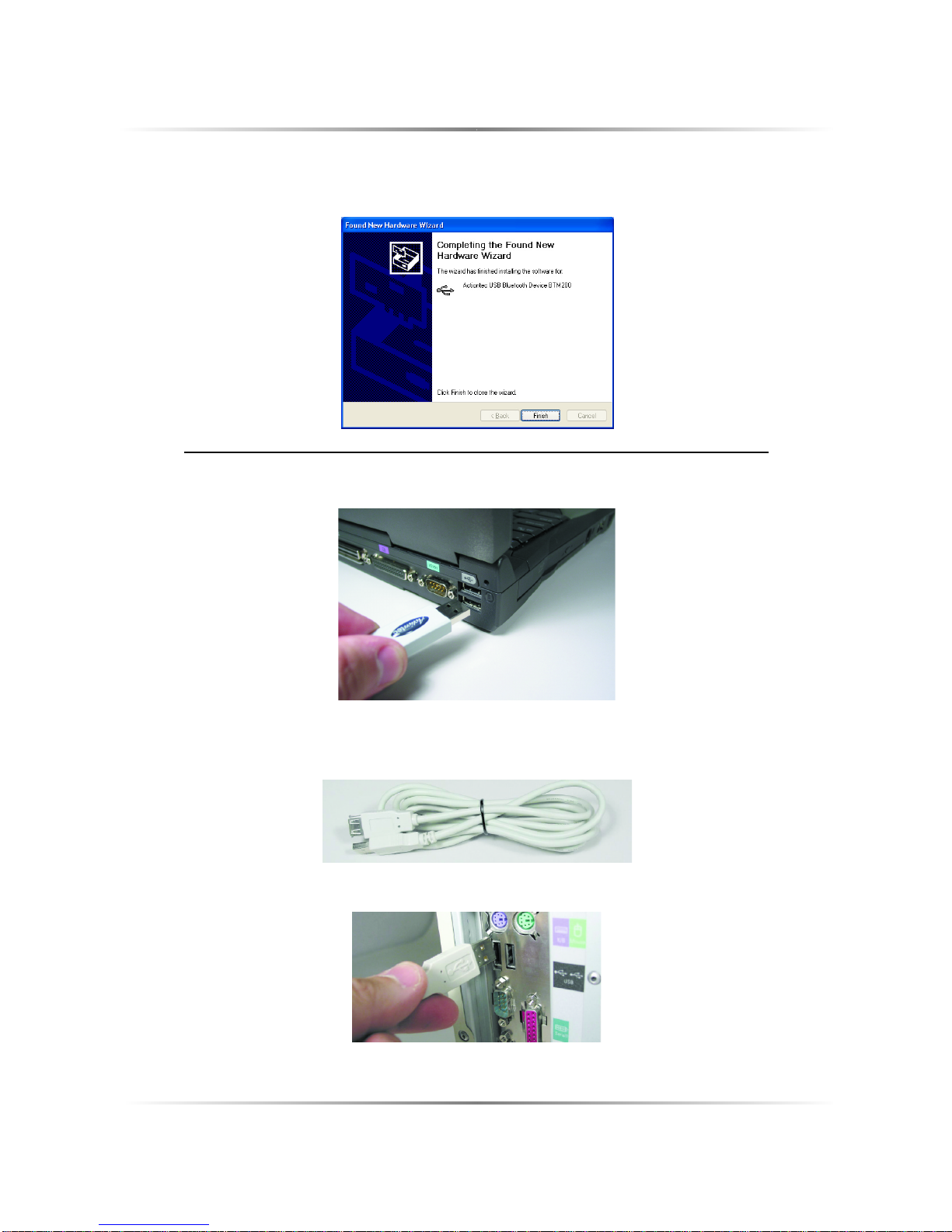

c. The following screen appears, Click on Finish to complete the installation
process.
Laptop Users: Insert the Bluetooth Adapter into an open USB port.
Desktop Users:
a.) Get the USB Extension Cable from the Quick Start Kit.
b.) Insert one end into an open USB port on the computer.

9
Chapter 2 Installing the USB Wireless Bluetooth Adapter

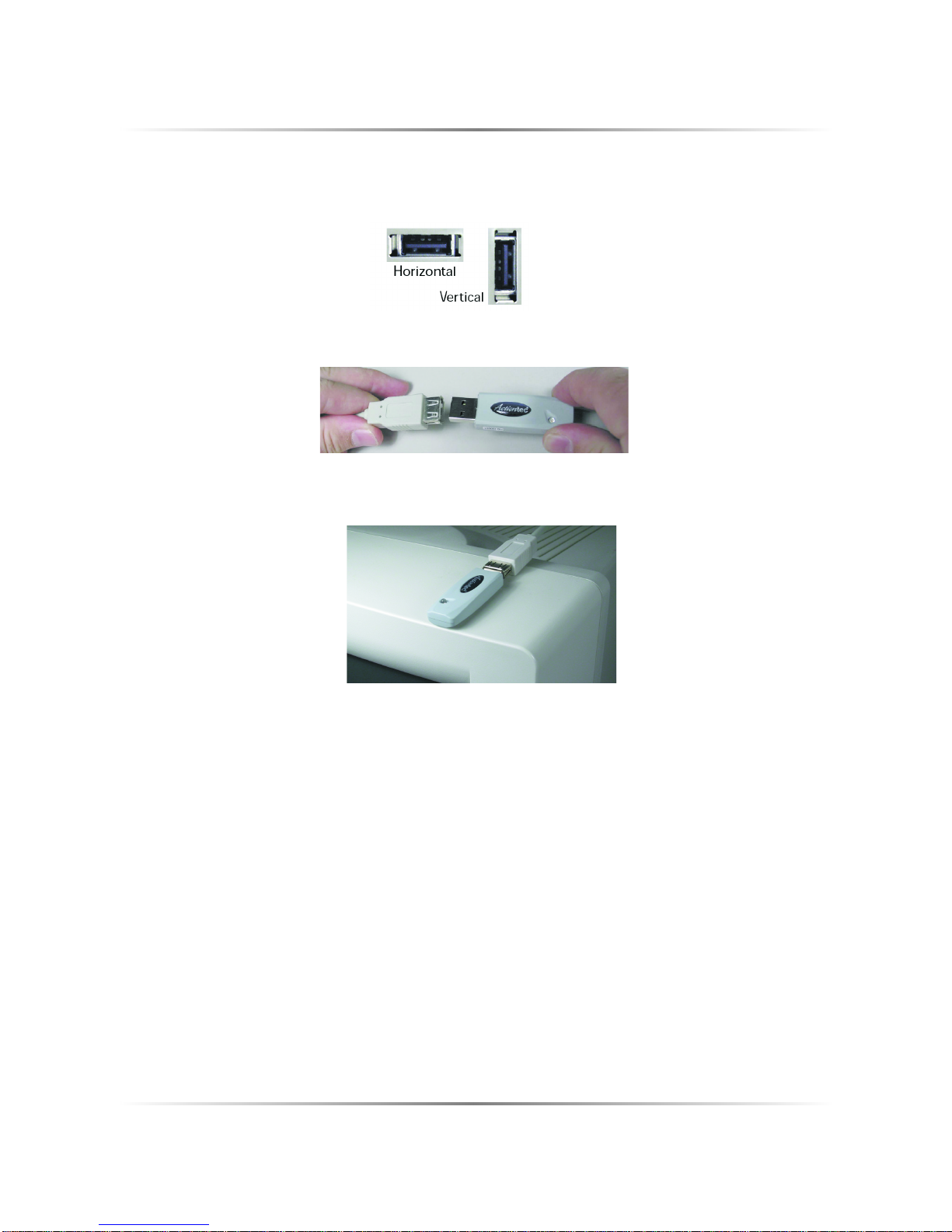

☞ Note:The USB Port is shaped like a thin rectangle about ¼ inch by ½
inch and may be horizontal or vertical.
c.) Plug the other end into the Bluetooth Adapter
d.)Set the Bluetooth Adapter on top of your monitor where it can receive a
clear signal.
4.Make sure the light on the Bluetooth Adapter is SOLID GREEN.
Congratulations, you have successfully installed the Actiontec USB Wireless
Bluetooth Adapter.

InstallingtheUSB Wireless
BluetoothAdapter
The instructions that follow provide a visual guide to setting up the Actiontec
USB Wireless Bluetooth Adapter. It is recommended the user follow these
instructions prior to attempting any other procedures. This manual will guide
you through the hardware and software installation and configuration.
2.1 Install the Software
☞ STOP!!!: YoumustinstalltheBluetoothSoftwarePRIORtoconnecting
your Bluetooth Adapter to the computer. If you have already
connected the Bluetooth Adapter, please remove it now and restart
your computer.
1. Make sure your computer is turned on, then put the Actiontec Installation
CD-ROM in your CD-ROM drive.
2. The Installation software should start automatically. This may take a few
moments.
When you see this window. Click Next to continue
☞ Note: If you do not see the window above, click Start on the taskbar
and then select Run. Type d:/setup (or e:/setup, depending on the
drive letter of your CD-ROM drive), then click OK.
3
2

4
Actiontec USB Wireless Bluetooth Adapter
3. When you see the License Agreement screen appear, read the License
Agreement carefully. Click the circle next to “I accept the terms in the license
agreement” and then click Next to continue.
☞ Note: If you do not agree with the terms of the license agreement,
click the circle next to “I do not accept the terms in the license
agreement”andclick Next. Now youhaveterminatedthe installation
of this Bluetooth Adapter.
4. Click Next to continue.
5. Click Install to continue.

5
Chapter 2 Installing the USB Wireless Bluetooth Adapter
6. You will see this window. Please be patient as it will take several minutes to
install your Bluetooth software.
7. You may see this screen. If you do, click OK.
8. When the following screen appears, click Cancel to continue this installation.
Do NOT plug your Bluetooth Adapter into your computer at this time.
9. Click Finish to complete the software installation.

6
Actiontec USB Wireless Bluetooth Adapter
10. Click Yes to complete the software installation and restart your computer
now.

7
Chapter 2 Installing the USB Wireless Bluetooth Adapter
2.2 Connect the Adapter
1. Get the Bluetooth Adapter from the Actiontec Quick Start Kit
2. Take the cap off of the Bluetooth Adapter.
3. Follow the instructions for the type of computer that you are using.
Windows XP Users! You may see a Found New Hardware Wizard screen, once
you connect the Bluetooth Adapter to your computer. Please see below for
detailed instructions.
a. The “Found New Hardware Wizard” will run and the following screen will
appear, make sure “Install the software automatically (Recommended)” is
selected. When ready click Next to continue.
b. The“Found New Hardware Wizard” will automatically search for the appro-
priate drivers, once found it will request whether you would like to proceed
or not. In order to proceed with the installation, when the following window
appears, click on Continue Anyway.

8
Actiontec USB Wireless Bluetooth Adapter
c. The following screen appears, Click on Finish to complete the installation
process.
Laptop Users: Insert the Bluetooth Adapter into an open USB port.
Desktop Users:
a.) Get the USB Extension Cable from the Quick Start Kit.
b.) Insert one end into an open USB port on the computer.

9
Chapter 2 Installing the USB Wireless Bluetooth Adapter
☞ Note:The USB Port is shaped like a thin rectangle about ¼ inch by ½
inch and may be horizontal or vertical.
c.) Plug the other end into the Bluetooth Adapter
d.)Set the Bluetooth Adapter on top of your monitor where it can receive a
clear signal.
4.Make sure the light on the Bluetooth Adapter is SOLID GREEN.
Congratulations, you have successfully installed the Actiontec USB Wireless
Bluetooth Adapter.

10
Working with Bluetooth
The Actiontec USB Wireless Bluetooth Adapter con communicate with any
Bluetooth-enabled device wirelessly, in order to accomplish this a relationship
with the device must be established. This chapter will guide you on the different
functions and methods for operating your Actiontec USB Wireless Bluetooth
Adapter.
3.1 Configuring your Bluetooth Adapter
•Starting the Actiontec USB Wireless Bluetooth Adapter
In the Windows system tray, right-click the Bluetooth icon an select Start
Bluetooth Device. The Bluetooth icon is blue in color with a white insert
when Bluetooth is running.
•Stopping the Actiontec USB Wireless Bluetooth Adapter
In the Windows system tray, right-click the Bluetooth icon and select Stop
Bluetooth Device. The Bluetooth icon is blue in color with a red insert
when Bluetooth is stopped.
3.2 Creating a Bluetooth Connection
To establish a relationship with other Bluetooth-enabled devices. To create a
connection between your Bluetooth-enabled computer and any Bluetooth-enabled
device, follow any of the methods described below.
•Option 1: Creating a Connection from the System Tray
In the Windows system tray which is located in the bottom right hand
corner, right-click the Bluetooth icon, select Quick Connect and then
the Bluetooth service that you wish to use.
If this computer has created a connection to the desired type of service
in the past, the options on the shortcut menu are:
• The name(s) of any device(s) with which prior connections to this type
of service have been established. Select a name from the list to
re-establish connection.
• Other Devices…Select this option to search for additional devices that
potentially provide the desired service, select a device from the list, and
then click Connect.
3

11
If this computer has never created a connection to this type of service,
the only option on the shortcut menu is “Find Devices….” Select this
option to search for devices that potentially provide the desired service,
select a device from the list, and then click Connect.
•Option 2: Creating a Connection Using the Bluetooth Setup Wizard
Launch the Bluetooth Setup Wizard by following this simple step.
• Right-click the Bluetooth icon on your desktop and select
Bluetooth Setup Wizard. Once launched, Follow the Bluetooth
Wizard instructions.
3.3 Configure the Adapter
The Actiontec Bluetooth Adapter must have a unique Identity assigned to it
before it can pair to other Bluetooth devices. The following procedure will guide
you through this process.

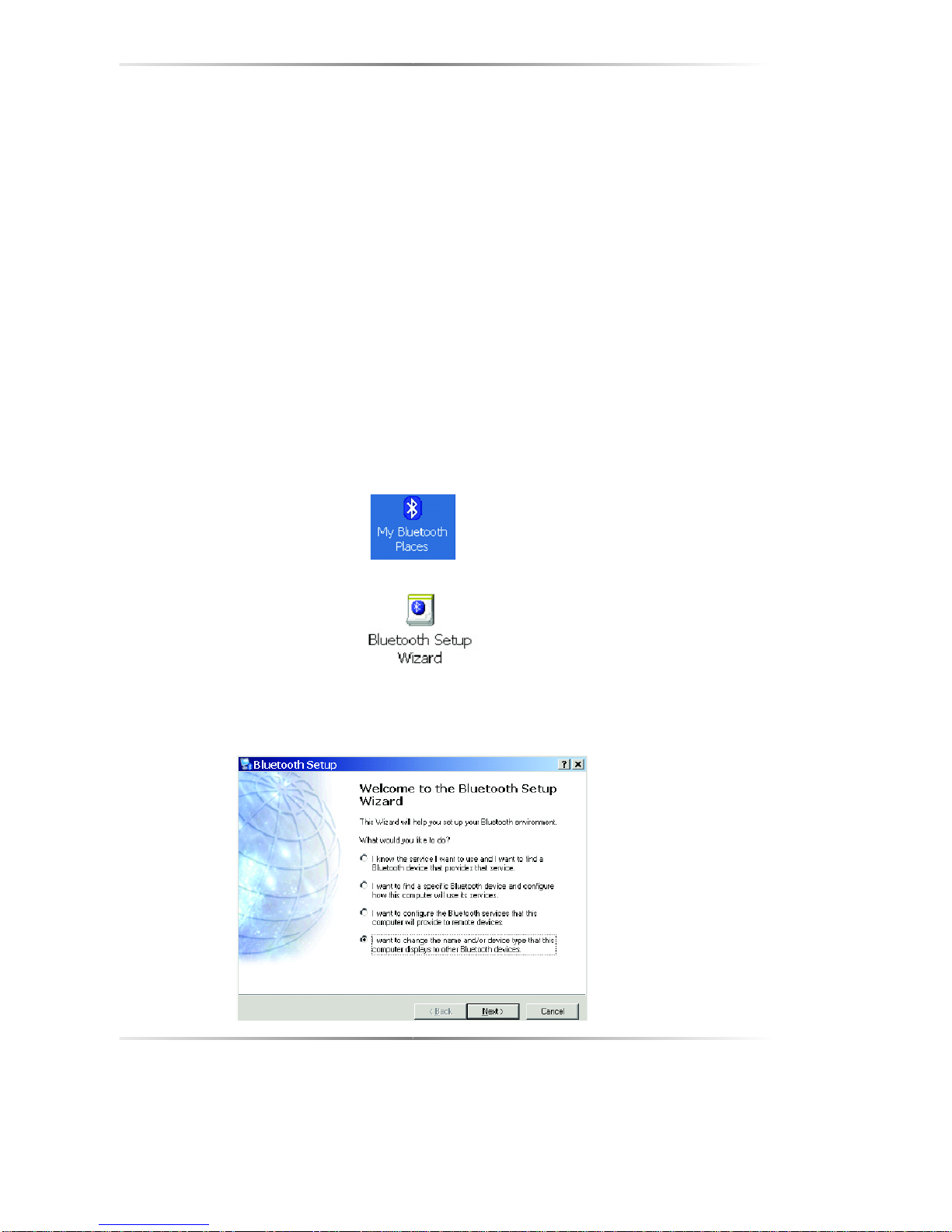

1. Double-click on the My Bluetooth Places icon that is on your desktop.
3. Click on the Bluetooth Setup Wizard icon.
3. Click the circle next to“I want to change the name and/or device type that
this computer displays to other Bluetooth devices”. Then click Next to
continue.
