ReliTouch®RT-201 Installation Guide
Section 1 Parts
Please familiarize yourself with all the parts in the packaging box of
ReliTouch®RT-201. If any part is missed or damaged, contact your
dealer immediately.
Outdoor Unit
Indoor Unit
Universal Handles
Strike Plate & Box
Rubber Gaskets
Fixing Plate
Over-ride Keys
Tubular Latch
( 2 3/8” & 2 3/4”
adjustable)
Spindle (or tailpiece)
www.BuilderDepot.com

http://www.advancedactuators.com
ReliTouch® User Manual
5
Spindle Springs
Pre-labeled screws
Installation Template
Section 2 Required Tools
①One Electric or battery operated Drill
②One 3/8” Diameter Drill Bit
③A pair of scissors
④One Philips head screw driver
⑤One long, thin shafted Phillips Head Screwdriver
www.BuilderDepot.com

http://www.advancedactuators.com
ReliTouch® User Manual
6
Section 3 Pre-installation

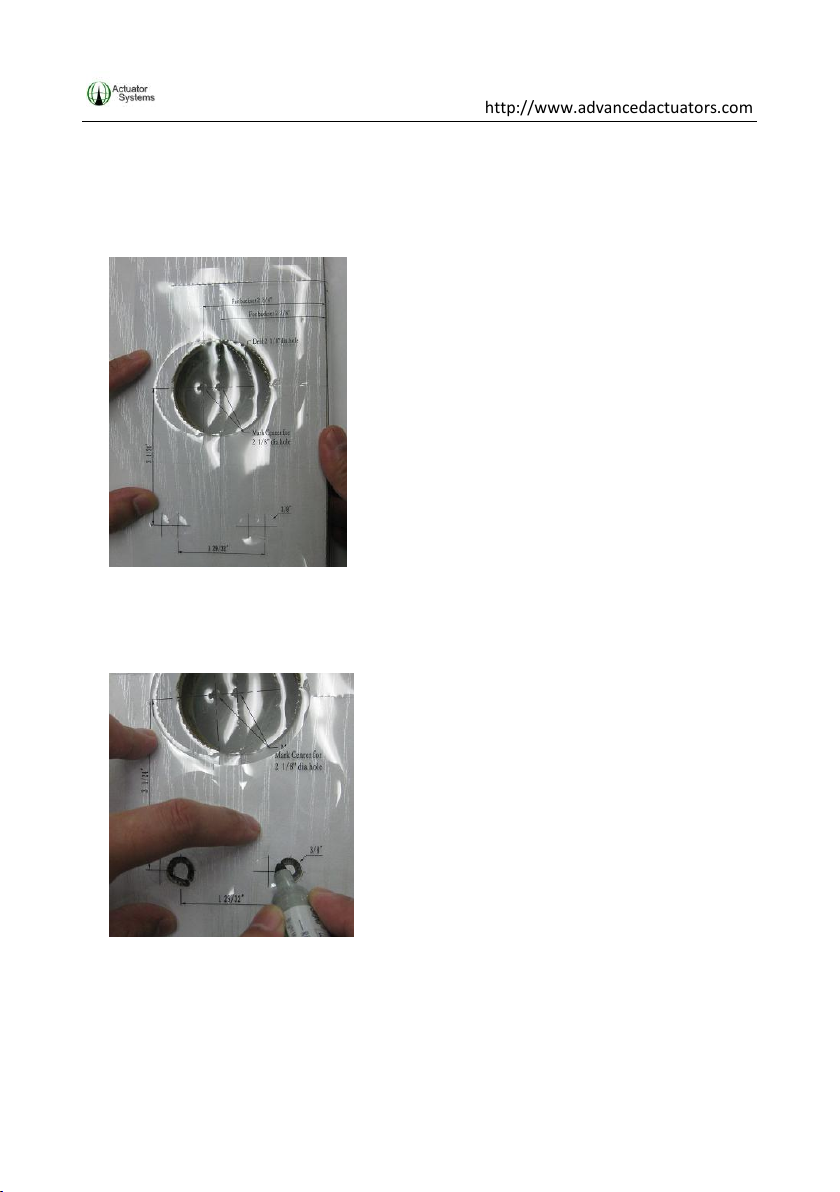

3.1 Mark and bore holes on the door
3.11 Use the following steps to properly mark holes on door for
drilling:
1) Remove existing handle set.
2) Cut out the two, 3/8” holes on the Installation Template that
correspond to your existing backset (2 3/8” or 2 ¾”).
www.BuilderDepot.com

http://www.advancedactuators.com
ReliTouch® User Manual
7
3) Rest the installation template on the front of the door, on top of the
existing 2 1/8” hole, making sure that it is aligned properly for the
door’s existing 2 3/8” or 2 ¾” backset.
4) Mark the two, 3/8” holes that you cut out of the installation
template on the door (with a magic marker).
www.BuilderDepot.com

http://www.advancedactuators.com
ReliTouch® User Manual
8

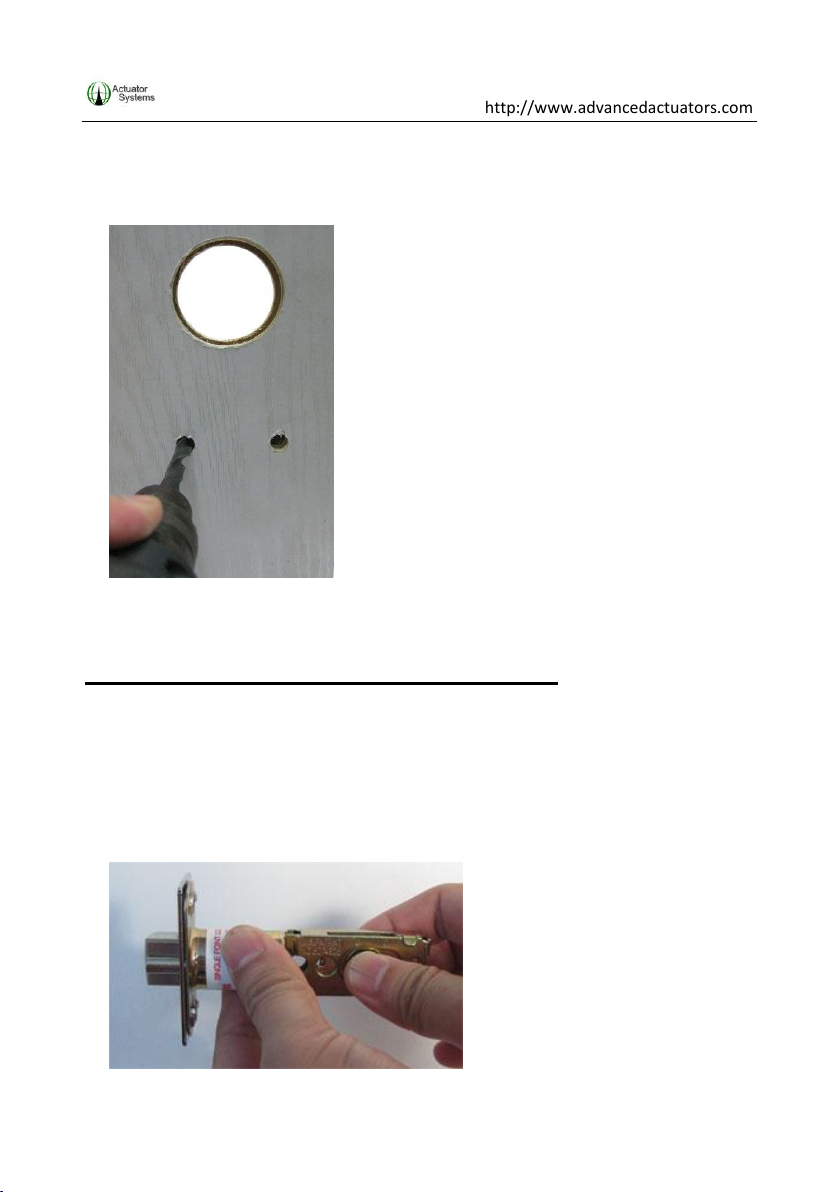

5) Bore the two, 3/8” holes into the door (using a 3/8” drill bit),
making sure that the holes fully penetrate through the door.
3.2 Setting/Installing the latch and strike plate
1) The latch that is included with the ReliTouch®RT-201 is
adjustable for doors that have 2 3/8” or 2 ¾” backsets. Adjust the
backset by sliding the spindle hole under the correct setting for
your door.
www.BuilderDepot.com

http://www.advancedactuators.com
ReliTouch® User Manual
9
2) Insert the latch into the hole in the edge of the door and screw into
place, making sure that the center of the latch’s spindle hole is in
the center of the drilled 2 1/8” hole.
3) Screw the included strike plate into the door jamb.
www.BuilderDepot.com

http://www.advancedactuators.com
ReliTouch® User Manual
10
3.3 Removing handles and re-installing for Right/Left handed
configuration
1) The ReliTouch®RT-201 is a non-handed lock, meaning that it can
be installed on either a right handed or left handed door.

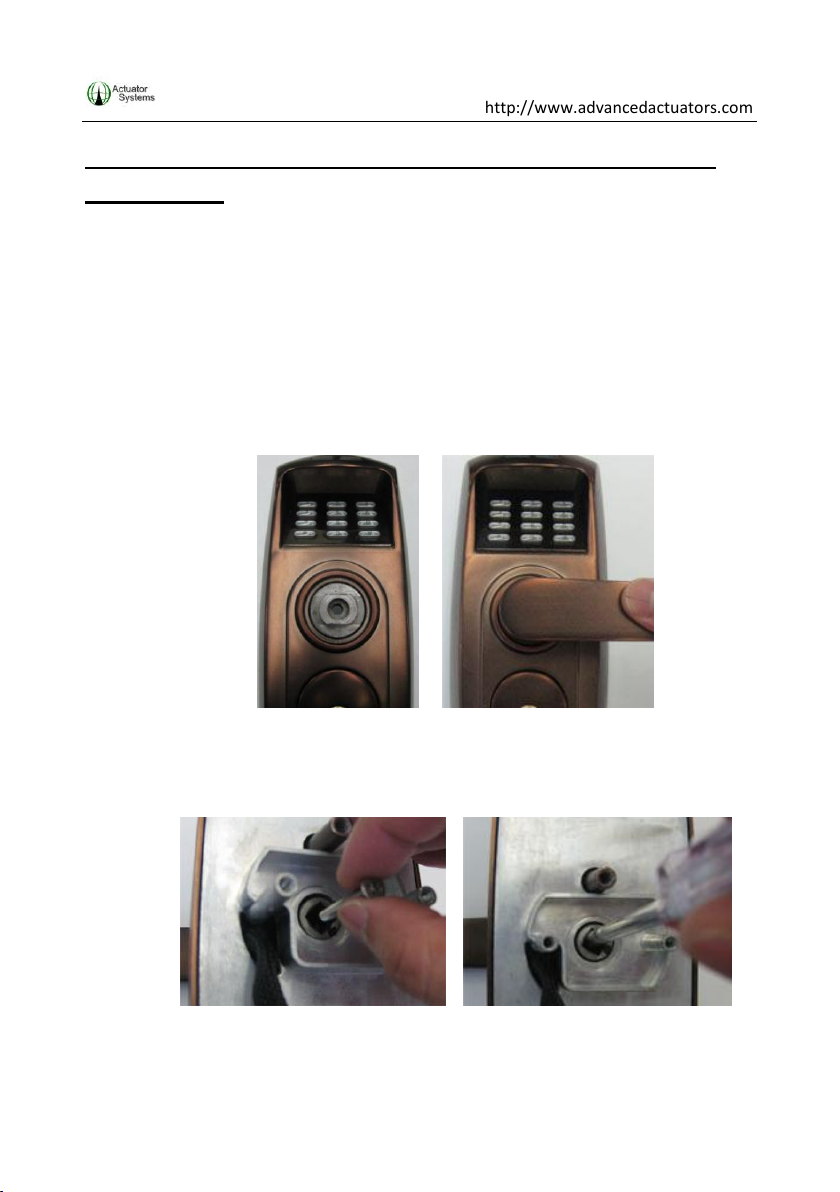

2) Use the following steps to install the handles:
2a) Insert outside units’ handle onto the lock based on your
right/left handed configuration.

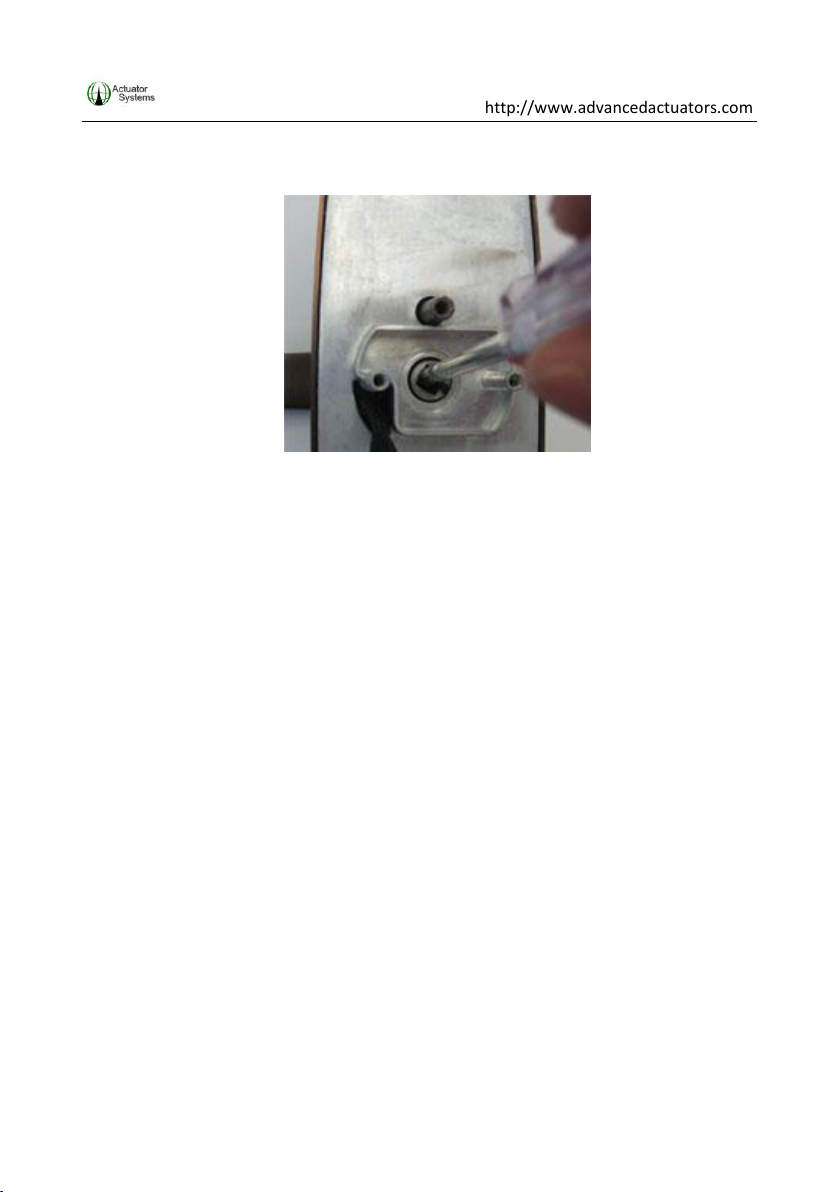

2b) Turn the outside unit over and insert a long, thin Phillips
head screwdriver into the spindle hole.
www.BuilderDepot.com

http://www.advancedactuators.com
ReliTouch® User Manual
11
2c) Fasten the screw, so the handle is firmly held in place.
2d) Follow steps 2a thru 2c for installation of the handle on
the inside unit.
www.BuilderDepot.com

http://www.advancedactuators.com
ReliTouch® User Manual
12
Section 4 Installation
NOTE: Measure the exact thickness of the door and choose the
pre-labeled bag of screws (included) whose length matches the
exact thickness of the door. The pre-labeled bag of screws will be
needed in Section 4.4.
4.1 Impact Alarm Information
An impact alarm actuator has been mounted onto the back plate of
the outside unit. See the diagram for details.
The impact alarm will sound in the event of an impact to the lock
that causes the ReliTouch®RT-201 outside unit to dislodge from the
door. **If the actuator is not firmly depressed, then the alarm
will sound. The impact alarm is located under the rubber cover on
the outside unit.
The alarm will also sound if the outside units’ wire set is not fully
plugged into the inside unit.
Impact Alarm Actuator
www.BuilderDepot.com

http://www.advancedactuators.com
ReliTouch® User Manual
13
If the alarm is triggered, make sure to check the door and the lock
immediately. If there is no emergency occurring, then remove the
batteries to stop the alarm and check connections.
Do not install batteries until installation is completed and lock is
installed securely on the door.
4.2 Installing the Outside Unit
1) Attach the rubber gasket to the back of the outdoor unit.
2) Turn the outside unit over to make sure that the spindle hole is
perfectly square and not angled.
www.BuilderDepot.com

http://www.advancedactuators.com
ReliTouch® User Manual
14
3) Feed the wire set underneath the latch.
4) Align the two middle fixing posts with the two corresponding
holes in the latch.
www.BuilderDepot.com

http://www.advancedactuators.com
ReliTouch® User Manual
15
5) Align two bottom fixing posts with two 3/8” holes that were
drilled.

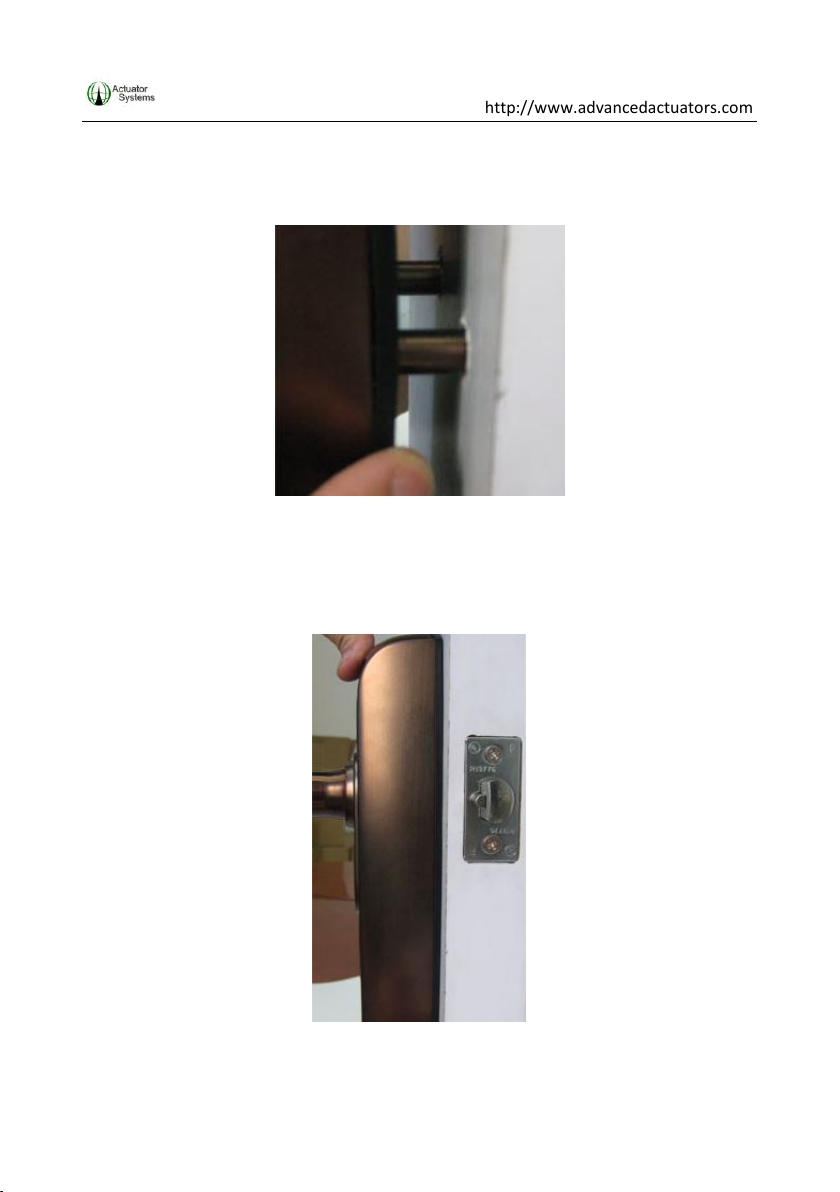

6) Insert outside unit onto the door, making sure that the two middle
fixing posts fit into the two holes in the latch and the two bottom
fixing posts fit perfectly into the two 3/8” holes.
www.BuilderDepot.com

http://www.advancedactuators.com
ReliTouch® User Manual
16

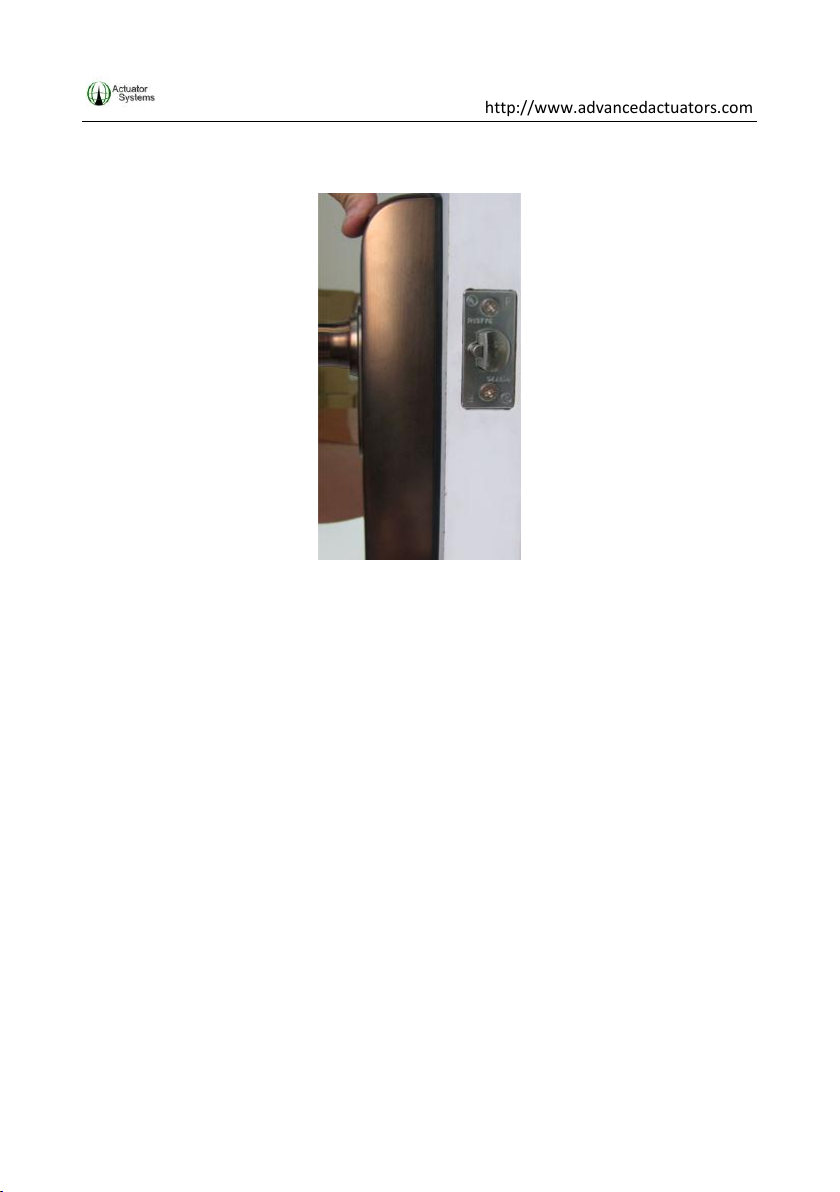

7) Outside unit should be completely flush on the face of the door.
www.BuilderDepot.com

http://www.advancedactuators.com
ReliTouch® User Manual
17
4.3 Installing the fixing plate
The purpose of the fixing plate is to securely fasten the outside unit
onto the door, so installation of the inside unit will be easier,
requiring only one person.
1) Place fixing plate over the 2 1/8” hole on the inside of the door.
2) Align center hole of the fixing plate with the spindle hole of the
latch.
3) Be sure that large rounded half circle is facing down on the fixing
plate (wire set goes thru large rounded half circle) and that the two
side screw holes are indented.
4) Screw the fixing plate onto the door, so it is secure. DO NOT
over tighten the screws.
www.BuilderDepot.com

http://www.advancedactuators.com
ReliTouch® User Manual
18
4.4 Installing the Inside Unit
1) Insert spindle thru the spindle hole of the latch into the spindle
hole of the outside unit. You should be able to feel the spindle pop
into the outside unit’s spindle hole.
2) Insert spring into inside unit’s square hole. VERY IMPORTANT
www.BuilderDepot.com

http://www.advancedactuators.com
ReliTouch® User Manual
19
3) Attach rubber gasket onto the inside unit.

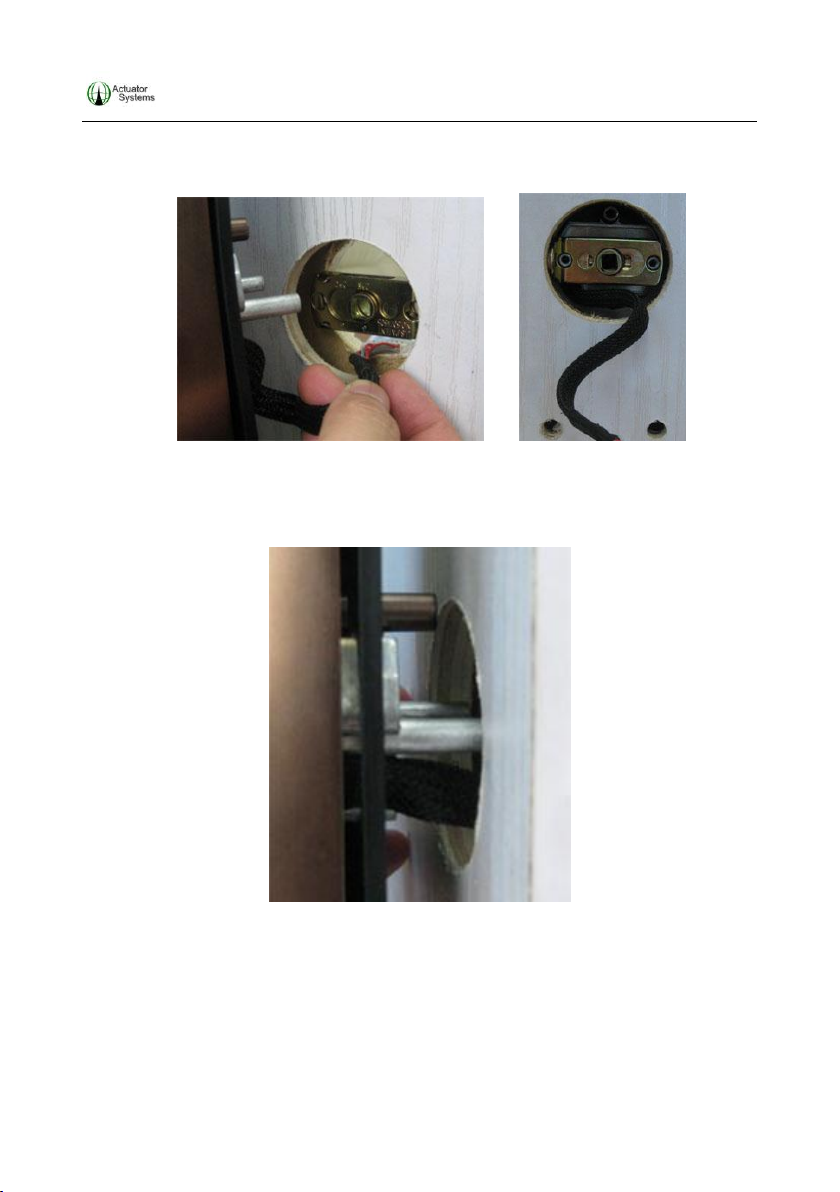

4) Plug the wire set (**making sure black marker is on top of the
connector head, the two black marks should be lined up) into
plug on the inside unit. Be sure that wire set is fully plugged and
seated well.
www.BuilderDepot.com

http://www.advancedactuators.com
ReliTouch® User Manual
20
5) Stuff excess wires into the 2 1/8” hole.
6) Install inside unit onto door, making sure that the spring does not
fall out when unit is placed upright and onto the spindle.
www.BuilderDepot.com
