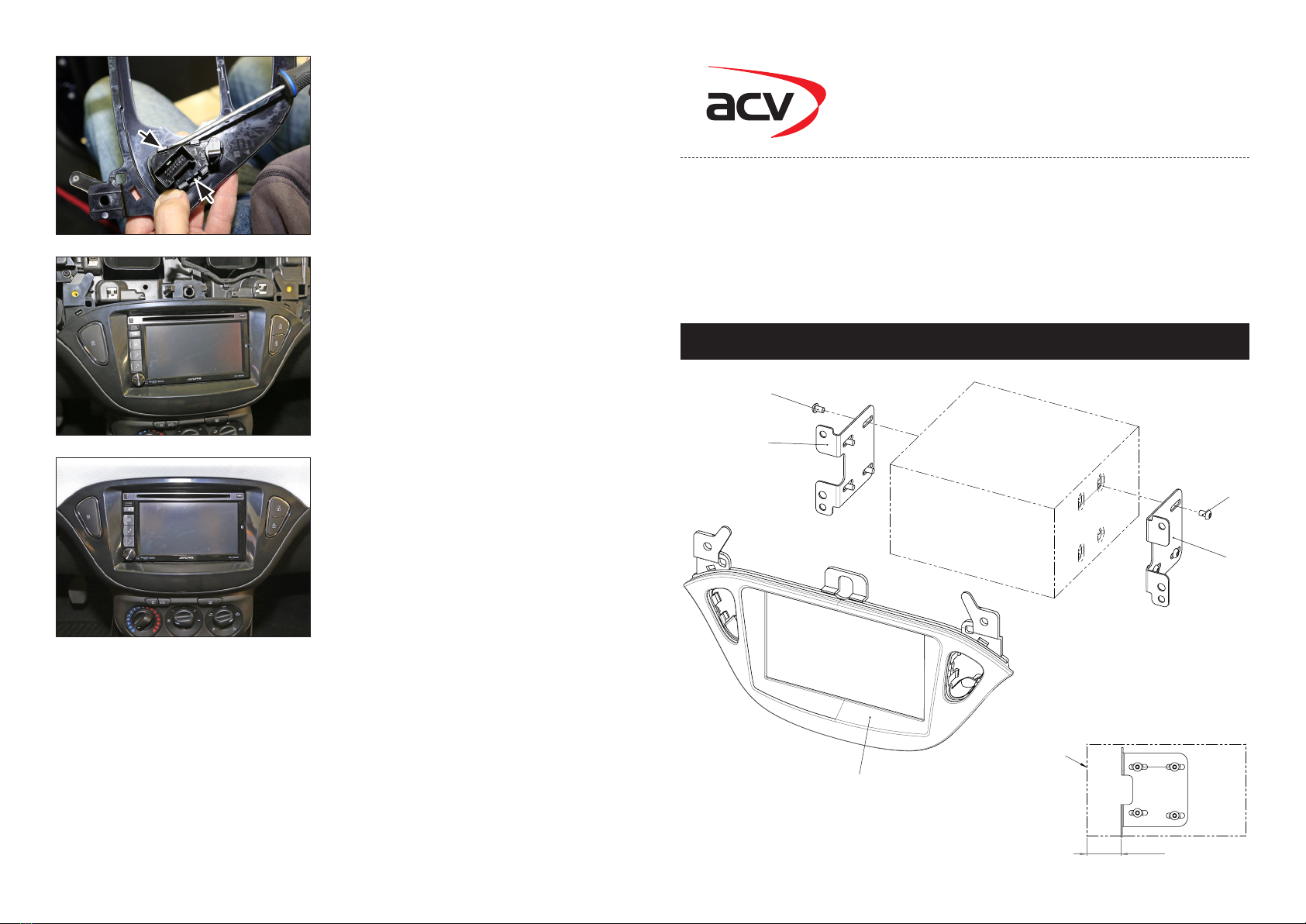

ACV 381230-29 User manual

9. Remove buttons from
OEM panel and attach them
to new facia plate
10. Connect all cables
Place facia plate on dash board
11. Reinstall everything in reverse
Order to nish installation
All installation work must be performed by a qualied professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
~37mm
pre-assembly Unit and Brackets
Unit front surface
Double-DIN Kit
Installation Manual
• Opel Adam (Type S-D) 01/2013 ->
part-no.: 381230-29
colour: piano black
Compatible with these navigation devices
Double DIN Navigation
Kit Content
(1) Facia Plate
(2) Mounting bracket right
(3) Mounting bracket left
(4) Flat Headed Screw
1
2
3
4
4

~37mm
pre-assembly Unit and Brackets
Unit front surface
1. Opel Adam OEM dash board
2. Unclip and remove OEM panel
4. Remove 2 screws of
head unit cover
3. Unplug hazard light switch
5. Unclip OEM cover carefully
(see arrow)
6. Remove OEM cover
(unplug all connectors carefully)
7. Attach mounting brackets
to double DIN head unit
8 . Connect all required circuit points
Place Double DIN head unit
on dash board
Fix double DIN head unit
with 4 OEM screws
