ACV 381320-23 User manual

Compatible with these double DIN devices
Double-DIN Navigation
• VW Touareg II (7P/7PH) 04/2010->
colour / part-no.:
black: 381320-23
Installation Manual
2
2
1

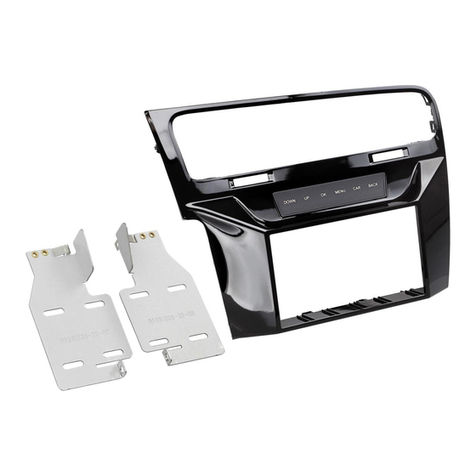

• (1) facia plate
• (2) mounting brackets
9. Connect all required circuit
points
Place Double DIN head unit
on dashboard
Fix it with two screws (see arrows)
10. Place facia plate
11. Re-install uppter tray
on dash board

All installation work must be performed by a qualied professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
5. Remove OEM head unit
6. Remove button unit
from OEM head unit
7.
Attach OEM button unit to new
facia place (see arrow)
8. Attach mounting frames to
double DIN head unit

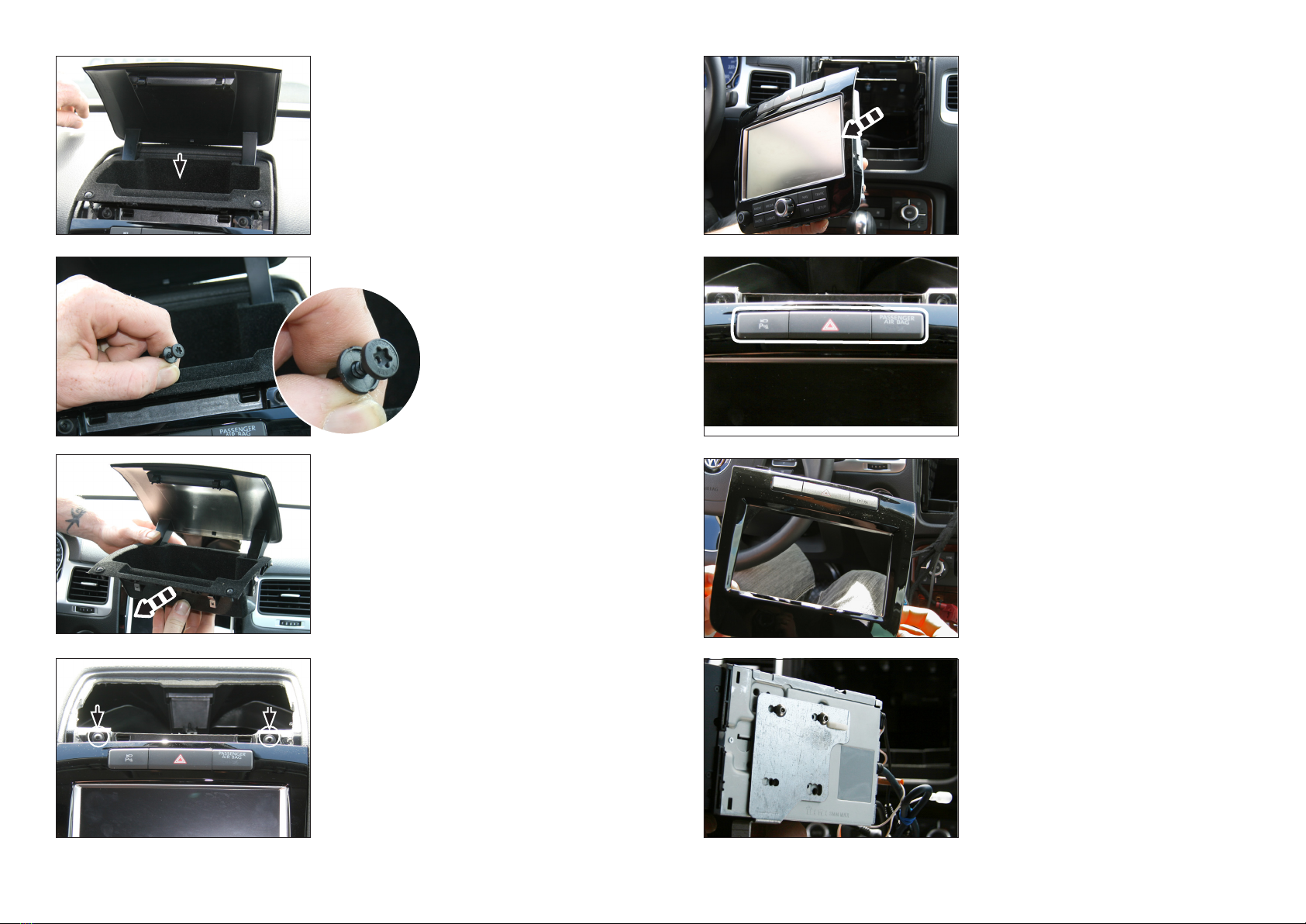

1. Open upper tray on dashboard
Locate screw in middle of
upper tray (see arrow)
2. Remove screw inside
upper tray
4. Remove screws of OEM head unit
3. Remove upper tray
