Adam Equipment HIGHLAND HCB 602M User manual
EN
© Adam Equipment Company 2018 1
AdamEquipment
HIGHLANDSERIES
(IncludesHCBxxxMEU&NTEPapprovedmodels)
(HCBSoftwarever.2.33orhigher–standardmodels)
(HCB‐MSoftware.rev2.39–EUapprovedmodels)
(HCB‐aMSoftwarerev.3.11–NTEPapprovedmodels)
EN
© Adam Equipment Company 2018 2
EasyReference:
Modelnameofthescale:
Serialnumberoftheunit:
Softwarerevisionnumber
(Displayedwhenpowerisfirstturnedon):
DateofPurchase:
Nameofthesupplierandplace:
EN
© Adam Equipment Company 2018 3
1.0CONTENTS
P.N.9520,RevisionK,February2018
1.0CONTENTS……………………………………………………………………………………………………………………………… 3
2.0INTRODUCTION…………………………………………………………………………………………….………………………..4
3.0SETUP……………………………………………………………………………………………………….…………………………… 4
3.1UNPACKINGANDSETTINGUPYOURBALANCE……………………………...………………………….. 4
3.2DISPLAY/KEYBOARDFUNCTION………………………………………………………………………………… 5
3.3INTERNALRECHARGEABLEBATTERY………………………………………………………………………….. 6
3.4LOCATINGANDPROTECTINGYOURBALANCE…………………………………………………………… 7
3.5STORINGWHENNOTINUSE……………………………………………………………………………………… 8
4.0BASICOPERATION………………………………………………………………………………………………………………….. 9
4.1TURNINGONTHEBALANCE………………………………………………………………………………………. 9
4.2ZEROING/TARE………………………………………………………………………………………………………… 9
4.3WEIGHING……………………………………………………………………………………………...................... 10
4.4WEIGINGUNITS…………………………………………………………………………………………………………. 10
5.0FUNCTIONS…………………………………………………………………………………………………………………………… 11
5.1PERCENTAGEWEIGHING…………………………………………………………………………………………… 11
5.2PARTSCOUNTING……………………………………………………………………………………………………… 11
5.3ACCUMULATION……………………………………………………………………………………………………….. 12
6.0PARAMETERS……………………………………………………………………………………………………….................... 14
6.1ENABLINGWEIGHINGUNITS……………………………………………………………………………………… 14
6.2SETTINGTHEBACKLIGHTANDAUDIBLEALERTBEEP…………………………………………………. 16
6.3SETTINGTHEPRINTINGPARAMETERS/ACCUMULATION…………………………………………. 16
6.4AUTOPOWEROFF……………………………………………………………………………………………………… 18
6.5SELECTINGTHEINTERNALOREXTERNALCALIBRATION…………………………………………….. 19
6.6ADJUSTTHEVALUEOFTHEINTERNALMASS…………………………………………………………….. 20
6.7SETTINGUSERPARAMETERS……………………………………………………………………………………… 21
7.0CALIBRATION……………………………………………………………………………………………………….................... 22
8.0TROUBLESHOOTING……………………………………………………………………………………………………………… 24
8.1ERRORMESSAGES…………………………………………………………………………………………………….. 24
9.0SPECIFICATIONS……………………………………………………………………………………………………………………… 25
9.1TECHNICALSPECIFICATIONS………………………………………………………………………………………. 25
9.2COMMONSPECIFICATIONS……………………………………………………………………………………….. 26
9.3RS232/USBSPECIFICATIONS……………………………………………………………………………………. 26
10.0CALIBRATIONCERTIFICATE…………………………………………………………………………………………………… 29
11.0WARRANTYSTATEMENT………………………………………………………………………………………………………. 29
EN
© Adam Equipment Company 2018 4
2.0 INTRODUCTION
ThankyouforpurchasingyournewHighlandTMportablebalance,EveryHighlandTM
balancehasallthefeaturesyoureallyneed:DCadapterandinternalrechargeable
battery,HandiCalTMcalibration(notavailableonapprovedmodels),backlitdisplay,
and ShockProtectTM with overload indicator. With RS‐232 and USB interface for
communication with printers and computers, splash‐proof keypad, and sturdy
plasticconstruction,theHighlandTMserieswillbeabalanceyoucanrelyupon.We
hopethatyouenjoyusingyournewbalance.
Beforeoperatingpartsmarkedwitha! symbol please read the instruction manual
andoperatewithcautiontoavoidhazard.
NOTE:Externalmetalpartsandconnectorsarenotlinkedtoearth.
NTEP Approved models, HCB aM, have calibration controlled by jumpers or
passcodesandotherlimitationsasnotedinthemanual.
3.0 SETUP
3.1 UNPACKINGANDSETTINGUPYOURBALANCE
1) Removethebalance,draftshield,toppan,DCadapterandpansupportfrom
thepackaging
2) Removetheshippingprotectionscrewandtransitdiscfromthetop of the
balance and place the plastic top pan support on the balance. Do not use
excessiveforcewhenremovingandinstallingthescrew.
3) Gentlyplacetheplasticpansupportintothereceptacleandsecurewiththe
suppliedscrew.Tonotover‐tightenthescrew.Itshouldbefingertightonly.
PuttheStainlesssteelpanontopofthepansupport
EN
© Adam Equipment Company 2018 5
4) Placethedraftshieldontopofthebalance,thelocationnotchesinthebreeze
shield should align with the cut outs on the balance. For optimum
performancethebalanceshouldbeusedwiththedraftshield(ifprovided).
3.2 DISPLAY/KEYBOARDFUNCTION
The display and keypad have a number of features the key information is shown
below:
KEYS PRIMARYFUNCTION SECONDARYFUNCTION
[On/Off] ToturnthebalanceOnorOff. ‐‐‐‐
[‐>0/T<‐]
Tares the balance and shows the net
weight value. Pressing the [‐>0/T<‐]
againwillresetanothertarevalue
A secondary function of "Enter" key is
for setting parameters or other
functions.
[%] Entersthepercentageweighing
function.
When in percentage mode, press [%]
key to return to normal weighing
mode. When setting some parameters
this key will move the flashing digit to
theright.
[Smpl] Use this key to enter parts counting
mode from the normal weighing
mode.
When in parts counting pressing the
[Smpl]willreturntoweighingmode.
Clearstheaccumulatedvaluefromthe
memorywhenpressedduringthetotal.
Whensettingsomeparametersthiskey
willmovetheflashingdigittotheleft.
[Mode] Pressingthiskeywillcyclethroughthe
weighingunitswhichareenabled.
Displays the unit weight, total weight
and the count when in the parts
countingmode.
Setting parameters it will show the
next option or increase the value of a
flashingdigit.
[Print] ToprinttheresultstoaPCorprinter
usingRS‐232orUSBinterface.Italso
addsthevaluetotheaccumulated
memoryiftheaccumulationfunction
isnotautomatic.
Secondary function is to return to
normal operation when the balance is
inaparametersettingmode.
Setting parameters it will show the
previous option or decrease the value
ofaflashingdigit.
EN
© Adam Equipment Company 2018 6
NB:‐BRACKETSONDIPLSAYAROUNDLASTDIGIT~HCB602M,HCB1002M,HCB5001M
ONLYAPPROVEDMODLES
3.3 INTERNALRECHARGEABLEBATTERY
ThebalancecanbeoperatedfromtheinternalrechargeablebatteryorusingaDC
adapter.Thebatterydischargetime,isapproximately24hoursdepending on the
usageofthebacklight.
Thedisplaywillshowanindicationwhenthebatteryneedstobecharged.Tocharge
thebattery,plugintheDCadapteratthebackofthebalanceandattachittothe
mainpowersupply.ThechargingindicatoratthelefttopcorneroftheLCDwillbe
on.
Zero
Stable
Capacitytracker
Weighingdigits
Percentagesymbol
Lowbatteryindicator
Holdsymbol
Netsymbol
Alphanumericdisplay
EN
© Adam Equipment Company 2018 7
3.4 LOCATINGANDPROTECTINGYOURBALANCE
In order to keep your balance functioning at its best we suggest that you do the
following:
Avoid extremes of temperature. Do not place in direct sunlight or near air
conditioningvents.
Makesurethebalanceislocatedonastrongtableandfreefromvibration.
Avoidunstablepowersources.Donotusenearlargeusersofelectricitysuch
asweldingequipmentorlargemotors.Donotletthebalancebatterygoflat–
ifyouarenotusingitforalongtimeyoushouldchargethebattery up
periodicallytomakesurethebatterydoesnotloseitscharge.Whenyouturn
offthescalebypressing[ON/OFF]key,thepowerisnotcompletelyisolated.
Youshoulddisconnectthepowersupplyifitisnotgoingtobeusedforan
extendedperiod.
Keepfreefromvibration.Donotplacenearheavyorvibratingmachinery.
Avoid high humidity that might cause condensation. Keep away from direct
contactwithwater.Donotsprayorimmersethebalanceinwater.
ProtectionGrade:IPX0
Donotplacenearopenwindows,air‐conditioningventsorfansthatmaycause
adraftandunstablereadings.
Keepthebalanceclean.Donotstackmaterialonthebalance/balance pan
when it is not in use. The Highland has a stacking feature for stacking more
thanoneunitontopofeachotherwhichdoesnotapplyweightto thepan.
Formoredetailsonthisseethesectiononstoring.
Avoidoperatinginhighstaticareas,orweighinghighstaticmaterials,suchas
plasticsorpowders,asthismaydamageelectronicsandaffectmeasurements.
Usegroundingmatsorbondingstrapstoreducepotential
EN
© Adam Equipment Company 2018 8
3.5 STORINGWHENNOTINUSE

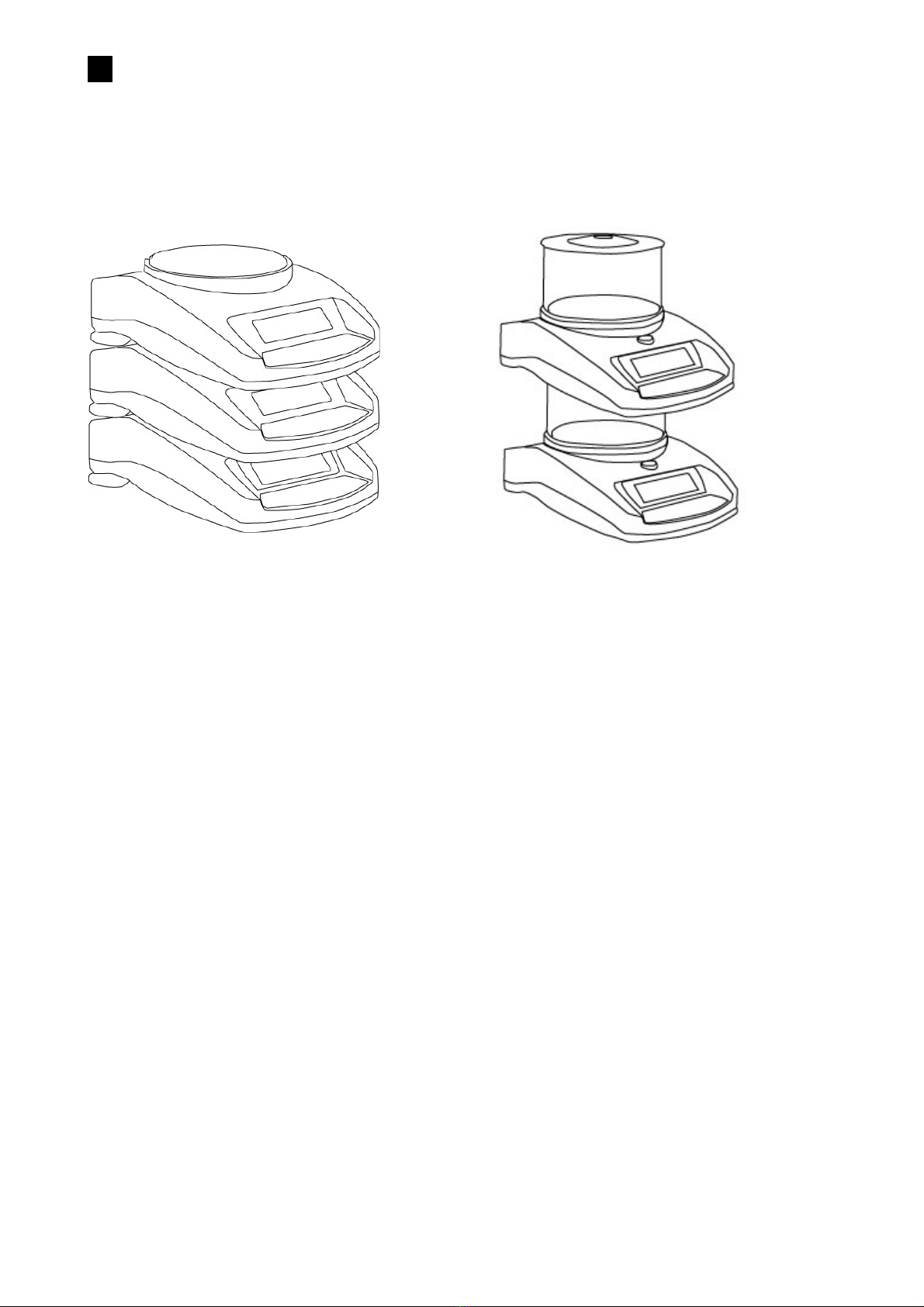

IfyouhaveanyoftheHighlandTMseriesorCoreBalanceTMlinesyoucanstorethem
easilyontopofeachother.Tosavespaceandprotectthemfromdamage.
WithoutShield WithShield
Note:Onlymodelsequippedwithaø4.7”/120mmpan,canbestackedforstorage.
Core(CQT)modelswiththelargerø5.7”/145mmmaybestackedatthetopofthe
pilebutotherbalancesshouldNOTbestackedontopofthemduetothelargerpan
size.
EN
© Adam Equipment Company 2018 9
4.0 BASICOPERATION
4.1 TURNINGONTHEBALANCE
PlugintheunitusingtheDCadapterorusetheinternalrechargeablebattery.Itis
recommendedthatyouchargethebatteryforatleast8hoursbeforefirstuse.
1) Toturnonpressthe[on/off]keyonceandrelease.Thebalancewillshowthe
capacityandthesoftwarerevision,andthenself‐testbeforeshowingzeroon
thedisplayandthestablesign.
2) Thebalanceisnowreadytobeused.
3) To turn the balance off after use, press the [on/off] key again. There is an
autopower‐offfunctionthatwillautomaticallyturntheunitoffifnotusedfor
aperiodoftime,thiscanbesetintheparameterssection.
If an error is shown while turning on the balance check that the pan is fitted
correctlyandthatthereisnoweightonthepanortheinternalcalibrationweight
(notapprovedmodels)hasnotbeenleftinthecalibrateposition.Movetheleverall
thewaytotheleft.Turnoffthebalanceandturnitbackonagain.
4.2 ZEROING/TARE
Youcanpressthe[‐>0/T<‐]keytosetanewzeropointandshowthezeroreadingif
theweightreadingislessthan4%ofthetotalofthemaximumcapacity of the
balance(+/‐2%forapprovedmodels).Thismaybenecessaryiftheweightreadingis
notreadingzerowithnothingonthepan.Thezeroindicatorwill show up in the
upperleftcorneroftheLCD.
Ifyouareusingacontainertoweighthenyoucanplacethison theplatform and
press the [‐>0/T<‐] key. Providing the container weight is more than 4% of the
maximumcapacityofthebalance(+/‐2%forapprovedmodels),thedigitswillshow
zero and NETwilllightuponthedisplay.Youcanthenweighyoursamplein the
container.Taringweightsubtractsfromthetotalbalancecapacity.
EN
© Adam Equipment Company 2018 10
Note: When the container is removed a negative value will be
shownequivalenttothetotalvalueoftheamounttared(Excepton
approvedmodels).Thebalancewillnottareavalueforacontainer
unless the stability light indicates that the weight is stable thus
ensuringacorrecttaringfunction.
4.3WEIGHING
Todeterminetheweightofasample,firsttareanemptycontainer(if used),then
placethesampleinthecontainer.Thedisplaywillshowtheweightofthesample
and the unit of weight currently in use. The stable indicator will light when the
readingisstable.
4.4WEIGHINGUNITS
To change the weighing units, press [Mode] to cycle through the options of units
thatareenabled.SeeParameters6.1EnablingWeighingUnits,toenableordisable
theweighingunits.
WeighingUnitsonapprovedmodels=g,Kg,ct
EN
© Adam Equipment Company 2018 11
5.0 FUNCTIONS
5.1 PERCENTAGEWEIGHING
The balance will allow a reference weight to be shown as 100%. Thenanyother
weight placed on the balance will be displayed as a percentage oftheoriginal
sample.
1) Placeyourweightonthebalance.
2) Pressthe[%]key.Theweightwillbedisplayedas100.00%.
3) Removetheweightandplaceyournextsampleonthebalance.The new
readingwillbeshownasapercentageofthefirstvalue/referenceused.
4) Pressingthe[%]keyagainwillreturnthebalancetonormalweighing.
Note: The balance may jump by large numbers unexpectedly if small weights are
used to set the 100% level. For example, if only 23.5g is on a balance with 0.5g
incrementsandthebalanceissetto100%,thedisplaywillshow100.00%.However,
asmallchangeofweightwillcausethedisplaytojumpto102.13%,asonebalance
division(0.5g)increaseto24.0gwillbeequivalenttoa2.13%increase.
5.2 PARTSCOUNTING
NTEP APPROVED NOTE: COUNTING FEATURE IS NOT LEGAL FOR TRADE
Partscountingletsyoucountsmallpartsthatareofequalweight,quicklyandeasily.
Todothisyoumustfirstsetyoursamplebytellingthebalancehowmanypartsyou
have.
1) Placeyourcontaineronthebalanceandpressthe[‐>0/T<‐]keyasdescribed
in 4.2 Zeroing / Taresection.Thiswillremovetheweightofthecontainer
fromyourcount.
2) Whenthebalanceisinnormalweighingmodewiththeinitialquantityonthe
balance,pressthe[Smpl]keytostartthepartscountingfunction.
3) The initial number of samples should match the options for parts counting,
10,20,50,100or200pieces.
EN
© Adam Equipment Company 2018 12
4) The balance will initially show SP 10askingforasamplesizeof10parts.
Press[Mode]tocyclethroughtheoptions:10,20,50,100,200andbackto10
toselectthesampleyouhaveplacedonthebalance.
5) Press[Smpl]againonceyouhaveselectedthesample.Thedisplaywillshow
you the number. As more parts are added the display will show the total
numberofparts(PCS–willbeshowninthealpha‐numericdisplay).
6) Bypressingthe[Mode]keyyoucanviewtheunitweight(W/P),totalweight
(g)orthecount(PCS).Thetotalandtheunitweightareshowninthecurrent
weighingunits.
7) Press[Smpl]toreturntonormalweighing.
5.3 ACCUMULATION
Therearetwotypesofaccumulations–automaticandmanual.
AutomaticAccumulation ManualAccumulation
Whenthebalanceissetforautomatic
accumulation, see Parameters 6.3
Setting the Printer Parameters /
Accumulation, the weight will be added
tothememorywhenthebalance
becomesstable.
Whenthebalance issettomanual
accumulation, see Parameters 6.3
Setting the Printer Parameters /
Accumulation, the weight displayed will
onlybestoredinmemoryoncethe
[Print] key is pressed and the weight is
stable.
1) Place the weight on the balance. If automatic then the balance will
automaticallyaccumulate theweight.If settomanual thenyouwillneedto
pressthe[Print]key.
2) ThedisplaywillshowACC 1followedbythetotalvalueinthememoryfor2
secondsbeforereturningtodisplayingtheweightoftheitemonthebalance.
3) TheweightwillbetransmittedtoaprinterorPC.
4) Removetheweight,allowingthebalancetoreturntozero.
5) Put a second weight on. If set to automatic it will accumulate the weight
automatically.Ifinmanualmode,press[Print],thedisplaywillshowACC 2
EN
© Adam Equipment Company 2018 13
followedbythenewtotalinthememoryfor2secondsbeforereturning to
displayingtheweightoftheitemonthebalance.
6) Continueuntilallweightshavebeenadded.
Toviewthetotalsinmemorypressthe[Print]keywhenthebalanceisatzero.The
displaywillshowACC xx(where“xx”isthetotalnumberofreadings)andthetotal
weight,beforereturningtozero.Atthesametimethetotalwillalsobesentviathe
RS‐232interface.
Toclearthememory,press[Smpl] once the total accumulation value is displayed
afterpressing[Print].
EN
© Adam Equipment Company 2018 14
6.0 PARAMETERS
Non‐approvedbalanceshave8parametersthatcanbesetbytheuser.
FUNCTION SECTION DESCRIPTION
F1UNT
Seesection6.1 Setstheunitstobeused
g/ct/Lb/oz/d/GN/OZt/dWt/MM/TL.T/TL.C/TL.t/t
/N/g2.
F2EL Seesection6.2 Setsthebacklightandaudiblealertbeep(SWver.2.5onwards)
F3SEr Seesection6.3 Setstheprintparameters
F4oFF Seesection6.4 Setstheautopower‐offparameter
F5IEC Seesection6.5 Internalorexternalcalibrationselect
F6CA Seesection6.6 Calmassfineadjust
F7SEt Seesection6.7 UserParametersforautozero,filterandstability
tECH Serviceagentsonly Technical parameterssettingmode/factorysetting
Approvedbalanceshave5parametersthatcanbesetbytheuser.
FUNCTION SECTION DESCRIPTION
F1EL Seesection6.2 Setsthebacklightandaudiblealertbeep(SWver.2.5onwards)
F2SEr Seesection6.3 Setstheprintparameters
F3oFF Seesection6.4 Setstheautopower‐offparameter
F4SEt Seesection6.7 UserParametersforautozero,filterandstability
tECH Serviceagentsonly Technicalparameterssettingmode/factorysetting
6.1 ENABLINGWEIGHINGUNITS(NOTAPPROVEDMODELS)
Youcanenableanddisabletheweighingunitsavailabletotheuserwhentheypress
the[Mode]keyasdescribedinsection4.4WeighingUnits.
1) Tosetthisparameterpressandholdthe[Mode]keyduringself‐checkingtest
whenturningonthebalance.
2) Afterafewseconds,thedisplaywillshowthefirstfunctionF1 UNT.
3) Pressthe[‐>0/T<‐]keytoviewthecurrentsettingsofeachunit.
4) Pressingthe[‐>0/T<‐]keywillcyclethroughtheotherunitsalongwiththeir
currentsettings.Forexample,ifoFFisdisplayedwiththeweighingunitCarats,
theuserwillnotbeabletousethisunitwhileweighing.
EN
© Adam Equipment Company 2018 15
5) Pressing the [Mode] keywill change the setting of a particular unit. For
example, to enable the weighing unit Carats, change the settingtoonby
pressingthe[Mode]key.
6) WhenF1 Untisdisplayed,youcanpressthe[Print]keytoreturntoweighing
orpress[Mode]togotothenextfunction.
The following table shows different units which are available to the user and the
conversionfactorsforeach(Note:Approvedmodelshaveg/kg/ctonly;aMmodels
haveg,ct,oz,gr,ozt.Certainmodelsinclude:kg/lb)
NAME OF
THEUNITS
DESCRIPTION CONVERSION
FACTOR
DISPLAY
SYMBOL
Grams Astandardmetricunit 1.0 g
Carats Used
f
orweighingjewelryandgems,etc. 5.0 ct
Pounds StandardweighingunitinUK/USA. * 0.0022046 Lb
Ounce Avoirdupoisounce.
16ouncesmakeapound.
0.035274 oZ
Drams Anancientunitofweight.Equal to1/16th
ofanounce.
0.564383 d
Grains Abasicweighing unitintheimperial
system.Usedtoweighgunpowder.
15.43236 GN(gr)
OunceTroy Troyounce‐usedforweighinggold,silver
andinpharmacy.
0.03215075 oZt
Pennyweight Pennyweightwastheweightofasilver
penny in medieval England. Equals to
1/20thofanOunceTroy.
0.6430149 dwt
Mommes A weighing unit used in Japan to weigh
pearls.
0.266667 MM
TaelsHk. Hongkong Taels‐ used to weigh coral,
pearls,etc.
0.026717 TL.H
TaelsC. China(Singapore)Taels 0.026455 TL.C
Taelst. TaiwanTaels 0.026667 TL.t
Tola AnAsianweighingunit 0.085735 t
Newtons Usedtomeasureforce 0.009807 N
Grams Gramswithlastdigitsuppressed 1.0 g2
TalesJ. JapanTaels 0.026717 TL.J
*LbsarenotavailableonHCB 123Model
EN
© Adam Equipment Company 2018 16
6.2 SETTINGTHEBACKLIGHTANDAUDIBLEALERTBEEP
The backlight and audible alert may be enabled or disabled by the user. If the
backlight is disabled, the battery life will be greater. The following settings are
available:(beepsettingsavailableinSWver.2.5onwards)
bL AU Setsthebacklighttooperateautomaticallywhenaweightis
placedonthebalanceorakeyispressed.
bL off Setsthebacklighttobeoff.
bL on Setsthebacklighttobepermanentlyon.
bPon Setsaudiblealertbeepon
bPoFF Setsaudiblealertbeepof
f
1) To set this parameter press the [Mode] key during self‐checking test when
turningonthebalance.
2) Afterafewseconds,thedisplaywillshowthefirstfunctionF1 UNT.
3) Pressthe[Mode]keytoselectF2 EL.
4) Pressthe[‐>0/T<‐]keyoncetoviewthecurrentsettingsforthebacklight,and
twicetoviewsettingsforthealertbeep.
5) Tochangethesettingspressthe[Mode]keytoscrollthroughothersettings
asshownabove.
6) Press [‐>0/T<‐] to store a particular setting. Press again until the display
returnstoF2 EL
7) WhenF2 EL isdisplayed pressthe[Print] keytoreturntoweighingorpress
[Mode]togotothenextfunction.
6.3 SETTINGTHEPRINTINGPARAMETERS/ACCUMULATION
1) To set this parameter press the [Mode] key during self‐checking test when
turningonthebalance.
2) Afterafewseconds,thedisplaywillshowthefirstfunctionF1 UNT.
3) Keeppressingthe[Mode]keyuntilF3 SErisdisplayed.
4) Pressthe[‐>0/T<‐]keytoviewthecurrentsettings.
EN
© Adam Equipment Company 2018 17
5) Firstselectwhichcommunicationportyouwishtoconfigureandset(onlyone
portcanbeusedatatime).
Thescreen willshow S 232orS USb. Pressthe [Mode] keytoselectwhich
interface you would like to use. Press [‐>0/T<‐] toconfirm setting and
configureinterface.
6) The following options are available for setting the output and accumulation
functions:
MODE PRINTFEATURE ACCUMULATION
P1 Prt Dataissentwheneverthe[Print] keyis
pressed.
Manualaccumulationwhen
the[Print]keyispressed.
P2 Con Dataissentcontinuously. Accumulationisdisabled.
P3 AUT Theweighingresultswillbesenttothe
communicationportautomatically
wheneverastablereadingispresent.
Thebalancehastoreturntozero
beforeanotherreadingissentviathe
interface.
Automaticaccumulationwhen
stable
Press the [Mode]keytochangethesetting.Press[‐>0/T<‐] toconfirmand
movetothenextparameter.
7) Settingthebaudrate.Thisisthetransmissionspeedforcommunicationwith
printers and computers. The selected rate must match that of the other
deviceforcommunicationstowork.
Thefollowingsettingsareavailable:
b 600
b 1200
b 2400
b 4800
b 9600
EN
© Adam Equipment Company 2018 18
Press the [Mode]keytochangethesetting.Press[‐>0/T<‐] toconfirmand
movetothenextparameter.
8) Paritysettings.Parityisacommunicationscheck.Thereare3settingsthatthe
Highlandcanworkwithasfollows:
8 n 1 8 data bits, no parity
7 E 1 7 data bits, even parity
7 0 1 7 data bits, odd parity
Press the [Mode]keytochangethesetting.Press[‐>0/T<‐] toconfirmand
movetothenextparameter.
9) Formatsettings.Thescalewillprinteitherusingaformatthat includes
stabilityindicationsoronewithonlytheweight.Thereare2settingsthatthe
Highlandcanworkwithasfollows:
FOr 1 Data format is with line headings and
extra line feeds as shown in section 9.3
FOr2 Data format is weight only
Press the [Mode]keytochangethesetting.Press[‐>0/T<‐] toconfirmand
movetothenextparameter.
10) The display will go back showing F3 SEr. Press the [Print] key to return to
weighingorpress[Mode]togotothenextfunction.
6.4 AUTOPOWEROFF
Theautopowerofffunctionhelpsconservepower,whenusingthe internal
rechargeablebatteryorDCadapter.TheAutoswitch‐offtimemaybesetupbythe
user.
1) To set this parameter press the [Mode] key during self‐checking test when
turningonthebalance.
2) Afterafewseconds,thedisplaywillshowthefirstfunctionF1 UNT.
EN
© Adam Equipment Company 2018 19
3) Keeppressingthe[Mode]keyuntilF4 oFFisdisplayed.
4) Pressthe[‐>0/T<‐]keytoviewthecurrentsettings.
5) Press[Mode]tochangethesettings(0,5,10,20and30minutes).
6) Press[‐>0/T<‐]tostoreaparticularsetting.ThedisplaywillreturntoF4 oFF
7) WhenF4 oFFisdisplayedpressthe[Print]keytoreturntoweighingorpress
[Mode]togotothenextfunction.
6.5 SELECTINGTHEINTERNALOREXTERNALCALIBRATION(NOTPOSSIBLEON
APPROVEDMODELS)
Youcanselectiftheinternalmassoranexternalmassistobeusedtocalibratethe
balance.
1) To set this parameter press the [Mode] key during self‐checking test when
turningonthebalance.
2) Afterafewseconds,thedisplaywillshowthefirstfunctionF1 UNT.
3) Keeppressingthe[Mode]keyuntilF5 IECisdisplayed.
4) Pressthe[‐>0/T<‐]keytoviewthecurrentsettings.
5) To change the settings press the [Mode] keyto change from INt(internal
calibration)orE(externalcalibration)
6) Press[‐>0/T<‐]tostoreaparticularsetting.ThedisplaywillreturntoF5 IEC
7) WhenF5 IEC isdisplayedpressthe[Print]keytoreturntoweighingorpress
[Mode]togotothenextfunction.
EN
© Adam Equipment Company 2018 20
6.6 ADJUSTTHEVALUEOFTHEINTERNALMASS(NOTPOSSIBLEONAPPROVED
MODELS)
Theinternalmassvaluestoredinmemorycanbeadjustedtomore closely match
thevalueoftheuser’sexternalmass.
1) To set this parameter press the [Mode] key during self‐checking test when
turningonthebalance.
2) Afterafewseconds,thedisplaywillshowthefirstfunctionF1 UNT.
3) Keeppressingthe[Mode]keyuntilF6 CAisdisplayed.
4) Pressthe[‐>0/T<‐]keytoviewthecurrentsettings.
5) Thedisplaywillshowthecurrentvaluewiththefirstdigitflashing.Tochange
thevaluepress[%] toshifttheposition,press[Mode] toincreasethevalue
andpress[Print]todecreasethevalue.Theinternalcalibrationweightshould
onlychangebetween95.000 and 105.000gramsor495.00and505.00grams
(dependinguponthemodel).
6) Press[‐>0/T<‐]tostoreaparticularsetting.Thedisplaywillreturn
toF6 CA
7) When CA is displayed, press the [Print]keytoreturntoweighingorpress
[Mode]togotothenextfunction.
NOTE: Changingthevalueoftheinternalweightwillaffectthecalibration when
usingtheinternalcalibration.Tocheckifyourinternalweightiscorrectyoushould
onlyusehighqualityweightsthatareaccuratetothereadabilityofthebalance.
This manual suits for next models
12
Table of contents
Languages:
Other Adam Equipment Scale manuals
Adam Equipment
Adam Equipment LBK-3/6a User manual
Adam Equipment
Adam Equipment HIGHLAND HCB123 User manual
Adam Equipment
Adam Equipment MDW-160M User manual
Adam Equipment
Adam Equipment MDW-250L User manual
Adam Equipment
Adam Equipment CBC SERIES User manual
Adam Equipment
Adam Equipment CORE SERIES User manual
Adam Equipment
Adam Equipment CBC 3 User manual
Adam Equipment
Adam Equipment AQ Series User manual
Adam Equipment
Adam Equipment NBL 84 e/i User manual
Adam Equipment
Adam Equipment AGB Series User manual
Adam Equipment
Adam Equipment Nimbus NBL Serie User manual
Adam Equipment
Adam Equipment CBK-M Series User manual
Adam Equipment
Adam Equipment NETS ME Price User manual
Adam Equipment
Adam Equipment AQT Series User manual
Adam Equipment
Adam Equipment ACBplus Series User manual
Adam Equipment
Adam Equipment ECLIPSE User manual
Adam Equipment
Adam Equipment HIGHLAND SERIES User manual
Adam Equipment
Adam Equipment AEA Series User manual
Adam Equipment
Adam Equipment WBW 3M User manual
Adam Equipment
Adam Equipment DCT 201 User manual
Popular Scale manuals by other brands
Silvercrest
Silvercrest SPWD 180 F1 Operating instructions and safety instructions
Silvercrest
Silvercrest 102539 operating instructions
My Weigh
My Weigh PHOENIX 2 user manual
My Weigh
My Weigh iBalance i5500 instruction manual
Silvercrest
Silvercrest SKW 3 EDS A1 operating instructions
Silvercrest
Silvercrest 309564 Operation and safety notes
