Adam Equipment MDW-160M User manual

© Adam Equipment Company 2017 Manual P.N. 4283, Revision C, July 2017
Adam Equipment
MDW-160 & MDW-200
(Includes ‘B’ and ‘M’ versions)
MECHANICAL HEALTH AND FITNESS SCALE
(Manual P.N. 4283, Revision C, July 2017)
MDW “M” MDW “B”

© Adam Equipment Company 2017 Manual P.N. 4283, Revision C, July 2017

©AdamEquipmentCompany2017  1  Manual P.N. 4283, Revision B8, July 2017
CONTENTS
1.INTRODUCTION .......................................................................................................... 2
2.SPECIFICATIONS ........................................................................................................ 3
3.INSTALLATION ............................................................................................................ 4
3.1GENERAL INSTALLATION ................................................................................... 4
3.2HEIGHT ROD INSTALLATION (‘M’ VERSIONS ONLY) .............................................. 6
3.3TRANSPORT WHEEL INSTALLATION (‘M’ VERSIONS ONLY) ................................. 8
4.MEASURING HEIGHT (‘M’ VERSIONS ONLY) ........................................................... 9
5.WEIGHING OPERATION ........................................................................................... 10
6. WARRANTY INFORMATION .................................................................................... 13

©AdamEquipmentCompany2017  2  Manual P.N. 4283, Revision B8, July 2017
1. INTRODUCTION
 The MDW-160 & MDW-200 Health and Fitness Scales are mechanical
scales (also known as physicians scales) which can accurately weigh a
person. Models with a ‘B’ suffix are for weighing only. Models with an ‘M’
suffix also include an integrated mechanical height measurement gauge.
 The scales are easy to assemble and simple to use. ‘M’ versions include a
wheel attachment at the base of the scale so they can be moved around
more easily.
 The MDW-160 & MDW-200 scales are widely applicable for use in business,
schools, hospitals, clinics and sports departments.

©AdamEquipmentCompany2017  3  Manual P.N. 4283, Revision B8, July 2017
2. SPECIFICATIONS
MODEL MDW-160M & MDW160B MDW-200M & MDW-200B
Capacity 160 kg / 350 lb. 200 kg / 440 lb.
Readability 100 g / ¼ lb
Platform Size 375 mm x 275 mm /
14.8” x 10.8”
Overall
dimensions
560 mm x 275 mm x 1495 mm /
20.9” x 10.8” x 58.5”
Height
measurement
(‘M’ versions only)
Range: 60 cm / 23 5/8’’ to 210 cm / 84”
Readability: 0.1 cm / 1/8”
Gross weight 16 kg / 35 lb

©AdamEquipmentCompany2017  4  Manual P.N. 4283, Revision B8, July 2017
3. INSTALLATION
3.1 GENERAL INSTALLATION
This precision instrument is extremely easy to set up, as all major parts are
factory pre-assembled.
Hardware supplied for installation:
 Qty. 8: M5 x 10 screws
 Qty. 10: Lock washers
 Qty. 2: M6 x 10 screws
 Qty. 1: Assembly Tool (Wrench)

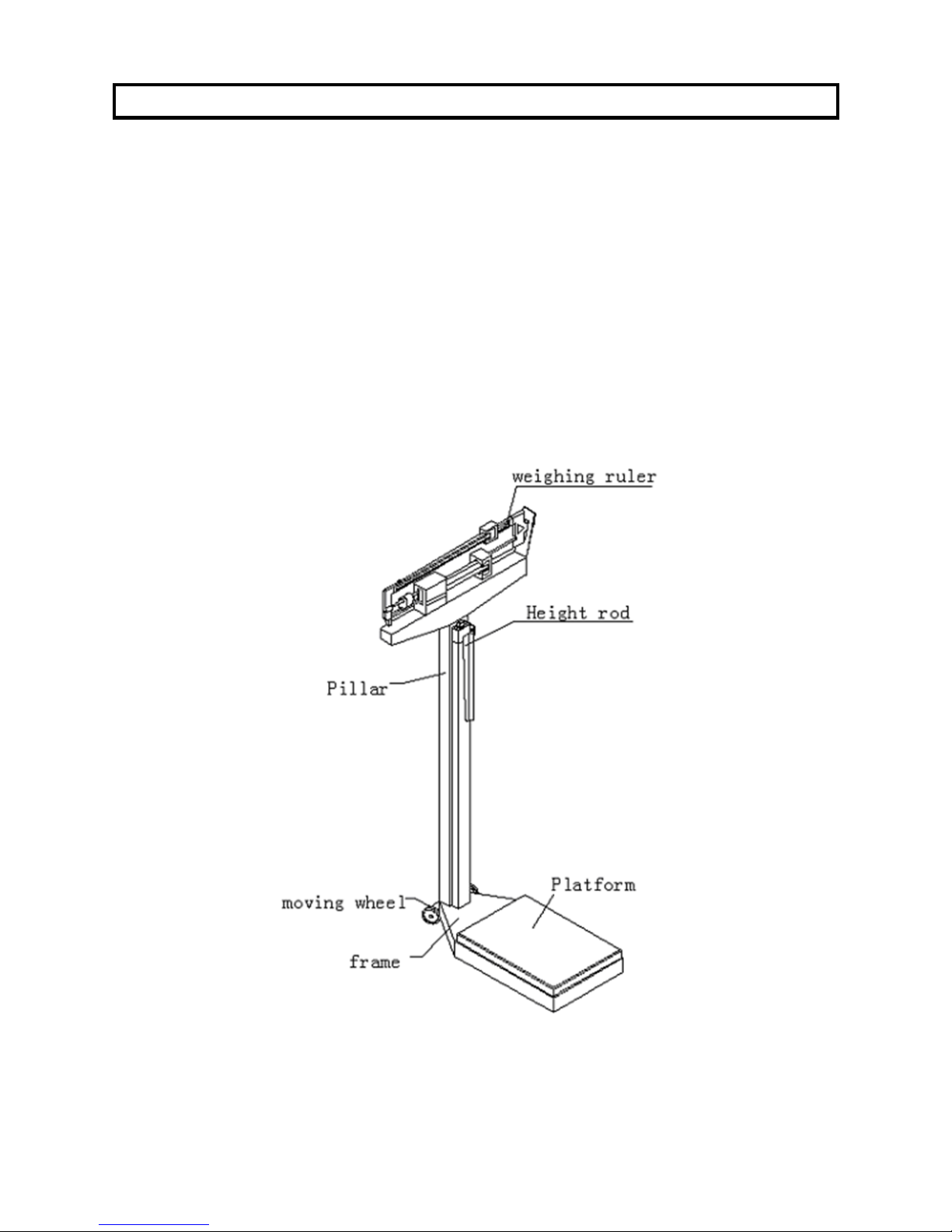

MDW ‘M’ version with wheels and height rod

©AdamEquipmentCompany2017  5  Manual P.N. 4283, Revision B8, July 2017
NOTE: If the pillar bracket is bent, straighten it before assembling.
Pillar Installation
 With the scale upright, slip the pillar over the bracket on the frame.
 Use the 8 screws and lock washers to fix the pillar in a vertical position.

©AdamEquipmentCompany2017  6  Manual P.N. 4283, Revision B8, July 2017
 Lay down the scale, with column horizontal to the floor (use a table if
possible).
 Remove the wires on the levers
 Insert the assembly tool (wrench) into the small hole in front of the
steelyard rod, and pull the hook of the steelyard rod with the hook of
wrench
 Push the long lever frontward, then hook the bearing of the steelyard
rod on the pivot of the long lever.
 Remove the wrench from the draft rod.
 Put the scale on the floor gently.
3.2 HEIGHT ROD INSTALLATION (‘M’ versions only)

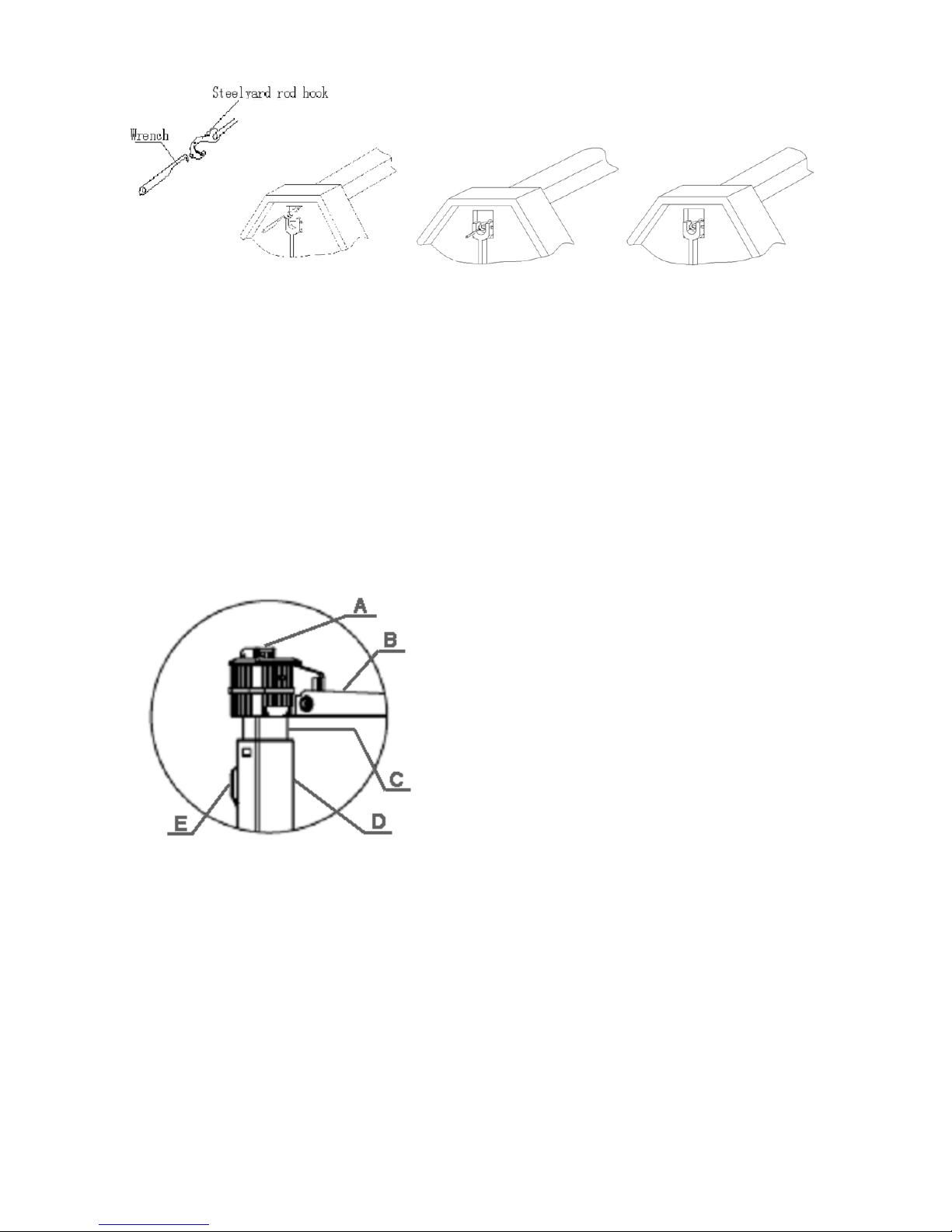

A. Latch to lock/unlock the
measuring arm
B. The measuring arm
C. The inner height rod
D. The outer height rod
E. Two height rod clamping brackets
for fixing the height rods assembly
to the pillar. One hexagonal headed
screw is required for each bracket.

©AdamEquipmentCompany2017  7  Manual P.N. 4283, Revision B8, July 2017
Insert the rear holes of the height rod into the two bolts on the front of the pillar,
loosen the height rod downwards on right position.
Use the wrench to tighten the two hex-head screws. Do not over tighten the screws.
Remove the wrench from the two hex-head screws.

©AdamEquipmentCompany2017  8  Manual P.N. 4283, Revision B8, July 2017
3.3 TRANSPORT WHEEL INSTALLATION (‘M’ versions only)
 Turn the wheel bracket so with one side facing upwards, the other side with
two holes should be opposite to the rear of frame.
 Use the screws and washers to fix the wheel to the platform, adjust the bracket
to a level position, then tighten the screws.
 When moving the scale, hold the two side faces of the pillar to keep the front
edge of the platform away from the floor.
