Function Description
Digital inputs/outputs
APCIe-1711, CPCIs-1711, APCI-1710 and CPCI-1710
Multifunction counter board, optically isolated

Product information
This manual contains the technical installation and important instructions for correct commissioning
and usage, as well as production information according to the current state before printing.
The content of this manual and the technical product data may be changed without prior notice.
ADDI-DATA GmbH reserves the right to make changes to the technical data and the materials included
herein.
Warranty and liability
The user is not authorised to make changes to the product beyond the intended use, or to interfere
with the product in any other way.
ADDI-DATA shall not be liable for obvious printing and phrasing errors. In addition, ADDI DATA, if
legally permissible, shall not be liable for personal injury or damage to materials caused by improper
installation and/or commissioning of the product by the user or improper use, for example, if the
product is operated despite faulty safety and protection devices, or if notes in the operating
instructions regarding transport, storage, installation, commissioning, operation, thresholds, etc. are
not taken into consideration. Liability is further excluded if the operator changes the product or the
source code files without authorisation and/or if the operator is guilty of not monitoring the
permanent operational capability of working parts and this has led to damage.
Copyright
This manual, which is intended for the operator and its staff only, is protected by copyright.
Duplication of the information contained in the operating instructions and of any other product
information, or disclosure of this information for use by third parties, is not permitted, unless this right
has been granted by the product licence issued. Non-compliance with this could lead to civil and
criminal proceedings.
ADDI-DATA software product licence
Please read this licence carefully before using the standard software. The customer is only granted the
right to use this software if he/she agrees with the conditions of this licence.
The software may only be used to set up the ADDI-DATA products.
Reproduction of the software is forbidden (except for back-up and for exchange of faulty data
carriers). Disassembly, decompilation, decryption and reverse engineering of the software are
forbidden. This licence and the software may be transferred to a third party if this party has acquired a
product by purchase, has agreed to all the conditions in this licence contract and the original owner
does not keep any copies of the software.
Trademarks
•ADDI-DATA, APCI-1500, MSX-Box and MSX-E are registered trademarks of ADDI-DATA GmbH.
•Turbo Pascal, Delphi, Borland C, Borland C++ are registered trademarks of Borland Software
Corporation.
•Microsoft .NET, Microsoft C, Visual C++, MS-DOS, Windows XP, Windows 7, Windows 8,
Windows 10, Windows Server 2000, Windows Server 2003, Windows Embedded and Internet
Explorer are registered trademarks of Microsoft Corporation.
•Linux is a registered trademark of Linus Torvalds.
•LabVIEW, LabWindows/CVI, DASYLab, DIAdem are registered trademarks of National Instruments
Corporation.
•CompactPCI is a registered trademark of PCI Industrial Computer Manufacturers Group.
•VxWorks is a registered trademark of Wind River Systems, Inc.
•RTX is a registered trademark of IntervalZero.
www.addi-data.com 2

Warning!
The following risks result from the improper implementation of the
board and from use contrary to the regulations:
Personal injury
Damage to the board, the PC and peripherals
Pollution of the environment.
Protect yourself, others and the environment!
Read the safety precautions (yellow leaflet) carefully!
If this leaflet is not enclosed with the documentation, please contact us
and ask for it.
Observe the instructions of this manual!
Make sure that you do not forget or skip any step!
We are not liable for damages resulting from the wrong use of the board.
Pay attention to the following symbols:
NOTICE!
Designates hints and other useful information.
NOTICE!
Designates a possibly dangerous situation.
If the instructions are ignored, the board, the PC and/or
peripherals may be destroyed.
WARNING!
Designates a possibly dangerous situation.
If the instructions are ignored, the board, the PC and/or
peripherals may be destroyed and persons may be endangered.
www.addi-data.com 3

Contents Digital I/O
Contents
Warning! ...................................................................................................................................... 3
Chapter overview........................................................................................................................ 5
1Function description ........................................................................................................ 6
1.1 Board versions with “Digital I/O” function....................................................................................6
1.2 Block diagram ..................................................................................................................................7
1.3 Used signals ......................................................................................................................................8
1.4 Pin assignment: Function modules .................................................................................................9
1.5 Connecting the signal generators ................................................................................................10
1.5.1 Connection to the screw terminal panel......................................................................................10
1.6 Connection example......................................................................................................................12
1.7 Procedure for using the “Digital I/O” function ...........................................................................12
2Standard software ......................................................................................................... 13
3Appendix ........................................................................................................................14
3.1 Index ...............................................................................................................................................14
4Contact and support ...................................................................................................... 15
Figures
Fig. 1-1: Block diagram: “Digital I/O” function......................................................................................7
Fig. 1-2: Pin assignment: 50-pin D-Sub male connector (4 Digital I/O modules) .................................9
Fig. 1-3: Pin assignment: 78-pin D-Sub female connector (APCIe-1711 and CPCIs-1711)..................10
Fig. 1-4: Digital I/O connection example ..............................................................................................12
Tables
Table 1-1: Board versions with “Digital I/O” function..............................................................................6
Table 1-2: Used signals................................................................................................................................8
Table 1-3: Connection of the signal generators to the screw terminal panel ......................................11
www.addi-data.com 4

Chapter overview Digital I/O
Chapter overview
In this function manual, you will find the following information:
Chapter Content
1 Function description including block diagram and pin assignment
2 Standard software: Information on the API software functions
3 Appendix with index
4 Contact and support address
This document solely describes the function “Digital I/O”.
For general information on the APCIe-/CPCIs-1711 or APCI-/CPCI-1710, please read the respective
Technical Description of these boards (see PDF links). It contains, for example, the chapter “Inserting
and installing the board” that supports you in commissioning.
www.addi-data.com 5

Function description Digital I/O
1Function description
The function “Digital I/O” allows for an easy control or monitoring of single differential, TTL or 24 V
signals.
A function module with this function has:
•2 differential RS422 inputs or outputs (software-selectable), can also be used as TTL inputs or
outputs
•2 differential RS422 inputs (software-selectable), can also be used as TTL inputs
•3 GND-related 24 V inputs, optional 5 V
•1 digital 24 V output, load to GND (APCIe-/CPCIs-1711: 5-36 V, APCI-/CPCI-1710: 10-36 V /
500 mA)
Features:
•4 function modules per board
•Optical isolation of the inputs and outputs through opto-couplers to prevent ground loops
1.1 Board versions with “Digital I/O” function
NOTICE!
With the 24 V version of the APCIe-1711, CPCIs-1711 or
APCI-1710, the “Digital I/O” function can be used only to a
limited extent.
Table 1-1: Board versions with “Digital I/O” function
Board version “Digital I/O”
function
APCIe-1711 x
APCIe-1711-24V x*
APCIe-1711-5V-I x
APCIe-1711-10MHz
x
CPCIs-1711 x
CPCIs-1711-24V x*
CPCIs-1711-5V-I x
APCI-1710 x
APCI-1710-24V x*
APCI-1710-5V-I x
APCI-1710-5V-I-O x
www.addi-data.com 6

Function description Digital I/O
Board version “Digital I/O”
function
CPCI-1710 x
* Pin Ax or Bx: Only the 24 V input can be used and not the 24 V output.
The I/O specifications of the different board versions are available in the Technical Description of the
APCIe-/CPCIs-1711 or APCI-/CPCI-1710 (see PDF links).
1.2 Block diagram
Fig. 1-1: Block diagram: “Digital I/O” function
www.addi-data.com 7

Function description Digital I/O
1.3 Used signals
If the “Digital I/O” function is implemented on all four function modules, a total of 32 channels are
available, of which a maximum of 28 can be used as digital inputs (A to G) or a maximum of 12 as
digital outputs (A, B and H).
Table 1-2: Used signals
Signal name Pin name Signal type Function
DIG_IO_Ax+/- Ax+/- Differential/TTL/
24 V*
Digital input/output
(only input with 24 V*)
DIG_IO_Bx+/- Bx+/- Differential/TTL/
24 V*
Digital input/output
(only input with 24 V*)
DIG_IN_Cx+/- Cx+/- Differential/TTL/
24 V*
Digital input
DIG_IN_Dx+/- Dx+/- Differential/TTL/
24 V*
Digital input
DIG_IN_Ex Ex 24 V / optional 5 V Digital input
DIG_IN_Fx Fx 24 V / optional 5 V Digital input
DIG_IN_Gx Gx 24 V / optional 5 V Digital input
DIG_OUT_Hx Hx 24 V** Digital output
x = Number of the function module (0-3)
* 24 V with 24 V board version
** APCIe-/CPCIs-1711: 5-36 V, APCI-/CPCI-1710 10-36 V
www.addi-data.com 8

Function description Digital I/O
1.4 Pin assignment: Function modules
Fig. 1-2: Pin assignment: 50-pin D-Sub male connector (4 Digital I/O modules)
Pin 34: see Technical Description of the board
This pin assignment also applies to the APCIe-1711 or CPCIs-1711 if the cable ST1711-50 is connected
to the 78-pin D-Sub female connector of the board. For further information on this, please refer to the
Technical Description of the APCIe-1711 and CPCIs-1711 (see PDF link).
www.addi-data.com 9

Function description Digital I/O
www.addi-data.com 10
Fig. 1-3: Pin assignment: 78-pin D-Sub female connector (APCIe-1711 and CPCIs-1711)
FM = Function module
* Pins 52 and 72: see Technical Description of the board
1.5 Connecting the signal generators
1.5.1 Connection to the screw terminal panel
On the screw terminal panel PX8001, the pins of the 50 pin D-Sub female connector and the terminals
connected to them are numbered in the same way. Thus, the terminal assignment of the screw
terminal panel is identical with the pin assignment of the 50-pin D-Sub male connector of the
APCI-/CPCI-1710 or with that of the 50-pin D-Sub male connector on the ST1711-50 cable
(APCIe-/CPCIs-1711).
The following table is to serve as a help for you when connecting the signal generators to the screw
terminal panel. The blank fields in the “Signal generator” column can be filled in on the basis of the
selected signal generator type.

Function description Digital I/O
Table 1-3: Connection of the signal generators to the screw terminal panel
Signal generator Screw terminal panel PX8001 (50-pin)
Terminal No.
Pin No. Pin name Lead colour
(cable) Signal name
Terminal
name Signal type
FM0 FM1 FM2 FM3
Terminal function
+24 V / URef +24 V / URef +24 V / URef - 34 34 34 34
see Technical Description
of the board
GND GND GND - 1 1 1 1 Ground
DIG_IO_Ax+ Ax+ Diff./TTL/24 V* 2 10 18 26
DIG_IO_Ax- Ax- Diff./TTL/24 V* 3 11 19 27
Digital input/output
(only input with 24 V*)
DIG_IO_Bx+ Bx+ Diff./TTL/24 V* 4 12 20 28
DIG_IO_Bx- Bx- Diff./TTL/24 V* 5 13 21 29
Digital input/output
(only input with 24 V*)
DIG_IN_Cx+ Cx+ Diff./TTL/24 V* 6 14 22 30
DIG_IN_Cx- Cx- Diff./TTL/24 V* 7 15 23 31
Digital input
DIG_IN_Dx+ Dx+ Diff./TTL/24 V* 8 16 24 32
DIG_IN_Dx- Dx- Diff./TTL/24 V* 9 17 25 33
Digital input
DIG_IN_Ex Ex 24 V / opt. 5 V 39 40 41 42 Digital input
DIG_IN_Fx Fx 24 V / opt. 5 V 43 44 45 46 Digital input
DIG_IN_Gx Gx 24 V / opt. 5 V 47 48 49 50 Digital input
DIG_OUT_Hx Hx 24 V** 35 36 37 38 Digital output
- - - - - - - -
- - - - - - - -
- - - - - - - -
- - - - - - - -
x = Number of the function module (0-3) ** APCIe-/CPCIs-1711: 5-36 V, APCI-/CPCI-1710 10-36 V * 24 V with 24 V board version
www.addi-data.com 11

Function description Digital I/O

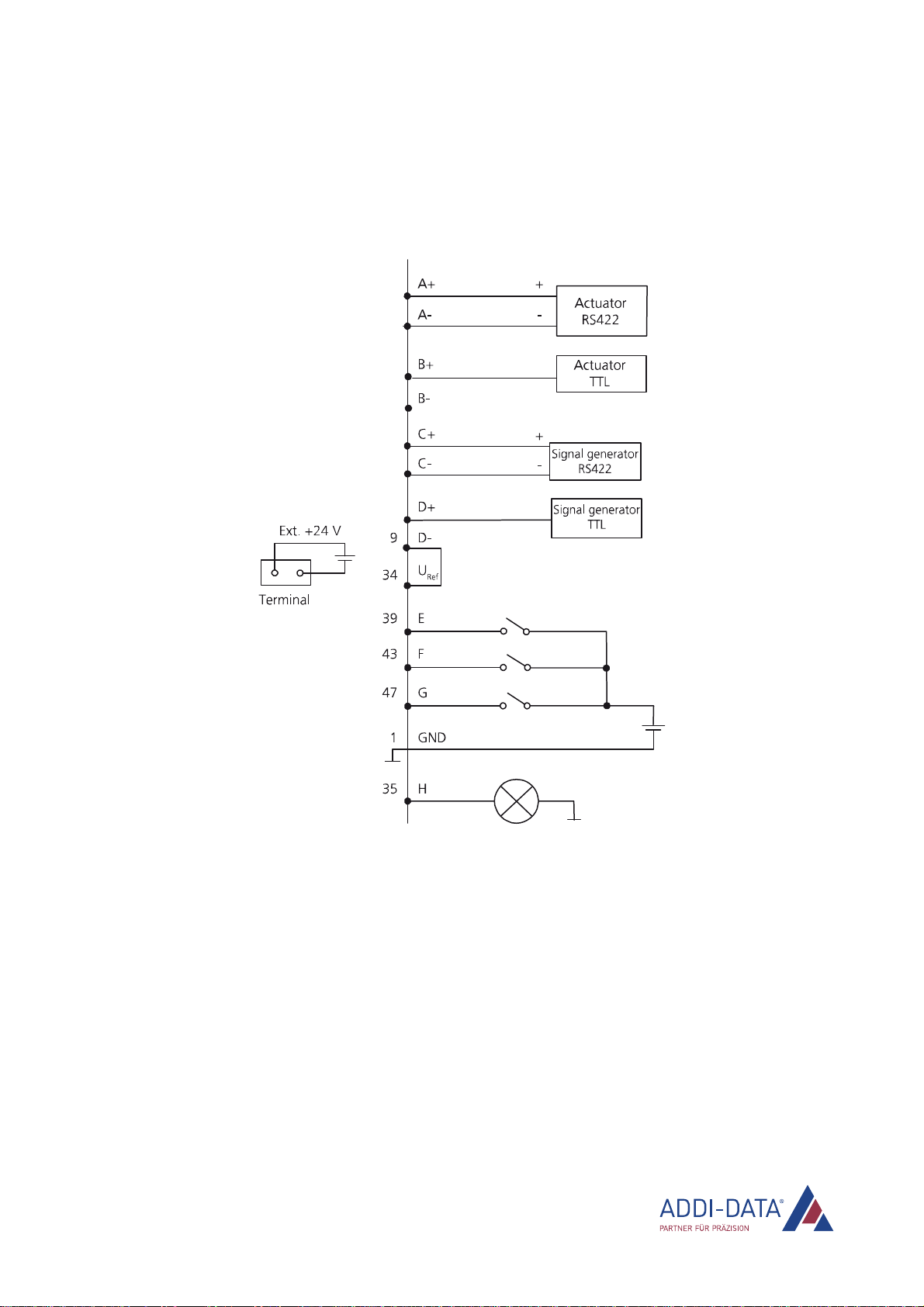

1.6 Connection example
Programming (Function module 1): A = output, B = input
Fig. 1-4: Digital I/O connection example
1.7 Procedure for using the “Digital I/O” function
In order to use the “Digital I/O” function, the following steps need to be performed:
1. Select the function module(s).
2. Select the channels.
3. Connect the signals.
4. Initialise the A and B channels as inputs or outputs.
5. Control the outputs.
6. Read the inputs.
www.addi-data.com 12

Standard software Digital I/O
2Standard software
The API software functions supported by the board are listed in an HTML document. A description of
how to access the respective file can be found in the document “Quick installation PC boards”
(see PDF link), in the chapter “Standard software”.
www.addi-data.com 13

Appendix Digital I/O
3Appendix
3.1 Index
Block diagram 7
Board versions 6
Connection
Signal generators 10
Connection example 12
Pin assignment 9
Signals 8
Standard software 13
www.addi-data.com 14

Contact and support Digital I/O
4Contact and support
Do you have any questions? Write or call us:
Address: ADDI-DATA GmbH
Airpark Business Center
Airport Boulevard B210
77836 Rheinmünster
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
Manual and software download from the Internet:
www.addi-data.com
www.addi-data.com 15
